Argos New Hallingford 228/6640 User manual

Assembly Instructions - Please keep for future reference
Issue 5 - 07/05/14
Ruler - Use this ruler to help correctly identify the screws
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
MADE IN
BRITAIN
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: [email protected] (quoting your original order number)
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 74cm
Depth - 40cm
Height - 74.5cm
ALR2978
228/6640
247/6560
268/1427
255/8660
258/9835
New Hallingford - 3+2 Drawer Chest
Issue 2 - 20/11/13 - Changed to Click helpline number
Issue 3 - 12/03/14 - Knock-in Pegs changed to Grey.
16 Wedgefixes added.
4 Plastinails added.
Drawer box sizes increased.
Issue 4 - 21/04/14 - Add‘New’ to title.
Change weight to 27kg
Issue 5 - 07/05/14 - Removed note about locking nuts in steps 2, 3, 10 and 11.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 27kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

2
80%
x2

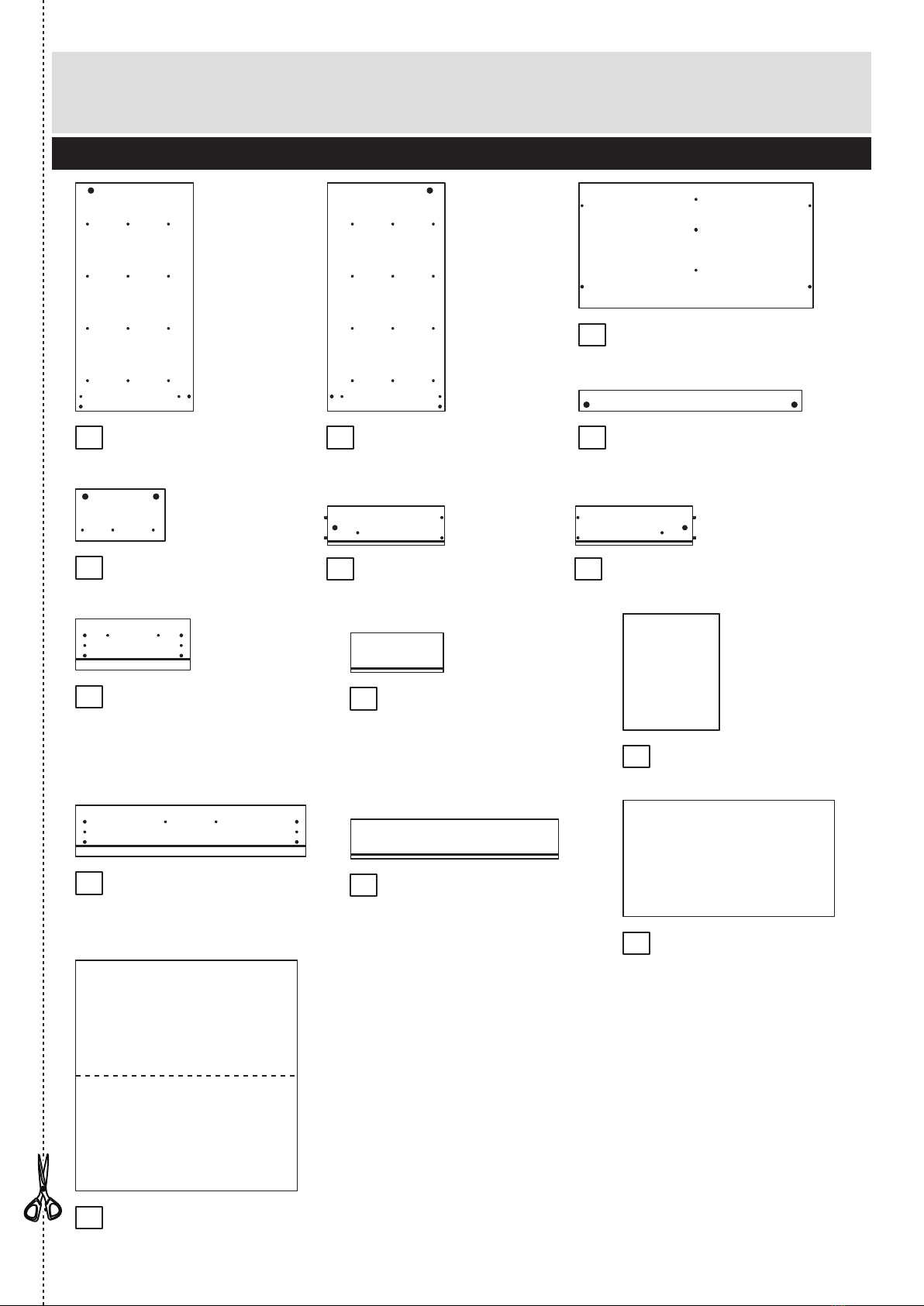

Components - Panels
Please check you have all the panels listed below
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
1
Top (D2311A)
(740 x 396mm)
Divider (D2314A)
(165 x 282mm)
Small Drawer Front (D2309A)
(362 x 162mm) x 2
Left Side (D2312A)
(721 x 372mm)
5
2Right Side (D2313A)
(721 x 372mm)
10
4
3
89
Rail (D2315A)
(705 x 66mm) x 2
Large Drawer Front (D2316A)
(727 x 162mm) x 3
Large Drawer Base (T668-367)
(668 x 367mm) x 3
Small Drawer Base (T304-367)
(304 x 367mm) x 2
Large Drawer Back (W657-124)
(657 x 124mm) x 3
Small Drawer Back (W291-124)
(291 x 124mm) x 2
Back (X700-730)
(700 x 730mm)
11
14
13
12
6 7
Left Drawer Side (W370-124LH)
(370 x 124mm) x 5
Right Drawer Side (W370-124RH)
(370 x 124mm) x 5
90%
x1

3
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

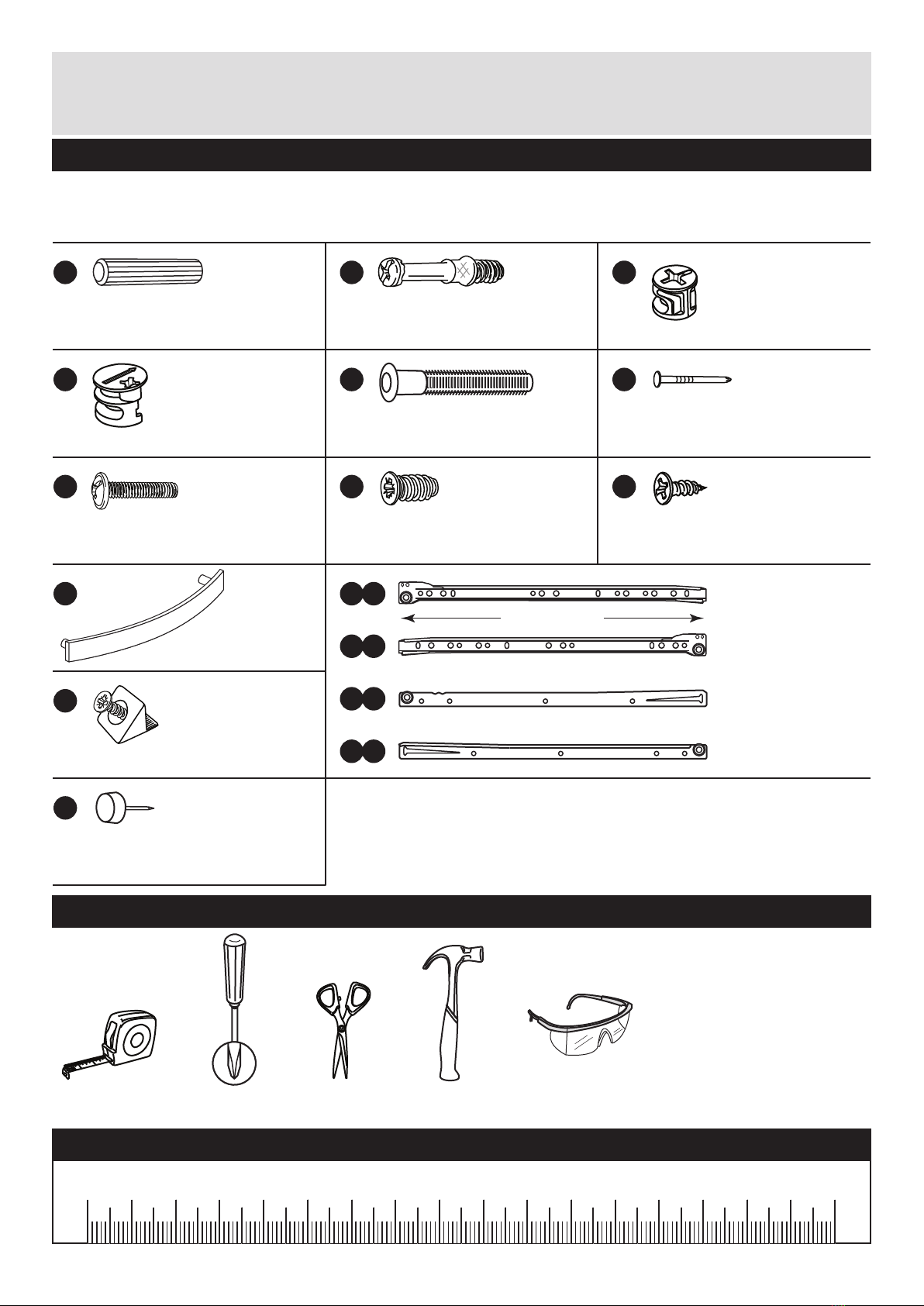

Tools required
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
B C
D E F
G H
Small locking
nut (F3) x 10
Nail (F51) x 20
13mm Screw (F52) x 30 13mm Screw (F63) x 30
I
A
Wooden dowel (F22) x 7
19mm Screw (F461) x 10
Metal dowel (F901) x 18
Large locking
nut (F900) x 8 Knock-in Peg (F171GY) x 20
KR Runner (F160) x 5
b
L Runner (F161) x 5
Kc
L Runner (F159) x 5
Ka
R Runner (F162) x 5
Kd
350mm long
J
Handle (F278) x 5
M
Plastic Nail (F91) x 4
L
Wedgefix (F639) x 16

4
Step 1
80%
x3
Assembly Instructions
If you have damaged or missing components, call the
Customer Helpline: 0870 112 1928 or email:
[email protected] (quoting your original order number
and the reference numbers below)
x 2
B
Step 2
B
B
Prepare the 2 small
drawer fronts
Screw 2 metal dowels
into the holes shown on
the back of each of the
small drawer fronts .
Note: Tighten the metal
dowels up fully against
the panels.
B
8
Prepare the 2 sets of
the drawer sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
6
7
Attach the drawer
sides to the small
drawer front
Push the left drawer side
. and right drawer side
. onto the back of the
small drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
8
C
6
7
C
8
8
B
B
C
Groove
C
x 2 x 2
x 2
CC
67
6
7

Assembly Instructions
5

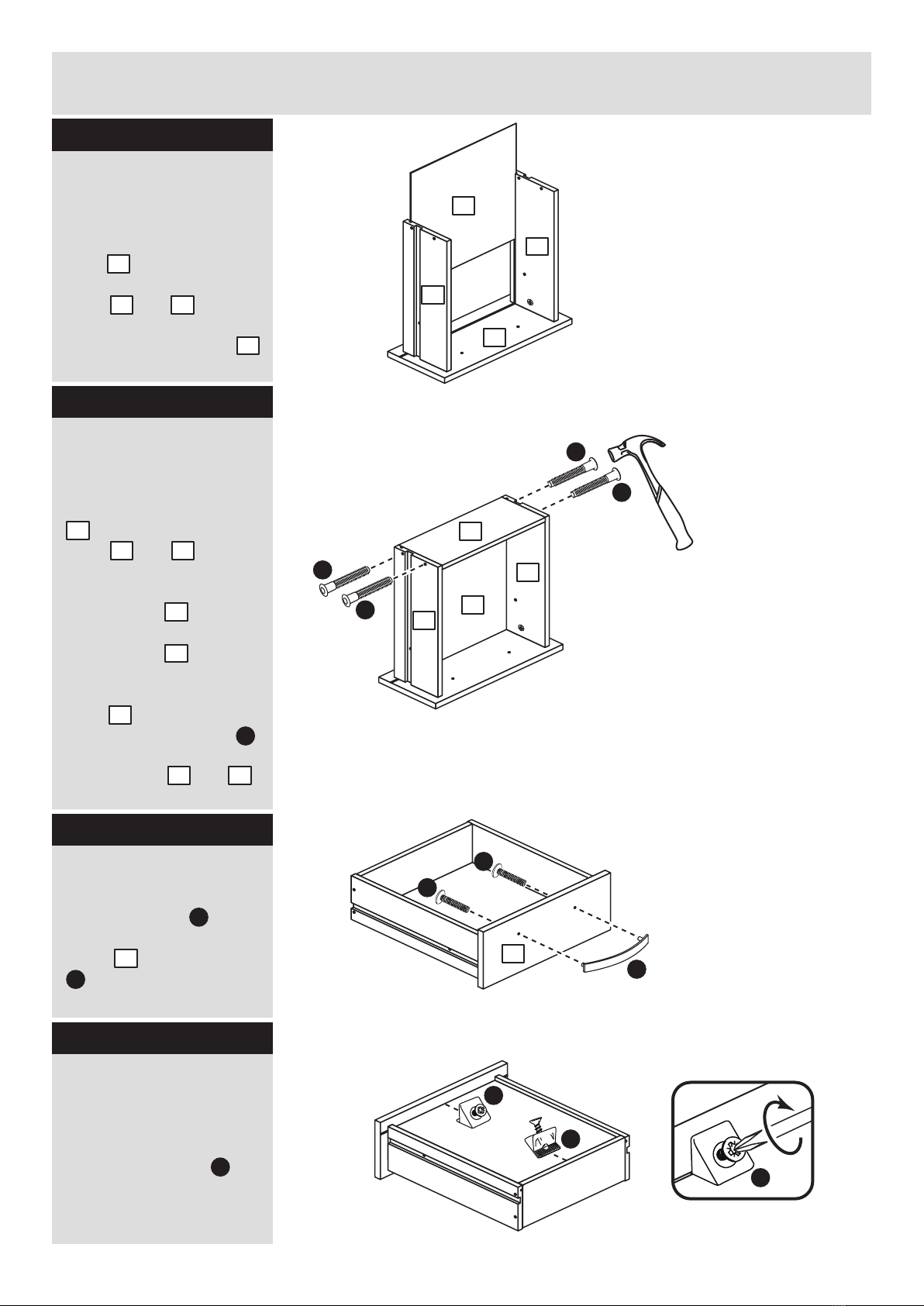

Step 4
Fit the small drawer
base
Slide the small drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the small drawer front .
Step 5
Fit the small drawer
back
Fit the small drawer back
. between the drawer
sides and .
Make sure that the small
drawer base fits into
the groove in the small
drawer back .
Hold the small drawer
back in position and
tap the knock-in pegs
through the holes in the
drawer sides and .
Step 6
10
6 7
8
9
6 7
10
9
9
E
6 7
Attach the handle
Attach a handle to
each of the small drawer
fronts using 2 screws
. .
J
G
8
Step 7
Fit the wedgefixes
Turn the small drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
L
E
E
E
J
8
G
G
x 2
x 2
x 2
L
L
L
8x 2
7
6
10
7
10
6
9
E

Assembly Instructions
6
Step 8
Fit runners to the
small drawers
Turn the 2 small drawer
assemblies over.
Fit runner , marked
with ‘R’, to the bottom
edge of the right drawer
side , as shown,
making sure that it is
pushed up against the
back of the small drawer
front .
Use a bradawl to mark
the fixing positions, then
secure with 2 screws .
Fit runner , marked
‘L’, to the bottom edge
of the left drawer side
using the same method.
6
K d
7
8
I
K c
x 3
B
B
B
Prepare the 3 large
drawer fronts
Screw 2 metal dowels
into the holes shown on
the back of each large
drawer front .
Note: Tighten metal
dowels up fully against
the panels.
B
11
11
Step 9
I
I
Runners must be
pushed up against
the drawer front
K d
R
R
I
I
L
K c
L
8
6
7
x 2

Assembly Instructions
7

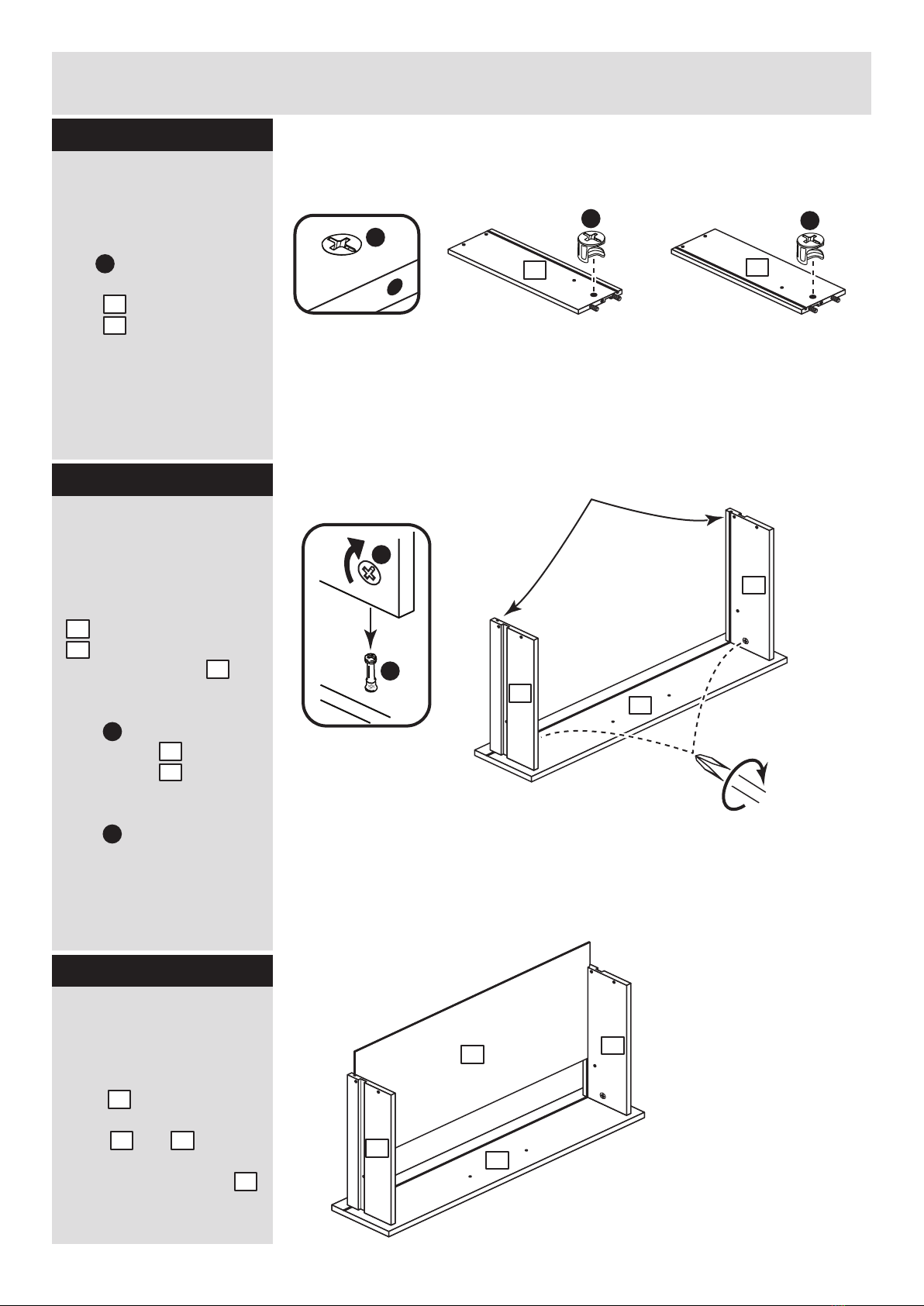

Step 10
Prepare 3 sets of
drawer sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: Arrow on locking
nut must point towards
hole in edge of panel.
Step 11
C
6
7
Attach the drawer
sides to the large
drawer front
Push the left drawer side
. and right drawer side
. onto the back of the
large drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
6
7
11
C
6
7
C
Fit the large drawer
base
Slide the large drawer
base down the
grooves in the drawer
sides and and
down into the groove in
the large drawer front .
13
6 7
11
Step 12
11
B
B
C
Groove
x 3
C
x 3 x 3
CC
67
6
7
5
x 3
11
6
13 7

Assembly Instructions
8

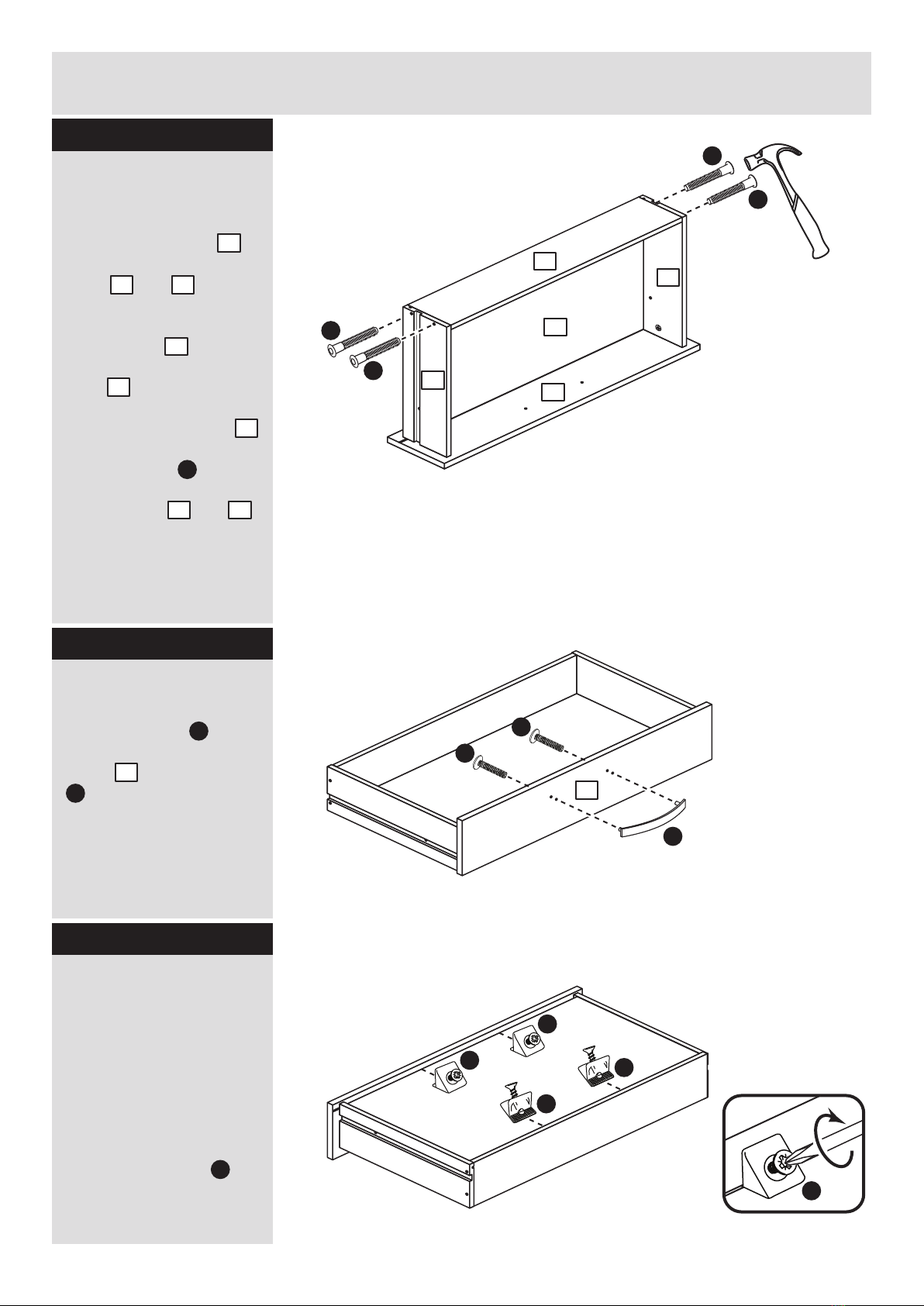

Step 13
Fit the large drawer
back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 14
12
6 7
13
12
12
E
6 7
Attach the handles
Attach a handle to
each of the large drawer
fronts using 2 screws
. .
J
G
11
Step 15
Fit the wedgefixes
Note: Before adding the
wedgefixes, make sure
the assembled drawer is
square.
Turn the drawer
assemblies over and
slide 4 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
L
E
E
E
6
7
x 3
x 3
L
5
x 3
11
13
7
6
E
12
11
L
LL
L
J
G
G

Assembly Instructions
9
Step 16
Fit runners to the
large drawers
Fit runner , marked
with ‘R’, to the bottom
edge of the right drawer
side , as shown,
making sure that it is
pushed up against the
back of the large drawer
front .
Use a bradawl to mark
the fixing positions, then
secure with 2 screws .
Fit runner , marked
‘L’, to the bottom edge
of the left drawer side
using the same method.
6
K d
7
11
I
K c
I
I
Runners must be
pushed up against
the drawer front
K d
R
R
I
I
L
K c
L
11
6
7
x 3

Assembly Instructions
10

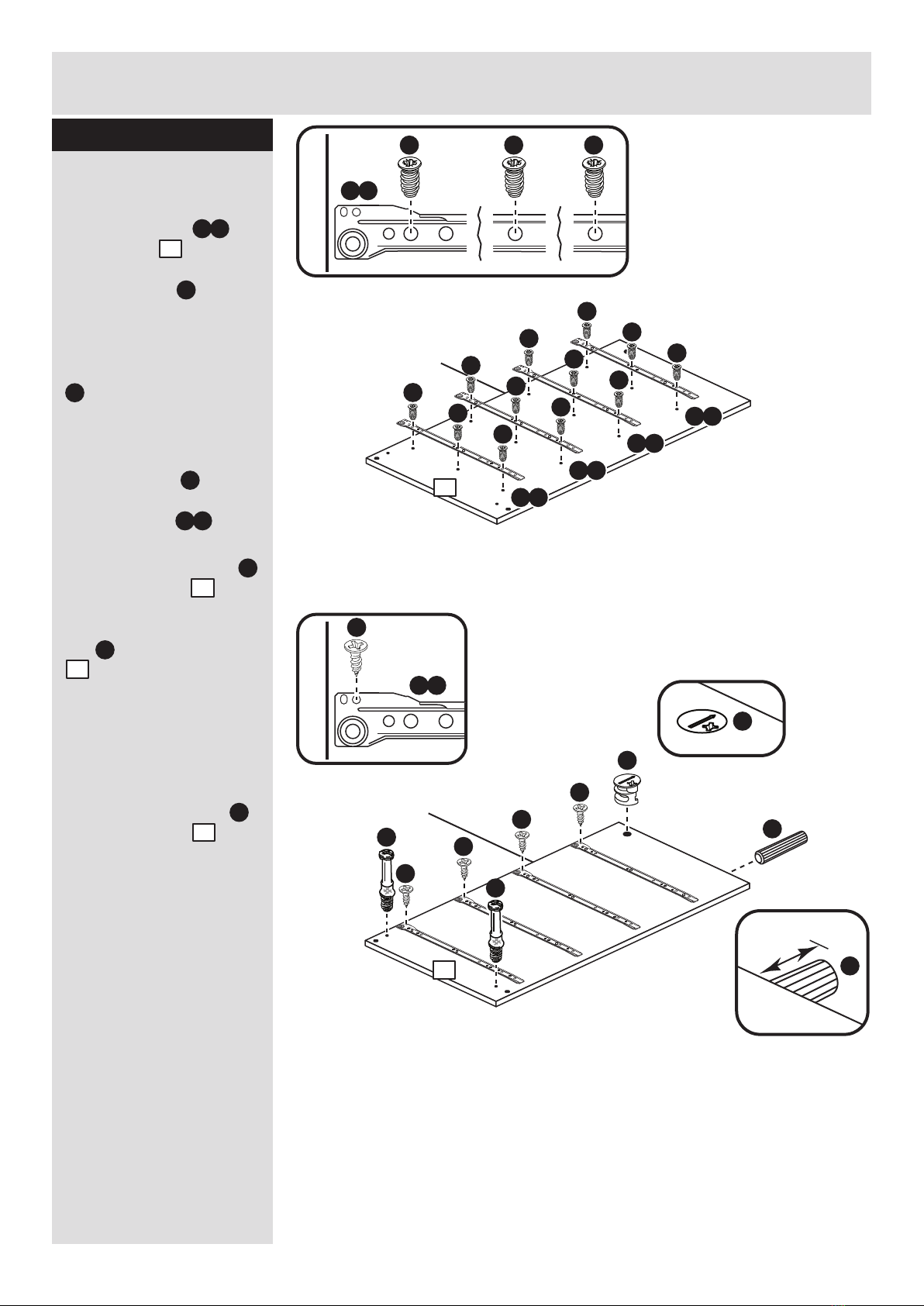

Step 17
Finished
front edge
A
Finished
front edge
a:
Prepare the left side
a: Fit 4 runners to
the left side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runners .
Screw 2 metal dowels
into the left side .
Insert a large locking
nut into the left side
. .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b:
B
D
1
1
K a
1
H
H
K a
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
K a
Finished front edge
I
I
K a
A
1
H
K a
H
H
H
K a
H
H
H
K a
H
H
H
K a
H
H
I
I
I
I
D
B
B
1
1
10mm
A
D

Assembly Instructions
11
Step 18
A
Prepare the right side
a: Fit 4 runners to
the right side .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Screw 2 metal dowels
into the right side .
Insert a large locking
nut into the right side
. .
Tap a wooden dowel
into the right side .
B
D
2
2
K b
2
H
H
I
K b
K b
H
Finished front edge
H1st
screw
2nd
screw
H3rd
screw
K b
Finished front edge
I
a:
b:
A
2
H
H
K b
H
H
H
K b
H
H
H
K b
H
H
H
K b
H
I
I
I
I
D
B
B
Finished
front edge
Finished
front edge
2
2
D
D
A
Prepare the 2 rails
Tap 2 wooden dowels
into each rail .
Insert 2 large locking
nuts into each rail .
A
A
Step 19
plain chipboard surface
x 2
4
4
D4

Assembly Instructions
12
Step 20
Join the right side and
rails
Push the 2 rails onto
the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
B
D
D
4
2
4
D
Note: Support this
rail until the left
side has been fitted
in the next step.
plain chipboard surface
plain chipboard surface
4
4
2
Fit the left side
Push the left side
onto the 2 rails .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the rails .
D
1
4
4
B
B
Step 22
Prepare the top
Screw 4 metal dowels
into the top .
B
3
Shaped
front edge
plain chipboard surface
3
4
4
1
B
B
Step 21

Assembly Instructions
13
Step 23
A
Finished
front edge
Prepare both surfaces
of the divider
Note: The colour of the
divider may differ from
the main unit colour.
a: Fit a runner to
the divider .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Fit a screw into
the 2nd hole in at the top
of the runner .
Insert 2 large locking
nuts into the divider
. .
Turn the divider over
c: Fit a runner to
the divider .
The 1st screw uses
the 2nd hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
d: Fit a screw into
the 2nd hole in at the top
of the runner .
Tap a wooden dowel
into the divider .
b:
Note: Due to the manufacturing process,
the 2 holes for the large locking nut can
be on either surface of the small divider.
K b
H
Finished front edge
H1st
screw
2nd
screw
H3rd
screw
K b
Finished front edge
I
a:
d:c:
Turn the divider over
K b
5
H
H
K a
5
H
H
I
K a
I
K b
D
5
H
H
K b
H
Finished
front edge
Finished
front edge
D
D
I
Finished
front edge
H
K a
H
H
I
K a
H
Finished front edge
H
1st
screw
2nd
screw
H
3rd
screw
A
5
K a
Finished front edge
I
5 5
5 5

Assembly Instructions
14
Step 24
Join the divider to the
top
Push the divider onto
the top .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
Shaped
front edge
3
5
Finished
front edge
D
5
3
5
3
1
2
Step 25
Fit the top
Push the top onto
the 2 sides and .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the sides and .
D
3
1 2
1 2
1
2
Step 26
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
M
1
2
M
MM
M

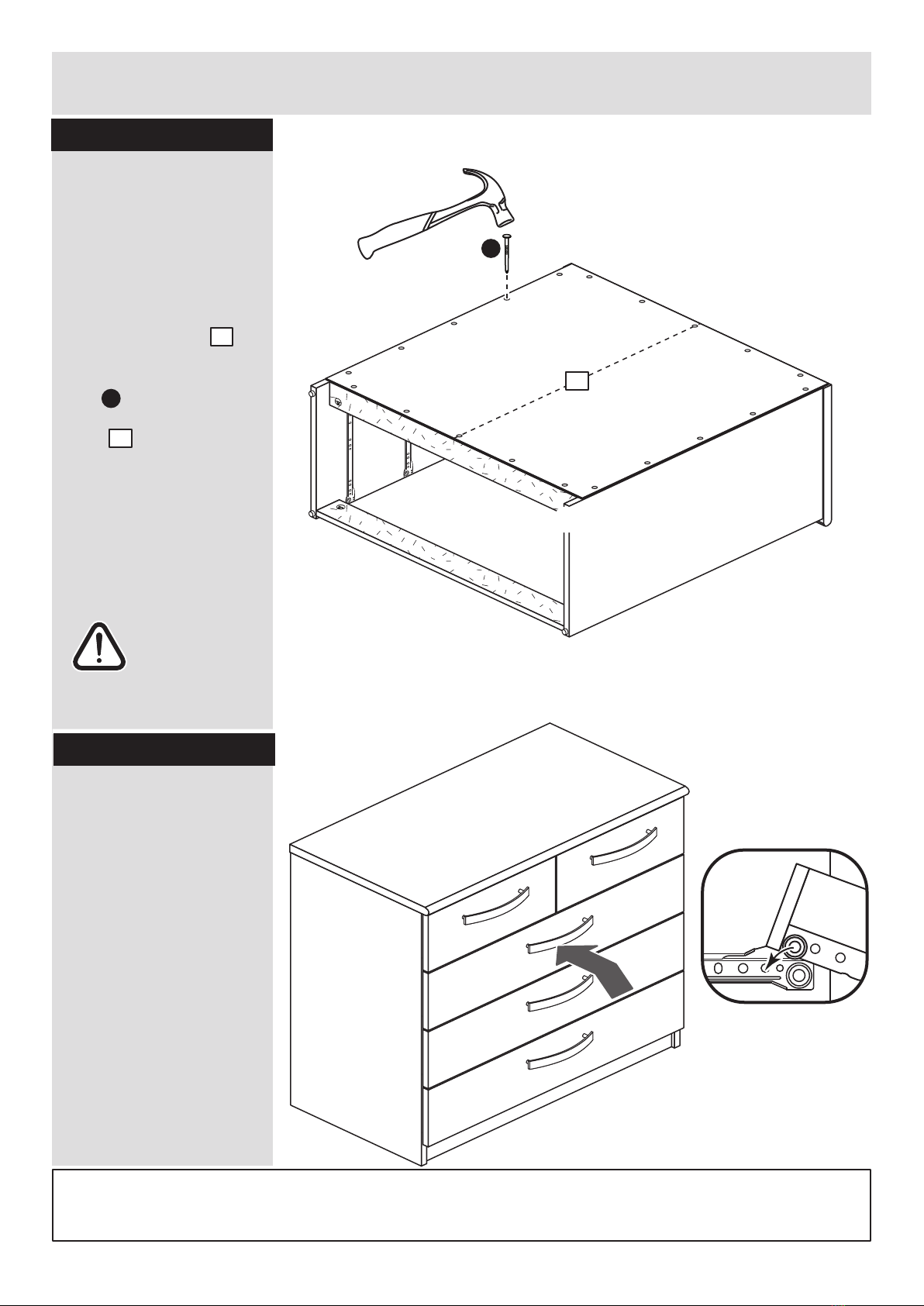

Assembly Instructions
Step 27
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: [email protected] (quoting your original order number and the reference numbers on the component pages)
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
15 ALR2978
yy
x
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
14
F
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
14
Warning: The
unit is heavy.
Lift with care.
b: F
Step 28
Fit the drawers
Slide the wheels of the
runners fitted to the
drawers, over the wheels
of the runners fitted to
the side panels and push
the drawers into position.
Assembly is complete
Side
panel Drawer
14
x
