Argos Canterbury 505/9348 User manual

Canterbury 3 DRW BEDSIDE
Assembly Instructions - Please save for future reference
517/0698
497/0961
505/9348
Dimensions
Width - 45.8cm
Depth - 41.9cm
Height - 48.5cm
71931 Version F Date 23/11/2018
Important – Please read these instructions carefully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
max.
lbs
kg 3
6
lbs
kg 15
33
rev B 15-01-2016 ahs:3 grebsskrue skiftet fra 26228 til 26232
71931 -50
71931
C01
www.tvilum.com

Safety and Care Advice
Important – Please read these instructions carefully before starting the assembly
Note: If required, the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check you have all the
components and tools listed on
the following pages.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to lay out the parts before
starting.
• During assembly, do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its nal position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the use
of power drivers for
inserting screws, as
this could damage
the unit. Only use hand screw
drivers.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below
2

Components - Panels
Please check that you have all the panels as listed below
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800
$PRPVIEW:{Pos_Beslag}
x12
ø5mm
1/5"
25 pcs
00749
Right drawer side x3 (34.5 x 8.8 cm)
00750
Left drawer side x3 (34.5 x 8.8 cm)
03302
Drawer back x3 (33.7 x 8.8 cm)
06079
Drawer bottom x3 (34.8 x 34.2)
09585 Back panel (46.1 x 37.9 cm)
76425 Profile side x2 (41.5 x 2.5 cm)
76426 Profile side x2 (41.5 x 2.5 cm)
73433 Profile front x2 (45 x 2.5 cm)
76435 Base rail (36.95 x 3.1 cm)
L Top panel (45.8 x 41.9 cm)
F Side panel x2 (45.2 x 39 cm)
I Bottom panel (45.8 x 41.9 cm)
EB
Drawer front x3 (36.6 x 12.5)
Vælg 1 eller 2 personer
?
$PRPVIEW:{Pos_Beslag}
x12
ø5mm
1/5"
25 pcs
00749
Right drawer side x3 (34.5 x 8.8 cm)
00750
Left drawer side x3 (34.5 x 8.8 cm)
03302
Drawer back x3 (33.7 x 8.8 cm)
06079
Drawer bottom x3 (34.8 x 34.2)
09585 Back panel (46.1 x 37.9 cm)
76425 Profile side x2 (41.5 x 2.5 cm)
76426 Profile side x2 (41.5 x 2.5 cm)
73433 Profile front x2 (45 x 2.5 cm)
76435 Base rail (36.95 x 3.1 cm)
L Top panel (45.8 x 41.9 cm)
F Side panel x2 (45.2 x 39 cm)
I Bottom panel (45.8 x 41.9 cm)
EB
Drawer front x3 (36.6 x 12.5)
Vælg 1 eller 2 personer
?
3

Please check that you have all the ttings as listed below
Note: The quantities listed below are the correct amounts to complete the assembly.
In some cases, more ttings may be supplied than required.
Components - Fittings
Tools required
Ruler - Use this ruler to help correctly identify the screws
Cross head screwdriver
(medium & large)
Flathead screwdriver
(medium)
Ruler
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
Eye protection
(when using a
hammer or glue)
Hammer
Tape measure
Wooden block
Awl
4
Floor glider x4
63008
Handle x3
81040
Drawer runner x6
41404
Panel clips x8
10401
Cam bolt x14
31513
Flat head screw
(ø3.5 x 15mm) x12
25233
Machine screw (M4 x 9mm) x6
26214
Dowel (ø5 x 30mm) x20
20203
Flat head screw (ø6.3 x 27mm) x6
26033
Cam x14
31687
Machine screw (M4 x 23mm) x3
26232
Drawer fastener x12
20228
22601
Glue x1
Wedges x4
33204
26020
Flat head screw (ø5.8 x 9mm) x12
Screw (ø4 x 20mm) x2
25447

Assembly Instructions

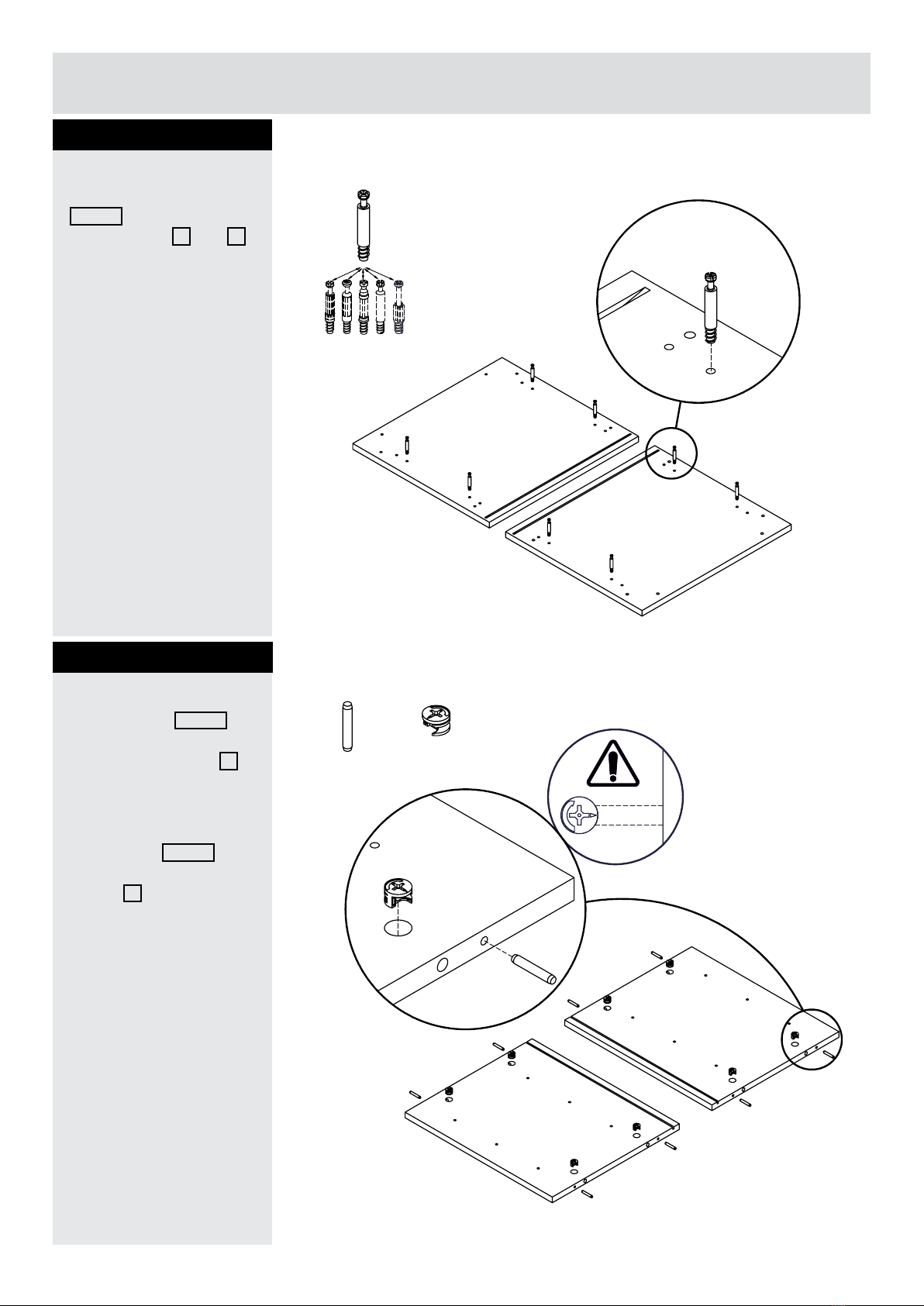

Step 1
Step 2
Insert dowels 20203
into outer holes on the
ends of side panels F.
Place cams 31687 into
the holes on top of side
panels Fwith the ar-
rows facing the edges of
the side panels.
Insert cams
Insert dowles
Insert cam bolts
Insert cam bolts
31513 into the top and
bottom panel Land I.
The cam bolts must be
screwed down ush with
the surface.
Dowel
#20203 x8
Cam
#31687 x8
Fittings you will need for this step:
Cam bolt
#31513 x8
Fittings you will need for this step:
5
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x8
F
F
L
I
?
Beslag sættes ind i scala 1:2 som udgangspunkt
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 1 & 2
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x8
F
F
L
I
?
Beslag sættes ind i scala 1:2 som udgangspunkt
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 1 & 2

Assembly Instructions
Step 3
Fittings you will need for this step:
6
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x8
5.
27
4.
15
3.
25
4
2.
1.
1 27
F
F
Front
Front
Front
?
Beslag sættes ind i scala 1:2 som udgangspunkt
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 3
Front
Flat head screw
#25233 x12
Flat head screw
#26020 x12
Drawer runner
#41404 x6

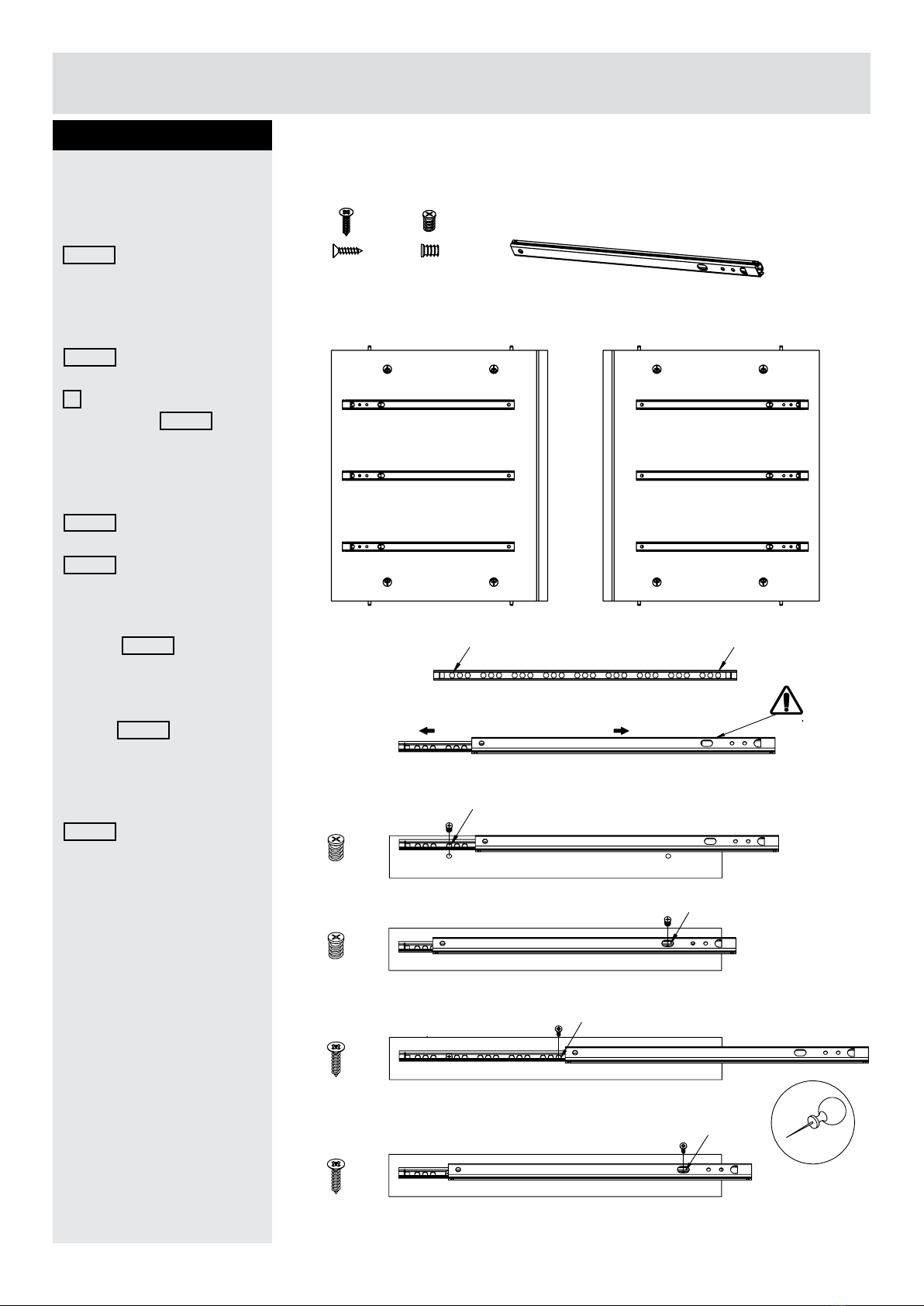

Place drawer runners
1.
Extend drawer runner
41404 and make sure to
note which way it runs.
2.
Place drawer runner
41404 so that they face
the fronts of side panels
F . Next, screw in at
head screw 26020 into
hole no. 4 as illustrated.
3.
Adjust drawer runner
41404 as illustrated and
screw in at head screw
26020 into hole no. 25.
4.
Likewise, extend drawer
runner 41404 and nd
hole no. 15 as illustrated.
Then, use an awl before
screwing in at head
screw 25233 .
5.
Lastly, use an awl and
screw in at head screw
25233 in hole no. 27 as
illustrated.
Repeat these 5steps for
the remaining runners.

Assembly Instructions
Step 5
Step 4
Attach back panel
Slide the back panel
09585 smoothly down
into the grooves in the
side and bottom panel F
+ I.
Attach bottom panel
Place cam bolts from the
bottom panel Iinto the
holes in the ends of side
panels F.
Make sure that the
nished edges are facing
towards the front and
that the unnished sides
are facing towards the
bottom of the cabinet.
When pushed together,
tighten the cams as
illustrated.
7
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x8
F
F
I
BA
?
I
I
F
F
09585
?
Beslag sættes ind i scala 1:2 som udgangspunkt
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 4 & 5
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x8
F
F
I
BA
?
I
I
F
F
09585
?
Beslag sættes ind i scala 1:2 som udgangspunkt
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 4 & 5

Assembly Instructions
Step 7
Step 6
Attach the top panel
Attach the top panel L
by inserting dowel pins
and cam bolts into the
holes.
When pushed together,
tighten the cams as
illustrated.
Assemble proles
Insert wedges 33204
into the slots on the
angle ends of side and
front proles 76426 +
76433 + 76425 .
Please use a hammer for
this step.
Fittings you will need for this step:
Wedges
#33204 x4
Top
Bottom
L
8
# $PRPVIEW:{Pos_Beslag}
x8
A = B
A
B
L
I
F
F
09585
L
x2
76426
76433
76425
BH
I
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 6 & 7
# $PRPVIEW:{Pos_Beslag}
x8
A = B
A
B
L
I
F
F
09585
L
x2
76426
76433
76425
BH
I
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 6 & 7

Assembly Instructions
Step 8
Step 9
Attach prole
Attach the assembled
prole as shown.
Place bottom panel I
as illustrated, and then
insert at head screw
26033 .
Fittings you will need for this step:
Fittings you will need for this step:
Add glue to prole
Insert dowels 20203
into holes on the assem-
bled prole. Use glue
22601 as illustrated.
Add one small drop of
glue per hole.
9
# $PRPVIEW:{Pos_Beslag}
x8
L
I
F
F
76433
76426
76425
76433
x1
x1
CM
max 9 mm
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 8 & 9
Flat head screw
#26033 x6
# $PRPVIEW:{Pos_Beslag}
x8
L
I
F
F
76433
76426
76425
76433
x1
x1
CM
max 9 mm
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 8 & 9
Dowel
#20203 x6
Glue
#22601 x1

Assembly Instructions
Step 11
Step 10
Attach the base rail
Flip the cabinet so that
it stands on its bottom
panel I .
Place base rail 76435
behind the assembled
prole (push forward as
shown with the arrow).
Then, insert and tighten
screw 25447 in the
base rail.
Attach assembled
prole
Add glue 22601 in holes
of the top panel L.
Add one small drop of glue
per hole.
Place the assembled
prole as illustrated and
press down with the
dowels going into the
holes.
Fittings you will need for this step:
Fittings you will need for this step:
10
Glue
#22601 x1
# $PRPVIEW:{Pos_Beslag}
x8
F
F
I
76425
76433
L
L
I
F F
09585
76435
76435
BU
x1
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 10 & 11
Screw
#25447 x2
# $PRPVIEW:{Pos_Beslag}
x8
F
F
I
76425
76433
L
L
I
F F
09585
76435
76435
BU
x1
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 10 & 11

Assembly Instructions
Step 12
Important:
The unit MUST
be square when
the panel clips
are attached.
Lay the cabinet face
down on the oor. To
stabilize the back panel,
use panel clips 10401.
Press forward the thin
tabs between the back
panel and the groove,
and then tighten with a
screwdriver.
Place the oor gliders
63008 in the holes of
bottom panel I. Use a
wooden block between
the hammer and the oor
gliders.
Fixate back panel
Fittings you will need for this step:
Panel clips
#10401 x8
Floor glider
#63008 x4
11
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x3
I
09585
F
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 12

Assembly Instructions
Step 14
Step 13
Assemble drawers
Attach cam 31687 into
the holes in left and right
drawer side 00750 +
00749 with the arrows
facing the edges of the
panels. Afterwards,
insert dowels 20203 in
the holes of the ends
of the drawer panels as
illustrated.
Screw cam bolt
31513 in the drawer
front EB .
The cam bolts must be
screwed down ush with
the surface.
Assemble drawer
Align the holes of the
back of the drawer sides
00749 + 00750 with the
holes in the drawer back
03302 .
Make sure the grooves
are facing the inner side
of the drawer.
Tap drawer fasteners
20228 into place with a
hammer.
Fittings you will need for this step:
Cam bolt
#31513 x6
Dowel
#20203 x6
Cam
#31687 x6
Fittings you will need for this step:
Drawer fastener
#20228 x12
12
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x3
A = B
x3
00750
00749
EB
x3
00750
00749
03302
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 13 & 14
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x3
A = B
x3
00750
00749
EB
x3
00750
00749
03302
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 13 & 14

Assembly Instructions
Step 16
Step 15
Assemble drawer
Press the drawer bottom
06079 smoothly into the
grooves with the nished
side is turning up.
Attach drawer front
Attach the drawer front
EB by placing dowels
and cam bolts in the
correct holes. See the
detail drawing.
Once pushed together,
tighten the cams as
illustrated.
13
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x3
A = B
x3
00749
00750
03302
06079
x3
EB
00750
00749
03302
06079
CG
x3
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 15 & 16
# $PRPVIEW:{Pos_Beslag}
x8
# $PRPVIEW:{Pos_Beslag}
x3
A = B
x3
00749
00750
03302
06079
x3
EB
00750
00749
03302
06079
CG
x3
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 15 & 16

Assembly Instructions
Step 18
Step 17
Attach handles
Attach the handle 81040
to the drawer front EB
Use machine screw
26232 to attach the
handle.
Pull out the drawer
runners
Pull out all the drawer
runners before continuing
to the next assembly
step.
Fittings you will need for this step:
Machine screw
#26232 x3
Handle
#81040 x3
14
# $PRPVIEW:{Pos_Beslag}
x8
00749
EB
00750
03302
x3
06079
F
L
F
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 17 & 18
# $PRPVIEW:{Pos_Beslag}
x8
00749
EB
00750
03302
x3
06079
F
L
F
?
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 17 & 18

Assembly Instructions
Step 19
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Assembly is completed.
Fittings you will need for this step:
Machine screw
#26214 x6
Mount the drawers
Place the drawers
between 2 drawer
runners each.
See illustration for
reference.
Make sure that the
drawer runners are
pushed into the grooves
of the drawer, touching
the drawer front.
Fix the drawer runners
with machine screw
26214 from the inside of
the drawer in both sides.
Repeat this procedure
for each of the remaining
drawers.
15
# $PRPVIEW:{Pos_Beslag}
x8
300
200
DA
x2
EB EB
EB
EB
?
Drawer front
05-09-2017_JTJA:
OBS:
Billedramme samt billede er gemt under "Skjult" lag.
Dette skyldes, at samlevejledningen gemmes til AI, og for at
sørge for, at der ikke automatisk kommer disse billedrammer
med i eksporteringen, hvorved man ikke skal rette AI filen
efterfølgende og manuelt.
DETTE ER BILLEDE 19
