Arjo MAA2070M User manual

INSTRUCTIONS FOR USE
Passive Clip Slings
04.SC.00-8EN •02/2023

2
WARNING
To avoid injury, always read this Instructions for Use and accompanied documents
before using the product. Mandatory to read the Instructions for Use.
Design Policy and Copyright
® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2023.
As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The
content of this publication may not be copied either whole or in part without the consent of Arjo.
Foreword
Thank you for purchasing Arjo equipment. Please read this Instructions For Use (IFU) thoroughly!
Arjo will not be held responsible for any accidents, incidents or lack of performance that occur as a result of any
unauthorized modication to its products.
Customer Support
If you require further information, please contact your local Arjo representative. The contact information is
located at the end of this IFU.

WARNING Means: Safety warning. Failure to understand and obey this warning may result in injury
to you or to others.
CAUTION Means: Failure to follow these instructions may cause damage to all or parts of the
system or equipment.
NOTE Means: This is important information for the correct use of this system or equipment.
Contents
Foreword .............................................................2
Customer Support ...................................................2
Denitions in this IFU .............................................. 2
Intended Use .......................................................3
Patient/Resident Assessment ................................. 3
Expected Service Life ............................................. 3
Safety Instructions...............................................4
Safety Practises ......................................................4
Serious incident....................................................... 4
Parts Designation ................................................5
Preparations ........................................................5
Before First Use (6 steps) ....................................... 5
Before Every Use (7 steps) ..................................... 5
After every use ........................................................ 5
Select Sling Size..................................................6
Using the Arjo Measuring Tape
(4 steps) (Accessory) .............................................. 6
Sizing Without a Measuring Tape (2 steps)............. 6
Sling Selection.....................................................6
Transfer/Bathing......................................................6
Transfer/Transport................................................... 6
Allowed Combinations.........................................7
Safe Working Load (SWL)....................................... 7
Clip Attachment & Detachment............................8
Attach the Clips (5 steps) ........................................ 8
Detach the Clips (3 steps)....................................... 8
Applying the Sling................................................8
In Bed (22 steps)..................................................... 8
In Chair/ Wheelchair (20 steps)............................... 9
On Floor (33 steps) ............................................... 10
Removing the Sling ........................................... 11
In Bed (13 steps)................................................... 11
In Chair/Wheelchair (11 steps)..............................12
Cleaning and Disinfection..................................12
Cleaning Instruction (7 steps) ...............................13
Disposable sling – Do NOT wash..........................13
Cleaning Chemicals ..............................................13
Disinfection............................................................ 13
Care and Preventive Maintenance ....................13
Before and After Every Use................................... 13
When Soiled, Stained and Between Patients........ 13
Storage.................................................................. 13
Service and Maintenance...................................... 13
Troubleshooting.................................................14
Technical Specications ....................................15
Label on the Sling..............................................16

ENEN

3
Intended Use
The Passive clip sling is a product intended for assisted
transfer of patients/residents with limited ability to
move. The Passive clip sling should be used together
with Arjo lift devices in accordance with the Allowed
Combinations specied in the Instructions for Use
(IFU). Products made of mesh material (MAA4060M,
MAA4061M and MAA4160M) are intended to be
used when bathing. In Situ slings (MAA2040M and
MAA2070M) are intended to be seated on for a period
of time between transfers.
The Passive clip slings are intended to be used with
Arjo lifters equipped with clip spreader bars only. The
Passive clip sling is intended to be used in hospital
environments, nursing homes, other healthcare
facilities and home care.
Disposable clip sling have been designed to support
hospital or care facility patients/residents while using
a patient/resident transfer lifter, under the supervision
of trained nursing sta. Disposable clip sling are to be
used for a limited period only, and, by nature of their
design, must be treated as a disposable and patient/
resident specic product. Disposable clip sling should
be used together with Arjo lift devices in accordance
with the Allowed Combinations specied in the
Instructions for Use (IFU).
Disposable clip sling is intended to be used in hospital
environments, nursing homes and other healthcare
facilities.
Disposable clip sling must not be used to support
a patient/resident while bathing or showering.
Disposable clip sling are disposable product and
cannot be washed.
The Passive clip sling/disposable clip sling shall
only be used by appropriately trained caregivers with
adequate knowledge of the care environment, and in
accordance with the instructions outlined in the IFU.
The Passive clip sling/Disposable clip sling should
only be used for the purpose specied in this IFU. Any
other use is prohibited.
Patient/Resident Assessment
We recommend that facilities establish regular
assessment routines. Caregivers should assess each
resident/patient according to the following criteria
prior to use:
• Patient/resident sits in wheelchair
• Has no capacity to support himself/herself at all
• Cannot stand unsupported and is not able to
bear weight, not even partially
• Dependent on caregiver in most situations
• Physically demanding for caregiver
• Stimulation of remaining abilities is very
important
Or, for a patient/resident who:
• Is passive
• Might be almost completely bed ridden
• Often sti or contracted joints
• Totally dependent on the caregiver
• Physically demanding for caregiver
• Stimulation and activation is not a primary goal
Safe Working Load (SWL) for Passive clip sling:
• MAA2040M, MAA2070M: 190 kg (418 lbs);
• MAA4050M: 228 kg (500 lbs);
• MAA2000M, MAA4000M, MAA4000MA,
MAA4100M, MAA4060M, MAA4061M,
MAA4160M: 272 kg (600lbs);
• MFA1000M,MFA1000MA: 272 kg (600 lbs)
The right type and size of slings should be used after
proper assessment of each patient/resident’s size,
condition and the type of lifting situation.
If the patient/resident does not meet these criteria, an
alternative equipment/system shall be used.
Expected Service Life
The expected service life of passive clip sling/
disposable clip sling is the maximum period of useful
life.
Therefore, before use, always make sure that the
sling does not show signs of fraying, tearing or other
damage (i.e. cracking, bending, breaking). If any such
damage is observed, do not use the sling.
Disposable slings are intended for a limited period
only. By nature of its design, disposable slings must be
treated as a disposable and resident specic product.
For washable Passive clip slings, the condition
is aected by the number of washings, washing
temperature, detergents, disinfectants, frequency of
use, patient weight and/or other factors.
The expected service life of the Passive clip sling /
disposable clip sling:
Service Life
• Sling models MAA2040M and MAA2070M –
1,5 years (Passive clip sling)
• Disposable slings – 2 weeks, based on
4 transfers per day
• All other slings – 2 years
Shelf Life:
• 5 years (Passive clip sling/ disposable sling)
ENEN

4
Safety Instructions
WARNING
To avoid injury, make sure that the patient is
not left unattended at any time.
WARNING
To avoid injury, always assess the patient
prior to use.
WARNING
To avoid falling, make sure that the user
weight is lower than the safe working load
for all products or accessories being used.
WARNING
To avoid injury, only store the equipment for
a short period of time. If stored longer than
stated in the IFU, it can cause weakness
and breakage in the material.
WARNING
To avoid injury, never let the patient smoke
when using the sling. The sling can catch

WARNING
To avoid injury, keep the equipment away
from sun/UV-light. Exposure to sun/UV-light
can weaken the material.
WARNING
To avoid injury, never wash a disposable
sling. A disposable sling is only intended
for “single patient use”.
WARNING

models MAA2040M and MAA2070M:
Patients sat out in a chair are at an
increased risk of pressure injury
development, due to high interface
pressures concentrated over a small
surface area when compared to lying in
bed. An individualised skin and holistic
assessment of the patient should be
undertaken, before deciding on whether a
sling should be left under a patient for any
period of time.
If the decision is to have the patient sit
on the sling for any time period between
transfers then an appropriate care
plan must be established and should
include regular skin inspection, paying
particular attention to pressure points and
frequent repositioning intervals which
should be documented and based on the
individuals level of risk for pressure injury
development.
Consideration should also be given by

relieving or redistribution surface that the
patient/resident is sitting on and make sure
that the sling is correctly positioned and
adjusted (removing loops and clips clear of
the seated patient) to make sure the sling
󰀨󰀩
cushion.
Safety Practises
• At any time, if the patient becomes agitated, stop
transferring/transporting and safely lower the
patient.
• Patient with spasm can be lifted, but great care
should be taken to support the patient’s legs.
Serious incident
If a serious incident occurs in relation to this medical
device, aecting the user, or the patient then the user
or patient should report the serious incident to the
medical device manufacturer or the distributor. In
the European Union, the user should also report the
serious incident to the Competent Authority in the
member state where they are located.
ENEN

5

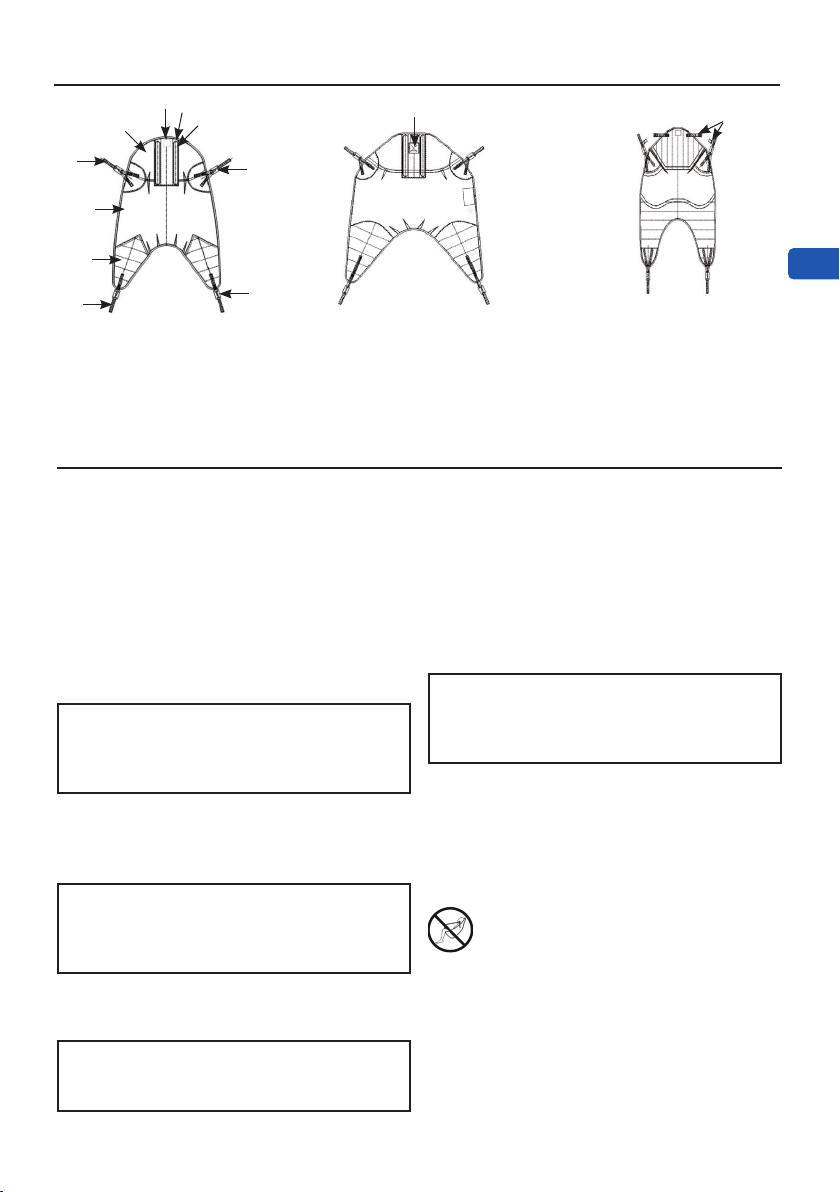

Parts Designation
Preparations
Before First Use (6 steps)
1. Check all parts of the sling, see section “Parts
Designation” on page 5. If any part is missing
or damaged - Do NOT use the sling.
2. Read this IFU thoroughly.
3. Check that the sling is clean.
4. Choose a designated area where the IFU should
be kept and easily accessible at all times.
5. Make sure to have a rescue plan ready in case
of a patient emergency.
6. For questions, contact your local Arjo
representative for support.
NOTE
Arjo recommends the name of the patient is
written on the sling care label to avoid cross
contamination between patients.
Before Every Use (7 steps)
1. Patient assessment must always determine the
methods used in everyday care, see “Intended
Use” on page 3.
WARNING
To avoid the patient from falling, make sure
to select the correct sling size according to
the IFU.
2. Check the allowed combinations against the sling,
spreader bar and lift, see “Allowed Combinations”
on page 7.
WARNING
To avoid injury, always make sure to inspect
the equipment prior to use.
3. Check all parts of the sling, see “Parts
Designation” on page 5. If any part is missing
or damaged - Do NOT use the sling. Check for:
• fraying
• loose stitching
• tears
• fabric holes
• soiled fabric
• damaged clips
• unreadable or damaged label
WARNING
To prevent cross-contamination, always
follow the disinfection instructions in this
IFU.
4. Check that the sling is clean. If the sling is
not clean see “Cleaning and Disinfection” on
page 12.
5. Always check the washing symbol on the
disposable sling’s label. If the disposable sling has
been washed, throw the disposable sling away. See
“Disposable sling – Do NOT wash” on page 13.
If this symbol appears, do NOT use the
disposable sling. The label indicates that the
disposable sling has been washed.
6. Before using the sling, read the lift IFU for transfer,
transport and bathing.
After every use
When the patient leaves the hospital, throw away the
patient specic disposable sling.
123
4
5
8
6
7
9
10 11 12
1. Sling label
2. Stiener pocket
3. Stiener
4. Attachment clip (shoulder)
5. Attachment clip (leg)
6. Leg strap
7. Leg ap
8. Body section
9. Shoulder strap
10. Head section
11. Disposable sling identication label
12. Buckle
Example of slings. Not all models are represented.
ENEN

6
Fig. 1
Fig. 2

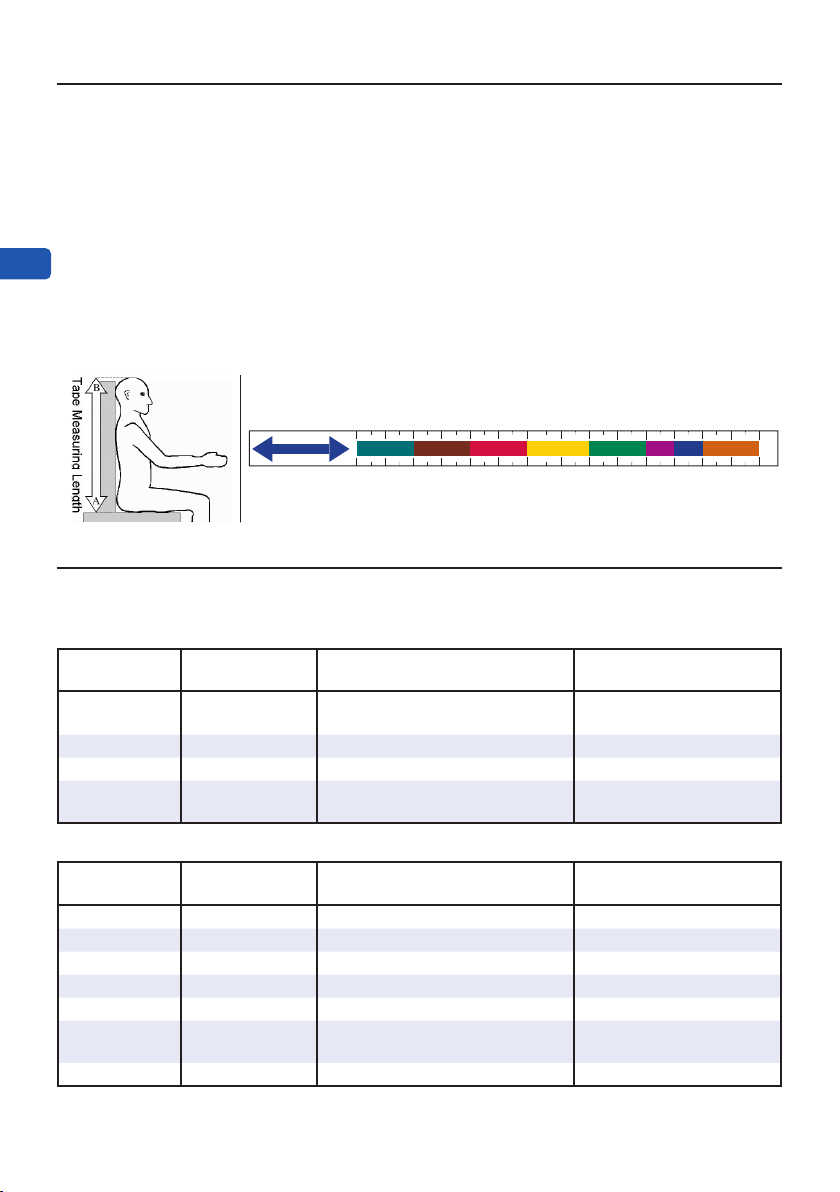

43 52 61 72.7 99.6 104.7 114.794.784.7
AB
COCCYX HEAD
cm
in
16,9 20.5 24 28.7 33.7 37.6 39.5 41.5 45.2
XXS XS SMLLLXL XXL
Select Sling Size
Using the Arjo Measuring Tape
(4 steps) (Accessory)
The Arjo Measuring Tape is a sizing accessory only
intended as a guide and is an approximation. Patient
width and body proportions should also be considered
when selecting the correct size of Arjo sling.
1. If possible, the patient should be in a seated
position.
2. Place the point marked Aon the measuring tape
over the patient’s coccyx/against seat (position A).
(See Fig. 1) and (See Fig. 2)
3. Measure from coccyx/seat (position A) to the top
of the head (position B) (See Fig. 1).
4. The coloured area on the measuring tape that is
levelled with the top of the patient’s head indicates
the required sling size. If the sling size falls in
between two sizes, it is recommended to select the
smaller size. (See Fig. 2)
Sizing Without a Measuring Tape
(2 steps)
1. Place the sling over the patient’s back.
2. Make sure the sling covers the patient from the top
of the head (position B) to the coccyx (position A).
(See Fig. 1)
Sling Selection
The patient’s physical disabilities, weight distribution and general physique needs to be taken into consideration
when selecting a sling.
Transfer/Bathing
Article
number
Safe Working
Load Product Description Size
MAA2070M 190 kg (418 lbs) Clip bathing in situ sling –
unpadded legs S, M, L, LL, XL
MAA4060M 272 kg (600 lbs) Clip bathing sling – unpadded legs XS, S, M, L, LL, XL, XXL
MAA4061M 272 kg (600 lbs) Clip bathing sling – padded legs XS, S, M, L, LL, XL
MAA4160M 272 kg (600 lbs) Clip bathing sling – padded and
extended legs M, L, LL, XL
Transfer/Transport
Article
number
Safe Working
Load Product Description Size
MAA2000M 272 kg (600 lbs) Clip sling – unpadded legs XS, S, M, L, LL, XL, XXL
MAA2040M 190 kg(418 lbs) Clip in situ sling – unpadded legs S, M, L, LL, XL
MAA4000M 272 kg (600 lbs) Clip sling – padded legs XS, S, M, L, LL, XL, XXL
MAA4000MA 272 kg (600 lbs) Clip sling – padded legs M, L, XL
MAA4050M 228 kg (500 lbs) Clip comfort sling – padded legs S, M, L, LL, XL, XXL
MAA4100M 272 kg (600 lbs) Clip sling – padded legs and
extended legs S, M, L, LL, XL, XXL
MFA1000M 272 kg (600 lbs) Disposable clip sling S, M, L, LL, XL, XXL
Article numbers with “A-sux” (e.g. MAA4000MA) has a BAA (Buy American Act) compliant country of origin.
ENEN

7
Allowed Combinations
WARNING
To avoid injury, always follow the allowed combinations listed in this IFU. No other
combinations are allowed.
Safe Working Load (SWL)
Always follow the lowest SWL of the total system. E.g. the Maxi Twin Compact lift/spreader bar has a SWL of
160 kg (352 lbs) and the MAA2000M sling has a SWL of 272 kg (600 lbs). This means that the lift/spreader bar
has the lowest SWL. The patient is not allowed to weigh more than the lowest SWL.
Lift Maxi Twin
Compact Maxi Lite Maxi 500 Maxi Twin
SWL 160 kg
(352 lbs)
160 kg
(352 lbs)
227
(500 lbs) 182 kg (401 lbs)
Spreader Bar
(DPS) Power Medium Flat Manual Manual Medium Power
Sling SWL Size Size Size Size Size
MAA4000M 272kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4000MA 272kg (600 lbs) M, L, XL M, L M, L M, L M, L, XL
MAA2000M 272 kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA2070M 190 kg (418 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA2040M 190 kg (418 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4061M 272 kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4060M 272 kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4050M 228 kg (500 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4100M 272 kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
MAA4160M 272 kg (600 lbs) M, L, LL, XL M, L M, L, LL M, L, LL M, L, LL, XL
MFA1000M 272 kg (600 lbs) S, M, L, LL, XL S, M, L S, M, L, LL S, M, L, LL S, M, L, LL, XL
Lift Maxi Move Maxi Sky
SWL 227kg (500 lbs) 272 kg (600 lbs)
Spreader Bar
(DPS)
Manual
Small
Manual
Medium
Power
Medium
Power
Large
Manual
Flat Power Medium
Sling SWL Size Size Size Size Size Size
MAA4000M 272 kg (600 lbs) XS, S S, M, L, LL S, M, L,
LL, XL
L, LL,
XL, XXL S, M, L S, M, L, LL, XL
MAA4000MA 272 kg (600 lbs) –M, L M, L, XL L, XL M, L M, L, XL
MAA2000M 272 kg (600 lbs) XS, S S, M, L, LL S, M, L,
LL, XL
L, LL,
XL, XXL S, M, L S, M, L, LL, XL
MAA2070M 190 kg (418 lbs) SS, M, L, LL S, M, L,
LL, XL L, LL, XL S, M, L S, M, L, LL, XL
MAA2040M 190 kg (418 lbs) SS, M, L, LL S, M, L,
LL, XL L, LL, XL S, M, L S, M, L, LL, XL
MAA4061M 272 kg (600 lbs) XS, S S, M, L, LL S, M, L,
LL, XL L, LL, XL S, M, L S, M, L, LL, XL
MAA4060M 272 kg (600 lbs) XS, S S, M, L, LL S, M, L,
LL, XL
L, LL,
XL, XXL S, M, L S, M, L, LL, XL
ENEN

8

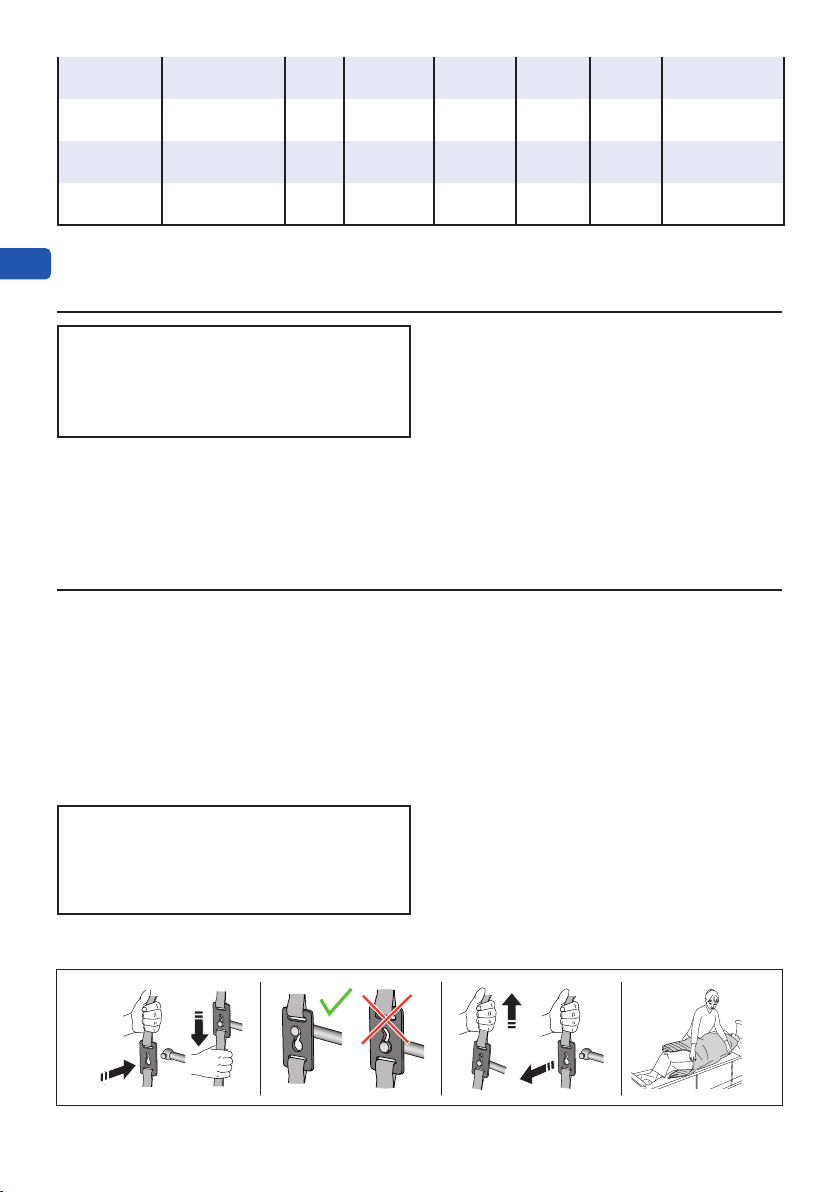

Clip Attachment & Detachment
NOTE
If available on your lift device, reposition the
spreader bar using the Dynamic Position
System (DPS) for easier clip attachment of the
sling. See lift IFU for instructions.
Attach the Clips (5 steps)
1. Place the clip on the spreader bar lug. (See Fig. 3)
2. Pull the strap down.
3. Make sure the lug is locked at the top end of the
clip. (See Fig. 4)
4. Make sure the strap is not squeezed in between the
clip and the spreader bar.
5. Make sure the straps are not twisted.
Detach the Clips (3 steps)
Make sure that the weight of the patient is taken up by
the receiving surface before removing the clip.
1. Pull the strap up. (See Fig. 5)
2. Make sure the lug is unlocked at the bottom of the
clip.
3. Remove the clip.
MAA4050M 228 kg (500 lbs) –S, M, L, LL S, M, L,
LL, XL
S, L, LL,
XL, XXL S, M, L S, M, L, LL, XL
MAA4100M 272 kg (600 lbs) SS, M, L, LL S, M, L,
LL, XL
L, LL,
XL, XXL S, M, L S, M, L, LL, XL
MAA4160M 272 kg (600 lbs) –M, L, LL M, L, LL,
XL L, LL, XL M, L M, L, LL, XL
MFA1000M 272 kg (600 lbs) SS, M, L, LL S, M, L,
LL, XL
L, LL,
XL, XXL S, M, L S, M, L, LL, XL

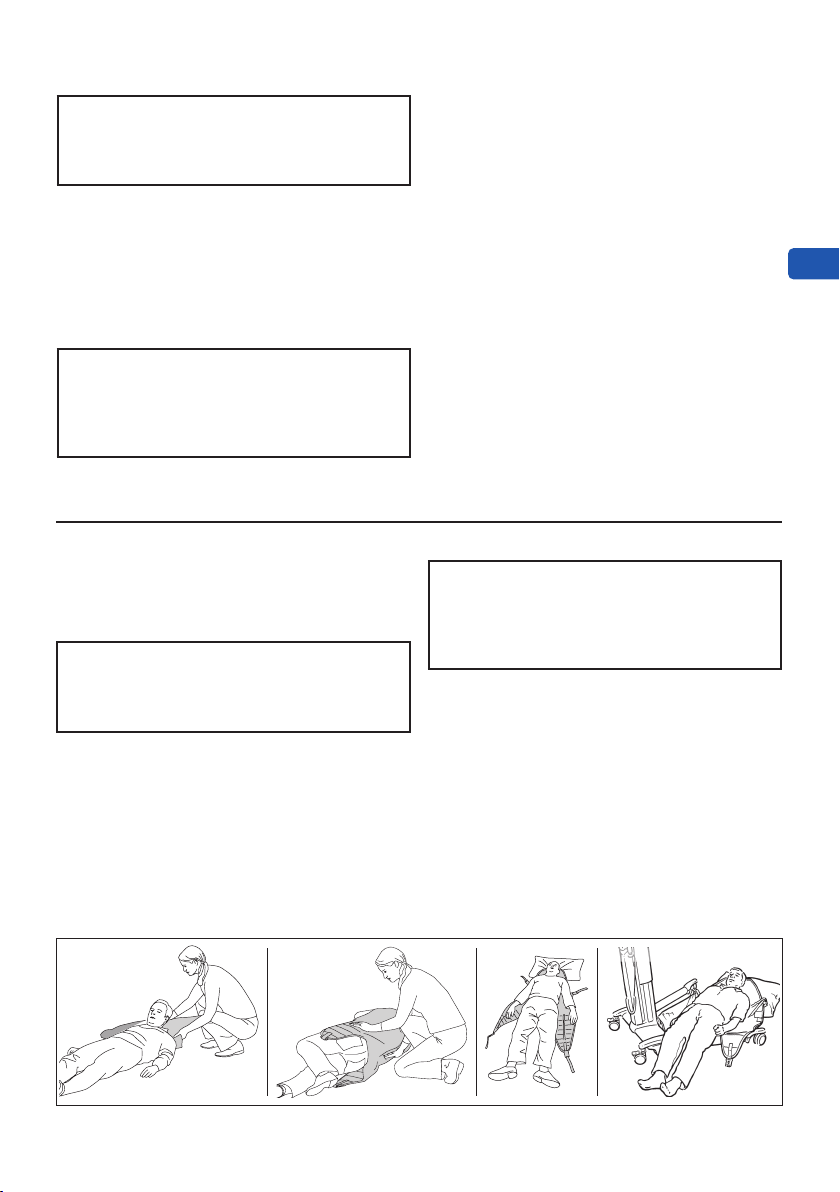

Applying the Sling
In Bed (22 steps)
1. Place the lift nearby.
2. Apply bed brakes and adjust the height of the bed
to an ergonomic position, if possible.
3. The patient needs to lay down at on his/her back.
4. Check that the stieners are completely inside the
stiener pockets, if any.
5. Fold the sling lengthwise along the centre line,
outside facing outside. The sling label is located on
the outside.
WARNING
To avoid injury during log roll, make sure
there is another caregiver present and/or
use the side rails on the opposite side of
the bed.
6. Log roll the patient. (Use local technique.) If log
roll is not possible, use an Arjo sliding sheet/tube
for placing the sling. See respective Sliding sheet/
tube IFU
7. Place the folded sling over the patient’s side. Make
sure that the centre line is aligned with the patient’s
spine, starting at the coccyx. Place the leg aps
towards the legs. (See Fig. 6)
8. Fold down the top of the sling and tuck it under the
patient’s body.
9. Log roll the patient to the other side.
10. Pull out the remaining part of the sling from under
the patients body.
11. Return the patient to his/her back.
Continue with the steps on the next page.
Fig. 3 Fig. 4 Fig. 5 Fig. 6
ENEN

9

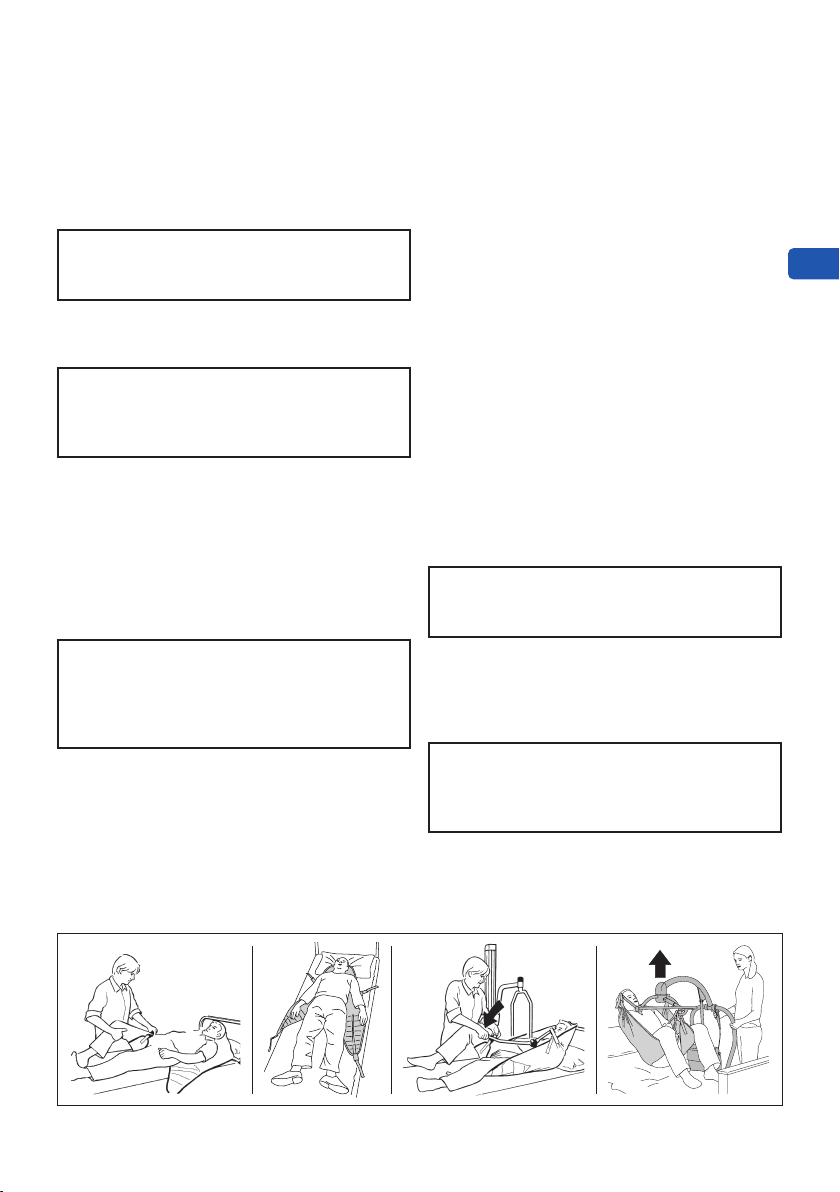

12. Place the leg aps underneath the patient’s legs.
(See Fig. 7)
13. Make sure that the: (See Fig. 8)
• sling is centred and at without creases,
• sling’s head support covers the neck/head area,
• sling pieces are not twisted underneath the
patient and
• if a sling with commode is being used, make
sure the hole is positioned correctly.
WARNING
To avoid injury, make sure the patient’s
arms are placed inside of the sling.
14. Make sure the patient’s arms are inside the sling.
15. Place the lift next to the patient and apply the
brakes.
WARNING
To avoid injury to the patient, pay close
attention when lowering or adjusting the
spreader bar.
16. Attach the sling.
17. Adjust the spreader bar to reclined position, if
needed. (See Fig. 9) and (See Fig. 4)
Use the Dynamic Positioning System (DPS), if
possible. For manual DPS, one caregiver can hold
on to the DPS while the other caregiver operates
the lift.
18. Slightly lift the patient to create tension in the
sling. (See Fig. 10)
WARNING
To avoid the patient from falling, make sure
that the sling attachments are attached
securely before and during the lifting
process.
19. Make sure that:
• All clips are securely attached
• All straps are straight (not twisted)
• The patient lays comfortably in the sling.
20. If an adjustment is needed, lower the patient and
make sure that the weight of the patient is taken up
by the receiving surface before removing the clip.
21. Release the brakes on the lift.
22. Transfer, transport and bathe the patient according
to the lift IFU.
In Chair/ Wheelchair (20 steps)
1. Place the lift nearby.
2. Apply the brakes on the wheelchair.
3. Check that the stieners are completely inside the
stiener pockets, if any.
4. Stand in front of the patient and lean the patient
forward.
5. Place the sling over the patient’s back and head
with the inside of the sling against the patient. The
sling label is located on the outside.
6. Make sure that the centre line is aligned with the
patient’s spine and coccyx.
7. Tuck in the end of the sling at the coccyx or against
the seat. Use an Arjo sliding sheet/tube, if needed.
8. Lean the patient back.
9. Place the leg aps underneath the patient’s legs.
(See Fig. 11)
10. Make sure that the: (See Fig. 12)
• sling is centred and at without creases,
• sling’s head support covers the neck/head area,
• sling pieces are not twisted underneath the
patient
• all buckles are safely closed, if any
WARNING
To avoid injury, make sure the patient’s
arms are placed inside of the sling.
11. Make sure the patient’s arms are inside the sling.
12. Make sure the spreader bar is in a seated position
and place the lift in front of the patient with the lift
legs wide open. (See Fig. 13)
13. Apply the brakes on the lift.
WARNING
To avoid injury to the patient, pay close
attention when lowering or adjusting the
spreader bar.
Continue with the steps on the next page.
Fig. 7 Fig. 8 Fig. 9 Fig. 10
ENEN

10
14. Adjust the spreader bar if needed.
15. Attach the sling.
WARNING
Make sure straps are not caught by
wheelchair or lift castors.
16. Slightly lift the patient to create tension in the
sling. (See Fig. 14)
WARNING
To avoid the patient from falling, make sure
that the sling attachments are attached
securely before and during the lifting
process.
17. Make sure that:
• All clips are securely attached
• All straps are straight (not twisted)
• The patient lays comfortably in the sling.
18. If an adjustment is needed, lower the patient and
make sure that the weight of the patient is taken up
by the receiving surface before removing the clip.
19. Release the brakes on the lift.
20. Transfer/transport/bathe the patient according to
the lift IFU.
On Floor (33 steps)
1. Make a clinical assessment of the patient. Do not
use the sling if the patient has a head, neck, spine
or hip injury. Use a scoop stretcher instead. See the
Scoop Stretcher IFU.
2. Place a pillow under the patient’s head.
(See Fig. 15)
3. Make sure the patient is in an area that is accessible
for the lift. If needed, move the patient by using
an Arjo sliding sheet/tube. See respective Sliding
sheet/tube IFU.
4. Check that the stieners are completely inside the
stiener pockets, if any.
5. If the patient is able to sit up, continue to next
step. If not able to sit up, proceed to step 9.
6. Patient able to sit up: Stand behind the patient
and help him/her to a seated position.
7. Place the sling over the patient’s back and head
with the inside of the sling against the patient. The
sling label is located on the outside.
8. Make sure that the centre line is aligned with the
patient’s spine, starting at the coccyx or against the
seat. Continue to step 16.
9. Patient not able to sit up: Fold the sling
lengthwise along the centre line, outside facing
outside. The sling label is located on the outside.
10. Log roll the patient. (Use local technique)
(See Fig. 16) If log rolling is not possible, use an
Arjo sliding sheet/tube for placing the sling. See
respective Sliding sheet/tube IFU.
11. Place the folded sling over the patient’s side. Make
sure that the centre line is aligned with the patient’s
spine, starting at the coccyx. Place the leg aps
towards the legs.
12. Fold down the top of the sling and tuck it under the
patient’s body.
13. Log roll the patient to the other side.
14. Pull out the remaining part of the sling from under
the patient’s body.
15. Return the patient to his/her back.
16. Make sure that the: (See Fig. 17)
• sling is centred and at without creases,
• sling’s head support covers the neck/head area,
• sling pieces are not twisted underneath the
patient and
• all buckles are safely closed, if any.
WARNING
To avoid injury, make sure the patient’s
arms are placed inside of the sling.
17. Make sure the patient’s arms are inside the sling.
18. Position the lift sideways with the lift legs wide
open. One caregiver needs to be close to the
patient’s head and the other caregiver needs to lift
up the patient’s legs.
19. Position one lift leg next to the patient’s head and
the other lift leg under the patient’s legs. Make sure
the spreader bar is positioned over the patient’s
shoulders. (See Fig. 18)
20. Lower the spreader bar with the Dynamic
Positioning System (DPS) in a reclined position.
Continue with the steps on the next page.

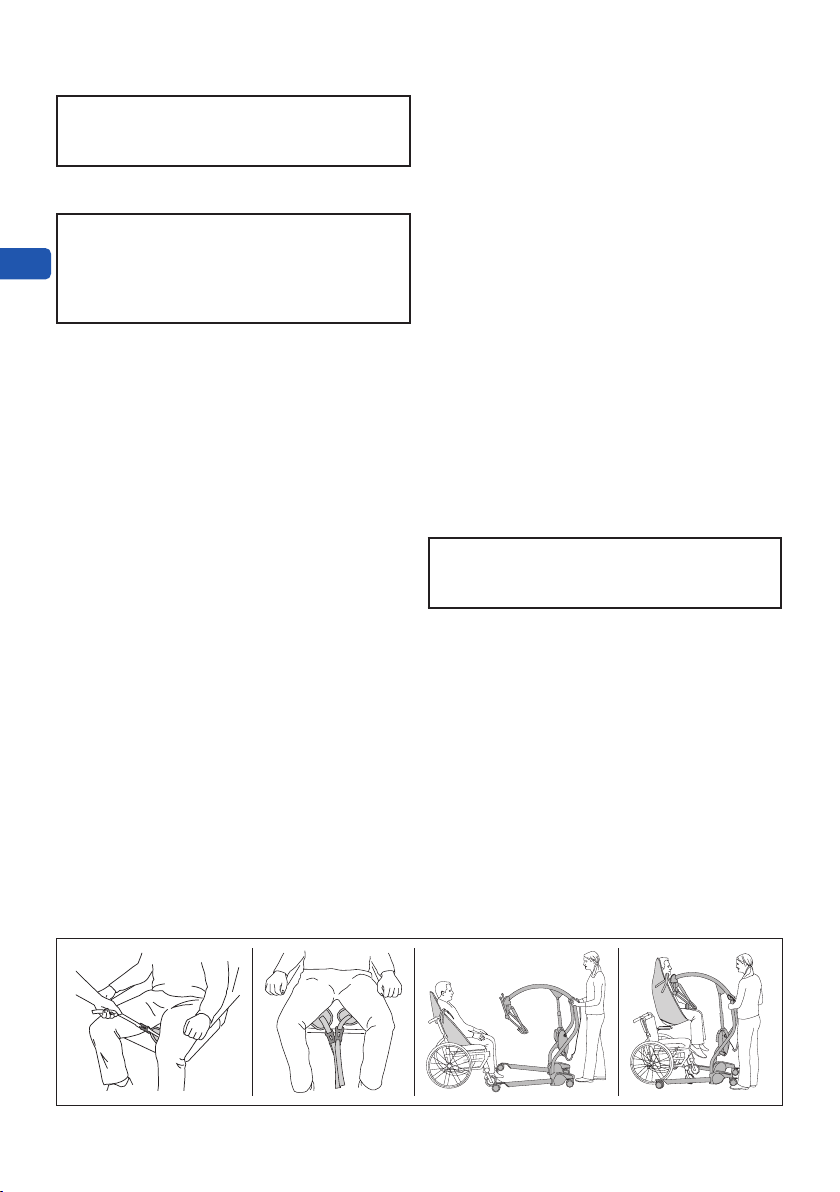

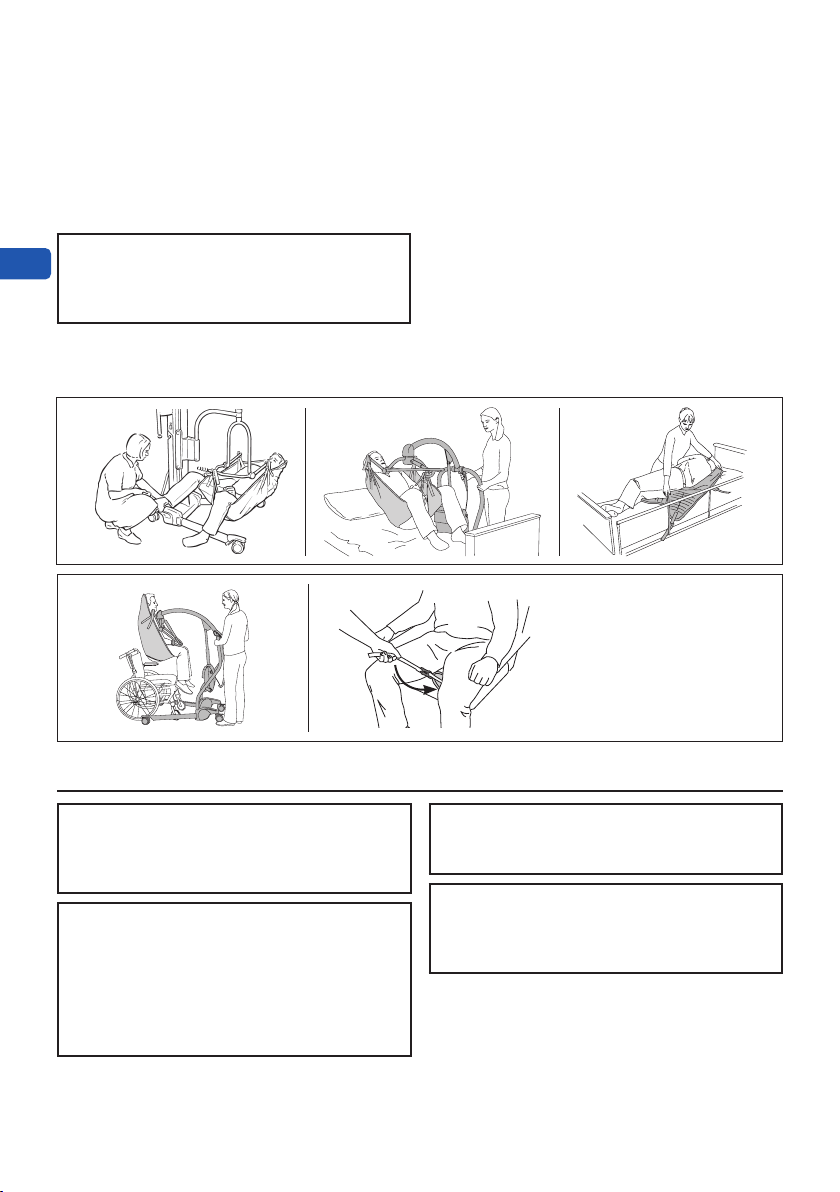

Fig. 11 Fig. 12 Fig. 13 Fig. 14
ENEN

11
21. Place the leg aps underneath the patient’s legs.
Make sure the leg aps are not twisted.
WARNING
To avoid injury to the patient, pay close
attention when lowering or adjusting the
spreader bar.
22. Attach the shoulder clips. (See Fig. 4)
23. Lift the patient’s head up slightly.
24. Move the lift/spreader bar closer to the patient’s
legs.
25. Apply the brakes on the lift.
26. Attach the leg clips.
27. Slightly lift the patient to create tension in the
sling.
WARNING
To avoid the patient from falling, make sure
that the sling attachments are attached
securely before and during the lifting
process.
28. Make sure that:
• All clips are securely attached
• All straps are straight (not twisted)
• The patient lays comfortably in the sling.
29. If an adjustment is needed, lower the patient and
make sure that the weight of the patient is taken up
by the receiving surface before removing the clip.
30. Make sure that:
• The spreader bar is in a reclined position
• One caregiver pays attention to the patient’s
head and the other caregiver holds up the
patient’s feet to prevent them from hitting the
lift leg. (See Fig. 19)
31. Remove the pillow.
32. Release the brakes on the lift and bring the lift legs
together.
33. Transfer, transport and bathe the patient according
to the lift IFU.
Fig. 15 Fig. 16 Fig. 17 Fig. 18
Removing the Sling
In Bed (13 steps)
1. Position the patient over the bed.(See Fig. 20)
2. Apply bed brakes and adjust the height of the bed
to an ergonomic position, if possible.
3. Make sure the spreader bar is in a reclined position.
WARNING
To avoid injury to the patient, pay close
attention when lowering or adjusting the
spreader bar.
4. Lower the patient onto the bed. Make sure that the
weight of the patient is taken up by the receiving
surface before removing the clips.
5. Detach the sling. (See Fig. 5)
6. Move the lift away from the patient.
7. Pull out the leg aps from under the patient’s legs.
(See Fig. 17)
8. If using an In Situ sling and leaving it under the
patient, make sure to place the sling straps along
the side of the patient’s body. This prevents the
straps from getting caught in other objects.
WARNING
To avoid injury during log roll, make sure
there is another caregiver present and/or
use the side rails on the opposite side of
the bed.
9. Log roll the patient. (Use local technique) If log
rolling is not possible, use an Arjo sliding sheet/
tube for removing the sling. See respective Sliding
sheet/tube IFU.
10. Tuck the sling under the patient’s body.
(See Fig. 21)
11. Log roll the patient to the other side and remove
the sling.
12. Return the patient to his/her back.
13. Make sure the patient is in a comfortable and
secure position in the bed.
ENEN

12
In Chair/Wheelchair (11 steps)
1. Apply the brakes on the wheelchair.
2. Position the patient over the chair/wheelchair.
(See Fig. 22)
3. Lower the patient into the chair/wheelchair. For
positioning use the DPS.
4. Make sure that the patient’s lower back is
positioned all the way in against chair/wheelchair
to prevent the patient from sliding out.
WARNING
To avoid injury to the patient, pay close
attention when lowering or adjusting the
spreader bar.
5. Detach the sling. Make sure that the weight of the
patient is taken up by the receiving surface before
removing the clips. (See Fig. 5)
6. Move the lift away from the patient
7. Pull out the leg aps from under the patient’s legs
and place them backwards along the patient’s side.
(See Fig. 23).
8. If using an In Situ sling and leaving it under the
patient, make sure to place the sling straps along
the side of the patient’s body. This prevents the
straps from getting caught in the wheels of the
wheelchair.
9. Stand in front of the patient and lean the patient
forward.
10. Pull out the sling. If needed, use an Arjo sliding
sheet/tube for removing the sling. See respective
Sliding sheet/tube IFU.
11. Lean the patient back up to a comfortable and
secure position.
Fig. 19 Fig. 20 Fig. 21
Fig. 22 Fig. 23
Cleaning and Disinfection
WARNING
To prevent cross-contamination, always
follow the disinfection instructions in this
IFU.
WARNING
To avoid material damage and injury, clean
and disinfect according to this IFU.
• No other chemicals are allowed.
• Never clean with chlorine.
• Chlorine will deteriorate the surface of
the material.
WARNING
To avoid injury, always remove the sling
before disinfecting the lift.
WARNING
To avoid injury, never wash a disposable
sling. A disposable sling is only intended
for “single patient use”.
All Passive Clip slings, except the disposable clip
sling, should be cleaned when they are soiled or
stained and between patients.
ENEN

13
Cleaning Instruction (7 steps)
(NOT disposable sling)
1. Detach the sling from the lift.
2. Remove the stieners from the stiener pockets,
if any.
3. Close all buckles and hook and loop attachment on
the slings and belts prior to washing.
4. Check the symbols on the product label for
cleaning recommendations.
5. Machine wash the sling at 70°C (158°F). In order
to obtain sucient level of disinfection, please
wash according to local hygiene legislation.
If allowed according to the product label, tumble
dry in low temperature, max 60°C (140°F).
6. Do NOT
• wash with rough surfaces or sharp objects
• steam
• use any mechanical pressure, pressing or rolling
• use bleach
• use gas sterilization
• use autoclave
• dry clean
• ironing
7. Place the stieners back into the stiener pockets,
if any, before use.
Disposable sling – Do NOT wash
The disposable sling is for single patient use.
Do NOT clean, wash, disinfect, wipe or sterilize the
disposable sling. If the disposable sling has been
subjected to any such treatment, it shall be discarded.

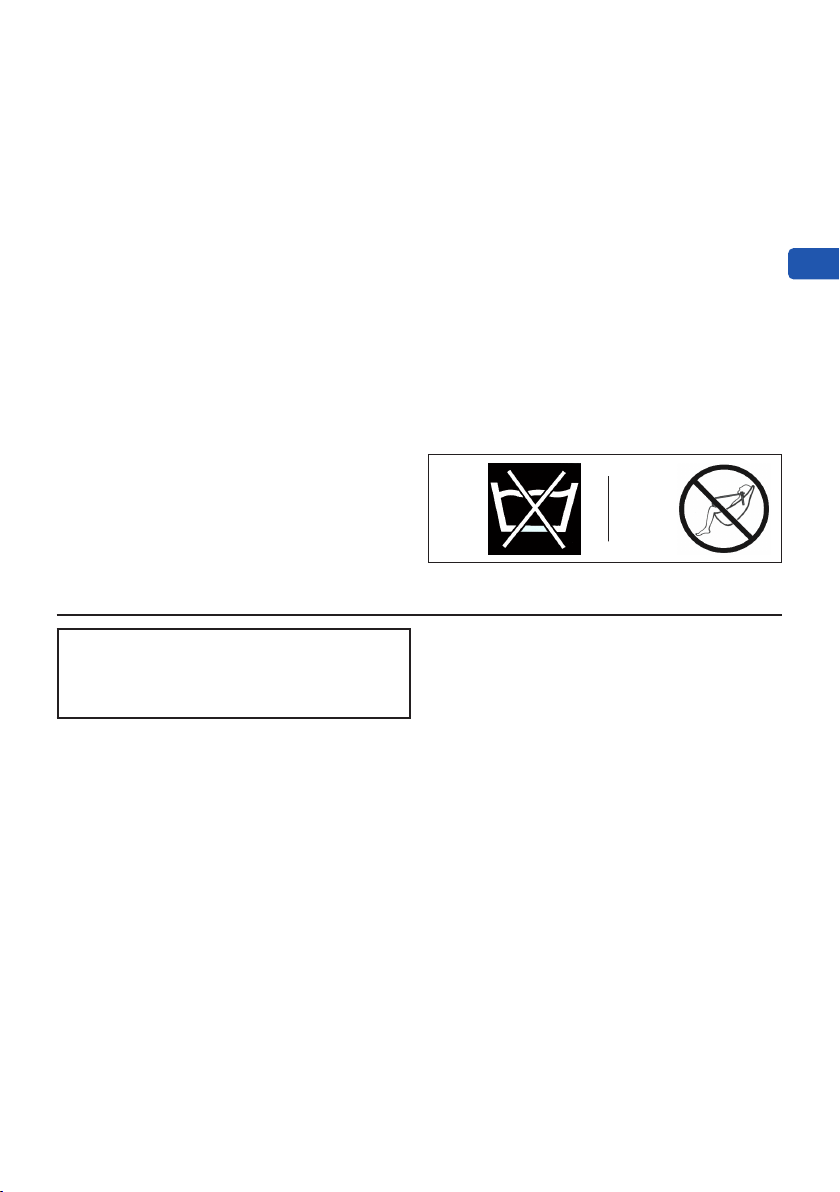

The disposable sling is marked with the “Do NOT
wash” symbol. (See Fig. 24)
If the disposable sling is washed, the “Do NOT use/
lift” symbol will appear. (See Fig. 25)
Cleaning Chemicals
For all slings (not disposable slings) use common
commercial detergent without optical brightener.
No other chemicals are allowed e.g. chlorine, softener,
iodine based disinfectants, bromine and ozone.
Disinfection
The only allowed disinfection is disinfection by
washing.
This does not apply to disposable slings. Do NOT
clean, wash or disinfect a disposable sling.
Care and Preventive Maintenance
WARNING
To avoid injury to both patient and
caregiver, never modify the equipment or
use incompatible parts.
Before and After Every Use
Visually check all exposed parts
The caregiver shall inspect the sling before and after
every use. The complete sling should be checked for
all deviations listed below. If any of these deviations
are visible, replace the sling immediately.
• Fraying
• Loose stitching
• Tears
• Holes
• Discolouration or stains from bleaching
• Sling soiled or stained
• Unreadable or damaged label
• For disposable slings: Make sure the “Do NOT
wash” symbol on the head support is intact.
If damaged or missing and the underlying red
“Do NOT use/lift” symbol appears, replace the
sling immediately. See “Label on the Sling” on
page 16.
When Soiled, Stained and Between
Patients
Clean/Disinfect, all slings except the
disposable sling
The caregiver should make sure that the sling is
cleaned according to “Cleaning and Disinfection” on
page 12, when it is soiled or stained and between
patients.
Disposable sling
Washing or disinfection is not allowed. Do not wipe,
sterilize or soil the disposable sling. If the disposable
sling has been subjected to any treatment, it shall be
discarded.
Storage
When not in use, the slings should be stored away
from direct sunlight where they are not subject to
unnecessary strain, stress or pressure, or to excessive
heat or humidity. The slings should be kept away from
sharp edges, corrosives or other things that could cause
damage on the sling.
Service and Maintenance
It is recommended that qualied personnel inspect the
condition of the sling twice a year (every 6 month),
according to ISO 10535.
Fig. 24 Fig. 25
ENEN

14
Troubleshooting
Problem Action
The patient is not positioned correctly in
the sling (e.g. one strap is shorter than the
other).
• Make sure the clip straps are not twisted.
• Make sure the patient is seated on the inside of the
sling. The outside has a label for reference.
• Make sure the patient is centred in the sling.
The patient feels discomfort in the leg area
when seated in the sling.
Make sure that there are no creases on the leg aps of
the sling.
The sling is di󰀩cult to apply (e.g. during
log roll).
Use an Arjo sliding sheet/tube according to instructions
in respective IFU.
There are di󰀩culties applying the shoulder
clips.
• Place the patient in a more seated position in the bed
or on the oor. Place a pillow behind the patient’s
neck/back, outside of the sling.
• Raise the back rest of the bed, if possible.
• Make sure the clip strap is not caught between the lug
on the lift and the clip attachment.
• Adjust the spreader bar to a more reclined position.
Pay attention to the patient’s head.
There are di󰀩culties applying the leg clips.
• Bend the patient’s legs or place a pillow under the
patient’s knees. If the sling is applied on the oor,
place the patient’s legs on the caregiver’s knee.
• Make sure the clip strap is not caught between the lug
on the lift and the clip attachment.
• Adjust the spreader bar to a more seated position.
It is di󰀩cult to use the sling in combination
with the lift and spreader bar.
Use the sling only in accordance with the combinations
described in section “Allowed Combinations” on
page 7.
The position of the patient in the sling
should be more reclined or seated. Use the spreader bar to adjust the patient’s position.
The patient wishes to have extra support
for the neck. Place a pillow behind the patient’s neck, inside the sling.
For the MAA4050M sling: The head is not
supported by the sling.
Make sure the head section of the sling is buckled
together with the shoulder section of the sling.
The disposable sling (MFA1000M) is
soiled, stained or wet.
Throw the disposable sling away and replace it with a
new one.
The Do not wash label is damaged or
missing and the underlying red “Do not
use/lift” label appears on the disposable
sling (MFA1000M).
Throw the disposable sling away and replace it with a
new one.
ENEN

15

General
Safe working load (SWL) = Maximum total load See “Allowed Combinations” on page 7
Service life – Recommended period of use
Sling models MAA2040M and MAA2070M: 1,5 years*
Disposable sling: 2 weeks, based on 4 transfers/
day*
All other slings: 2 years*
*Refer to “Expected Service Life” on page 3
Shelf life – Maximum period of storing new
unpacked product 5 years
Model and Type See “Sling Selection” on page 6
Operating, Transport and Storage Environment
Temperature 0°C to +40°C (+32°F to +104°F) Operating and Storage
-25°C to +60°C (-13°F to +140°F) Transport
Humidity Max 15–70% at +20°C (68°F) Operating and Storage
Max 10–95% at +20°C (68°F) Transport
End of Life Disposal
Package The bag consists of soft plastic, recyclable to local
legislations.
Sling
Slings including sti󰀨eners/stabilizers, padding material,
any other textiles or polymers or plastic materials etc.
should be sorted as combustible waste.
Parts and Accessories
Sti󰀨eners GX21270
Measuring tape MTA1000
ENEN

16

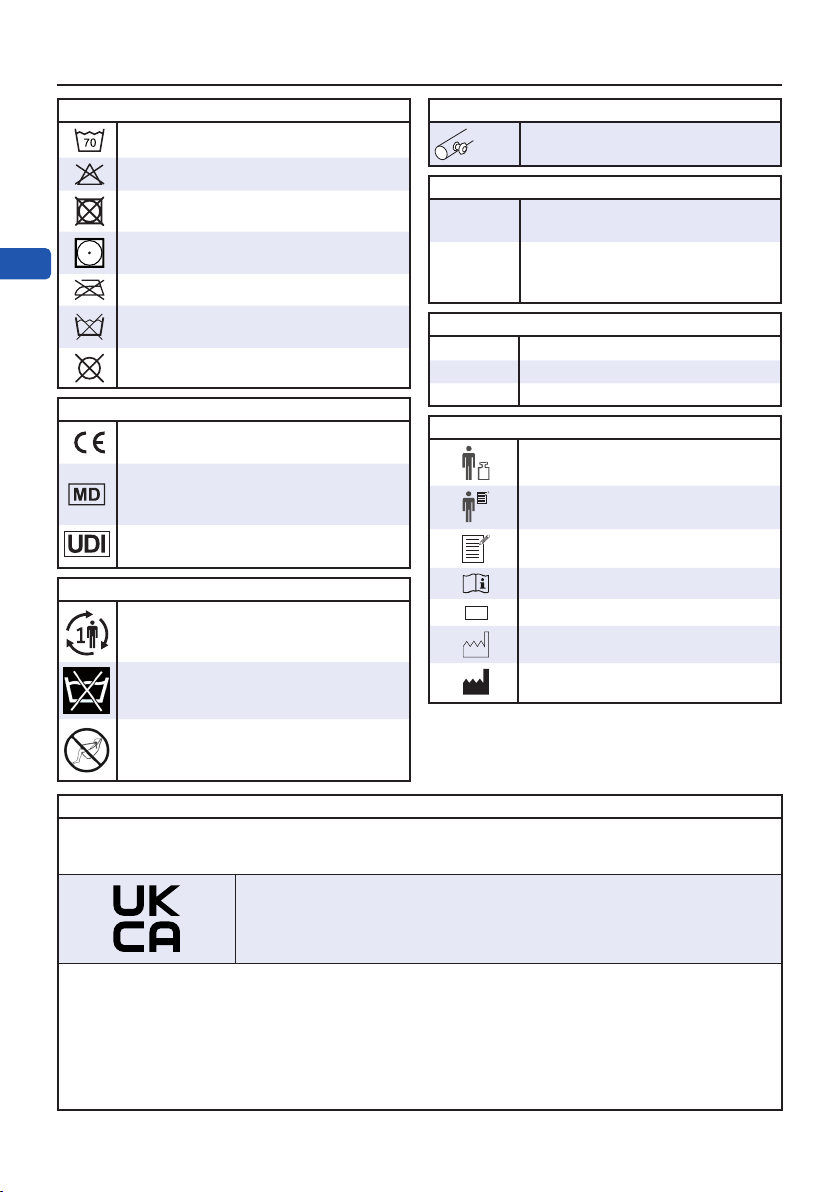

Label on the Sling
Care and Washing Symbols
Machine wash 70°C (158°F)
No bleaching allowed
No tumble drying allowed
Tumble drying
Does not apply to disposable slings
No ironing allowed
Do NOT wash the disposable sling
Only applies to disposable slings
No dry cleaning allowed

CE marking indicating conformity with
European Community harmonised legislation
Indicates the product is a Medical
Device according to EU Medical Device
Regulation 2017/745
Unique Device Identier.
Disposable Sling Symbols
Single Patient Multiple Use.
“Do NOT wash” symbol. Located on the
outside of the sling.
“Do NOT use/lift” symbol. The
disposable sling has been washed.
Located on the outside of the sling.
Symbol for Clip
Use a clip spreader bar.
Article Number
REF
XXXXXX-X
Article number with -X refers to the
sling size.
REF
XXXXXXX
If the article number is stated
without the size letter at the end, it
means the sling is a One Size.
Fibre Content
PES Polyester
PE Polyethylene
PP Polypropylene
Misc. Symbols
Safe Working Load (SWL)
Patient’s name symbol
Record symbol
Read the IFU before use
REF Article number
Manufacturing date and year
Manufacturer name and address
UK Symbol explanation
This section is only applicable to United Kingdom (UK) market when UK marking is applied to
the Arjo medical device labelling.
UK marking indicating conformity with UK Medical Devices
Regulations 2002 (SI 2002 No 618, as amended)
UK Responsible Person & UK Importer:
Arjo (UK) Ltd, ArjoHuntleigh House, Houghton Regis. LU5 5XF
Is the appointed UK Responsible Person as dened in UK Medical Devices Regulations 2002
(SI 2002 No 618, as amended).
For Northern Ireland (NI) CE marking will still apply until further amendment to applicable
regulations.
ENEN

Intentionally left blank

Intentionally left blank

AUSTRALIA
Arjo Australia
Building B, Level 3
11 Talavera Road
Macquarie Park, NSW, 2113, Australia
Phone: [phone]
BELGIQUE / BELGIË
Arjo Belgium
Evenbroekveld 16
9420 Erpe-Mere
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
BRASIL
Arjo Brasil Equipamentos Médicos Ltda
Rua Marina Ciufuli Zanfelice, 329 PB02
Galpão - Lapa
São Paulo – SP – Brasil
CEP: 05040-000
Phone: [phone]
E-mail: [email protected]
E-mail: [email protected]
CANADA
Arjo Canada Inc.
90 Matheson Boulevard West
Suite 350
CA-MISSISSAUGA, ON, L5R 3R3
Tel/Tél: [phone]
Free: [phone]
Fax: [phone]
E-mail: [email protected]
ČESKÁ REPUBLIKA
Arjo Czech Republic s.r.o.
Na Strzi 1702/65
140 00 Praha
Czech Republic
Phone No: [phone]
E-mail: [email protected]
DANMARK
Arjo A/S
Vassingerødvej 52
DK-3540 LYNGE
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
DEUTSCHLAND
Arjo GmbH
Peter-Sander-Strasse 10
DE-55252 MAINZ-KASTEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
ESPAÑA
ARJO IBERIA S.L.
Poligono Can Salvatella
c/ Cabanyes 1-7
08210 Barberà del Valles
Barcelona - Spain
Telefono 1: [phone]
Telefono 2: [phone]
FRANCE
Arjo SAS
2 Avenue Alcide de Gasperi
CS 70133
FR-59436 RONCQ CEDEX
Tél: [phone]
Fax: [phone]
E-mail: [email protected]
HONG KONG
Arjo Hong Kong Limited
Room 411-414, 4/F, Manhattan Centre,
8 Kwai Cheong Road, Kwai Chung,
N.T.,
HONG KONG
Tel: [phone]
Fax: [phone]
ITALIA
Arjo Italia S.p.A.
Via Giacomo Peroni 400-402
IT-00131 ROMA
Tel: [phone]
Fax: [phone]
E-mail: Italy[email protected]
MIDDLE EAST
Arjo Middle East FZ-LLC
O󰀩ce 908, 9th Floor,
HQ Building,North Tower,
Dubai Science Park,
Al Barsha South
P.O. Box 11488, Dubai,
United Arab Emirates
Direct [phone]
Fax [phone]
Email: [email protected]
NEDERLAND
Arjo Nederland BV
Biezenwei 21
4004 MB TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEW ZEALAND
Arjo Ltd
34 Vestey Drive
Mount Wellington
NZ-AUCKLAND 1060
Tel: [phone]
Free Call: 0800 000 151
Fax: [phone]
E-mail: [email protected]
NORGE
Arjo Norway AS
Olaf Helsets vei 5
N-0694 OSLO
Tel: [phone]
Faks: [phone]
E-mail: [email protected]
ÖSTERREICH
Arjo Austria GmbH
Lemböckgasse 49 / Stiege A / 4.OG
A-1230 Wien
Tel: [phone]
Fax: [phone]
POLSKA
Arjo Polska Sp. z o.o.
ul. Ks Piotra Wawrzyniaka 2
PL-62-052 KOMORNIKI (Poznań)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
PORTUGAL
Arjo em Portugal
MAQUET Portugal, Lda.
(Distribudor Exclusivo)
Rua Poeta Bocage n.º 2 - 2G
PT-1600-233 Lisboa
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
SUISSE / SCHWEIZ
Arjo Switzerland AG
Fabrikstrasse 8
Postfach
CH-4614 HÄGENDORF
Tél/Tel: [phone]
Fax: [phone]
SUOMI
Arjo Scandinavia AB
Riihitontuntie 7 C
02200 Espoo
Finland
Puh: [phone]
E-mail: Asiakaspalvelu.nland@arjo.
com
SVERIGE
Arjo International HQ
Hans Michelsensgatan 10
SE-211 20 MALMÖ
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
Arjo UK and Ireland
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
USA
Arjo Inc.
2349 W Lake Street Suite 250
US-Addison, IL 60101
Tel: [phone]
Free: [phone]
Fax: [phone]
E-mail: [email protected]
JAPAN
Arjo Japan K.K.
東京都港区虎ノ門三丁目7 番8 号
ランディック第2 虎ノ門ビル9 階
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.arjo.com
Address page rev. 28 • 04/2022

At Arjo, we believe that empowering movement within healthcare environments is essential to quality
care. Our products and solutions are designed to promote a safe and dignied experience through
patient handling, medical beds, personal hygiene, disinfection, diagnostics, and the prevention of
pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years
caring for patients and healthcare professionals, we are committed to driving healthier outcomes for
people facing mobility challenges.
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö, Sweden
www.arjo.com
