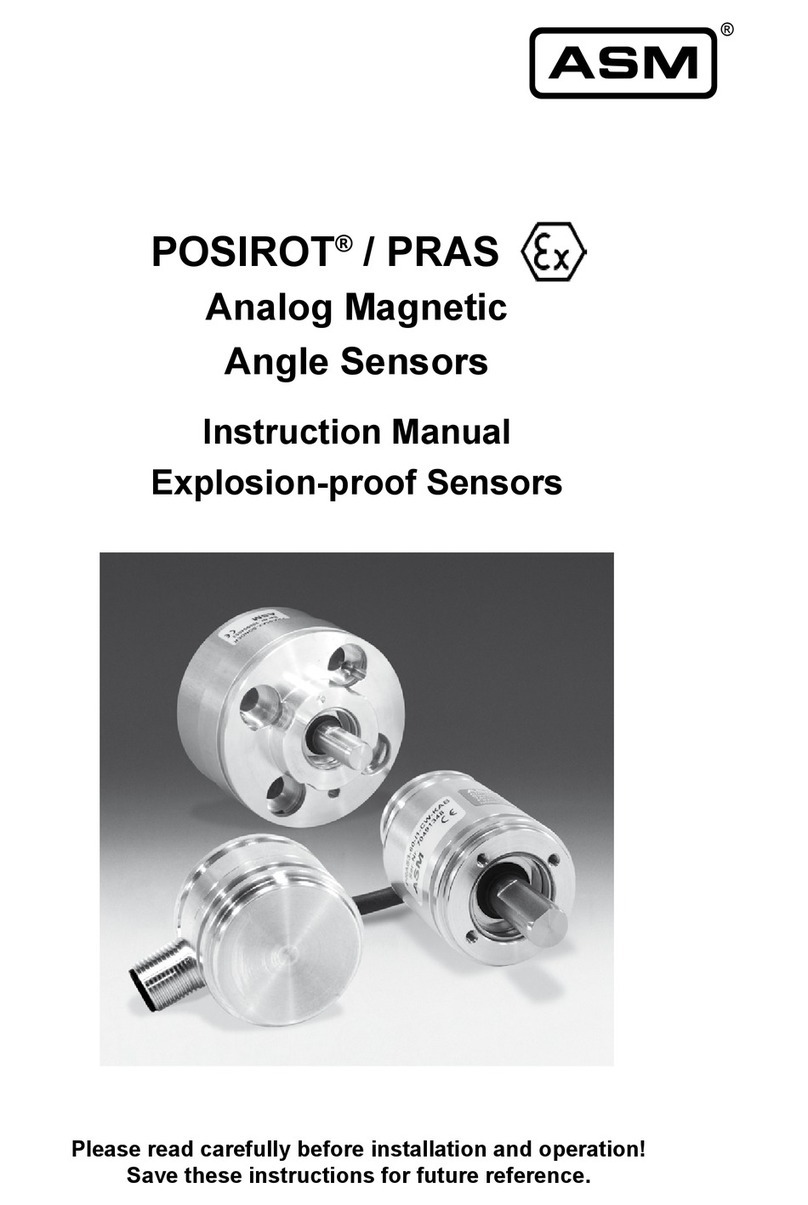

ASM posirot PRAS Series User manual

Installation and operation manual EN
Please read carefully before installation and operation!
posirot® PRAS/PRDS
Magnetic Angle Sensors
Magnetic Incremental Encoders

© ASM Automation Sensorik Messtechnik GmbH, 2020
All rights reserved.
Am Bleichbach 18 - 24
85452 Moosinning
Germany

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
3
1Safety instructions ........................................................................................................4
1.1 Signal words and symbols .............................................................................................................4
1.2 General safety instructions.............................................................................................................4
1.3Intended use...................................................................................................................................5
2Transport and storage...................................................................................................5
3Installation and initial operation...................................................................................7
3.1 Mechanical installation...................................................................................................................7
3.2 Electrical connection ....................................................................................................................18
3.3 Operating temperature.................................................................................................................20
3.4 Characteristics for magnetic angle sensors.................................................................................21
4Maintenance and disposal..........................................................................................23
4.1 Maintenance and service .............................................................................................................23
4.2 Disposal........................................................................................................................................23
5Output specification....................................................................................................24
5.1 Analog output...............................................................................................................................24
5.2 Incremental output .......................................................................................................................31
5.3 Digital output ................................................................................................................................35

posirot®
Magnetic Angle Sensors and Incremental Encoders
4
Version 1.3.0
www.asm-sensor.com
Pos: 6/ Bedienungsanleit ungen/Module Universal/Ü berschriften/Sicher heitshinweise UE @ 6\mod_15 07630884828_78.do cx @ 48429 @ 1@ 1
1 Safety instructions
Pos: 7/ Sicherheitshi nweise/Signalwört eru nd Symbole UE @ 1\mo d_14001404678 07_78.docx @ 9166 @ 2 @ 1
1.1 Signal words and symbols
Pos: 8/ Sicherheitshinweis e/Signalwörter @ 1\mod_1 400240492762_7 8.docx@ 9 385@ @ 1
WARNING, Risk of Injury:
Indicates a potentially hazardous situation, which, if not avoided, can result in serious
injury or property damage.
WARNING, Risk of Personal Injury or Death:
Indicates a situation that can result in serious personal injury or death if not properly
avoided.
WARNING, Risk of Personal Injury or Death:
Indicates a situation that can result in moderate personal injury or death if not properly
avoided.
WARNING, Risk of Personal Injury:
Indicates a situation that can result in minor personal injury if not properly avoided.
WARNING, Risk of Property Damage:
Indicates a situation that can result in minor to major property damage if not properly
avoided.
Product liability
•Disregarding the following instructions may result in malfunction, damage to property and personal injury
and releases the manufacturer from product liability.
Safety regulations
•National safety regulations must be observed!
Pos: 9/ Sicherheitshinweis e/Allg_Sicherheits hinweise UE @ 0\mod_138539 8033298_78.docx @ 2610 @ 2 @ 1
1.2 General safety instructions
Pos: 10 /Sicherheitshinweis e/Sicherheitshinw eise_PRAS_PRDS @ 8\mo d_1557821952218_ 78.docx @ 63749 @ @ 1
Danger of injury to the operator or damage to the property
•Connection to power supply must be performed in accordance with safety instructions
for electrical facilities and performed only by qualified personnel.
•Any alteration, reconstruction or extension of the sensor is not allowed!
•The sensor must be operated only within values specified in the datasheet.
•The danger of personal injury and danger of property damage due to a malfunction of
the sensor in machines or systems must be excluded by additional safety measures.
•In safety-relevant applications, additional facilities must be provided for maintaining
safety and preventing damage.
•Check whether the protection class of the sensor is suitable for the application.
Pos: 11 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
5
Pos: 12 /Sicherheits hinweise/Bestimmu ngsgemäße Verw endung/Bestimmu ngsgemäße Verwen dung UE @ 1\mod_1 400142179648_78.d ocx @ 9192 @ 2 @ 1
1.3 Intended use
Pos: 13 /Bedienungs anleitungen/Posirot /PRAS/Bestimm ungsgemäße Verw endung PR @ 8\mod _1557821791273_7 8.docx @ 63744 @ @ 1
The angle sensor is intended for angular position measurement. For determining measuring range,
environmental compatibility and connection data of the sensor, please note the data sheet. Use the sensor
as intended by operating within its specified technical data and ambient conditions.
The installation and operating instructions supplied with the unit must be respected. All maintenance and
service work must be carried out. The data sheet of the respective sensor is part of this instruction manual. If
not yet available, it may be requested by stating the respective model number.
The sensor must not be improperly mounted, operated or serviced. In addition, operation of the sensor in
faulty condition is prohibited.
The sensors listed in the installation and operating instructions must not be operated in potentially explosive
environments. Sensors intended for this environment (posirot®EX) are described in their respective
manuals.
Pos: 14 /Bedienungs anleitungen/Mo duleU niversal/Transp ort und Lagerung @ 3\mo d_148516067108 9_78.docx @ 3368 2@ 1 @ 1
2 Transport and storage
Observe storage and transport temperatures according to the temperatures specified in the data sheet.
Max. rel. humidity 60%, dew condensation must be prevented at all times.
The device must be secured against slipping and tipping during transport.
Pos: 15 /Bedienungs anleitungen/Mo duleU niversal/Liefer umfang@ 6\mod_1512125 907439_78.docx @ 5 0022 @ @ 1
Shipment damage
Check sensor immediately for shipment damage. In case of any damage or equipment not operating
appropriately, please contact your supplier.
Shipment content
•Sensor
•Installation and operation manual
Pos: 16 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
6
Version 1.3.0
www.asm-sensor.com
Pos: 17 /Bedienungsanl eitungen/Posirot/PRAS /Beschreibung_PRA S @ 2\mod_1442832758 577_78.docx @ 20093 @ @ 1
Description of the PRAS sensors
The angle sensors PRAS of the posirot®product family perform non-contact or shaft based angle
measurement. A position magnet rotates in front of the sensing area of the sensor head. The angular
position is converted into a standardized high resolution voltage or current output. Measuring ranges 15° to
360° having rising or falling characteristic are available.
Pos: 18 /Bedienungsanl eitungen/Posirot/PRD S/CANOPEN_PRDS/ Beschreibung_PRD S@ 3\m od_1454318926 894_78.docx @ 22302 @ @ 1
Description of the PRDS sensors
The angle sensors PRDS of the posirot®product family perform non-contact or shaft-based angle
measurement. A position magnet rotates in front of the sensing area of the sensor head.
The sensor detects the angular position of the position magnet and outputs an absolute digital position value
(CANopen, SAE J1939, SSI) or generates an incremental output signal (resolutions of up to 1024 pulses per
revolution are available).
Pos: 19 /Bedienungs anleitungen/Posirot /PRDS - Auflösung u ndDr ehzahlgrenzw erte@ 6\mod_151938921 8840_78.docx @ 5272 6@ @ 1
Rotational speed limit by resolution and maximum pulse frequency –PRDS sensors
Resolution
(periods per turn)
Rotational speed [rpm]
50 kHz maximum pulse
frequency
200 kHz maximum pulse
frequency
1024
1500
6000
512
3000
10000 *)
256
6000
10000 *)
128
10000 *)
10000 *)
64
10000 *)
10000 *)
32
10000 *)
10000 *)
16
10000 *)
10000 *)
*) Speed limited by mechanical restrictions of the rotating magnet.
Pos: 20 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
7
Pos: 21 /Be dienungsanl eitungen/Mo dule Univers al/Überschrift en/Montage, I nbetriebn ahme UE @ 4\mod_1491474694 256_78.docx @ 3 8324 @ 1@ 1
3 Installation and initial operation
Pos: 22 /Bedienungsanl eitungen/Posirot/Mont age_Anordnung_PRA S_PRDS @ 6\mod_1519 383835303_78.doc x@ 52 688 @ 2@ 1
3.1 Mechanical installation
•Do not deform the sensor housing!
•For sensors with shaft use flexible coupling or torque arms to avoid misalignment errors ((see page 17)
„Couplings“).
PRAS4: Risk of damage to the sensor due to corrosion
•Mount the sensor on a flat surface
•Avoid or seal gaps of <0.5mm while mounting the sensor
•Use sea-waterproof material
•Take suitable precautions against fouling
•Remove the contamination in case of fouling; define suitable maintenance intervals.
Installation of the sensor supply cable
(underwater housing)
A –PTAM4
B –Strain relief with a
separate cord grip
C –Mechanical protection
D –R>30 min. bending radius
with fixed cable
R>30 min. bending radius
with free cable

posirot®
Magnetic Angle Sensors and Incremental Encoders
8
Version 1.3.0
www.asm-sensor.com
Placement and alignment of the position magnet
For non-contact sensor models air gap and alignment of sensor and position magnet has to be observed. The
linearity will degrade in case of misalignment.
Adjacent magnetic fields or ferromagnetic materials can influence the measurement results of the PRAS and
PRDS sensors of the posirot®product family. Therefore, the angle sensors and position magnets should be
mounted solely with non-magnetic screws and washers.
The angle sensors PRAS2/PRDS2, PRAS3/PRDS3, PRAS4, PRAS5/PRDS5,PRAS6/PRDS6 and
PRAS7/PRDS7 are equipped with an integrated magnetic shield which minimizes the sensitivity against
external magnetic fields.
Optional shield plates are available for the angle sensors PRAS20, PRAS21, PRAS26, PRAS27/PRDS27 and
PRAS29/PRDS29. They can reduce the effect of residual magnetizing in case the sensor has to be mounted
on a ferromagnetic material.
It is however not possible to exclude the effect of lateral external magnetic fields.
Pos: 23 /Bedienungs anleitungen/Posirot /PRDS-Sensor en–M ontage @ 6\mod_15 19389905975_78. docx @ 52732 @ @ 1
Reference position incremental output
For ease of mounting there are reference markings at housing, position magnet or shaft. If both markings
match, the reference output Z/ Z will be activated.
Reference position SSI output
The zero point of the characteristic is given when markings on magnet and housing match.
Reference position CAN output (CANopen, J1939)
The average value of the characteristic is given when markings on magnet and housing match. The
characteristic can be defined by configuration via CAN bus.
Pos: 24 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
9
Pos: 25 /Bedienungsanl eitungen/Posirot/Refer enzposition_PRAS_ PRDS @ 6\mod_151938 4225553_78.docx @ 52694 @ @ 1
Reference position of the posirot®angle sensors
PRAS1 / PRDS1
PRAS2 / PRDS2 Cable version
PRAS2 / PRDS2 Connector version
M12 axial
PRAS2 / PRDS2 Connector version
M12 radial
PRDS2: a zero impulse Z, Zis generated at the
reference position.

posirot®
Magnetic Angle Sensors and Incremental Encoders
10
Version 1.3.0
www.asm-sensor.com

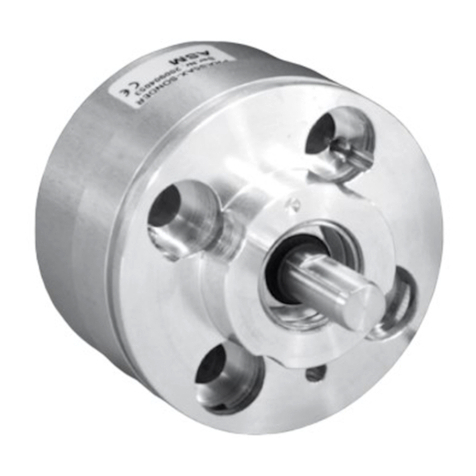

PRAS3/PRDS3 Shaft
PRAS3/PRDS3 Hollow shaft
Allowable shaft load PRAS3/PRDS3
100 N radial, 100 N axial
A –Marking
B –Marking (back side)
PRAS4
A, C –Marking
B –Marking (back side)

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
11
PRAS5/PRDS5-K
Cable version, Connector version M12 axial/radial
PRDS5-V solid shaft
Allowable shaft load PRDS5-V:
100 N radial, 100 N axial
PRDS5, PRDS5-V: a zero impulse Z, ¯Z is
generated at the reference position.
A –Marking
C –Flat area
PRAS6/PRDS6, Cable version, Connector version M12 axial/radial

posirot®
Magnetic Angle Sensors and Incremental Encoders
12
Version 1.3.0
www.asm-sensor.com
PRAS7/PRDS7
Connector version M12 axial/radial
A –Marking
PRDS6, PRDS7: a zero impulse Z, Zis generated at
the reference position.
PRAS20
PRAS21
PRAS26
PRAS27/PRDS27, PRAS29/PRDS29
Pos: 26 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
13
Pos: 27 /Bedienungsanl eitungen/Posirot/Einb au_Mag. @ 6\mod_1519654 740074_78.docx @ 52856 @ @ 1
Assembly of the position magnets
•Usually it is not admissible to countersink a position magnet into ferromagnetic
material, because this would have a negative influence on the performance of the
position magnet and could lead to measurement errors of the angle sensors.
Mounting on non-magnetic material
flush-mounted
surface-mounted
PRMAG2
PRMAG2-Z


PRMAG5-Z
PRMAG6-Z
PRMAG7-Z


PRMAG20
PRMAG21
PRMAG22


PRMAG-M10


Mounting on magnetic material
flush-mounted
surface-mounted
PRMAG2
PRMAG2-Z


PRMAG5-Z
PRMAG6-Z
PRMAG7-Z


PRMAG20
PRMAG21
PRMAG22
-

PRMAG-M10
-

: mounting admissible
Pos: 28 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
14
Version 1.3.0
www.asm-sensor.com
Pos: 29 /Datenblätt er/Posirot/Module_Arc hiv/PRAS/Zu behör/Seitenversatzt abellen/Seitenvers atz_Tabelle @ 3\m od_1470043653 209_78.docx @ 260 64@ 3@ 1
Measuring error by misalignment of the position magnet
Air gap (a)
Parallelism (b)
Axial misalignment (c)
Sensor
Position magnet
Air gap
[mm]
Paralle-
lism [°]
Error by axial misalignment [°]
0.2 mm
0.5 mm
1 mm
2 mm
3 mm
4 mm
PRAS20
PRAS21
PRAS26
PRMAG20
0 ... 7
0 ... 5
0.1
0.3
0.7
2
4.6
–
PRMAG21
0 ... 2
0 ... 5
0.15
0.3
0.9
3.6
9.6
–
PRMAG22
0 ... 10
0 ... 5
0
0
0.7
1.5
3.8
7
PRMAG-M10
0 ... 3
0 ... 5
0.1
0.1
0.5
2
7
–
PRAS27
PRDS27
PRAS29
PRDS29
PRMAG20
0 ... 7.5
0 ... 5
0.1
0.3
0.7
2
4.6
–
PRMAG21
0 ... 2.5
0 ... 5
0.15
0.3
0.9
3.6
9.6
–
PRMAG22
0 ... 10.5
0 ... 5
0
0
0.7
1.5
3.8
7
PRMAG-M10
0 ... 3.5
0 ... 5
0.1
0.1
0.5
2
7
–
PRAS1
PRDS1
PRMAG20
0 ... 6.5
0 ... 5
0.15
0.4
0.8
2.2
5.0
–
PRMAG21
0 ... 4
0 ... 5
0.2
0.4
1
3.8
10
–
PRMAG22
0 ... 9.5
0 ... 5
0.1
0.4
1
2.2
4.5
8
PRMAG-M10
0 ... 5
0 ... 5
0.1
0.1
0.5
2.0
7
–
PRAS2
PRDS2
PRMAG2-Z-VA
0 ... 9
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRMAG20
0 ... 6
0 ... 5
0.15
0.4
0.8
2.2
5
–
PRMAG21
0 ... 3.5
0 ... 5
0.2
0.4
1
3.8
10
–
PRMAG22
0 ... 9
0 ... 5
0.1
0.4
1
2.2
4.5
8.0
PRAS4
PRMAG5-Z-VA-
WP
0 ... 6.5
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRAS5
PRAS6
PRAS7
PRDS5
PRDS6
PRDS7
PRMAG2-Z-(VA)
0 ... 8.5
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRMAG5-Z-(VA)
0 ... 7.5
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRMAG6-Z-(VA)
0 ... 7.5
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRMAG7-Z-VA
0 ... 7.5
0 ... 5
0.1
0.2
0.6
1.5
4.5
8.5
PRMAG20
0 ... 5.5
0 ... 5
0.15
0.4
0.8
2.2
5
–
PRMAG21
0 ... 3
0 ... 5
0.2
0.4
1
3.8
10
–
PRMAG22
0 ... 8.5
0 ... 5
0.1
0.4
1
2.2
4.5
8
Pos: 30 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
15
Pos: 31 /Bedienungs anleitungen/Posirot /PRAS/Befestigu ngmi t Schirmplatte @ 2\m od_1442924 710629_78.docx @ 20 185 @ @1
Sensor fixing with a shield plate (optional)
An optional shield plate is available for the angle sensors PRAS20, PRAS21, PRAS26, PRAS27/PRDS27
and PRAS29/PRDS29. It can reduce the effect of residual magnetizing in case the sensor has to be
mounted on a ferromagnetic material.
PRAS20
PRAS21
PRAS26
PRAS27/
PRDS27
PRAS29/
PRDS29
Pos: 32 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
16
Version 1.3.0
www.asm-sensor.com
Pos: 33 /Bedienungsanl eitungen/Posirot/Anz ugsmomente_PRAS_ PRDS @ 6\mod_151938 2101483_78.docx @ 52672 @ @ 1
Torque for fixing screws
The specified torques and mounting methods are general recommendations and can differ according to
application and operating conditions.
Model
Mounting method
Material
Torque [Nm]
PRAS1, PRDS1
Nuts M12x1
–
2.5
PRAS21
Screws M3 with washer
A4
Aluminium
Brass
Plastic
<0.8
–
–
–
PRAS20/PRAS20R
Screws M4 with washer
A4
Aluminium
Brass
Plastic
<1.8
–
–
–
PRAS27, PRDS27
PRAS29, PRDS29
Screws M4
–
1
PRAS26
Screws M4 with washer
A2
<1.8
PRAS2, PRDS2
Screws M2.5 for mounting
brackets
–
0.8
PRAS3, PRDS3
Screws M3 for mounting
flange
–
1.2
PRAS4
Screws M6
A2
<4
PRAS5, PRDS5
Screws M8
Steel
<10
PRAS6, PRDS6
Screws M6
Steel
<6
PRAS7, PRDS7
Screws M6
Steel
<6
Pos: 34 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
17
Pos: 35 /Bedienungs anleitungen/Posirot /PRAS/Kupplunge n @ 6\mod_151 9989466136_78.d ocx @ 52963 @ 4 @ 1
Couplings
Model MK4
Rated torque
2 Nm
Total length (inserted)
37 mm
Axial misalignment (a)
< 0.7 mm
Lateral misalignment (b)
< 0.25 mm
Angular misalignment (c)
< 2°
Dimensions in mm [inch]
Order code
A
B
MK4-37-6-6
Ø6H7 [.236 +.0005]
Ø6H7 [.236 +.0005]
MK4-37-6-10
Ø6H7 [.236 +.0005]
Ø10H7 [.394 +.0006]
MK4-37-6-12
Ø6H7 [.236 +.0005]
Ø12H7 [.472 +.0007]
Pos: 36 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
18
Version 1.3.0
www.asm-sensor.com
Pos: 37 /Bedienungs anleitungen/Posirot /Elektrischer Ansc hluss_PRAS_PRD S@ 8\mod_1553595 111886_78.docx @ 6286 5 @2 @ 1
3.2 Electrical connection
Damage or destruction of the sensor due to excessive operating voltage or
mounting error
•The applied operating voltage must not exceed the value specified in the data
sheet.
•Operate the sensor only within the limits specified in the data sheet.
•Connection to the power supply only by qualified personnel and in accordance with
the applicable safety regulations for electrical equipment.
•Do not connect or disconnect the sensor under voltage!
Corrosion in the sensor due to moisture penetration
•Use the sensor only according to protection class.
•The mating connector should have the same protection class as the sensor,
otherwise the lower protection class of the mating connector is valid.
•Avoid crossing the dew point.
•Cable outputs must be installed in such a way that no moisture can get into the
cable.
•The protection class of sensors with connector output is valid only if the electrical
plug is connected!
Damage of the sensor cable due to mechanical stress
•Do not twist the M12 connector inserts.
•It is important that the knurled nuts on the connectors are tightened to the correct
torque for each different size of the connector:
•M12-ASM connectors / couplings: 1.0 Nm
•connectors / couplings of other manufacturers: according to manufacturer
instruction.
•Use a torque wrench.
•Do not strain the connection cable.
•A separate strain relief is recommended.
Damage to the sensor via water ingress through the junction box due to corrosion
resulting from water penetration (PRAS4)
•The connecting cable must be routed to the terminal box via a pressure-tight cable
gland.
Connector Pin assignment
According to the definitions of the output types contained in the appendix. Observe different color code for
pre-assembled accessory cables. See catalog information for accessories.
Supply voltage
See specification in the data sheet of the sensor. The maximum operating voltage must not be exceeded.
Pos: 38 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1

posirot®
Magnetic Angle Sensors and Incremental Encoders
Version 1.3.0
www.asm-sensor.com
19
Pos: 39 /Bedienungs anleitungen/Mo duleU niversal/Montage S ensorkabel @ 6\m od_15196512352 86_78.docx @ 52835 @ @ 1
Installation of the sensor supply cable
incorrect
correct
Admissible bending radius of the
cable must be observed:
R ~ 5 x D
R ~ 10 x D (underwater cable)
Length compensation for the
cable must be observed
A separate cord grip for cable
strain relief is recommended
Observe cable routing in case of
splashing water, water
condensation and humidity
Pos: 40 /Bedienungsanl eitungen/Posirot/PRAS /PR_EMV @ 7\mod_1526 382079171_78.docx @ 55995 @ @ 1
Electromagnetic Compatibility (EMC)
Electromagnetic compatibility of posirot®magnetic angle sensors is influenced by the sensor wiring.
Pos: 41 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1
Pos: 42 /Be dienungsanl eitungen/Posir ot/PRAS/Ar beitstemperatur_Ü bersicht_ PRAS_PRD S @ 7\mo d_153899 9485003_7 8.docx @ 5 8841 @ 2@ 1
Possible malfunction of the sensor when used in systems with highly
interference-prone components such as frequency inverters
Recommended wiring:
•Use single shielded sensor cable with twisted pair conductors for power supply
and signal output.
•Connect the cable shield to ground on one side of the control cabinet. Connect
the shield connection over a large area using cable clamps before or at the cable
entry into the control cabinet. When preassembled cables are delivered, the
screen is not connected to the housing on the sensor side.
•Do not install sensor cables close to power conductors such as motor or
contactor control cables (use separate cable ducts for signal and power cables).
•Install the cables in metal cable ducts which are connected to ground.

posirot®
Magnetic Angle Sensors and Incremental Encoders
20
Version 1.3.0
www.asm-sensor.com
3.3 Operating temperature
posirot® PRAS20/PRAS20R
-40 ... +85°C
posirot® PRAS21
-40 ... +85°C
posirot® PRAS26
-40 ... +85°C
posirot® PRAS27/PRDS27
-40 ... +85°C
posirot®PRAS29/PRDS29
-40 ... +85°C
posirot® PRAS1/PRDS1
-40 ... +85°C
posirot® PRAS2/PRDS2
-40 ... +85°C
posirot® PRAS3/PRDS3
-40 ... +85°C
posirot® PRAS4
-20 ... +85°C (up to +30°C in sea water)
posirot® PRAS5/PRDS5
-40 ... +85°C
posirot® PRAS6/PRDS6
-40 ... +85°C
posirot® PRAS7/PRDS7
-40 ... +85°C
Pos: 43 /######## ### Seitenumbruch #### ############## ############# #### @ 0\mod_13 53584168894_0.d ocx @ 336 @ @ 1
