Assa Abloy Besam SW200i US Manual

Besam Swing Door Operator
SW200i US
Installation and Service Manual
Original instructions
1007718-US-3.0 – Issue 2012-06-27
ASSA ABLOY, the global leader in door opening solutions

© All rights in and to this material are the sole property of Besam US Inc.. Copying, scanning, alterations or modifications
are expressly forbidden without the prior written consent of the applicable company within Besam US Inc.. Rights reserved
for changes without prior notice.
Backtrack information: folder: Library, version: a417, date: 2012-06-21, time: 13:01:22, state: Working

CONTENTS
41 Revision ...............................................................................................................................
52 Important information ...........................................................................................................
73 Technical specification .........................................................................................................
94 How the SW200i works ........................................................................................................
145 Models .................................................................................................................................
166 Operator/Door handing ........................................................................................................
177 Part identification .................................................................................................................
188 Arm systems ........................................................................................................................
239 Options ................................................................................................................................
2710 Pre-installation .....................................................................................................................
3011 Mechanical installation .........................................................................................................
4712 Electrical connection ............................................................................................................
5913 Start-up ................................................................................................................................
6514 Changing group of parameters ............................................................................................
6915 Classification ........................................................................................................................
7016 Cover ...................................................................................................................................
7117 Troubleshooting ...................................................................................................................
7318 Maintenance plan ................................................................................................................
7419 ANSI / BHMA A156.10 .........................................................................................................
7920 ANSI / BHMA A156.19 (LOW ENERGY APPLICATION) ....................................................
3Issue 2012-06-271007718-US-3.0
CONTENTS

1 Revision
Following pages have been revised:
Revision 2.0 →3.0Page
OPS added to the OPD sensors11, 52, 64
1007718-US-3.0Issue 2012-06-274
1 Revision

2 Important information
WARNING!
Failure to observe the information in this manual may result in personal injury or
damage to equipment.
To reduce the risk of injury to persons - use this operator with single or double
pedestrian swinging or folding doors only.
Save these instructions for future reference.
2.1 Intended use
The Besam SW200i is an automatic swing door operator developed to facilitate entrances to
buildings and within buildings through swing doors. The operator is only for indoor use. The
SW200i is a universal electro-mechanical operator that combines a Heavy Duty (HD) operator
for large heavy doors with Low Energy (LE) applications of swing doors. The operator is factory
set to Low Energy (LE).
The Besam SW200i can be surface or concealed mounted on either side of the door header for
pull or push action, and is suitable for single doors, double doors and double egress doors fitted
with swing clear hinges, offset or center pivots.
The Besam SW200i ensures all-around safety. The operator can be combined with a full range
of sensor products providing swing door safety, but meets also the requirements for a low energy
operator without any sensors.
The operator is connected to the door leaf with a range of different arm systems.
The door is designed to offer continuous use, a high degree of safety and maximum lifetime.
For use see User manual 1007717.
2.2 Safety precautions
Do not climb on door parts.
Do not let children play with the door or the fixed controls.
Be sure to complete the site acceptance test before taking the door in to operation, see PRA-
0007.
To avoid bodily injury, material damage and malfunction of the product, the instructions con-
tained in this manual must be strictly observed during installation, adjustment, repairs and service
etc. Training is needed to carry out these tasks safely. Only Besam-trained technicians should
be allowed to carry out these operations.
2.3 Electronic equipment reception interference
The equipment complies with the European EMC directive (US market FCC Part 15), provided
installed according to Installation and Service manual.
5Issue 2012-06-271007718-US-3.0
2 Important information

The equipment may generate and use radio frequency energy and if not installed and used
properly, it may cause interference to radio, television reception or other radio frequency type
systems.
If other equipment does not fully comply with immunity requirements interference may occur.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Re-orient the receiving antenna.
•Relocate the receiver with respect to the equipment.
•Move the receiver away from the equipment.
•Plug the receiver into a different outlet so that equipment and receiver are on different branch
circuits.
•Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronic technician for addi-
tional suggestions.
Besam products are equipped with electronics and may also be equipped with batteries containing
materials which are hazardous to the environment. Remove this material from the operator before
it is scrapped and make sure that it is disposed of properly as was done with the packaging.
This manual contains the necessary details and instructions for the installation, maintenance
and service of the Swing Door Operator Besam SW200i.
2.4 Glazing materials
The glazing material for swing doors shall comply with ANSI Z97.1
1007718-US-3.0Issue 2012-06-276
2 Important information

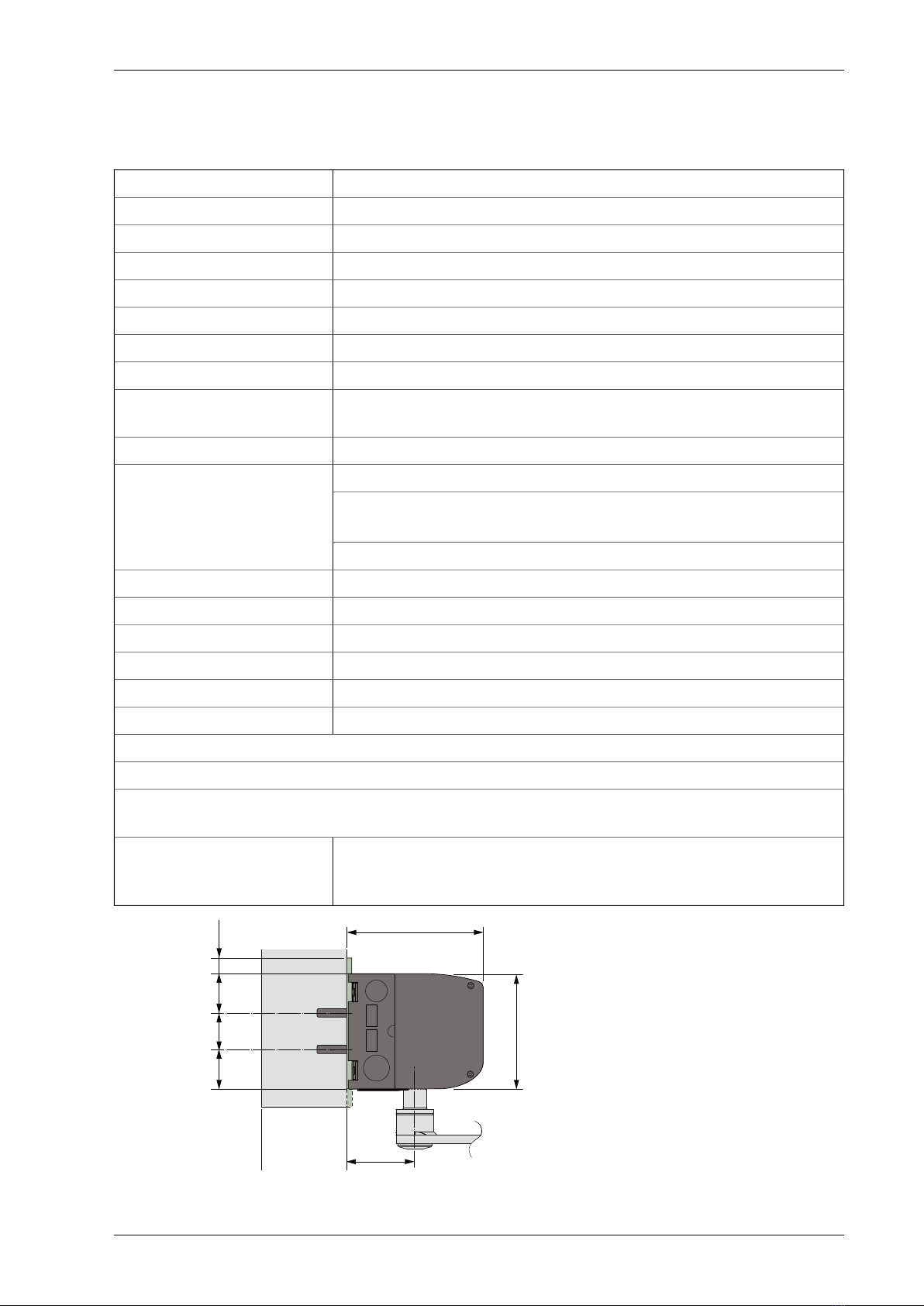

3 Technical specification
Besam US Inc.Manufacturer:
1900 Airport Road, US-Monroe, NC 28110Address:
SW200iType:
120 V AC +10/-15%, 50/60 HzPower supply:
max. 300 WPower consumption:
24 V DC, max. 700 mAAuxiliary voltage:
2 x T 6,3 AH 250 VInternal control fuse:
36-48”(914-1219 mm)Door width:
Selectable: 12V DC, max. 1200 mA / 24 V DC, max. 600 mAElectro-mechanical locking de-
vice:
100-700 lb. (45-315 kg)Door weight:
PUSH: 80° - 110°, with reveal 0 - 12”(0 - 305 mm)Door opening angle:
PULL: 80° - 110°, with reveal 0 - 5 1/8”(0 - 130 mm)
PAS: only 80°-95°
80°-95° in a concealed application
variable between 2 - 12 secondsOpening time (0° - 80°):
variable between 4 - 12 secondsClosing time (90° - 10°):
1,5-30 secondsHOLD open time:
-4 °F to +113 °F (-20 °C to +45 °C)Ambient temperature:
Max. 95%Relative humidity:
19,8 lb. (9 kg)Drive unit weight:
This product is to be installed internally.
Class of protection IP 20.
Complies with: ANSI/BHMA A156.19, ANSI/BHMA A156.10, UL 325, UL 991, UL 244A, UL 1310,
CAN/CSA-C22.2 N0 223-M91 and CAN/CSA-C22.2 N0 247-92
Third party approvals from established certification organizations valid for
safety in use and escape route safety. For details see Declaration of Confor-
mity.
Approvals:
2 11/16’’
5 1/8’’
11/2’’ 11/2’’13/8’’
4 5/16’’
5/8’’
7Issue 2012-06-271007718-US-3.0
3 Technical specification

3.1 Opening times
Opening time is adjustable from 2-12 seconds and dependent on the weight, width and installed
arm system of the door. For max opening times on low energy doors, see Table I on page 79.
1007718-US-3.0Issue 2012-06-278
3 Technical specification

4 How the SW200i works
The swing door operator SW200i uses a DC motor which is connected to the output shaft by a
combination of a bevel gear and spur gears. The arm system that is connected to the output shaft
opens the door in a wall mounted application.
There is also an adjustable spring mechanism connected to the output shaft. During opening of
the door, the clock spring is tensioned by the rotation of the output shaft. During the closing
cycle, the accumulated spring force is acting in the closing direction. The spring force can be
adjusted so there is appropriate force to close the door when it is operated manually or in case
of a power failure.
4.1 Opening
When an opening signal is received by the control unit, the door is opened at the operator-ad-
justed opening speed. Before the door is fully open at back check, it slows automatically to low
speed. The motor stops when the selected door opening angle has been reached. The open position
is held by the motor.
If the door is obstructed while opening, it will either stall or stop which can be selected with a
DIP-switch (SOS). Stop on stall is always active in program selector Mode Off.
•Continue on stall - the door will continue to try to open during the hold open time.
•Stop on stall - the door will, even if hold open time has not expired, close after 2 seconds.
4.2 Closing
When the hold open time has elapsed, the operator will close the door automatically, using
spring force and motor. The door will slow to low speed at latch check before it reaches the
fully closed position. The door is kept closed by spring power or combined with extended
closing torque by the motor.
9Issue 2012-06-271007718-US-3.0
4 How the SW200i works

4.3 Control switch
4.3.1 ON/OFF/HOLD open switch (option)
P/N: 1003582
FUNCTION
ON
OFF HOLD
FUNCTION
ON OFF HOLD
ProgramFunction
Impulses from activation units connected to XIMP are forwarded into inner impulse
“CU-200”on page 52.
ON
Impulses from activation units connected to XIMP are not forwarded into inner
impulse. These units cannot open the door.
OFF
The door is held permanently open.HOLD
4.4 Functions on the basic control unit CU-200
Also see page 52 for more information.
4.4.1 Power failure
During power failure the operator acts as a door closer with controlled closing speed. The micro
switch located next to the spindle shaft can be adjusted to control when lock kick occurs.
4.4.2 Spring force
The operator is delivered with spring pre-tension factory set to 360°. If necessary, the spring
tension can be electronically adjusted with a potentiometer to required closing force, but max
total 720°. The arm must also be relocated on the spindle.
4.4.3 Extended closing torque (CLTQ)
If the potentiometer CLTQ is set to 0°, the door will close with normal spring power. If the
potentiometer is turned clockwise, the motor will increase the closing torque. Extended closing
torque will be reduced to zero:
•If the door mounted sensor presence detection is activated during the last 10° before closing.
•If the door mounted sensor presence impulse is activated in closed position or during closing
(even if manually opened).
1007718-US-3.0Issue 2012-06-2710
4 How the SW200i works

4.4.4 Power assist (POAS)
If the potentiometer POAS is set to 0°, the door gives no power assist. If the potentiometer is
turned clockwise, the motor will give/increase power assist when the door is opened manually.
The range of the POAS is depending on the spring pre-tension.
4.4.5 Push and go (PAG)
DIP-switch to select Push and Go, ON or OFF. Push and Go is available from any door position.
Push and Go is not active in programme selector setting OFF.
4.4.6 Overhead presence detector (OPD/OPS), frame mounted
When an OPD/OPS sensor is mounted on the frame or operator cover just above the swing side
of the door, it will–when activated–either keep the door open or closed. The sensor input is not
sensitive during opening and closing. Lock-out signal is available as it is required by some
OPD/OPS sensors for proper function.
•a closed door will not open, if the OPD/OPS detects activity in the field
•an open door will not close, if the OPD/OPS detects activity in the field
•during opening, the door will continue to open, even if the OPD/OPS detects activity in the
field
•during closing, the door will continue to close, even if the OPD/OPS detects activity in the
field
•the OPD/OPS is not active in program mode OFF or manually opened door
•during closing, if an activation occur the door will re-open.
4.4.7 Activation delay (AD)
This function requires a constant inner impulse for the specified time before the door will open.
Fixed 2 sec.
During closing the door will reopen immediately if impulsed.
4.4.8 Mat
Mat safety means that:
•a closed door will not open, if someone steps on the mat
•an open door will not close, if someone steps on the mat
•during opening, the door will continue to open, even if someone steps on the mat
•during closing, the door will continue to close, even if someone steps on the mat
•opening impulses are prevented during closing, if someone steps on the mat
•the mat is not active in program mode OFF or manually opened door.
4.5 Functions on the extension unit EXU-SI
Also see page 55 for more information.
4.5.1 KILL function
In the event that the KILL circuit is activated, all Safety Functions of the
door will be overridden causing the door to close even though an object or
person may be in the door's path of travel, and therefore may be subject to
11Issue 2012-06-271007718-US-3.0
4 How the SW200i works

injury. This mode of operation is most generally used to isolate an area in
the event of a fire.
•During KILL, the control will ignore all signals and close door(s) at normal speed.
•If impulse controlled KILL: The operator will resume normal operation after a KILL RESET.
When manual RESET, jumper must be removed and reset button connected to terminal No.
8 and Ground.
•Or if state controlled KILL: When KILL signal is no longer active, operator will resume
normal operation.
•The behavior of the lock during KILL depends on the group of parameters. See page 65.
•The KILL input may be connected to either a normally open contact with GND as reference
or a normally closed contact with QTST as reference, depending of group of parameters,
see page 65.
4.5.2 Function of locks
•The lock output only works when the function switch is in OFF or EXIT. If no function
switch is used, OFF or EXIT must be connected to GND (0 VDC).
•The control has an available output of DC for external locks
•DIP-switches to select 12 or 24 V DC, locked with or without power
•DIP-switch for lock release and potentiometer for opening delay
•DIP-switch for lock kick to overcome binding in the locking device during closing
•Input to unlock signal from lock. Potentiometer for opening delay is to be set to max. As
soon as unlock signal is received the door will start to open. The lock output signal shall be
active low.
•If the door cannot fully close, the operator will perform a lock retry (once if manually open,
twice if automatically open).
4.5.3 Panic bar
Panic bar can be disabled by the relay function on the extension board EXU-SA and an external
power supply. Panic bar will then only be active during KILL. See Changing group of parameters
on page 65.
4.5.4 Program selector (wall mounted)
•Input for OPEN, EXIT and OFF (if no program selector, AUTO is default).
Note: In OFF-position the operator will comply with the Low Energy Regulation.
4.5.5 Impulses
•Input for OUTER impulse, KEY impulse and OPEN/CLOSE impulse.
4.5.6 OPEN/CLOSE impulse
The impulse will open the door and the door will stay open until a new impulse is given. If no
impulse is given the door will close after 15 minutes. This can be made infinite by changing
group of parameters, see page 65.
OPEN/CLOSE impulse works only in program selection AUTO. Can be programmed for OFF
and EXIT as well. See page 65.
1007718-US-3.0Issue 2012-06-2712
4 How the SW200i works

4.6 Functions on the extension unit EXU-SA
Also see page 56 for more information.
4.6.1 Presence impulse approach, door mounted / Door mounted presence sensor,
non swing side (DMPS.NS)
The presence impulse is active during fully open and closing. The sensor is mounted to the ap-
proach side of the door. Once the door is closed, the sensor is ignored and will not be active
until the next impulse is received.
Note: When installed as a pair of doors, the presence impulse signal will re-open both doors.
The sensor is not active in program mode OFF or manually opened door (Power Failure Mode
or during KILL function).
4.6.2 Presence detection swingpath, door mounted / Door mounted presence sensor,
swing side (DMPS.SS)
When a sensor that is mounted on the swing side of a door detects an object, it will send a
command to the control unit to stall the door. If the control unit has received a short signal from
the sensor and there is still hold open time left on the control unit, the door will continue on its
way open if the object has cleared.
The inhibit/blanking potentiometer can be adjusted so that the sensor will avoid detecting a wall
or object near the full open position. Presence detection has a higher priority than presence im-
pulse.
Note: When installed as a pair of doors the presence detection signal will stop both doors, except
for double egress doors. The behavior for double egress doors can be changed . The sensor is
not active in program mode OFFor manually opened door. In this OFF-mode the operator fulfills
the Low Energy Standards.
4.6.3 Monitored safety sensors
Both presence impulse and presence detection can be monitored. If a sensor becomes defective,
the operator will not accept any impulses and will then work as a manual door closer.
4.6.4 Relay output
•Error indication
A potential free contact COM/NO/NC for external error indication, see “Error indication”on
page 72.
•KILL output
NO or NC signal
•Door indication
Used to indicate an open or closed position of the door. The indication position is set by
adjusting the inhibit/blanking potentiometer.
•Panic bar
Parameter group 14
13Issue 2012-06-271007718-US-3.0
4 How the SW200i works

5 Models
The Besam SW200i operator can be surface mounted or concealed installed. These two versions
can be used in the following installations:
•Single doors
•Double doors (two operators)
•Double egress doors (two operators)
The operators are non-handed and not dependent on the hinges. The operators suit both pushing
and pulling arm systems.
5.1 Single operator, surface mounted
The product is delivered complete with back plate, control unit, end plates and cover. Length
including end plates, L = 39.5”(1003 mm).
Pushing arm system shown. Other lengths are optional.
L
5.2 Double operator, surface mounted
Note: Consult Product Order form for availability
The product is delivered complete with back plate, control unit, end plates and cover. Cover
length L is optional.
Two operators can be mounted under the same cover to open one door each. Pushing and pulling
arm system shown (double egress).
It is also possible to use two pushing or two pulling arm systems.
L
1007718-US-3.0Issue 2012-06-2714
5 Models

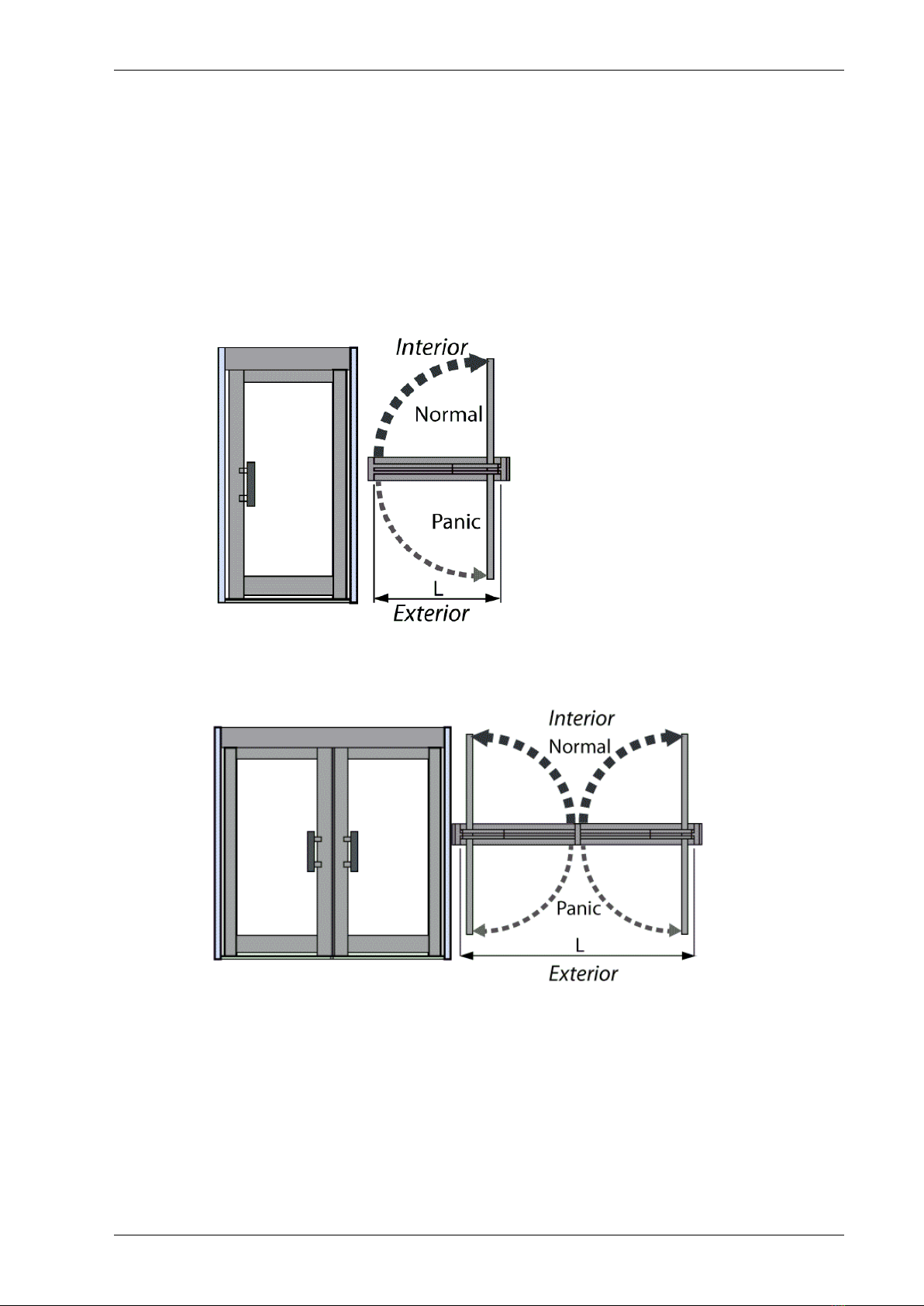

5.3 Concealed mounted
The concealed operator is used to control a center-pivot door, with the operator integrated and
concealed in the header above the door. The door can be opened in a direction opposite to normal
in an emergency (panic breakout). Manual reset by pushing the door back into normal operation
sector is necessary.
A concealed operator can also be installed in the ceiling space above the door (bottom load).
Such applications may require field engineering of components and hardware.
Operator for right handed door
Operator for left and right handed door
15Issue 2012-06-271007718-US-3.0
5 Models

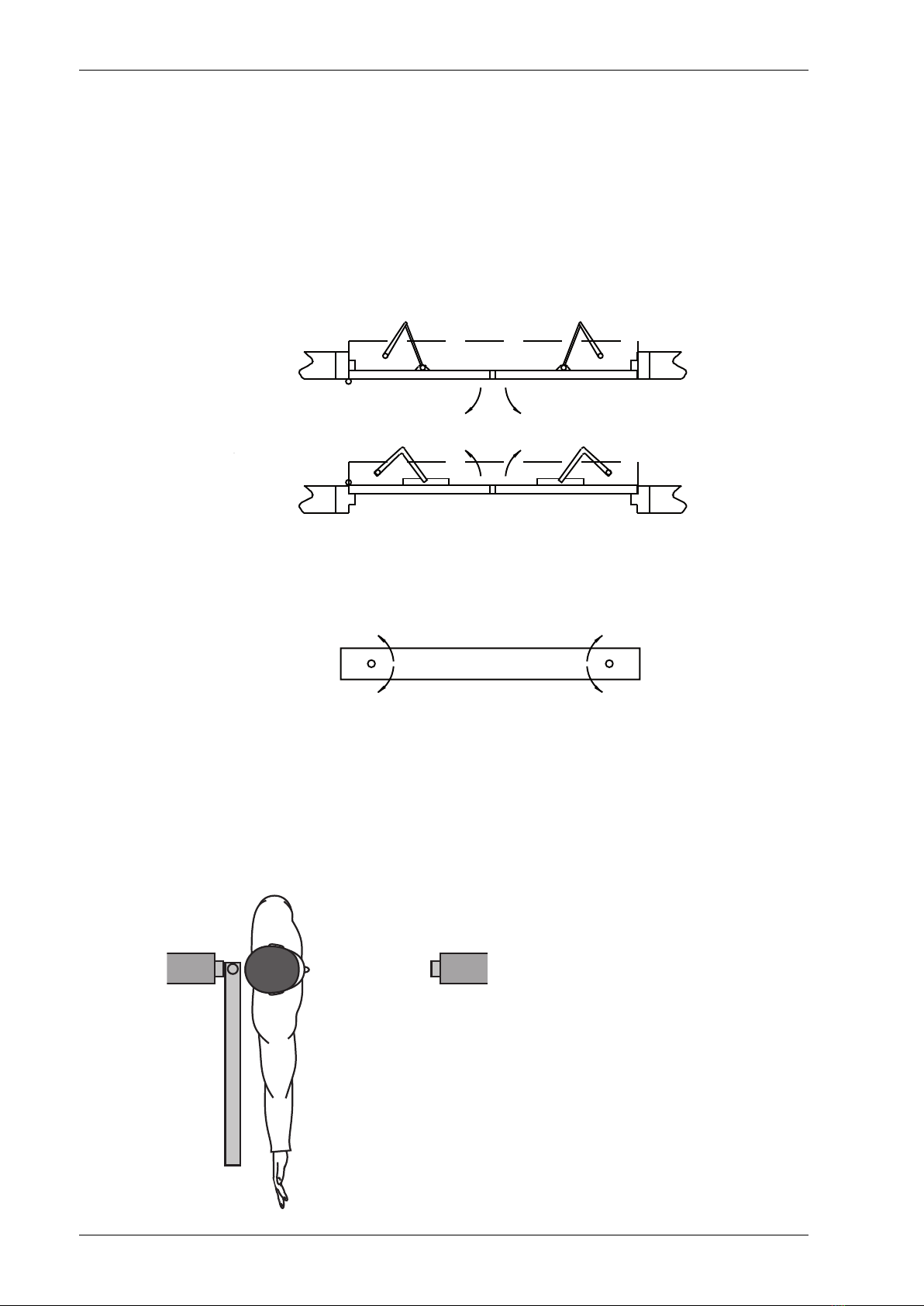

6 Operator/Door handing
6.1 Operator handing
80/11/601snoituloSecnartnEmaseB
80/11/601snoituloSecnartnEmaseB
Pull
Concealed
Surface Applied
Push
Left hand Right hand
Right hand Left hand
Right hand Left hand
Left hand Right hand
6.2 Door handing
Door handing is determined by standing with your back to the hinges. The side that the door
normally opens (right or left) is the handing of the door. The illustration below shows a right-
handed door.
1007718-US-3.0Issue 2012-06-2716
6 Operator/Door handing

7 Part identification
7.1 Surface mounted - Side loaded
DescriptionArt. No.Item No.
Back plate1
Transmission unit3310072912
Control unit CU-2003310077523
Control unit CU-200 with EXU-boards331008346
EXU-SA331003557
EXU-SI331003554
Stop arm kit3300002764
End plate kit10091325
Cover6
ON/OFF/HOLD open switch3310035827
Knockouts for cable inlet–8
Connection box331007504 BK9
Adaptor kit330000270 SI/BK10
Micro switch kit incl. cam33000027511
Fixing kit33100732712
Sync cable –optional331003583
PUSH Arm service kit330000271 SI/BK
PULL/PAS Arm service kit330000272 SI/BK
Rocker Switch ON/OFF330000330
Encoder cable331009105
17Issue 2012-06-271007718-US-3.0
7 Part identification

8 Arm systems
8.1 Pushing installation with PUSH-arm
This arm system is delivered with drive arm, telescopic part and door fitting. It is used if the
operator is installed on the wall on the opposite side of the door swing, and approved for fire
door application.
P/N:1007241BK, 1007241SI
A
Frame depth
High PerformanceStandardExtension
8 1/4”(210 mm)
14°
2 3/8”(60 mm)
3 3/4”(95 mm)
40°
7 5/8”(194 mm)
Telescopic part
L= 13 1/2" (345 mm)
P/N: 173005
Telescopic part
L= 9 1/2" (230 mm)
P/N: 173004
Joint assemble
P/N: 173191
A = revealA = reveal
0 to 3 7/8" (0-99 mm)0 to 3 3/4" (0-95 mm)None (Standard arm)
3 7/8 to 9 1/16" (99-230 mm)3 3/4 to 8 1/4" (95-210 mm)Telescopic part L=13 1/2" (345 mm)
9 1/6 to 14 1/4" (230-362 mm)8 1/4 to 13 1/32 " (210-335 mm)
Extension L=9 1/2" (230 mm) + joint
part
1007718-US-3.0Issue 2012-06-2718
8 Arm systems

8.2 Pulling installation with PULL-arm
This arm system is delivered with drive arm, guide shoe and door fitting.
P/N: 1007251BK, 1007251SI
8 1/4” (210 mm)
3 3/4” (95 mm)
19Issue 2012-06-271007718-US-3.0
8 Arm systems

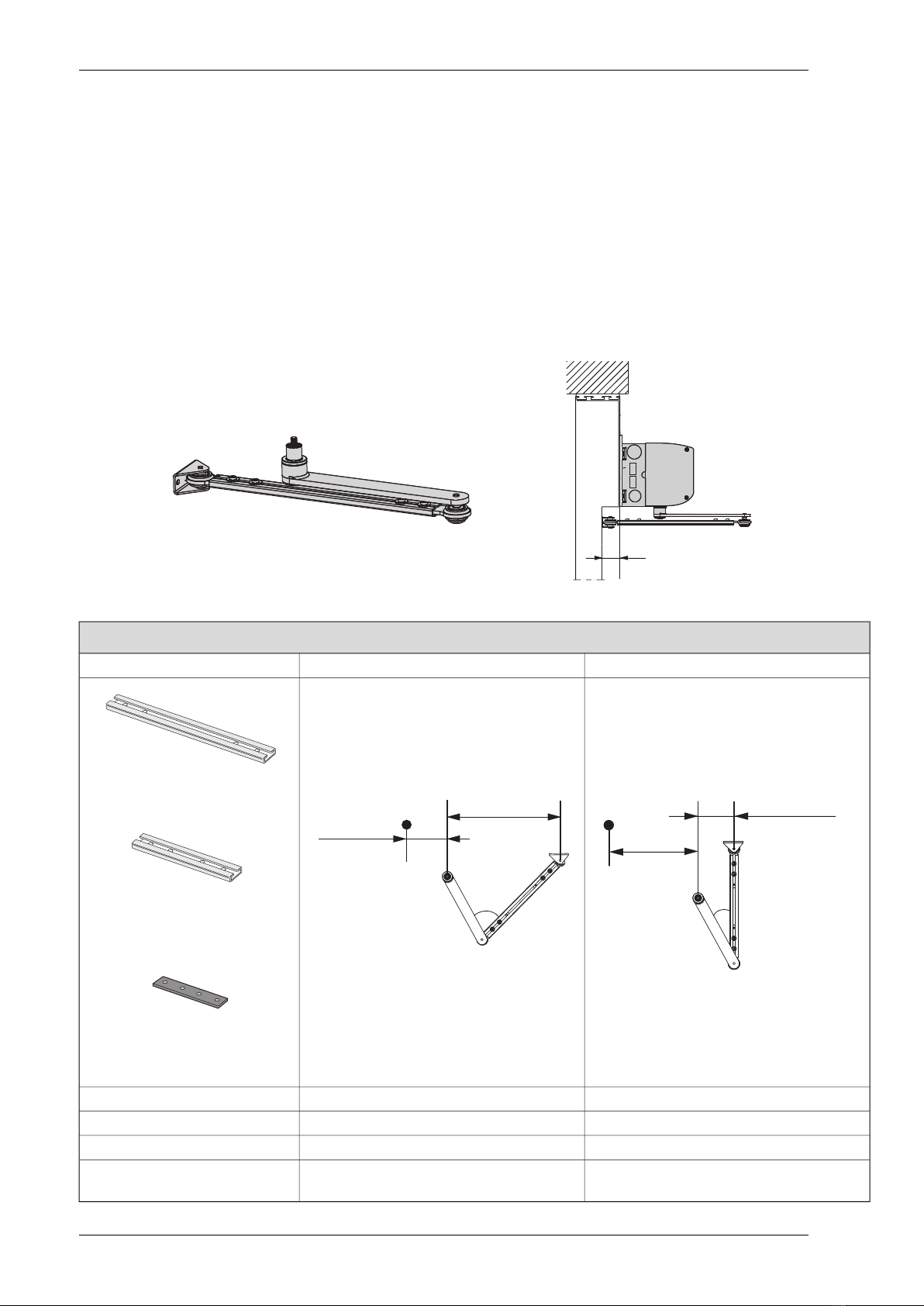

8.3 Pulling installation with PAS-arm
This arm system consists of main arm, slide track, roller guide and shaft adaptor. It can be fitted
on combinations of doors and jambs (walls), where the total reveal from the wall line to the
door leaf does not exceed 5 1/8".
P/N: 1007476BK (left), 1007476SI (left)
P/N: 1007247BK (right), 1007247SI (right)
1007718-US-3.0Issue 2012-06-2720
8 Arm systems
