Assa Abloy Norton 9510 Series User manual

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
ASSA ABLOY
Slide Track Application
(100° Maximum Door Swing)
H.O. Bumper Stop
9510 Series
Installation Instructions
PS9500ST / PS9500STH Series
Half-Size 1 thru 6
Hinge (Push) Side
Door Application
9540 Stop Mounted
PUSH SIDE
9500ST / 9500STH Series
Multi-Sized 1 thru 6
Hinge (Pull) Side
Door Application
9530 Door Mounted
PULL SIDE
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
IMPORTANT:
BEFORE
INSTALLING:
An improperly installed or incorrectly adjusted door closer may cause property
damage or personal injury; and will void product warranty.
To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.
Door closers must be securely fastened to a properly reinforced door and frame
with fasteners provided.
Door closers with the HOLD OPEN TRACK option are not permitted to be
installed in fire door assemblies.
ADA compliant closers are: 9530 & 9540.
The Americans with Disabilities Act (ADA) requires that doors having door closers
have an opening force not to exceed 5 lbf.
**NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft.
The door closer's power size adjustment feature may require adjustment to its
lowest setting to comply with ADA opening force guidelines.
TO DETERMINE
HAND OF
YOUR DOOR:
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
RHR LHR
2 6' "
3 0' "
3 6' "
*4 0' "
2 6' "
3 0' "
*3 6' "
*4 0' "
2 6' "
3 0' "
3 6' "
4'0"
Size of Door & Door Closer
Type
of
Installation Interior Exterior
In-swinging
Exterior
Out-swinging
Recommended
Closer Size
**Max.
Opening
Force
lbs/f
2 6' "
3 0' "
3 6' "
4'0"
1
2
3
4
5
6
8
14
16
22
24
26
8
14
16
22
24
26
1
2
3
4
5
6
PULL
SIDE
Mounting
PUSH
SIDE
Mounting
Page 2
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
Components: Figure 1
Plastic Cover
(Standard) Screw Pack
Closer Mounting
Bracket
Closer
Pull Side Track
Arm
Adjusting
Rod
Push Side Track
Arm Adjusting
Rod
Page 3
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
9/32” (7 mm);
3/8” (9.5 mm) dia. x
3/8” (9.5 mm) deep on
door opposite to closer
Standard
Optional
Through-bolts and
grommet-nuts All

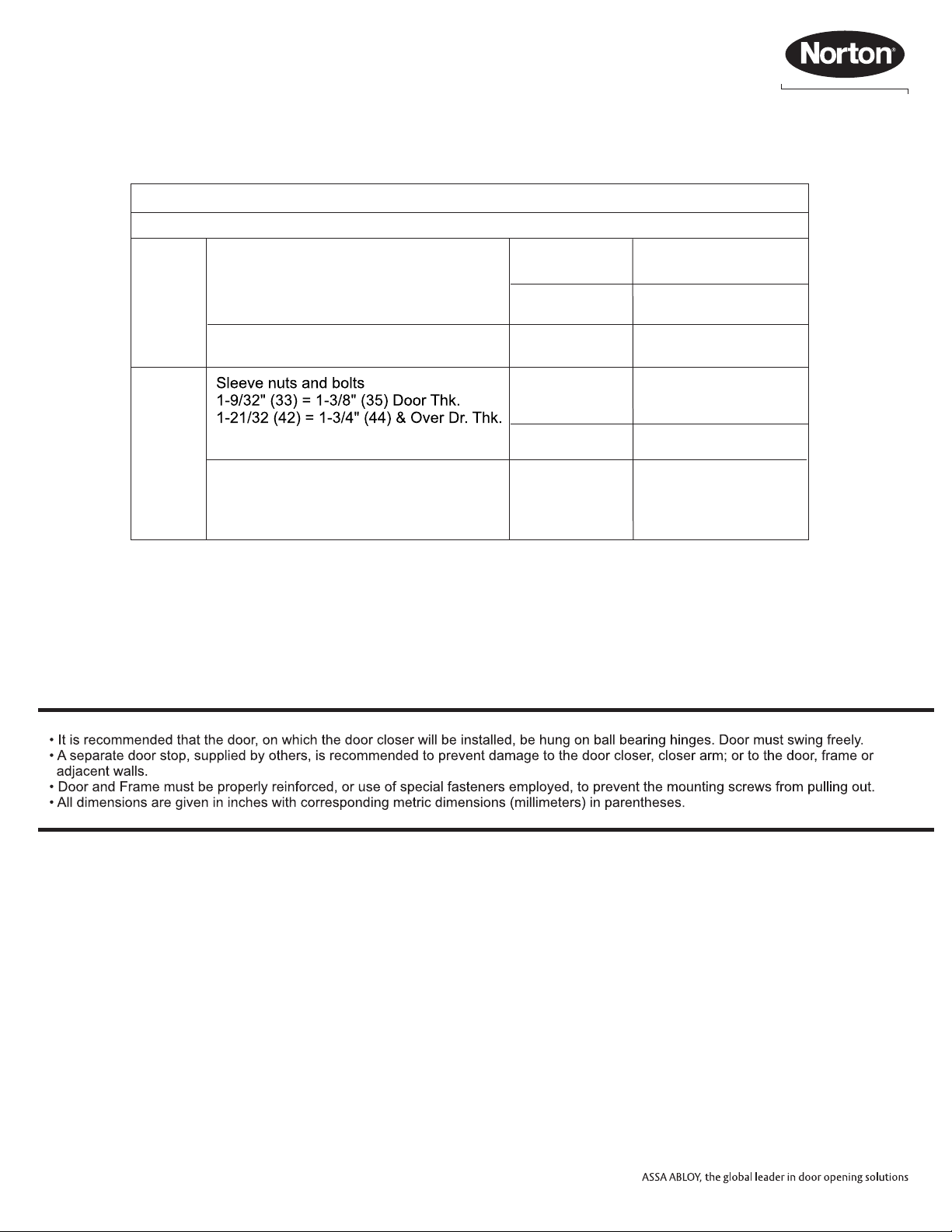

Preparation for Fasteners Figure 2
Door or Frame
Fasteners Drill-Sizes
#12-14 Self-Drilling Screw Wood
(see Note) 3/16” (4.30 mm)
1/4” - 20 machine screw Metal Drill: #7 (0.201” dia.)
Tap: 1/4” - 20
Hollow
Metal
9/32” (7 mm) through;
3/8” (9.5 mm) door face
opposite to closer
Aluminum
or Wood 3/8” (9.5 mm) through
Aluminum
or Metal No drill required
Page 4
Note: Wood doors/frames: drill 1/8" (3.2) pilot hole when using Self-Drilling Screws.
Always consult door/frame manufacturer for fastener compatibility with the material of their door/frame.
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
9530 Pull Side Track Template
• Door will travel additional 5° to dead stop.
• Door hold open position adjustable from 85° to 120° of door opening.
C
LHINGE OR PIVOT
*5-5/8
(143)
FRAME LINE
MOUNTING BRACKET
TOP OF DOOR
10
(254)
1
(25)
1/2
(13)
*5-1/4
(133)
3
(76)
4-3/4
(121)
3
(76)
3/8
(10)
11
(279.4)
*4
(101.6)
Track Mounting Holes
22
(558.8)
1-7/16
(37)
1-5/8
(41)
9588 DROP PLATE
Mounting Holes (4)
NOTES:
• Check hand of door, see page 2.
• Right Hand Application Shown. Left Hand Opposite.
• Dimensions given in inches (mm). Do Not Scale Drawing.
• Closer must be installed mounted level to ensure proper closer performance.
• Minimum clearance required over door: 2" (51).
• Minimum top rail: Without drop plate 3" (76), With drop plate 1-1/4" (32).
Page 5
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
• Select angle of opening and use dimensions shown in
template to locate 4 holes on door for Closer Mounting
Bracket (or 4 holes for optional drop plate) and 3 holes
on jamb for track.
For applications that are different from above, a separate
template will be supplied for door and frame preparation.
• Prepare door and frame for fasteners using "Preparation
for Fasteners" chart, Figure 2, Page 4.
• Fasten Closer Mounting Bracket to door. Fasten optional
drop plate to door, only if it is required for the door
conditions.
• Install closer body with tube end away from hinge, with
valves: Down for Left Hand door / UP for Right Hand
door.
• Attach Track to Frame. With spring buffer toward hinge
edge of frame and open side facing down, fasten track
assembly to frame.
• Adjust Arm to Shortest Length. Install 9/64" hex drive
socket head screw from screw pack to the arm's shortest
length as shown.
.
9/64" Hex Drive Machine Screw
• Place Slide Arm on Pinion Shaft. Place the slide arm and
two washers on the pinion shaft, indexed as shown below.
Secure the arm with the arm screw and washer as
indicated.
Adjusting Tube
1
2
Retainer Clip
Attach Arm
Stud to Slide
• Insert Arm Stud into Slide Block
1) Insert the arm stud into the slide block in the track
assembly.
2) Secure by pushing in on the retainer clip that extends
from the slide block in the track, until it is flush with the
slide block.
• Adjusting Door Opening / Hold Open Angle
Open the door until the slider is against the cushioned stop
or engaged in hold open (A1 Option only).
Remove the 9/64" hex drive socket head screw from the
arm. Open the door to the desired angle and install the hex-
drive screw into the hole in the adjusting rod that is aligned
with the hole in the adjusting tube.
9/64" Hex Drive
Machine Screw
• Make closer adjustments using information on page 9, then
install closer cover. See Page 6 for ENGAGE/DISENGAGE
Hold Open instructions.
Page 6
9530 Pull Side Track Installation Sequence
RIGHT HAND DOOR SHOWN
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
Mount the Track CENTERED on the Stop
with the following minimum distances
from the door side of the stop.
1-3/4 (45)
1-1/2 (38)
1 (25)
3/4 (19)
A Min
C
L
HINGE OR PIVOT
FRAME LINE
DOOR
Track Mounting Holes
Closer Mounting Bracket
10
(254)
1-3/16
(30)
3
(76)
4-3/4
(121)
3
(76)
2
(51)
1-5/8
(41)
3/8
(10)
1
(25)
3-9/16
(90)
4-7/8
(124)
8
(203)
21-5/8
(549)
A
Track Mounting Holes
DOOR STOP
DOOR STOP
9588 DROP PLATE
Mounting Holes (4)
14
(356)
NOTES:
• Check hand of door, see page 2.
• Right Hand Application Shown. Left Hand Opposite.
• Dimensions given in inches (mm). Do Not Scale Drawing.
• Closer must be installed in a true horizontal plane to ensure proper closer
performance.
• Minimum stop width: See Dimension A on the chart below.
• Minimum top rail: Without drop plate 5-1/2" (140), With drop plate 2-1/2" (64).
• Door will travel additional 5° to dead stop.
• Door hold open position adjustable from 85° to 110° of door opening.
9540 Push Side Track Template
Page 7
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
• Select angle of opening and use dimensions shown in
template to locate 4 holes on door for Closer Mounting
Bracket (or 4 holes for optional drop plate) and 4 holes
on jamb for track.
For applications that are different from above, a separate
template will be supplied for door and frame preparation.
• Prepare door and frame for fasteners using "Preparation
for Fasteners" chart, Figure 2, Page 4.
• Fasten Closer Mounting Bracket to door. Fasten optional
drop plate to door, only if it is required for the door
conditions.
• Install closer body with tube end TOWARDS hinge, with
valves: DOWN for Left Hand door / UP for Right
Hand door.
• Attach Track to Frame. With spring buffer toward hinge
edge of frame and open side facing down, fasten track
assembly to frame.
• Adjust Arm to Shortest Length. Install 9/64" hex drive
socket head screw from screw pack to the arm's shortest
length as shown.
9/64" Hex Drive Machine Screw
• Place Slide Arm on Pinion Shaft. Continued at right, place
the slide arm and two washers on the pinion shaft,
indexed as shown at right. Secure the arm with the arm
screw and washer as indicated. • Make closer adjustments using information on page 9,
then install closer cover. See Page 10 for
ENGAGE/DISENGAGE Hold Open instructions.
.1
2
Retainer Clip
Attach Arm
Stud to Slide
• Insert Arm Stud into Slide Block
1) Insert the arm stud into the slide block in the track
assembly.
2) Secure by pushing in on the retainer clip that extends
from the slide block in the track, until it is flush with the
slide block.
• Adjusting Door Opening / Hold Open Angle
Open the door until the slider is against the cushioned stop
or engaged in hold open.
Remove the 9/64" hex drive socket head screw from the
arm. Open the door to the desired angle and install the
hex-drive screw into the hole in the adjusting rod that is
aligned with the hole in the adjusting tube.
9/64" Hex Drive
Machine Screw
Adjusting Tube
Rotate
45
Page 8
9540 Push Side Track Installation Sequence
RIGHT HAND DOOR SHOWN
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
Interior Exterior
In
Swing
Exterior
Out
Swing
Size of Door
Equivalent
Closer Size
(Approx.)
2 4 (712)' "
2 6 (764)' "
3 0 (915)' "
3 6 (1067)' "
3
4
5
6
2 6 (764)' "
3 0 (915)' "
2 6 (764)' "
3 0 (915)' "
3 6 (1067)' "
4 0 (1219)' "
2-7
7-11
11-15
15-17
Spring Power
Adjustment
No. Full Turns
Clockwise
LATCHING
SPEED VALVE BACKCHECK
INTENSITY VALVE
CLOSING
SPEED VALVE
SPRING POWER ADJUSTER
(1/4 ALLEN WRENCH)"

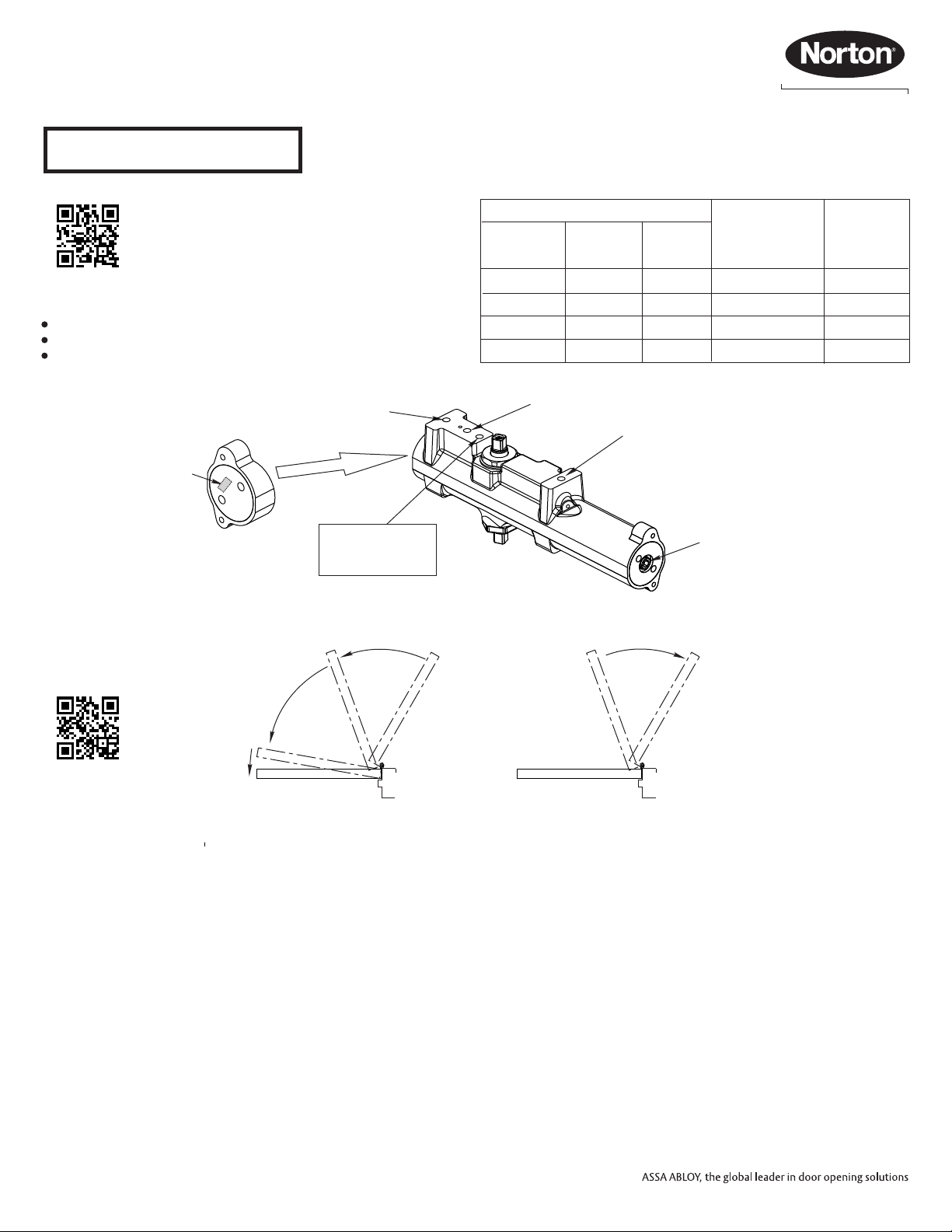

SPRING POWER ADJUSTMENT CHART
Spring Power Adjustment
Size 1 thru 6 Adjustment See Chart
All 9500 closers are factory set at an approximate Size 3.
Adjust closer as necessary for door size using this chart.
Readjustment may be required to suit prevailing conditions.
Locate spring power adjuster from
Illustration below
Backcheck Intensity Valve
Factory preset for typical doors.
Turn valve COUNTER-CLOCKWISE to reduce backcheck
or CLOCKWISE to increase backcheck. (Backcheck should
be set to give a soft cushioning action, not a sudden stop.)
Latching Speed Valve
Factory preset for typical doors.
After closing speed has been obtained, turn latching speed valve
CLOCKWISE to SLOW latching or COUNTER-CLOCKWISE to
SPEED latching for last 2 to 5 of door travel." "
NOTE: Set combination of CLOSING and LATCHING speeds to
between 3 and 7 seconds Use of door by handicapped,
elderly or small children may require even greater
closing time.
Closing Speed Valve
Factory preset for typical doors.
To adjust speed of door closing from fully open to a position
2 to 5 from closed, turn Closing Speed Valve CLOCKWISE" "
to SLOW closing, COUNTER-CLOCKWISE to SPEED
closing.
Delayed Action Valve
Factory preset for typical doors.
Turn valve CLOCKWISE to SLOW closing, COUNTER-
CLOCKWISE to SPEED closing. Delayed action may be
adjusted from 20 seconds to 90 seconds, depending on
degree of door swing. Delay occurs at the beginning of the
door closing cycle from fully open down to 70°, where the
closing speed valve then begins its control.
h
e
k
c
c
c
k
a
B
h
c
t
a
L
d
e
e
p
S
g
n
i
s
o
l
C
y
e
l
a
d
e
D
t i
o
c
n
A
Option
(1/8 Allen Wrench Provided)
(1/8 Allen Wrench Provided)
(1/8 Allen Wrench Provided)
Date Stamp
(on end of closer)
MM-YY
OPTIONAL
DELAYED
ACTION VALVE
MM = Month
YY = Year
Unit Adjustment
Page 9
Approved 2018-01-19

80-9395-9516-020 REV. 2 (01-18)
Norton® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
Copyright © 2013, 2018 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
ASSA ABLOY
Hold Open Models Only:
Turn Screw 1/2 Revolution
to Engage / Disengage
Hold Open.
Engage/Disengage Hold Open
Engage
Disengage
Hold Open Roller
Shown in ENGAGED
Position
Page 10

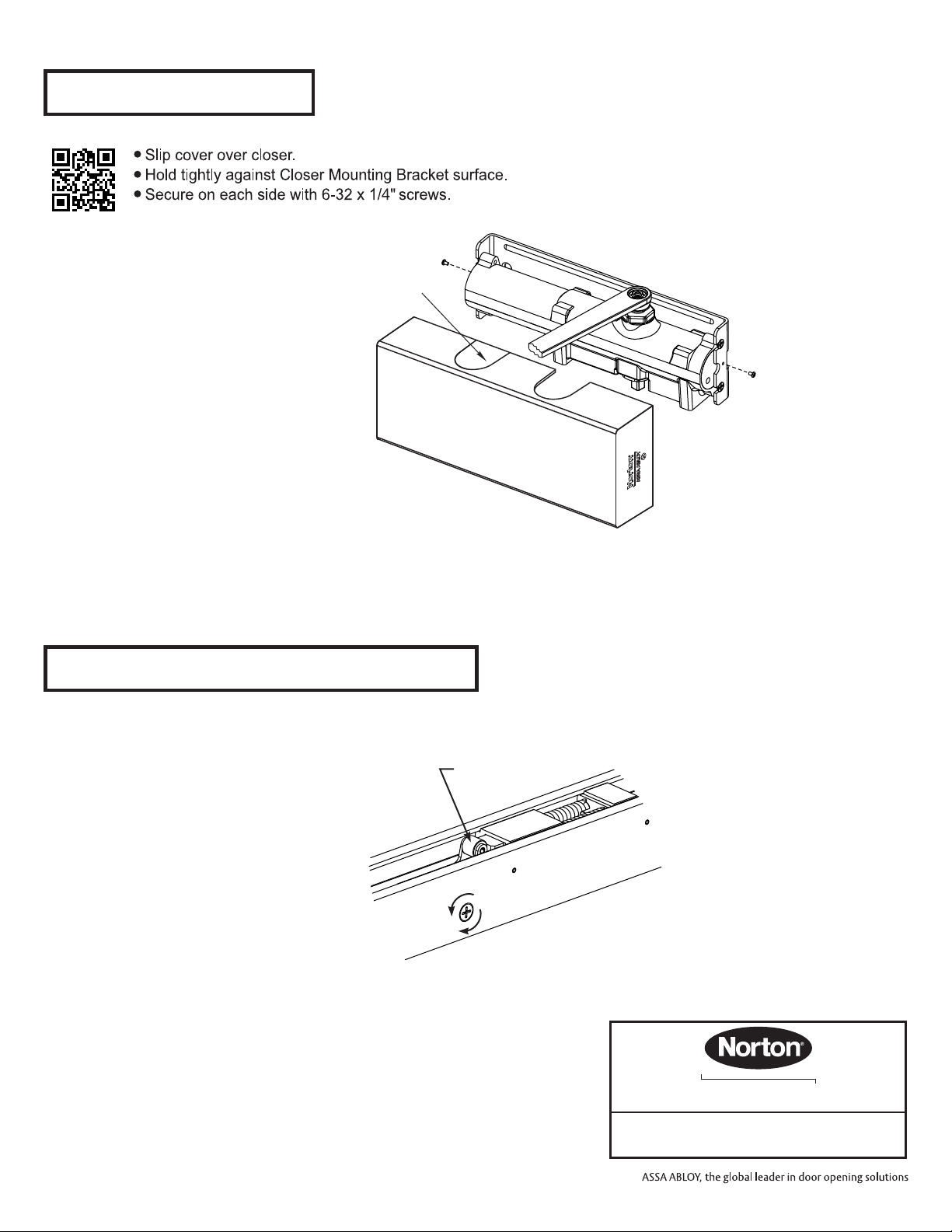

Installing Cover
Insert is removable.
Place in unused opening.
Plastic Cover
(Standard)
3000 Highway 74 East • Monroe, NC 28112
Tel: (877)- • Fax: [phone]-2255
www.nortondoorcontrols.com
ASSA ABLOY
Approved 2018-01-19
