Assa Abloy Besam SL500 User manual

Original instructions
User Manual Entrance Systems
Sliding Door Operator
ASSA ABLOY SL500, SL510, SL520, SL521

CONTENTS - Original instructions
5Presentation of notes and warning signs ....................................................................................
5
WARNING: Important safety instructions. It is important for the safety of persons to
follow these instructions. Save these instructions. ..................................................................
8Congratulations on your new automatic door! ........................................................................
8Electronic equipment reception interference ...........................................................................
8Environmental requirements ..........................................................................................................
8Product liability ...................................................................................................................................
9Warranty ................................................................................................................................................
9Service .....................................................................................................................................................
10Intended use .........................................................................................................................................
10.........................................................................................................................................
10Technical specification ......................................................................................................................
10
How the ASSA ABLOY SL500, ASSA ABLOY SL510, ASSA ABLOY SL520 and ASSA ABLOY
SL521 work ............................................................................................................................................
10Locking ....................................................................................................................................................
11Unlocking ...............................................................................................................................................
11ASSA ABLOY Sliding Door Manager ..............................................................................................

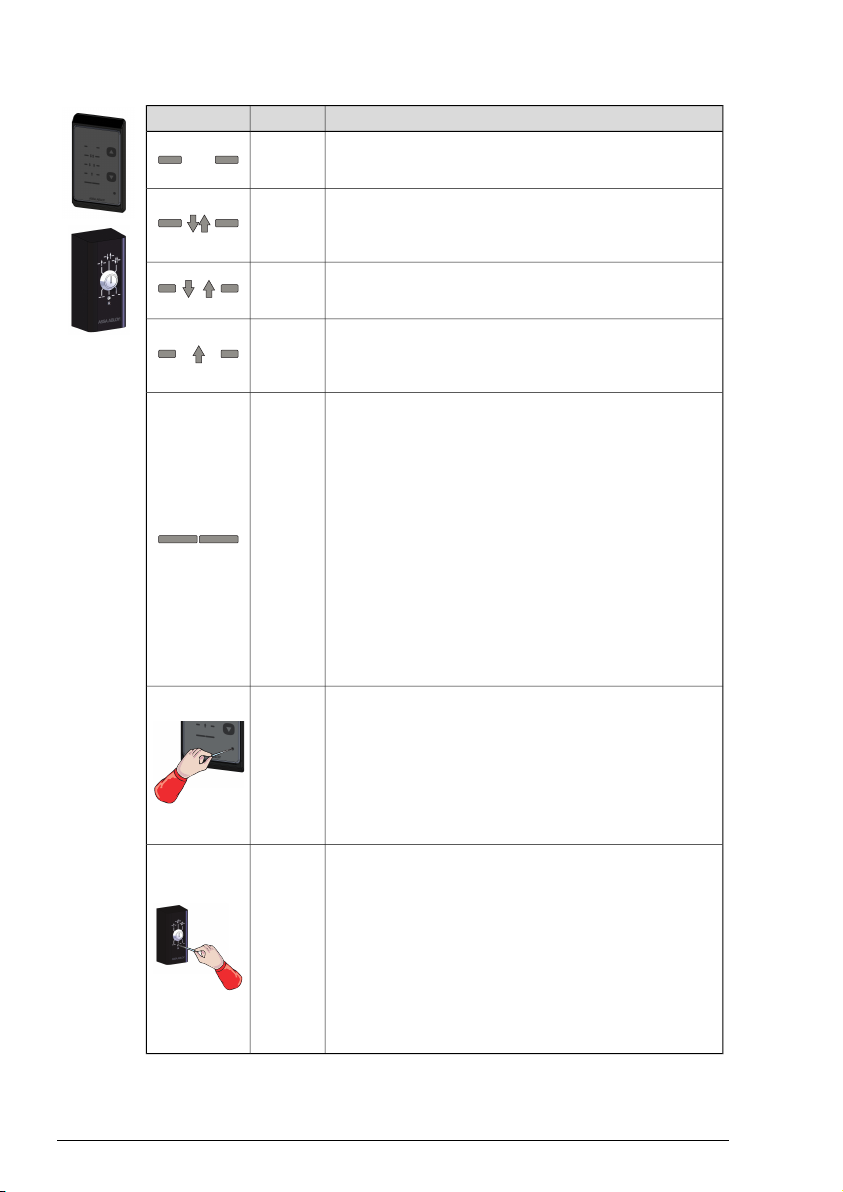

12Operation mode selectors ...............................................................................................................

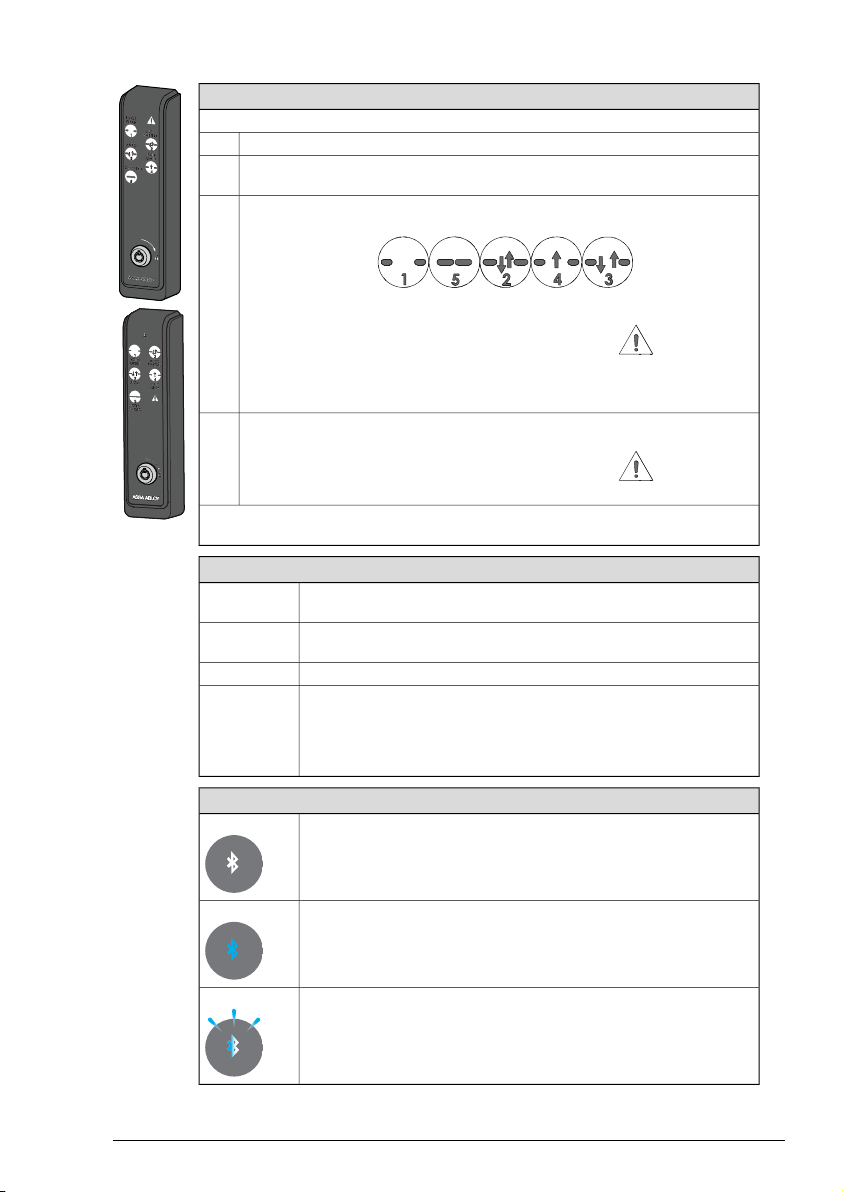

12OMS Standard and OMS BLE - Modes ...............................................................
13
OMS Standard and OMS BLE - Access codes and flashing light
description ..................................................................................................................

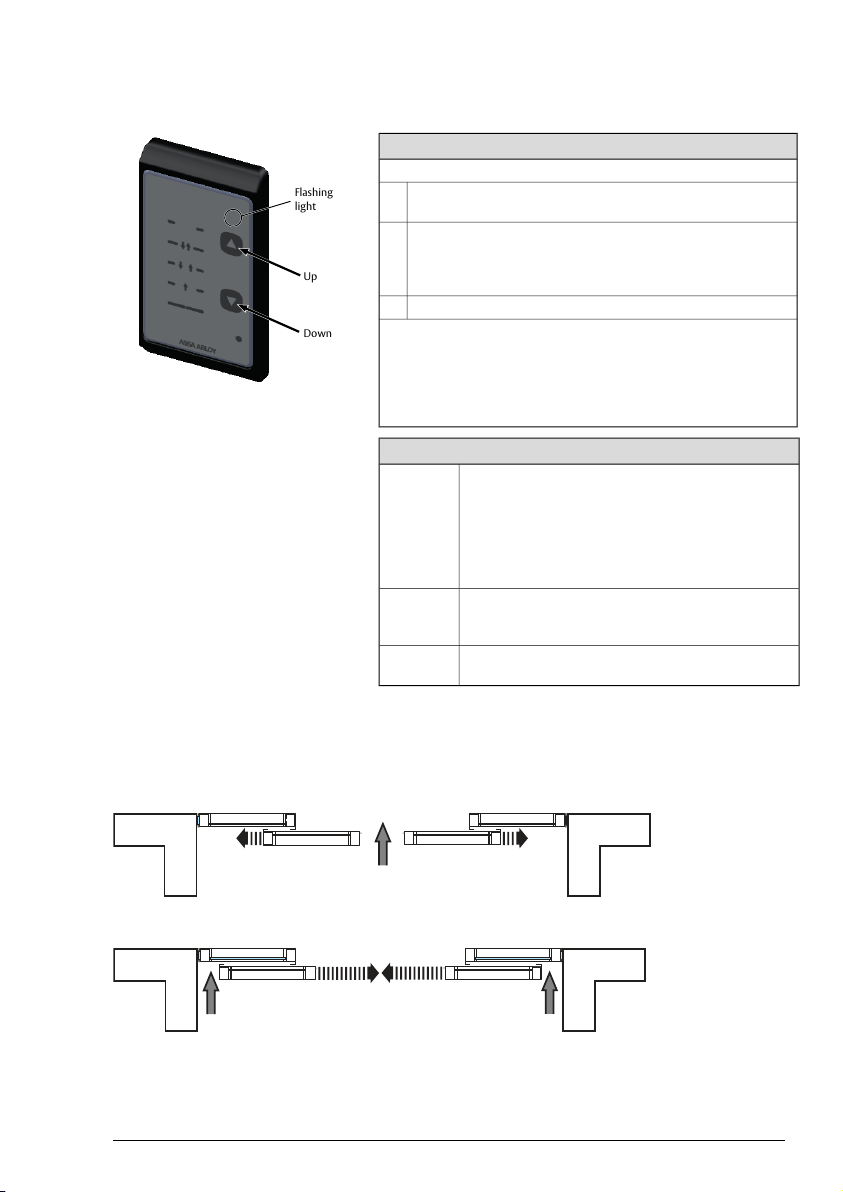

14OMS Basic and PSK-6U - Modes ..........................................................................
15OMS Basic - Access codes and flashing light description ...........................
15Integrated safety ..................................................................................................................................
16Safety system with presence sensors ..........................................................................................
17Technologically advanced sensors ................................................................................................
18
How to check inner and outer combined motion and presence detection
sensors ..........................................................................................................................
19How to check side presence detector(s) ..........................................................
20Safety system with photocells ........................................................................................................
21Emergency escape ..............................................................................................................................
21Break-out unit PSB ....................................................................................................
21Mechanical emergency unit (MEU) ....................................................................
21Electrical emergency unit .......................................................................................
1009216-en-21.0Issue 2021-11-192

22Regular safety checks .........................................................................................................................
25Safety accessories ................................................................................................................................
25General accessories ............................................................................................................................
25Cover .............................................................................................................................
25Motion sensor and presence sensors .................................................................
25Operation mode selectors .....................................................................................
25Electrical locks ............................................................................................................
25Manual Opening Lock device, MOLD .................................................................
25Micro switch kit - Limit Switch Kit (LSK) / Lock Indication Switch (LIS) ...
25Locked door indicator, LDI/LIS ..............................................................................
25Mechanical Emergency Unit (MEU) ....................................................................
26Electrical Emergency Unit (EEU) ...........................................................................
26Emergency monitoring with EEU and MEU ......................................................
26Fire closing ..................................................................................................................
26Fire closing with repeated closing .......................................................................
26Break-out unit PSB ....................................................................................................
26Interlocking .................................................................................................................
26Convenience battery UPS .......................................................................................
26External error indication .........................................................................................
26Key switches (flush and/or surface mounted) .................................................
27Push button ................................................................................................................
27Synchronization ........................................................................................................
27Open / Close function ..............................................................................................
27Fire alarm connection ..............................................................................................
27Nurse function ...........................................................................................................
27Remote Exit mode ....................................................................................................
27Emergency open impulse .......................................................................................
27PASS (previously Flow) ............................................................................................
28Troubleshooting ..................................................................................................................................
29Service/Maintenance .........................................................................................................................
29Other products from ASSA ABLOY Entrance Systems ............................................................
31Declaration of conformity ................................................................................................................
31.........................................................................................................................................
31.........................................................................................................................................
31.........................................................................................................................................
32Declaration of conformity ................................................................................................................
32.........................................................................................................................................
32.........................................................................................................................................
32.........................................................................................................................................
ASSA ABLOY as word and logo are trademarks owned by the ASSA ABLOY Group
©ASSA ABLOY Entrance Systems, 2021
Technical data subject to change without notice.
3Issue 2021-11-191009216-en-21.0

Backtrack information: folder:Workspace Main, version:a701, Date:2021-11-19 time:12:22:55, state: Frozen
1009216-en-21.0Issue 2021-11-194

Presentation of notes and warning signs
Various symbols and texts are used in this manual for easier understanding and identification.
Note! When you see Note! it contains useful advice and information to ensure correct and compliant
usage of the system.
Potential hazardous situation that can lead to either minor or severe injuries
or death and cause either minor or substantial property damage.
Potential hazardous situation that could lead to danger of electric shock and
cause serious injury or death.
WARNING: Important safety instructions. It is important
for the safety of persons to follow these instructions. Save
these instructions.
•Failure to observe the information in this manual may
result in personal injury or damage to equipment.
•To reduce the risk of injury of persons - use this oper-
ator only with pedestrian doors.
•The mains power supply shall be installed with protec-
tion and an all-pole mains switch with isolating capab-
ility of Category III, shall be installed according to local
regulations.
•Frequently examine the installation for imbalance
where applicable and signs of wear or damage to
cables, springs and mounting. Do not use if repair or
adjustment is necessary.
5Issue 2021-11-191009216-en-21.0

•Do not use the equipment if repair or adjustment is
necessary.
•WARNING: the drive shall be disconnected from its
power source during cleaning, maintenance and when
replacing parts.
•The operator can be used by children over 8 years of
age if they have been instructed by a person in charge
of their safety concerning use of the appliance in a safe
way and understand the hazards involved.
•The operator can be used by children 8 years of age
or younger if they are supervised by a person respons-
ible for their safety.
•The operator can be used by persons with impaired
physical, sensory or mental capacity if they have been
instructed by a person in charge of their safety concern-
ing use of the appliance in a safe way and understand
the hazards involved.
•Cleaning and user maintenance shall not be made by
children.
•Do not let children or anyone climb on or play with
the door or the fixed/remote controls.
•The doorset can be operated automatically by sensors
or manually by activators.
•Do not dash through a closing door.
•This appliance may contain batteries that are only re-
placeable by skilled persons.
- The battery must be removed from the appliance
before it is scrapped
- The appliance must be disconnected from the sup-
ply mains when removing the battery.
- The battery is to be disposed of safely.
1009216-en-21.0Issue 2021-11-196

•Ensure that controls that can be set for a locked posi-
tion are only activated when there are no other per-
sons in the room.
7Issue 2021-11-191009216-en-21.0

Congratulations on your new automatic door!
ASSA ABLOY Entrance Systems AB has developed automatic doors for more than 50 years. State-of-
the-art technology and carefully tested materials and components provide you with a superior
product.
As with all other technical products, your automatic door requires periodic maintenance and service.
It is essential that you know your automatic door (system) and that you recognize the importance
of maintaining it in compliance with applicable standards for safety.
Your local ASSA ABLOY Entrance Systems-authorized representative is familiar with these standards,
as well as applicable local codes and ASSA ABLOY Entrance Systems recommendations for power-
operated pedestrian doors. Service and adjustments performed by your
ASSA ABLOY Entrance Systems-authorized representative, will ensure safe and proper operation of
your automatic door unit.
Electronic equipment reception interference
The equipment may generate and use radio frequency energy and if not installed and used properly,
it may cause interference to radio, television reception or other radio frequency type systems.
If other equipment does not fully comply with immunity requirements, interference may occur.
There is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Re-orient the receiving antenna.
•Relocate the receiver with respect to the equipment.
•Move the receiver away from the equipment.
•Plug the receiver into a different outlet so that equipment and receiver are on different branch
circuits.
•Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronics technician for additional
suggestions.
Environmental requirements
ASSA ABLOY Entrance Systems products are equipped with electronics and may also be equipped
with batteries containing materials which are hazardous to the environment. Disconnect power
before removing electronics and battery and make sure it is disposed of properly according to local
regulations (how and where) as was done with the packaging material.
Product liability
According to regulations, the following are the responsibility of the owner or caretaker of the
equipment
•that the equipment operates correctly, so that it gives sufficient protection in regard to safety
and health
•that the equipment is operated and regularly maintained, inspected and serviced by someone
with documented competence in the equipment and in applicable regulations
•that the provided “Service Log Book”and “Site Acceptance Test and Risk Assessment”documents
(PRA-0005) are kept available for maintenance and service records
•that inspection covers the emergency opening function (when applicable)
•that the closing force is appropriate for the door size on fire-approved door systems (when ap-
plicable).
1009216-en-21.0Issue 2021-11-198

Warranty
ASSA ABLOY Entrance Systems warrants its products to be free from defects in material and work-
manship under intended use and service for a warranty time of 12 months, beginning at time of
delivery. This warranty extends only to the original buyer of the equipment.
ASSA ABLOY Entrance Systems warrants that the software will operate substantially in accordance
with its functional descriptions and that it has been recorded on non-defective media.
The ASSA ABLOY Entrance Systems warranty does not apply to
•That the software will be error-free or operate without interruption
•General wear and tear on the system
•Fuse, disposable batteries and glass damage
•System deviations caused by installer other than ASSA ABLOY Entrance Systems
•System that has been altered or damaged by vandalism or misuse
•System that has been additionally equipped with non-ASSA ABLOY Entrance Systems original
branded parts and/or spare parts
•Unrequired visits due to poor client communication (door working when our technician arrives,
reset, power discontinuation)
•Adjustments (closing and opening speed and also detection field radars) due to customer re-
quests (excludes operational adjustments thought to create a hazard)
•Water damage
•Adverse weather conditions
•Any damage caused, directly or indirectly, by a circumstance beyond the control of the applicable
company within ASSA ABLOY Entrance Systems, such as industrial dispute, fire, natural disaster,
war, extensive military mobilization, insurrection, requisition, seizure, embargo, restrictions in
the use of power and defects or delays in deliveries by sub-contractors caused by any such cir-
cumstances
Please note:
•Non-compliance with manufacturers care and maintenance recommendations may void the
warranty.
•ASSA ABLOY Entrance Systems-authorized resellers shall extend this warranty to end-users only,
but have no authority to extend a greater or different warranty on behalf of
ASSA ABLOY Entrance Systems.
•A service agreement with ASSA ABLOY Entrance Systems will help secure the availability of a
fully operational system and will give priority at call-out, thus minimizing the time that the
equipment is unusable.
Service
Inspections should be done regularly by a trained and qualified person. The frequency of these in-
spections should be according to national regulations (or according to industry standard if there
are no national regulations). This is especially important when the installation concerns a fire-ap-
proved door or a door with an emergency-opening function. To extend the life of your investment
and ensure safe and reliable operation of the door, we recommend a minimum of 2 visits per year
or more, depending on usage and operating conditions. Environmental aspects shall also be con-
sidered.
As your entrances are part of your business flow, there’s every reason to keep them working well.
ASSA ABLOY Entrance Systems offers you a maintenance and modernization expertise to rely on.
Our Maintenance Programs and Modernization Services for entrance automation is backed by a ex-
tensive expertise for all types of pedestrian- and industrial door and docking systems, independent
of brand. At your disposal is a team of dedicated expert technicians, proven through decades of
maintenance, service and satisfied customers.
9Issue 2021-11-191009216-en-21.0

Intended use
The operators are automatic sliding door operators developed to facilitate entrances to buildings
and within buildings through sliding doors.
The door is designed to offer continuous use, a high degree of safety and maximum lifetime. The
system is self-adjusting to the effects caused by normal variations in the weather conditions and to
minor friction changes caused by e.g. dust and dirt.
The operator can be configured to be used in escape route. For a list of directives and standards that
the operator complies to, see the Declaration of Conformity.
See Electrical Emergency Unit (EEU) on page 26,Mechanical Emergency Unit (MEU) on page 25,
Break-out unit PSB on page 26.
It is to be used indoors where it is suitable for almost all types of external and internal sliding doors.
For installation and maintenance see Installation and Service manual 1009203 (ASSA ABLOY SL500),
1013523 (ASSA ABLOY SL510), 1011076 (ASSA ABLOY SL520), 1020148 (ASSA ABLOY SL521) or
1016068 (ASSA ABLOY M SL).
Save these instructions for future reference.
Technical specification
ASSA ABLOY Entrance Systems ABManufacturer:
Lodjursgatan 10, SE-261 44 Landskrona, SwedenAddress:
Sliding Door Operator ASSA ABLOY SL500, ASSA ABLOY SL510, ASSA ABLOY
SL520 and ASSA ABLOY SL521
Type:
100 V AC -10% to 240 V AC +10%, 50/60 Hz, fuse 10 ATMains power supply:
Max. 250 WPower consumption:
IP20Degree of protection:
Sound pressure:
Third party approvals from established certification organizations valid
for safety in use, see Declaration of Conformity.
Approvals:
How the ASSA ABLOY SL500, ASSA ABLOY SL510, ASSA ABLOY
SL520 and ASSA ABLOY SL521 work
The operators work electromechanically.
The motor, control unit, transmission –and optional emergency unit and electromechanical locking
device –are all assembled in a support beam with an integrated cover. The motor and gear box
transmit movement to the door leaves by means of a tooth belt. The door leaf is fitted to a door ad-
apter/carriage wheel fitting and hangs on a sliding track. The guiding at the bottom is carried out by
means of floor guides, (Full Break-Out) or Side Panel Guides (Fixed Sidelites).
When an OPENING IMPULSE is received by the control unit the motor starts and transmits movement
to the door leaves, which move to the open position.
The closing starts when no OPENING IMPULSE is received and the HOLD OPEN TIME has expired.
The operators user can select five different modes of operation if a mode selector is installed. See
Operation mode selectors on page 12.
Locking
Doors used for emergency escape in buildings such as hospitals and homes for elderly people may
not be locked or put in mode selection OFF mode. In other buildings emergency escape doors may
be locked or put in mode selection OFF mode after it has been secured and all people have left the
building.
1009216-en-21.0Issue 2021-11-1910

Unlocking
Unlock all the mechanical locks before activating the operator.
ASSA ABLOY Sliding Door Manager
If the operator is equipped with an OMS BLE, it is possible to change the mode selections with the
smartphone app ASSA ABLOY Sliding Door Manager.
Installation of the app
•Download the app ASSA ABLOY Sliding Door Manager,atApp Store or Google Play. Make
sure to have your value document ready.
•Tap the button "+ Add Door " in the app, and follow the door setup wizard. The setup wizard
will guide you how to pair the smartphone with the door.
Note! To be able to pair, you have to be in the range of 10 meters from the door.
VALUE DOCUMENT
Door name:
Serial: xxxxxxxxx
Init PIN: xxxxxxxxxx
Follow these steps in the app, when the
Door setup wizard prompts to enter the Initialization Pin:
a) Press and hold the Confirm button until the BLE led
starts flashing.
b) Enter the Initialization Pin on the OMS, and press the
Confirm button on the OMS after each digit.
1 2
3 4
6
5
11Issue 2021-11-191009216-en-21.0

Operation mode selectors
The door functions are set with different operation mode selectors.
The operation mode selector is available with 5 positions (plus RESET).
The key on the PSK-6U, OMS Standard and OMS BLE mode selectors must always be removed on
emergency escape doors after changing settings.
OMS Standard and OMS BLE - Modes
OPEN, AUTO PARTIAL, AUTO, EXIT and OFF modes can be obtained.
ModeTextSymbol
The door is permanently open. The door can be moved by hand
e.g. for window cleaning. All activation units except for the
emergency push button (if fitted) are disconnected.
OPEN
Two-way traffic, AUTO PARTIAL is obtained. The door can be
opened partially with the inner and outer activation units and
with a key switch (if fitted). With an emergency push-button (if
fitted) the door opens fully.
AUTOPAR-
TIAL
Two-way traffic, normal operation of the door. The door can be
opened fully with the inner and outer activation units and with a
key switch/emergency push-button (if fitted).
AUTO
One-way traffic passage from inside only. The door is normally
locked if an electromechanical locking device has been fitted. The
door can only be opened with the inner activation unit or with a
key switch/emergency push-button (if fitted).
EXIT (ONE
WAY)
The door is closed and locked (if an electromechanical lock is fit-
ted). In an escape route the OFF mode may only be set after it is
certain that all people have left the building.
The door cannot be opened with inner and outer activation units.
The door can be opened partially with a key switch (if fitted). The
door can be opened fully with an emergency push button (if fit-
ted).
When the mode selector is in OFF mode the OFF button can give
a key impulse. The key impulse will open the door to partial open
position. There are 3 different ways how the OFF button works,
depending on the configuration.
OFF/CLOSED
1 It is not possible to give a key impulse.
2 It is always possible to give a key impulse by pressing the OFF
button for 2 seconds.
3 The mode selector must first be unlocked then it is possible
to give a key impulse by pressing the OFF button for 2 second.
By briefly pushing the button (placed in the hole accessible from
the underside of the unit) with a narrow object, the door operator
will make a RESET function with system test. The door will return
to closed position (if not in operating mode selection OPEN or if
an error is present) and is then ready for normal operation.
If the operator is equipped with emergency unit for escape, the
operator will test the emergency unit by opening with battery
after the doors have closed with low speed (if operation mode
selection is not OPEN or OFF).
RESET
Note! If monitored emergency unit is a demand, a test of the emergency unit is performed when
the operation mode selector is set from OFF or OPEN to any other operation mode.
1009216-en-21.0Issue 2021-11-1912

OMS Standard and OMS BLE - Access codes and flashing light description
Codes
One of four access codes can be used.
No access code.1
The access is obtained by pushing any mode selection button for 2 seconds.
Once unlocked, it will stay unlocked if no button has been pushed for 5 seconds.
2
A passcode can be selected where the access is obtained by briefly pushing the buttons
in the correct order. The entire code must be entered within 10 seconds.
3
Default passcode is
Once unlocked, the unit will be locked 15 seconds after entering the passcode.
When selecting a new mode it must be confirmed by pressing , after which the
mode selector will be locked.
Note! The passcode can be changed by an authorized service technician.
Give access with an internal/built in key.
Once unlocked, the unit will be locked 15 seconds after activating the key.
When selecting a new mode it must be confirmed by pressing , after which the
mode selector will be locked.
4
The different operation modes are selected by pushing their respective symbol. If selected,
the symbol shines blue.
Flashing light
A flashing red light is indicating an error in the operator. If the error remains
after a RESET then service is needed.
Red
A magenta light every other second indicates a status or condition that can
be cleared by the owner e.g. a break-out door is broken out.
Magenta
A yellow light every other second indicates that maintenance is needed.Yellow
Green •A green light will flash whenever a button is pressed while typing the
passcode.
•When correct passcode is entered, the green led is continuously lit.
•A green light will flash four times per second when a new operation
mode has been selected but not yet confirmed.
Bluetooth LED (For OMS BLE)
Bluetooth is disabledNo light
Bluetooth is activeLit
OMS BLE module is paring with the app
ASSA ABLOY Sliding Door Manager
Flashing light
13Issue 2021-11-191009216-en-21.0

OMS Basic and PSK-6U - Modes
OPEN, AUTO PARTIAL, AUTO, EXIT and OFF modes can be obtained.
ModeTextSymbol
The door is permanently open. The door can be moved by hand
e.g. for window cleaning. All activation units except for the
emergency push button (if fitted) are disconnected.
OPEN
Two-way traffic, AUTO PARTIAL is obtained. The door can be
opened partially with the inner and outer activation units and
with a key switch (if fitted). With an emergency push-button (if
fitted) the door opens fully.
AUTOPAR-
TIAL
Two-way traffic, normal operation of the door. The door can be
opened fully with the inner and outer activation units and with a
key switch/emergency push-button (if fitted).
AUTO
One-way traffic passage from inside only. The door is normally
locked if an electromechanical locking device has been fitted. The
door can only be opened with the inner activation unit or with a
key switch/emergency push-button (if fitted).
EXIT (ONE
WAY)
The door is closed and locks (if an electromechanical lock is fitted).
This function is only used on emergency escape doors after it is
certain that all people have left the building.
The door cannot be opened with inner and outer activation units.
The door can be opened partially with a key switch (if fitted). The
door can be opened fully with an emergency push button (if fit-
ted).
OMS Basic: When the mode selector is in OFF mode the arrow
down button can give a key impulse. The key impulse will open
the door to partial open position. There are 3 different ways how
the arrow down button works, depending on configuration.
OFF
1 It is not possible to give a key impulse.
2 It is always possible to give a key impulse by pressing the ar-
row down button for 2 seconds.
3 The mode selector must first be unlocked then it is possible
to give a key impulse by pressing the arrow down button for
2 second.
By briefly pushing the dot, placed in the lower right corner of the
operation mode selector, with a narrow object, the operator will
RESET. The operator will start-up again, the doors will return to
closed position with low speed (if operation mode selection is
not OPEN).
If the operator is equipped with emergency unit for escape, the
operator will test the emergency unit by opening with battery
after the doors have closed with low speed (if operation mode
selection is not OPEN or OFF).
RESET
Turn the key clockwise to the position “R”(six o’clock) and insert
a narrow object in the small hole on the operation mode selector
and push briefly. The operator will RESET, then turn the key
counter-clockwise back to the requested setting. The operator
will start-up again, the doors will return to closed position with
low speed (if operation mode selection is not OPEN). If the oper-
ator is equipped with emergency unit for escape, the operator
will test the emergency unit by opening with battery after the
doors have closed with low speed (if operation mode selection
is not OPEN or OFF).
Note! The key cannot be removed in the "R" position.
RESET
1009216-en-21.0Issue 2021-11-1914

Note! If monitored emergency unit is a demand, a test of the emergency unit is performed when
the operation mode selector is set from OFF or OPEN to any other operation mode.
OMS Basic - Access codes and flashing light description
Codes
Flashing
light
Up
Down
Three alternative selectable codes are used.
The access is obtained by pushing the arrow symbol pointing up
or down for 2 seconds.
1
The access code is obtained by briefly pushing in turn the arrow
up symbol, followed by the arrow down, arrow down again and
the arrow up symbol. The entire code must be entered within 3
seconds.
2
No access code.3
The different operation modes are selected by pushing the arrow
symbols pointing upwards or downwards. When a button is pushed
a buzzer will sound. The present selection is indicated by a blue light
to the left of the function symbol or text.
When an arrow symbol has not been pushed for 5 seconds the access
will be locked.
Flashing light
Red •When a red light is flashing it is indicating an error
in the door operator. If the error remains after a
RESET then service is needed.
•When an external key is connected and activated,
the indication LED on the OMS Basic will be steady
red for 15 seconds and it will be possible to change
mode selection.
An orange light every other second indicates a status or
condition that can be cleared by the owner e.g. a break-
out door is broken out.
Orange
A yellow light every other second indicates that main-
tenance is needed.
Yellow
Integrated safety
To permit a safe passage between closing doors, the doors reverse immediately if an obstruction is
detected. They then resume their interrupted movement at low speed to check whether the obstruc-
tion has disappeared or not.
If an obstruction is detected while the door is opening, the doors stop immediately, and then close
after a time delay.
15Issue 2021-11-191009216-en-21.0

Safety system with presence sensors
Usually the safety system incorporates presence sensors installed above the door opening. A presence
sensor detects an object in the doorway, while the doors are closing, the doors reverse immediately.
The doors will start to close when the object is removed.
1009216-en-21.0Issue 2021-11-1916

Technologically advanced sensors
The ASSA ABLOY Entrance Systems sensors have been tested and approved by the
ASSA ABLOY Entrance Systems test laboratory for use on ASSA ABLOY Entrance Systems's automatic
sliding doors. These presence sensors further improve the already high obstruction detection obtained
with the built in self-monitored crush force limitation.
Monitored sensors have built-in monitoring for error detection.
If you have a problem you cannot correct, turn off the automatic door immedi-
ately and call your ASSA ABLOY Entrance Systems service representative for as-
sistance.
17Issue 2021-11-191009216-en-21.0

How to check inner and outer combined motion and presence detection sensors
Combined sensors are used when you want both a motion sensor and a presence sensor integrated
into the same unit.
1 Walk towards the door opening, the door shall start to open when you are about 1.5 meter from
the door and the door shall stop in open position.
2 When the door has closed, repeat the same procedure from the other side of the door opening.
3 Open the door, stand still close to the face of the open door leaf on the left side for more than
5 s. The door shall remain open. Repeat on the right side.
4 Repeat step 3 in the other side of the door opening.
1.5 m
1.5 m
ILL-01638
1 2 3-4
1009216-en-21.0Issue 2021-11-1918

How to check side presence detector(s)
Side presence sensors can be used for example if higher door speed is required or for installations
in homes for elderly/disabled or childcare centres, to protect users from being struck by the doors
during their opening cycle. When a side presence sensor detects an obstacle the door operator will
not stop, but slow down the door movement to a safe speed. With this safe speed the door will try
to push the obstruction away, to ensure that the person passing through the door will not walk into
the door.
Walk into the detection field of the side presence sensor on one side. Activate the impulse on the
operator, the door shall not stop, but slow down to safe speed during the opening.
If you have a bi-parting (double) door then repeat the procedure above on the other side.
19Issue 2021-11-191009216-en-21.0

Safety system with photocells
Alternatively the safety system can incorporate presence photocells in the door opening. If an object
is breaking the infrared ––––(invisible) beam between the photocell units, while the doors are
closing, the doors reverse immediately. The door will close when the object is removed.
1009216-en-21.0Issue 2021-11-1920
