Table of Contents
Key Management Software 1
Features, Benefits & Components 2
Bored & Auxiliary Lock Cylinders 3
Mortise/Rim Cylinders, Rosettes & Blocking Rings 4
11-6300 Series Large Format Interchangeable Cores (Removable) 5
11-6300 Cylinder/Lock Conversion Parts, Tools & Accessories 6
11-7P-7300B Small Format Interchangeable Cores 7
Construction Master Keying 8
Key Control Comparison & Key Blanks 9
Visual Key Control & Tamper Proof Packaging 10
Architectural Specifications & How to Order 11
Pyramid. Cylinder & Key Control Products
Absolute
Control
Keso F1 & Keso F1 with UL 437
High Security Cylinder
Extra
Control
Signature Series &
Signature with UL 437 High Security
Keso,
Restricted Keyways Intermediate
Control
XC Patented Cylinder
Conventional Cylinders Limited
Control
See product catalogs for more information

1
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Key Management Software
XC Series
SARGENT’S KeyWizard™5.5 Software Package Tracks Multiple Key Systems Including Keys, Keyholders, Locations and Hardware Information
This comprehensive key management software package was developed for locksmiths and end-users to track detailed information.
The program features easy to navigate, non-cluttered screens and uses a format similar to Microsoft®Outlook™.
Features:
 • FreeTechnicalSupport1-800-610-1706andsystemupgradesfor1year
 • Websitesupportatwww.keywizard.net
 • Multi-levelpasswordsandaccesslevels
 • Clear,easytoreadscreens
 • Managesmultipleenduserkeysystems
 • Customizedquery,reporting,andsearchcapability
 • Globalsearchingacrossmultiplekeysystems
 • Comprehensivehardwareschedules
 • Keyholderphotosandsignaturesforidentityverification
 • Scheduledmaintenanceandremindersforoverduekeysandback-ups
 • Accuratekeysymbolsorting
 • Multi-levelkeyauthorizationsandkeydeposits
 • Networkandstand-aloneversions
 • Pinningcalculators
 • Reportsoptionsincludingprintinginavarietyofformatsande-mail
 • CylinderandkeyrandomserialIDgenerator
 • Keyauthorizationformsthatcanbeprintedatwill
 • Editablefieldtitles
 • Abilitytoconnecttoawebsiteandsearchforanyupdates
Computer System Recommendations:
REQUIRED: RECOMMENDED For Optimum Performance:
 • 350MHzprocessor
 • 60MBharddiskspace
 • Windows®7,Vista,XP,NT,ME,2000or98
 • 64MBRam
 • CDdrive
By SARGENT
®
How to Order: Part Number
Single License Version.................................................................... KW-SS1
NetworkVersion .............................................................................. KW-SSN1
DemonstrationVersion ................................................................. KW-DEMO1
KeyWizardCD
with new masterkey system
(when purchased with hardware) ............................................. DLKW1
KeyWizardCD
with existing key systems*............................................................ DLKW2
KeyWizardreplacementforKeyMinder
(Consultfactoryforeligibilityrequirements)
Single License Version.................................................................... UP-KW-SS1
NetworkVersion .............................................................................. UP-KW-SSN1
* Please consult factory for the availability of
existingsystemsforusewithKeyWizard.
• 500MHzorfaster
• 70MBormore
• Windows®7,Vista,XP,NT,ME,2000or98
• 64MBRam
• CDdrive

• PatentedXC-6pinconventionalcylinders,XC-largeformat
interchangeable core cylinders and XC- 7 pin small format
interchangeable core cylinders in 4A keyway along with key blanks
aresoldonlythroughauthorizedSARGENTdistributors
• Precisionbuilttoextremelyclosetolerancesandthehighest
standardsofquality
• Captiveindependentlockingmechanismsarecontrolledbythe
XC key
• Standardcylinderpinsarecomplementedbytheindependent
XC Locking Slide Pin and activated only by the XC Key
• Availableinfinishedlocks,completecylinderassembliesandshell/
plug components
• AvailableinstandardSARGENTkeywaysLandRfamiliesonly
• XCkeyscanbecuttooperatenon-XCconventionalcylinders
• XCkeyblankscaneasilybecutonstandardkeyduplicating
machines
• XCCylindersareavailablewithBumpResistantPinsbyspecifying
BR- Option
• XCCylinderscanbeupgradedinthefieldwithBumpResistantPins
with the Bump Resistant Re-pinning Kit
(437BR Kit)
• AvailablewithandformostSARGENTproductsinconventional,
construction, SFIC and LFIC cylinders
• Consultindividualproductcatalogsforavailability
• USPatent#6,526,791
• 7PinSmallFormatInterchangeableCoresinSARGENT4A&4B
keyways only
• Increasedsecurityandkeycontrolbylimitingunauthorized 
duplication
• Versatiledesignfornewsystems;retrofitsmostexistingkey
systems.Consultfactoryforcompatibility.Easilyfieldkeyedand
maintained. Ideal for new construction.
• Costeffectivemethodtoincreasesecurityofexistingsystems
without having to install a completely new system
• Securityofasystemcanbeincreasedwhereneededwithout 
having to issue all new keys
• Maintainandexpandexistingkeysystemsusingsimilar  
 SARGENTproducts
• Theinterchangeablecoreoptionallowsforfastandeasykeying
without having to disassemble the lock from the
door or cylinder from knob/lever
• XCalsoavailablein6300(LFIC)removablecoresforfast,easy
rekeyingwithoutdisassemblingthehardware.Notavailable
with all existing hardware. Some mortise locks and rim cylinders
mayrequiremodification.Only8Lineandboredlocksthatuse
removabletailpieceswillrequirenewtailpieces.Seepage6for
compatibility.
• Easilyfieldkeyedwithstandardpinningkits
21-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Features, Benefits & Components
XC Series
XC Shell*
The locking slot in the XC shell accepts the
plug’s locking side pin preventing the plug
from rotating when engaged. The XC key with
the properly cut and side mill inserted into the
plug allows the plug to rotate freely in the shell.
XC Plug*
The XC plug is factory loaded with captive
locking side pin mechanism which extends
into the XC shell, preventing rotation until a
properly milled key is inserted.
The XC Series offers a new dimension in higher security cylinders and key control. The system features specially designed, patent protected keys which
operateXCCylindersandConventionalcylindersinonekeysystem.XCSeriescylinderscanbeintegratedintomostexistingSARGENTsystems(contact
key records for compatibility) or as a new system. Multiple security levels are available to provide key control, convenience and service that meet the
demands of each installation.
SARGENToffersbumpresistantcylindersthatemployspeciallyengineeredpatentpendingpinningcomponentsdesignedtoresistbumpingwhile
maintaining the cylinder’s strength.
The bump resistant feature is available for the following cylinders (6 pin only).
•Mortise,Rim&BoredCylinders:ConventionalandXC(11-)
XC Keys*
The XC key has a side milled slot to activate
the locking side pin mechanism in the XC plug.
The key’s milled slot location is determined by
keyway use. Standard key cutting can be done
in the field on XC keys. The XC keys will operate
standardSARGENT,non-XCcylinders.Twokeys
are provided standard with each cylinder.
Features Benefits
Components
XC Shell
Locking Slot
Milled Slot
Locking Side Pin
PAT. 6,526,791
XC Plug
XC Key
Cylinders supplied to existing keys systems are not supplied with
control, emergency of master keys unless specified on the order.

3
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Bored & Auxiliary Lock Cylinders
XC Series
Complete Shell & Slide
Locks 6 pin Assembly Plug Assembly Assembly
464 11-C460-1 (13-4578) 13-4329 13-4337
465 11-C460-2 (13-4580) 13-4329 13-4337
474 11-C480-1 (13-4572) 13-4330 13-4337
475 11-C480-3 (13-4576) 13-4330 13-4337
484 11-C480-1 (13-4572) 13-4330 13-4337
485 11-C480-2 (13-4574) 13-4330 13-4337
486 11-C480-3 (13-4576) 13-4330 13-4337
487 11-C480-2 (13-4574) 13-4330 13-4337
Auxiliary Locks (Deadbolts)
•Plugfinishes:4,15
Note: Use SARGENT 437 C pinning kit for field rekeying
For masterkeyed orders include Keyed Order Leadsheets with keying details as found in General Information section of price book
Parts shown on this page are unique to the XC feature. These plugs and shells cannot be used with non-XC components.
For all other cylinder components, refer to the standard Cylinder & Components section.
XC 11- option not available with 10-, 10UL-, 22-, 51-, 52-, 82-, 83-, 84-, SC- or SE- options.
Complete Shell & Slide
Locks 6 pin Assembly Plug Assembly Assembly
T-Zone (11 Line) 11-C11-1 (13-4562) 13-4332 13-4334
10 Line 11-C10-1 (13-4560) 13-4332 13-4334
9 Knobs 11-C8-1 (13-4568) 13-4331 13-4335
8 Knobs 11-C8-1 (13-4568) 13-4331 13-4335
8L *** 11-C10-1 (13-4560) 13-4332 13-4334
7600 *** 11-C7600-1 (13-4582) 13-4312 13-4339
7 Knobs*** 11-C8-1 (13-4568) 13-4331 13-4335
7 Line 11-C10-1 (13-4560) 13-4332 13-4334
6500 11-C10-1 (13-4560) 13-4332 13-4334
6 ”B” Knob 11-C6-1B (13-4566) 13-4332 13-4336
6”S”,”N”Knobs 11-C6-1(13-4564) 13-4332 13-4336
5500 11-C5500-1 (13-4570) 13-4328 13-4338
***DiscontinuedProduct
•Availableforallfunctionsexcept50function
•Plugfinishes:4,15
Bored Locks
Plug Assembly
Shell & Slide Assembly
PAT. 6,526,791
Note:
XC 11- option not available with 10-, 10UL-, 22-, 51-, 52-, 82-, F1-82-, 83-, F1-83-, 84-, SC-or SE- options.
11-758 Padlock Features
• Cylindereasilyremovedwhileintheunlockedpositionforrekeying
• 6pincylinderstandard
• Shacklelockedbydualballbearings
• Highersecuritykeycapturefeaturestandard
• Key only removed in locked position
• All shackles 5/16” (8mm) diameter
• Optional11-63XCLFIC(removable)coreavailable
Complete Padlock 11-758 x Shackle height
Shackle Height (closed) 1” (25mm) standard, 2” (51mm) (-2 suffix) and
4” (102mm) (-4 suffix)
Shackle Material Stainless steel -standard
Boron hardened steel (-HS suffix)
Brass chain 9” (228mm) long (-C suffix)
Cylinder assembly with tail piece 13-4584
Plug assembly 13-4332
Shell & Slide assembly 13-4334
Tail piece only 13-1230
11-758-C Shown
(Optional chain shown)

41-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

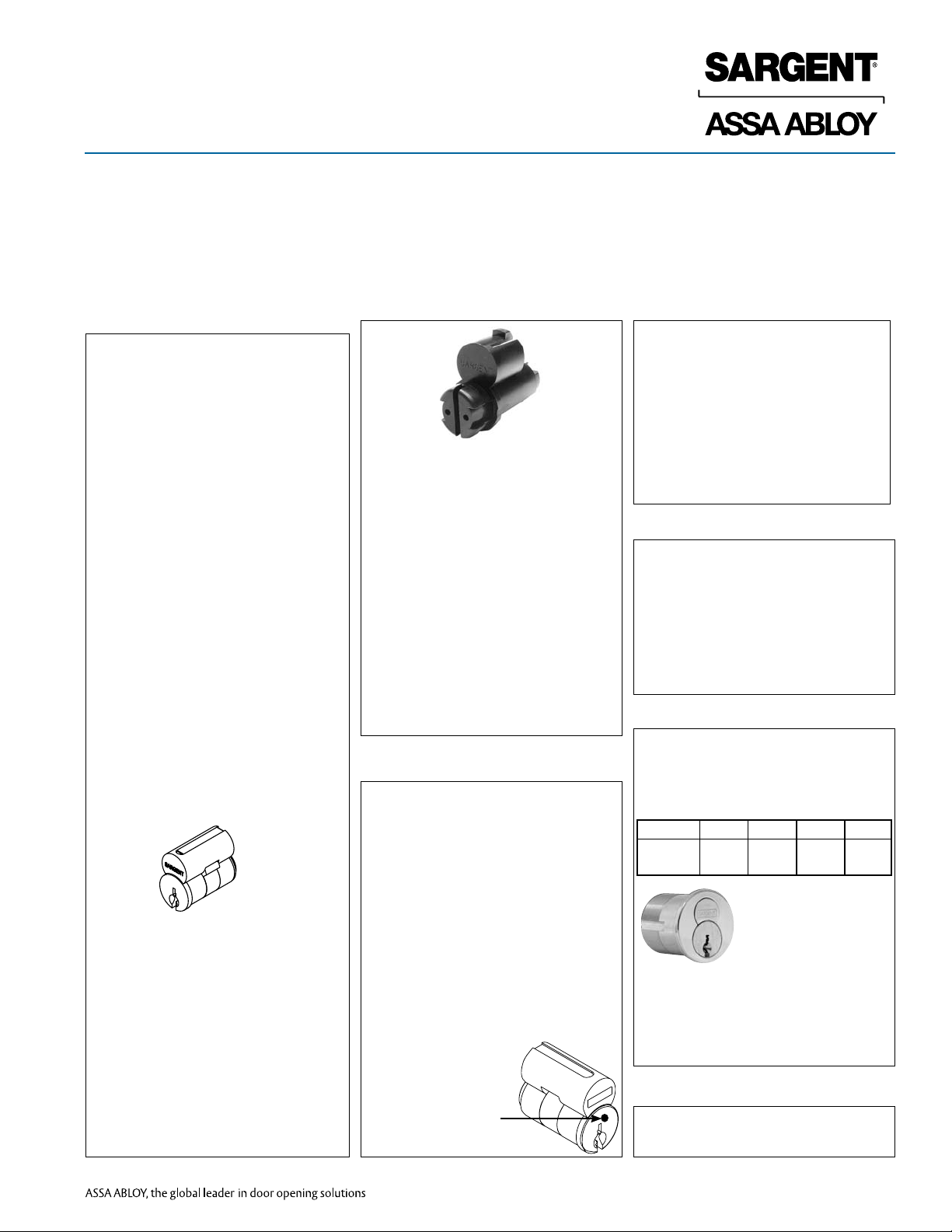

Mortise/Rim Cylinders
Rosettes & Blocking Rings
XC Series
• Cylinder:Solidbrass,1-5/32”(29mm)diameter
 • Cap:Brass,bronzeorstainlesssteel
 • Available for all functions, except 50 function
 • FurnishedstandardwithNo.97rosetteandcompressionspringwhenordered
less hardware
 • Optional Collars/Spacers available and ordered separately, refer to product
catalogs for additional information
 • Mortisecylinderassembliesthatareorderedwithouthardwarearesupplied
withstandardSARGENToffsetcam13-0664
 • Cylinderfinishes:3,4,9,10,10B,10BL,15,20D,26,26D,32,32D
 • Plugfinishes:4,15
11-34 Rim Type Cylinders
 • Complete assembly (6 pin), specify 11-34
 • Plug assembly, specify 13-4312
 • Shell & slide assembly, specify 13-4299
 • 27/32” (21mm) screw pattern for through-bolted
  SARGENTexitdevices
• Cylinder:Solidbrass
 • Cap:Brass,bronzeorstainlesssteel
 • FurnishedstandardwithNo.97      
rosette and compression spring,
“break-off” screws and back plate
 • Horizontaltailpieceonly
 • Cylinderfinishes:3,4,9,10,10B,      
  10BL,15,20D,26,26D,32,32D
 • Plugfinishes:4,15
PAT. 6,526,791�
Plug
Assembly
Shell & Slide
Assembly
11-40 Series Mortise Cylinders
5⁄32”
(4mm)
1-11⁄32”
(34mm)
1⁄8” (3mm)
5⁄32”
(4mm)
2-3/8”
(60mm)
1⁄4”
(6mm)
27/32”
(21mm)
1-1/16”
(27mm)
1⁄8” (3mm)
Dim.
X
1-11⁄32”
(34mm)
3⁄16”
(5mm) Typ.
PAT. 6,526,791�
Standard Cam
11-41 thru 11-56
Optional Cams for 11-40 Series Mortise Cylinders*
Standard Cam
(13-0664)
#104
(13-0513)
Adams Rite 4070, 4350,
4250,
4516, 4150
#106
(13-0938)
“Open” Schlage “L”
#113
(13-0921)
SARGENT4370Series
key switches
#101
(13-0512)
Adams Rite
1850, 4700
#105
(13-0665)
Short cam for 8292
and 8216 functions
inside only
2-FRONT
#112
(13-0097)
“Open” Misc.
*Twoscrewsareusedtoattachcam,ifneededorderP/N01-1121
Note: Use SARGENT 437C pinning kit for rekeying
For masterkeyed orders include Keyed Order Leadsheets with keying details as found in General Information section of price book
Parts shown on this page are unique to the XC feature. These plugs and shells cannot be used with non-XC components.
For all other cylinder components, refer to the standard Cylinder & Components section.
XC 11- option not available with 10-, 10UL-, 22-, 51-, 52-, 82-, 83-, 84-, SC- or SE- options.
The 437BR Kit is used to convert existing
cylinders into bump resistant cylinders. Simply
replace the drivers and springs
inallchambers.Eachkitincludes
300 pins for use in mortise/rim
cylinders, 300 pins for use in
KIK/KIL cylinders and 600
springs.
432 RC - Large Format Interchangeable Core
Installation Tool
432 IC- Small Format Interchangeable Core
Installation Tool
•Assistsintheinstallation
of Interchangeable Core
cylinder bodies
•Assistsinthreadingthecylinder
body into the mortise lock
•Usedtocheckthefunctionof
the cylinder in the lock before
installing the cylinder core
Complete Dim. X Length Shell & Slide
6 pin Assembly Under Cylinder Head Plug Assembly Assembly
11-41 1-1/8” (29mm) 13-4314 13-4301
11-42 1-1/4” (32mm) 13-4315 13-4302
11-43 1-3/8” (35mm) 13-4316 13-4303
11-44 1-1/2” (38mm) 13-4317 13-4304
11-46 1-3/4” (44mm) 13-4318 13-4305
11-48 2” (51mm) 13-4319 13-4306
11-50 2-1/4” (57mm) 13-4320 13-4307
11-52 2-1/2” (64mm) 13-4321 13-4308
11-54 2-3/4” (70mm) 13-4322 13-4309
11-56 3” (76mm) 13-4323 13-4310

11-63-40 Series Mortise Cylinders
• Cylinder:Solidbrass1-5/32”
(29mm) diameter
• Cap:Brass,bronzeandstainlesssteel
• See11-6300camoptionsonpage6
• Availableinthefollowinglengths:
   •Furnishedstandard
withNo.97rosetteand
compression ring
   •OptionalCollars/
Spacers available and
ordered separately,
refer to product catalogs for additional
information
• OtherSARGENTkeywaysavailable
• Finishes:3,4,9,10,10B,10BL,15,20D,26,
26D,32,32D
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
11- 6300 Series
Large Format Interchangeable Cores (Removable)
XC Series
11-63- Option Permanent LFIC
(Removable) Core Cylinders
• SARGENTXCLFIC(Removable)Core
Cylinders and Master Key Systems are
availableforaquickchangeofcylinders
for increased security. It is not necessary to
remove the lock from a door to rekey the
opening.
This XC core offers a patented cylinder
 optionforfullsizeremovablecore 
SARGENT cylinders. These XC cores will
only work in hardware ordered to
accept them with the 11-60 or 11-63- or
will need to upgraded in the field. See
the next page for parts needed and
SARGENT hardware available for
upgrading to XC 6300s.
• Special“controlkey”(catalogP/NX6272
CTL) is used to release a locking cam
allowing immediate removal of the core
• AvailableforuseinmanySARGENT 
products(ExitDevices,Mortiselocks,
Bored locks and padlocks)
• Canbemasterorgrandmasterkeyed
• 6-Pinonly
• 1bittedavailableforfieldkeying
• 1bittedcylinderssuppliedwith2key
blanks, pins and springs in chambers
in 3 and 4 only
• Widevarietyofmasterkeysystems 
available
• Permanent(keyedremovable)cores
supplied with hardware unless
specified otherwise
• AvailableinthefollowingSARGENTkeyway
families:L&Rfamiliesonly.
• Finishes:4,15
• Whenordering,useCat#11-6300;include
finish.
• FormasterkeyedordersincludeKeyed
Order Leadsheets with keying details as
foundinGeneralInformationsectionof
price book
• RequestControlKey(X6272CTL)if
required
• 1bittedcylindersonlypinnedwith
pins and springs in the 3rd and 4th
chambers. Two key blanks provided
11- 60- Option Disposable Plastic Core
• Duringtheconstructionphaseinnon
restricted areas, disposable plastic
cores can be used, eliminating use
and distribution of the actual keys
• Orderhardwarewith11-60toaccept
11-6300 permanent cores ordered
separately
• Onceconstructionisnearcompletion,the
permanent keyed cores will be installed
andthebuildingsecured;permanentkeyed
cores are ordered separately
• Disposablecoresaretypicallyused
on interior doors
• Operatewithcoinorflatscrewdriver
• Onepiecedesignallowsforeasy
installation
• Toorderplastictemp.coreseparately:Use
p/n 13-5177
11-6300 Series Parts Only
13-4326 Plug,Finishes:4,15
13-5175 Inner Shell & Slide Assy,
 Finishes:4,15
13-0796 Control Sleeve
01-0660 Plug retaining ring
13-1341 SlideforCylindersWITHOUT
a box around the word
 SARGENT(Mfgafter3/06)
Uses the same pins and principles
of 6300 cores, For pins, springs and keying
kits see page 14 and 15 of conventional
catalog pages 14 & 15.
11- 63-34 Rim Cylinder
• Housing:Solidbrass
• Cap:Brass,bronzeorstainlesssteel
• FurnishedstandardwithNo.97rosette
and compression ring when ordered with
out hardware
• Includesthesametailpieceandscrew
holepatternasthe#34cylinder
• Finishes:3,4,10,10BL,15,20D,26,26D,
32,32D
11-63-42 11-63-43 11-63-44 11-63-46
1-1/4”
(32mm)
1-3/8”
(35mm)
1-1/2”
(38mm)
1-3/4”
(44mm)
Cylinder #
Length
11- 64 Option Construction Keyed
LFIC Keyed Cylinders
• TheSARGENT11-6400LFICbrass
construction core (order 11-64- Option
withSARGENTproducts)enablesdoors
to be locked during project construction
period
• Using11-6400corespreventskeysforthe
permanent key system from becoming
available during the construction process
• Afterconstructioniscompleted,the
11-6400 brass cores are removed and
replaced with 11-6300 keyed permanent
LFIC cores
• Aspecialcontrolkeyreleasesthe
locking sleeve of the cylinder core
allowing immediate removal of the core
• Constructioncoresareallkeyedalike
in one KA keyset
• Furnishedwith6
keys and 1 control
as standard
• Plugfacedimpledfor
easy identification
SARGENT
6400 Brass Core
SARGENTXC6300LargeFormatInterchangeableCore(Removable)Cylindersofferaquickandeasymethodtochangecylindersforincreasedsecurity.
Thelockdoesnotneedtoberemovedfromthedoortorekeytheopening.TheXCcoreoffersapatentedcylinderoptionforfullsizeLFIC(removable)
coreSARGENTcylinders.
Note:TheXCcoreswillonlyworkinSARGENThardwareorderedtoacceptthemwiththe11-60or11-63-orwillneedtoupgradedinthefield.Mortise
andrimcylinderhousingsmadewithshorterversionpoststoacceptthe11-6300corecanbeusedwithoutmodification.Notallleverstyleboredlocks
will accept this 11-6300 core. Only products with removable tail pieces that insert in the back of the core are compatible by using with new tail pieces.
Existing480DeadboltSerieswillrequireconversion.Seepage6forcompatibilityandpartsneededtoupgradeexitinghardwaretoacceptthe
11-6300 core.
11-60- Mortise Cylinders
• 11-60-42-uptosize46sameasabove,but
supplied with plastic disposable plastic
core
5

61-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
11-6300 Cylinder/Lock Conversion Parts
Tools and Accessories
XC Series
436-1 Slide Block Kit
• Includesfixtureandstakingtoolforuseonlywiththe
11- (10)- 6300 Series Cylinders manufactured after March 2006
for the ease of top loading in the field.
• Thekitincludes100eachslidesp/n13-1341,StakingBlockand
Staking Tool .
• Cylinders manufactured after March 2006 will not include the
box around the Sargent logo and can be used with this kit.
Cores
without
a box
around
the word
“SARGENT”
60-34 Rim, 8-Line and 480 Series Conversion Parts 758/858 Padlocks, 11 Line (T-Zone), 10, 7, 6500 Line
Note:OnlylockswithremovableTailPiecescanbeupgradedto11-6300
Cores
Kit#13-5178
for 11-63-34 Rim Cylinders
Kit#08-5265
for 11-63-8-Line Knobs
Kit#16-2508for
Cam Assembly
for11-63-Deadbolts
Kit#10-3429for
10-Line, 7-Line & 6500
tailpiecepack(CylinderNotIncluded)
Kit#17-2632for
Padlock tailpiece pack
Kit#11-5003for
11-Line tailpiece pack
Cams for 11-6300 Large Format Interchangeable
(Removable) Core Mortise Cylinders
(Factory assembled to housing)
Standard
6300 Series
Cam
#105
Cam for
6300 Series
16 & 92
mortise
function
locks
#101
ADAMSRITE
1850 4710
#113
4370 Series
key switch
#106
Schlage
“L”
#115
Cam for
6300 Series
50 function
locks
2-FRONT
#112
Wide
Straight
• 6300Camsarefactoryinstalledandarenotremovable
• 6300Camsarenotsoldseparately
• SpecifyrequiredCamasasuffix:63-44-105cam
• ForStandardCam:NoSuffixisrequired
Body
Handle
431-6 Shear Tool
• ToolforpreparingSARGENT60-/63-mortisecylinderstoaccept
11-6300 XC cores
• UseKit#13-5178forupgradingrimcylinders
#104
ADAMS
RITE4050,
4150, 4250,
4350,
4070, 4516

7
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
11-7P-7300B
Small Format Interchangeable Cores
XC Series
11-7P-7300B Series Small Format
Interchangeable Core (SFIC)
Cylinders: 7 Pin Only
• SARGENTXCSFICCylindersarepatented
keys and cylinders for increased security.
Withacontrolkey,thesecylinderscan
be easily removed for rekeying. It is
unnecessary to remove the lock from
a door to rekey the opening. For use
inSARGENThardwareonly.Consult
individual catalogs for product availability.
• SARGENT11-7PInterchangeableCores
areavailableinSARGENT4Aand 
restricted 4B keyways
• 4AKeywaywillbesuppliedstandard
on new systems
• A2orA4systemsavailable
• ExistingSARGENTmortisecylinders
requirecoremountingpinmodification,
usepinsheartool(p/n:431-7)
• ExistingSARGENTboredlocksrequire
new tail pieces to accept XC SFIC cores
T-Zone (11 Line) 11-0276
10 Line 10-3138
7 Line 10-3138
6500 Line 05-0040
• XC11-optionnotavailablewith10-,
10UL-, 22-, 51-, 82-, 83-, 84-, SC- or
SE-options
11-72-7P Option Brass Small Format
Interchangeable Construction Core
• SARGENT7200Interchangeable7pin
brass construction core (order 11-72-
optionwithSARGENTproducts)
enables doors to be locked during
construction
• Using11-7200coresprevents
permanent key system keys from
becoming available during
construction process
• Afterconstructioniscompleted,
11-7200 brass cores remove and
replace with 11-7P-7300 keyed-
permanent interchangeable cores
• Plugfaceisblueforeasy  
identification
• SpecialControlkey(7254BCTL)
releases locking sleeve of the
construction core allowing for
immediate removal of the core
• Constructioncoresare7pinand 
keyed alike
• Six(6)constructionmasterkeys
(p/n 7254B CMK) and one (1) Control
key included
• Coresshippedwithhardware
11-7P-7300B Keyed Small Format
Interchangeable Core 11-73-7P-40 Series Mortise Cylinders
• Twocylindersizes
• 11-73-7P-43,1-3/8”
(35mm) length under
cylinder head
(including cam)
11-73-7P-43 (7 pin)
11-70-43 (shell less core)
• 11-73-7P-46,1-3/4”(44mm)length
under cylinder head (including cam)
11-73-7P-46 (7 pin)
11-70-46 (shell less core)
• 1-5/32”(29mm)diameterhousing
• Furnishedwith(#97)cylinderrosette
as standard
• OptionalCollars/Spacersavailableand
ordered separately, refer to product
catalogs for additional information
• Camispermanentlystakedtohousing
• Housingaccepts7pincoreonly
• Mortisecylindercamsoperatecurrent
 SARGENThardware
• HotelFunctionnotavailable
• Finishes:3,4,9,10,10B,10BL,20D,
26&26D
11-73-7P-34 Rim Cylinder
• Brasscylinderandhousing
• FurnishedwithNo.97rosette,break
off screws and back plate
• Housingaccepts7pincoreonly
• Mountingholeslocatedtomatch 
SARGENThardware
• Finishes:3,4,10,10B,26,26D,9,10BL,
20D
11-70- Option Disposable Plastic
Construction Core For SFIC
• Usedforthosedoorsthatdonot 
requirekeylockingduringconstruction
but will be using
permanent 11-7300 B cores
• Offeredin11-70-34Rim,11-70-43&
11-70-46 Mortise Cylinders and many
bored locks, consult product catalogs for
availability
•Operatewithcoinorflatscrewdriver
• Twopiecedesignallowsforeasy 
installation
• ToorderDisposablePlasticConstruction
Coreonly,specify:
13-5174
11-65-7300B Uncombinated
Small Format Interchangeable Core
• Coresforfieldkeying
• Nopins,springsorkeyblanksprovided
• Nologoonface
• 11-65-7P-7300B(7pin)
• Finishes:4,15
• EasilyfieldkeyedwithSFICkeyingkitsin
either the A2 or A4 pinning systems
Key Blanks/Cut Keys
(Nickel Silver)
• Availableinquantitiesof100each
• Packed50perbox
• SARGENTKeyways:4A,Restricted4B
• Order11-6285BxKeyway
• CutMasterkey11-X7285BMKxReg.#
Controlkey11-X7282BCTLxReg#
431-7 Shear Tool
• ToolforpreparingSARGENT70-/73-mortise
or rim cylinders to accept
11-7300B 7 pin XC core
• Suppliedwithtwonickelsilverkeysas
standard
• FaceincludesSARGENTlogo
• ForuseinSARGENThardwareonly,consult
individual catalogs for availability
• 11-7P-7300B(7pin)
• IfControl11X7272CTLorMasterkey
11X7282BMKisrequiredorderseparately
• Finishes:4,15
SARGENT
PAT. 6,526,791

81-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Construction Master Keying
Conventional XC Series
Cylinders ordered with construction keying will
receivethe21-optionLostBallfeature.With
this option, construction keying is obtained
without the nuisance of going back to each
cylinder and removing the construction split
key when the building is turned over. The
21- cylinder is master keyed with 3 small ball
bearings in one of the chambers. The 21- plug
is drilled in two places on each side of the
chambercontainingtheballs.Whilethe
building is under construction, the master key
to be used, the balls remain in the chamber
above the plug.
Voiding the construction master key is
accomplished by simply using the Change
key, which allow the balls to fall into one of
the holes on either side of the chamber. The
construction master key will no longer operate
the cylinder.
Orders with 21- will have all change keys
shipped separately from hardware.
• 21-isnotavailablewithremovablecore
(5100, 6300 or 7300)
• Use11-72optionforconstructionkeyingfor
11-7300 cores
• 21-replacesthe22-splitkey,whichisonly
available as an addition to existing
22- master keyed systems
• Use11-64-optioncoresfor
XC- removable core cylinders
• #439LostBallRekeyingKitallowsforField
construction of 21- lost ball keying
• #439kitincludesadrillingblock,knurledpin,
500 balls and drill with collar
Shown above is a cross section of a 21-Option Lost
Ball Cylinder with the Construction Master Key
inserted and rotated
Notethepositionofthethreeballsinlinewiththe
keyway and the two empty holes
on each side of the plug
DriverPin
To Void Construction Key
In this view, the Change Key is inserted
into the cylinder’s plug to void the
Construction Master Key. The Change
Key raises the three balls above the
plug.
As the Change Key is rotated, the
three construction balls fall into
one of the holes in the plug
The Change Key is then
rotated to the vertical
position for extraction
If the Construction Master Key is
inserted (as shown) after being voided,
itwillnotrotatebecauseDriverpin
now extends into the plug chamber.
This prevents it from rotating and voids
the Construction Master Key.
Note:
Parts shown on this page are unique to the XC feature. These plugs and shells cannot be used
with non-XC components.
For all other cylinder components, refer to the standard Cylinder & Components section.
XC 11- option not available with 10-, 10UL-, 22-, 51-, 52-, 82-, 83-, 84-, SC- or SE- options.
No. 1KB Rosette
•KB Series Rosette - supplied standard with
8200 Mortise Locks and are used with
mortisecylindersandNo.90blockingrings
when cylinders project from door
•Optional Collars/Spacers available and
ordered separately, refer to product
catalogs for additional information
•1-1/2” (38mm) diameter (includes
compression spring)
•Projectionfromdoor:
1KB-1 5/16” (8mm)
1KB-2 7/16” (11mm)
1KB-3 9/16” (14mm)
No. 97 Rosette
•Standard for cylinders ordered
separately from hardware
•1-11/16” diameter (43mm), 9/32” (7mm)
projection (includes compression spring)
No. 90 Blocking Ring
•No.97Rosette-suppliedstandardwith
7900MortiseLocks,ExitDevicewithpulls
and cylinders ordered separately from
hardware
•OptionalCollars/Spacersavailableand
ordered separately, refer to product
catalogs for additional information
•1-11/16”diameter(43mm),9/32”(7mm)
projection (includes compression spring)

9
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Key Control Comparison
& Key Blanks
XC Series
LAfamilyshownabove(alsoavailableinSARGENTRMultiplexfamily).
LD
LDH
LN
LHM
LM
LH
LDM
XC vs. Standard Keyway Control
NOTE: XC keys and master keys will operate non-XC cylinders.
Chart shows how XC key is fully compatible with non-XC cylinders
Master
Sections
Key Blank
Key Sections
Plug Key
Sections
SARGENT Key Blanks
Master Key Section (6 Pin) DayorChangeKey(6Pin)
CatalogNumber11-X6270 CatalogNumber11-X6275
LD LA RA
LH LB RB
LM LC RC
LDH LERE
LHM LF RF
LN LGRG
RD LJ RJ
RH LK RK
RM
RDH
RDM
RHM
RN
Small Format Interchangeable Core Keyways
• Packed50perbox
• OrderbyCatalogNumberxKeyway
Master/Day/ChangeKey(7Pinonly)
CatalogNumber11-X7285Bxkeyway
SARGENT4A
SARGENT4B(Restricted)*
*PreapprovalrequiredbySARGENTkeyrecorddepartment

Cylinders & Components
XC Series
10 1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Visual Key Control (Stamping)
Toallowforeasierkeyandcylinderidentification,SARGENTofferstheoptionforpermanentstampingofkeysand/orcylinderwithindustrystandard
alpha-numeric keyset symbols.
Non-visualkeycontrolstampedchange(day)keysincludebittingnumbersasstandard,(ItemA)unlessspecifiedinkeyingorderleadsheetsubmitted
withorderrequestingtobeomittedandkeysetsubstituted.
SFIC and Signature change keys are stamped with key set symbols as standard.
Master level keys do not include bitting numbers. Master level keys include system register numbers stamped on the first line, and
the standard visual key control designations on the second line (Item B).
Up to 7 characters available for permanent stamping for Visual Key Control
• Key and cylinder identified by industry standard alpha-numeric keyset symbols
• Concealedstampingonmortiseandrimcylindersandboredlockcylindersavailableontheslideonly(ItemDorI)
• Cylinder-slidestampingavailableon5100and6300SARGENTLFIC(removable)cores,boredlock,mortise/rimcylinders(ItemE,ID)
• Core side engraving available for 7300B Series up to 7 characters (Item F)
• Specialkeystampingsavailable,suchas“DONOTDUPLICATE”or“CITYOFPHOENIX”
• XC and Signature cylinders not available with visual plug stamping
• XCandSignaturecylindersavailablewithonlyconcealedslidestamping(ItemD,EandI)only
• SignatureLFIC10-6300availablewithcylinderslidestamping(ItemE)
NOTE:SARGENTwillstampalternateidentitycodeswhenrequested.Thesealternatecodeseitheronthekeyorcylinderorboth,ifboth,codemustbe
the same.
Tamper Proof Packaging
For the highest level of security for the end user, Tamper Proof Packaging is used on all Master Keys, Signature key blanks and all restricted key blanks.
Thisheatsealedshrinkwrapidentifiedwith“SARGENTSealedForYourSecurity”providesassuranceoftheintegrityofthefactorygeneratedkeysystem.
Item D
SARGENT
AA1
Item E
AA1
SARGENT
SARGENT
PAT. 6,526,791
Item F
Item B
Example
system
number
Example
of keyset
Symbol to
identify
factory-cut
key
Master Level
Key Stamping
Item A
Bittings or
keyset
Keyway
Change (Day)
Key Stamping
Item I

Architectural Specifications
How to Order
XC Series
How to Order
OptionsareusedtoidentifyoptionalfeatureswhichareaddedorpartofaSARGENTproduct.
XCCylindersareavailablebyspecifying11-priortotheproductdescription.Mortiseexample:11-8226LNLx26Dand10Lineexample:
11-10G05LLx26D,etc.
XC-CylindersarealsoavailableasBumpResistantbyspecifyingBR-11-.Mortiseexample:BR-11-8237LNLx26Dand10Lineexample:
BR-11-10G05LLx26D,etc.
Ifotheroptionsarebeingordered,listoptionsinnumericalorder:11-73-7P-10G05,11-21-8226x26D,etc.
Architectural Specifications
2.0 Cylinders, Key, and Keying – Standard Cylinders and 6300 Large Format Interchangeable Core (Removable)
A. AcceptableManufacturerandSeries(NoSubstitutions):
B. ProvidepatentedcylindersandLFICcoresthatrequire
apatentedkeywhichareprotectedfromunauthorized
manufacture and distribution.
C. Thekeydesignandtolerancesshallpermitthecuttingofkeyswithstandardcodeorduplicatingmachines.Therequirementfora 
single-purpose or keyway-specific cutting or duplicating machine shall not be allowed.
D. Thekeydesignandtolerancesshallpermittheuseofkeysandcylindersinexistingkeysystemshavingsimilarkeywaysandsections.
E. Provide6masterkeysforeachmasterkeyset.Provide2changekeysforeachlock.Stampkeys“DONOTDUPLICATE”.
F. Keyblanksshallonlybeshippedtoend-userlocationsuponwrittendocumentationfromauthorizedpurchasingpersonnelandfor 
specified number of keys only.
G. SubmitproposedkeyingscheduletoArchitect.Ifrequested,meetwithOwnerandArchitecttoreviewschedule.
H. DeliverallpermanentkeyblanksandothersecuritykeysdirecttoOwner’srepresentativefromSARGENTManufacturingviasecurecourier,return
receiptrequested.Failuretoproperlycomplywiththeserequirementsmaybecausetorequirereplacementofalloranypartofthecylindersand
keys involved as deemed necessary at no additional cost to the Owner.
2.1 Cylinders, Key, and Keying – 7300 Small Format Interchangeable Core
A. AcceptableManufacturerandSeries(NoSubstitutions):
B. Provide 7-pin small format interchangeable core (SFIC) cylinders.
C. Providecylindersandkeysprotectedfromunauthorized
manufacture and distribution by manufacturer’s United States patents.
D. Thekeydesignandtolerancesshallpermitthecuttingofkeyswithstandardcodeorduplicatingmachines.Therequirementfora 
single-purpose or keyway-specific cutting or duplicating machine shall not be allowed.
E. Thekeydesignandtolerancesshallpermittheuseofkeysandcylindersinexistingkeysystemshavingsimilarkeywaysandsections.
F. Provide 6 masterkeys for each masterkey set. Provide 2 change keys for each lock. Provide 2 control keys for core removal. Stamp keys
“DONOTDUPLICATE”.
G. Keyblanksshallonlybeshippedtoend-userlocationsuponwrittendocumentationfromauthorizedpurchasingpersonnelandfor  
specified number of keys only.
H. SubmitproposedkeyingscheduletoArchitect.Ifrequested,meetwithOwnerandArchitecttoreviewschedule.
I. DeliverallpermanentkeyblanksandothersecuritykeysdirecttoOwner’srepresentativefromSARGENTManufacturingviasecurecourier,return
receiptrequested.Failuretoproperlycomplywiththeserequirementsmaybecausetorequirereplacementofalloranypartofthecylindersand
keys involved as deemed necessary at no additional cost to the Owner.
11
1-800-727-5477 • www.sargentlock.com
90106:D 10-30-10 Copyright © 2004-2010, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Manufacturer Series
SARGENT XC
Manufacturer Series
SARGENT XC

90106:D10/10
SARGENTManufacturingCompany
100SargentDrive
NewHaven,CT06511USA
800-727-5477•www.sargentlock.com
Founded in the early 1800s, SARGENT®is a market leader in locksets, cylinders, door closers, exit devices,
electro-mechanical products and access control systems for new construction, renovation, and replacement applications.
The company’s customer base includes commercial construction, institutional, and industrial markets.
Copyright © 2004–2010 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ASSA ABLOY is the global leader in door opening solutions, dedicated to
satisfying end-user needs for security, safety and convenience.
