Profile
PoE Cylindrical Lock
Installation Instructions
v.S1

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
01/29/11
Changes or modifications to this unit not expressly approved by ASSA ABLOY Inc.
could void the user’s authority to operate the equipment.
SARGENT Mfg. Co. v.S Series locksets utilizing a door position switch (DPS) are not rated for,
or intended for use in life safety applications.
!
1
1
2
3
4
5
6
7
Table of Contents
Warning ....................................................................................2
General Description .................................................................3
Hardware Specifications .........................................................3
Electronic Specifications .........................................................3
Installation Wiring Overview ...................................................3
Installation Wiring ...................................................................4
Parts Breakdown .....................................................................9
Installation Instructions ........................................................11
Operational Check ................................................................19
8
9
1-800-810-WIRE • www.sargentlock.com • A7763B
Warning
FCC:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio com-
munications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Industry Canada:
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Op-
eration is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe A répond à toutes les exigences de l’interférence canadienne causant des
règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer
l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui
peut causer l’opération peu désirée.

02/11/11
A7763B 3
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
General Description
The SARGENT Profile Series v.S1 cylindrical lock is available with either an HID® Prox 125 kHz or 13.56 MHz
iCLASS® technology reader. It utilizes existing infrastructure and IEEE 802.3af PoE (Power over Ethernet)
technology as a proven alternative to traditional access control installations. The v.S1 is a self-contained
microprocessor-controlled access control product with non-volatile memory. It uses the existing network cable
to communicate with access control systems. The v.S1 lock holds a total of 2400 unique users per lock.
Using PoE technology coupled with approved third party software, this v.S1 online lock offers a complete, inte-
grated access control system.
The Profile Series v.S1 cylindrical lock may be used for both indoor and exterior applications. A weather-
protective gasket is recommended for exterior applications.
HID and iCLASS are registered trademarks of HID Global Corporation.
Hardware Specifications
• Complete lockset with on-board memory
• Available with or without keypad
• ADA compliant, non-handed
• Latch: 1/2" standard
3/4" throw for fire rated doors
(optional) (41- prefix)
• Deadlocking latch
• Inside lever retracts latch
• ANSI/BHMA Grade 1; UL Listed
3Electronic Specifications
4
2
• 2400 users per lock; 10,000 event audit trail
• Multiple time zone and holiday
access scheduling
• Centralized lock management
• Real time door status monitoring
• First-In unlock configuration, either by time
or by user (selectable)
• Lock down capable
• Input Power: PoE Class 2 Device, as defined
by IEEE 802.3af
• Supports HID® 125 kHz prox or 13.56 MHz
iCLASS® credentials (26 - 39 bit); supports
CSN reads for other common 13.56 MHz cards,
including MiFare, DesFire, and Felica
• Locks furnished for 1-3/4" and 1-3/8"
doors only
• Wire from EAC Panel to door must be
shielded with a drain (drain terminated
at EAC Panel controller)

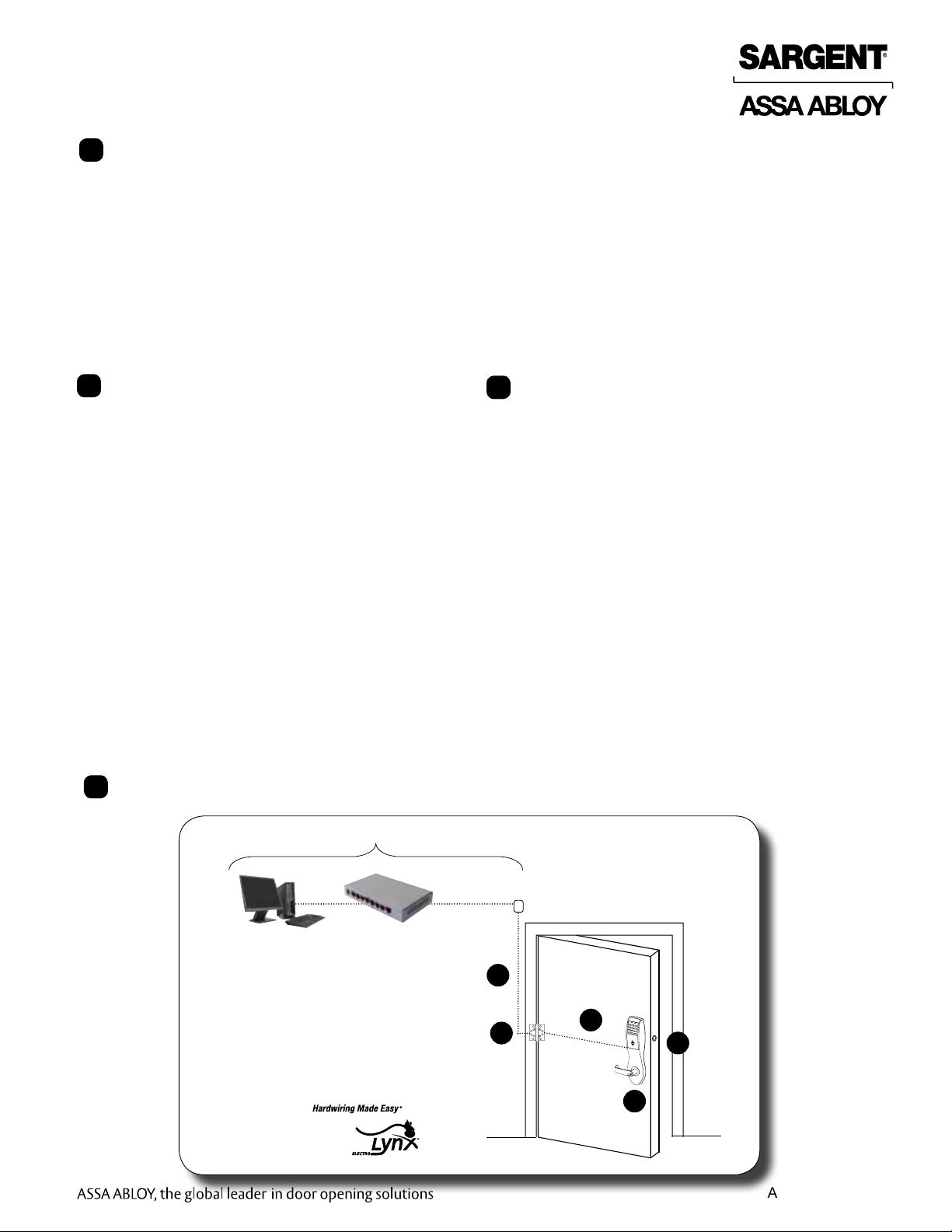

Installation Wiring Overview
5
Supplied by Others
A. PoE Frame harness assembly
B. PoE data hinge from McKinney
(patent pending)
C. PoE door harness* from McKinney
D. DPS: Door Position Switch
(cylindrical and exit devices only)
E. Profile Series v.S1 PoE lock
* Door width determines length
Network Cable
Network Switch (802.3af)
Surface Mount RJ45
A
BC
D
E

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
4 A7763B
6Installation Wiring
Cable: CAT 5e or higher
24 AWG shielded with drain wire
4-Pin
Molex-F Molex-F Molex-M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
Wiring to TIA-568-B Standard
RJ45-M
Molex-M
RJ45-F Jack
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
Approved Software
B-Splice
Crimp Connector
Certified Integrator (CI) supplies and terminates
the B-Splice connector and the
Male RJ45 connector from harness to
end user provided facility cable
Supplied by End User
PoE Switch
PoE
Lock
Ceiling
Supplied by CI
Patch Panel
Drain Wire Terminated on Rack
Ground
Ring Terminal
Secured to Lock
Mounting Plate
Drain Wire
PoE Switch is
terminated to
Earth ground
Patch Cable:
Patch Panel to
PoE Switch
4-Pin
PoE frame harness assembly (From McKinney)
PoE data hinge (Patent Pending) (From McKinney)
PoE door harness* (From McKinney)
DPS: Door Position Switch (cylindrical and exits only)
Profile Series v.S1 PoE lock
* Order of installation may vary.
Refer to appropriate sections for instructions.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Wire for
Earth
Ground
inside
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
A
E
D
C
A B
E
D
C
Notes:
• Connectors go on only one
way. They cannot be placed
in an incorrect position.
• Do not force and do not
offset connectors.
• Be sure they are completely
seated (flush).
B

02/11/11
A7763B 5
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
A Frame Harness Installation
Suggested installation of components and wire harness supplied by McKinney:
RJ45-M
Molex-M
Cable: CAT 5e or higher
24 AWG shielded, 100ohm
B-Splice
Crimp Connector
Ceiling
Supplied by CI Cut end / ceiling-side PoE harness:
TIA-568-B Standard Wiring
Pair Number Wire PIN
1 White/Blue White/Blue 5
Blue 4
2 White/Orange White/Orange 1
Orange 2
3 White/Green White/Green 3
Green 6
4 White/Brown White/Brown 7
Brown 8
Do not confuse pair numbers with pin numbers. A pair number is used for
reference only (e.g.: 10Base-T Ethernet uses pairs 2 & 3). The pin numbers
indicate actual physical locations on the plug and jack.
1. Feed cut end of harness into hole on hinge-side through single access hole.
2. Push one of the connectors back through hole and feed into separate
access hole.
Hinge side of PoE harness:
1
2
3
4
5
6
7
8
Each of the hinge-side harness connectors should end up threaded through
a different access hole and matched to the same size pin connector from
the door harness:
• 4-pin male Molex connector.
• 6-pin male Molex connector with ground wire.
Frame-Side
Harness
Assembly
(15' length)
24AWG
Stranded
Wire for
Earth
Ground
inside
15' Frame
Harness
Cable
drain wire
concealed
in shrink
tubing
6-pin F
4-pin M
6-pin M
4-pin F
Drain Wire
Frame PoE Hinge (Patent Pending)
PoE Data Hinge
Hinge-side harness connectors:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
• 4-pin Molex connector
• 4-pin connector
Notes:
• Connectors go on only one way. They cannot be
plugged to incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
B

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
6 A7763B
PoE Door Harness
Order of installation may vary. Refer to appropriate sections for instructions.
1. Prop door open.
2. Tape the two lock-side 4-pin connectors to the ring terminal.
3. Using the ring terminal, carefully fish the assembly through the door channel to the lock.
4. Remove tape from ring terminal and door harness connectors.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• (2) 4-pin connectors
Ground
4-Pin
4-Pin
6-pin M
Cable: CAT 5e,
26 AWG stranded,
shielded, 100ohm
Ring Terminal Secured
to Lock Mounting Plate
4-pin F
Drain Wire
Installation Wiring (Continued)
PoE Lock
C

02/11/11
A7763B 7
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
D
Wood Frame Metal Frame
Dim 1 3/8” 3/4”
Door Position Switch
1. Prep door according to proper template (Fig. D1).
2. Insert connector end of DPS through the raceway on the latch
edge of the door (Fig. D2).
Note: Only use collar when installing in a metal door.
3. To insert DPS, push wires through raceway toward lock prep.
4. Push DPS firmly into place by hand.
IMPORTANT: DO NOT TAP SWITCH WITH ANY TOOL.
5. To connect DPS to lock controller per diagram, refer to the wiring
instruction sections in the Installation Instructions section.
Fig. D2
Collar is used only
with metal doors.
Door Position
Switch (DPS)
Inside of Door
Raceway
Horizontal
of Strike
Door Position
Switch Hole
Vertical
of Strike
Dim 2
(See template)
Dim 1
Fig. D1
Strike for Cylindrical Lock
Frame

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
8 A7763B
EPoE Lock Wiring
Unused
RX COM (WHITE)
Unused Unused
RX NC (GREEN)
Unused
Motor B (BLACK)
Motor A (RED)
TB2
E1 TB1
Controller Board Connectors
(Inside Escutcheon)
J7, J4
JST Connectors
(From Hinge)
Ground Ring Terminal
(From Hinge to Top Left Escutcheon Screw)
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3MTG4
MTG1
J6
C21
J8
R15
R16
J4
D10
JP3
C5
C37
U4
D9
U1
R24
R4
C10
R21
TP8
C31
L1
U2
D7
DN1
C12
R8
D2
R5
C4
J7
C16
C34
U3
R14
JP4
C18
R22
C6
Q1
C11
TP1
TP2
J5
R10
D11
DN2
T2
C1
TP3
R3
D5
R1
TP4
C2
TP7
C32
TP5
R7
TP6
C9
R13
C35
R9
C3
R2
D4
C8
R23
TP9
R12 C19
R25
C15
R11
C20
DN3
D6
C13
C7
D1
C33
J2
R6
D3
C14
T1
J3
C36
C17
MTG2
MTG3
MTG4
MTG1
J6
C21
J8
R15
R16
J4
Ground Screw to Connector to E1
From
Lock
(+) 9VDC (RED)
(-) (BLACK)
AX/DPS NC (PINK)
AX/DPS COM (VIOLET)
Unused Unused Unused
EGND (GREEN)
DPS
COM (VIOLET)
NC (PINK)
TB2 E1 TB1
Power
From
Outside
Escutcheon

02/11/11
A7763B 9
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
7Parts Breakdown 125 kHz Prox and 13.56 MHz iCLASS
5
7
4
8
9
1
11
12
13
14
15
16
11
9
9
9
10
2
3
6

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
10 A7763B
ITEM PART NO. DESCRIPTION REQ’D
1 Outside Lever Reference Cylindrical/10 Line Catalog For Available Levers 1
2 Inside Lever Reference Cylindrical/10 Line Catalog For Available Levers 1
3 10-3016 Outside Escutcheon Assembly 1
4 10-3015 Inside Escutcheon Assembly 1
5 52-2431 125kHz Prox Only Bezel Assembly (PA) 1
52-2432 Keypad & 125kHz Prox Bezel Assembly (PK)
OR
52-4420 13.56MHz iCLASS Only Bezel Assembly (S1-IA)
13.56 mHz reader assembly ships configured for PoE/Hardpower use.
52-4421 Keypad & 13.56 MHz iCLASS Bezel Assembly (S1-IK)
13.56 mHz reader assembly ships configured for PoE/Hardpower use.
6 52-4424 S1 Controller Assembly (Single Pulse); ships (Double Pulse) when ordered seperately and must
be field configured to 10G77 (Single Pulse).
1
7 52-3855 Battery Cover Assembly 1
8 01-1212 Security Screw 1
9 52-2526 Screw Pack -Specify Finish
(Includes: Fire Stop Plate, Trim Mounting Screws and Security Allen Wrench)
1
10 52-3893 Door Position Switch 1
11 10-3048 Inside Rose Assembly 1
12 10-3049 Outside Rose Assembly 1
13 10-3409 Motorized RX Cylindrical Lock Assembly for options 10, 21, 22, 30, SC, SE, VA, VS (non handed)
1
10-3414 Motorized RX Cylindrical Lock Assembly for options 60, 63, 64 (non handed)
10-3419 Motorized RX Cylindrical Lock Assembly for options 70, 72, 65-73, 65-73-7P (non handed)
10-3439 Motorized RX Cylindrical Lock Assembly for options 80, 82, 82 F1 (non handed)
10-3440 Motorized RX Cylindrical Lock Assembly for options SF (non handed)
14 10-2000 2-3/4 Backset Latch (Standard) 1
15 10-2052 Cylindrical Screw Pack - Specify Finish
(Includes: Strike and Latch Screws, Push Pin Tool, and Strike Box)
1
16 Consult Factory 10 Line Cylinder 1
Parts Breakdown 125 kHz Prox and 13.56 MHz iCLASS, continued

02/11/11
A7763B 11
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
Installation Instructions
8
A. Verify Hand and Bevel of Door
Stand on outside/locked side of door when determining the door hand
B. Prepare Door
• Prior to installation, all holes must be free of burrs, debris and sharp edges.
• If doors are not properly reinforced per ANSI 115.2, commercially available reinforcements
should be installed.
• Prepare door according to appropriate template (refer to web site www.intelligentopenings.com):
Door Manufacturer template: 4632.
Inside of Door Outside of Door
Fig. 1B Wood Door Preparation
Ribbon Cable Hole
(Controller to Keypad)
Lever Handle Hole
Raceway
Through-bolt Hole
Ribbon Cable Hole
(Controller to Keypad)
Lever Handle Hole
Through-bolt Hole
Pre-drilled
Tap Holes
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward
Cylindrical
Pocket and
Latch Hole
DPS
Through-bolt Hole
Fig. 1A
Step #1 – Door Preparation

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
12 A7763B
Step #2 – Install Strike
Step #3 - Install Latchbolt
1. Install latch with beveled bolt facing the strike.
2. Attach with two screws but DO NOT tighten
completely at this time.
Fig. 3B
Strike
IMPORTANT: Latch bevel must match door bevel and
deadlocking latch must stop on strike when door is closed.
Deadlocking Latch
Outside of Door
Fig. 3A
Install strike in the door frame (Fig.2A).
Fig. 2A
Centerline of Latch
Front and Strike
(2) #8-32 x 3/4"
Latch Screws
Step #4 – Door Options
A. Fire Stop Plate (P/N 52-0033)
Fire-rated doors require a fire stop plate on
the outside of the door (Fig. 4A).
1. Drill (2) 1/8" x 1-1/4" deep holes in the
door if not already present.
Refer to template for fire-stop
prep locations.
2. Attach with flap up and
out using (2) #8 x 1/2”
self-tapping screws for
wood and metal doors.
Fig.4B
B. Weather Conduit (52-2847)
Install weather conduit on
NON FIRE-RATED exterior doors only (Fig. 4B).
1. Carefully insert the weather conduit into the
ribbon cable hole on the inside of the door.
2. Place the O-ring around the weather conduit
on the outside and up against the door (Fig. 4C)
Outside of Door
(2) 1/8” Diameter
Holes Required
Fire Stop Plate
(2) #8 Self-Tapping
Screws for Wood
and Metal Doors
(2) Through-bolt Holes
Fig. 4A
Fig.4C
Ribbon Cable Hole
O-Ring
Outside of Door

02/11/11
A7763B 13
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
Fig. 5B Detail
1-3/4” Thick Doors
2” Thick Doors
Step #5 – Lock Adjustment
A. Lock Preset:
• Lock body holes: 12 and 6 o’clock (Fig. 5A).
• Door thickness: 1-3/4” thick. Refer to adjustments
below for other door conditions (Fig. 5B Detail).
B. Through-Bolt and Door Thickness Adjustment:
1. Remove outside lever, scalp, and spacer bushing (Fig. 5A).
2. Rotate mounting plate to either align with through-bolt holes
in door, or adjust for proper door thickness (Fig. 5A and 5B).
Refer to markings on through-bolt post.
3. Re-install spacer bushing to align with back of lever,
scalp, and lever.
Step #6 – Outside Lever
A. How To Remove Outside Lever
1. Insert key, rotate 45° clockwise and hold.
2. Depress lever retainer with push pin tool (provided).
B. How To Change Cylinder (if Necessary)
1. With outside lever in hand, use standard
pliers to pull out cylinder retainer.
2. Remove key and cylinder from lever.
3. Insert new cylinder.
4. Secure by pressing cylinder retainer flush
with the lever.
˚
Push Pin Tool
Cylinder
Cylinder
Retainer
Cylinder
Spacer
Outside
Lever
Key
Washers required for
30- prefix (10 Line Lever)
to accept Schlage cylinder
(no cylinder provided)
Fig. 6A
Fig. 6B
Fig. 5A
Through-bolt Hole
Outside of Door
Spacer Bushing
Rotate to match
through-bolt
holes in door

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
14 A7763B
Step #7 – Secure the Lock to the Door
1A. For wood door: Feed wires up through the routed
channel (Fig. 7A).
1B. For metal door: Feed wires and connector through
inside of door (not shown).
2. Slide inside rose assembly and spacer bushing
over lock body and secure with (2) #10-32x1-1/4" through-bolts.
3. Secure with (2) additional #6 x 3/4" self-tapping screws.
Note: Refer to preceding page to remove outside lever.
4. Tighten latch screws securely.
Step #6 - Install Lock
1. Feed wires into the lock body hole from outside of door (Fig.6A).
2. Slide lock body into cross-bore hole from outside (locked side)
of the door (Fig. 6B).
3. Lock body must engage both the latch unit prongs
and tail piece (Fig. 6C Detail).
IMPORTANT:
• Latchbolt screws remain partially tightened.
• Door must remain open during installation. Use door stop.
• Lock body must be centered in the door.
Fig. 6A
Wire Harness
(From Lock Body)
Cylindrical
Lock
Body
Outside of Door
Fig. 6C Detail
Fig. 6B Detail
DPS
Outside
Latchbolt Screws
(Partially Tightened)
1
2
3
Inside
3
Fig. 7A
Inside of Door

02/11/11
A7763B 15
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
Fig. 8A
Step #8 – Install Gasket and Outside Escutcheon
For exterior applications, use weatherseal gasket between escutcheon and outside door
surface.
To apply weatherseal gasket:
1. Carefully remove the backing from the gasket (Fig. 8A).
2A. For fire rated doors: Feed ribbon cable with connector and ground wire from
outside of door through weather seal gasket and fire stop plate (Fig. 8A).
2B. For non-fire rated doors: Feed ribbon cable with connector
and ground wire from outside of door through weather seal gasket (if used) and
weather conduit (if used; not shown).
Note: Install ribbon cable with cable exiting down.
3. Apply gasket to escutcheon:
a. Starting in one place, press the adhesive side
of the gasket firmly against the escutcheon.
b. Work around the escutcheon, pressing the
sticky side of the gasket firmly against the
escutcheon edge.
c. The gasket should be aligned so that all edges
of the escutcheon are covered.
4. Place the outside escutcheon against, while
directing mounting posts through the door.
Cylinder spacer Outside of Door
Gasket
Keypad
Ribbon
Cable
Ground
Wire
(E1)
Antenna
(iCLASS)
Only

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
16 A7763B
Step #9 – Escutcheon Wire Connections
Images are shown without gasket.
If gasket is necessary, refer to Step #5.
Before the controller is attached
to the door:
1. Attach the reader assembly
ribbon cable into the back of
the controller assembly
(side that faces towards
the door when mounted
(Fig. 9A).
2. Attach the antenna to the
circuit board in the plastic
housing under the
controller assembly.
Note: The difference between
the wiring for the iCLASS 13.35 MHz
reader and the 125 kHz Prox is that
the iCLASS wiring includes
an antenna wire.
3. Attach the ground wire to the
bottom of the controller
assembly (E1, Fig. 9A).
Step #10 – Additional Wiring Connections
Lock, DPS and raceway wire connections:
1. Connect the cable from the cylindrical
lock to the bottom of the controller
assembly (TB1, Fig. 10A).
2. Connect the AX/DPS connector
to the 2-pin harness.
3. Push the two connectors
from the raceway over the
controller assembly, through
the gap between the plastic
controller assembly and the
escutcheon, to the front
of the circuit board.
Ground
Wire
Fig. 9A
3
1
2
Outside
Escutcheon
2
3
Ground
Wire
Reader
Cable
Antenna
(iCLASS only)
Reader
Ribbon
Cable
Antenna
(iCLASS only)
Ground Wire
Fig. 10A
1
AX/DPS
Inside of Door
4-Pin
Connectors
From Hinge
3
2
Outside
Escutcheon
Ground
Ring
Terminal
Antenna
(iCLASS
only)
Unused
TB1
Reader
Ribbon Cable
Door Position
Switch (DPS)
1
Inside
Escutcheon
(Back)
Inside
Escutcheon
(Back)
Inside of Door
Lock
2
1
Ground
Ring
Terminal
4-Pin Connectors
From Hinge

02/11/11
A7763B 17
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
Step #11 – Ciruit Board Wiring
Before installing escutcheon, route raceway cables and ground attach to
front of circuit board.
Turn the controller assembly over:
1. Route the raceway connectors over the top of the controller assembly
and plug into the front of the circuit board (side that faces out when
mounted (J7, J4; Fig. 12A).
2. Route the 2 ground ring terminals, one from the lock and the other
from the hinge wiring, over the top of the controller assembly and con-
nect both to the top escutcheon screw.
Note: Connectors go on only one way.
Do not offset connectors and make sure they are completely seated.
Inside of Door
Ground
Ring
Terminal
Fig. 11A
Step #12 – Install Inside Escutcheon
1. Gently fold the excess ribbon connector and ground wire into the
top hole, JST connectors and ground wire into offset middle hole,
and mortise and AX/DPS wires into bottom hole, being careful not
to pinch wires (Fig. 12A).
2. Insert (2) #8-32 x 1-1/4” screws through inside escutcheon and
thread into outside escutcheon (Fig. 12B).
3. Straighten escutcheons and check that latch screws
are tightened securely.
Inside of Door
Fig. 12B
Latch Screws
Fig. 12A

Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/11/11
Profile Series v.S1 PoE Cylindrical Lock
18 A7763B
1. Slide lever handle onto spindle until fully
seated (Fig. 13A).
2. Rotate key 45 degrees clockwise.
3. Push lever until lever catch is engaged.
Step #13 – Attach Outside Lever
Step #14 – Attach Cover
1. Attach cover to inside escutcheon making sure to line up tabs with
retaining slots in cover.
2. Secure with the security screw and tool. (Fig. 14A).
3. Secure security screw with the provided security tool (P/N 01-0297).
Cover
Security
screw
Security tool 01-0297
(included)
Inside of door
Fig. 14A
Fig. 13A
˚
Push Pin Tool
Inside Lever

02/11/11
A7763B 19
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Profile Series v.S1 PoE Cylindrical Lock
1. Insert key into cylinder and rotate.
There should be no friction against lock case, wire harness or any other obstructions.
2. Check that the key retracts the latch.
The key should rotate freely.
3. Use a prox 125 kHz or 13.56 MHz iCLASS credential, or keypad PIN code set up with the
Network and Lock Configuration Tool to unlock outside lever and retract latch.
Refer to Network Lock and Configuration Tool user manual (WFMN1D) for information on how
to configure and program v.S1 locks.
Operational Check
9

SARGENT Manufacturing
100 Sargent Drive
New Haven, CT 06511 USA
800-810-WIRE (9473) • www.sargentlock.com
Founded in the early 1800s, SARGENT® is a market leader in locksets, cylinders, door closers, exit devices,
electro-mechanical products and access control systems for new construction, renovation, and replacement applications.
The company’s customer base includes commercial construction, institutional, and industrial markets.
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ASSA ABLOY is the global leader in door opening solutions, dedicated to
satisfying end-user needs for security, safety and convenience. A7763B-02/11
