Autonomous Anti-collision Smartdesk User manual

Smartdesk - Anti-collision Edition
Assembly instructions

1. Caution.............................................................................................1
2. BOM Information and Tools..............................................................2
3. Installation Instructions.....................................................................3
4. Operating Manual for Control Unit....................................................5
5. Code Meaning..................................................................................9
6. Troubleshooting................................................................................9
7. Technical Data..................................................................................9
Content

·------------>
·—
--
--
-
Wireless Control
Control the height of your SmartDesk
with your smartphone or smart device.
•
Assembly Introduction Videos
Set Up Devices
Buy Devices
1
2 3
4
Adding a new device
Download the
Autonomous app
from the App Store or
Google Play Store.
After downloading, follow detailed instructions
the app to activate the Bluetooth connection
between the app and SmartDesk.
Turn on bluetooth on your smartphone or
smart device. Press and hold 3 + M on your
SmartDesk keypad until the digital display
shows 3 digits.
After successfully connecting the Bluetooth,
input the Wi-Fi name and password.
Now the Autonomous app is connected to
the SmartDesk.




 



'�.





 
 
 





 




'�.






 
 
 

Saving Position
NOTE: It is necessary reset manually or unplug after the initial installation.
Keep pressing "down" key until the handset display shows "E-1" and "rES"
alternately and then release the key.
Keep pressing the “down” key again. The desktop will move slowly down
and return back till the display shows "60".
Release the key. The electric height-adjustable desk can be used normally.
NOTE: The Anti-Collision function is not enabled during all resets. Please note that
there is a potential risk of pinching in this case, and be sure no obstacles are in the
desk's path.

Modified High and Low Limitation Positions
This function can be used to limit the movement area of desktop, when the drawer is
underneath or any shelf is above the desktop. Once it is set, the new High or Low
limitation position will be stored.
NOTE: This function is not recommended for ordinary operation. Use only as needed.
Keep pressing "up" or "down" key till the required high limit position is
reached.
Press "up" key till the display flashes as "HLP".
Press "M" key, the desktop height will be displayed and the high
limit position will be set.
Repeat step 1 and step 2 , then press "2" key, the display will show "L-P" and
current height alternately, keep pressing "down" key till the low limit position is
reached, press "M" key, the low limit position is set.
Keep pressing "M" key till the display shows "S - -".
Repeat step 1 and step 2. And then press "2" key, the display shows "Unt" and
the current height alternately, and the unit of height is "inch", press "M" key to
save the unit as "inch".
Changing the Displayed Desktop Height Unit (cm/inch)
L-P
HLP
H-P

The function enables you to change the height shown on the display based on the
actual measurement.
NOTE: Before using this function, execute the Manual Reset procedure.
Press and hold "M" key till the display shows "Ur" and "oFF" alternately.
Press “up” key till the display shows "End" and current height alternately.
( for metric units, please note that the unit is "mm" during this procedure)
Changing the height by pressing "1" key to adjust the first number, "2" key to
adjust the second number, and "3" key to adjust the third number.
Press "M" and the height will be adjusted to defined digit.

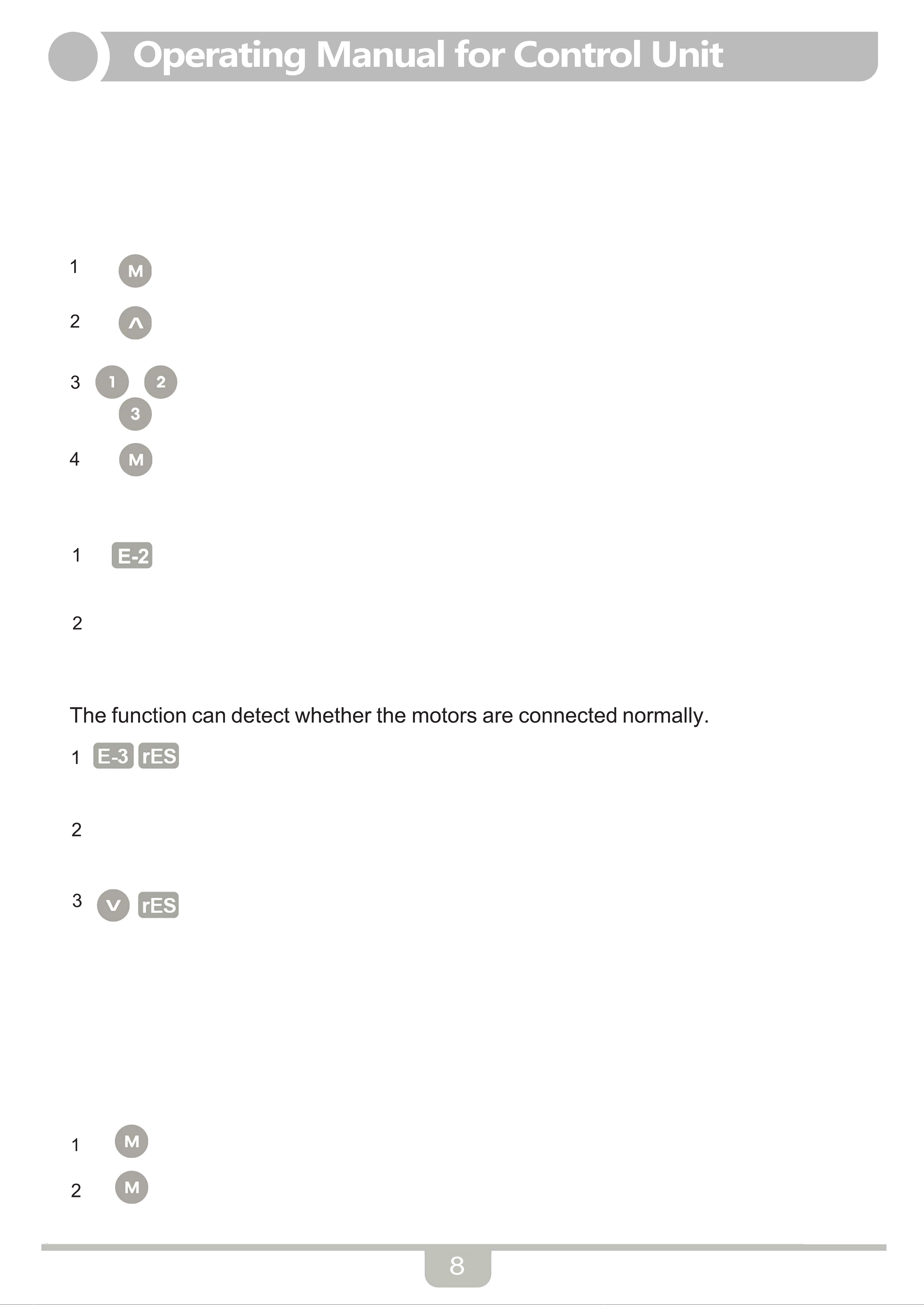

Once the desktop encounters any obstacle in its path, the screen displays
"E-2".
The desktop will move a short distance in opposite direction, and will
operate normally after the obstacle has been removed.
Once the display shows "E-3" and "rES" alternately, it reminds you check
whether any motor connected to control unit has failed.
Please power off the whole system, check and connect all the cables,
then power back on.
Press and hold "down" key when the display shows "E-1", the desktop will
move slowly down and return back till the display shows "60".
NOTE: The Anti-Collision function and the High & Low Limitation Positions function are
not enabled during this procedure. Please note that there is a potential risk of pinching
in this case, and be sure no obstacles are in the desk's path.
Reset Control Unit to Factory Settings
With this function, you can return the control unit to factory settings.
Press and hold "M'' key till the display shows "FAC''
Press "M" key, and the control unit will restore itself to factory settings
(including memory positions, high and low limitation positions, etc.).
Anti-Collision Function
Plug Detection
Changing the Desktop Height Displayed

800N(one leg)/1000N(system)
600mm~1250mm(23.6”~49.2”)
Allow the desk to rest around 18 minutes before
continuing to operate
The height between two legs exceeds 1 inch.
Stop the operation and reset, refer to Manual reset.
Check the cables and ensure they are securely connected,
and the height-adjustable desk can be used normally after
manual reset.
It can be used normally after removing the
obstacle.
Remove the load on desktop till it less than
1000N / 102KG / 225LBS for further operation.
Manual resetting
Overloading
Anti-Collision function
Operated continuously
without suitable rest
rES
ovr
E-2
E-4
E-3
Input voltage
Output voltage
dut
Code Meaning
Troubleshooting
Technical Data
Max loading
Height range (without desktop)
Duty cycle
100~240V AC
24V DC
800N (one leg) / 1000N (system)
600~1250mm (23.7"〜49.3")
2 min on/ 18 min off
Code Meaning and Troubleshooting
Refer to the progress of manual reset.
