Operator's Manual for Attachment
Horse manure collector
Product number
A36292
English
A460917 2023 1 EN 2015-
www.avanttecno.com

Horse manure collector 2023 1

Horse manure collector 2023 1
CONTENTS
1. FOREWORD ........................................................................................................................................ 4
Warning symbols used in this manual ...................................................................................................................................5
2. DESIGNED PURPOSE OF USE.......................................................................................................... 6
3. SAFETY INSTRUCTIONS FOR USING THE FRONT RAKE ......................................................... 7
3.1 Personal protective equipment...............................................................................................................................8
3.2 Safe shutdown procedure ........................................................................................................................................8
4. TECHNICAL SPECIFICATIONS ....................................................................................................... 9
5. ATTACHING THE ATTACHMENT ................................................................................................. 10
6. OPERATING THE ATTACHMENT .................................................................................................. 11
6.1 Checks before use .....................................................................................................................................................11
6.2 Operator qualification...............................................................................................................................................11
6.3 Use .................................................................................................................................................................................12
6.4 Transport position .....................................................................................................................................................13
6.5 Uncoupling and storage ............................................................................................................................................13
6.5.1 Storage with base attachment ........................................................................................................................14
7. MAINTENANCE AND SERVICE ....................................................................................................... 15
7.1 Cleaning the attachment...........................................................................................................................................15
7.2 Lubrication ...................................................................................................................................................................15
7.3 Tine maintenance .......................................................................................................................................................15
7.4 End of life disposal......................................................................................................................................................15
8. WARRANTY TERMS .......................................................................................................................... 16

4 (18)
1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured based on years of experience on product development and manufacturing.
By familiarizing yourself with this manual and following the instructions, you ascertain your safety and ensure
the reliable operation and long service life of the equipment. Read the instructions carefully before starting to
use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this Operator's Manual, you must observe all occupational
safety regulations, local laws, and other regulations concerning the use of the equipment. Particularly the
regulations concerning the use of the equipment on public road areas must be observed. Contact your Avant
dealer for more information about local requirements before you operate the loader on road areas.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2023 Avant Tecno Oy. All rights reserved.

5 (18)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER
This signal word indicates a hazardous situation which, if not avoided, will cause
death or serious injury.
WARNING
This signal word indicates a potentially hazardous situation which, if not avoided,
could cause serious injury or death.
CAUTION
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to o
bserve the instructions accompanying the symbol can lead to equipment
breakdown or other property damage.
. ..

6 (18)
2. Designed purpose of use
The AVANT Horse manure collector is an attachment that is suitable for use with AVANT compact loaders
that are shown in Table 1. The Horse manure collector is intended for handling and collecting horse manure
on different surfaces, such as saw dust or horse arenas, for example. The attachment is intended for
collecting loose or compacted manure only.
The Horse manure collector mounts directly on Avant general and light material buckets. It is equipped with
replaceable tines. The manure collector is not designed to withstand loads from other types of use than
collecting of manure from soft surfaces. The Horse manure collector is not designed for any other use than
what is specified in this manual and must not be used for any other purposes than what is intended for.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional technicians. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you
require spare parts or maintenance services.
Table 1 - Horse manure collector - Compatibility with Avant loaders
Avant
220 series 2
225
225LPG
313S
320S
420
423
520
525LPG
528
630
635
640
645i
650i
735
745
750
755i
760i
850
860i
e5
e6
A36292 ••••••••

7 (18)
3. Safety instructions for using the front rake
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
DANGER
Misuse, careless use, or using an attachment that is in poor condition may
cause risk of serious injuries.
Familiarise yourself with the controls of the loader,
correct coupling proc
edure, and the correct way to operate the attachment at a safe
area. Study especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment
WARNING
When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.
This attachment is designe
d to be used by one operator at a time. Do not let others
near the danger area of the equipment when it is in use.

Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
When operating the Horse manure collector, follow the safety instructions given in the
operator's manual of the base attachment and the operator's manual of the loader.
Use the equipment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure to use only an attachment that is in good condition. Check the attachment
thoroughly in regular intervals. Do not modify the attachment in a manner that would
affect its safety. It is prohibite
d to drill holes on the attachment, and welding or other
means of fixing hooks or other objects on the attachment is strictly prohibited.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Sea
t belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
. ..

8 (18)
3.1 Personal protective equipment
Remember to wear proper personal protective equipment:

The noise level at the driver's seat may exceed 85 dB(A) depending on loader
model and operating cycle. Extended exposure to loud noise can cause
hearing impairment. Wear hearing protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear respirator mask when operating in dusty conditions.
3.2 Safe shutdown procedure
Safe position of the attachment, before going near the loader boom:
WARNING
Always set the attachment to a safe position before going near the attachment.
Safe position will prevent unintentional movements of the attachment and the loader
boom. Note that the attachment can move even if the engine of the l
oader is turned off.
Safe stopping procedure:
Lower the boom completely down and lower the attachment flat on the ground.
Shut down the loader engine and lock the parking brake.
Prevent starting of the machine, remove ignition key.

9 (18)
4. Technical specifications
Table 2 - Horse manure collector - Specifications
Product number A36292
Width: 950 mm
Weight: 30 kg
Tine length: 368 mm (from bucket edge)
Gap between forks: 23 mm
Number of forks: 13 (double tines)
Fits to: All Avant buckets with straight edge and minimum width of 960 mm
Suitable AVANT loaders: See page 6

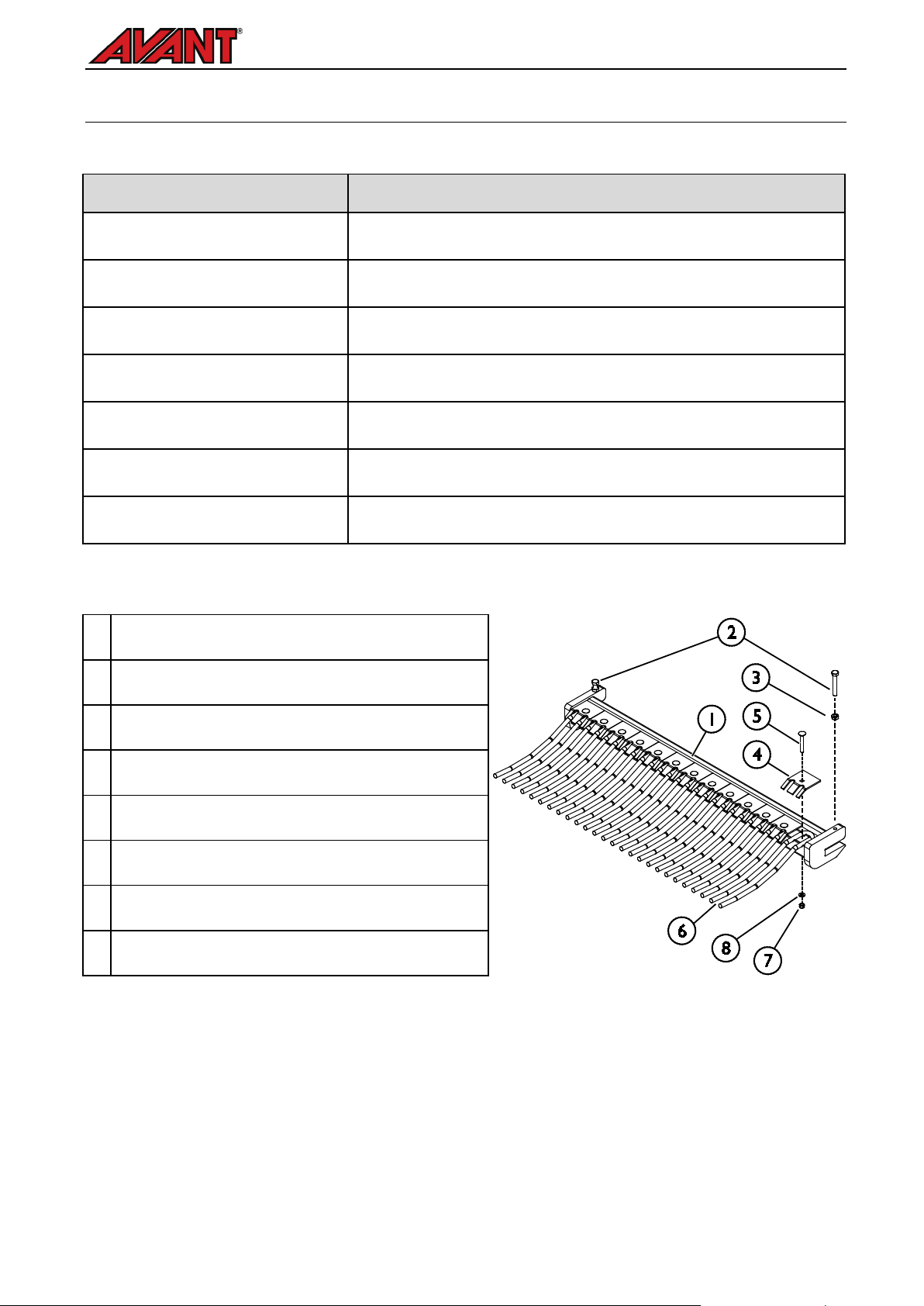

Table 3 - Main components of the Horse manure collector
1 Frame
2 Fastening bolt for clamping the attachment on bucket
edge (2 pcs)
3 Nut (2 pcs)
4 Fixing plate
5 Locking bolt (13 pcs)
6 Double tine (13 pcs)
7 Nut (13 pcs)
8 Washer (13 pcs)

10 (18)
5. Attaching the attachment
The attachment is mounted to the bucket
by using two fastening bolts as shown in
the adjacent figure:
1. Fasten the Horse manure collect
or
to the bucket by using fastening
bolts (1). The bolts are tightened
against the edge plate of the bucket.
No holes are required on the edge
of the bucket to mount the collector.
2. Lock the bolts with nuts (2).
If the Horse manure collector is not locked to the bucket, it may fall from the bucket and cause a hazardous
situation. Never drive with the loader and never lift the loader boom if the attachment has not been fully
locked. To prevent hazardous situations, always follow the coupling procedure shown above. Also remember
the safety instructions shown in this manual.
WARNING
Crushing risk - Make sure that an unlocked attachment will not move or fall over.
Do not stay in the area between the attachment and the loader. Mount the attachment
only on level surface.
Never move or lift an attachment that has not been locked.

11 (18)
6. Operating the attachment
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
WARNING
Crushing hazard -
Never allow anyone to get under a
lifted attachment or loader boom. Keep in mind tha
t the
loader boom can be lowered or tilted even if the engine has
been shut down. The loader is not intended to be left to keep
a load elevated for longer periods. Always lower the
attachment to a safe position before leaving the driver's seat.
. ..
6.1 Checks before use
Check the general condition of the attachment and the loader.
Check that there are no broken or loose tines.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
Operate the attachment and the controls of the loader only when seated on the driver’s seat. Ensure
that the loader and the attachment are used in a safe manner and as intended. Do not allow children
to operate the equipment.
Remember correct working methods and avoid leaving the driver's seat unnecessarily. Practise the
use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the
particular loader model, it is recommended to practise its use without any attachments.
. ..
6.2 Operator qualification
Anyone who intends to use the attachment must:
Know the intended use of the attachment.
Know how to use the loader safely in different operating conditions.
Read and always follow the instructions concerning the use of the attachment in this operator's
manual.
Have this manual and the operator's manual of the loader available.
Ensure that the loader and the attachment are used in a safe manner and as intended.
Never allow children to operate the equipment.
Never operate the loader or attachments while under the influence of alcohol, drugs, medication that
may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment.
Complete any possible mandatory training required by the employer before use.
Have valid driver's license when operating the equipment on road areas when required by law.
. ..

12 (18)
6.3 Use
Before starting to work:
Read all safety instructions.
Using the Horse manure collector:
1.
Set the attachment to working
position. Keep the bucket low and at
a low angle
as shown in the adjacent
figure.
2. Drive slowly and carefully forwards.
If your loader is equipped with a
telescopic boom, you can utilize it for a
better view to the working area.
Avoid sharp turns while the tines of the collector are on the ground. Lift the attachment off
the ground before sharp turns.
WARNING
Risk of sudden stop - Drive slowly when the bucket is against the ground.
Avoid
hazards related to sudden stopping of the loader when using the Horse manure collector.
Drive slowly whenev
er picking up manure. Keep the bucket tilted so that it will not stick on
the ground unexpectedly.
WARNING
Collision hazard -
Never keep
the bucket lifted or at high
angle relative to the floor
while collecting.
Hitting an
obstacle can cause sudden
stop of the loader and damage.

13 (18)
6.4 Transport position
When driving with the loader, keep the
Horse manure collector and its base
attachment in the position shown in the
adjacent figure.
WARNING
Risk of tipping over - Keep the loader stable. Always transport the attachment as low
and close to the ground as possible. Keep the telescopic boom retracted during
transport drive.
6.5 Uncoupling and storage
Uncouple and store the attachment on
level ground. The best way to store the
attachment is a plac
e where it is protected
from direct sunlight, rain, and extreme
temperatures.

Avoid leaving the attachment laying
directly on the ground. Place it on
blocks of wood or on a pallet, for
example.

Make sure that the attachment is
secured against all movements
during
storage.
Never climb on the attachment.
Before winter storage carefully clean the attachment. Touch up the paint where needed to prevent rust
damage.

14 (18)
6.5.1 Storage with base attachment
Carefully lower the Horse manure collector together with a base attachment on pallets.
For short term storage the attachment can
be uncoupled from the loader together with
the base attachment, if for example, the
base attachment is needed only with the
Horse manure collector. Place the
assembly on blocks of wood or o
n pallets
as shown in the adjacent figure. Two or
more pallets may be necessary to ensure
the stability of the assembly during
storage.

15 (18)
7. Maintenance and Service
The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes
regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing
hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been
lowered down completely and the attachment is lowered flat against the ground. Before any maintenance or
service work follow the safe shutdown procedure.
DANGER
Risk of crushing - Never go under lifted attachment.
Make sure the attachment is
properly supported during all maintenance w
ork. Never go under a lifted attachment. The
loader boom may lower unexpectedly during maintenance causing serious injuries from
crushing or impact even when the loader engine is not running. All maintenance and
service must be performed when the attachmen
t has been lowered down to a safe
position.
7.1 Cleaning the attachment
Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure
washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at
the hydraulic components, or at the labels on the attachment.
7.2 Lubrication
There are no specific lubrication points on the attachment. The attachment is maintenance free, except for
cleaning, monitoring its condition, and occasional paint retouch if needed.
7.3 Tine maintenance
The condition of the tines and tine holders should be checked at least every few uses. Replace any broken
items.
7.4 End of life disposal
When the attachment is at the end of its useful life, recycle and dispose the attachment properly. Dismantle
the attachment and separate the different materials, such as plastic, steel, and rubber, for example. Handle
them by following the current local regulations. Never leave any material in the environment.
Recycle each material by delivering them to a proper collecting place. Let a waste management company do
the recycling, if possible.
. ..

16 (18)
8. Warranty terms
Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it
manufactures.
The warranty covers repair costs as follows:
Work costs are covered, if the repair is not performed at the factory.
The factory replaces any defective components or consumables.
The factory may reimburse the price of components purchased by the customer in special cases that have
been agreed in advance.
The warranty does not cover:
Normal maintenance work or parts and consumables required for it.
Damages caused by unusual operating conditions or ways of use, negligence, structural changes made
without the consent of Avant Tecno Oy, use of non-original parts or lack of maintenance.
Consequences of a defect, such as interruption of work or other possible additional damages.
Travel and/or freight costs caused by the repair.
