Introduction
This document contains the information that you need to start using your Avaya Aura™
Communication Manager Branch in the shortest possible time.
1. Check before you install your Communication Manager Branch.
2. Mount your Communication Manager Branch.
3. Ground your Communication Manager Branch.
4. Connect your Communication Manager Branch to your telephones, computers, and
network.
5. Turn on your Communication Manager Branch.
6. Configure. Point your Web browser to https://192.11.13.6.
Congratulations! You are now ready to use your Communication Manager Branch i120.
Check
Safety
Before you start the installation, refer to the following safety information
●Grounding. Refer to “General grounding requirements” on page 10.
●Rack mounting. Refer to “Mounting your Communication Manager Branch i120 in a rack”
on page 4.
Installation location
When deciding where to position the Communication Manager Branch i120, ensure that:
●It is accessible and cables can be connected easily.
●Cabling is away from sources of electrical noise such as radio transmitters, broadcast
amplifiers, power lines and fluorescent lighting fixtures.
●Water or moisture cannot enter the case of the Communication Manager Branch i120.
●There is a free flow of air around the Communication Manager Branch i120 and the vents
in the sides of the case are not blocked.

2 Communication Manager Branch i120 Installation Quick Start
●No more than 25 feet (7.6 m) from an approved ground or close enough for use with the
supplied secondary grounding conductor.
Note:
Note: If the supplied secondary grounding conductor does not reach the approved
ground, you must contact a licensed electrician to install a supplementary ground
conductor.
●The environmental conditions match the following requirements:
●Ambient temperature - 32oto 104oF (0oto 40oC).
●Relative humidity - 10 to 90% relative humidity.
●Minimum clearance for ventilation - 18 in. (45 cm).
●Weight support - up to 40.5 lbs (18.4 kg).
Required equipment
Prepare the tools you need to mount the Communication Manager Branch i120 according to the
following table:
●You might also need wire cutters to attach the grounding conductors, if your site uses a
ground block.
●To configure your Communication Manager Branch i120, you will need a computer with a
screen resolution of 1024x768 pixels or greater and either Internet Explorer 6.0 or Mozilla
Firefox 2.0 or later.
Unpack
The Communication Manager Branch i120 is shipped with the following items. If any items are
missing or damaged, contact your supplier. Retain the packaging in case you need to ship the
Communication Manager Branch i120.
To mount
on... Prepare these tools
Rack Phillips head screwdriver.
Wall ●Plywood board: ¾ in (1.2 cm) thick and at least 4 x 4 ft (1.2 x
1.2 m) in size (to be supplied by the customer).
●Wood screws (4 minimum).
●Screws to fasten the Communication Manager Branch i120 to
the board.

Check
Issue 3 May 2009 3
Table 1: Items shipped with theCommunication Manager Branch i120
Four rubber feet
One Grounding Cable Assembly
Power Cord (drawing shows US power cord)
Nine 5/16" (8 mm) Flat-Head Screws
Two mounting brackets

4 Communication Manager Branch i120 Installation Quick Start
Mount
Using your Communication Manager Branch i120 on a table
To use the Communication Manager Branch i120 on a tabletop, you must attach the provided
rubber feet to the underside of the Communication Manager Branch i120.
1. Remove the four rubber feet from the packaging.
2. Turn the Communication Manager Branch i120 upside down.
Note:
Note: Ensure the base of the Communication Manager Branch i120 is clean.
3. Peel the feet off the backing sheet.
4. Position each foot into one of the mounting sites, near each corner of the Communication
Manager Branch i120.
5. Press each foot firmly so that it adheres strongly to the Communication Manager Branch
i120.
Mounting your Communication Manager Branch i120 in a rack
You can mount the Communication Manager Branch i120 in a standard 19-inch rack.
One mounting bracket with cable holder
Jumper for NVRAM init.

Mount
Issue 3 May 2009 5
!CAUTION:
CAUTION: The Communication Manager Branch i120 weighs at least 21 pounds (9.6 kg).
Two people may be needed to mount the Communication Manager Branch i120
in the rack.
You must attach the supplied mounting brackets to the front or the middle of the Communication
Manager Branch i120.
Before you start
●Ensure that the rack is bolted to the floor and is earthquake-protected, if required. If the
rack is not securely fixed in place, do not continue with the installation.
●If you are mounting yourCommunication Manager Branch i120 is in a rack with other
equipment already installed, position the Communication Manager Branch i120 to avoid
imbalance.
Brackets without cable guides
You can attach mounting brackets without cable guides to:
●Each side of the front of the Communication Manager Branch i120, so that the front of the
CMB i120 is flush with the rack.
●The middle of each side panel of the Communication Manager Branch i120, so it projects
forward from the rack.
Brackets with cable guides
The CMB i120 comes with a third mounting bracket with cable guides to route and support the
cables you connect.
●When you front-mount the Communication Manager Branch i120 in a rack, replace one of
the standard brackets with the bracket with cable guides.
●When you mid-mount the Communication Manager Branch i120 in a rack, attach the
bracket with cable guides to the front of the Communication Manager Branch i120.
You can attach the bracket to the left or right side of the Communication Manager Branch i120.

6 Communication Manager Branch i120 Installation Quick Start

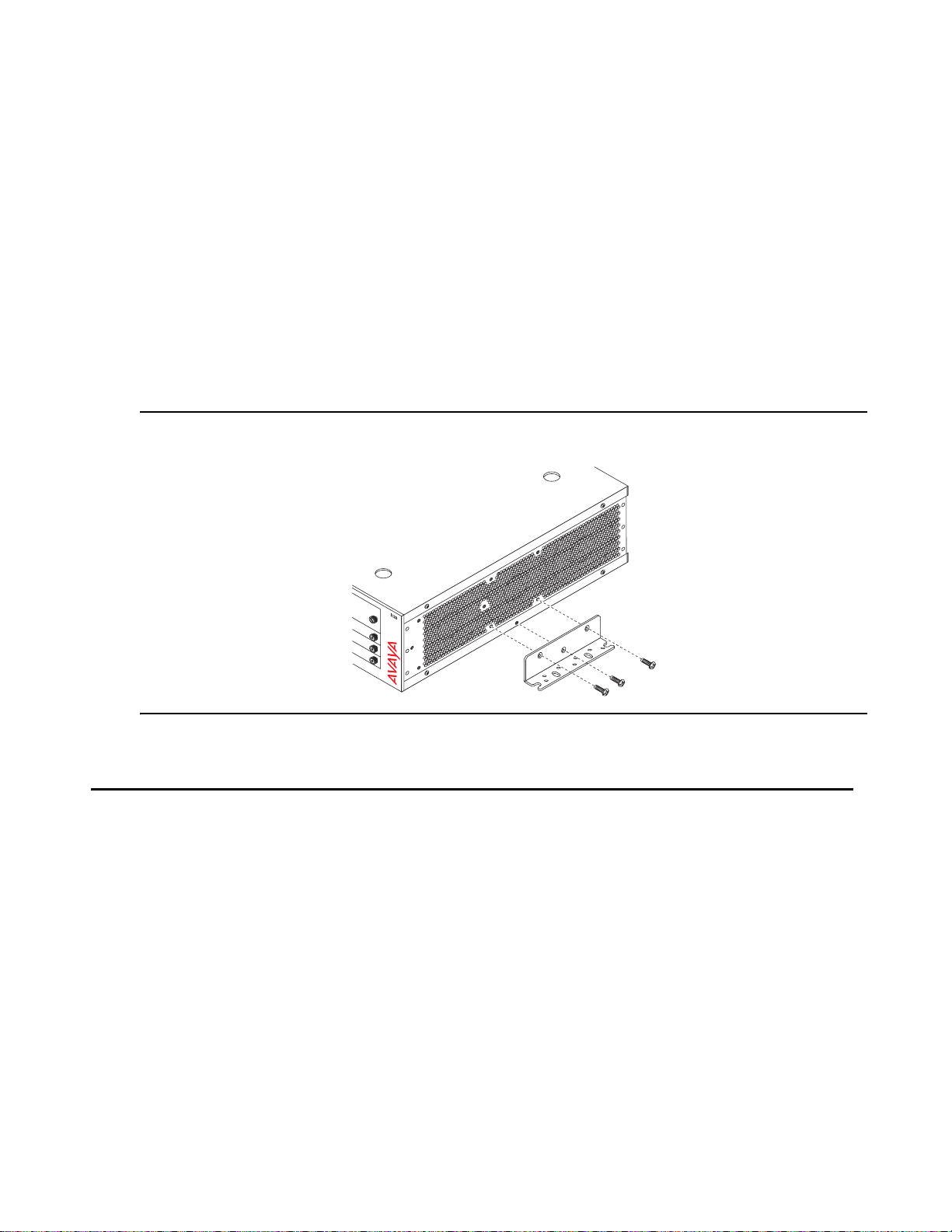

Figure 1: Attaching the cable guide
●To rack-mount the Communication Manager Branch i120 at the front, attach one regular
bracket and the bracket with cable guides.
●To rack-mount the Communication Manager Branch i120 at the middle:
1. Attach two regular mounting brackets on the sides of the chassis in the mid-mount
position.
2. Attach the mounting bracket with the cable guides to the front of the chassis.
Rack mounting
1. Attach the mounting brackets to the CMB i120. Use three of the supplied screws for each
bracket.
Figure 2: Front mount position

Mount
Issue 3 May 2009 7
Figure 3: Mid-mount position
2. Insert two mounting screws, one on either side of the rack.
3. Turn the screws only 3 to four times so you can rest the brackets on them.

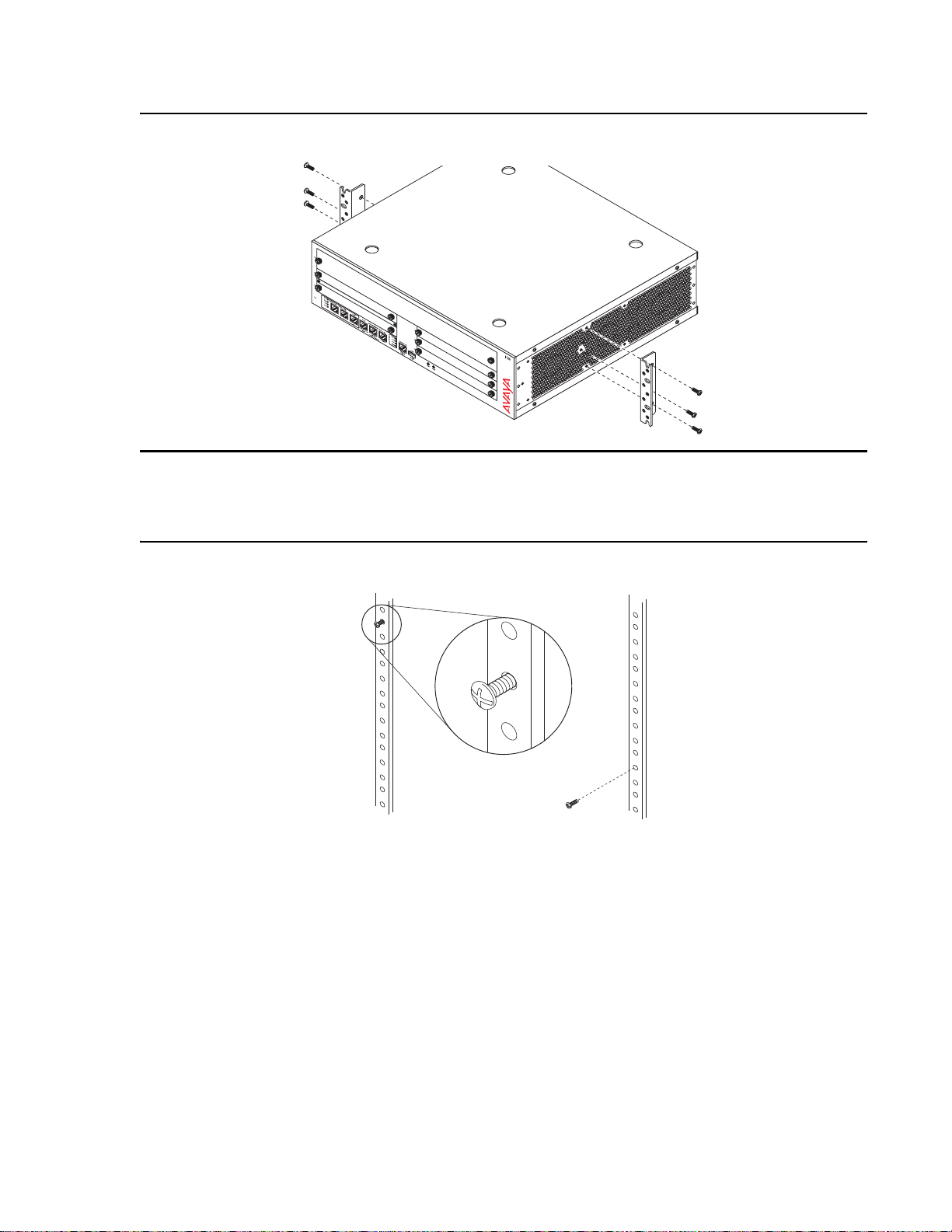

Figure 4: Inserting the screws in the rack
4. Place the Communication Manager Branch i120 in the rack so that the slots in the bottom
of the brackets are resting on the screws that protrude.
5. Verify that the screw holes are aligned with the positions of the holes in the rack.
6. Insert two additional mounting screws on each side.

8 Communication Manager Branch i120 Installation Quick Start

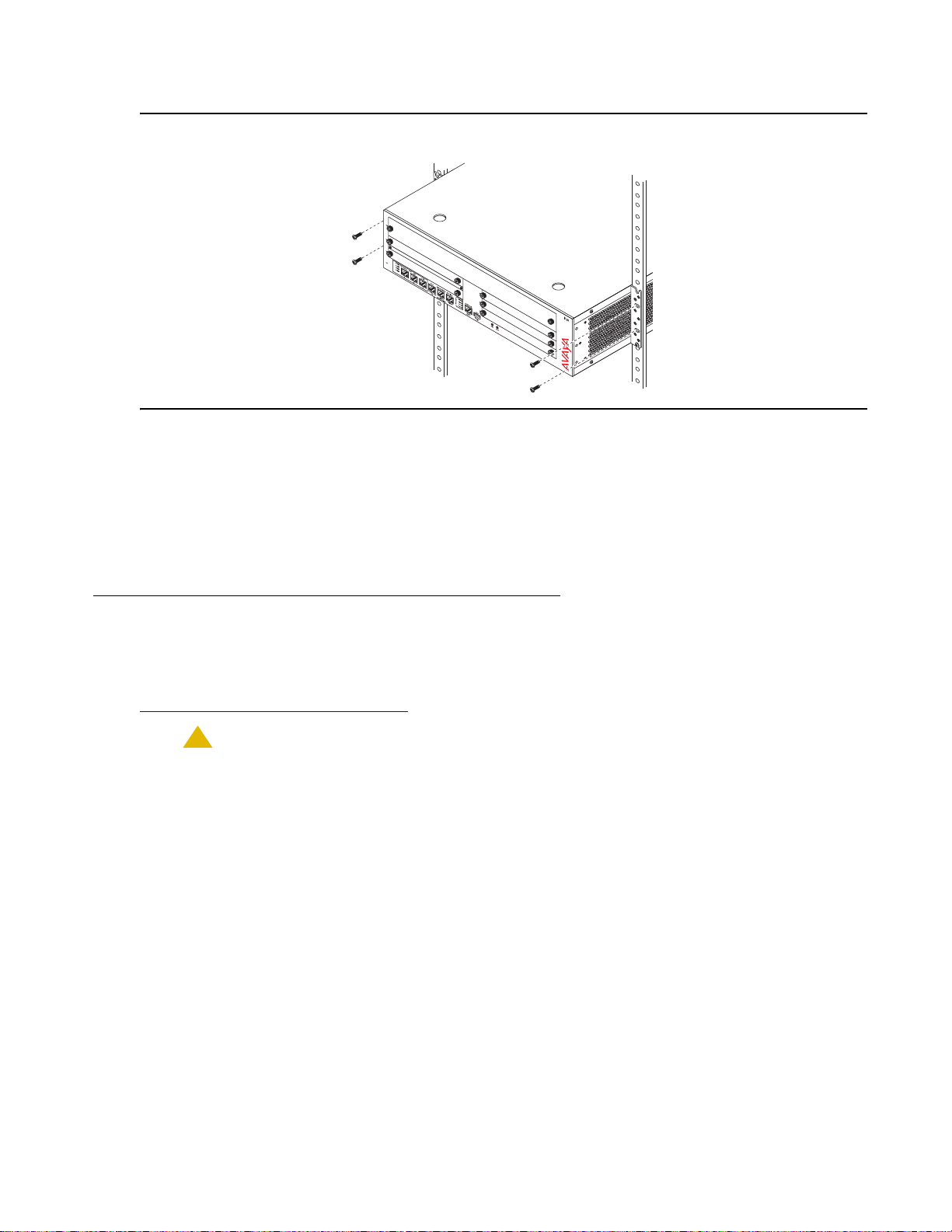

Figure 5: Inserting the additional screws
7. Verify that the Communication Manager Branch i120 is level and horizontal.
8. Tighten the mounting screws. Do not overtighten.
9. Either tighten the two bottom-most screws that you inserted in step 2 or remove these
screws completely.
10. Verify that the ventilation slots are unobstructed.
Mounting yourCommunication Manager Branch i120 on a wall
To mount the Communication Manager Branch i120 on a wall, use the two mounting brackets
without cable guides. You can also add a mounting bracket with cable guides if desired (see
Figure 1: Attaching the cable guide on page 6).
!CAUTION:
CAUTION: If you are in the installing the Communication Manager Branch i120 in the United
States of America:
●The AC power supply cord must not be attached to the building wall, for example with
wire staples, clamps, and so on.
●You must install the Communication Manager Branch i120 near the AC receptacle
(socket outlet) that will service the Communication Manager Branch i120.
●You must install the AC power supply cord in a manner that minimizes the risk of
physical damage to the cord. The cord should not be hanging on the floor, or routed in
any manner that would subject it to physical abuse.

Ground
Issue 3 May 2009 9
1. If the wall does not have a portion of plywood available, mount a plywood sheet at least
¾ in (1.9 cm) thick and at least 4 x 4 ft (1.2 x 1.2 m) in size, onto the wall. Make sure the
plywood is sufficiently anchored in the wall. Use a minimum of four wood screws and
ensure the screws are driven into wall studs, or use four wall anchors rated not less than
50 pounds (22.5 kg) shear strength each.
Note:
Note: The customer needs to provide and install the plywood backboard.
2. Mark the plywood with the location of the Communication Manager Branch i120 bracket
screw holes before fastening the plywood to the wall.
3. Position the Communication Manager Branch i120 so that the front panel is facing up, and
secure it to the plywood using a minimum of four screws (pan head at least ¾ in, # 10-12
screw).

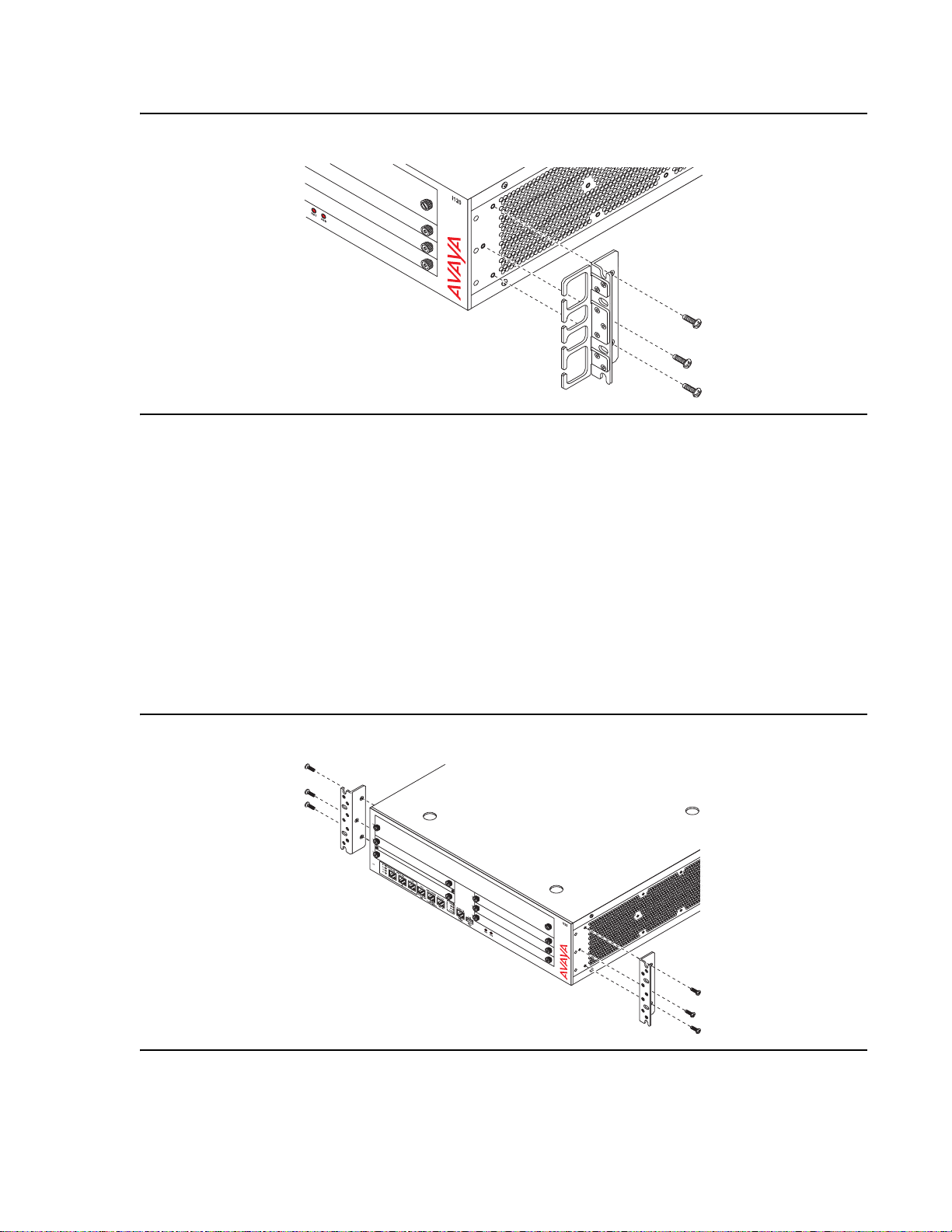

Figure 6: Attaching the bracket for wall mounting
Ground
To assure safe installation and operation, carefully read all requirements, recommendations,
and instructions. Pay special attention to all WARNING and DANGER statements.

10 Communication Manager Branch i120 Installation Quick Start
!WARNING:
WARNING: System grounding must comply with the general rules for grounding provided in
Article 250 of the National Electrical Code (NEC), National Fire Protection Agency
(NFPA) 70, or the applicable electrical code in the country of installation.
General grounding requirements
Two safety grounds are required to ensure safe operation of the Communication Manager
Branch i120: the ground conductor that is part of the AC power cord and the field-installed
green/yellow conductor referred to as the Supplementary Ground Conductor. Both safety
grounds must be connected to an approved ground. If a power cord accompanies the
Communication Manager Branch i120, use that cord whenever possible.
Installation Location
The customer must select a location for the Communication Manager Branch i120 installation
that is no more than 25 feet (7.6 m) from an approved ground or close enough for use with the
supplied secondary grounding conductor. If this location requirement is not met, the customer
must contact a licensed electrician to install a Supplementary Ground Conductor per Article 250
of the National Electrical Code (NEC).
!WARNING:
WARNING: If the installation location is greater than the length of the supplied secondary
grounding conductor from an approved ground, do not install the CMB i120 until a
licensed electrician is present to install a Supplementary Ground Conductor.
Ground conductor

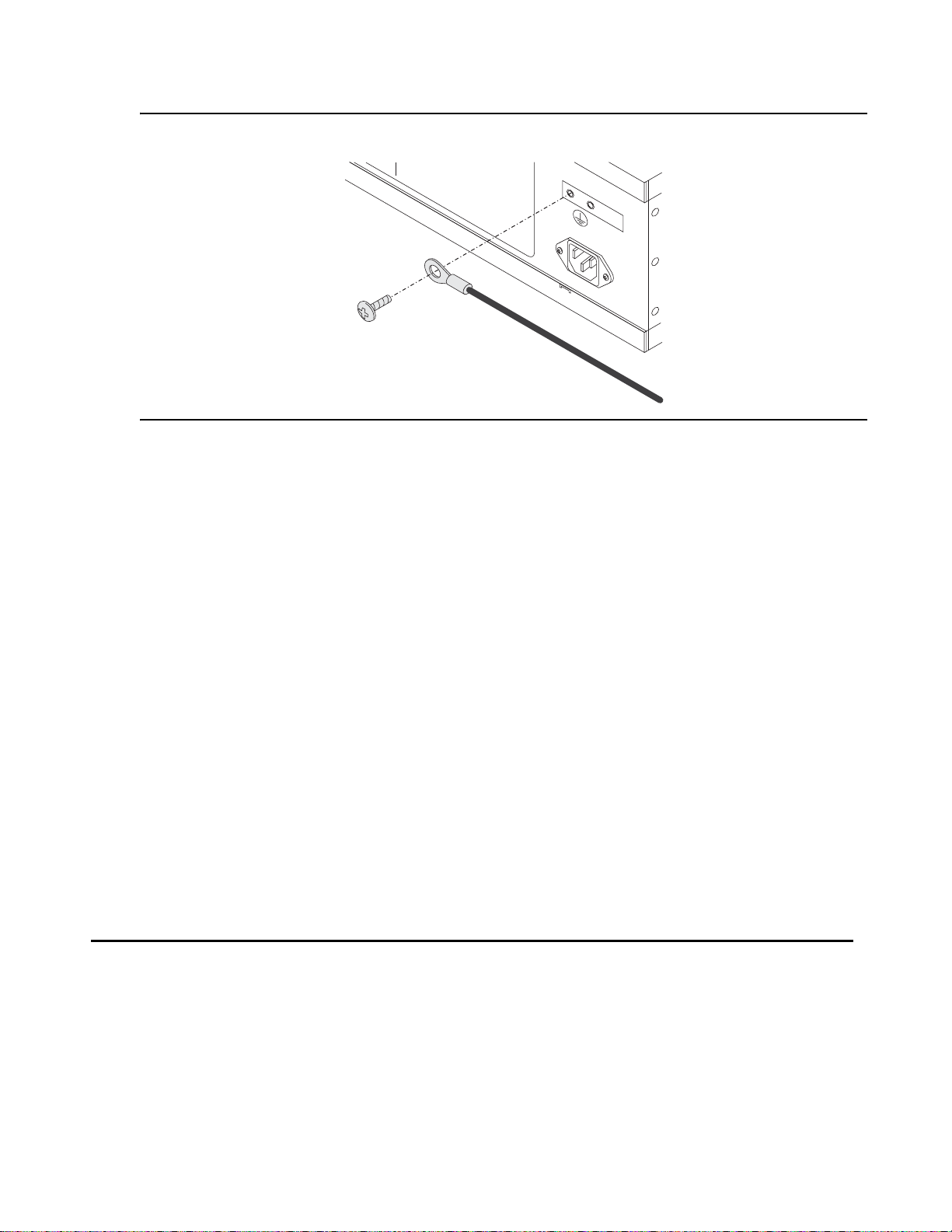

A 25-foot (7.6 m) Supplementary Ground Conductor is provided with the equipment, and is
constructed of 10 AWG (4.0 mm2) wire, with an insulated ring terminal crimped to one end that
is suitable for the #8 (M4) stud/screw on the rear of the Communication Manager Branch i120.
The customer will need to provide a means of connecting this Supplementary Ground
Conductor to an approved ground according to Article 250 of the National Electrical Code
(NEC).

Ground
Issue 3 May 2009 11
Ground block
A ground block must be provided if multiple Communication Manager Branch i120s are being
installed. The ground block, intended for rack mounting, has terminals available for terminating
Supplementary Ground Conductors. Up to ten Communication Manager Branch i120s can be
grounded at the block installed close to the equipment (on a rack) and then a single ground
conductor can be routed from the same block to an approved ground. If the ground block is to
be used, you must supply it and have it installed by an electrician.
!DANGER:
DANGER: For customer-installed equipment, failure to install both grounds will void the
Product Safety certifications (UL and the CE Mark) on the product, as well as
allow a hazard to be present that could result in death or severe personal injury.
Restricted access location
In Finland, Norway and Sweden, the Communication Manager Branch i120 must be installed in
a Restricted Access Location, due to concerns with regional earthing. A Restricted Access
Location is defined as access that can be gained by only Service Personnel or Customers who
have been instructed about the reasons for the restricted access and any safety precautions
that must be taken. In these cases, access to theCommunication Manager Branch i120 is
gained by the use of a tool (such as a lock and key) or other means of security.
!WARNING:
WARNING: For installations in Finland, Norway and Sweden, the Communication Manager
Branch i120 relies on two ground connections (mains plug with an earth contact
and a Supplementary Ground Conductor).
Approved grounds
An approved ground is the closest acceptable medium for grounding the building entrance
protector, entrance cable shield, or a single-point ground of electronic telephony equipment. If
more than one type of approved ground is available on the premises, the grounds must be
bonded together as required in Section 250-81 of the NEC for the US or per the local electrical
code regulations in the country of installation.
●Grounded Building Steel. The metal frame of the building where it is effectively grounded
by one of the following grounds: acceptable metallic water pipe, concrete encased ground,
or a ground ring.

12 Communication Manager Branch i120 Installation Quick Start
●Acceptable Water Pipe. A metal underground water pipe, at least ½ in. (1.3 cm) in
diameter, in direct contact with the earth for at least 10 ft. (3m). The pipe must be
electrically continuous (or made electrically continuous by bonding around insulated joints,
plastic pipe, or plastic water meters) to the point where the protector ground wire connects.
A metallic underground water pipe must be supplemented by the metal frame of the
building, a concrete-encased ground, or a ground ring. If these grounds are not available,
the water pipe ground can be supplemented by one of the following types of grounds:
- Other local metal underground systems or structures, such as tanks and piping
systems.
- Rod and pipe electrodes. A 5/8-in. (1.6 cm) solid rod or ¾ in. (2 cm) conduit or pipe
electrode driven to a minimum depth of 8 ft. (2.4 m).
- Plate electrodes. Must have a minimum of 2 sq. ft. (0.185 sq. m) of metallic surface
exposed to the exterior soil.
●Concrete Encased Ground. An electrode encased by at least 2 in. (5.1 cm) of concrete
and located within and near the bottom of a concrete foundation or footing in direct contact
with the earth. The electrode must be at least 20 ft. (6.1 m) of one or more steel reinforcing
bars or rods,
1/2-in. (1.3 cm) in diameter, or at least 20 ft. (6.1 m) of bare solid copper, 4 AWG (26 mm2)
wire.
●Ground Ring. A buried ground that encircles a building or structure at a depth of at least
2.5 ft (0.76 m) below the earth’s surface. The ground ring must be at least 20 ft. (6.1 m) of
2 AWG (35 mm2), bare copper wire.
●Approved Floor Grounds. Floor grounds are those grounds on each floor of a high-rise
building that are suitable for connection to the ground terminal in the riser closet and to the
cabinet single-point ground terminal. Approved floor grounds may include the following:
- Building steel.
- The grounding conductor for the secondary side of the power transformer feeding the
floor.
- Metallic water pipes.
- Power-feed metallic conduit supplying panel boards on the floor.
- A grounding point specifically provided in the building for that purpose.

Ground
Issue 3 May 2009 13
!WARNING:
WARNING: If the approved ground or approved floor ground can only be accessed inside a
dedicated power equipment room, then connections to this ground must be made
by a licensed electrician.
Connect the safety ground
Proper grounding of the Communication Manager Branch i120 installation safeguards the
system, users, and service personnel by providing protection from lightning, power surges, AC
mains faults, power crosses on central office trunks, and electrostatic discharge (ESD).
Local electrical installation codes must be followed when installing the Communication Manager
Branch i120.
!DANGER:
DANGER: Connection of both grounds (through the AC Power Cord and the Supplementary
Ground Conductor) is required for safe operation of the Communication Manager
Branch i120.
!WARNING:
WARNING: An improper ground can cause electrical shock as well as equipment failures and
service outages.
Attaching the ground wires
1. Remove the ground screw on the rear of the Communication Manager Branch i120
adjacent to the ground symbol.
2. Place the ring terminal of the 10 AWG (4.0 mm2) Supplementary Ground Conductor on the
screw.

14 Communication Manager Branch i120 Installation Quick Start
Figure 7: Attaching the ground wire
3. Replace the ground screw on the Communication Manager Branch i120 and securely
tighten the screw such that it cannot be loosened without the use of a tool.
4. Connect the Supplementary Ground Conductor:
●If the ground block has been provided
1. Cut the Supplementary Ground Conductor (which has one end attached to the
grounding screw on the Communication Manager Branch i120) to the length
needed to terminate it into one of the terminals of the ground block. Do not coil the
Supplementary Ground Conductor.
2. Attach one end of the remaining 10 AWG (4 mm2) ground wire to one of the
terminals in the ground block and the other end to an approved ground.
3. Cut this ground wire to the length needed to reach the approved ground. Do not
coil this wire.
Note:
Note: The ground block is for use with more than one Communication Manager Branch
i120 in the rack. If the ground block is to be used, you must supply it and have it
installed by an electrician.
●If the ground block is not being used, attach the Supplementary Ground Conductor to
an approved ground.
Connect
●Connect your Communication Manager Branch i120 to your telephone, computers, and
network. Refer to the enclosed Installation Poster for information.

Turn on
Issue 3 May 2009 15
●Connect your computer to the Services port on the Communication Manager Branch i120,
using a cross-over Ethernet cable.
Turn on
1. If you received a USB flash disk, insert it into the USB port on the front of the
Communication Manager Branch i120.

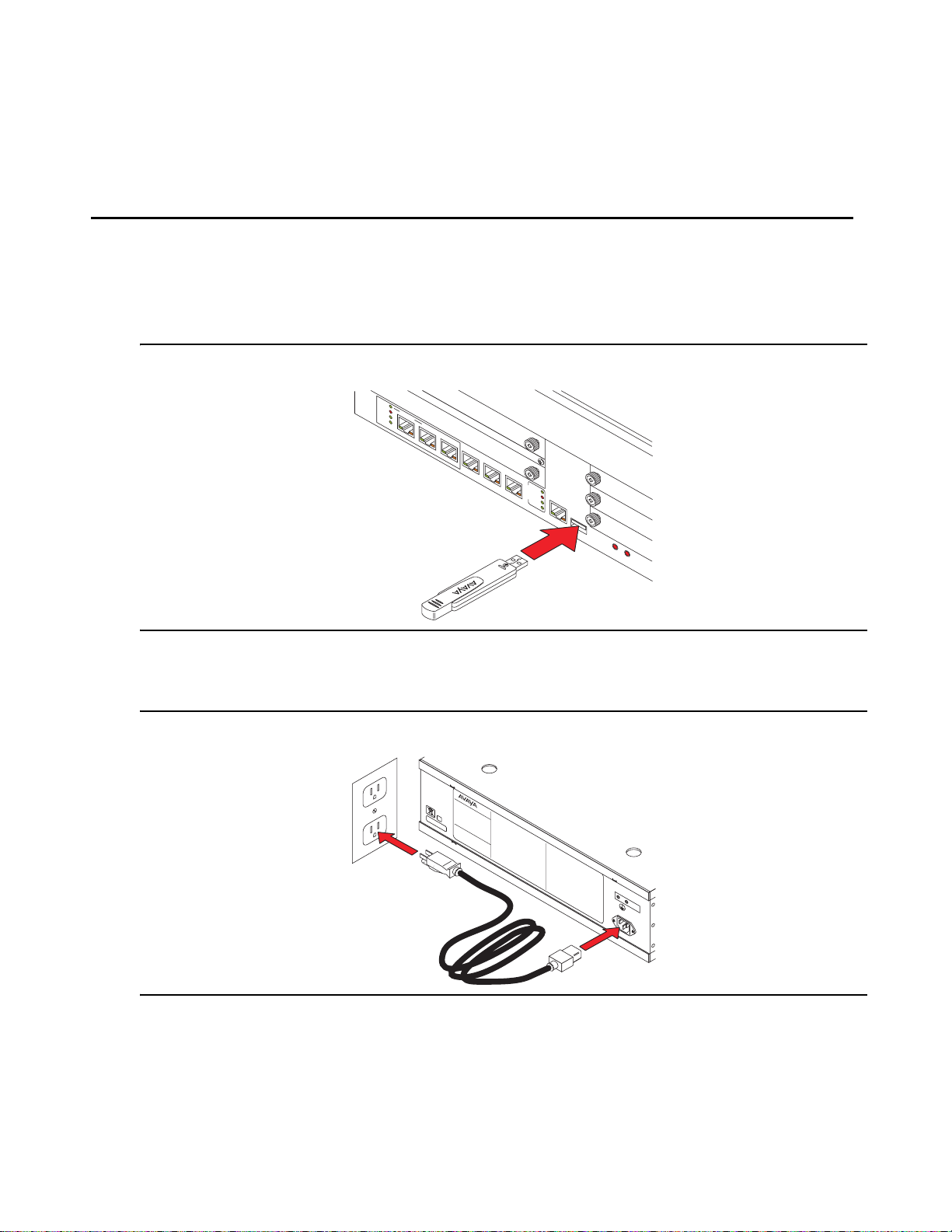

Figure 8: Inserting the USB flash disk
2. Connect the AC power cable to the inlet receptacle on the rear of the Communication
Manager Branch i120.
Figure 9: Connecting the AC power cable
V7
V5
V4
V3
USB
CONSOLE
RSTASB
Interface
USB
Interface
Console
SYSTEM
MDM
ALM
CPU
PWR
ETHLAN
Port 10/3
CCA
Interface
FastEthernet 10/2
Contact Closure
10/1
LINE
3
LINE
2
TRUNK
1
ETR
ALM
TST
ACT
SERVICES/WAN

16 Communication Manager Branch i120 Installation Quick Start
Note:
Note: Outside the US, the cord must be VDE Certified or Harmonized (HAR), rated
250V, 3-conductor (3rd wire ground), 1.0 mm2minimum conductor size.
Configure
Note:
Note: The Communication Manager Branch provides the address of 192.11.13.5/30 via
DHCP to the local setup computer. Configure your local setup computer to obtain
the IP address automatically or manually set it to 192.11.13.5/30. After the
upgrade is complete you can set your local setup computer to an address on the
same subnet as the Communication Manager Branch.
Note:
Note: Disable any proxy settings in your browser.
●Point your Web browser to https://192.11.13.6.
- The Branch Device Manager application starts. This may take several minutes.

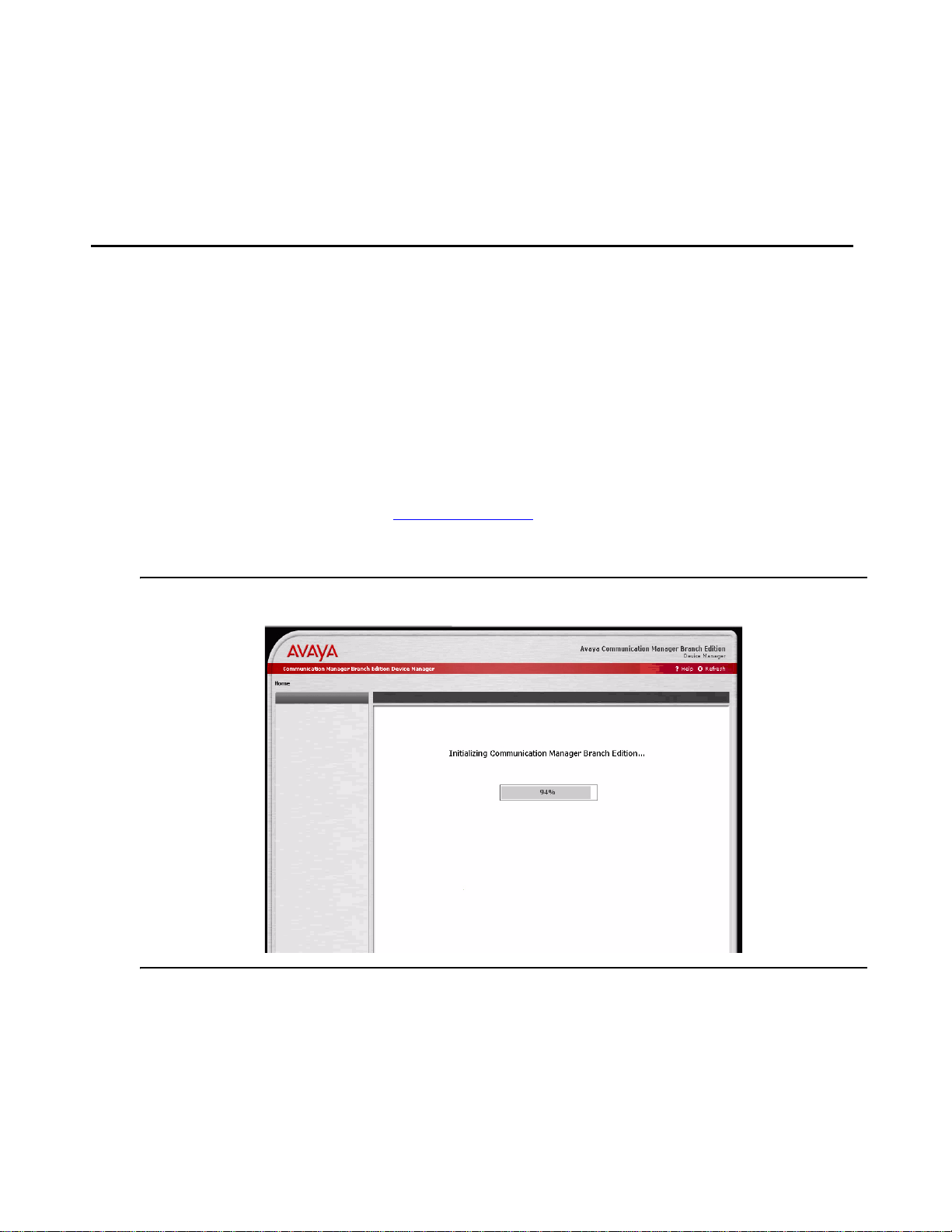

Figure 10: Branch Device Manager opening screen
●The default user name is administrator
●The default password is password

Configure
Issue 3 May 2009 17
Once the Branch Device Manager loads, you will see one of three screens, according to the
level of configuration you must do.
Branch Device Manager Main screen.
If your Communication Manager Branch i120 arrives fully configured, the Branch Device
Manager Main screen opens.
Figure 11: Branch Device Manager Main screen
Figure notes:
1. Navigation Pane
2. Main Menu
●The Navigation Pane on the left side of all screens contains a list of links to the screens for
managed objects.
●The main menu is displayed in the working pane on the right side of the main screen. The
entries on the main menu are shortcuts for the most frequently used functions.
If this screen opens... Level of configuration to do
Branch Device Manager main screen None (the Communication Manager Branch
i120 is already fully configured).
Branch Device Manager Profile-Based
Setup Assistant Partial (the Communication Manager Branch i120 is already partially configured).
Branch Device Manager Initial Setup
Assistant Complete (the Communication Manager Branch i120 is unconfigured).
1
2

18 Communication Manager Branch i120 Installation Quick Start
The Profile-Based Setup Assistant
A profile contains the main parameters required to configure the Communication Manager
Branch i120. All you need to do is follow the steps in the assistant to complete the configuration.
You should have the data available prior to installation to provide the remaining parameters.
Consult your IT contact if you do not have all of the information available.
The first screen that appears is the Profile-Based Setup Assistant home screen.

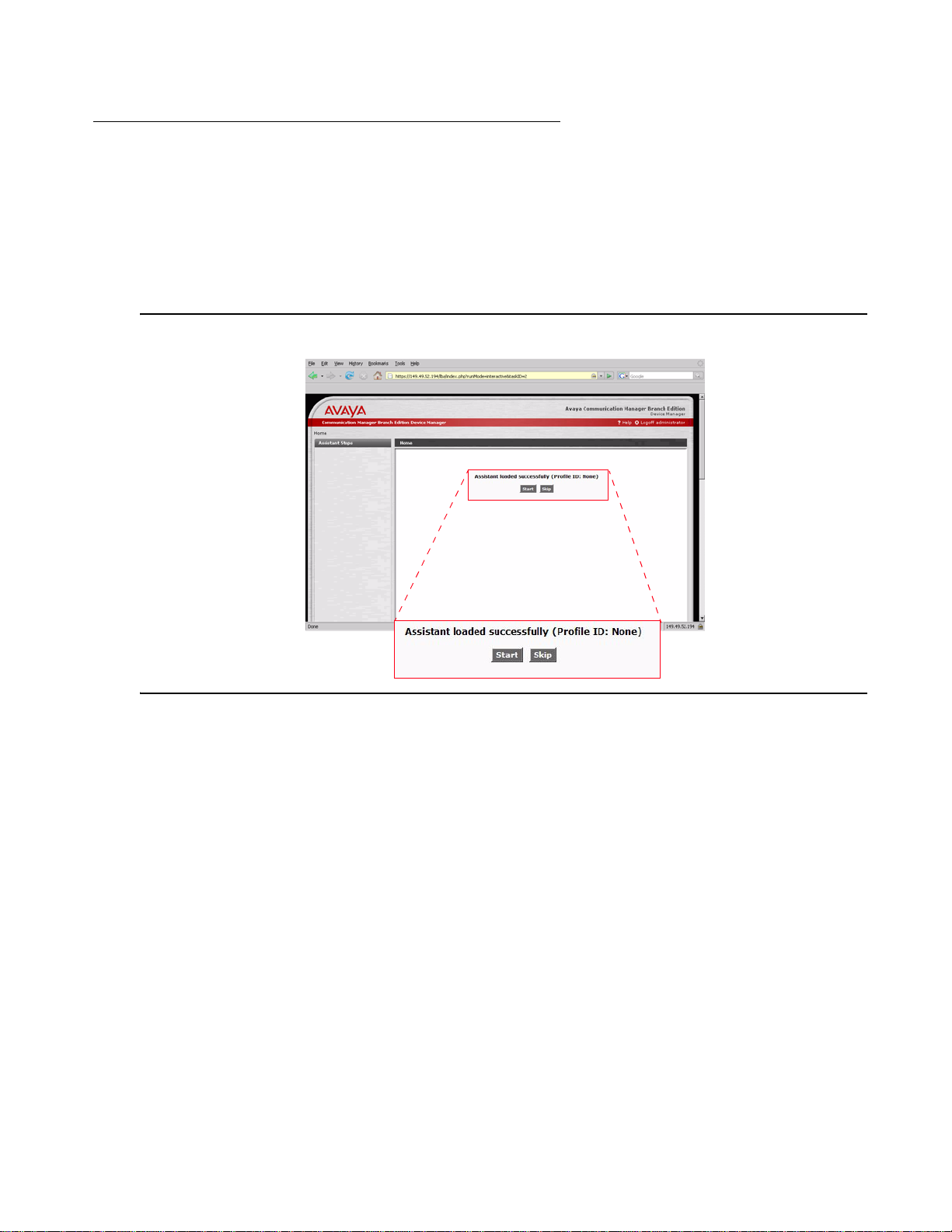

Figure 12: Profile-Based Setup Assistant home screen
1. Click Start to run the Profile-based Setup Assistant.
- The Profile-Based Setup Assistant opens (the actual screen might differ from this one).
