AVerVision300AFHD
User Manual

Federal Communications Commission Statement (Class A)
NOTE- This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by tuning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/television technician for help.
Class A ITE
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B
ITE limits. Such equipment should not be restricted in its sale but the following warning shall be
included in the instructions for use:
Warning - This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
COPYRIGHT
© 2014 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any
means without the prior written permission of AVer Information Inc. is prohibited. All information or
specifications are subject to change without prior notice.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description
purpose only belong to each of their companies.
NOTICE
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE
INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT
MODIFICATION.
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS
PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD
WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY
HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE
RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR
MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE
EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE
DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

Remote Control Battery Safety Information
- Store batteries in any cool & dry place.
- Do not dispose used batteries in domestic waste. Dispose batteries at special
collection points or return to stores if applies.
- Remove the batteries if they are not in use for long period of time. Battery leakage
and corrosion can damage the remote control, dispose batteries safely.
- Do not mix and use old and new batteries.
- Do not mix and use different types of batteries: alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium).
- Do not dispose batteries in a fire.
- Do not attempt to short circuit the battery terminals.

T
Ta ab bl le e o of f C Co on nt te en nt ts s
Package Contents....................................................................................................1
Optional Accessories...............................................................................................1
Get Familiar with the AVerVision300AFHD................................................................2
Right Panel............................................................................................................... 2
Rear Panel............................................................................................................... 3
Left Panel................................................................................................................. 3

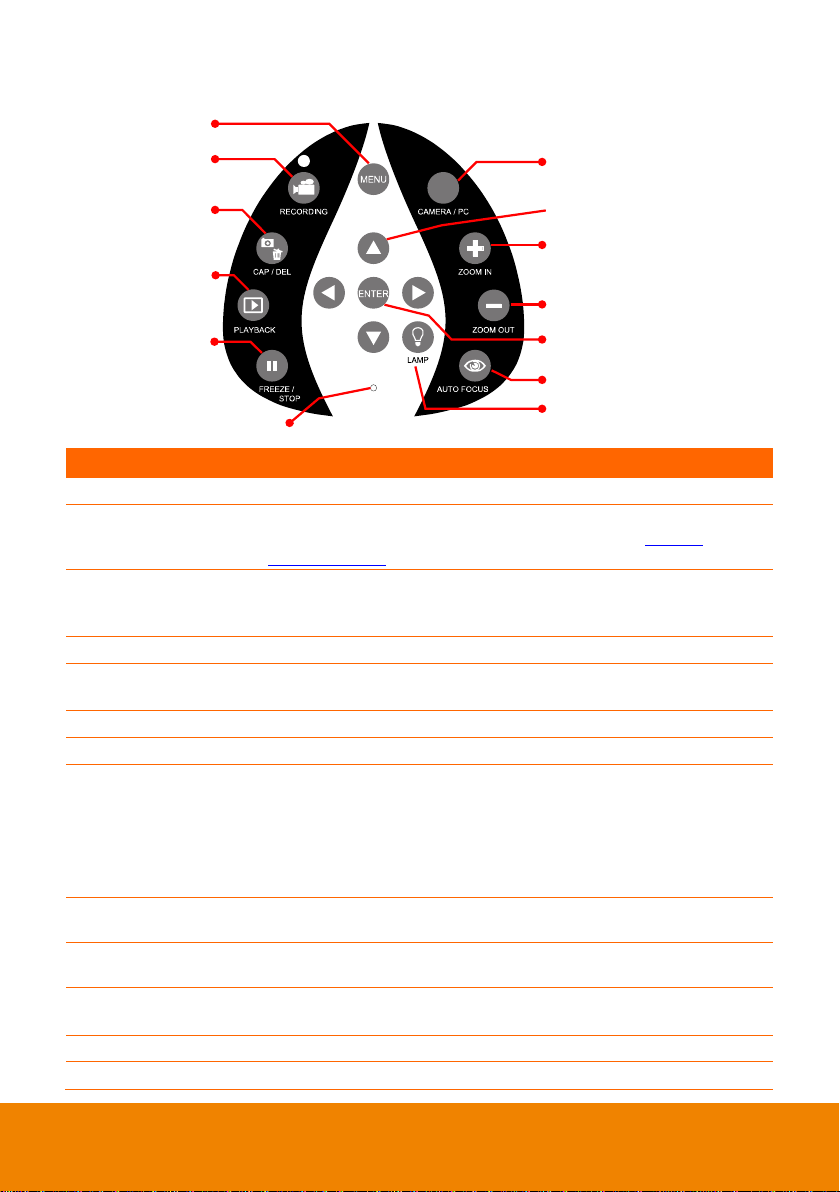

Control Panel ...........................................................................................................4

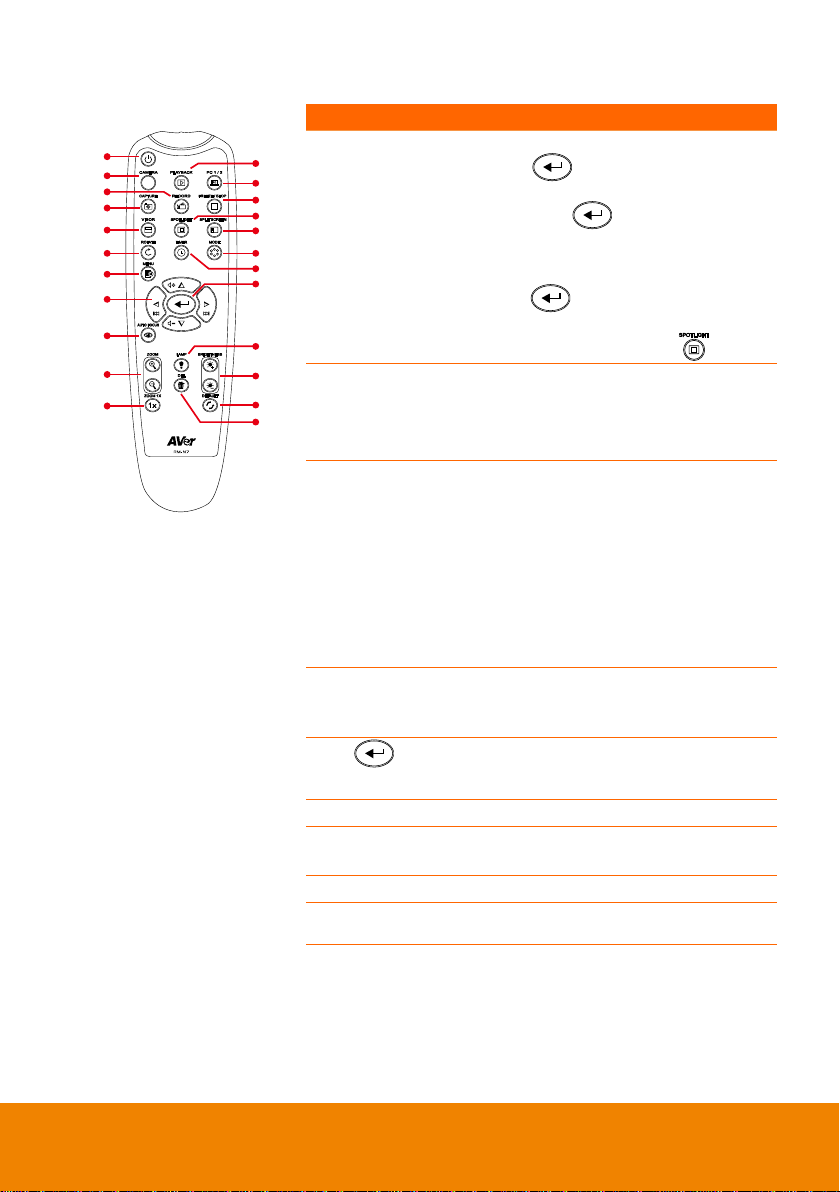

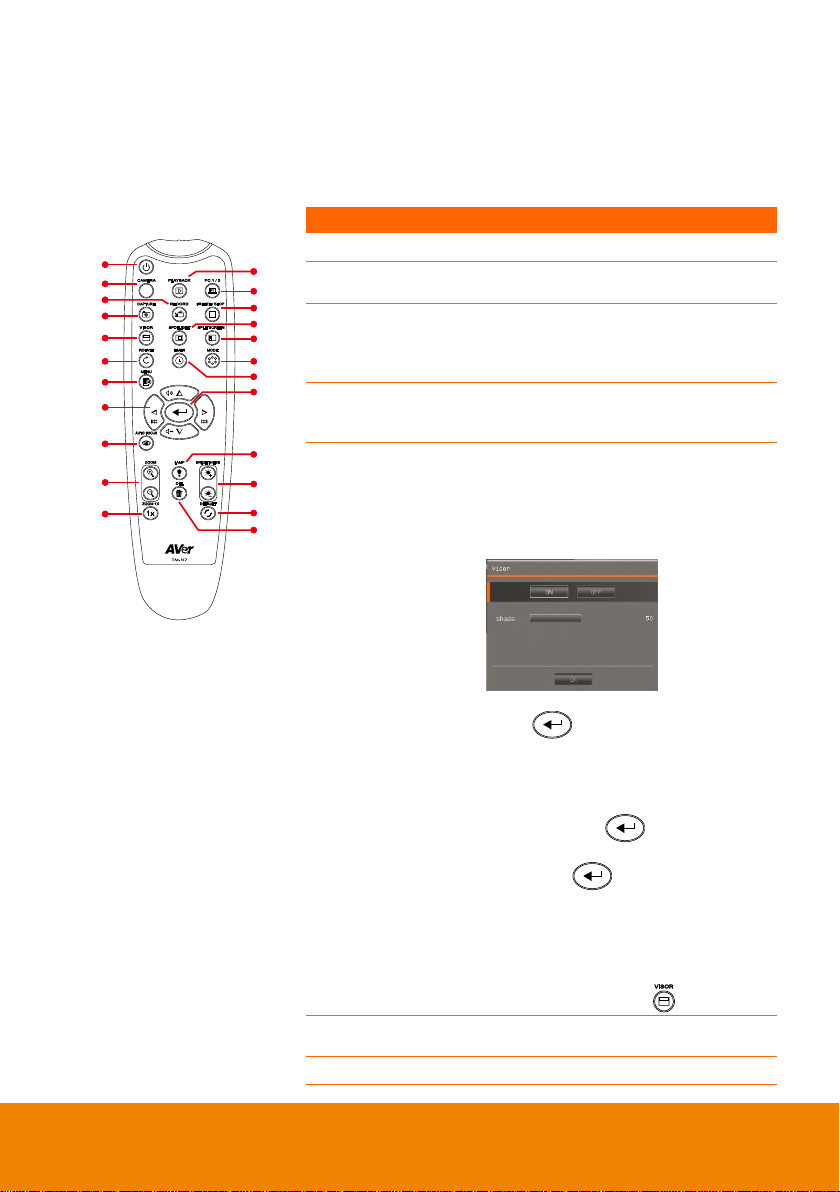

Remote Control........................................................................................................ 5
Making the Connections...........................................................................................8
Set the TV-RGB Switch Setting................................................................................ 8
Connect to a Monitor or LCD/DLP Projector ............................................................8
Connect to a Monitor or LCD/DLP Projector with HDMI interface ............................ 9
Connect to a TV ....................................................................................................... 9

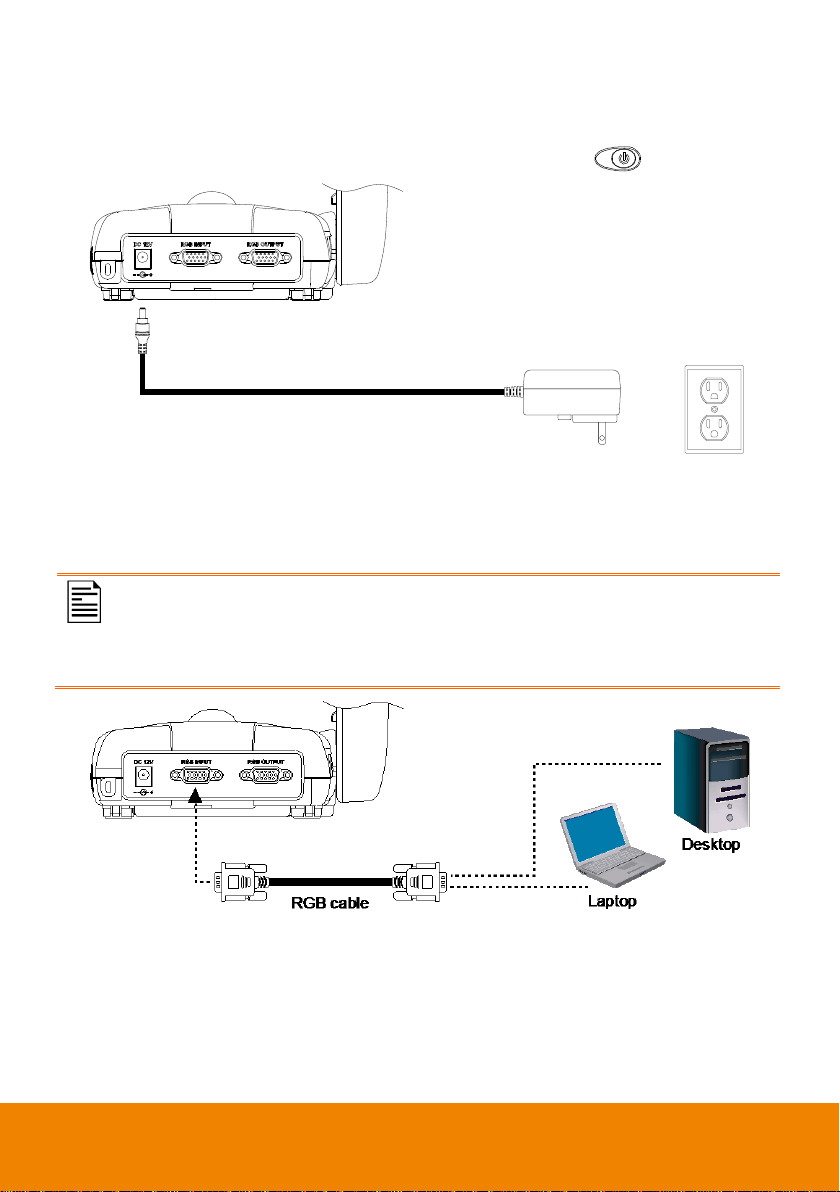

Connecting the Power............................................................................................ 10
Connect to a Computer.......................................................................................... 10

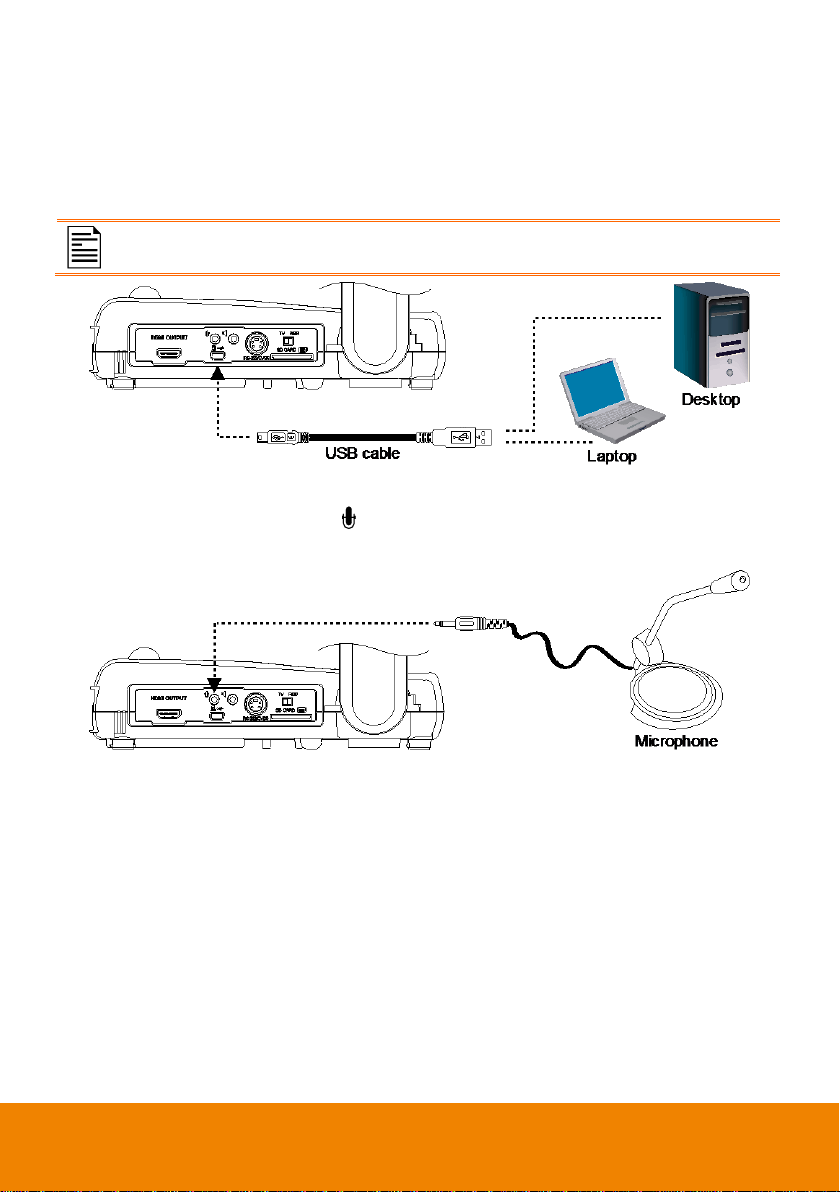

Connect to a Computer via USB.............................................................................11
Connect an External Microphone............................................................................11

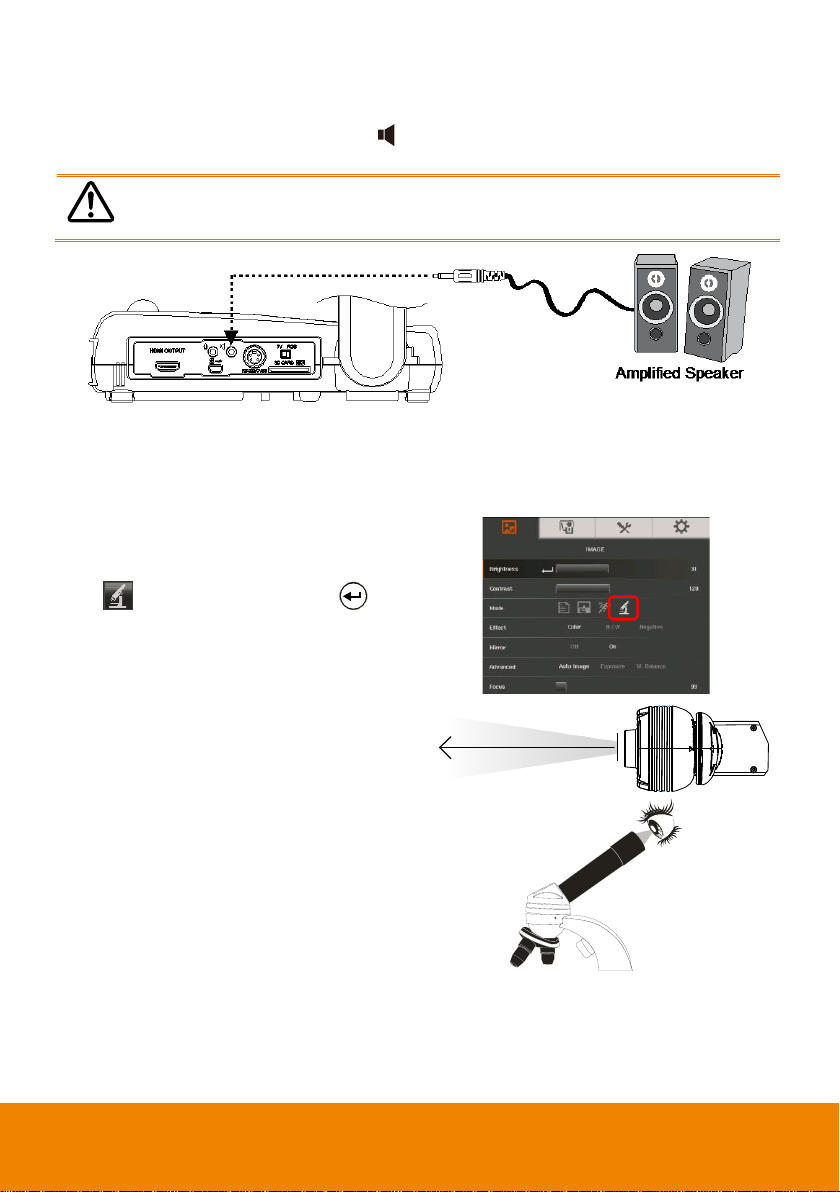

Connect an Amplified Speaker............................................................................... 12
Connect to a Microscope........................................................................................ 12
Setting Up AVerVision300AFHD..............................................................................14
Camera Head......................................................................................................... 14
Mechanical Arm...................................................................................................... 15
Infrared Sensor ...................................................................................................... 15
Mounting the V300AFHD on a Flat Surface............................................................. 16
Anti-glare Sheet ..................................................................................................... 16
External Memory Storage....................................................................................... 17
I
In ns se er rt t a an n S SD D C Ca ar rd d
....................................................................................... 17
I
In ns se er rt t a a U US SB B F Fl la as sh h D Dr ri iv ve e
............................................................................. 17
OSD MENU.............................................................................................................18
Navigate the Menu and Submenu.......................................................................... 19
Image..................................................................................................................... 19
Brightness................................................................................................... 19
Contrast ...................................................................................................... 19
Mode........................................................................................................... 20
Effect........................................................................................................... 20
Mirror .......................................................................................................... 20
Advanced.................................................................................................... 20
Auto Image.................................................................................................. 21
Exposure..................................................................................................... 21

White Balance............................................................................................. 21
Focus.......................................................................................................... 21
Presentation........................................................................................................... 22
Spotlight...................................................................................................... 22
Visor............................................................................................................ 22
PIP.............................................................................................................. 23
Split Screen................................................................................................. 23
Timer........................................................................................................... 24
Setting.................................................................................................................... 24
Capture....................................................................................................... 24
Resolution................................................................................................... 24
Quality......................................................................................................... 24
Type............................................................................................................ 25
Interval........................................................................................................ 25
Recording.................................................................................................... 25
Storage ....................................................................................................... 25
Format ........................................................................................................ 25
USB to PC................................................................................................... 26
Flicker ......................................................................................................... 26
System................................................................................................................... 26
Language.................................................................................................... 26
Output Display ............................................................................................ 26
Backup........................................................................................................ 27
Save Setting................................................................................................ 27
Recall Setting.............................................................................................. 27
Information.................................................................................................. 27
Default ........................................................................................................ 27
Playback................................................................................................................. 28
Slide Show.................................................................................................. 28
Interval........................................................................................................ 28
Slide Show Effect........................................................................................ 28
Current Storage........................................................................................... 28
Delete All..................................................................................................... 28
Annotation.............................................................................................................. 29
Using the Annotation Control Panel ............................................................ 29
TransferCapturedImages/Videostoacomputer............................................................30
Technical Specifications ........................................................................................30
Image.......................................................................................................... 30
Optics.......................................................................................................... 30
Power.......................................................................................................... 30
Lighting ....................................................................................................... 31
Input/Output................................................................................................ 31

Dimension................................................................................................... 31
External Storage ......................................................................................... 31
RS-232 Diagram Connection ..................................................................................31
RS-232 Cable Specifications ..................................................................................32
RS-232 Transmission Specifications ......................................................................32
RS-232 Communication Format............................................................................. 32
RS-232 Send Command Table............................................................................... 33
RS-232 Get Command Table................................................................................. 38
Troubleshooting.....................................................................................................39
Limited Warranty....................................................................................................41
Limitations of Warranty..........................................................................................41
Disclaimer of Warranty...........................................................................................41
Limitation of Liability..............................................................................................42
Governing Law and Your Rights.............................................................................42

ENGLISH
1
P
Pa ac ck ka ag ge e C Co on nt te en nt ts s
Make sure the following items are included in the package.
AVerVision300AFHD
RS-232/CVBS Cable
USB Cable
RGB Cable
Power Adapter (12V, 2A)
* The power adapter will vary
depending on the standard
power outlet of the country
where it is sold.
Remote Control
(batteries included)
Software & Manual CD
O
Op pt ti io on na al l A Ac cc ce es ss so or ri ie es s
Light Box
34mm Microscope Adapter
Carrying Bag
28mm Microscope Adapter
Anti-glare Sheet
Microscope Coupler

2
G
Ge et t F Fa am mi il li ia ar r w wi it th h t th he e A AV Ve er rV Vi is si io on n3 30 00 0A AF FH HD D
(8)
(5)
(7)
(6)
(1)
(2)
(3)
(4) (9)
(fig. 1.1)
Name
Function
(1) Camera head
Contain the camera sensor.
(2) Camera lens
Focus the image in the camera.
(3) Control panel
Easy access to various functions.
(4) Built-in MIC
Record audio when recording video clip. The recorded sound will be in
monophonic.
(5) Arm
Extendable for viewing coverage.
(6) Left panel
Connections for LCD monitor using HDMI cable, microphone, speaker,
computer, SD card, and TV-RGB display output switch.
(7) IR sensor
Receive remote control commands.
(8) Rear panel
Connections for power, computer for RGB input display and LCD
monitor using RGB cable.
(9) Right panel
On/off switch for USB flash drive port and power button.
Right Panel
(3)
(2)
(1)
(fig. 1.2)
Name
Function
(1) USB PC - USB Flash
Drive switch
Switch to right (►) for audio video recording directly to a USB
flash drive and left (◄) when connecting AVerVision300AFHD
to a computer using a USB cable.
(2) USB Thumb Drive port
Insert a USB flash drive for audio video recording storage.
(3) Power button
Turn the unit on/standby mode.

3
Rear Panel
(4)
(1)
(2)(3)
(fig. 1.3)
Name
Function
(1)Antitheft Slot
Attach a Kensington compatible security lock or antitheft
device.
(2)DC12V port
Connect the power adapter into this port.
(3)RGB INPUT port
Input the signal from a computer or other sources and pass it
through to the RGB OUT port only. Connect this port to the
RGB/VGA output port of a computer.
(4)RGB OUTPUT port
Connect theAVerVision300AFHD to any display device with
RGB cable
Left Panel
(1)(7)
(5)
(6)
(4)
(3)
(2)
(fig. 1.4)
Name
Function
(1)Mini USB port
Connect to a USB port of a computer with a USB cable and use
AVerVision300AFHD as a USB Camera or transfer the captured
images/videos either from the memory source to computer.
(2)HDMI OUTPUT
Output the video signal from the main system on an LCD monitor
with HDMI interface using HDMI cable.
(3)MIC port
Connect a 3.5mm plug microphone. The built-in mic will be disabled
when an external MIC is connected to this port.
(4)Speaker port
Connect to an amplified speaker.
(5)RS-232/CVBS port
Connect the supplied RS-232/CVBS cable into this port. The RCA
jack outputs the video signal from the camera to a TV or video
equipment. The RS-232 jack is used to connect to computer serial
port or to any control panel or for centralized control if desire.
(6)TV-RGB switch
TV switch to output display video from RS232/CVBS (via RCA
connection), and RGB to RGB and HDMI OUTPUT ports.
(7)SD card slot
Insert the SD card with the label facing up.

4
Control Panel
(1)
(2)
(3)
(4)
(5)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(6)
AVerVision300AFHD
(fig. 1.5)
Name
Function
(1) MENU
Open and exit the OSD menu.
(2) RECORDING
Start/Stop audio & video recording. Audio and video recording can be
saved on a SD card or an USB Flash drive only. See HHUExternal
Memory StorageUHH.
(3) CAP/DEL
- Capture picture in Camera mode. In continuous capture mode,
press this button again to stop.
- Delete the selected picture/video in Playback mode.
(4) PLAYBACK
View & playback captured still images and audio video files.
(5) FREEZE / STOP
- Pause or resume image display in Camera mode.
- Stop audio & video playback in Playback mode.
(6) Built-in MIC
Record audio automatically when recording video clip.
(7) CAMERA / PC
Switch between Camera and Computer.
(8) ▲,▼,◄, & ►
- Pan and zoom-in image (above digital zoom level) in both live and
playback mode.
- Select options in OSD menu.
- Use ▲&▼ to increase and decrease the video playback volume.
- Use ◄&► to play the video backward and forward.
- Move the Spotlight frame and Visor screen cover.
(9) ZOOM IN
Increase the image magnification in camera and picture playback
mode.
(10) ZOOM OUT
Decrease the image magnification in camera and picture playback
mode.
(11) ENTER
- Make a selection in Playback mode and OSD menu.
- Start/Pause video playback.
(12) AUTO FOCUS
Adjust the focus automatically.
(13) LAMP
Turn the overhead light on/off.
