Axor Citterio 180 1jet 28489007 Manual

INSTALLATION
ZH ⁄ 用户手册 ⁄ 组装说明 02
EN ⁄ Instructions for use ⁄ assembly instructions 03
AXOR Carlton 240 1jet
28474007
AXOR Starck 240 1jet
28494007
AXOR Citterio 180 1jet
28489007

02
安全技巧
装配时为避免挤压和切割受伤，必须戴上手套。
淋浴系统只允许作为洗浴、卫生和洁身之用。
不得让儿童和肢体、精神和⁄或意识有障碍的成人
在不受监管的情况下使用淋浴系统。受酒精或毒
品影响的人员不得使用淋浴系统。
必须避免让身体敏感部位（如眼睛）接触到莲蓬
头喷水。必须保持莲蓬头与人头之间有足够的距
离。
安装提示
⁄ 安装前必须检查产品是否受到运输损害。 安装后
将不认可运输损害或表面损伤。
⁄ 管道和阀门必须根据通用标准进行安装、冲洗和
检查。
⁄ 必须装上花洒所附带的滤柱式过滤网，以过滤管
道里的杂质污物。杂质污物会影响花洒的功能和⁄
或损坏花洒的功能部件，由此而产生的产品损坏
不属于汉斯格雅的保修范围。
技术参数
工作压强： 最大 0,6 MPa
28474007 ⁄ 28494007
推荐工作压强： 0,15 - 0,4 MPa
28489007
推荐工作压强： 0,11 - 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
热水温度： 最大 60°C
热力消毒: 最大 70°C ⁄ 4 分钟
该产品专为饮用水设计！
流量示意图(参见第页 05)
安装(参见第页 04)
清洗(参见第页 06)
备用零件(参见第页 10)
请勿使用含有乙酸的硅胶！
符号说明
大小(参见第页 05)
ZH

03
SAFETY NOTES
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower system may only be used for bathing,
hygienic and body cleaning purposes.
Children as well as adults with physical, mental and ⁄or
sensoric impairments must not use this shower system
without proper supervision. Persons under the influence
of alcohol or drugs are prohibited from using this
shower system.
Do not allow the streams of the shower touch sensitive
body parts (such as your eyes). An adequate distance
must be kept between the shower and you.
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and
tested as per the applicable standards.
⁄ The filter insert must be use to protect the shower
against incoming dirt by pipework. Incoming dirt leads
to defects or⁄and can damage parts of the shower;
such caused faults voids all liability and guarantee
claims.
TECHNICAL DATA
Operating pressure: max. 0,6 MPa
28474007 ⁄ 28494007
Recommended operating pressure: 0,15 - 0,4 MPa
28489007
Recommended operating pressure: 0,11 - 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: max. 70°C ⁄ 4 min
The product is exclusively designed for drinking water!
FLOW DIAGRAM (see page 05)
ASSEMBLY (see page 04)
CLEANING (see page 06)
SPARE PARTS (see page 10)
Do not use silicone containing acetic acid!
SYMBOL DESCRIPTION
DIMENSIONS (see page 05)
EN

04
SW 17 mm
(10 Nm)
SW 2 mm
(1 Nm)
1.
2.
Montage

05
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912 15 18 21 24 27 30
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912 15 18 21 24 27 30
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
AXOR Starck 240 1jet
28494007
13
G1/2
26°
2 6
°
60
Ø240
AXOR Carlton 240 1jet
28474007
AXOR Carlton 240 1jet
28474007
AXOR Starck 240 1jet
28494007
AXOR Citterio 180 1jet
28489007
AXOR Citterio 180 1jet
28489007
Maße / Durchflussdiagramm
Maße ⁄ Durchflussdiagramm

06
重要说明
肥皂，洗发水、沐浴液、染发剂、香水、刮胡水、指甲油
的残留也会对产品造成损伤。
此 处 ：使 用 后 要 小 心 地 用 清 水 将 剩 余 物 冲 洗 干 净 。
同样在产品下方不得存放洗涤剂和化学药品，例如不
可放在用于洗脸盆的梳洗柜中否则挥发气体将损坏
产品。
在已经损伤的表面继续使用清洁剂会给表面造成更大
的损伤。
表面损坏的部件必须更换，否则会有受伤的
危险。
不按规定进行清洁而造成的任何损坏不在本公司产品
保修范围之内。
QUICKCLEAN
有了QuickClean，手工清洁功能，要去掉喷头上的水
垢 ，只 需 简 单 地 搓 除 即 可 。 
担保
Hansgrohe 向用户保证，该产品无制造 缺陷。如果
自购买之日起五年内出现缺 陷，Hansgrohe 将免
费排除。 保证条件和详 情见 www.hansgrohe-int.
com⁄guarantee。 在提 出保修的权利时请联系您的合
同方。本保证 不涉及有关国家法律规定的消费权
汉斯格雅产品的清洁建议
现代的卫浴龙头、厨房龙头、花洒、配件、盥洗台、浴盆
和加热器采用的制造材料非常迥异，以适应产品外形
设计和使用功能的市场需求。
为 了 避 免 产 品 损 坏 和 由 此 引 发 的 投 诉 及 争 议 ，必 须 在
使用和清洁产品时遵循有关规程。
在保养汉斯格雅产品时，原则上必须注
意：
⁄只能使用那些有明确注明是适用于本产品的清洁
剂。
⁄不允许使用含有盐酸、蚁酸、氯漂或醋酸的清洁
剂，因为这些清洁剂会给产品表面造成严重的损
伤。
⁄含磷酸的清洁剂必须在特定条件下使用。
⁄不允许将两种以上清洁剂混合使用。
⁄不允许使用具有研磨 作 用 的 清 洁 工 具 和 设 备 ，如 不
适合的清洁粉末、海绵垫或超细麦克布。
⁄必须严格遵守清洁剂生产厂商的使用说明。
⁄严格遵守清洁剂的用量和作用时间，决不允许清洁
剂的作用时间长于规定值。
⁄定期的清洁以预防水垢。
⁄不允许将清洁剂直接喷射到汉斯格雅产品上，因为
喷雾会进入汉斯格雅产品的开口部分和缝隙中而
造成损害。首先将清洁剂喷在软布上，再用软布进
行清洁。
⁄清洁之后必须用足够的清水冲洗，以彻底去除残留
的 吸 附 物（ 清 洁 剂 ）。
⁄不允许使用蒸汽清洗机，高温会损害产品。
QUICK
CLEAN
Reinigung

07
⁄ After cleaning rinse thoroughly with clean water to
remove any cleaner residue.
⁄ The use of steam cleaners is not permitted. The high
temperatures can damage the products.
IMPORTANT
Residues of toiletries such as liquid soaps, shampoos and
shower gels, hair dyes, perfumes, aftershave and nail
varnish can also cause damage.
Here too: Carefully rinse with water after use to remove residues.
Likewise, do not store any cleaning agents or chemicals
under the products, for example in a vanity unit, as the
vapours may damage the products.
The damage of already damaged surfaces will deteriorate
under the effect of the cleansers.
COMPONENTS WITH DAMAGED SURFACES
MUST BE EXCHANGED, OTHERWISE THERE
COULD BE AN INJURY DANGER.
Damage caused by improper treatment will not be covered
by our guarantee.

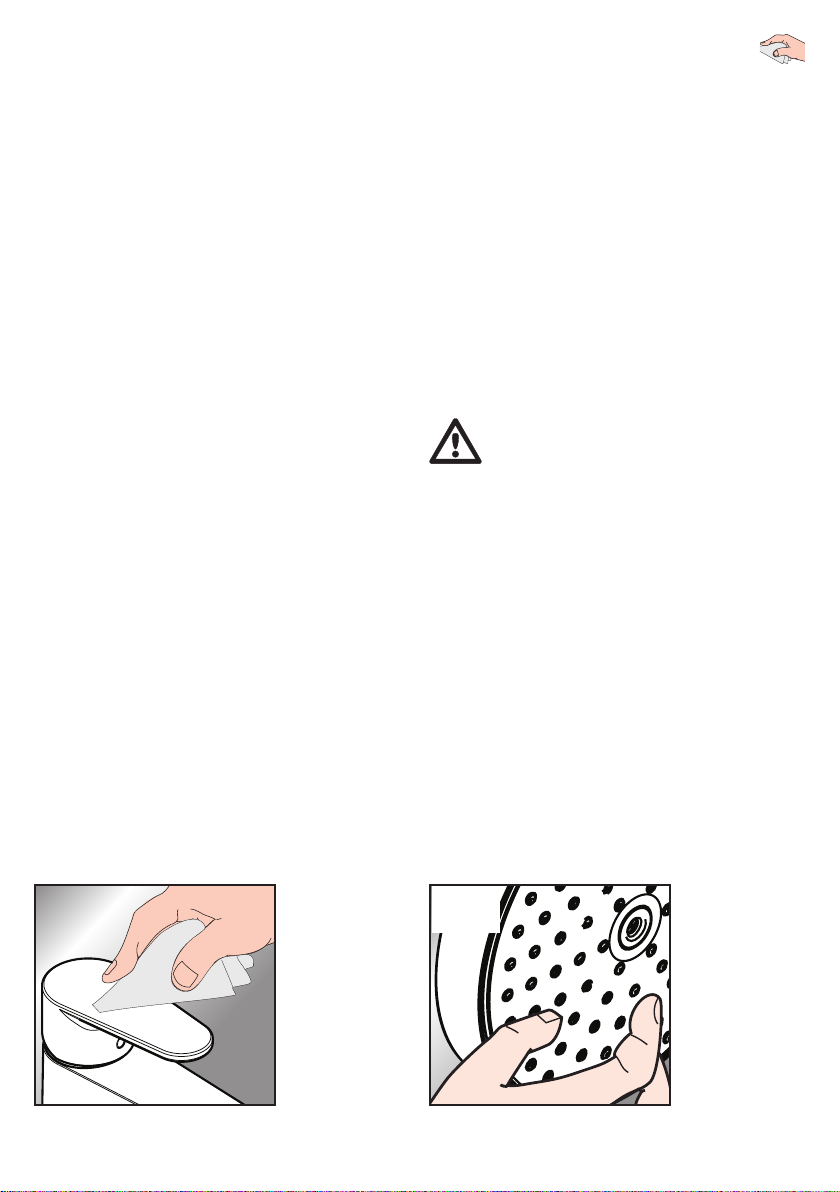

QUICKCLEAN
The QuickClean cleaning function only needs a small
manual rub over to remove the lime scale from the spray
channels.
WARRANTY
Hansgrohe guarantees to the consumer that this product is free
of production faults. If evertheless any defect is detected within 5
years from date of purchase, Hansgrohe will remedy this defect
free of charge. You will find the conditions and details of this
guarantee at www.hansgrohe-int.com⁄guarantee. Please contact
your contracting party to claim your rights under this guarantee.
This guarantee does not affect the customer‘s rights under the
respective national legislation.
CLEANING RECOMMENDATION FOR
HANSGROHE PRODUCTS
Today, modern sanitary and kitchen tapware, showers,
accessories, washstands, tubs and radiators consist of very
different materials to comply with the needs of the market
with regard to design and functionality.
To avoid damage and reclamations, it is necessary to
consider certain criteria when cleaning.
WITH REGARD TO CARING FOR
THE HANSGROHE PRODUCTS, THE
FOLLOWING MUST IN PRINCIPLE BE
HEEDED:
⁄ Only use cleaning material which is explicitly provided
for this type of application.
⁄ Never use cleaning materials, which contain
hydrochloric acid, formic acid, chlorine pale lye or
acetic acid, as they cause considerable damage.
⁄ Phosphorus acidic cleaners are only conditionally applicable.
⁄ Mixing cleaning agents is not permitted, generally.
⁄ Never use cleaning materials or appliances with an
abrasive effect, such as unsuitable cleaning powders,
sponge pads or micro fibre cloths.
⁄ The instructions of the cleaning agent manufacturers
have to be followed absolutely.
⁄ Cleaning has to be carried out with a specified cleaner dosage,
contact time, object-related and adapted to the needs.
⁄ The building up of calcifications has to be removed by
cleaning regulary.
⁄ When using spray cleaners, spray the cleaning solution onto
a soft cloth or sponge, never directly onto the Hansgrohe
products, as the atomised spray could enter openings and
gaps in the Hansgrohe products and cause damage.
QUICK
CLEAN
Reinigung

08
4
5 6
SW 17 mm
SW 2 mm
1 2
3
SW 17 mm
(10 Nm)
Reinigung

09
> 1 min
1 2
43
SW 4 mm
SW 4 mm
(2 Nm)
7
SW 2 mm
(1 Nm)
8
Reinigung

10
98181000
(18x2)
97536000
98142000
(23x3)
98941000 98941000
AXOR Carlton 240 1jet
28474007
94246000 94246000
95659000 95659000
95795000
(AIR)
95796000
9894200098942000
AXOR Citterio 180 1jet
28489007
98181000
(18x2)
97536000
98142000
(23x3)
98941000
98941000
Serviceteile

11
98941000
95659000
94246000
98942000
97536000
97606000
97958000
98941000
AXOR Starck 240 1jet
28494007
95795000
(AIR)
Serviceteile

AXOR ⁄ Hansgrohe SE
Auestraße 5–9
77761 Schiltach
Deutschland
[e-mail]
axor-design.com
10 ⁄2018 9.08534.51
