INSTALLATION
ZH ⁄ 用户手册  ⁄  组装说明  02
EN ⁄ Instructions for use ⁄ assembly instructions 03
AXOR 250 1jet
35286XX7
AXOR 300 1jet
35301XX7
AXOR 250 1jet
35308XX7
AXOR 300 1jet
35316XX7
02
i
安全技巧
 装配时为避免挤压和切割受伤,必须戴上手套。
 该莲蓬头仅允许作淋浴、卫生保健和身体清洁目
的使用。
安装提示
⁄ 安装前必须检查产品是否受到运输损害。 安装后
将不认可运输损害或表面损伤。
⁄ 管道和阀门必须根据通用标准进行安装、冲洗和
检查。
⁄ 请遵守当地国家现行的安装规定。
⁄ 由有资格的专业人员进行产品安装时请注意:在
所有加固区域中,加固表面是否平整(无突出的
接缝或瓷砖),墙体结构是否适合产品安装且未
显露出任何缺点。
技术参数
工作压强:  最大 0,6 MPa
推荐工作压强
35286XX7 ⁄ 35308XX7:  0,29 - 0,4 MPa
35301XX7 ⁄ 35316XX7:  0,15 - 0,4 MPa
  (1 MPa = 10 bar = 147 PSI)
热水温度:  最大 60°C
热力消毒:  70°C ⁄ 4 分钟
该产品专为饮用水设计!
问题 原因 补救
 ⁄花洒头严重泄露 ⁄ 花洒头脏污⁄产生钙质垢 ⁄ 清洁花洒头⁄去除钙质垢 
(参见第页 10)
 ⁄花洒持续滴水 ⁄ 关闭部件损坏 ⁄ 更换关闭部件
 ⁄在关上龙头后,花洒短时滴水 ⁄ 按标准清空管道
 ⁄花洒操作不当 ⁄ 流动压力过小 ⁄ 检查总水压
⁄ 增加水压
⁄ 过滤网有垃圾堵塞 ⁄ 清洗过滤网 (参见第页 12)
⁄ 花洒头脏污⁄产生钙质垢 ⁄ 清洁花洒头⁄去除钙质垢 
(参见第页 10)
备用零件(参见第页 15)
安装(参见第页04)
流量示意图
(参见第页 08)
安装示意(参见第页 08)
大小(参见第页 07)
请勿使用含有乙酸的硅胶!
符号说明
清洗(参见第页 10)
ZH
操作(参见第页 16)
03
i
SAFETY NOTES
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower may only be used for bathing, hygiene and
body cleaning purposes.
INSTALLATION INSTRUCTIONS
⁄ Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and
tested as per the applicable standards.
⁄ The plumbing codes applicable in the respective
countries must be observed.
⁄ During installation of the product by qualified trained
personnel, make sure that the entire fastening surface is
even and smooth (no protruding seams or tile offset),
that the finish of the wall is suitable to apply the product
and has no weak points.
TECHNICAL DATA
Operating pressure: max. 0,6 MPa
Recommended operating pressure
35286XX7 ⁄ 35308XX7: 0,29 - 0,4 MPa
35301XX7 ⁄ 35316XX7: 0,15 - 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: 70°C ⁄ 4 min
The product is exclusively designed for drinking water!
FAULT CAUSE REMEDY
⁄ Head shower extremely leaky ⁄ Head shower soiled ⁄ scaled ⁄ Clean ⁄ descale head shower
(see page 10)
⁄ Shower drips continuously ⁄ Shut-off unit damaged ⁄ Exchange shut-off unit
⁄ Water drips from showerhead a short
time after the valve is closed
⁄ Normal clearing of pipes
⁄ Sprays not operating properly ⁄ Flow pressure too low ⁄ Check water pressure (If a pump has
been installed check to see if the
pump is working).
⁄ Increase water pressure
⁄ Filters are dirty ⁄ Clean filters (see page 12)
⁄ Head shower soiled ⁄ scaled ⁄ Clean ⁄ descale head shower
(see page 10)
SPARE PARTS (see page 15)
ASSEMBLY (see page 04)
FLOW DIAGRAM
(see page 08)
INSTALLATION EXAMPLE
(see page 08)
DIMENSIONS (see page 07)
Do not use silicone containing acetic acid!
SYMBOL DESCRIPTION
CLEANING (see page 10)
EN
OPERATION (see page 16)
04
1.
2.
1. 2.
1
2 3
4 5
26434187
6
SW 17 mm
Montage
05
7 8
910
11
1.
2.
2.
SW 2 mm
(1 Nm)
1.
12 13
Montage
06
SW 2 mm
(1 Nm)
CLICK
1918
14 15
16 17
1.
2.
Montage
07
AXOR 250 1jet
35286XX7
AXOR 300 1jet
35301XX7
AXOR 250 1jet
35308XX7
AXOR 300 1jet
35316XX7
Ø 155
43Ø
156
12
250Ø
Ø 155
43Ø
156
12
Ø 300
155/155
12
Ø 43
157
238/238
155/155
12
Ø 43
157
300/300
MaßeMaße
08
i
2200
1200
2400
450
450
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912 15 18 21 24 27 30
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912 15 18 21 24 27 30
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
2
AXOR 250 1jet
35286XX7
AXOR 300 1jet
35316XX7
AXOR 250 1jet
35308XX7
AXOR 300 1jet
35301XX7
PowderRain
1
Montagebeispiele Durchflussdiagramm
09 i
DN 20
(3/4“)
DN 20
(3/4“)
DN 15
(1/2“)
DN 15
(1/2“)
Ø 70
Montagebeispiele

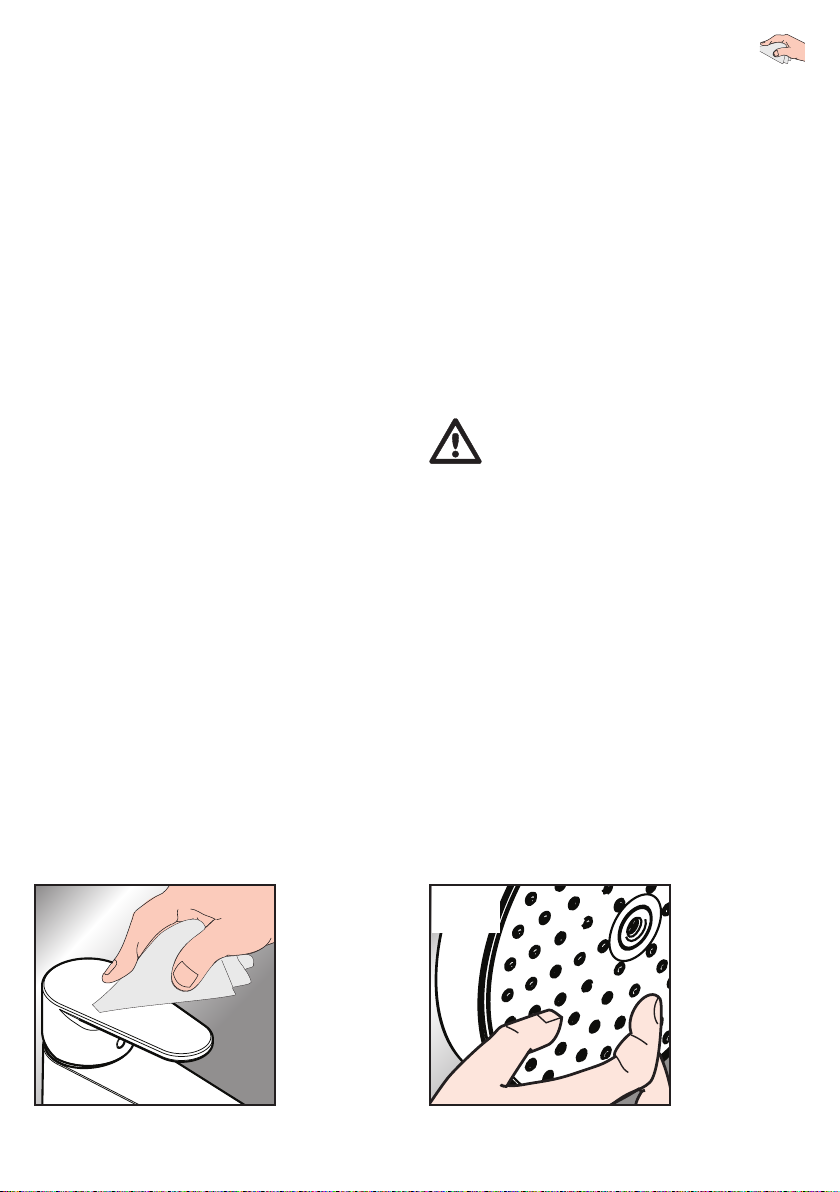

10
重要说明
肥皂,洗发水、沐浴液、染发剂、香水、刮胡水、指甲油
的残留也会对产品造成损伤。
此 处 :使 用 后 要 小 心 地 用 清 水 将 剩 余 物 冲 洗 干 净 。
同样在产品下方不得存放洗涤剂和化学药品,例如不
可放在用于洗脸盆的梳洗柜中否则挥发气体将损坏
产品。
在已经损伤的表面继续使用清洁剂会给表面造成更大
的损伤。
表面损坏的部件必须更换,否则会有受伤的
危险。
不按规定进行清洁而造成的任何损坏不在本公司产品
保修范围之内。
QUICKCLEAN
有了QuickClean,手工清洁功能,要去掉喷头上的水
垢 ,只 需 简 单 地 搓 除 即 可 。 
担保
Hansgrohe 向用户保证,该产品无制造 缺陷。
如果自购买之日起五年内出现缺 陷,Hansgrohe 
将免费排除。 保证条件和详 情见 
www.hansgrohe-int.com⁄guarantee。 在提 出保修的权
利时请联系您的合同方。本保证 不涉及有关国家法律
规定的消费权
汉斯格雅产品的清洁建议
现代的卫浴龙头、厨房龙头、花洒、配件、盥洗台、浴盆
和加热器采用的制造材料非常迥异,以适应产品外形
设计和使用功能的市场需求。
为 了 避 免 产 品 损 坏 和 由 此 引 发 的 投 诉 及 争 议 ,必 须 在
使用和清洁产品时遵循有关规程。 
在保养汉斯格雅产品时,原则上必须注
意:
 ⁄只能使用那些有明确注明是适用于本产品的清洁
剂。
 ⁄不允许使用含有盐酸、蚁酸、氯漂或醋酸的清洁
剂,因为这些清洁剂会给产品表面造成严重的损
伤。
 ⁄含磷酸的清洁剂必须在特定条件下使用。
 ⁄不允许将两种以上清洁剂混合使用。
 ⁄不允许使用具有研磨 作 用 的 清 洁 工 具 和 设 备 ,如 不
适合的清洁粉末、海绵垫或超细麦克布。
 ⁄必须严格遵守清洁剂生产厂商的使用说明。
 ⁄严格遵守清洁剂的用量和作用时间,决不允许清洁
剂的作用时间长于规定值。
 ⁄定期的清洁以预防水垢。
 ⁄不允许将清洁剂直接喷射到汉斯格雅产品上,因为
喷雾会进入汉斯格雅产品的开口部分和缝隙中而
造成损害。首先将清洁剂喷在软布上,再用软布进
行清洁。
 ⁄清洁之后必须用足够的清水冲洗,以彻底去除残留
的 吸 附 物( 清 洁 剂 )。
 ⁄不允许使用蒸汽清洗机,高温会损害产品。
QUICK
CLEAN
Reinigung
