Azden WMT-PRO User manual

PRO VHF WIRELESS MICROPHONE SYSTEM
INSTRUCTION MANUAL
WR-PRO - WM-PRO - WM/T-PRO - EX-503 - EX-413
POWER/FREQUENCY
SELECTOR SWITCH
SHOE MOUNT
BATTERY
COMPARTMENT
EARPHONE JACK
SIGNAL INDICATOR
POWER INDICATOR
POWER/FREQUENCY
SELECTOR SWITCH
WR-PRO RECEIVER
WM-PRO TRANSMITTER
EX-503 LAVALIER MIC
MICROPHONE JACK
OUTPUT PLUG
NOTES
 Do not store or use the unit in high heat or humidity.
 Do not use near a broadcast staon, airport or plane . You must change the frequencies if you are
interfering with other transmiers.
 The system will work connuously for 10 hours on one set of baeries. If sound quality is poor,
change baeries.
 Remove baeries when the system is not in use.

2
Thank you for purchasing the AZDEN PRO VHF Wireless Microphone System. The following
will show you the contents of the system you ordered:

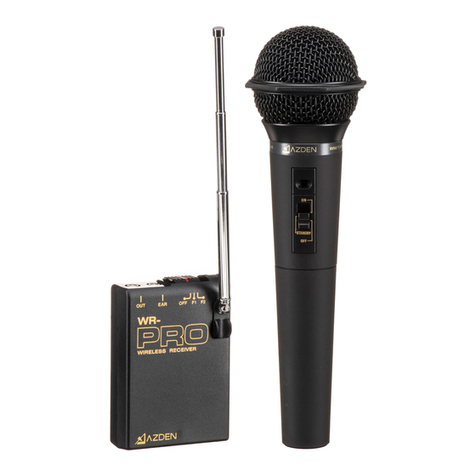

WHX-PRO
1 x WR-PRO VHF Receiver
1 x WM/T-PRO VHF Transmier/Handheld Microphone
WLX-PRO
1 x WR-PRO VHF Receiver
1 x WM-PRO VHF Belt-Pack Transmier
1 x EX-503 Lavalier Microphone
WMS-PRO
1 x WR-PRO VHF Receiver
1 x WM-PRO VHF Belt-Pack Transmier
1 x EX-413 Wired Handheld Microphone
The PRO systems operate in the low-interference VHF band and have 2 switchable frequen-
cies, 169.445 (F1) and 170.245 (F2). You should select the quieter frequency for use.
The systems conforms to Part 90 of the FCC rules. You should contact the FCC oce for l-
ing forms.
WR-PRO RECEIVER

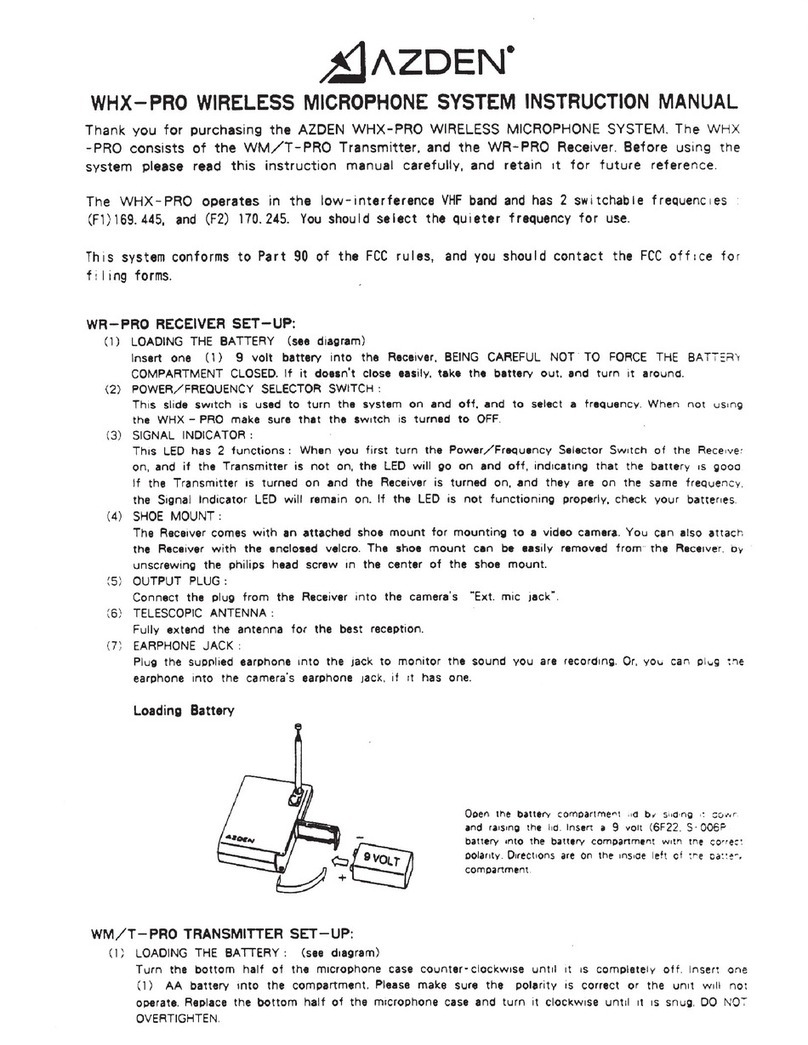

1. Loading Baery
Open the baery compartment lid by sliding it down and raising the lid. Insert a 9-
volt baery into the baery compartment with the correct polarity. Direcons are
on the inside of the baery compartment. Do not force the baery compartment l
id to close. If it does not close easily, turn The baery around and try again.
2. Power/Frequency Selector Switch
This slide switch is used to turn the unit on and o as well as to select a frequency.
When not using the WR-PRO, make sure that the switch is turned to OFF.

3
3. Signal Indicator
This LED has 2 funcons: When you rst turn the Power/Frequency Selector Switch
of the Receiver on, but if the Transmier is not on, the LED will go on and o indi-
cang that the baery is good. If both the Transmier and the Receiver are on and
they are on the same frequency, the Signal Indicator will remain on.
4. Shoe Mount
The Receiver comes with a shoe mount and loop-and-hook fastener to mount it to a
video camera. Select the one works best for your setup. To install the shoe mount,
align the three pegs to corresponding holes and slide the whole assembly upward
unl it clicks. To remove the shoe mount, slide the assembly downward.
5. Output Plug
Connect the plug from the Receiver into the camera’s “EXT. MIC’ jack.
6. Telescopic Antenna
Fully extend the antenna for the best recepon.
7. Earphone Jack
Plug the supplied earphone into the jack to monitor the sound you are recording.
WM/T-PRO TRANSMITTER/MICROPHONE
1. Loading baery
Turn the boom half of the microphone body counterclockwise unl it is completely
o. Insert 1 “AA” baery into the compartment. Make sure the polarity is correct or
the unit will not operate. Replace the boom half and turn it clockwise unl it is
snug. DO NOT OVERTIGHTEN.
2. Frequency Selecon
The unit is factory pre-set to F1. Make sure that the Receiver is also set to F1. To
change to F2, remove the boom half of the microphone body as you did when
loading baery. On the top of the baery compartment, there is a small 2-posion
switch. Slide the switch to posion F2. Change the Receiver frequency to F2.
3. 3-Posion Power Switch
The boom posion is “OFF”, the top is “ON”, and the middle is ”STANDBY”. In the
“STANDBY” posion, the unit is on but the microphone is muted. This allows the
microphone to be passed around noiselessly. Remember to set the mic to its “ON”
posion before speaking. When the switch in “ON” or “STANDBY”, the red LED will
stay lit if the Receiver is also operang on the same frequency.

4
WM-PRO TRANSMITTER
1. Loading Baery
Insert 1 9-volt baery into the baery compartment. Be careful not to force the
baery compartment lid closed.
2. Microphone
Plug the EX-503 (lavalier mic) or EX-413 (handheld mic) into the mic jack. Extend
the cord as much as possible since it doubles as the transmier’s antenna.
3. Power/Frequency Selector Switch
This switch is used to turn the unit on and o as well as to select a frequency.
4. Mounng
The Transmier can be aached to a belt using the clip provided or placed in a
pocket.
SPECIFICATIONS
WM-PRO & WM/T-PRO TRANSMITTERS
TRANSMISSION FREQUENCY: F1—169.445MHz
F2—170.245MHz
MODULATION SYSTEM: FM modulaon
BATTERY: 9V x 1 (WM) / 1.5V (AA) x 1 (WM/T)
POWER CONSUMPTION: 30mA (WM)
100mA (WM/T)
DIMENTIONS: 86(h) x 60(w) x 21.5(d)mm (WM)
ɸ 62 x 221mm (WM/T)
WEIGHT (including baery):
98g (WM) / 170g (WM/T)
MICROPHONE:
WR-PRO RECEIVER
RECEPTION FREQUENCY: F1—169.445MHz
F2—170.245MHz
Double Superheterrodyne System
RECEPTION SENSITIVITY: 2µV at S/N40dB
BATTERY: 9V x 1 (not included)
POWER CONSUMPTION: 25mA
MONITOR OUTPUT: Voltage: 1V
(Load: 30Ω, Modfreq: 1KHz, Dev: ±7KHz)
MICROPHONE OUTPUT: Voltage: 8mV
(Load: 10KΩ, Modfreq: 1KHz, Dev: ±7KHz,
Impedance: 300Ω)
DIMENSIONS: 86(h) X 60(w) X 21.5(d)mm
CORPORATION
147 NEW HYDE PARK ROAD, FRANKLIN SQUARE, NY 11010
PHONE: [phone] EMAIL: [e-mail] WEB: www.azdencorp.com
