Baja motorsports SC150 HSun 150cc User manual

Product Information
Baja Web > Product Information > Parts Lists > SCOOTERS > S C150 Sun 1 5 0 c c S t reet Scooter
SC150 HSun 150cc Street Scooter
SC150 HSun 150cc Street Scooter
Crankcase [Image]
Page
1
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Crankcase
001 SC150-100 CRANKCASE ASSEMBLY L 1
002 SC150-101 BUS ENGINE ABGER RUBBERF28 2
003 SC150-102 GASKET CRAKCASE 1
004 SC150-103 BUS RR CUS ION UNDER RUBBERF20 2
005 SC150-104 PIN BRAKE S OE ANC OR 1
006 SC150-105 O-RING F7.5*1.5 1
007 SC150-106 OIL SEAL F19.8*30*5 1
008 SC150-107 OIL SEAL F27*42*7 1
009 SC150-108 BEARING RADIAL BALL 6002 1
010 SC150-109 BEARING RADIAL BALL 6004 1
011 SC150-110 BEARING RADIAL BALL 6301 1
012 SC150-111 CRANKCASE ASSEMBLY R 1
013 SC150-112 TUBE BREAT ER 1
014 SC150-113 BOLT STUD 8*187.5 2
015 SC150-114 BOLT STUD 8*195.5 2
016 SC150-115 PIN DOWEL F8*14 2
017 SC150-116 BOLT FLANGE 6*50 2
018 SC150-117 NUT FLANGE M8 1
019 SC150-118 WAS ER DRAIN PLUG M12 1
020 SC150-119 BOLT DRAIN PLUG M12 1
021 SC150-120 WAS ER DRAIN PLUG M12 1
022 SC150-121 TIMING C AIN 1
023 SC150-122 C AIN TENSION BOARD 1
024 SC150-123 GUIDE BOARD, C IAN 1
025 SC150-124 C AIN ADJUSTER 1
026 SC150-125 O-RING F9.5?1.5 1
Item No Part Number Description Baja Description Qty
Page
2
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

027 SC150-126 BOLT, TENSION BOARD 1
028 SC150-127 O-RING F15.2?1.5 1
029 SC150-128 GASKET, TENSIONER 1
030 SC150-129 BOLT FLANGE M6*22 2
031 SC150-130 SCREW PAN M6*6 1
Gearbox Cover [Image]
Gearbox Cover
001 SC150-131 GEAR-BOX COVER 1
002 SC150-132 BEARING RADIAL BALL 6202 1
003 SC150-133 BEARING RADIAL BALL 6203 1
004 SC150-134 BEARING RADIAL BALL 6204 1
005 SC150-135 OIL SEAL F20*32*6 1
006 SC150-136 GASKET, GEAR-BOX COVER 1
007 SC150-137 DRIVE S AFT 1
008 SC150-138 S AFT COMP COUNTER 1
009 SC150-139 S AFT FINAL 1
010 SC150-140 GEAR FINAL 1
011 SC150-141 BOLT FLANGE M6*28 3
012 SC150-142 BOLT FLANGE M6*35 3
013 SC150-143 BOLT FLANGE M8?20 2
014 SC150-144 WAS ER F8MM 1
015 SC150-145 PIN DOWEL F8*14 2
016 SC150-146 CIRCLIP EXTERNAL F20MM 1
017 SC150-147 NUT M16 1
Left Crankcase Cover [Image]
Item No Part Number Description Baja Description Qty
Page
3
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Left Crankcase Cover
001 SC150-148 COVER L 1
002 SC150-149 PLATE L COVER 1
003 SC150-150 CLAMP BRAKE CABLE 1
004 SC150-151 CLAMP BRAT ER DRAIN TUBE 1
005 SC150-152 GASKET L COVER 1
006 SC150-153 CLAMP T ROTTLE CABLE 1
007 SC150-154 PIN DOWEL F8*14 2
008 SC150-155 SCREW TAPPING ST3.8?8 4
009 SC150-156 BOL FLANGE 6*40 6
010 SC150-157 BOL FLANGE 6*45 3
011 SC150-158 BLOCK, MAIN STAND 1
012 SC150-159 BOL FLANGE 6*65 2
013 SC150-160 LEVER, KICK STARTER 1
Right Crankcase Cover [Image]
Item No Part Number Description Baja Description Qty
Page
4
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

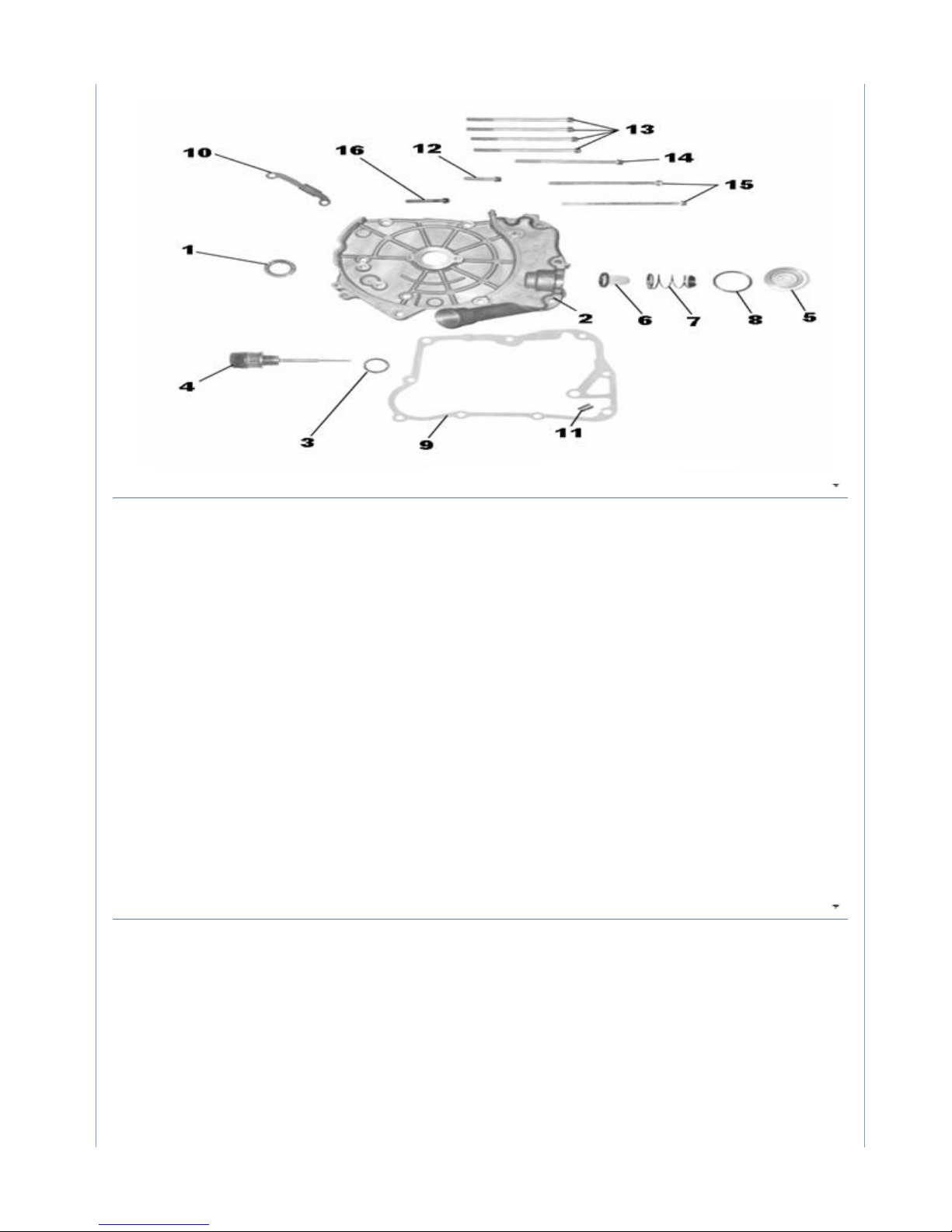

Right Crankcase Cover
001 SC150-161 OIL SEAL 19.8*30*5 1
002 SC150-162 COVER R CRANKCASE COMP 1
003 SC150-163 O-RING F18*3 1
004 SC150-164 GAUGE OIL LEVEL 1
005 SC150-165 CAP TAPPET ADJUSTING OLE 1
006 SC150-166 OIL FILTER SCREEN 1
007 SC150-167 SPRING? OIL FILTER SCREEN 1
008 SC150-168 O-RING F30.8?3mm 1
009 SC150-169 GASKET R CRANKCASE COVER 1
010 SC150-170 CLAMPER A.C.GENERATOR CORD 1
011 SC150-171 PIN DOWEL F8*14 2
012 SC150-172 BOLT FLANGE M6*26 1
013 SC150-173 BOLT FLANGEM6*95 4
014 SC150-174 BOLT FLANGEM6*100 1
015 SC150-175 BOLT FLANGE M6*110 2
016 SC150-176 BOLT FLANGE M6*35 1
C linder [Image]
Item No Part Number Description Baja Description Qty
Page
5
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

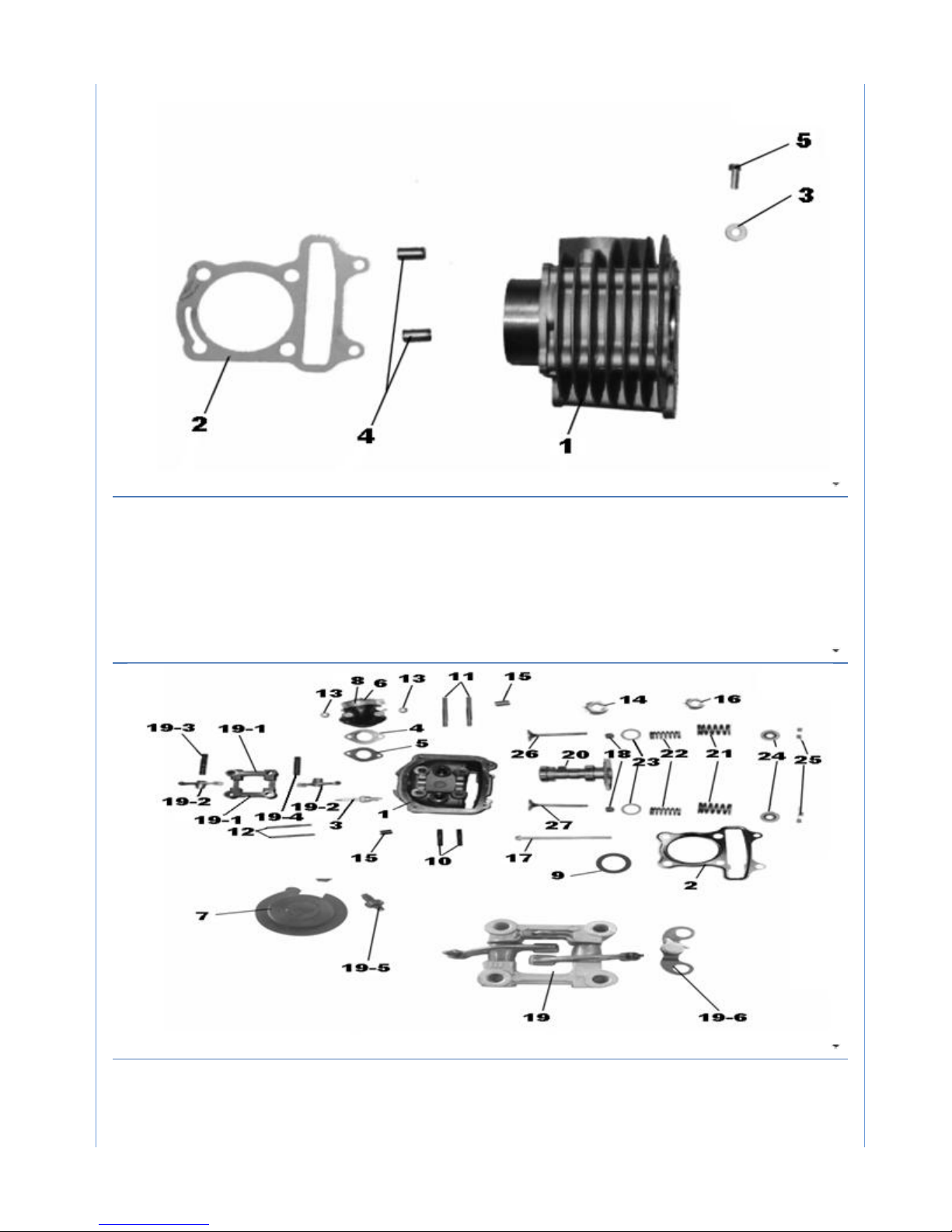

C linder
001 SC150-177 CYLINDER COMP 1
002 SC150-178 GASKET CYLINDER 1
003 SC150-179 WAS ER M6 1
004 SC150-180 PIN DOWEL M10X16 2
005 SC150-181 BOLT FLANGE M6X12 1
C linder Head [Image]
C linder Head
001 SC150-182 CYLINDER EAD 1
Item No Part Number Description Baja Description Qty
Item No Part Number Description Baja Description Qty
Page
6
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

002 SC150-183 GASKET, CYLINDER EAD 1
003 SC150-184 SPARK PLUG ?A7RTC NGK? 1
004 SC150-185 GASKET, INLET PIPE 1
005 SC150-186 INSULATOR?CARBURETOR 1
006 SC150-187 INLET PIPE 1
007 SC150-188 DUSTPROOF COVER, INLET PIPE 1
008 SC150-189 BAND?INSULATOR 1
009 SC150-190 WAS ER?SEALING M27?2 4
010 SC150-191 BOLT?SPECIAL STUD?M6X32 2
011 SC150-192 BOLT?SPECIAL STUD?M6X63 2
012 SC150-193 BOLT?SPECIAL STUD?M6X28 2
013 SC150-194 NUT FLANGE M6 2
014 SC150-195 NUT FLANGE M8 4
015 SC150-196 PIN DOWEL M10X16 4
016 SC150-197 ADJUSTING NUT 2
017 SC150-198 BOLT FLANGE M6X100 2
018 SC150-199 SEAL VALVE STEM F27?25?10.6?6.7?8.4 2
019 SC150-200 OLDER?CAM 1
020 SC150-207 CAMS AFT COMP 1
021 SC150-208 SPRING VALVE OUTER 2
022 SC150-209 SPRING VALVE INNER 2
023 SC150-210 RETAINER VALVE SPRING 2
024 SC150-211 SPRING SEAT 2
025 SC150-212 LOCK NIP VALVE 4
026 SC150-213 VALVE, INTAKE 1
027 SC150-214 VALVE, EX AUST 1
C linder Head Cover [Image]
C linder Head Cover
Page
7
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

001 SC150-215 TUBE BREAT ER 1
002 SC150-216 CONNECTION, TUBE BREAT ER 1
003 SC150-217 CYLINDER EAD COVER 1
004 SC150-218 CLLP TUBEF8 1
005 SC150-219 CLLP TUBEF12 1
006 SC150-220 GASKET EAD COVER 1
007 SC150-221 AIR BLOCK 1
008 SC150-222 GASKET, AIR BLOCK 1
009 SC150-223 BOLT SPECIAL STUP M6*25 4
Crankshaft [Image]
Crankshaft
001 SC150-224 CRANKS AFT COMP 1
002 SC150-225 PISTON RING ASSEMBLY 1
003 SC150-226 PISTON?STD? 1
004 SC150-227 PISTON PIN 1
005 SC150-228 SEMICIRCULAR KEY M25X14X4 1
006 SC150-229 CLIP PISTON PIN M15 2
Electric Starting [Image]
Item No Part Number Description Baja Description Qty
Item No Part Number Description Baja Description Qty
Page
8
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

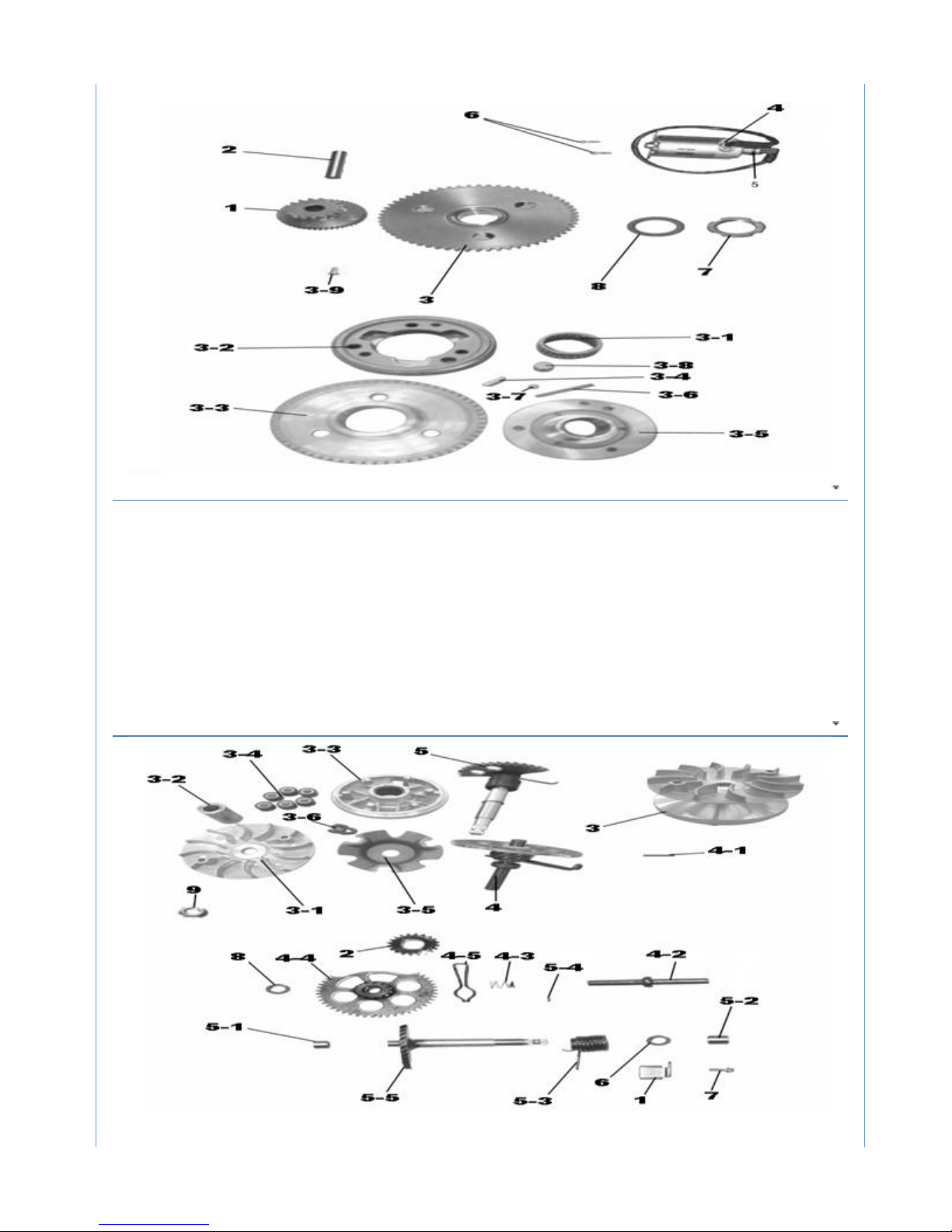

Electric Starting
001 SC150-230 GEAR STARTER REDUCTION 1
002 SC150-231 S AFI STARTER REDUCTION GEAR 1
003 SC150-232 OUTER COMP STARTING CLUTC 1
004 SC150-242 STARTER MOTOR ASSEMBLY 1
005 SC150-243 O-RING F24.4*3.1 1
006 SC150-244 BOLT FLANGE 6*16 2
007 SC150-245 NUT LOCK 22MM 1
008 SC150-246 WAS ER T RUST F22.2*31*2.5 1
Drive Assembl [Image]
Item No Part Number Description Baja Description Qty
Page
9
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Drive Assembl
001 SC150-247 STARTER LEVER SPRING BLOCK 1
002 SC150-248 GEAR KICK DRIVEN ?20T? 1
003 SC150-249 DRIVE GEAR ASSEMBLY 1
004 SC150-256 GEAR COMP STARTER IDLE?13T/49T? 1
005 SC150-262 KICK STARTER S AFT ASSEMBLY 1
006 SC150-268 WAS ER F14MM 1
007 SC150-269 BOLT FLABGE M6*14 1
008 SC150-270 WAS ER PLWIN F12MM 1
009 SC150-271 NUT FLANGE M12 1
Driven Assembl [Image]
Driven Assembl
001 SC150-272 BELT DRIVE (835-20) 1
002 SC150-273 CLUTC ASSEMBLY 1
003 SC150-293 CIRCLIP F7MM 1
004 SC150-295 NUT SPECLAL M28 1
Magneto [Image]
Item No Part Number Description Baja Description Qty
Item No Part Number Description Baja Description Qty
Page
10
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Magneto
001 SC150-296 FAN COMP COOLING 1
002 SC150-297 GENERATOR ASSEMBLY FLYW EEL A.C 1
002-1 SC150-298 FLYW EEL COMP AVAILABLE WIT SC150-297 1
002-2 SC150-299 STATOR AVAILABLE WIT SC150-297 1
003 SC150-300 WAS ER PLANI F12MM 1
004 SC150-301 BOLT EX M5*12 2
005 SC150-302 NUT FLANGE M12 1
006 SC150-303 BOLT FLANGE M6*18 4
007 SC150-304 BOLT FLANGE M6*25 2
Shroud [Image]
Item No Part Number Description Baja Description Qty
Page
11
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

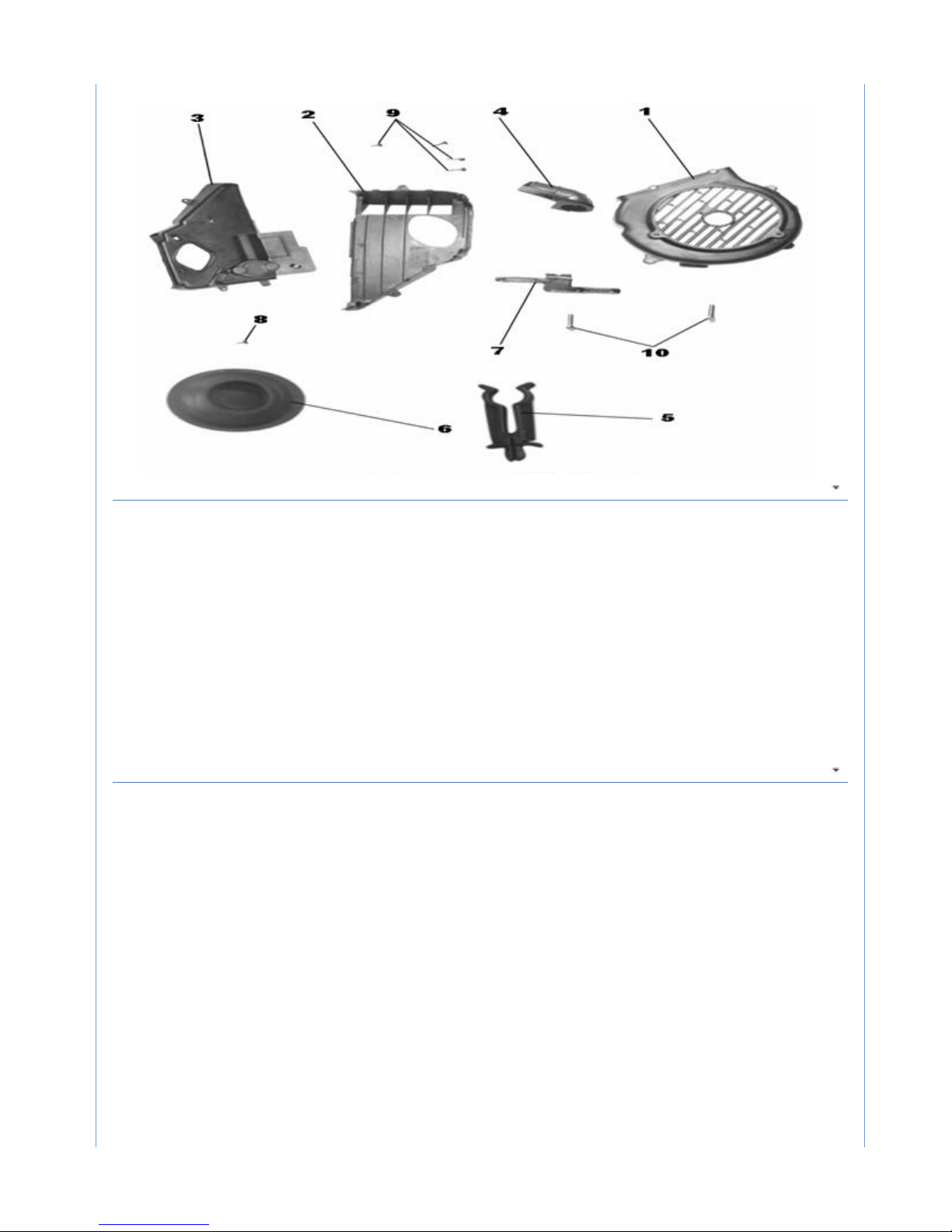

Shroud
001 SC150-305 COVER COMP FAN 1
002 SC150-306 S ROUD A 1
003 SC150-307 S ROUD COMP B 1
004 SC150-308 CUCT CARBUETTOR COOLING 1
005 SC150-309 CLIP IG TENSION CORD 1
006 SC150-310 CROMMET B SIDE PANEL 1
007 SC150-311 CLAMPERS STARTER CABLE 1
008 SC150-312 SCREW TAPPING 5*12 5
009 SC150-313 SCREW TAPPING 5*16 6
010 SC150-314 BOLT FLANGE 6*25 3
Oil Pump [Image]
Item No Part Number Description Baja Description Qty
Page
12
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Oil Pump
001 SC150-315 PUMP ASSEMBLY OIL 1
001-1 SC150-316 INNER ROTOR, OIL PUMP 1
001-2 SC150-317 OUTER ROTOR, OIL PUMP 1
002 SC150-318 SPROKET OIL PUMP 1
003 SC150-319 C AIN OIL PUMP 1
004 SC150-320 SEPARATOR OIL 1
005 SC150-321 NUT FLANGE, 6 1
006 SC150-322 BOLT FLANGE, 6*25 2
007 SC150-323 BOLT FLANGE, 6*12 2

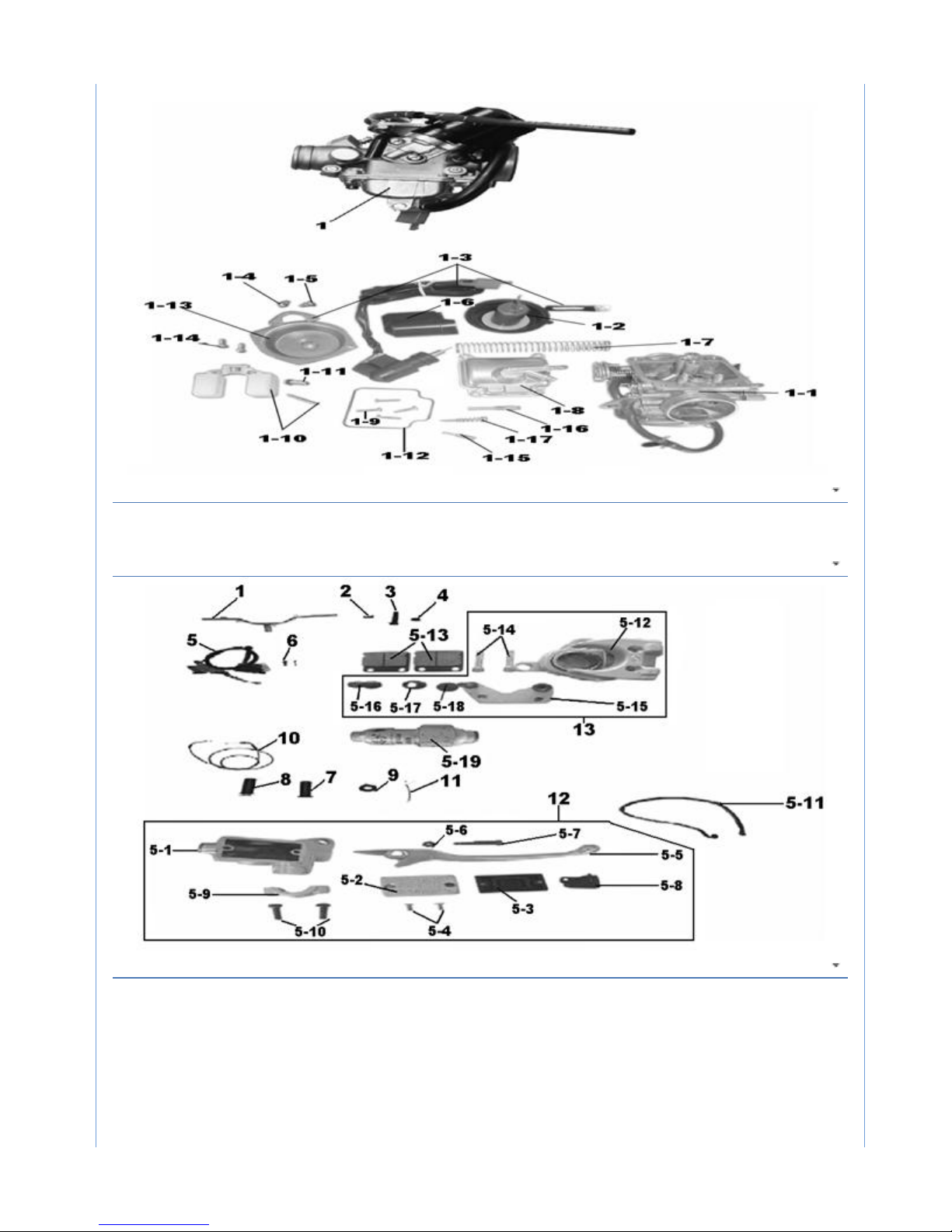

Carburetor [Image]
Item No Part Number Description Baja Description Qty
Page
13
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Carburetor
001 SC150-324 CARBURETOR 1
Front Brake [Image]
Front Brake
001 SC150-325 STEERING ANDLE BAR 1
002 SC150-326 DISTANCE SLEEVE 1
003 SC150-327 BOLT M10*45 1
004 SC150-328 NUT M10 1
005 SC150-329 FR, YDRAULIC BRAKE ASSEMBLY 1
Item No Part Number Description Baja Description Qty
Item No Part Number Description Baja Description Qty
Page
14
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

005-11 SC150-609 YDRAULIC, LINE FR. DISK BRAKE 1
005-13 SC150-330 PADS, BRAKE 2
005-19 SC150-331 ANTILOCK BRAKE SYSTEM 1
006 SC150-332 BOLT M8*25 2
007 SC150-333 LEFT GRIP 1
008 SC150-334 T ROTTLE GRIP 1
009 SC150-335 FIXING SEAT GAS 1
010 SC150-336 CABLE T ROTTLE 1
011 SC150-337 CABLE CUS ION 1
012 SC150-605 LEVER, FRONT BRAKE 1
013 SC150-606 CALIPER, FRONT BRAKE 1
Shocks [Image]
Shocks
001 SC150-338 STEERING STEM ASSEMBLY 1
002 SC150-339 FR. L S OCK ABSORBER 1
003 SC150-340 FR. R S OCK ABSORBER 1
004 SC150-341 REAR S OCK ABSORBER 2
005 SC150-342 INNER RING BEARING UP 1
006 SC150-343 EX RING BEARING BEARING UP 1
007 SC150-344 STEEL BALL BREAT ER 1
008 SC150-345 WAS ER 1
009 SC150-346 BEARING RACE COVER 1
010 SC150-347 NUT LOCKING 1 1
011 SC150-348 NUT LOCKING 2 1
012 SC150-349 CLIP 1
013 SC150-350 CLIP 1
014 SC150-351 BOLT M6*16 1
Item No Part Number Description Baja Description Qty
Page
15
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

015 SC150-352 BOLT M10*45 4
016 SC150-353 BOLT M8*35 2
017 SC150-354 BOLT M8*40 2

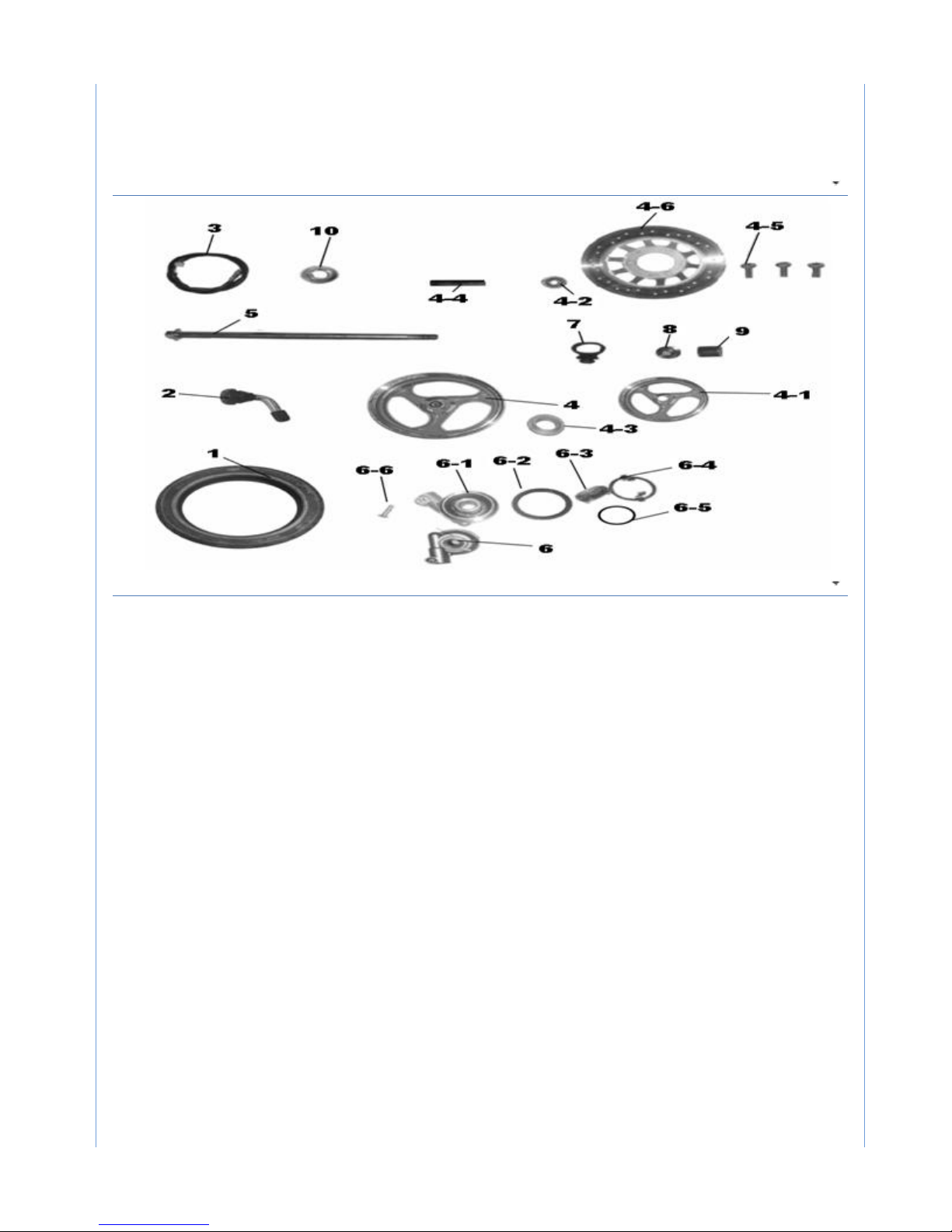

Wheels [Image]
Wheels
001 SC150-355 FRONT TIRE 130/60-13 1
001 SC150-356 REAR TIRE 130/60-13 1
002 SC150-357 VALVE 2
003 SC150-358 CABLE, SPEEDOMETER 1
004 SC150-359 RIM FRONT W EEL 1
004-1 SC150-360 S ELL, RIM FRONT W EEL 1
004-2 SC150-361 BEARING, RIM FRONT W EEL 2
004-3 SC150-362 OIL SEAL, RIM FRONT W EEL 1
004-4 SC150-363 COLLAR, RIM FRONT W EEL 1
004-5 SC150-365 SEAR SCREW, BRAKE DISK 3
004-6 SC150-364 FRONT BRAKE DISK 1
005 SC150-366 FR. AXLE 1
006 SC150-367 COUNTER 1
006-1 SC150-368 MAIN BODY 1
006-2 SC150-369 OIL SEALER 1
006-3 SC150-370 DRIVEN GEAR 1
006-4 SC150-371 DRIVEN FLAKE 1
006-5 SC150-372 COLLAR 1
006-6 SC150-373 BOLT M5*16 1
007 SC150-374 T IMBLE 1
008 SC150-375 NUT M12 1
Item No Part Number Description Baja Description Qty
Page
16
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

009 SC150-376 SPACER?12.5?f20?22 1
010 SC150-377 NUTM16 1

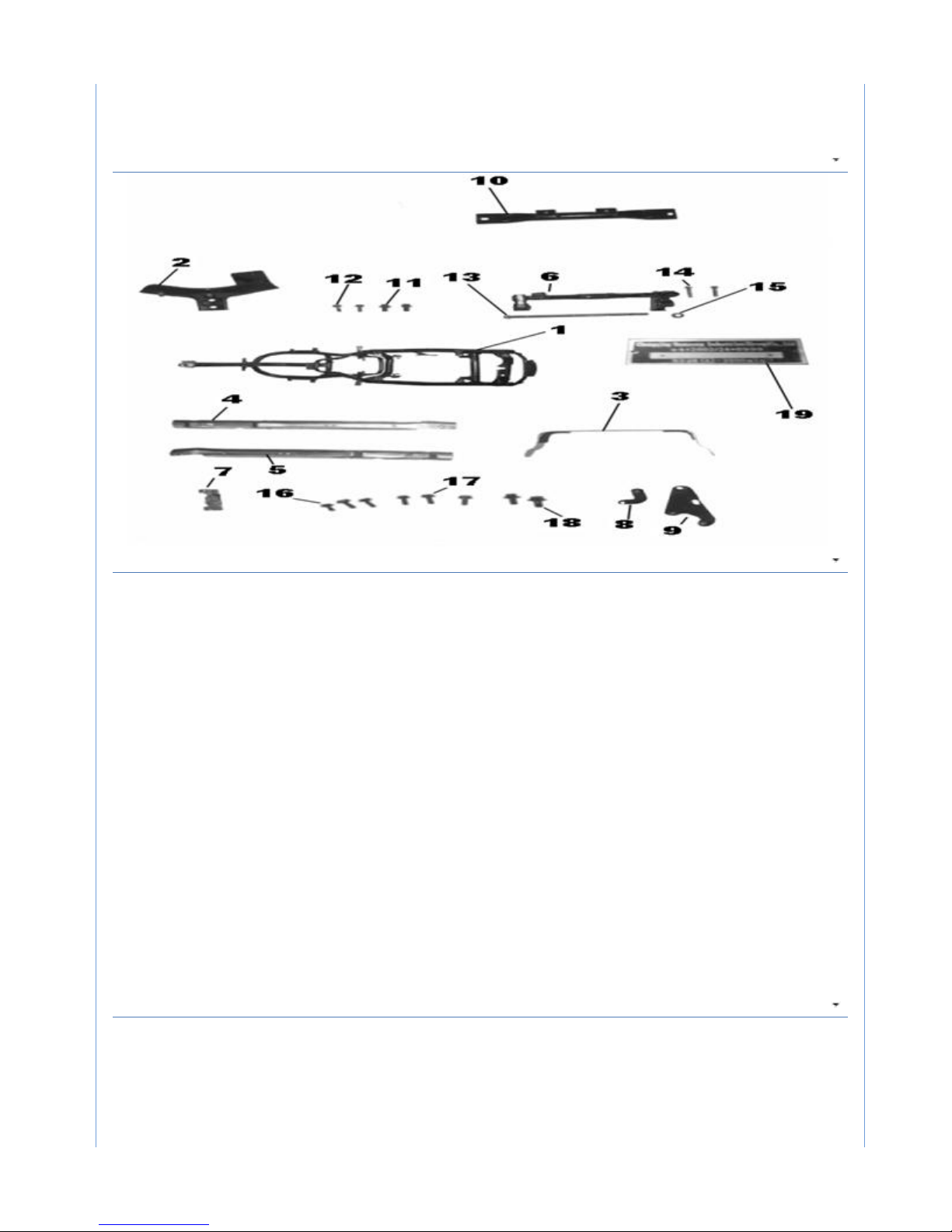

Frame [Image]
Frame
001 SC150-378 MAIN FRAME 1
002 SC150-379 OLDER ORN 1
003 SC150-380 BRACKET, FUEL TANK 1
006 SC150-383 CRADLE 1
007 SC150-384 CUS ION LOCK BASE 1
008 SC150-385 OLDER L. R. FENDER 1
009 SC150-386 OLDER R. R. FENDER 1
010 SC150-387 OLDER FR. SADDLE 1
011 SC150-388 BOLT M 6*16 2
012 SC150-389 BOLT M 8*12 2
013 SC150-390 S AFT CRADLE 1
014 SC150-391 BOLT M 10*55 2
015 SC150-392 NUT M10 1
016 SC150-393 BOLT M 6*12 2
017 SC150-394 BOLT M 6*12 4
018 SC150-395 BOLT M8*16 2
019 SC150-396 NAMEPLATE 1

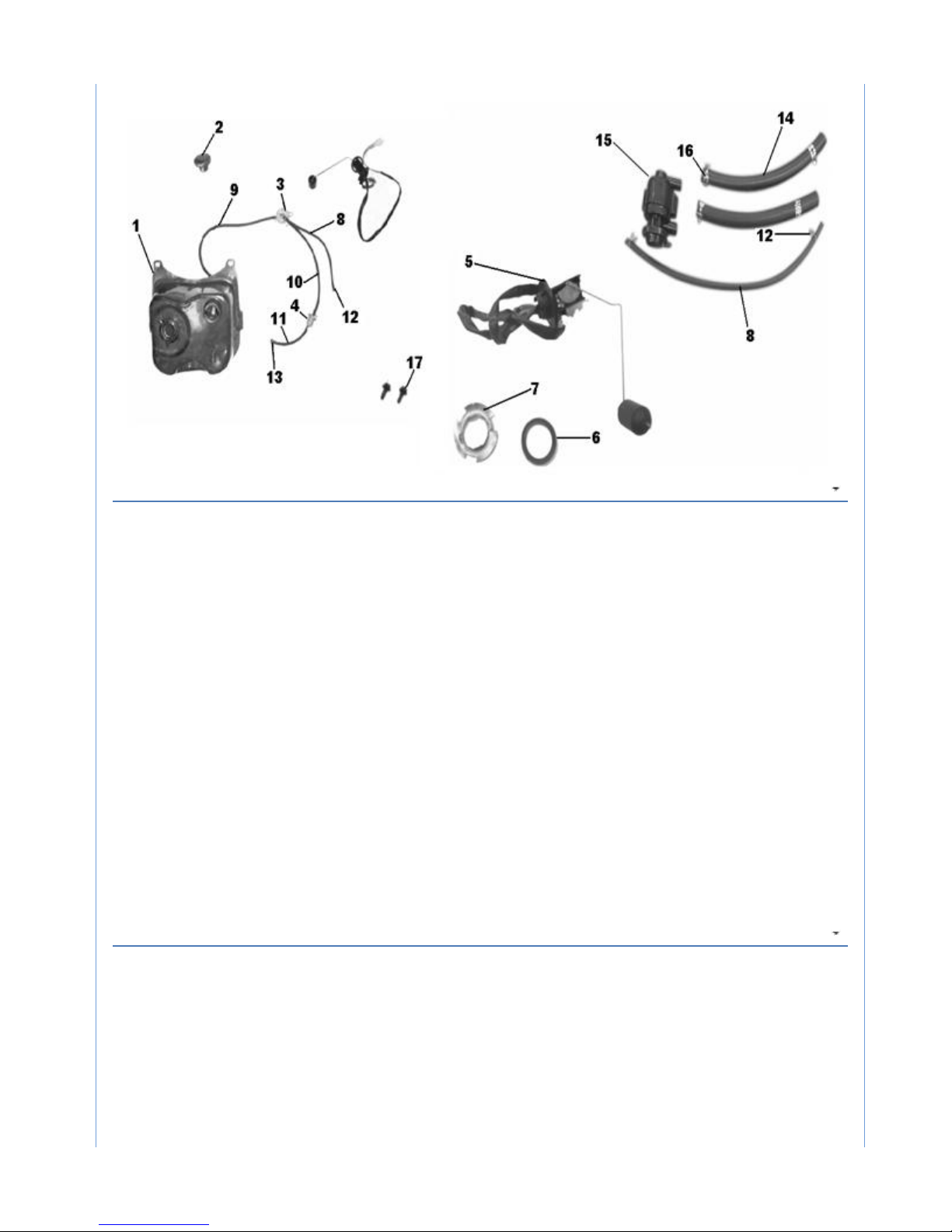

Fuel Tank [Image]
Item No Part Number Description Baja Description Qty
Page
17
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Fuel Tank
001 SC150-397 FUEL TANK 1
002 SC150-398 CAP COMP FUEL FILLER 1
003 SC150-399 FUEL COCK 1
004 SC150-400 FILTER 1
005 SC150-401 FUEL SENSOR 1
006 SC150-402 SEAL RING, SENSOR 1
007 SC150-403 PRESSURE PLATE, SENSOR 1
008 SC150-404 VACVUM PIPE 2
009 SC150-405 TUBE 1 1
010 SC150-406 TUBE2 1
011 SC150-407 TUBE 3 1
012 SC150-408 RING F7?1 4
013 SC150-409 RING F8?1 6
014 SC150-410 VENTILATE PIPE 2
015 SC150-411 EMISSIONS CANISTER 1
016 SC150-412 PIPE OOP 4
017 SC150-413 BOLT M6*12 2
Air Cleaner [Image]
Item No Part Number Description Baja Description Qty
Page
18
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Air Cleaner
001 SC150-414 MIRROR ASSEMBLY 1
001-1 SC150-415 MIRROR ASSEMBLY, L. 1
001-2 SC150-416 MIRROR ASSEMBLY, R. 1
001-3 SC150-417 DUSTPROOF COLLAR, MIRROR 2
001-4 SC150-418 WAS ER F8.5 2
001-5 SC150-419 BOLT M8*45 2
002 SC150-420 AIR CLEANER ASSEMBLY 1
002-1 SC150-421 UPPER CLIP 1
002-2 SC150-422 BOTTOM CLIP 1
002-3 SC150-423 INLET SYP ON AIR CLEANER 2
002-4 SC150-424 UP CAP AIR CLEANER ASSEMBLY 1
002-5 SC150-425 BOTTOM CAPOAIR CLEANER 1
002-6 SC150-426 STAINER 1
002-7 SC150-427 TAPPING SCREW ST4.8*16 8
003 SC150-428 SADDLE 1
003-1 SC150-429 SADDLE 1
003-2 SC150-430 SEAT CONNECTING PIN ASSEMBLY 1
004 SC150-431 BOLTM8*16 2
005 SC150-432 KIT SET 1
007 SC150-434 RR. CARRIER 1
008 SC150-435 BOLT M8*12 2
009 SC150-436 BOLT M6*12 6
Exhaust [Image]
Item No Part Number Description Baja Description Qty
Page
19
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...

Exhaust
001 SC150-437 MUFFLER 1
002 SC150-442 RUBBER CAP 2
003 SC150-438 MUFFLER PIPE 1
004 SC150-441 COLLAR 2
005 SC150-443 BOLT M 10*25 2
006 SC150-440 GASKET 1
007 SC150-439 CONNECTING BOARD 1
008 SC150-444 NUT M6 2
009 SC150-445 BOLT M 8*16 3
Mainstand [Image]
Item No Part Number Description Baja Description Qty
Page
20
of
32
Parts Lists
-
SC150 HSun 150cc Street Scooter
3/22/2010
http://bajahq01ut01/productinformation/Parts%20Lists/SCOOTERS/SC150%20HSun%20
...
