Baja motorsports SC50-2 Manual

1. Remove cardboard carton
from metal frame.
2. Remove wire straps and foam
covering from handlebars.
Removal from Crate
SC50-2 Scooter Set up Instructions
3. Remove bolt holding metal
frame to rear of scooter.
4. Remove axle bolt holding metal
frame to front forks.
Rev C
051908

Removal from crate
5. Remove metal frame and parts
included for assembly.
Parts
Front fender Front wheel Front wheel spacer
QTY 1
QTY 4
QTY 1
NOTE: Pay attention to front
wheel spacer. Save this spacer
for installation of front wheel

Parts
Mirrors
Parts listed below found under seat
Tool Kit
Manufacturer Certicate
of Origin
Owners Manual
Battery Box
Floorboard cover/mat

Front Wheel
6. Align speed sensor between
front wheel and front fork.
8. Remove brake caliper spacer
before attaching brake caliper to
front wheel using bolts provided.
Spacer
Axle bolt
Speed sensor
Alignment groove
on front fork
7. Place front wheel spacer between disc
brake and fork on axle bolt. Attach front
wheel with axle bolt provided.
Torque to 33ft.lbs.
Front wheel
spacer
Alignment tab on
speed sensor

Handlebar
9. Attach handlebar assembly to stem
using bolt and nut provided.
Handlebar stem
NOTE: For easy installation place
nut on open end wrench.
Nut
Bolt
Open end wrench

Kick Stand
10. Remove cotter pin from kick stand bolt
Remove bolt. Save both cotter pin and
bolt for installation.
11. Attach kick stand to bottom of engine
using bolt previsouly removed.
12. Secure kick stand bolt using cotter
pin previously removed. Be sure to
bend each end of cotter pin over.
13. Attach both kick stand springs.
NOTE: Place small spring inside big spring.
One end on kick stand tab, the other end on
the engine tab. A screw driver will be needed
for leverage.

Mirrors
14. Insert left and right mirror into hole
on handlebar and turn clockwise, secure
by tightening nut .
Nut
Nut
Turn Signals
15. Attach left and right turn signals to
bracket located on handlebars.

Horn and Front Fender
17. Attach front fender. Line up tabs of fender with
slots on scooter. Secure with four phillip head
screws and one phillip head bolt and washer.
16. Connect the purple and green wire to
post on horn. NOTE: It does not matter
which post either wire is connected to.
Purple wire
Green wire

Rear Luggage Carrier
18. Secure rear luggage carrier using hardware provided.
NOTE: You will only need to install two of the three bolts as
bolt 1 is installed from the factory for shipping purposes.
Bolt 1

19. Refer to battery section of
owners manual for correct installation
and charging of battery.
Battery located in
oorboard under mat.

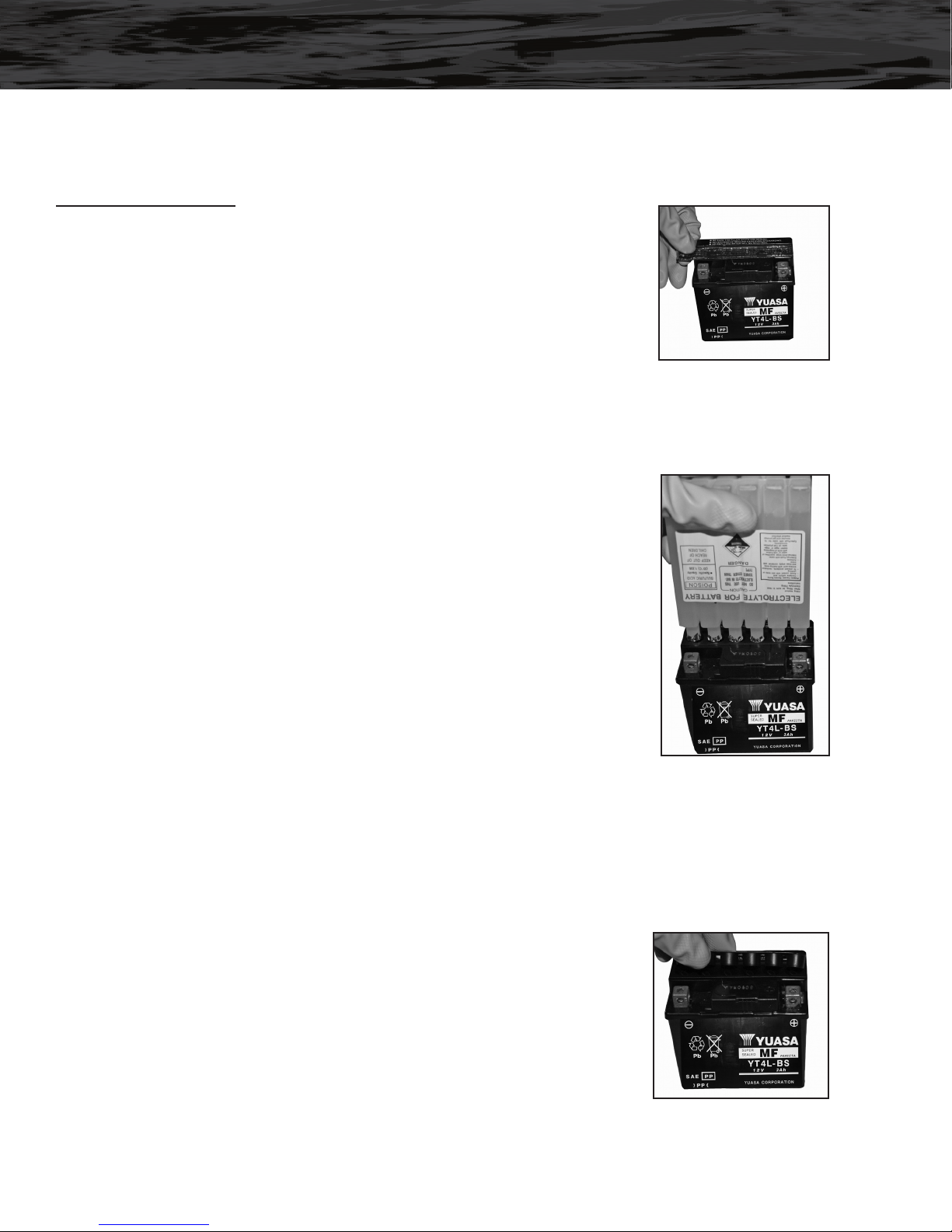

Battery Installation
WARNING
The following procedure is very dangerous and should be performed with utmost care and attention. Wear
protective eyewear, rubber gloves, and have water available should electrolyte come in contact with skin or
eyes. KEEP ALL CHILDREN AWAY FROM THE AREA WHILE THIS PROCEDURE IS BEING PERFORMED.
POISON – CAUSES SEVERE BURNS
Contains sulfuric acid.
Avoid contact with skin, eyes, or clothing
To prevent accidents, rinse empty container with water.
ANTIDOTE:
External – ush with water
Internal – Call physician immediately. Drink large quantities of water or milk.
Follow with milk of magnesia, beaten eggs or vegetable.
Eyes – Flush with water for 15 minutes and get prompt medical attention.
KEEP OUT OF REACH OF CHILDREN.
