Balluff BNI IOL-302-002-K006 User manual

BNI IOL-302-002-K006
IO-Link 1.1 sensor/actuator hub
with extension port
User´s Guide

1Contents
1User Instructions 4
1.1. Structure of the Manual 4
1.2. Typographical Conventions 4
Enumerations 4
Actions 4
Syntax 4
Cross-references 4
1.3. Symbols 4
1.4. Abbreviations 4
1.5. Divergent views 4
2Safety 5
2.1. Intended Use 5
2.2. Installation and Startup 5
2.3. General Safety Instructions 5
2.4. Resistance to aggressive substances 5
Hazardous voltage 5
3First Steps 6
3.1. Connection overview 6
3.2. Mechanical Connection 7
3.3. Electrical Connection 7
Function ground 7
IO-Link connection 7
Connecting the sensor hub 8
Module variants 8
Digital sensors 8
Extension port 8
Extension port 9
Extension port configuration 9
4Configuration: "Extension Off" 10
4.1. IO-Link Data 10
4.2. Process Data/ Input Data 10
4.3. Process Data/ Output Data 10
4.4. Parameter Data/ Demand Data 11
Inversion of the inputs 40hex 12
Configuration of inputs /outputs 41hex 12
Safe state of outputs 42hex 13
Safe state of the outputs on Pin 4 42hex 13
Safe state of the outputs on Pin 2 43hex 14
Voltage monitoring 44hex 15
Monitoring the outputs 45hex 15
Actuator warning 46hex 15
Setting the serial number 54hex 16
Configuration of the extension port 55hex 16
5Configuration: Extended with BNI IOL-302-002-K006 17
5.1. IO-Link Data 17
5.2. Process Data/ Input Data 17
5.3. Process Data/ Output Data 18
5.4. Parameter Data/ Demand Data 19
Inversion of the inputs 40hex 20
Configuration of inputs /outputs 41hex 21
Safe state of outputs 42hex 22
Safe state of the outputs on Pin 4 42hex 22
Safe state of the outputs on Pin 2 43hex 23
Voltage monitoring 44hex 24
Monitoring the outputs 45hex 24

www.balluff.com
3
Actuator warning 46hex 25
Setting the serial number 54hex 26
Configuration of the Extension port 55hex 26
6Configuration extended with Valve Terminal Connector with 22/24 Valves 27
6.1. IO-Link Data 27
6.2. Process Data/ Input Data 27
6.3. Process Data/ Output Data 27
6.4. Parameter Data / Demand Data 29
Inversion of the inputs 40hex 30
Configuration of inputs/outputs 41hex 30
Safe state of Outputs 42hex 31
Safe state of the Outputs Pin 4, 42hex 31
Safe state of the outputs on Pin 2 43hex 32
Voltage monitoring 44hex 33
Monitoring the outputs 45hex 34
Actuator warning 46hex 34
Setting the serial number 54hex 35
Configuration of the extension port 55hex 35
6.5. Error Codes/ Errors 36
6.6. Events 36
7IO-Link Functions 37
7.1. IO-Link Version 1.0/ 1.1 37
7.2. Data Storage 37
7.3. Block Configuration 37
7.4. Restoring the Factory Settings 37
8Technical Data 38
8.1. Dimensions 38
8.2. Mechanical Data 38
8.3. Electrical Data 38
8.4. Operating conditions 38
9Function Indicators 39
9.1. Function Indicators 39
LED indicator module status 39
Digital LED indicators for inputs/outputs 40
Extension port 40
10 Appendix 41
10.1. Type Code 41
10.2. Ordering Information 41

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
4
1User Instructions
1.1. Structure of the
Manual
The manual is organized so that the sections build on one another.
Chapter 2: Basic safety information.
……..
1.2. Typographical
Conventions
The following typographical conventions are used in this manual.
Enumerations
Enumerations are shown as a list with an en-dash.
−Entry 1.
−Entry 2.
Actions
Action instructions are indicated by a preceding triangle. The result of an action is indicated
by an arrow.
➢Action instruction 1.
Action result.
➢Action instruction 2.
Syntax
Numbers:
Decimal numbers are shown without additional indicators (e.g. 123), hexadecimal numbers
are shown with the additional indicatorhex (e. g. 00hex).
Cross-references
Cross-references indicate where additional information on the topic can be found.
1.3. Symbols
Attention!
This symbol indicates a safety instruction that must be followed without exception.
Note
This symbol indicates general notes.
1.4. Abbreviations
BNI
DPP
I/O port
IOL
ISDU
EMC
FE
LSB
MSB
Balluff Network Interface
Direct Parameter Page
Digital input/output port
IO-Link
Indexed Service Data Unit
Electromagnetic compatibility
Function earth
Least Significant Bit
Most Significant Bit
1.5. Divergent views
Product views and images can differ from the specified product in this manual. They serve
only as an illustration.

www.balluff.com
5
2Safety
2.1. Intended Use
The BNI IOL-… acts as a decentralized input/output sensor module, which is connected to a
higher-level IO-Link master module through an IO-Link interface.
2.2. Installation and
Startup
Attention!
Installation and startup must only be carried out by trained technical personnel.
Qualified personnel are people who are familiar with installation and operation of
the product and have the necessary qualifications for these tasks. Any damage
resulting from unauthorized tampering or improper use voids the manufacturer's
guarantee and warranty. The operator must ensure that appropriate safety and
accident prevention regulations are observed.
2.3. General Safety
Instructions
Commissioning and inspection
Before commissioning, carefully read the user's guide.
The system must not be used in applications in which the safety of persons is dependent
upon proper functioning of the device.
Authorized personnel
Installation and startup must only be carried out by trained technical personnel.
Intended use
Warranty and liability claims against the manufacturer are rendered void by:
−Unauthorized tampering
−Improper use
−Use, installation or handling contrary to the instructions provided in this user's
guide
Obligations of the operating company
The device is a piece of equipment in accordance with EMC Class A. This device can
produce RF noise. The operator must take appropriate precautionary measures. The device
may only be used with an approved power supply. Only use approved cables.
Malfunctions
In the event of defects and device malfunctions that cannot be rectified, the device must be
taken out of operation and protected against unauthorized use.
Intended use is ensured only when the housing is fully installed.
2.4. Resistance to
aggressive
substances
Attention!
The BNI modules generally have a good chemical and oil resistance. When
used in aggressive media (eg chemicals, oils, lubricants and coolants each in
high concentration (ie, low water content)) must be checked prior application-
related material compatibility. In the event of failure or damage to the BNI
modules due to such aggressive media are no claims for defects.
Hazardous
voltage
Attention!
Before maintenance, disconnect the device from the power supply.
Note
In the interests of product improvement, Balluff GmbH reserves the right to
change the technical data of the product and the content of this manual at any
time without notice.

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
6
3First Steps
3.1. Connection
overview
Figure 3-1: Connection overview BNI IOL-302-002-K006
1 Mounting hole
2 IO-Link interface
3 Standard I/O port 1
4 Standard I/O port 3
5 Status LED: Standard I/O port 5 (pin 2)
6 Standard I/O port 5
7 Status LED: Standard I/O port 5 (pin 4)
8 Extension port or standard I/O port 7
9 Status LED: Power supply for sensors
10Standard I/O port 6
11Standard I/O port 4
12Standard I/O port 2
13Standard I/O port 0
14Label
15Status LED IO-Link
16Status LED power supply for actuators
17Ground connection
17
7
1
2
3
4
5
6
7
8
9
10
1
11
12
13
14
55
5
1
15
16

www.balluff.com
7
3 First Steps
3.2. Mechanical
Connection
The BNI IOL modules are fastened with 3 M4 screws (position 1, Fig. 3-1/3-2).
3.3. Electrical
Connection
The BNI IOL-302-xxx-K006 modules do not require a separate supply voltage connection.
Supply voltage is provided via the IO-Link interface and the higher-level IO-Link master
module.

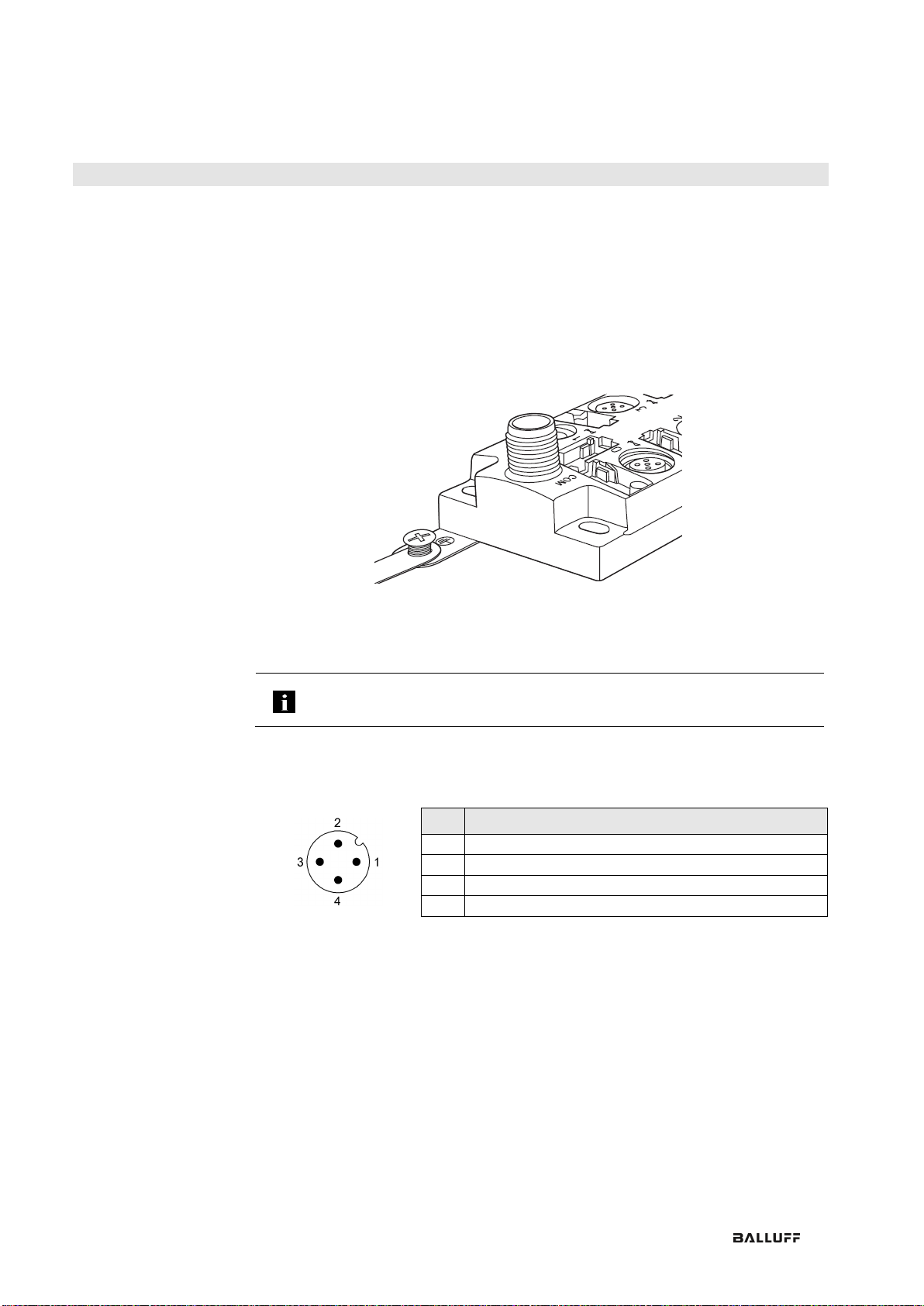

Function ground
The modules are equipped with a ground connection.
Figure 3-3: BNI ground connection IOL-302...
➢Connect the sensor hub module to the ground connection.
Note
The FE connection from the housing to the machine must have low-impedance
and be kept as short as possible.
IO-Link
connection
The IO-Link connection is established via an M12 connector (A-coded, male).
IO-Link (M12, A-coded, male)
Pin
Requirement
1
Supply voltage for controller US +24 V
2
Supply voltage for actuators UA, +24 V
3
GND, reference potential
4
C/Q, IO-Link data transmission channel

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
8
3 First Steps
Connecting the
sensor hub
➢Connect ground conductor to the FE terminal, if available.
➢Connect the incoming IO-Link cable to the sensor hub.
Note
A standardized sensor cable is used to connect to the higher-level IO-Link master
module. Maximum length of 20 m.
Module variants
Sensor hub variants
Digital port
BNI IOL-302-002-K006
16 inputs/outputs, freely configurable
Digital sensors
Digital input/output port (M12, A-coded, female)
Pin
Requirement
1
+24 V
2
Input 2/output 2
3
0 V, GND
4
Input 1/output 1
5
FE
Note
For the digital inputs, the input guideline specified in EN 61131-2, Type 3 applies.
Note
Unused input port sockets must be fitted with blind caps to ensure the IP67
protection rating.
Extension port
Digital input/output port (M12, A-coded, female)
Pin
Requirement
1
+24 V
2
Extension port for actuator power supply
3
0 V, GND
4
Communication
5
FE
Note
A standardized sensor cable is used to connect to the device to be extended.
Maximum length of 20 m.

www.balluff.com
9
3 First Steps
Extension port
The BNI IOL-302-002-K006 module gives you the ability to use the No. 7 slot in various
ways. By default, it is used as a digital I/O slot, where both pin 2 and pin 4 can be used as a
digital input or output.
This slot can be used as an Extension port by making a corresponding entry in the
parameter with an index of 55hex. This makes it possible to operate one of the following
modules using the No. 7 slot.
BNI IOL-302-002-K006
BNI IOL-751-V08-K007
BNI IOL-751-V10-K007
BNI IOL-751-V13-K007
Extension port
configuration
Configuration
Index 55hex value
BNI IOL-302-002-K006
0
BNI IOL-302-002-K006 with BNI IOL-302-002-K006
1
BNI IOL-302-002-K006 with BNI IOL-751-V08-K007
2
BNI IOL-302-002-K006 with BNI IOL-751-V10-K007
3
BNI IOL-302-002-K006 with BNI IOL-751-V13-K007
4
Note
The "Factory reset" command does not affect the configuration of the extension
port in any way.

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
10
4Configuration: "Extension Off"
4.1. IO-Link Data
BNI IOL-302-002-K006 Extension off
Transfer rate
COM2 (38.4 kbaud)
Minimum cycle time
3.5 ms
Process data length
2 byte input, 2 byte output
4.2. Process Data/
Input Data
BNI IOL-302-000-K006
Process data length of 2 bytes:
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Input Port 7 Pin 4
Input Port 6 Pin 4
Input Port 5 Pin 4
Input Port 4 Pin 4
Input Port 3 Pin 4
Input Port 2 Pin 4
Input Port 1 Pin 4
Input Port 0 Pin 4
Input Port 7 Pin 2
Input Port 6 Pin 2
Input Port 5 Pin 2
Input Port 4 Pin 2
Input Port 3 Pin 2
Input Port 2 Pin 2
Input Port 1 Pin 2
Input Port 0 Pin 2
4.3. Process Data/
Output Data
BNI IOL-302-000-K006
Process data length of 2 bytes
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Output Port 7 Pin 4
Output Port 6 Pin 4
Output Port 5 Pin 4
Output Port 4 Pin 4
Output Port 3 Pin 4
Output Port 2 Pin 4
Output Port 1 Pin 4
Output Port 0 Pin 4
Output Port 7 Pin 2
Output Port 6 Pin 2
Output Port 5 Pin 2
Output Port 4 Pin 2
Output Port 3 Pin 2
Output Port 2 Pin 2
Output Port 1 Pin 2
Output Port 0 Pin 2

www.balluff.com
11
4 Configuration: "Extension Off"
4.4. Parameter Data/
Demand Data
DPP
ISDU
Parameter
Data
width
Access
rights
Default value
Index
Index
Sub-
index
Identification data
07hex
Vendor ID
2 bytes
Read only
0378hex
08hex
09hex
Device ID
3 bytes
05 0B 00hex
0Ahex
0Bhex
10hex
0
Vendor name
7 bytes
BALLUFF
11hex
0
Vendor text
15 bytes
www.balluff.com
12hex
0
Product
name
BNI IOL-302-002-K006
13hex
0
Product ID
7 bytes
BNI007Z
14hex
0
Product text
M12 sensor/actuator
hub
15hex
0
Serial number
16 bytes
0hex
16hex
0
Hardware
revision
17hex
0
Firmware
revision
18hex
0
Application-
specific tag
32 bytes
0hex
DPP
ISDU
Parameter
Data width
Access rights
Default
Value
Index
Index
Subindex
Parameter data
40hex
64
0
1-16
Inversion of the inputs
2 bytes
Read/write
0hex
41hex
65
0
1-16
Config. inputs/outputs
2 bytes
Read/write
0hex
42hex
66
0
1-8
Pin 4 safe state
2 bytes
Read/write
0hex
43hex
67
0
1-8
Pin 2 safe state
2 bytes
Read/write
0hex
44hex
68
0
1-16
Voltage monitoring
2 bytes
Read
-
45hex
69
0
1-16
Output monitoring
2 bytes
Read
-
46hex
70
0
1-16
Actuator warning
2 bytes
Read
-
54hex
84
0
Serial number
16 bytes
Read/write
16x00hex
55hex
85
0
Extension port
1 byte
Read/write
0hex

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
12
4 Configuration: "Extension Off"
Inversion of the
inputs 40hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Inversion of Port 7 Pin 4
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
Inversion of Port 7 Pin 2
Inversion of Port 6 Pin 2
Inversion of Port 5 Pin 2
Inversion of Port 4 Pin 2
Inversion of Port 3 Pin 2
Inversion of Port 2 Pin 2
Inversion of Port 1 Pin 2
Inversion of Port 0 Pin 2
Inversion of port (x):
0 –Normal
1 - Inverted.
Configuration
of inputs
/outputs 41hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Direction Port 7 Pin 4
Direction Port 6 Pin 4
Direction Port 5 Pin 4
Direction Port 4 Pin 4
Direction Port 3 Pin 4
Direction Port 2 Pin 4
Direction Port 1 Pin 4
Direction Port 0 Pin 4
Direction Port 7 Pin 2
Direction Port 6 Pin 2
Direction Port 5 Pin 2
Direction Port 4 Pin 2
Direction Port 3 Pin 2
Direction Port 2 Pin 2
Direction Port 1 Pin 2
Direction Port 0 Pin 2
Direction of port (x):
0 –Input
1 –Output

www.balluff.com
13
4 Configuration: "Extension Off"
Safe state of
outputs 42hex
The safe state parameter makes it possible to configure the outputs in case of a fault. If no IO-
Link communication is possible or the "valid flag" of the output process data has not been set
by the master, then each output adopts the configured status. The following statuses can be
configured for each pin.
Safe state of
the outputs on
Pin 4 42hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
4
3
2
1
8
7
6
5
Description
Safe state Port 3 Pin 4
Safe state Port 2 Pin 4
Safe state Port 1 Pin 4
Safe state Port 0 Pin 4
Safe state Port 7 Pin 4
Safe state Port 6 Pin 4
Safe state Port 5 Pin 4
Safe state Port 4 Pin 4

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
14
4 Configuration: "Extension Off"
Safe state
of the
outputs on
Pin 2 43hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
4
3
2
1
8
7
6
5
Description
Safe state Port 3 Pin 2
Safe state Port 2 Pin 2
Safe state Port 1 Pin 2
Safe state Port 0 Pin 2
Safe state Port 7 Pin 2
Safe state Port 6 Pin 2
Safe state Port 5 Pin 2
Safe state Port 4 Pin 2
Value
Output state
bin
dec
00
0
Output is 0V
01
1
Output is 24V
10
2
Current status is maintained
11
3
Not defined

www.balluff.com
15
4 Configuration: "Extension Off"
Voltage
monitoring
44hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
12
11
9
Description
Short-circuit Port 7 Pin 1
Short-circuit Port 6 Pin 1
Short-circuit Port 5 Pin 1
Short-circuit Port 4 Pin 1
Short-circuit Port 3 Pin 1
Short-circuit Port 2 Pin 1
Short-circuit Port 1 Pin 1
Short-circuit Port 0 Pin 1
-
-
-
-
Output off (UA too low)
Undervoltage UA
-
Undervoltage US
Monitoring
the outputs
45hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Short-circuit Port 7 Pin 4
Short-circuit Port 6 Pin 4
Short-circuit Port 5 Pin 4
Short-circuit Port 4 Pin 4
Short-circuit Port 3 Pin 4
Short-circuit Port 2 Pin 4
Short-circuit Port 1 Pin 4
Short-circuit Port 0 Pin 4
Short-circuit Port 7 Pin 2
Short-circuit Port 6 Pin 2
Short-circuit Port 5 Pin 2
Short-circuit Port 4 Pin 2
Short-circuit Port 3 Pin 2
Short-circuit Port 2 Pin 2
Short-circuit Port 1 Pin 2
Short-circuit Port 0 Pin 2
Actuator
warning 46hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
Warning Port 7 Pin 4
Warning Port 6 Pin 4
Warning Port 5 Pin 4
Warning Port 4 Pin 4
Warning Port 3 Pin 4
Warning Port 2 Pin 4
Warning Port 1 Pin 4
Warning Port 0 Pin 4
Warning Port 7 Pin 2
Warning Port 6 Pin 2
Warning Port 5 Pin 2
Warning Port 4 Pin 2
Warning Port 3 Pin 2
Warning Port 2 Pin 2
Warning Port 1 Pin 2
Warning Port 0 Pin 2

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
16
4 Configuration: "Extension Off"
Setting the
serial number
54hex
The serial number has a default value of 16x00hex.
In order to use the "Identity" master validation mode, a serial number can be set using this
parameter.
This prevents a device from connecting to the wrong master port.
Configuration
of the
extension port
55hex
Configuration
Index 55hex value
BNI IOL-302-002-K006
0
BNI IOL-302-002-K006 with BNI IOL-302-002-K006
1
BNI IOL-302-002-K006 with BNI IOL-751-V08-K007
2
BNI IOL-302-002-K006 with BNI IOL-751-V10-K007
3
BNI IOL-302-002-K006 with BNI IOL-751-V13-K007
4
Note
The "Factory reset" command does not affect the configuration of the extension port in
any way.

www.balluff.com
17

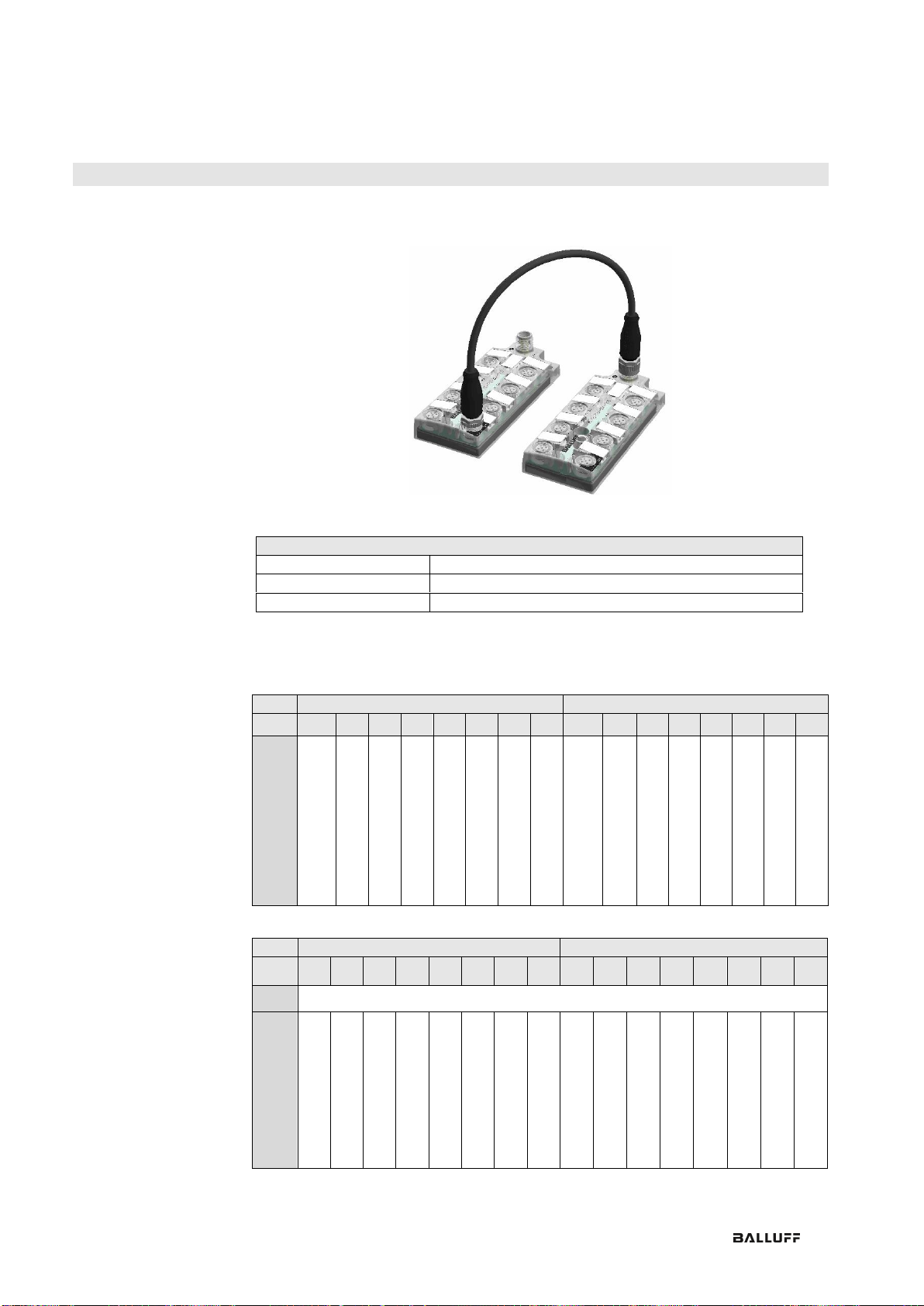

5Configuration: Extended with BNI IOL-302-002-K006
5.1. IO-Link Data
BNI IOL-302-002-K006 extended with BNI IOL-302-002-K006
Transfer rate
COM2 (38.4 kbaud)
Minimum cycle time
4.5 ms
Process data length
4 byte input, 4 byte output
5.2. Process Data/
Input Data
Process data length of 4 bytes:
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
Extension Port Connection
state
Input Port 6 pin 4
Input Port 5 pin 4
Input Port 4 pin 4
Input Port 3 pin 4
Input Port 2 pin 4
Input Port 1 pin 4
Input Port 0 pin 4
Extension Port Validation
state
Input Port 6 pin 2
Input Port 5 pin 2
Input Port 4 pin 2
Input Port 3 pin 2
Input Port 2 pin 2
Input Port 1 pin 2
Input Port 0 pin 2
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Extension port
Description
Input Port 7 pin 4
Input Port 6 pin 4
Input Port 5 pin 4
Input Port 4 pin 4
Input Port 3 pin 4
Input Port 2 pin 4
Input Port 1 pin 4
Input Port 0 pin 4
Input Port 7 pin 2
Input Port 6 pin 2
Input Port 5 pin 2
Input Port 4 pin 2
Input Port 3 pin 2
Input Port 2 pin 2
Input Port 1 pin 2
Input Port 0 pin 2

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
18
5 Configuration: Extended with BNI IOL-302-002-K006
5.3. Process Data/
Output Data
Process data length of 4 bytes
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Description
-
Output Port 6 Pin 4
Output Port 5 Pin 4
Output Port 4 Pin 4
Output Port 3 Pin 4
Output Port 2 Pin 4
Output Port 1 Pin 4
Output Port 0 Pin 4
-
Output Port 6 Pin 2
Output Port 5 Pin 2
Output Port 4 Pin 2
Output Port 3 Pin 2
Output Port 2 Pin 2
Output Port 1 Pin 2
Output Port 0 Pin 2
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Extension port
Description
Output Port 7 Pin 4
Output Port 6 Pin 4
Output Port 5 Pin 4
Output Port 4 Pin 4
Output Port 3 Pin 4
Output Port 2 Pin 4
Output Port 1 Pin 4
Output Port 0 Pin 4
Output Port 7 Pin 2
Output Port 6 Pin 2
Output Port 5 Pin 2
Output Port 4 Pin 2
Output Port 3 Pin 2
Output Port 2 Pin 2
Output Port 1 Pin 2
Output Port 0 Pin 2

www.balluff.com
19
5 Configuration: Extended with BNI IOL-302-002-K006
5.4. Parameter Data/
Demand Data
DPP
ISDU
Parameter
Data
width
Access
rights
Default value
Index
Index
Sub-
index
Identification data
07hex
Vendor ID
2 bytes
Read only
0378hex
08hex
09hex
Device ID
3 bytes
05 0B 01hex
0Ahex
0Bhex
10hex
0
Vendor Name
7 bytes
BALLUFF
11hex
0
Vendor text
15 bytes
www.balluff.com
12hex
0
Product
Name
BNI IOL-302-002-K006
with BNI IOL-302-002-
K006
13hex
0
Product ID
7 bytes
BNI007Z with BNI007Z
14hex
0
Product text
Sensor/Actor hub M12
extenden with
Sensor/Actor hub M12
15hex
0
Serial number
16 bytes
0hex
16hex
0
Hardware
revision
17hex
0
Firmware
revision
18hex
0
Application-
specific tag
32 bytes
0hex
DPP
ISDU
Parameter
Data width
Access rights
Default
Value
Index
Index
Subindex
Parameter data
40hex
64
0
1-32
Inversion of the inputs
4 bytes
Read/write
0hex
41hex
65
0
1-32
Config. inputs/outputs
4 bytes
Read/write
0hex
42hex
66
0
1-16
Safe state Pin 4
4 bytes
Read/write
0hex
43hex
67
0
1-16
Safe state Pin 2
4 bytes
Read/write
0hex
44hex
68
0
1-32
Voltage monitoring
4 bytes
Read
-
45hex
69
0
1-32
Output monitoring
4 bytes
Read
-
46hex
70
0
1-32
Actuator warning
4 bytes
Read
-
54hex
84
0
Serial number
16 bytes
Read/write
16x00hex
55hex
85
0
Extension port
1 byte
Read/write
1hex

Balluff Network Interface / IO-Link BNI IOL-302-002-K006
www.balluff.com
20
5 Configuration: Extended with BNI IOL-302-002-K006
Inversion of the
inputs 40hex
Byte
0
1
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Description
-
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
-
Inversion of Port 6 Pin 2
Inversion of Port 5 Pin 2
Inversion of Port 4 Pin 2
Inversion of Port 3 Pin 2
Inversion of Port 2 Pin 2
Inversion of Port 1 Pin 2
Inversion of Port 0 Pin 2
Byte
2
3
Bit
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
Sub-
index
24
23
22
21
20
19
18
17
32
31
30
29
28
27
26
25
Extension port
Description
Inversion of Port 7 Pin 4
Inversion of Port 6 Pin 4
Inversion of Port 5 Pin 4
Inversion of Port 4 Pin 4
Inversion of Port 3 Pin 4
Inversion of Port 2 Pin 4
Inversion of Port 1 Pin 4
Inversion of Port 0 Pin 4
Inversion of Port 7 Pin 2
Inversion of Port 6 Pin 2
Inversion of Port 5 Pin 2
Inversion of Port 4 Pin 2
Inversion of Port 3 Pin 2
Inversion of Port 2 Pin 2
Inversion of Port 1 Pin 2
Inversion of Port 0 Pin 2
Inversion of port (x):
0 –Normal
1 - Inverted
