GRC003 Heavy Duty
Hand Tool
Operating
Instructions

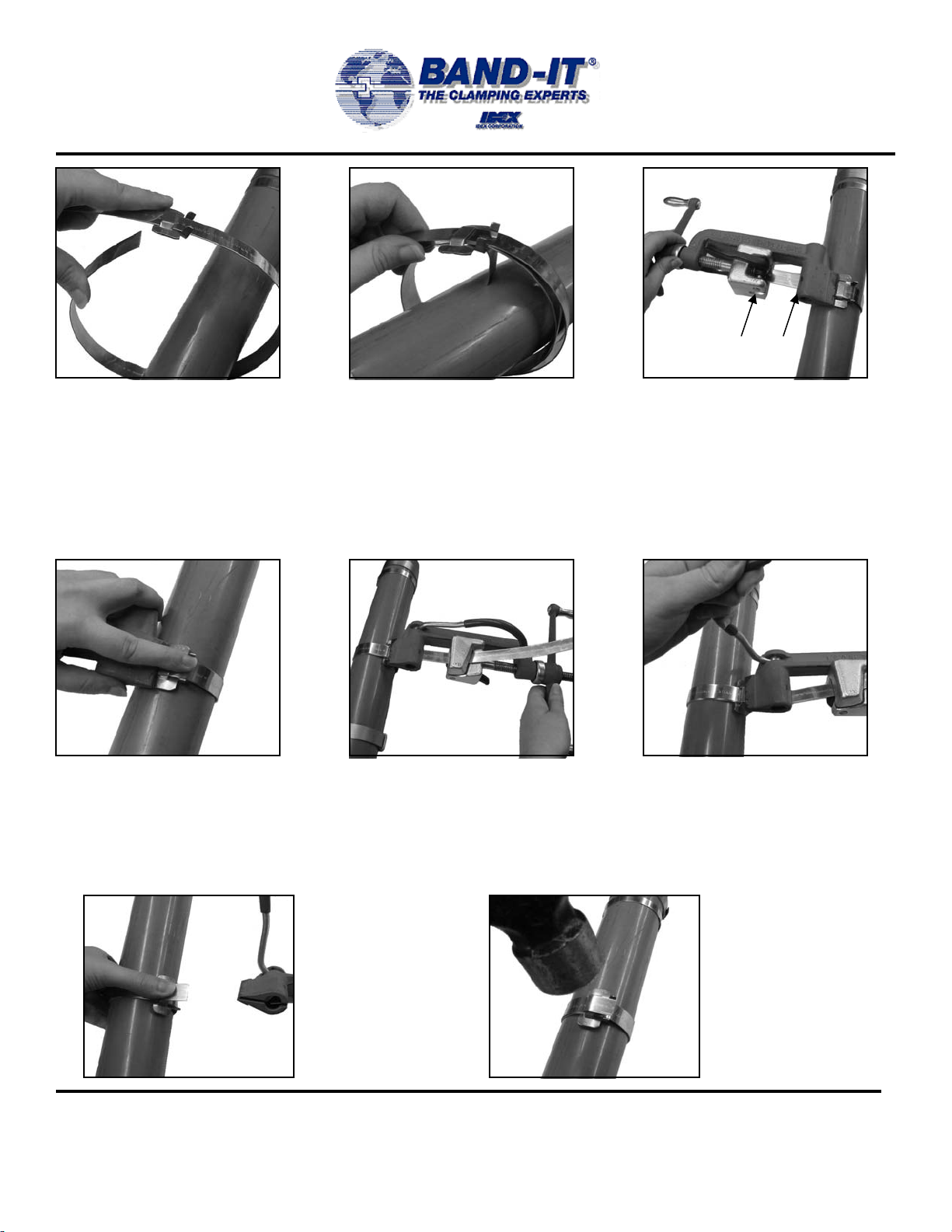

1. Band may be used from bulk roll as
this completely eliminates waste of
band. Slide buckle on band as shown,
bringing end of band around object to
be clamped and again through buckle.
2. Continue band around object once
more and again through buckle.
Double banding develops a great deal
more radial compression than single
banding. Bend end of band under
buckle.
3. Place band in opening of tool nose
and gripper block. Move into slot as
far as possible, to avoid buckle sliding
into tool nose. Tighten band clamp by
turning the tension handle clockwise
while holding band gripper tight
against band. NOTE: The spring load
of the band gripper is not intended to
secure and prevent the band from
slipping during tension process.
4. Place finger on BAND-IT Band at
buckle bridge while tensioning with tool
handle. When you feel BAND-IT Band
stop moving through buckle as you are
turning handle, maximum pressure is
being exerted by the BAND-IT Band
around object being clamped. Stop
turning handle.
5. Roll tool over buckle, backing off
with tension handle 1-1½ turns
throughout entire rolling operation.
Failure to back off tension with tension
handle throughout entire course of roll-
over may result in breaking of band.
There is no loss of tension as band
released is used up in the bend.
6. Pull cutting handle to cut the band.
When applying Giant Band clamps,
prior to cutting off clamp, release band
gripper and push tool nose away from
buckle approx. ¼”.
7. Remove tool,
holding stub of band
down with thumb.
8. Hammer
down buckle
ears to complete
BAND-IT clamp.

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925
Document # P46250 Rev. -
© Copyright
BAND-IT-IDEX, Inc. 2008
All rights reserved
www.BAND-IT-IDEX.com
Page 2 of 3
GRC003 Heavy Duty
Hand Tool
NOTE: Periodically apply food-grade white lubricant or equivalent to tension screw thread (Item 6
on page 3) to prevent excessive wear.
If tool fails to securely grip tail of clamp, follow gripper cleaning instructions above.
Refer to website for warranty information: http://www.band-it-idex.com/warranty.html
3. Replace pin. Gripper spring must be
seated in tension screw hole. Align
gripper hole with slide block hole, insert
pin in hole and hammer pin in place.
2. Using a wire brush, clean all
foreign matter from teeth.
1. Remove gripper. Align gripper pin
hole with notch in tool frame. Using a
punch and hammer, punch pin out of
slide block.
Gripper Cleaning Instructions:
Cleaning and
Warranty

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925
Document # P46250 Rev. -
© Copyright
BAND-IT-IDEX, Inc. 2008
All rights reserved
www.BAND-IT-IDEX.com
Page 3 of 3
GRC003 Heavy Duty
Hand Tool
Tool Assembly
Parts List
1
2
3 4
5 6
8
9
10
11
12
On back side
7
13 15
14
GRC003 BAND-IT TOOL, REPAIR PARTS LIST
ASSY # ITEM DESCRIPTION QTY
C02187 1 TOOL FRAME 1
C07086 2 THRUST BEARING 1
3 PIN, ECC. LEVER PIVOT 1
4 BAND GRIPPER 1
C01899 5 GRIPPER SPRING 1
6 SPIN GRIP 2
7 EXTERNAL RETAINING RING 2
8 BUSHING, TENSION HANDLE 1
9 TENSION HANDLE 1
C04799
10 SET SCREW, HALF DOG 1
11 CUTTER BAR HANDLE 1
12 VINYL GRIP 1
13 SET SCREW 1
C05887
14 CUTTER BAR 1
C04986 15
TENSION SCREW, 5/8”,
LUBRICANT, FIN 1
1. To assist in removing threaded parts,
apply heat to soften locking compound.
2. When connecting item 13 (set screw)
to item 14 (cutter bar), clean threads
(male and female) of foreign matter,
then apply one drop of medium strength
locking compound (Loctite 242 or
equiv.) onto male thread and connect
parts together.
3. Kit # C01899 contains one each of a
C01887 band gripper, C03186 gripper
spring and C01787 pin. Replace all
parts as a new set to maximize tool
performance. Periodic cleaning of band
gripper teeth will improve tool
performance.
