S03869 - BAND-IT
Center Punch Tool
Operating
Manual

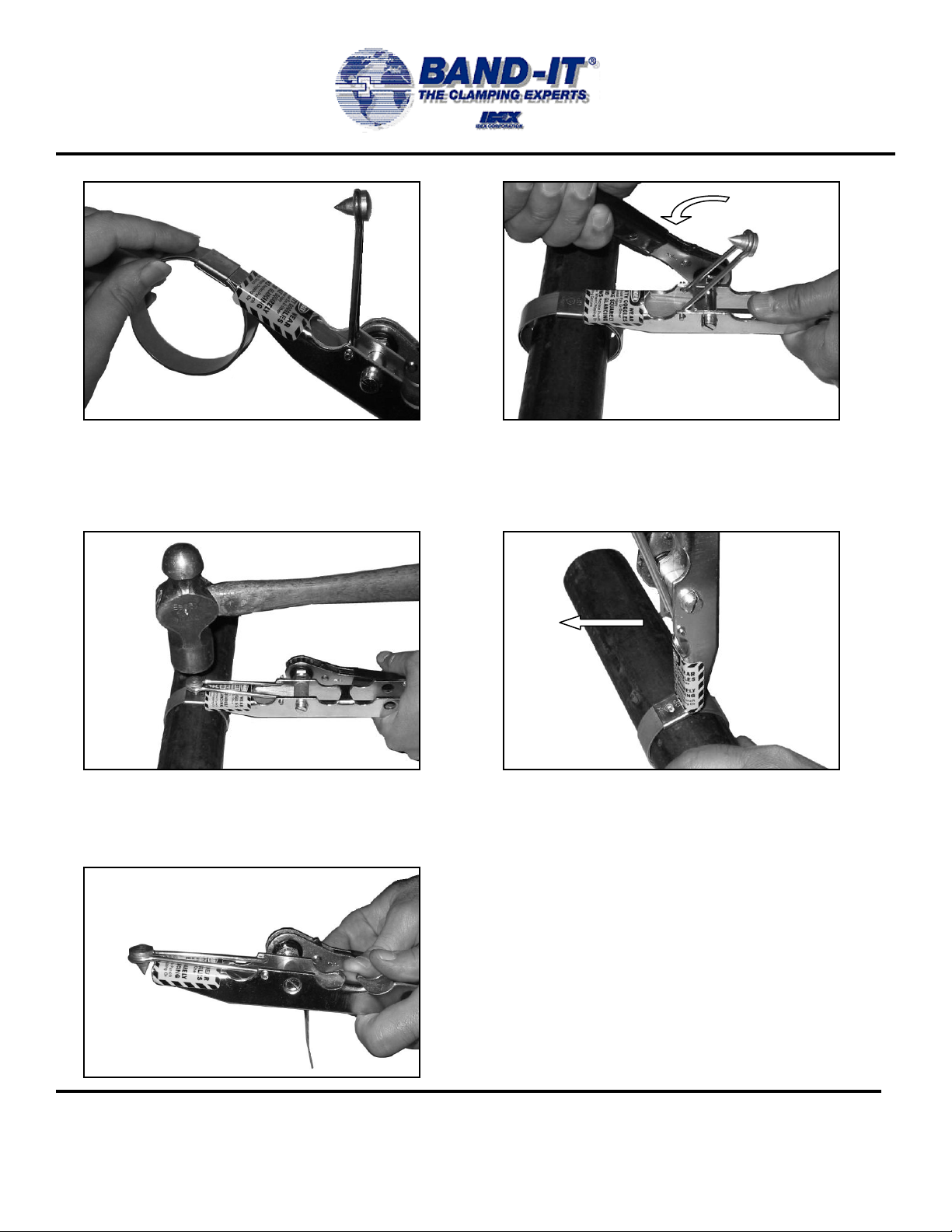

1.
Tool is designed specifically for 3/8” and 5/8”
center punch clamps only. Insert clamp in tool and
then insert wrench assembly. If you prefer, install
wrench assembly before clamp is inserted. Slot must
be aligned with clamp tail.
2.
Start “pumping” ratchet wrench forward until proper
tension has been applied.
3.
Place punch on clamp and while holding
tension with ratchet wrench, lock clamp by striking
punch once or more with hammer, depending on
object being clamped.
4.
While holding tension with wrench, pivot tool up
against buckle, then backward several times to
break off clamp tail.
5.
To loosen clamp tail, wind ratchet wrench until
tail is free. Remove ratchet wrench assembly and
clamp tail. Caution: Clamp tail may spring back
once released from tool nose.

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925
Document # PO6788 rev. D
© Copyright
BAND-IT-IDEX, Inc. 2006
All rights reserved
www.BAND-IT-IDEX.com
Page 2 of 2
S03869 - BAND-IT
Center Punch Tool
Repair Parts List &
Warranty
Refer to website for warranty information: http://www.band-it-idex.com/warranty.html
REPAIR PARTS LIST – S038 CENTER PUNCH TOOL
ITEM
NUMBER
PART
NUMBER DESCRIPTION
1 J02786* WINDING MANDREL ASSEMBLY
2 S20288 PUNCH HOLDER ASSEMBLY
* REPAIR PARTS MAY APPEAR DIFFERENT THAN ILLUSTRATED .
1 2
