BDI Sequel 20 6101 User manual

SEQUEL®20 6101/6103
DESK/COMPACT DESK
DESIGN MATTHEW WEATHERLY
LET’S GET STARTED.
INSTRUCTION MANUAL
6103 SHOWN

BDIUSA.COM | 3NEED ASSISTANCE? customerservic[email protected]
Congratulations on the purchase of your Sequel 20 Desk 6101 / Compact Desk 6103 from
BDI. Your desk has been designed to provide a lifetime of enjoyment. This manual will
provide you with assembly instructions and other helpful information that will ensure
that you get the most out of your desk. Please save it for future reference.
Your Sequel 20 Desk has been engineered for simple assembly. Please follow these
directions carefully to prevent any damage.
Should you need further assistance, contact BDI at [e-mail].
ENJOY!

4 | BDIUSA.COM SEQUEL 20 6101 & 6103

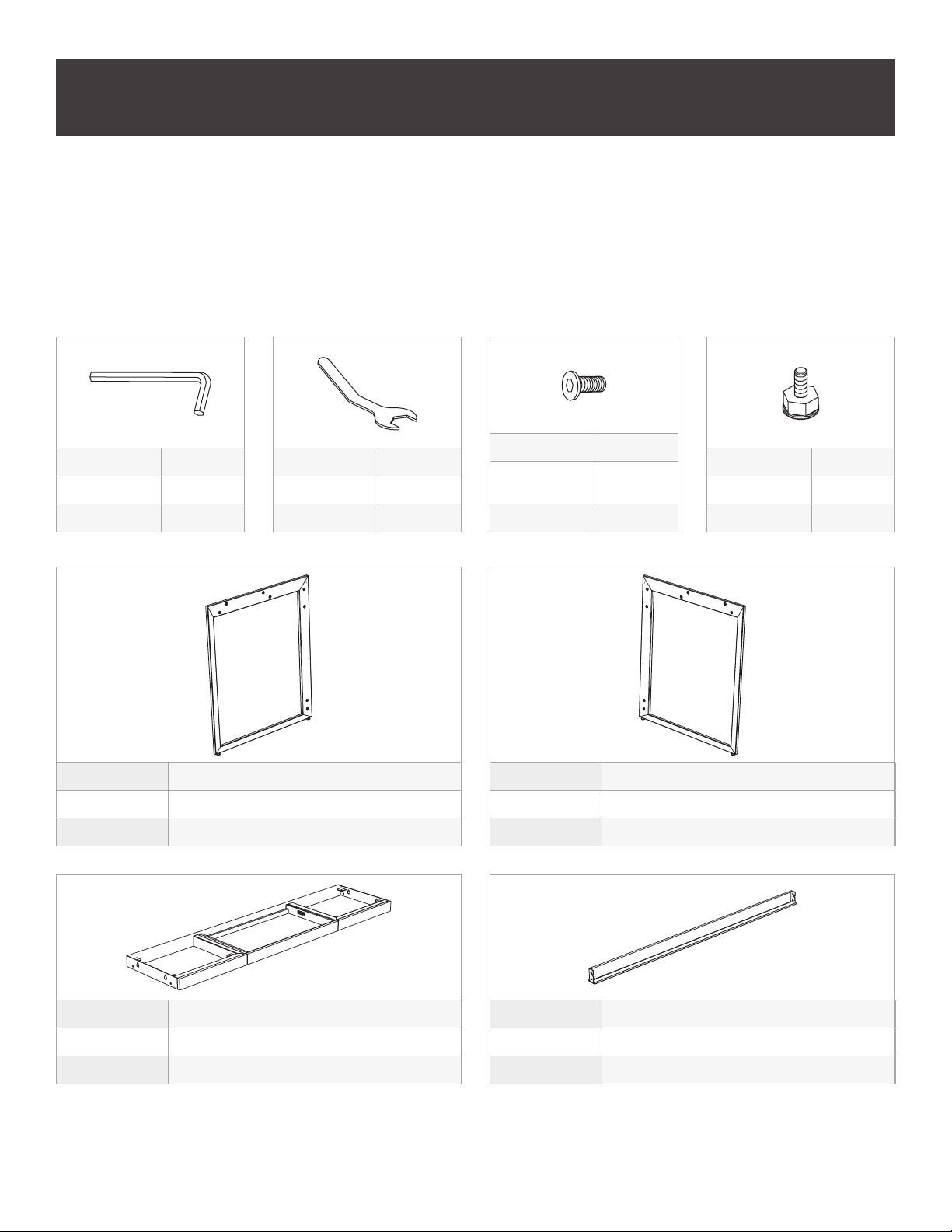

HARDWARE AND COMPONENTSHARDWARE AND COMPONENTS
PART # C2
DESCRIPTION Right Leg Frame
QUANTITY 1
PART # C4
DESCRIPTION Lower Horizontal Frame
QUANTITY 1
PART # C1
DESCRIPTION Left Leg Frame
QUANTITY 1
PART # C3
DESCRIPTION Drawer Assembly
QUANTITY 1
PART # T1
DESCRIPTION Hex Wrench
QUANTITY 1
PART # T2
DESCRIPTION Hex Wrench
QUANTITY 1
PART # H1
DESCRIPTION M6 x 15mm
Screw
QUANTITY 22
PART # H2
DESCRIPTION Leveler
QUANTITY 4
Unpack and identify the parts listed below. The assembly workspace should be a non-marring
surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at
customerservic[email protected]om.
Do not use power tools for assembly of this product.
For all other concerns, please contact your BDI retailer.

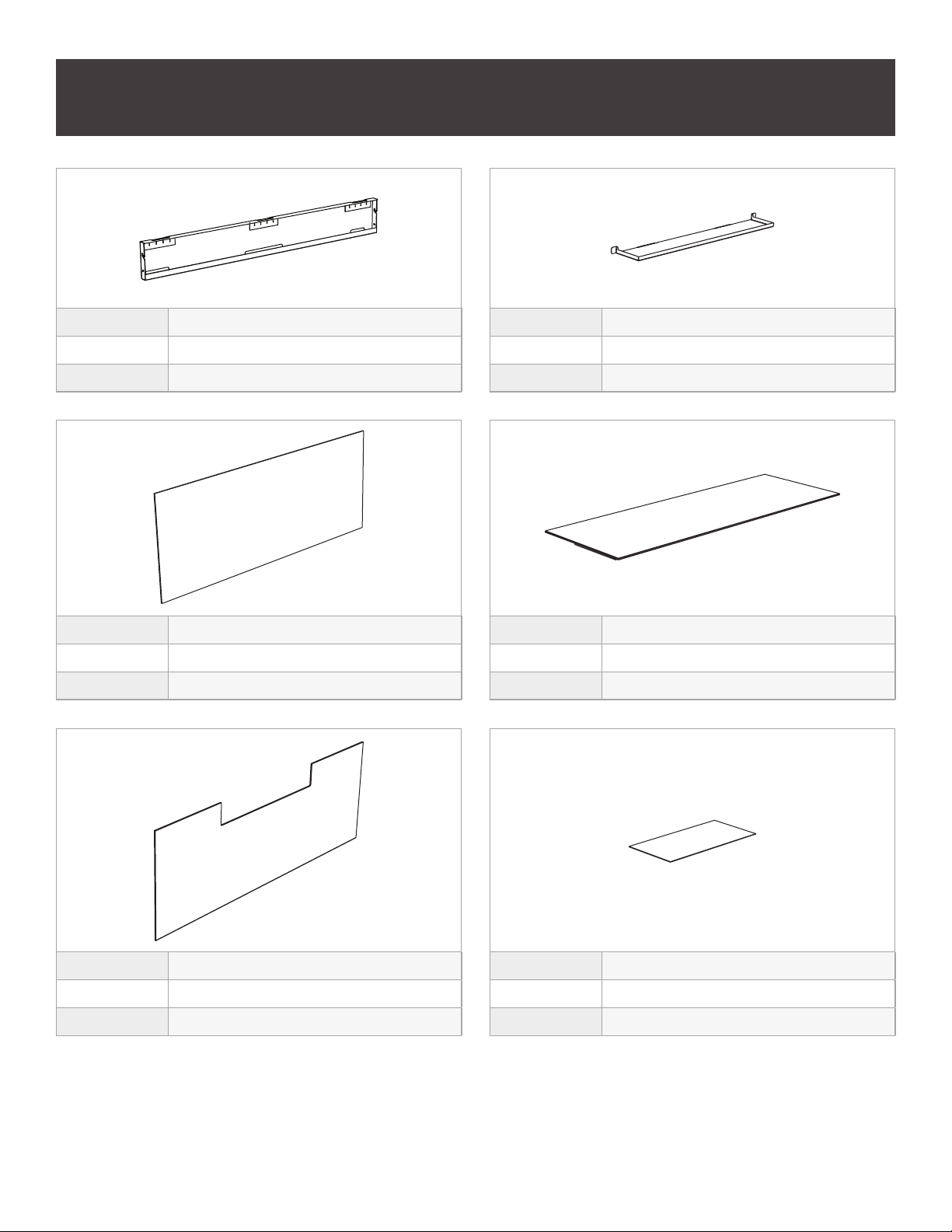

HARDWARE AND COMPONENTS
BDIUSA.COM | 5NEED ASSISTANCE? customerservic[email protected]
PART # C6
DESCRIPTION Wire Tray
QUANTITY 1
PART # C8
DESCRIPTION Top Panel
QUANTITY 1
PART # C10
DESCRIPTION Drawer Liner
QUANTITY 1
PART # C5
DESCRIPTION Upper Horizontal Frame
QUANTITY 1
PART # C7
DESCRIPTION 6108 Back Panel* see Note in Step 9
QUANTITY 1
PART # C9
DESCRIPTION Front Panel
QUANTITY 1

6 | BDIUSA.COM SEQUEL 20 6101 & 6103

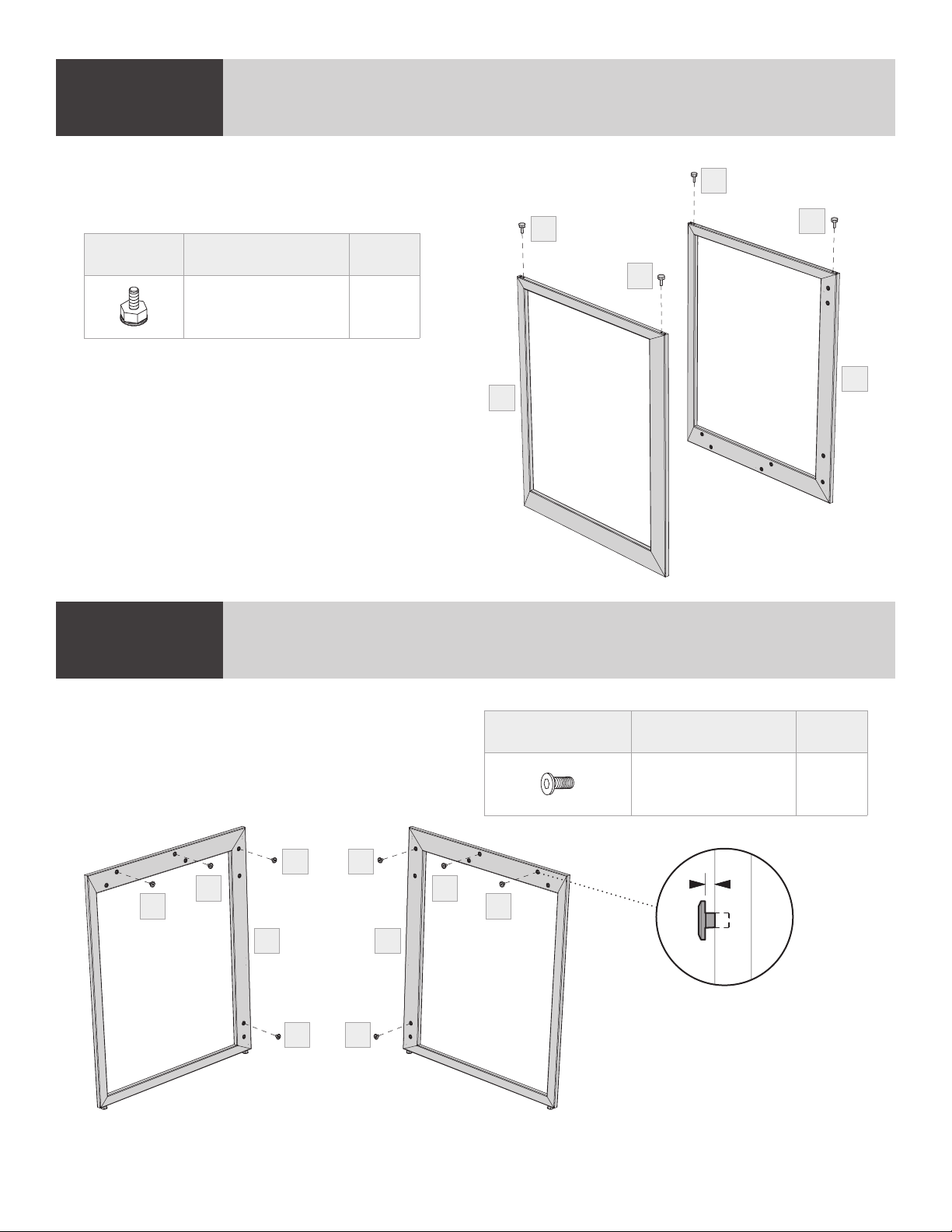

Install (H2) Levelers into the bottom of
(C1) Left and (C2) Right Leg Frames.
PART/DESCRIPTION QTY
H2-LEVELER 4
With levelers down, partially install (H1) Screws
into the upper holes of the paired inserts on the
inside edges of (C1) Left and (C2) Right Leg
Frames. (H1) Screw heads should be 1/4"(6mm)
away from frame.
PART/DESCRIPTION QTY
H1-SCREW 8
STEP 1. INSTALL LEVELERS
STEP 2. INSTALL SCREWS (PARTIALLY)
ASSEMBLY
ASSEMBLY
H2
H2
H2
H2
C1
C2
Screw Heads
1/4"(6mm) away from frame
H1H1
H1H1
H1H1
H1H1
C1 C2

BDIUSA.COM | 7NEED ASSISTANCE? customerservic[email protected]
On a soft surface such as a carpet, position (C2) Right Leg Frame as shown and hook (C3) Drawer
Assembly Frame onto the partially threaded screws on the top of (C2) Right Leg Frame. Slide the
frame down so that the screws go into the keyhole slot.
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H1-SCREW 2
ASSEMBLY
STEP 3. INSTALL DRAWER ASSEMBLY FRAME
Hook onto partially
threaded screw head
Wood facia
facing thinner
section of
front leg
C2
C3
C3
Insert (H1) Screws into the lower holes and
partially tighten with (T1) Hex Wrench.
H1
H1 H1
C2

8 | BDIUSA.COM SEQUEL 20 6101 & 6103
Lift and hook the (C3) Drawer Assembly Frame
onto the 2 partially threaded screws at the top
of (C1) Left Leg Frame. Insert (H1) Screws into
the lower holes and partially tighten with
(T1) Hex Wrench.
STEP 4. INSTALL DRAWER ASSEMBLY FRAMEASSEMBLY
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H1-SCREW 2
C1
C3
C3 C1
H1
Wood facia
facing thinner
section of
front leg

BDIUSA.COM | 9NEED ASSISTANCE? customerservic[email protected]
Lift and hook the (C4) Lower Horizontal Frame
onto the partially threaded screws as shown.
Insert (H1) Screws into the lower holes and
partially tighten with (T1) Hex Wrench.
ASSEMBLY
STEP 5. INSTALL LOWER HORIZONTAL FRAME
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H1-SCREW 2
C4
C1
C2
C4
C1/C2
H1
C4
C1/C2

10 | BDIUSA.COM SEQUEL 20 6101 & 6103
Lift and hook the (C5) Upper Horizontal Frame
onto the partially threaded screws as shown.
Insert (H1) Screws into the lower holes and
partially tighten with (T1) Hex Wrench.
Including previous steps, fully tighten all screws!

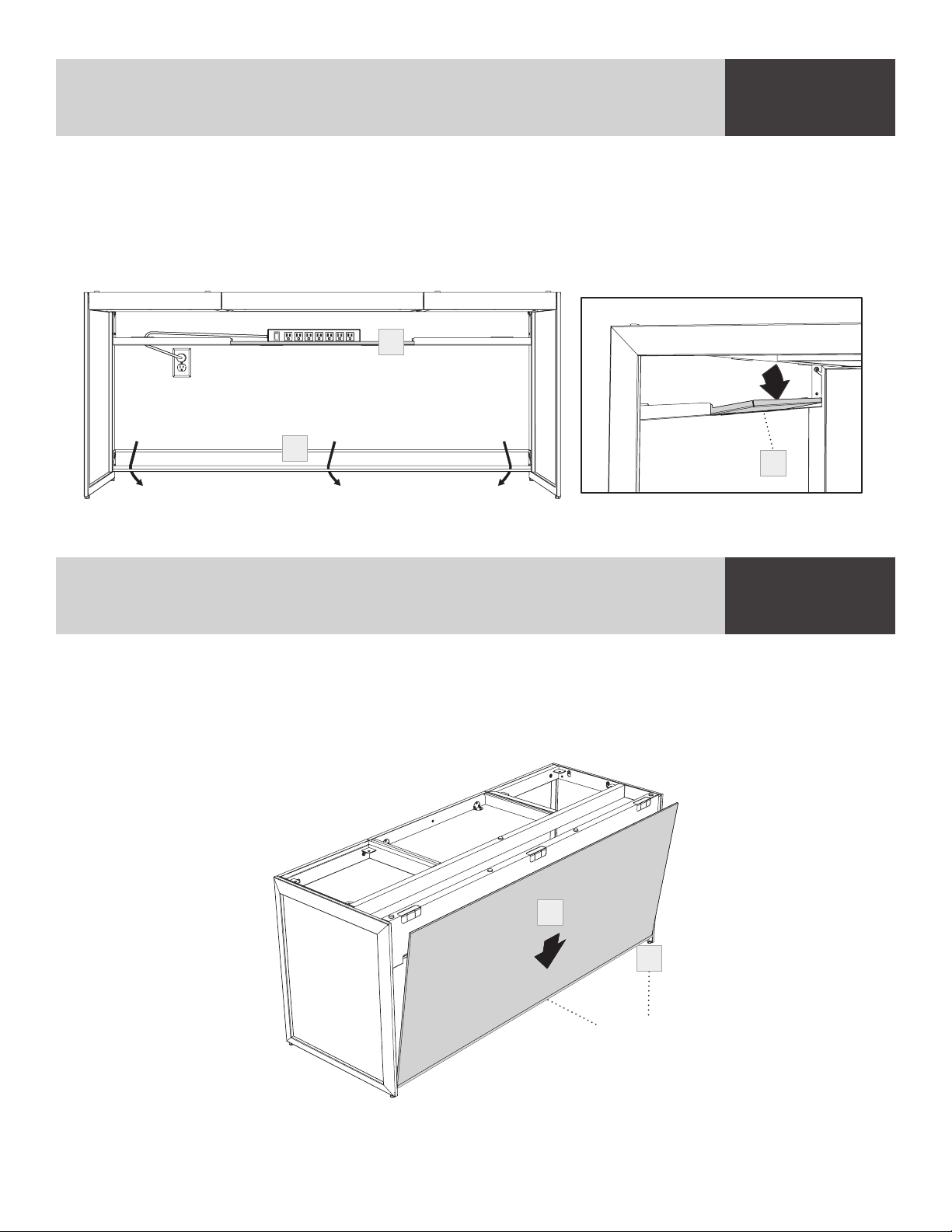

Install the (C6) Wire Tray as shown by inserting the 2 metal tabs into the 2 slots on the (C5) Upper
Horizontal Frame.
STEP 6. INSTALL UPPER HORIZONTAL FRAME
STEP 7. INSTALL WIRE TRAY
ASSEMBLY
ASSEMBLY
Slot
Ta b
C6
C6
C5
C5
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H1-SCREW 2
C5
C5
C1
C2
C5
H1
C1/C2 C1/C2
