Bea-fon SL560 User manual

User Manual
English
Bea-fon SL560 / SL450

2
General Information
Congratulations on the purchase of your
Bea-fon SL560 / SL450!
Please read this information before using
the phone to make a better use of your
phone. We are not responsible for any
damage due to your misunderstanding of
this information and misacting.
We are endeavouring to improve our
products and services. We reserve all the
rights to revise and change the
description of this product and its
software as well as this user’s manual
without obligation to notify any person of
such revisions and changes.
This user manual is for your better use of
this phone not an approval of any
accessories. All the pictures in this
manual are for reference only. There may
be slight difference between the
appearance of phone/ keys/ contents of
display used in this manual and those of
your phone. Please refer to your phone
for actuality. Some features introduced in
this manual are network or subscription-

3
supported features. Please contact your
network operator for further information.
Please check the package contents to
ensure that all components listed below
are included. If the product is defective or
if there is a component missing,
immediately contact the retailer where
you purchased this handset.

4
General Information
Your Bea-fon SL560 / SL450 box
contains:
•1 mobile phone (SL560 / SL450)
•1 desktop charger (SL560 / SL450)
•1 travel charger (SL560 / SL450)
•1 battery (SL560 / SL450)
•1 USB cable (SL560 / SL450)
•User manuals (SL560 / SL450)
If you find the size of the script not easily
readable for you, you can also find this
manual on our website, where you will be
able to adjust the size of the script.
Go to: www.beafon.com/Products
Device Code:
This device code ensures that
unauthorized persons will not be able to
use your phone. The default code is 0000
PIN-Code:
The PIN-code was supplied to you by
your network operator together with your
SIM card and/or adjusted/set up by
yourself.

5
Directory
General Information ............................1
Device Code: ...................................4
PIN-Code: .......................................4
Directory............................................5
Your Phone.........................................9
Getting started..................................11
What is a SIM card? .......................11
Insert the SIM card (and Micro SD card
only SL560)as follows:....................11
Insert the battery as follows:...........12
Charging the battery: .....................13
Switching the telephone on or off:....15
Display (Standby mode): ................16
Screen icons:.................................16
Menu Operation .............................18
Connect an optional headset............19
Call function .....................................20
Make a call:...................................20
Make a call using the phone book: ...20
Answering a call: ...........................21
Operations during a call: .................21
Hands Free: ..................................22
Menu ...............................................22
LED describtion .................................23
Phonebook .......................................24
To access the phonebook: ...............24
Add new contact: ...........................24

6
To edit (change) a Phone Book entry:
...................................................25
To delete all entries from the phone or
SIM card .......................................25
To copy all entries from the phone or
SIM card .......................................25
Store a Phonebook entry to a Speed
dial key (2-9) ................................26
Direct Number:..............................26
Photo contacts (only SL560) ............27
Messages .........................................28
Write message...............................28
Inbox: ..........................................29
Outbox: ........................................30
Drafts:..........................................30
Sent messages ..............................30
Advanced ......................................31
SMS Settings .................................31
Profile:..........................................31
Preferred storage: ..........................31
Memory Status: .............................31
Voice mail: ....................................31
Call history .......................................33
Missed Dialled and Received:...........33
Delete call logs: .............................33
Organizer .........................................34
Alarm: ..........................................34
Tasks............................................34
Calculator: ....................................35

7
Multimedia .......................................36
Camera (only SL560)......................36
Take a picture: ..............................36
FM-Radio.......................................37
File Manager: ................................38
Settings ...........................................39
Tone settings: ...............................39
SOS settings..................................39
SOS description: ............................40
SOS setting:..................................42
Phone settings:..............................42
Time and date: ..............................42
Language:.....................................42
Pref. Input method:........................ 42
Wallpaper......................................42
LED Mode......................................43
LCD backlight ................................43
Call settings: .................................43
Caller ID: ......................................44
Call waiting: ..................................44
Call divert: ....................................44
Call barring: ..................................44
Call time reminder: ........................44
Answer Mode:................................ 45
Network settings:...........................45
Network selection: .........................45
Selection mode:.............................45
Connectivity: .................................46
Bluetooth:.....................................46

8
Visibility:.......................................46
My device: ....................................47
Search audio device: ......................47
My Name: .....................................47
Restore factory settings: .................48
Basic Specifications: .......................48
FAQ .................................................49
Battery ............................................52
Phone ..............................................54
For your safety .................................56
Operating environment:..................57
Electronic devices: .........................58
Pacemakers: .................................58
Hearing aids:.................................59
Other medical devices: ...................59
Posted facilities:.............................60
Vehicles:.......................................61
For your safety .................................62
Certification information (SAR): .......62
Information ......................................63
Liability Disclaimer: ........................63
Information:..................................64
Address: .......................................64

9
Your Phone
Photo: SL560
1
Direct dialing numbers M1/2
2
Main menu key / left menu key
3
Dialing / History Callsc
4
* Key, Press this button on the idle
screen to enter the following symbols
: * /+ /P / W.
5
Receiver
6
SL560: Camera key
SL450: Write message key
7
Arrow key (up), On the idle screen
this button takes you to the
Messages menu.

10
Your Phone
8
Back Key (On the idle screen this
button takes you to the Phonebook
menu.)
9
Power on/off /End key
10
Arrow key (down), On the idle
screen this button takes you to the
Photo contacts
11
# Key, Long press can switch
between in silent mode with general
modes; In edit mode, change the
input method.
12
SOS button
13
Loudspeaker
14
Charger port
15
Volume key / Torch key, Long press
the flashlight
16
Headset

11
Getting started
What is a SIM card?
Every mobile phone has a SIM card
(Subscriber Identity Module). This is a
micro-chip that holds your personal
information such as names and phone
numbers. Your phone won’t work without
it. If you already have contacts on your
SIM card, they can be transferred in most
cases.
Keep the SIM card away from children.
The SIM card can easily be damaged or
bent. You should therefore handle the
SIM card with care during installation
and/or removal.

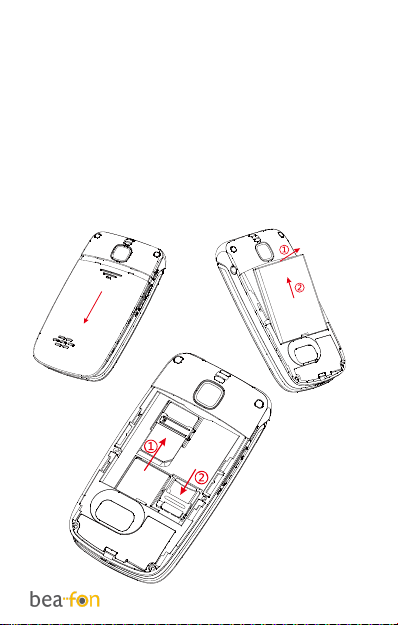

Insert the SIM card (and Micro
SD card only SL560)as follows:
1. Make sure that the phone is switched
off and the charger is disconnected
from the phone.
2. Turn the phone over and remove the
battery cover.
3. If the battery is already inside,
remove it.
4. You can see two card slots (left side:
SIM, SL560 right side: Micro SD).

12
5. Slide the SIM card carefully into the
SIM card slot. Make sure that the
gold-coloured connectors on the SIM
card are facing downwards and that
the bevelled corner is on the right.
6. Memory Card (only SL560): Slide the
Micro SD card into the Micro SD card
slot. Make sure that the gold-coloured
connectors on the micro SD card card
are facing downwards.

13

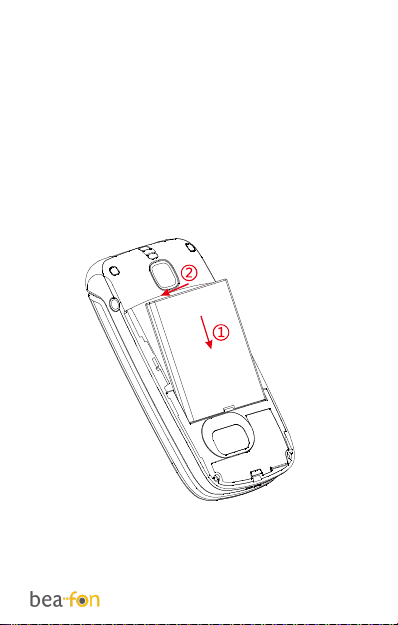

Insert the battery as follows:
1. Insert the battery by aligning the gold
contacts in the battery compartment
on the phone.
2. Push down on the upper section of the
battery until it 'clicks' into place.
3. Close the battery compartment by
sliding the cover closed until you hear
a ‘click’.
Charging the battery:
There are two ways of SL560 / SL450
battery charging:

14
A. Desktop charging
B. Travel charging
The lithium battery of the mobile phone
can be immediately used after unpacking.
A new battery, is not fully charged, and
performs best after performing a full
charge/discharge 3 times:
1. Plug the charger into the charger
connector.
2. Plug the other end into an electrical
outlet.
3. The phone may need several hours for
reaching a fully charge.
When your phone is power off, it
might take a few seconds to show
charging display and it shows charge
complete when finished.
When your phone is power on, the
battery icon flickers when it starting
charging and become still with full
bars in battery icon when finished.
4. The battery is fully charged when the
red LED is off. Disconnect the charger
from the phone and the AC outlet.
Note: Charge the battery for at least 12
hours before using the phone for the first
time.

15
Switching the telephone on or
off:
Make sure that you SIM card is in your
mobile phone and that the battery is
charged.
1. Press the red key to switch the phone
on.
2. If prompted, choose your language
and press OK.
3. If you have entered a PIN-code
before, the phone will ask for the code
now. Enter the PIN-code and confirm
by pressing OK.
4. To turn off your phone, press and hold
the red key for two seconds.
If you don’t insert a SIM card, your phone
shows Insert SIM. None of the functions
related to SIM
card can be used. You can make an
emergency call only.
Note: If you enter an incorrect PIN-code
3 times in succession, the phone will
require you to enter the PUK-code. You
received this PUK-code together with
your SIM card.

16
Display (Standby mode):
1
2
3
4
5
6
7
8
1. Signal status 5. Time
2. Pictograms 6. Date and day
3. Battery status 7. Menu
4. Network operator 8. Names
Screen icons:
Signal Strength
The vertical bars show the
network connection strength. SIM
card has signals.
New messages
This icon shows when you receive
a new message.
SIM Card has an unread message
The inbox is full.
This icon flickers when the inbox
is full and you need to delete
messages to receive new
messages.

17
Earphone
This icon shows when you plug
the earphone in. Voice will be
heard from the earphone.
Missed Calls
This icon shows when you are
viewing the missed call. SIM card
has a missed call.
Alert Type
Ring
Silent mode on and Vibration only
Vibrate and ring
Call Divert
This icon shows when you divert
all calls unconditionally. SIM card
has been set up call divert.
GPRS
This icon shows when the GPRS
connection is available or active.
Turn alarm on
This icon shows when you turn
alarm on.
Roaming
This icon shows when your phone
is in roaming state. SIM card is
roaming.

18
Bluetooth
This icon shows when the
Bluetooth is active.
Battery capacity
This icon’s colour changes
according to the status of battery
capacity: , , ,
Menu Operation
Menu lists are used for set up and
operation.
The left and right soft keys initially are
Menu ( ) and Phonebook( ). (Note:
symbols not displayed if the analogue
style clock is set for idle mode.)
Press Menu ( )and the display changes
and the soft keys become OK and Back.
Use Up or Down to move up or down
menu lists, and OK or Back for the next
or previous display.
When writing text, use the #key to
switch cases:
Upper case (ABC), Lower case (abc) or
Numerals (123). Use Up or Down to move
the cursor,
Clear to delete letters and the *key for
symbols/punctuation.

19
Connect an optional headset
You can use a headset (not supplied) with
the 3.5 mm type, plugged into the
Headset socket on the top side of the
handset.
When using headsets, including Binatone
approved ones, pay attention to volume
levels and read its user guide for safety
instructions. Do not connect incompatible
products.
When correctly inserted the headset icon
is shown.
Headset Connector:
Plug in headset accessory for headset
use.

20
Call function
Make a call:
1. To make a call, enter the phone
number with the prefix and press the
green key. For international calls,
enter ‘+’ by pressing for 2 sec.
Then enter the country code followed
by the telephone number, in which
the 0 of the prefix must be dropped.
2. If you have entered a wrong number,
press the soft key ‘right’ Clear to
remove the number to the left of the
blinking cursor.
3. Press the green key to call the
number.
4. Press the red key to end the call or to
cancel the call attempt.
Make a call using the phone
book:
If you have saved a name and number in
the phone book, you can also use the
phonebook to make a call.
In standby mode, press the soft key
‘right’ to go to Phonebook.
1. Scroll with the up and down arrow key
to the name you want to call.
