Bea-fon SL590 User manual

User Guide
EN
SL590

2
General Information
Congratulations on your purchase of
Bea-fon SL590!
Please read this information for better
handling of the telephone. We do not
assume any liability due to improper use.
We are constantly striving to improve
our products and our service. Therefore,
Bea-fon reserves the right to make
modifications and improvements to any
of the products described in this
documentation without prior notice.
The content of this User Manual is
presented as it is. Bea-fon does not
assume any responsibility for the
accuracy and completeness of the content
of this user manual.
There may be slight differences between
the images in the user guide and the
phone; these are examples, please refer
to the phone. Some functions are
dependent on a network operator; for
further information, contact your network
operator.

3
Please check the supplied accessories to
ensure that the accessories are all there.
Should one of the components be missing
or defective, please contact the dealer
where you purchased the telephone.
Bea-fon SL590 includes:
1 Phone (SL590)
1 Charging station (SL590)
1 Charger (SL590)
1 Battery (SL590)
1 USB cable (SL590)
User manual (SL590)

4
General Information
Should the font be too small and hardly
legible for you, you may view a larger
version of the user manual on our
website.
Go to Products on our website:
www.beafon.com
Device Code:
The use of this code can prevent
unauthorized persons from using this
telephone. The factory default code is:
0000
PIN Code:
The code from the network operator that
is provided with the SIM card prevents
the use of the card by unauthorized
persons. You can activate/deactivate or
change the PIN code.

5
Table of Contents
General Information ............................4
Device Code: ...................................4
PIN Code: .......................................4
Table of Contents ................................5
My Telephone .....................................9
External display .............................11
LED description..............................12
Getting Started .................................13
What is a SIM card? .......................13
Inserting the SIM cards...................13
Inserting the Micro SD card .............14
Charging the Battery ......................15
Switching the telephone on/off: .......16
Standby ........................................17
Display information distribution on
the default screen ..........................18
Display symbols .............................19
Headset/Bluetooth mode.................21
Hands-free ....................................21
Menu function................................21
Quick access buttons ......................21
Call functions....................................23
Call ..............................................23
Making a call using the phonebook ...23
Making calls using the Photo
Contacts .......................................24
Create photo contact........................24

6
Answering a call.............................26
Functions during a conversation .......27
Menu ...............................................28
Phonebook .......................................29
Accessing your telephone numbers....29
New contact ..................................29
Edit a contact: ...............................30
Delete all contacts from Phonebook
or SIM card ...................................30
Copy all contacts from Phonebook
or SIM card ...................................31
Speed dial .....................................31
Direct dial numbers M1 M2 ..............32
Messages .........................................33
Write messages .............................33
Text input .....................................33
Inbox ...........................................35
Outbox .........................................35
Drafts ...........................................35
Sent messages ..............................36
Voicemail server ............................36
Settings ........................................37
Text Messages ...............................37
MMS (setting)................................38
Calls ................................................39
Call history....................................39
Extras..............................................40
Alarm ...........................................40
Reminders.....................................40

7
Calculator......................................41
Calendar .......................................42
Services........................................42
Multimedia .......................................43
Camera.........................................43
Taking photographs........................43
Photos ..........................................45
FM radio........................................46
File manager .................................47
Copy pictures to the computer .........48
Settings ...........................................49
Profiles (sound settings) .................49
SOS .............................................50
SOS Status....................................52
SOS number..................................52
Enable/disable SOS SMS .................52
SOS message ................................53
Phone settings ...............................53
Time and date ...............................53
Language ......................................53
Preferred input method ...................53
Display Extras................................53
Show date and time: ......................53
LCD illumination.............................54
Call settings ..................................54
Caller ID .......................................54
Block function................................55
Network settings ............................55
Network selection: .........................56

8
Security settings ............................56
SIM security ..................................56
Telephone security: ........................56
Connections ..................................57
Bluetooth ......................................57
Data account .................................58
Restore factory settings ..................59
Specifications: ...............................59
Troubleshooting ................................60
Intended operation/use......................64
Phone ...........................................64
Battery .........................................66
Recycling .........................................69
For your safety .................................70
Traffic safety: ................................71
Operating environment:..................71
Electronic equipment:.....................72
Pacemakers: .................................72
Hearing aids?.................................73
Other medical equipment:...............73
Approved locations:........................74
Potentially explosive atmospheres:....74
Vehicles:.......................................75
Information ......................................76
Certification information (SAR): .......76
Declaration of Conformity: ..............77
Limitation of liability:......................77
More information............................78
Address ........................................78

9
My Telephone
Figure of SL590
1
One touch key M1
2
Left menu key/Main menu
3
Green Call key/Call logs
In order to access the call logs in
standby mode
4
* Key
Press this key in standby mode in
order to enter the following
characters: */+/P/W.
5
Speaker

10
6
Camera key
7
OK key
8
One touch key M2
9
Right menu key/in standby mode,
enter the phonebook
10
Turn on/off, end a call, decline a
call
11
4-way navigation key
Arrow key (downwards)
In standby mode, enter the photo
contacts
Arrow key (upwards): In standby
mode, enter the SMS menu,
Arrow key (left): In standby
mode, enter the calendar.
Arrow key (right): In standby
mode, enter the alarm.
12
# Pound key
Press and hold in standby mode
to activate/deactivate the silent
mode.
In write mode; change the input
method.
13
Emergency call button
14
Polyphonic speakers
15
Headset jack plug (3.5mm)
16
Micro USB charging port
17
Volume up key (+)

11
18
Flashlight
Press and hold down the volume
up 17 or down 19 key to
enable/disable the torch
19
Volume down key (-)
External display
To enable the external display for a few
seconds, press the side keys briefly.
The external display shows the following
information:
Reception strength
Battery status
Time
Date
Incoming calls (name, number or
picture (photo contact)
Alarm clock symbol
Unread message symbol

12
LED description
Green
LED
Call, Recent call or Unread
message
Red LED
Low battery
(flashing)/Charge mode
(steady light)
White
LED
Flashlight
Note: Press and hold down
the side keys to turn the
torch on/off
Camera
LEDs
External display

13
Getting Started
What is a SIM card?
Every mobile telephone requires an SIM
card (Subscriber Identity Module);
without the SIM card, you cannot make
phone calls. The SIM card is a
microprocessor that saves your data and
contacts. Therefore, handle the card with
care and exercise caution when inserting
or removing the card. Keep the SIM cards
out of reach of small children.
Inserting the SIM cards
1. The telephone must be switched off
and disconnected from the charger.
2. Remove the battery cover on the back
of the phone

14
3. Should the battery be in the device,
please remove it.
4. You see 2 card holders: the upper left
one for the SIM card and the lower
right one for the Micro SD card.
5. Carefully insert the SIM card in the
SIM card slot (1). Make sure that the
gold-colored contacts on the card are
facing downwards and the tapered
corner is facing left.
Inserting the Micro SD card
1. Slide the holder down to unlock it.
2. Open the holder and gently insert the
Micro SD card into the Micro SD card
holder (2).
3. Close the holder and push it up to lock
in place.

15

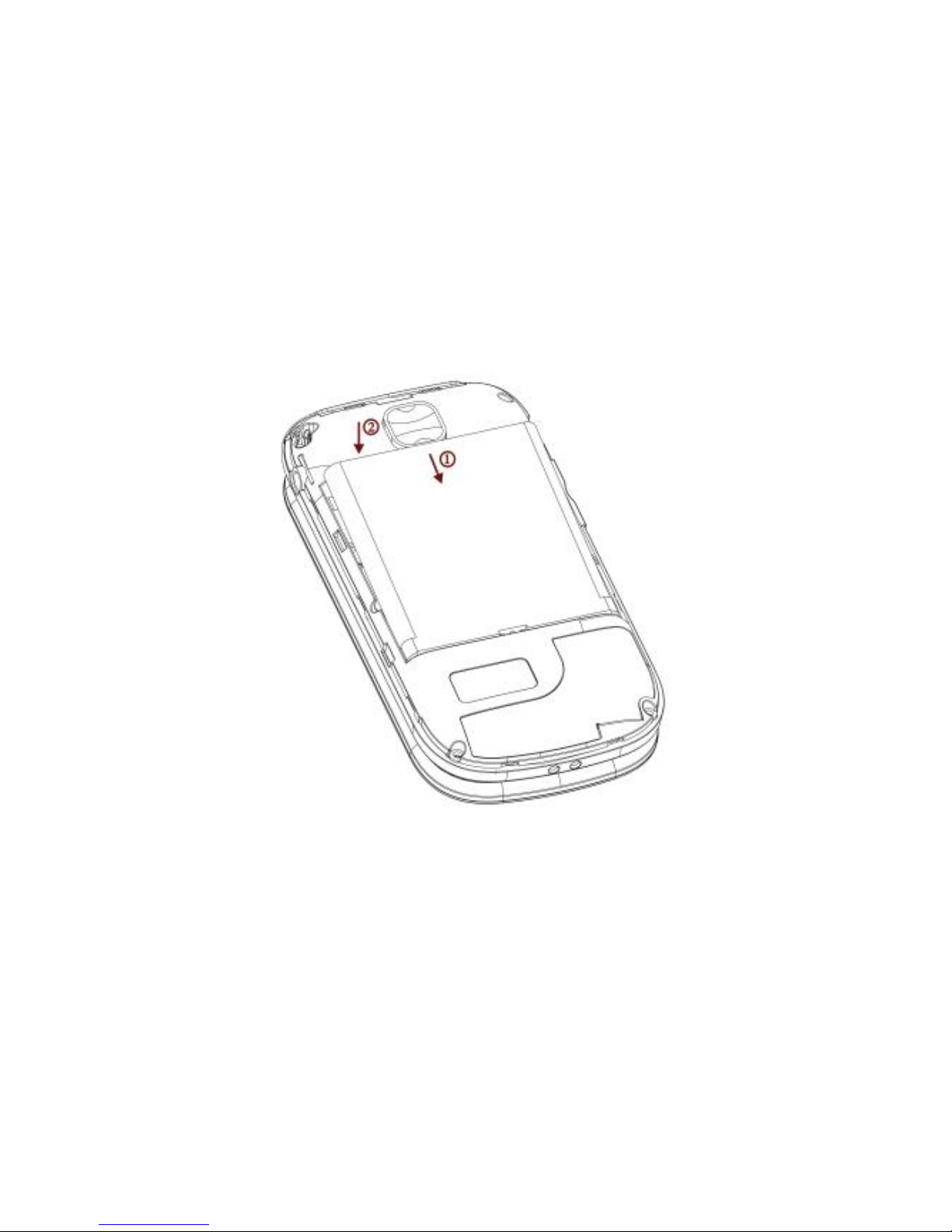

Inserting the Battery
1. Align the gold-colored contacts of
the battery with the corresponding
contacts of the phone.
2. Press the other end of the battery
until it snaps into place.
3. Slide the battery cover on the
device until it locks into place.
Charging the Battery
You have two options to charge the
SL590 battery:
A. Charging station
B. Charger
1. Insert the charger connector into the
telephone.

16
2. Connect the charger to a power
outlet.
3. It could take several hours to charge
the battery. If the telephone is
charged while it is switched off, it
takes a few seconds before the
charging indicator appears in the
display.
4. If the telephone is charged while
switched on, the battery indicator
begins to go up. The battery is fully
charged when the battery indicator no
longer goes up.
5. Disconnect the charger from the
network and from the device when it
is no longer needed!
Note: The initial charging of the battery
should take at least 12 hours.
Switching the telephone on/off:
Make sure that the SIM card is in the
telephone and that the battery is
charged.
1. Press and hold the red key for 2-3
seconds in order to switch on the
telephone.
2. If the PIN code is activated, the phone
will now prompt you for your PIN

17
code; please enter it and confirm your
entry with OK
3. Please select your language and
confirm your selection with OK
4. Press and hold the red key for
2-3 seconds in order to switch off
the telephone.
Without the SIM card, only the
emergency call number can be dialed.
Note: If you enter the PIN code
incorrectly 3 times, the phone will ask for
the PUK code that you have received
together with the SIM card.
Standby
If you do not use the telephone for a
short time period, the telephone
automatically switches to standby mode.
Press any key to exit this mode.
Calls can be answered in standby mode.

18
Display information distribution
on the default screen
1
2
3
4
5
6
7
8
1. Reception strength
2. Status symbols
3. Battery status
4. Network operator
5. Time
6. Date
7. Menu
8. Phonebook

19
Display symbols
Reception strength
The vertical bars show the
strength of the reception of your
network operator.
New Messages
This symbol is displayed once
you have received a new
message.
SIM card has an unread
message. This symbol blinks
when the Inbox folder is full.
You have to delete some
messages in order to be able to
receive new messages.
Headphones
This symbol is displayed when a
headset is plugged in.
Missed calls
This symbol is displayed if you
have not answered a call.
Call forwarding
This symbol is displayed when
all calls are forwarded.

20
Call signal
Only ring
Silent mode and vibrate
Vibrate and ring
Silent
Alarm
This symbol is displayed when
the alarm is on.
Bluetooth
This symbol is displayed when
Bluetooth is on.
Battery indicator
Battery status indicator
, , ,
GPRS
This symbol is displayed when
GPRS is enabled or available.
Roaming
This symbol is displayed for
international roaming
(Charges may apply in foreign
countries) and national roaming
(no charges)
