BMW B84 02 03 User manual

Please initial and route to the following for information before filing
XService Manager XWarranty XService Technicians - Initial Below
XService Advisor Parts Mgr.
XService Advisor BodyShop
XShop Foreman PDI Dept.
FIX IT RIGHT THE FIRST TIME, ON TIME, EVERY TIME 
2003 BMW of North America, LLC by: KRS
Installation Instructions Page 1 of
June 2003
Phone, Navigation Systems B84 02 03 Product
Development
SUBJECT
BMW Universal BluetoothTM Hands-Free-Kit
MODEL
E39 - Sedan as of 3/02
E39 - Sport Wagon as of 9/02
"Never use any electronic device or make any inputs while driving that may distract you from driving
safely.
Pay attention to traffic laws and road conditions\situations. Safe vehicle operation is the driver's
responsibility. Always wear your safety belt."
INSTALLATION TIME
The average installation time for this kit is approximately 1 hour.
These instructions were developed especially for BMW vehicles and are not to be compared to any
existing instructions for vehicles other than BMW. No methods other than those specified in this
document are to be used to install the BMW Universal BluetoothTM Hands-Free Kit.

2
PARTS INFORMATION
Description Qty BMW Part Number
ULF Control Module 1 84 21 6 934 552
Voice Input System Jumper Plug 1 84 11 0 018 038
ULF Control Module Mounting Bracket
(Sedan with Navigation produced 3/02 – 8/02)
1 84 13 6 924 547
ULF Control Module Mounting Bracket
(Sedan without Navigation produced 3/02 – 8/02)
1 84 13 6 924 546
E39 Sedan/Sport Wagon Installation Kit 1 84 11 0 302 647
Installation Kit Contents:
M5 Bolt w/Washer 3 07 11 9 902 932
M5 Clip Nut 3 61 13 1 372 033
Wire tie 2 61 13 1 367 599
Double sided tape with adhesion promoter 1 Supplied
Eject Box with Tray 1 84 21 6 933 415
Microphone 1 84 31 8 380 319
BluetoothTM Antenna 1 84 50 8 928 461
ULF Owner’s Manual 1 84 11 0 302 638
ULF Passkey Reference Card 1 84 11 0 302 646
ULF E39 Installation Instructions 1 84 11 0 302 642
Owner’s Manual For Voice Input System 1 84 11 0 027 942
PROCEDURE:
To install and connect the universal charger/hands-free electronic control unit
Disconnect Battery prior to starting the installation.
A. Eject box and BluetoothTM Antenna Installation:
1. Remove the oddment tray from the center
console by releasing the securing taps (1) on the
tray by pressing in on the taps (2) located on each
side of the armrest and pull the tray up.

3
2. To remove the armrest, first remove the oddment
tray (2) from the rear of the console using a plastic
pry tool (1) to release the taps on the tray, then
pull the tray out.
3. Slide the ventilation grill (1) down
4. Remove the two screws (2) that hold the armrest
assembly in place.
5. Lift the armrest assembly (1) off of the center
console.
6. Apply an adhesion promoter (1) to the
BluetoothTM Antenna (2), P/N 84 50 8 928 461

4
7. Apply the adhesion promoter (1) to an area in the
center console (2).
8. Remove the protective strip from one side of the
double-sided tape and place the double-sided
tape (1) onto the base of the antenna.
9. Remove the protective strip from the double-
sided tape and install the BluetoothTM antenna
with the tape (1),P/N 84 50 8 928 461 into the
area below the center armrest.
10. Connect the female FAKRA connector (1) to the
antenna.

5

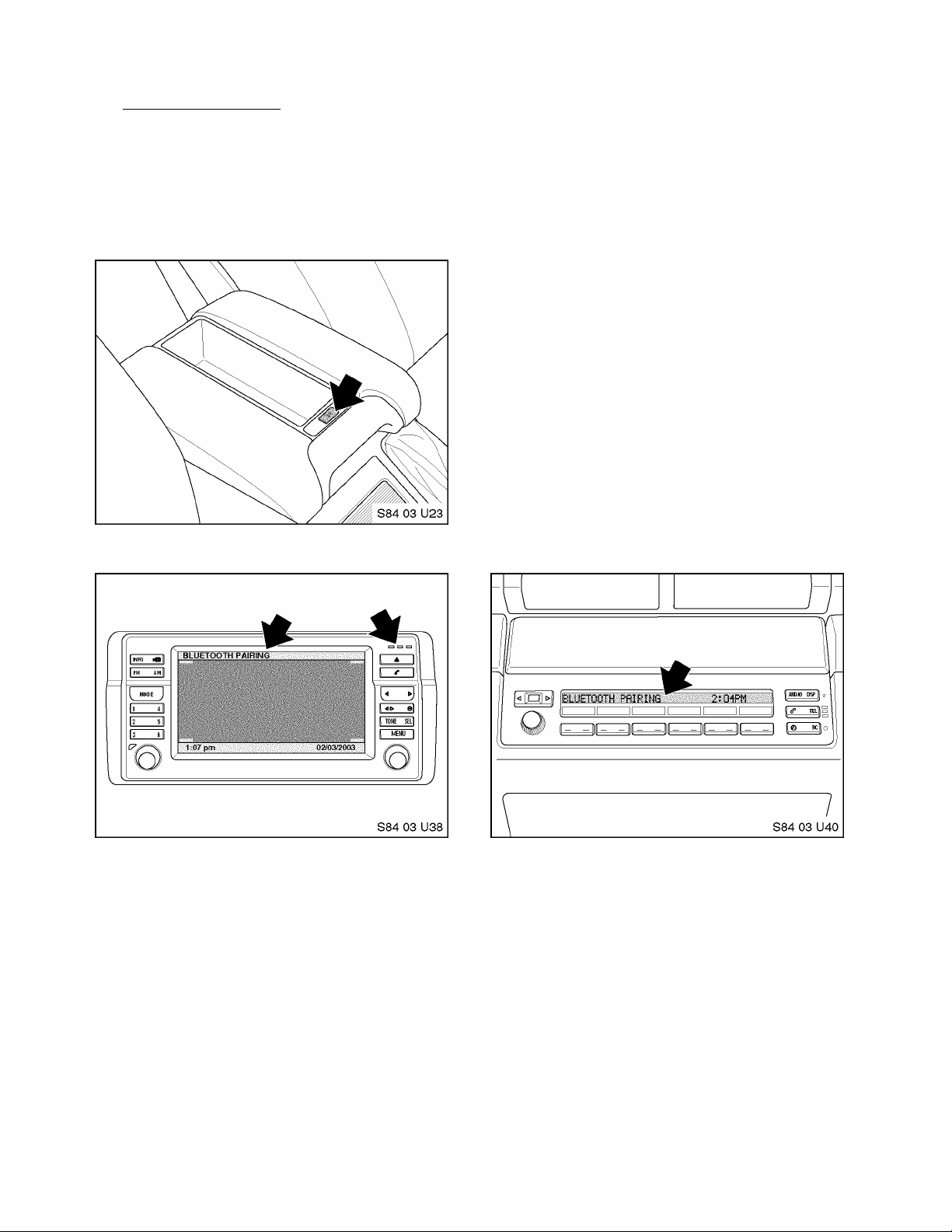

11. Insert the eject box (1), P/N 84 21 6 933 415 into
the armrest (2) by feeding the wires/connectors
from the eject box (3) through the opening in the
armrest assembly.
12. Connect the black female FAKRA connector (2) to
the male connector and connect the black 18-pin
ELO connector (1) to the 18-pin ELO connector
X4545.
13. Reinstall the armrest and oddment tray
B. Installation of Microphone:
1. Install microphone (1), P/N 84 31 8 380 319 and
connect the black 3-pin connector to the
microphone.
Note: the black 3-pin connector may be taped to
the wiring harness near the interior light
assembly.

6
C. ULF Control Module Installation
1. Remove/ peel off the BluetoothTM Passkey sticker
(2) from the label on the ULF Control Module (1).
2. Place the BluetoothTM Passkey sticker removed
from the ULF Control Module onto the ULF
Passkey Reference Card, P/N 84 11 0 302 638.
3. Place this card inside the owner’s manual
portfolio. Show this card to the customer when
demonstrating the system and the pairing
procedure to the customer. The code on the
sticker is needed to pair phones to the ULF
Control Module.
E39 Sedan - Produced as of:
- 9/02 with or without Navigation
- 3/02 through 8/02 with Navigation
1. For vehicles produced prior to 9/02 with
Navigation installed, the mounting bracket that
secures the Navigation Computer will need to be
replaced with P/N 84 13 6 924 547 as shown in
the illustration, in order to install the ULF Control
Module.
2. Locate the black 54-pin plug and white FAKRA
connectors, located in the upper right corner
above the wheel well housing.

7
3. Install three M5 Clip Nuts (2),
P/N 61 13 1 372 033, on the ULF Control
Module-mounting bracket.
Note: Mounting bracket P/N 84 13 6 924 547
should be installed in all E39 Sedans as of 9/02
production.
4. Install the ULF Control Module (1),
P/N 84 21 6 934 552.
5. Use three M5 bolts (2), P/N 07 11 9 902 932, to
secure the ULF control module to the mounting
bracket.
6. Connect the white FAKRA connector (1) and
black 54-pin connector (2) to the ULF control
Module.

8
E39 Sedan - Produced 3/02 through
8/02 without Navigation
1. For vehicles produced 3/02 through 8/02 without
navigation installed, a ULF Control Module
mounting bracket, P/N 84 13 6 924 546, will need
to be installed.
2. Install three M5 Clip Nuts (K),
P/N 61 13 1 372 033, on the ULF Control
Module-mounting bracket.
3. Use three M5 hex bolts (I), P/N 07 11 9 902 932,
to secure the ULF control module (F) to the
mounting bracket (G).
4. Install the mounting bracket (G) into the left rear
side of the cargo area.
5. Use two M5 hex nuts (L) to secure the upper
portion of the bracket in place.
6. If an amplifier is installed, remove the top two M5
bolts in location (N), that secure the amplifier to
the support brace, to allow for the installation of
the lower portion of the bracket (G) and reinstall
the hex bolts.
If there is no amplifier installed use two M5 hex
bolts (N), P/N 07 11 9 902 932, to secure the
bracket (G) to the support brace.

9
7. Connect the Black 54 pin connector (2) and white
FAKRA connector (1) to the Control Module (F).
E39 Sport Wagon (as of 9/02)
1. Remove the floor panel located directly behind the
rear seats to gain access to the ULF Control
Module mounting bracket (1) and connectors (2).
2. Install three M5 Clip Nuts (K),
P/N 61 13 1 372 033, on the ULF Control
Module-mounting bracket (G).
Note: Mounting bracket (G),
P/N 84 13 6 924 548, should be installed in all
E39 Sedans as of 9/02 production.

10

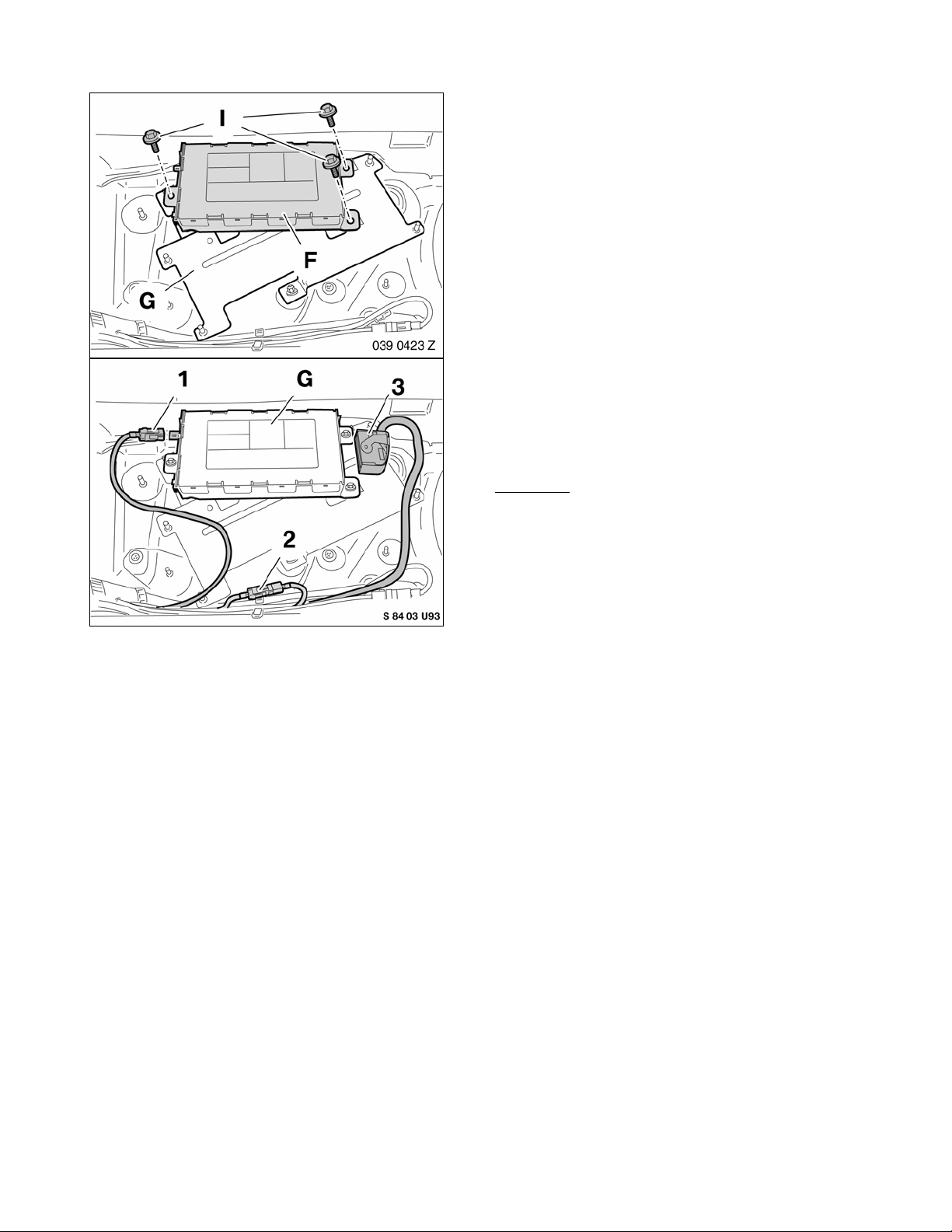

3. Secure the ULF Control Module (F) to the
mounting bracket (G) using three M5 hex bolts (I),
P/N 07 11 9 902 932.
4. Locate the telephone system connector bundle,
and connect the white female FAKRA connector
(1) and black 54-pin connector (3) to the ULF
Control Module (G).
5. Use wire ties to secure the wiring in place.
6. Reinstall the floor panel.
