Body Craft SG1 User manual

TF- BodyCraft Arc Trainer SG1
~ 30 Min.
CM
14 kg
BCSG1JA.01.01
Art. No. BC-SG1-JA
Assembly and Operating Instructions
L 125 | W 62 | H 15

2Arc Trainer

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
3 STORAGE AND TRANSPORT 15
3.1 General Instructions 15
4 TROUBLESHOOTING, CARE AND MAINTENANCE 15
4.1 General Instructions 15
4.2 Faults and Fault Diagnosis 15
4.3 Maintenance and Inspection Calendar 16
5 DISPOSAL 16
6 RECOMMENDED ACCESSORIES 17
7 ORDERING SPARE PARTS 18
7.1 Serial Number and Model Name 18
7.2 Parts List 19
7.3 Exploded Drawing 20
8 WARRANTY 21
9 CONTACT 23

4Arc Trainer

5
Dear customer,
Thank you for choosing Bodycraft training equipment. Bodycraft equipment inspires with its
multifunctionality and excellent workmanship and is one of the highest quality tness equipment
for home use in terms of innovation and technology. BodyCraft weight stations, for example, oer a
very wide range of exercise possibilities. This ranges from traditional strength training such as bench
presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
Further information can be found at www.sport-tiedje.com.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).
Disclaimer
©2013 Bodycraft® is a registered brand of the company Sport-Tiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission
of Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.

6Arc Trainer
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
NOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H): 111.5 cm x 43.6 cm x 12.1 cm
Article weight (gross, incl. packaging): 16.1 kg
Set-up dimensions (L x W x H): 124.5 cm x 62 cm x 15 cm
Article weight (net, excl. packaging): 14 kg
Class: H

8Arc Trainer
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
+ The owner must communicate all warnings and instructions to the user.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
+ Always start each workout with a light warm-up and end with a cool-down phase.
+ Using the machine as a support during stretching exercises or attaching resistance bands,
ropes or other accessories to it, may cause injuries.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
+ Be aware that if adjustment devices are left protruding, they may impede the user’s
movement.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The free area in the direction from which the exercise equipment is accessed must be at
least 0.6 m larger than the exercise area.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
+ For Class S and I equipment, the exercise equipment may only be used in areas where
access, supervision and control are specically regulated by the owner.

10 Arc Trainer
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
NOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

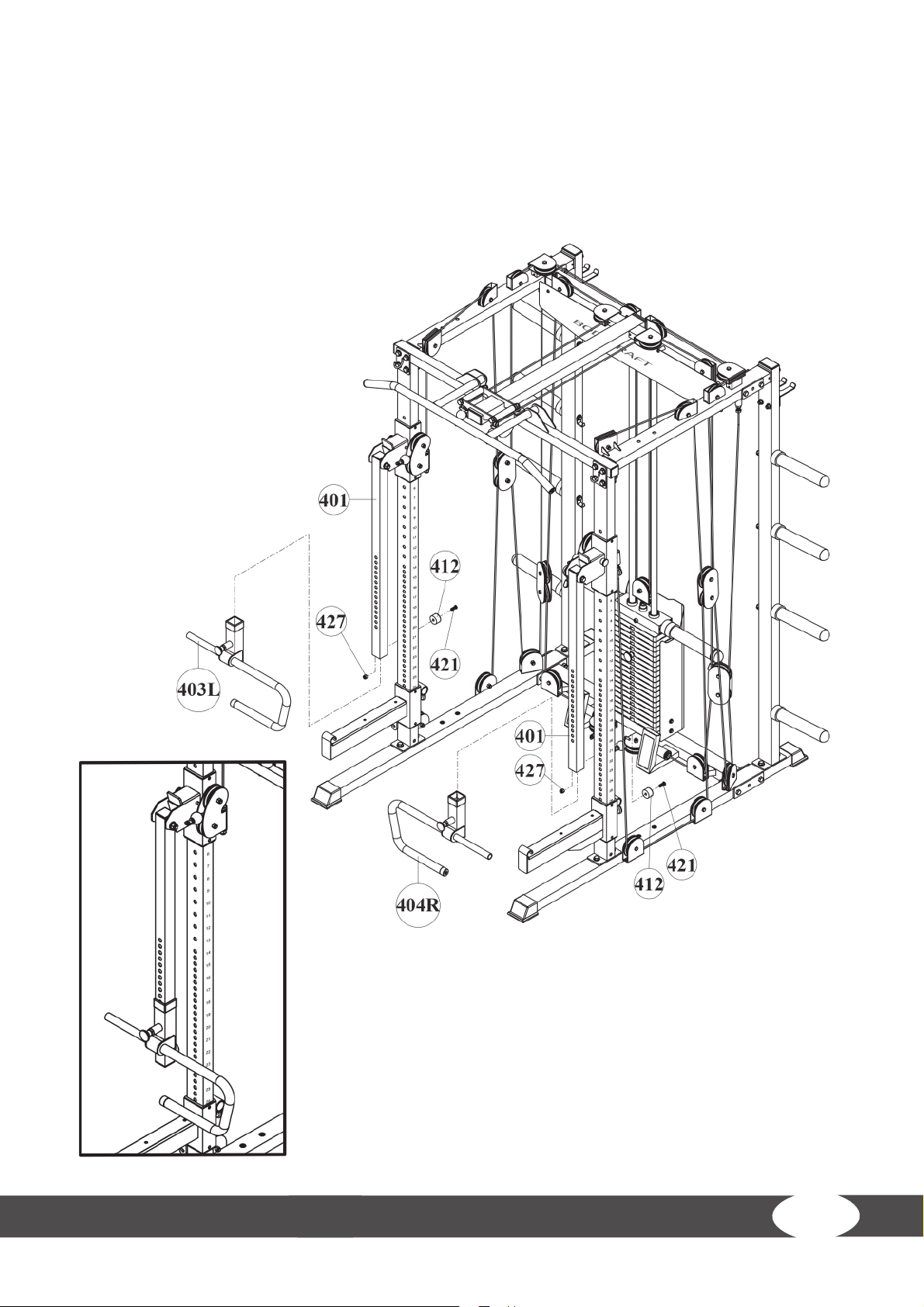

401
403L
404R
407
409
410
411
415
423
427
421
412
11
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

12 Arc Trainer
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.

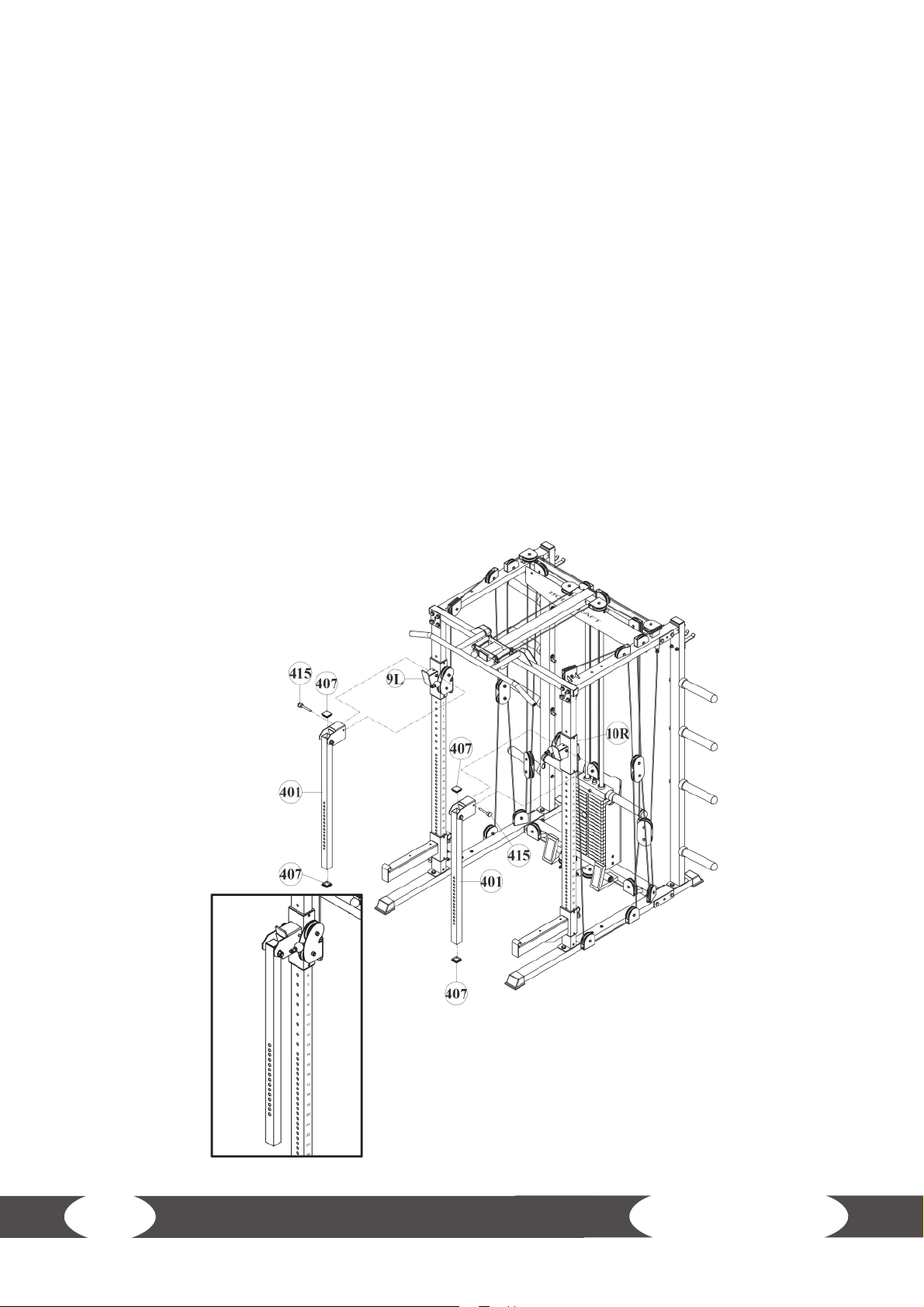

Step 1: Assembly of the Adjustable Tubes
1. Attach four plugs (407) to both adjustable tubes (401).
2. Attach the adjustable tubes (401) to the left and right pulley height adjuster of the super gym
(9L & 10R) with two pins (415).

13

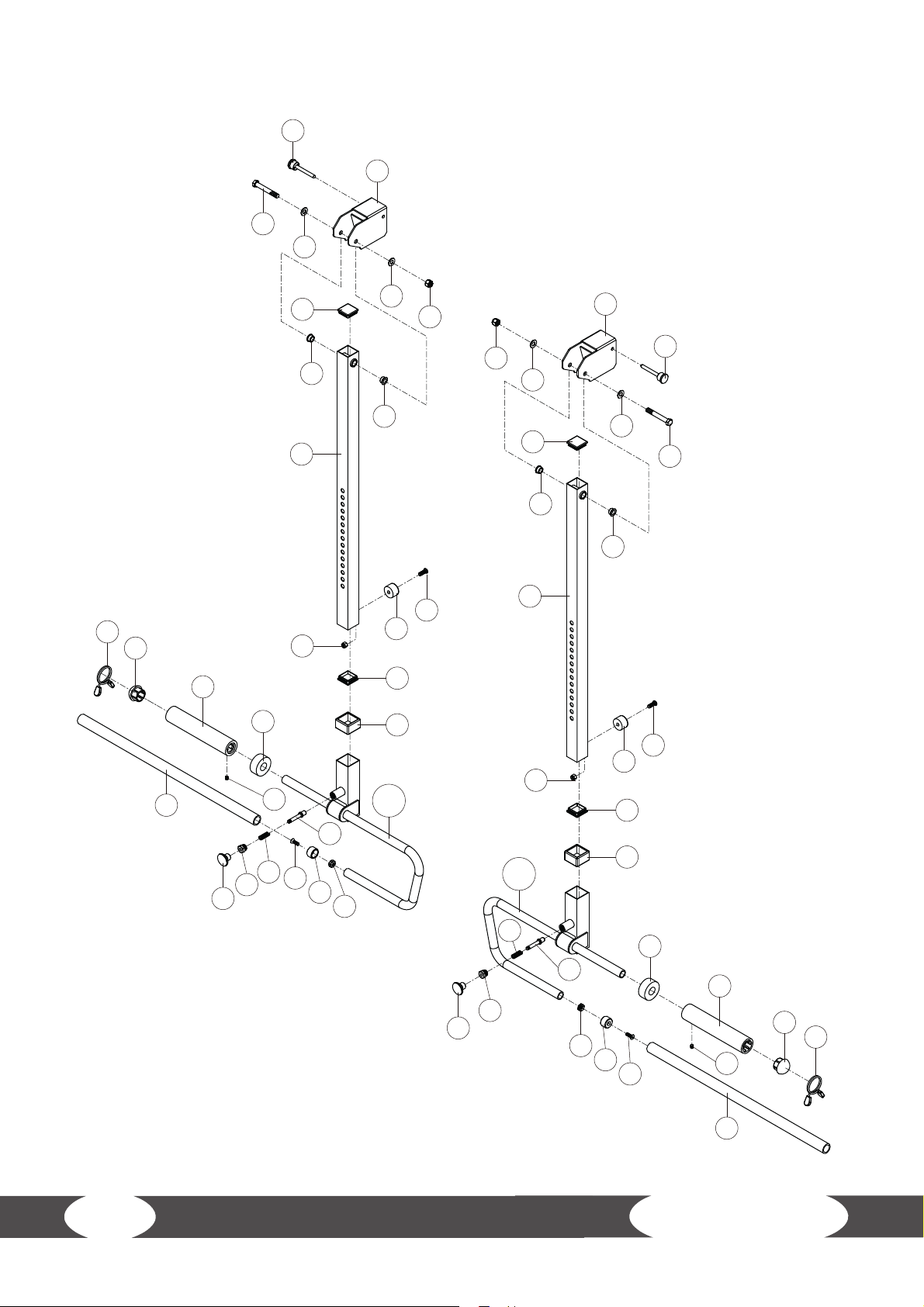

Step 2: Assembly of the Handle Bars
Assemble the left and right handle bar (403L & 404R) to the adjustable tubes (401) with two bolts
(421), two stoppers (412) and two nuts (427).

14 Arc Trainer
Step 3: Assembly of the Adapter Sleeves
Assemble two rubber cushions (411), two adapter sleeves (409) and two springs (410) to the left and
right handle bar (403L & 404R) with two screws (423).

15
3 STORAGE AND TRANSPORT
3.1 General Instructions
⚠WARNING
+ The storage location should be chosen so that improper use by third parties or children can
be prevented.
+ If your equipment does not have transportation wheels, the equipment must be
disassembled before transportation.
ATTENTION
+ Make sure that the equipment is protected from moisture, dust and dirt in the selected
storage location.The storage location should be dry and well ventilated and have a constant
ambient temperature between 10°C and 35°C.
4 TROUBLESHOOTING, CARE AND MAINTENANCE
4.1 General Instructions
⚠WARNING
+ Do not make any improper changes to the equipment.
⚠CAUTION
+ Damaged or worn components may aect your safety and the life of the equipment.
Therefore, immediately replace damaged or worn components. In such a case, contact the
contract partner. The equipment must not be used until it has been repaired. If necessary,
use only original spare parts.
ATTENTION
+ In addition to the instructions and recommendations for maintenance and care given here,
additional service and/or repair work may be necessary; this must only be carried out by
authorised service technicians.
4.2 Faults and Fault Diagnosis
The equipment undergoes regular quality controls during production. Nevertheless, faults or
malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an
exchange is usually sucient. Please refer to the following overview for the most common errors and
how to correct them. If the equipment still does not function properly, contact your contract partner.
Fault Cause Solution
Squeaking & cracking
noises
Screw connections loosened
or too tight Check or lubricate screw connections*
* With a grease-free silicone oil or silicone spray.

16 Arc Trainer
4.3 Maintenance and Inspection Calendar
To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!)
after each training session.
The following routine tasks must be performed at the specied intervals:
Part Weekly Monthly Quarterly
Screw connections I
Legend: C = clean; I = inspect
5 DISPOSAL
At the end of its operational life, this equipment cannot be disposed of in normal household waste.
Instead, it must be disposed of via an recycling centre. Further information can be obtained from
your local authority‘s recycling service.
The materials can be recycled as per their symbols. Through the reuse, recycling
of materials or other forms of recovery of old equipment, you make an important
contribution to the protection of the environment.

17
oor mat
chest strap
weight block extension
triceps rope
6 RECOMMENDED ACCESSORIES
To make your training experience even more ecient and pleasant, we recommend that you add
suiting accessories to your tness equipment. For training equipment like smith machines, weight
benches or racks this could for example be a oor mat, which makes your tness equipment stand
moresecurelyandalsoprotects the oorfromsweatbutitcouldbe also additional weights,handles,
foot straps for leg exercises or triceps ropes. For some smith machines, there are also optional add-
ons such as leg presses that make your workout even more intense and comprehensive.
Our range of accessories oers the highest quality and makes training even better. If you would like
to nd out more about compatible accessories, please go to the detail page of the product in our
webshop (the easiest way is to enter the article number in the search eld above) and go to the
recommended accessories on this page. Of course, you can also contact our customer service: by
telephone, e-mail, in one of our branches or via our social media channels.We will be happy to advise
you!

18 Arc Trainer
Serial number:
Brand / Category:
Taurus / multi gym
Model Name:
Arc trainer SG1
Article Number:
BC-SG1-JA
7 ORDERING SPARE PARTS
7.1 Serial Number and Model Name
In order to provide you with the best possible service, please have the model name, article number,
serial number, exploded drawing and parts list ready. The corresponding contact options can be
found in chapter 10 of this operating manual.
NOTICE
The serial number of your equipment is unique. It's located on a white sticker.The exact position
of this sticker is shown in the following illustration.
Enter the serial number in the appropriate eld.

401 ADJ. TUBE 2
402 ADJUSTMENT FRAME 2
403L LEFT HANDLE BAR 1
404R RIGHT HANDLE BAR 1
405 FOAM PAD 2
406 HOLLOW PLUG 2
407 45mm SQ. PLUG 4
408 ROUND PLUG 2
409 OLYMPIC ADAPTER SLEEVE 2
410 2" OLYMPIC SPRING 2
411 RUBBER CUSHION 2
412 STOPPER 2
413 STOPPER 2
414 BUSHING 4
415 PIN 2
416 PLASTIC COVER 2
417 NUT 2
418 PIN BOLT 2
419 SPRING 2
420 1/2" X 3-1/2" HEX BOLT 2
421 3/8" X 1" HEX SOCKEN DOME BOLT 2
422 5/16“ X 1-1/4“ SCREW 2
423 5/16“ INNER HEX SCREW 2
424 1/2" WASHER 4
425 5/16“ NUT 2
426 1/2" NYLON NUT 2
427 3/8" NYLON NUT 2
19
7.2 Parts List
No. Name Qty.

416
405 403L
404R
410
408
411 406
407
406
407
427
427
401
401
407
407
423
409
411
409
410
408
425
413
422
422
413
425
405
412
421
412
421
420
415
402
402
415
424
424
426
426
424
414
414
414
414
424
420
417
416
417
419
419
418
418
423
20 Arc Trainer
7.3 Exploded Drawing
