Bosch rexroth IndraDrive Mi KMV03 User manual

IndraDrive Mi
KMV03 Distributed Supply Unit
KNK03 Distributed Mains Filter
Instruction Manual
R911374765
Edition 01

IndraDrive Mi
KMV03 Distributed Supply Unit
KNK03 Distributed Mains Filter
Instruction Manual
DOK-INDRV*-KMV03*UL***-IN01-EN-P
RS-753a38cedfee850b0a347ea5002ab57e-1-en-US-3
Edition Release Date Notes
DOK-INDRV*-KMV03*UL***-IN01-EN-P 2022-05 First edition
Purpose of Documentation This documentation provides information on the installation and operation of
the described products, by persons trained and qualified to work with electri‐
cal installations.
Copyright © Bosch Rexroth AG 2022
All rights reserved, also regarding any disposal, exploitation, reproduction,
editing, distribution, as well as in the event of applications for industrial prop‐
erty rights.
Liability The specified data is intended for product description purposes only and shall
not be deemed to be a guaranteed characteristic unless expressly stipulated
in the contract. All rights are reserved with respect to the content of this docu‐
mentation and the availability of the product.
Title
Type of Documentation
Document Typecode
Internal File Reference
Record of Revision
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter

Table of Contents
Page
1 Important notes.............................................................................................................. 1
1.1 Safety instructions.................................................................................................................................. 1
1.1.1 General information............................................................................................................................. 1
1.1.2 Protection against contact with electrical parts and housings............................................................. 2
1.1.3 Battery safety....................................................................................................................................... 3
1.2 Intended use........................................................................................................................................... 4
2 Ratings and dimensions................................................................................................. 5
2.1 KMV03.................................................................................................................................................... 5
2.1.1 KMV03 ratings..................................................................................................................................... 5
2.1.2 KMV03 dimensions.............................................................................................................................. 7
KMV03.1R-B/Ixxxx dimensional drawing (thermal interface)........................................................... 7
KMV03.1R-Axxxx dimensional drawing (natural convection)........................................................... 8
KMV03.1R-Wxxxx dimensional drawing (forced cooling)................................................................. 9
2.2 KNK03.................................................................................................................................................. 10
2.2.1 KNK03 ratings................................................................................................................................... 10
2.2.2 KNK03 dimensions............................................................................................................................ 12
KNK03.1A-NR-B/Ixxxx dimensional drawing (thermal interface).................................................... 12
KNK03.1A-NR-Axxxx dimensional drawing (natural convection)................................................... 13
KNK03.1A-NR-Wxxxx dimensional drawing (forced cooling)......................................................... 14
2.3 China RoHS 2....................................................................................................................................... 14
3 Documentations........................................................................................................... 15
3.1 Drive systems, system components..................................................................................................... 15
3.2 Cables................................................................................................................................................... 15
3.3 Firmware............................................................................................................................................... 15
4 Instructions for use....................................................................................................... 17
4.1 Mounting............................................................................................................................................... 17
4.2 Cold plate.............................................................................................................................................. 17
4.3 Overcurrent protection.......................................................................................................................... 18
4.4 Short circuit protection.......................................................................................................................... 18
4.5 Connection............................................................................................................................................ 19
4.5.1 Connection points.............................................................................................................................. 19
4.5.2 KNK03/KMV03 connection diagram.................................................................................................. 22
4.6 KMV03, replacing the fuse.................................................................................................................... 24
5 Service and support..................................................................................................... 25
Index............................................................................................................................ 27
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
I
Table of Contents
R911374765_Edition 01 Bosch Rexroth AG

II IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

1 Important notes
1.1 Safety instructions
1.1.1 General information
● Do not attempt to install and operate the components of the electric
drive and control system without first reading all documentation provided
with the product. Read and understand these safety instructions and all
user documentation prior to working with these components. If you do
not have the user documentation for the components, contact our
Rexroth sales representative. Ask for these documents to be sent imme‐
diately to the person or persons responsible for the safe operation of the
components.
● If the supplied documents contain some information you do not under‐
stand, it is absolutely necessary that you ask Rexroth for explanation
before you start working at or with the components.
● If the component is resold, rented and/or passed on to others in any oth‐
er form, these safety instructions must be delivered with the component
in the official language of the user's country.
● Only qualified persons may work with components of the electric drive
and control system or within its proximity.
In terms of this Instruction Manual, qualified persons are those persons
who are familiar with the installation, mounting, commissioning and op‐
eration of the components of the electric drive and control system, as
well as with the hazards this implies, and who possess the qualifications
their work requires. To comply with these qualifications, it is necessary,
among other things,
– to be trained, instructed or authorized to switch electric circuits and
components safely on and off, to ground them and to mark them,
– to be trained or instructed to maintain and use adequate safety
equipment,
– to attend a course of instruction in first aid.
● The technical data, connection and installation conditions of the compo‐
nents are specified in the respective application documentations and
must be followed at all times.
● If the components take the form of hardware, then they must remain in
their original state, in other words, no structural changes are permitted.
It is not permitted to decompile software components or alter source co‐
des.
● Do not mount damaged or faulty components or use them in operation.
● Only use accessories and spare parts approved by Rexroth.
● Follow the safety regulations and requirements of the country in which
the electric components of the electric drive and control system are op‐
erated.
● Proper and correct transport, storage, mounting and installation, as well
as care in operation and maintenance, are prerequisites for optimal and
safe operation of the component.
Improper use of these components, failure to follow the safety instructions in
this document or tampering with the product, including disabling of safety de‐
vices, could result in property damage, injury, electric shock or even death.
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
1/29
Important notes
R911374765_Edition 01 Bosch Rexroth AG

1.1.2 Protection against contact with electrical parts and housings
This section concerns components of the electric drive and con‐
trol system with voltages of more than 50 volts.
Contact with parts conducting voltages above 50 volts can cause personal
danger and electric shock. When operating components of the electric drive
and control system, it is unavoidable that some parts of these components
conduct dangerous voltage.
High electrical voltage! Danger to life, risk of injury by electric shock or seri‐
ous injury!
● Only qualified persons are allowed to operate, maintain and/or repair the
components of the electric drive and control system.
● Follow the general installation and safety regulations when working on
power installations.
● Before switching on, the equipment grounding conductor must have
been permanently connected to all electric components in accordance
with the connection diagram.
● Even for brief measurements or tests, operation is only allowed if the
equipment grounding conductor has been permanently connected to the
points of the components provided for this purpose.
● Before accessing electrical parts with voltage potentials higher than
50 V, you must disconnect electric components from the mains or from
the power supply unit. Secure the electric component from reconnec‐
tion.
● With electric components, observe the following aspects:
Always wait 30 minutes after switching off power to allow live capacitors
to discharge before accessing an electric component. Measure the elec‐
trical voltage of live parts before beginning to work to make sure that the
equipment is safe to touch.
● Install the covers and guards provided for this purpose before switching
on.
● Never touch any electrical connection points of the components while
power is turned on.
● Do not remove or plug in connectors when the component has been
powered.
● Under specific conditions, electric drive systems can be operated at
mains protected by residual-current-operated circuit-breakers sensitive
to universal current (RCDs/RCMs).
● Secure built-in devices from penetrating foreign objects and water, as
well as from direct contact, by providing an external housing, for exam‐
ple a control cabinet.
High housing voltage and high leakage current! Danger to life, risk of injury
by electric shock!
● Before switching on and before commissioning, ground or connect the
components of the electric drive and control system to the equipment
grounding conductor at the grounding points.
2/29
Important notes
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

● Connect the equipment grounding conductor of the components of the
electric drive and control system permanently to the main power supply
at all times. The leakage current is greater than 3.5 mA.
● Establish an equipment grounding connection with a minimum cross
section according to the table below. With an outer conductor cross sec‐
tion smaller than 10 mm2 (8 AWG), the alternative connection of two
equipment grounding conductors is allowed, each having the same
cross section as the outer conductors.
Cross section outer con‐
ductor
Minimum cross section equipment grounding conductor
Leakage current ≥ 3.5 mA
1 equipment grounding
conductor
2 equipment grounding
conductors
1.5 mm2 (16 AWG)
10 mm2 (8 AWG)
2 × 1.5 mm2 (16 AWG)
2.5 mm2 (14 AWG) 2 × 2.5 mm2 (14 AWG)
4 mm2 (12 AWG) 2 × 4 mm2 (12 AWG)
6 mm2 (10 AWG) 2 × 6 mm2 (10 AWG)
10 mm2 (8 AWG) -
16 mm2 (6 AWG)
16 mm2 (6 AWG)
-
25 mm2 (4 AWG) -
35 mm2 (2 AWG) -
50 mm2 (1/0 AWG) 25 mm2 (4 AWG) -
70 mm2 (2/0 AWG) 35 mm2 (2 AWG) -
... ... ...
Tab. 1-1: Minimum cross section of the equipment grounding connection
1.1.3 Battery safety
Batteries consist of active chemicals in a solid housing. Therefore, improper
handling can cause injury or property damage.
Risk of injury by improper handling!
● Do not attempt to reactivate low batteries by heating or other methods
(risk of explosion and cauterization).
● Do not attempt to recharge the batteries as this may cause leakage or
explosion.
● Do not throw batteries into open flames.
● Do not dismantle batteries.
● When replacing the battery/batteries, do not damage the electrical parts
installed in the devices.
● Only use the battery types specified for the product.
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
3/29
Important notes
R911374765_Edition 01 Bosch Rexroth AG

Environmental protection and disposal! The batteries contained in
the product are considered dangerous goods during land, air, and
sea transport (risk of explosion) in the sense of the legal regula‐
tions. Dispose of used batteries separately from other waste. Ob‐
serve the national regulations of your country.
1.2 Intended use
This product may only be used for the mentioned applications under the
specified application, ambient and operating conditions.
This product is exclusively intended for use in machines and systems in an
industrial environment. This is to be understood as applications according to
IEC 60204-1 "Safety of machinery, Electric equipment of machines" and
NFPA 79 "Electrical Standard for Industrial Machinery".
Components of the Rexroth IndraDrive Mi system are products of
Category C3 (with restricted distribution) in accordance with
IEC 61800‑3. This Category comprises EMC limit values for line-
based and radiated noise emission. Compliance with this Catego‐
ry (limit values) requires the appropriate measures of interference
suppression to be used in the drive system (e.g., mains filters,
shielding measures).
These components are not provided for use in a public low-volt‐
age mains supplying residential areas. If these components are
used in such a mains, high-frequency interference is to be expec‐
ted. This can require additional measures of interference suppres‐
sion.
4/29
Important notes
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

2 Ratings and dimensions
2.1 KMV03
2.1.1 KMV03 ratings
UL ratings and dimensions
Description Symbol Unit
KMV03.1R-
A05K0-P-D7-
ET-NNNN
KMV03.1R-
B0007-P-D7-
ET-NNNN
KMV03.1R-
I01K5-P-D7-
ET-NNNN
KMV03.1R-
W06K0-P-D7-
ET-NNNN
Listing according to UL standard UL 61800-5-1
Listing according to CSA standard CSA C22.2 No. 274-13
UL‑Files E134201
Pollution degree 2
Ambient temperature range with
nominal data Tamax °C 40
Ambient temperature range with
reduced nominal data Tamax_red °C 55
Mass m kg 20.00 15.70 20.00
Device height1) H mm 360 280 360
Device depth2) T mm 280 230 280
Device width3) B mm 330 325 330
Minimum distance on the top of
the device dtop mm 0
Minimum distance on the bottom
of the device dbot mm 0
Horizontal spacing at the device dhor mm 0
Rated control voltage input8) UN3 V DC 24 V ±20 %
Rated power consumption control
voltage input at UN3 and
Pout = 0 W
PN3 W 18
Rated voltage Uout V 42
Nominal power Pout W 340 510 200 400
Short circuit current rating SCCR A rms 42000
Rated input voltage, power4) ULN_nenn V 3x AC 380…500
Tolerance rated input voltage ULN % ±10
Mains frequency fLN Hz 50...60
Tolerance input frequency Hz ±2
Rated input current ILN A 8.1 12.0 2.3 9.5
Branch circuit protection fuse5) A 15 15 6 15
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
5/29
Ratings and dimensions
R911374765_Edition 01 Bosch Rexroth AG

Description Symbol Unit
KMV03.1R-
A05K0-P-D7-
ET-NNNN
KMV03.1R-
B0007-P-D7-
ET-NNNN
KMV03.1R-
I01K5-P-D7-
ET-NNNN
KMV03.1R-
W06K0-P-D7-
ET-NNNN
Required wire size in accordance
with NFPA 79 and UL 508 A (in‐
ternal wiring);6)
ALN AWG min 14
Output voltage Uout V DC 750
Output current Iout A 6.7 10.0 2.0 8.0
Power dissipation at continuous
current and continuous DC bus
power respectively7)
PDiss_cont W 390 500 220 430
1) 2) 3) Housing dimension; see also related dimensional drawing
4) Mains voltage > ULN: Use a transformer with grounded neutral
point, do not use autotransformers!
5) Type in accordance with UL: Class J LPJ-15SP at most; suita‐
ble for use on a circuit capable of delivering not more than
42000 rms symmetrical amperes
6) Copper wire; PVC-insulation (conductor temperature 90 °C;
Ta ≤ 40 °C) in accordance with NFPA 79 chapter 12 and
UL 508A chapter 28
7) Plus dissipation of braking resistor and control section
8) The following power supply unit has to be used in the scope of
CSA/UL:
● UL508-certified
● Output voltage: DC 24V
● Output current: ≤ 40 A
For power supply units with output current > 40 A: install UL-
listed fuses for limitation to 40 A
Tab. 2-1: KMV - UL ratings and dimensions
6/29
Ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

2.1.2 KMV03 dimensions

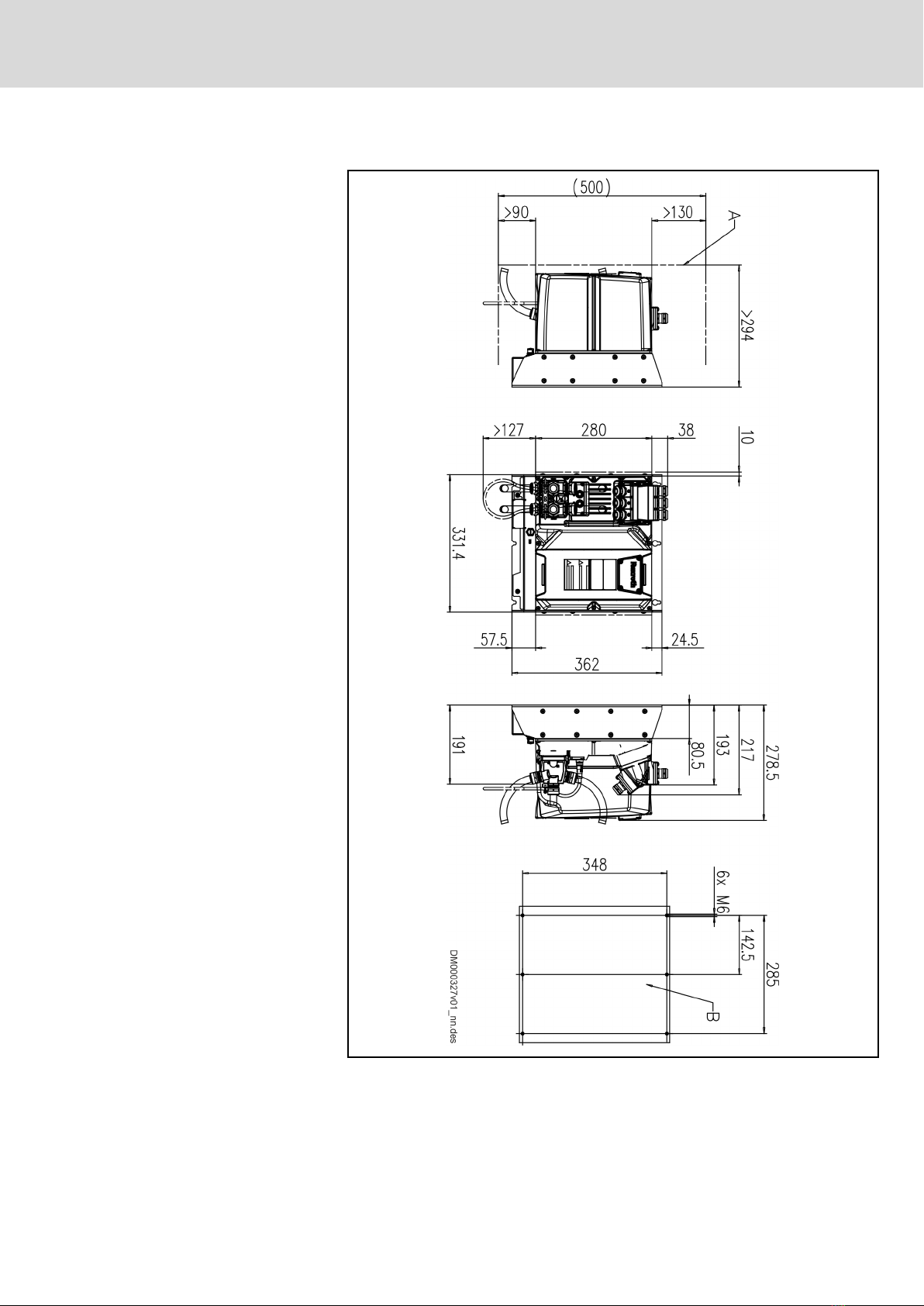

KMV03.1R-B/Ixxxx dimensional drawing (thermal interface)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-1: KMV03.1R-B/Ixxxx (thermal interface), dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
7/29
Ratings and dimensions
R911374765_Edition 01 Bosch Rexroth AG

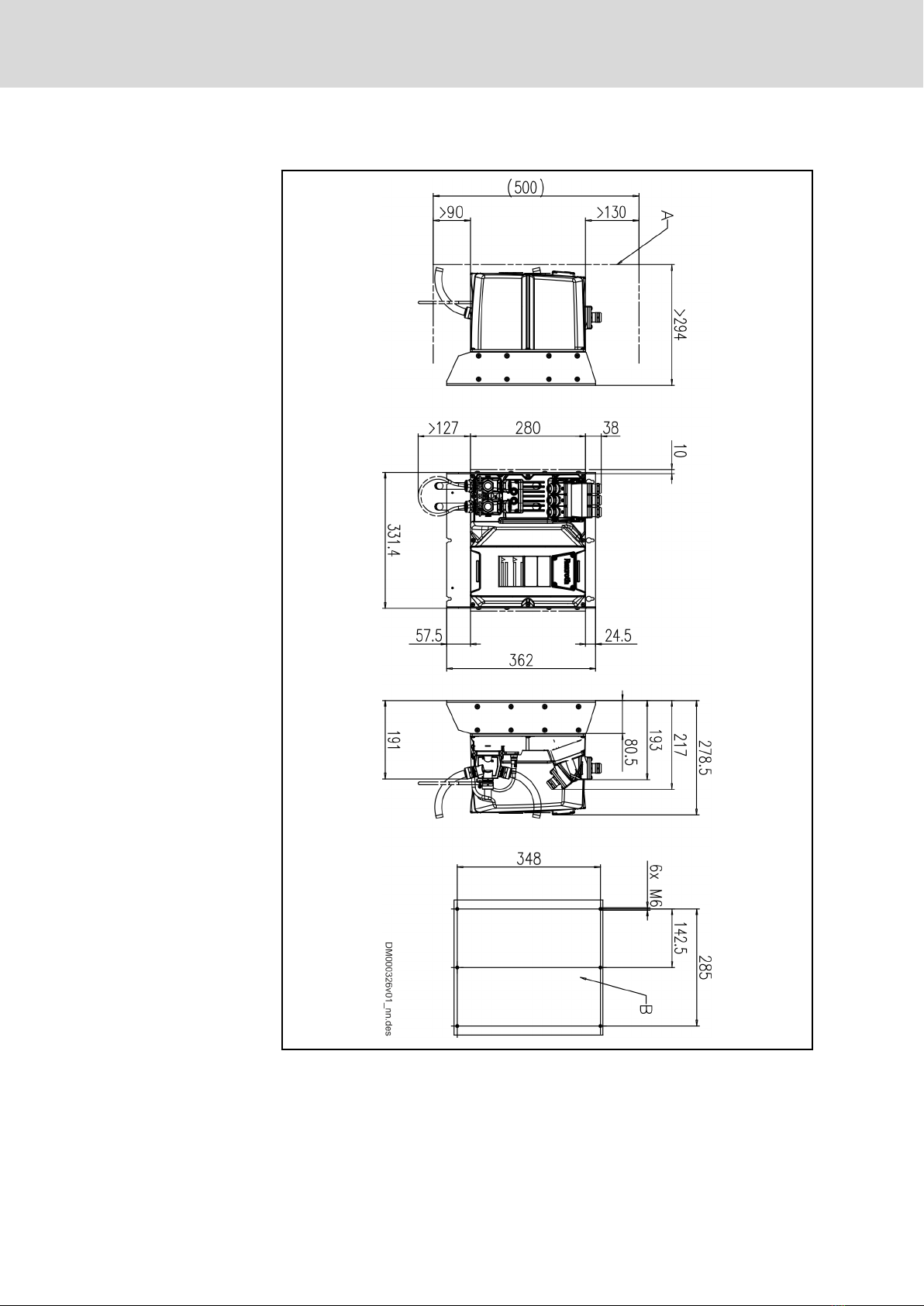

KMV03.1R-Axxxx dimensional drawing (natural convection)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-2: KMV03.1R-Axxxx (natural convection), dimensions
8/29
Ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

KMV03.1R-Wxxxx dimensional drawing (forced cooling)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-3: KMV03.1R-Wxxxx (forced cooling), dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
9/29
Ratings and dimensions
R911374765_Edition 01 Bosch Rexroth AG

2.2 KNK03
2.2.1 KNK03 ratings
UL ratings and dimensions
Description Symbol Unit
KNK03.1A-
NR-A0008-P-
U226-A4
KNK03.1A-
NR-B0012-P-
U226-A4
KNK03.1A-
NR-I0002-P-
U226-A4
KNK03.1A-
NR-W0010-P-
U226-A4
Listing according to UL standard UL 61800-5-1
Listing according to CSA standard CSA C22.2 No. 274-13
UL‑Files E134201
Pollution degree 2
Ambient temperature range with
nominal data Tamax °C 40
Ambient temperature range with
reduced nominal data Tamax_red °C 55
Mass m kg 24.00 20.00 24.00
Device height1) H mm 360 280 360
Device depth2) T mm 280 220 280
Device width3) B mm 270 270 270
Minimum distance on the top of
the device dtop mm 0
Minimum distance on the bottom
of the device dbot mm 0
Horizontal spacing at the device dhor mm 0
Short circuit current rating SCCR A rms 42000
Rated input voltage, power4) ULN_nenn V 3x AC 380…500
Tolerance rated input voltage ULN % ±10
Mains frequency fLN Hz 50...60
Tolerance input frequency Hz ±2
Rated input current ILN A 8.1 12.0 2.3 9.5
Branch circuit protection fuse5) A 15 15 6 15
Required wire size in accordance
with NFPA 79 and UL 508 A (in‐
ternal wiring);6)
ALN AWG min 14
Field wiring material (material;
conductor temperature; class) Cu; 60/75° C; 1
Output current Iout A 8.1 12.0 2.3 9.5
Power dissipation at continuous
current and continuous DC bus
power respectively
PDiss_cont W 147 175 104 160
1) 2) 3) Housing dimension; see also related dimensional drawing
10/29
Ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

4) Mains voltage > ULN: Use a transformer with grounded neutral
point, do not use autotransformers!
5) Type in accordance with UL: Class J LPJ-15SP at most; suita‐
ble for use on a circuit capable of delivering not more than
42000 rms symmetrical amperes
6) Copper wire; PVC-insulation (conductor temperature 90 °C;
Ta ≤ 40 °C) in accordance with NFPA 79 chapter 12 and
UL 508A chapter 28
Tab. 2-2: KMV - UL ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
11/29
Ratings and dimensions
R911374765_Edition 01 Bosch Rexroth AG

2.2.2 KNK03 dimensions
KNK03.1A-NR-B/Ixxxx dimensional drawing (thermal interface)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-4: KNK03.1A-NR-B/Ixxxx (thermal interface), dimensions
12/29
Ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

KNK03.1A-NR-Axxxx dimensional drawing (natural convection)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-5: KNK03.1A-NR-Axxxx (natural convection), dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
13/29
Ratings and dimensions
R911374765_Edition 01 Bosch Rexroth AG

KNK03.1A-NR-Wxxxx dimensional drawing (forced cooling)
AMinimum mounting clearance
BBoring dimensions
Fig. 2-6: KNK03.1A-NR-Wxxxx (forced cooling), dimensions
2.3 China RoHS 2
https://www.boschrexroth.com.cn/zh/cn/certificates/china-rohs2/
14/29
Ratings and dimensions
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01

3 Documentations
3.1 Drive systems, system components
Title Type of documentation Document typecode1) Material number
IndraDrive Mi Drive Systems
with KCU02, KSM02, KMS02/03,
KMV03, KNK03
Project Planning Manual DOK-INDRV*-KCU02+KSM02-
PRxx-EN-P
R911335703
1) In the document typecodes, "xx" is a placeholder for the current
edition of the documentation (e.g.: PR01 is the first edition of a
Project Planning Manual)
Tab. 3-1: Documentations – overview
3.2 Cables
Title Type of documentation Document typecode1)
DOK-…
Material number
R911…
Rexroth Connection Cables
IndraDrive and IndraDyn
Selection Data CONNEC-CABLE*INDRV-CAxx-
EN-P
322949
1) In the document typecodes, "xx" is a placeholder for the current
edition of the documentation (e.g.: CA02 is the second edition
of the "Selection Data" documentation)
Tab. 3-2: Documentations – overview
3.3 Firmware
Title Type of documentation Document typecode1)
DOK-INDRV*-…
Material number
R911…
IndraDrive
MPx-21
Functions
Application Manual MP*-21VRS**-APxx-EN-P 385758
IndraDrive
MPx-20
Functions
Application Manual MP*-20VRS**-APxx-EN-P 345608
IndraDrive
MPx-20
Version Notes
Release Notes MP*-20VRS**-RNxx-EN-P 345606
IndraDrive
Power Supply Basic PSB‑21
Functions
Application Manual PSB-21VRS**-APxx-EN-P 385754
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
15/29
Documentations
R911374765_Edition 01 Bosch Rexroth AG

Title Type of documentation Document typecode1)
DOK-INDRV*-…
Material number
R911…
IndraDrive
Power Supply Basic PSB‑21
Version Notes
Release Notes PSB-21VRS**-RNxx-EN-P 385752
IndraDrive
Power Supply Basic PSB‑20
Functions
Application Manual PSB-20VRS**-APxx-EN-P 345610
1) In the document typecodes, "xx" is a placeholder for the current
edition of the documentation (e.g.: RE02 is the second edition
of a Reference Book)
Tab. 3-3: Documentations – firmware
16/29
Documentations
IndraDrive Mi KMV03 Distributed Supply Unit KNK03 Distrib‐
uted Mains Filter
Bosch Rexroth AG R911374765_Edition 01
