Bosch FW 200 Instruction Manual

Operating Instructions for the User
Boiler Energy Management System
FW 200
6 720 612 481-00.1R
6 720 643 262 (2010/05)

6 720 643 262 (2010/05)
2| US/CA
Dear Customer,
The controls are the “brain” of your heating
system. We have set it at the factory so that the
settings will be appropriate for most cases. This
way, daily operation is easy. The large, clear
display of the controls “speaks plain text” and
shows all relevant information.
Program space and water heating
With the controls you can set how warm you want
it at what times. We have already set various
scenarios from which you can choose.
An example: do you work and therefore are you
not at home during the day? Then perhaps you
only need full heating comfort in the mornings
and the evenings. During the day you save energy
in “economy mode” and at night, the heat is
reduced further still. Perhaps you have entirely
different needs because you are at home all day?
Whatever your lifestyle and your habits may be --
the heating system will adapt itself to your needs.
Even for unforeseen cases: 100% comfort
Did you get home earlier than planned and would
you like to have the house warm right away even
though your boiler is in “economy mode”? In this
case the controls switch to “heating mode” right
away with the press of a key. In just a short time,
you will be as comfortable as usual. Another
example: you would like to shower even though
your boiler is currently running in “economy
mode”? Here too, the press of a key can help you.
The water is heated and in just a short time you
can enjoy your hot shower. Depending on the
type of hot water heating, the system returns to
“economy mode” automatically after half an hour
or after an hour.
Consideration of the outdoor temperature
This is an outdoor reset control. It increases or
decreases the output of your heating system
depending on the outdoor temperature.
The controls can be installed on the boiler or
mounted directly on the wall in the living area. If
it is in the room, it can also be used to record the
room temperature for optimizing comfort.
Solar optimization
With our patented process
“SolarInside ControlUnit”, you save up to 15%
additional energy during hot water heating if you
have a solar thermal system installed. You can
find information about the solar yield on the
controls’ Info menu.
These operating instructions
These operating instructions contain the most
important information on daily operation of the
controls.
There is a listing of other interesting functions of
the controls in section 6.
If you would like to learn more, there is a detailed
description of all available functions in the
detailed installation and operating instructions.
Specialized terms are explained for you at the
end of these operating instructions.
We hope you will enjoy your new Bosch product.
Your Bosch team

6 720 643 262 (2010/05)
Contents | 3US/CA
Contents
1 Explanation of symbols and safety
information . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Notes structure . . . . . . . . . . . . . . . . . 4
1.2 Safety instructions . . . . . . . . . . . . . . 4
2 Details about the controls . . . . . . . . . . . . 5
2.1 Certifications . . . . . . . . . . . . . . . . . . 5
2.2 Disposal . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Cleaning the housing . . . . . . . . . . . . 5
3 Display reading . . . . . . . . . . . . . . . . . . . . . 6
4 Operation with closed flap . . . . . . . . . . . . 8
4.1 Controls . . . . . . . . . . . . . . . . . . . . . . 8
4.2 If it is too cold or too warm for you 10
4.3 If you would like to change the
heating program temporarily . . . . . 11
4.4 If you would like to change the
DHW program temporarily . . . . . . . 11
5 Operation with open flap . . . . . . . . . . . . 12
5.1 Controls . . . . . . . . . . . . . . . . . . . . . 12
5.2 Changing room temperatures
permanently for the heating
program . . . . . . . . . . . . . . . . . . . . . 14
5.3 Constant room temperature . . . . . . 16
5.4 Selecting and adapting a heating
program . . . . . . . . . . . . . . . . . . . . . 17
5.4.1 Activating a heating program . . . . . 18
5.4.2 Adapting a heating program
individually . . . . . . . . . . . . . . . . . . 18
5.4.3 Resetting heating program to
factory settings . . . . . . . . . . . . . . . 20
5.5 Selecting and adapting DHW
program . . . . . . . . . . . . . . . . . . . . . 21
5.5.1 Connecting DHW program to the
active heating program . . . . . . . . . 22
5.5.2 Activating a DHW program . . . . . . . 23
5.5.3 Adapting the DHW program
individually . . . . . . . . . . . . . . . . . . 23
5.5.4 Resetting DHW program to
factory settings . . . . . . . . . . . . . . . 24
5.6 Setting up a vacation program . . . . 25
5.6.1 Setting the beginning of vacation . 25
5.6.2 Setting the end of vacation . . . . . 26
5.6.3 Starting vacation mode . . . . . . . . 26
5.6.4 Canceling the vacation
program early . . . . . . . . . . . . . . . . 26
5.7 Changing the time and date . . . . . 27
5.7.1 Changing the time . . . . . . . . . . . . 27
5.7.2 Changing the date . . . . . . . . . . . . 27
6 Information about additional functions 28
7 Environmental protection . . . . . . . . . . . 29
8 Troubleshooting . . . . . . . . . . . . . . . . . . . 30
8.1 Eliminating “sensed” faults . . . . . 30
8.2 Eliminating displayed faults . . . . . 32
9 Energy saving tips . . . . . . . . . . . . . . . . . 33
10 Menu structure . . . . . . . . . . . . . . . . . . . 34
Technical terms . . . . . . . . . . . . . . . . . . . 38

6 720 643 262 (2010/05)
4| Explanation of symbols and safety information US/CA
1 Explanation of symbols and safety information
1.1 Notes structure
Warnings
Signal words at the beginning of a warning are
used to indicate the type and seriousness of the
ensuing risk if measures for minimizing damage
are not taken.
•NOTE indicates that minor damage to
property may occur.
•CAUTION indicates possible minor to medium
personal injury.
•WARNING indicates possible severe personal
injury.
•DANGER indicates that severe personal injury
may occur.
Important information
Additional symbols
1.2 Safety instructions
BTo ensure proper function, follow these
instructions.
BDanger of scalding due to thermal
disinfection:
If the thermal disinfection function is enabled,
a thermostatic mixing valve must be installed.
BWhen there is a risk of frost, leave the boiler
switched on and follow the frost protection
information.
Risk of damage due to operator error
Operator errors can cause injury and damage to
property.
BEnsure that children never operate this
appliance unsupervised or play with it.
BEnsure that only individuals who can operate
the controls correctly have access to them.
Warnings are indicated in the text
by a warning triangle and a gray
background.
In case of danger due to electric
current, the exclamation point on
the warning triangle is replaced
with a lightning symbol.
Important information that
presents no risk to people or
property is indicated with this
symbol. It is separated by
horizontal lines above and below
the text.
Symbol Meaning
BSequence of steps
ÆCross-reference to other points in
this document or to other
documents
•Listing/list entry
–Listing/list entry (2nd level)
Tab. 1

6 720 643 262 (2010/05)
Details about the controls | 5US/CA
2 Details about the controls
2.1 Certifications
2.2 Disposal
BDispose of packaging in an environmentally
responsible manner.
2.3 Cleaning the housing
BIf necessary, clean the controls housing with a
damp cloth; do not use any aggressive or
acidic cleaning agents for this.
This product has been tested
and is certified for both the US
and Canadian markets, and
meets all applicable US and
Canadian standards.

6 720 643 262 (2010/05)
6| Display reading US/CA
3 Display reading
Fig. 1 Symbols on the display (sample figures)
6 720 643 262-30.1O
912 h15
18
2124h
3
6
912 h15
18
2124h
3
6
3
246
12
5
1
9
8
11
7
1314 10

6 720 643 262 (2010/05)
Display reading | 7US/CA
Item Symbol Designation Explanation
1Temperature
display
•The current room temperature is displayed if the
controls are mounted on the wall and set accordingly.
•The current supply temperature is displayed if the
controls are installed on the boiler or mounted on the
wall and set accordingly.
2Time and day
of the week
Current time and day of the week.
3Flashing
segment
Current time (1 segment = 15 minutes, here 1:45pm
(13:45) to 2:00pm (14:00)) or switch time in the heating
program.
4Full
segments
Period of the operating mode Comfort (high room
temperature) or hot water heating (high hot water
temperature), 1 segment = 15 minutes.
5Empty
segments
Period of the operating mode Economy (medium room
temperature) or hot water heating (medium hot water
temperature), 1 segment = 15 minutes.
6No segment Period of the operating mode Frost (low room
temperature) or hot water heating (reduced hot water
temperature).
7Header Name of the superior menu level, of the program, etc.
83 text lines Menu options, info texts, set values, etc.
9Back Jump back to the higher menu level.
10 Additional
texts
If the text displayed has more than 3 lines, this is
indicated by the directional arrow. The additional text
can be viewed by turning the dial.
11 Burner
operation
The boiler is heating.
12 Operating
mode
Current operating mode Comfort / Economy / Frost.
13 Automatic
mode
Automatic change of the operating modes to the set
switch points according to the heating program.
14 Vacation The vacation program is active.
Tab. 2 Symbols on the display
12 h
15
9
3

6 720 643 262 (2010/05)
8| Operation with closed flap US/CA
4 Operation with closed flap
4.1 Controls
Fig. 2 Operating elements with closed flap
23
1
912 h15
18
2124h
3
6
6 720 643 262-01.1O

6 720 643 262 (2010/05)
Operation with closed flap | 9US/CA
Item Element Designation Explanation
1Dial •Turning dial:
change the room temperature temporarily.
•Pressing dial:
switches heating zone or confirms setting/value.
2“Come/go” button Start the next operating mode Comfort / Economy /
Frost of the heating program immediately. The
heating program is thus changed temporarily.
3“DHW single charge”
button
Start the hot water heating immediately. The DHW
program is thus changed temporarily.
Tab. 3 Operating elements with closed flap

6 720 643 262 (2010/05)
10 | Operation with closed flap US/CA
4.2 If it is too cold or too warm for
you
You can read the current temperature from the
display. Depending on the mounting location (on
the wall or in the boiler) and the setting, the
display shows either the room temperature or the
supply temperature.

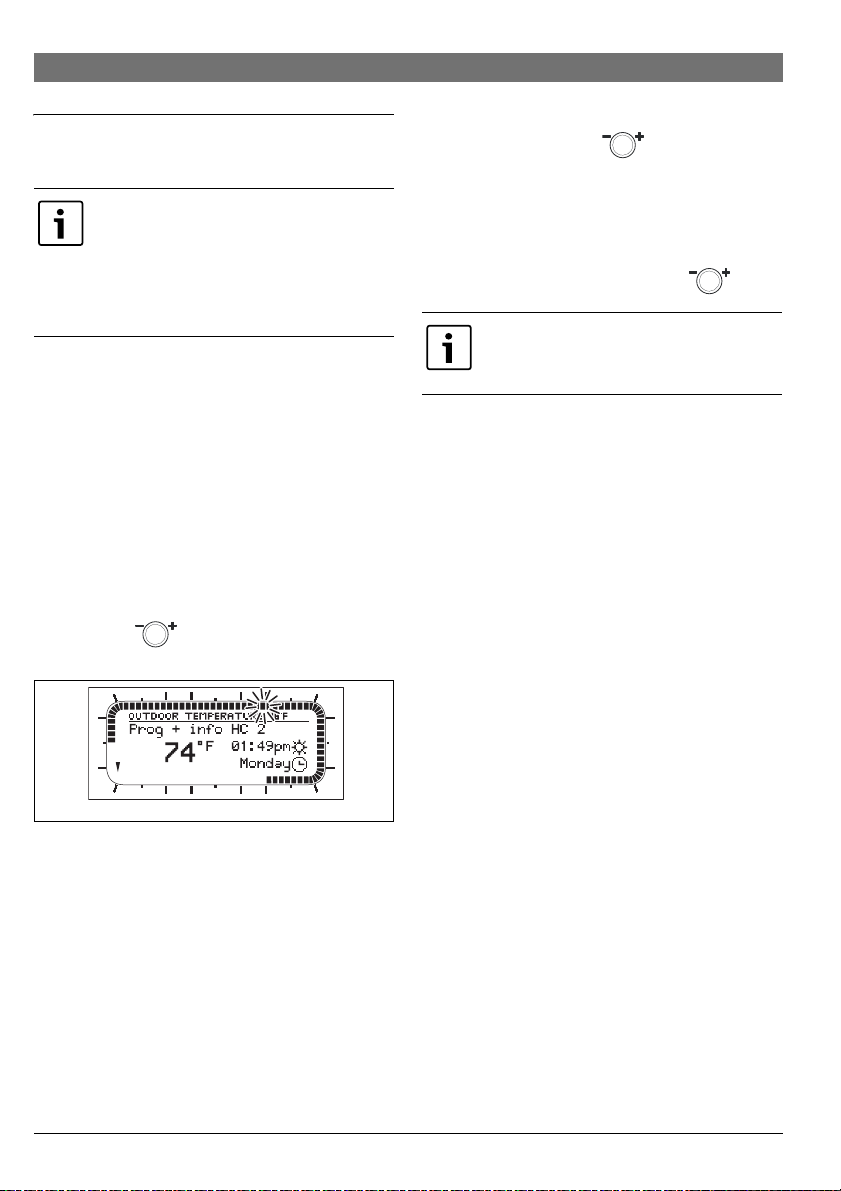

Changing the heating circuit
You can choose between two heating circuits.
Ask the installer of your heating system how the
heating circuits are assigned, heating circuit 1 is
the heating with radiators and heating circuit 2 is
the radiant floor heating.
BPress dial to change too the second
heating circuit.
Fig. 3 Sample display for heating circuit 2 (if
the controls are mounted on the wall)
BPress dial again to change to the first heating
circuit.
Displaying the temperature setting
BIf desired, press dial to change the
heating circuit.
BTurn dial one click.
Changing the temperature setting temporarily
With a closed flap, you can temporarily change
the room temperature with the dial .
If the controls display the room temperature:
BIf desired, press dial to change the heating
circuit.
BRotate dial until the desired day room
temperature is displayed.
The temperature display flashes.
BPress the dial.
The change applies until the next switch point
of your heating program has been reached.
After this, the settings of the heating program
apply again.
If the controls display the supply temperature:
BIf desired, press dial to change the heating
circuit.
BTurn the dial to set the heating WARMER or
COOLER.
The position arrows on the display bars flash.
BPress the dial.
The change applies until the next switch point
of your heating program has been reached.
After this, the settings of the heating program
apply again.
The desired room temperature is an
orientation value that the outdoor
reset control tries to achieve.
Deviations from the actually-
achieved room temperature can
occur.
912
h
15
18
2124
h
3
6
6 720 643 262-23.1O
You can also change the room
temperature permanently
(Æsection 5.2).

6 720 643 262 (2010/05)
Operation with closed flap | 11US/CA
4.3 If you would like to change the
heating program temporarily
If you go to bed earlier, leave home longer or
come back earlier, you can use the button
to set the next operating mode Comfort /
Economy / Frost of the heating program right
away. The heating program is thus changed
temporarily until the next switch point is
reached.
Start “Come/Go”
BIf desired, press dial to change the heating
circuit.
BBriefly press button.
The next operating mode Comfort / Economy
/ Frost of the heating program is started right
away. The change is shown in the display.
Ending “Come/Go” early
BBriefly press button.
“Come/Go” is ended and the heating program
resumes.
4.4 If you would like to change the
DHW program temporarily
If you would like to shower even though your
boiler is currently running in “Eco” mode, you can
use the button to start hot water heating right
away. The DHW program is thus changed
temporarily.
Starting “DHW single charge”
BBriefly press button.
The change is shown in the display.
–For hot water heating with a domestic hot
water tank, heating up to the set hot water
temperature occurs for 60 minutes.
–For hot water heating with a combi boiler,
the comfort operation is active for 30
minutes.
Ending “DHW single charge” early
BBriefly press button.
“DHW single charge” is ended and the DHW
program resumes.
The operating mode switch under
the flap must be in the position
(ÆFig. 4 [2], page 12).
See the operating instructions for
the boiler for additional information
about comfort operation.

6 720 643 262 (2010/05)
12 | Operation with open flap US/CA
5 Operation with open flap
5.1 Controls
Fig. 4 Controls with open flap
1
2
3
4
5
6
912 h15
18
2124h
3
6
6 720 643 262-22.1O

6 720 643 262 (2010/05)
Operation with open flap | 13US/CA
Item Element Designation Explanation
1Dial •Turn the dial:
–Temporarily change room temperature.
–Move in the menu and change the value.
•Press the dial.
–Open the menu.
–Confirm the setting.
2Operating mode selector •:
Heat according to heating program.
•/ / :
Permanent heat according to operating mode
Comfort / Economy / Frost (the heating program
is switched off).
3Menu button Open and close main menu.
4Info button Open and close info menu. Display of current
information about the heating system, e.g. heating,
hot water, solar.
5“Delete” button Delete/reset value on the menu.
6“Back” button Jump back to the higher menu level.
Tab. 4 Controls with open flap
menu
info

6 720 643 262 (2010/05)
14 | Operation with open flap US/CA
5.2 Changing room temperatures
permanently for the heating
program
The controls have 3 temperature levels for
controlling the room temperature:
•Comfort: 70 °F (21 °C) (factory settings)
adjustment range 32 °F ... 86 °F
(0.0 °C ... 30.0 °C), however higher than
Economy
•Economy: 60 °F (15 °C) (factory settings)
adjustment range 32 °F ... 86 °F
(0.0 °C ... 30.0 °C), however higher than Frost
and lower than Comfort
•Frost: 42 °F (5 °C) (factory settings)
adjustment range 32 °F ... 86 °F
(0.0 °C ... 30.0 °C), however lower than
Economy
If you wish to change the room temperature for a
longer time, proceed as follows:
Display set temperature level
The display of the set temperature level by
turning the operating mode selector only works if
the room temperature is displayed.
BOpen flap.
BIf desired, press dial to change the heating
circuit.
BTurn operating mode selector t the positions
/ / one after another.
The set room temperatures are displayed.
Changing the set temperature level
BPress the menu button.
The MAIN MENU is displayed, the Vacation
menu option is marked.
Fig. 5 Vacation menu option
BTurn the dial to mark the Heating menu
option.
Fig. 6 Heating menu option
BPress the dial.
The HEATING menu is displayed, the Program
menu option is marked.
Fig. 7 Program menu option
BTurn the dial to mark the Parameter menu
option.
Turn the operating mode selector
further back to the initial position
. Only then is an automatic
change of the temperature level in a
heating program possible.
912
h
15
18
2124
h
3
6
6 720 643 262-38.1O
912
h
15
18
2124
h
3
6
6 720 643 262-09.1O
6 720 643 262-12.1O
912
h
15
18
21
24
h
3
6

6 720 643 262 (2010/05)
Operation with open flap | 15US/CA
BPress the dial.
The HEATING PARAMETERS menu is
displayed, the Heating circuit 1 menu option
is marked.
Fig. 8 Heating circuit 1 menu option
BTurn the dial to mark the Heating circuit 2
menu option.
-or-
BPress the dial.
The HEATING PARAMETERS CIRC. 1 menu is
displayed, the Heating levels is marked.
Fig. 9 Heating levels menu option
BPress the dial.
The CIRCUIT 1 HEATING LEVELS menu is
displayed, the Comfort menu option is
marked.
Fig. 10 Comfort menu option
Example: Change temperature level Economy.
BTurn the dial to mark the Economy menu
option.
BPress the dial.
The input field for the desired room
temperature flashes.
Fig. 11 Desired room temperature input field
BTurn dial to set the desired room temperature.
BPress the dial to confirm the setting.
The Economy menu option is marked again.
BTurn the dial to change the settings for
Comfort and Frost in the same manner.
-or-
BPress the menu button to leave the menu.
The controls work with the changed settings.
912
h
15
18
2124
h
3
6
6 720 643 262-02.1O
912
h
15
18
2124
h
3
6
6 720 643 262-04.1O
912 h15
18
2124h
3
6
6 720 643 262-26.1O
912 h15
18
2124h
3
6
6 720 643 262-27.1O

6 720 643 262 (2010/05)
16 | Operation with open flap US/CA
5.3 Constant room temperature
If, however, you would like to specify a constant
room temperature for a longer time, then you can
set constant operation with the operating mode
selector.
The following constant room temperature
settings are possible:
•: Comfort in permanent operation
The controls constantly regulate the set (high)
room temperature for the Comfort operating
mode. (Factory settings): 70 °F (21 °C).
•: Economy in permanent operation
The controls constantly regulate the set (high)
room temperature for the Economy operating
mode. (Factory settings): 60 °F (15 °C).
•: Frost in permanent operation
The controls constantly regulates the set
(low) room temperature for the Frost
operating mode. (Factory settings): 42 °F
(5 °C). If the boiler is switched on, there is
frost protection for the system. Please
observe the other notes in the boiler
operating instructions.
BOpen flap.
BIf desired, press dial to change the heating
circuit.
BTurn operating mode selector to the desired
position.
If possible, leave the operating
mode selector in the position.
Only this way can you benefit from
the full comfort of the heating
program.
NOTICE: Make sure that the lower
room temperature is tolerable for
plants and house pets.
You can change the set
temperature with the dial
(Æsection 4.2). If the operating
mode selector is turned, the
changed temperature is discarded.

6 720 643 262 (2010/05)
Operation with open flap | 17US/CA
5.4 Selecting and adapting a heating program
At the factory, various heating programs are
preprogrammed that are appropriate for most
cases. The program A (e.g. for families) is already
activated for the heating circuit 1 and the
program D (e.g. for families) is already activated
for the heating circuit 2.
In this section you will learn how you can activate
another heating program and how you can
individualize the activated heating program.
Comfort: 70 °F (21 C) (factory settings).
Economy: 60 °F (15 C) (factory settings).
Frost: 42 °F (5 °C) (factory settings)
Program Factory settings for the program points P1 to P6
Day
Switch
point P1
Switch
point P2
Switch
point P3
Switch
point P4
Switch
point P5
and P6
Program A
and
Program D
(e.g. for
families);
factory
default:
heating circuit
1 and heating
circuit 2
Monday –
Thursday 06:00am 10:00pm – – – – – –
Friday 06:00am 11:30pm – – – – – –
Saturday 07:00am 11:30pm – – – – – –
Sunday 08:00am 10:00pm – – – – – –
Program B
and
Program E
(e.g. for
people who
work during
the day)
Monday –
Thursday 06:00am 08:00am 05:00pm 10:00pm – –
Friday 06:00am 08:00am 05:00pm 11:30pm – –
Saturday 07:00am 11:30pm – – – – – –
Sunday 08:00am 10:00pm – – – – – –
Program C
and
Program F
(e.g. for
seniors)
All days 07:00am 11:00pm – – – – – –
Tab. 5 Factory settings for the heating programs A to F
The settings for a heating program
will be explained using the example
of Program A.

6 720 643 262 (2010/05)
18 | Operation with open flap US/CA
5.4.1 Activating a heating program
BOpen flap.
BPress the menu button.
The MAIN MENU is displayed, the Vacation
menu option is marked.
BTurn the dial to mark the Heating menu
option.
BPress the dial.
The HEATING menu is displayed, the Program
menu option is marked.
BPress the dial.
The HEATING PROGRAM menu is displayed,
the Activate menu option is marked.
Fig. 12 Activate menu option
BPress the dial.
The ACTIVATE HEATING PROGRAM menu is
displayed, the Heating circuit 1 menu option
is marked.
BPress the dial.
The input field for the heating program
flashes.
BTurn the dial to select a heating program, e.g.
A:Program A or B:Program B.
BPress the dial to confirm the selection.
The Heating circuit 1 menu option is marked
again.
BPress the menu button to leave the menu.
The controls work with the selected heating
program.
5.4.2 Adapting a heating program individually
If the settings (temperature level or switch
points) for a heating program do not meet your
needs, you can change this heating program.
BOpen flap.
BPress the menu button.
The MAIN MENU is displayed, the Vacation
menu option is marked.
BTurn the dial to mark the Heating menu
option.
BPress the dial.
The HEATING menu is displayed, the Program
menu option is marked.
BPress the dial.
The HEATING PROGRAM menu is displayed,
the Activate menu option is marked.
BTurn the dial to mark the Edit menu option.
Fig. 13 Edit menu option
BPress the dial.
The EDIT HEATING PROGRAM menu is
displayed, the A:Program A menu option is
marked.
BTurn the dial to select another heating
program.
-or-
BPress the dial.
The EDIT PROGRAM A menu is displayed, the
Replace with preset program menu option is
marked.
912
h
15
18
2124
h
3
6
6 720 643 262-13.1O
912
h
15
18
2124
h
3
6
6 720 643 262-06.1O

6 720 643 262 (2010/05)
Operation with open flap | 19US/CA
BTurn the dial to mark the desired group of
days, e.g. Monday.
The following groups of days are available:
–All days (all days of the week)
–Mon - Fri (all week days)
–Sat + Sun (Saturday and Sunday)
–Monday, Tuesday... (each weekday
individually)
BPress the dial.
The EDIT PROGRAM A MON menu is
displayed, the P1 menu option is marked.
Fig. 14 Edit program A on Monday (P1)
BTurn the dial to select another program, e.g.
P3.
-or-
BPress the dial.
The segment display and the input field for the
switch point of P1 flashes.
BTurn the dial to set the desired switch point,
e.g. 6:30am (06:30).
Fig. 15 Setting the switch point
BPress the dial to confirm the setting.
The segment display and the input field for the
operating mode of P1 flash.
BTurn the dial to select another operating
mode, e.g. Economy.
Fig. 16 Setting the operating mode
BPress the dial to confirm the setting.
The program P1 is marked.
BTurn the dial to select another program, e.g.
P3.
-or-
BPress the menu button to leave the menu.
The controls work with the changed settings.
912 h15
18
2124h
3
6
6 720 643 262-10.1O
912 h15
18
2124h
3
6
6 720 643 262-11.1O
If you have changed a heating
program that was not already
activated (factory setting is
A:Program A for Heating circuit 1 or
D: Program D for Heating circuit 2),
you must select the corresponding
heating program in the HEATING
menu with the Activate menu option
and activate it (Æsection 5.4.1).
912 h15
18
2124h
3
6
6 720 643 262-14.1O

6 720 643 262 (2010/05)
20 | Operation with open flap US/CA
5.4.3 Resetting heating program to factory
settings
If you need a heating program with its original
settings, you can reset the heating program to its
factory settings.
BOpen flap.
BPress the menu button.
The MAIN MENU is displayed, the Vacation
menu option is marked.
BTurn the dial to mark the Heating menu
option.
BPress the dial.
The HEATING menu is displayed, the Program
menu option is marked.
BPress the dial.
The HEATING PROGRAM menu is displayed,
the Activate menu option is marked.
BTurn the dial to mark the Edit menu option.
BPress the dial.
The EDIT HEATING PROGRAM menu is
displayed, the A:Program A menu option is
marked.
BTurn the dial to select another heating
program.
-or-
BPress the dial.
The EDIT PROGRAM A menu is displayed, the
Replace with preset program menu option is
marked.
BTurn the dial to mark the Reset factory
settings menu option.
Fig. 17 Reset factory settings menu option
BPress the dial.
The input field No flashes.
BTurn the dial to set Yes.
BPress the dial to confirm the setting.
The message The heating program A has
been reset to factory settings is displayed.
BPress the dial.
The Reset factory settings menu option is
marked again.
BPress the menu button to leave the menu.
The controls work with the heating program’s
factory settings.
912
h
15
18
2124
h
3
6
6 720 643 262-03.1O
