Bosch DIP-2040-00N User manual

DIVAR IP 2000
DIP-2040-00N, DIP-2042-2HD, DIP-2042-4HD
en Quick Installation Guide

Table of contents
1Safety precautions 4
1.1 General safety precautions 4
1.2 Electrical safety precautions 7
1.3 ESD precautions 8
1.4 Operating precautions 9
2System overview 10
2.1 Device views 10
2.2 LED description - front panel 13
2.3 LAN port LED description - rear panel 14
3System setup - first steps 15
3.1 Introduction 15
3.2 Setup instruction 15
3.3 Starting the application 16

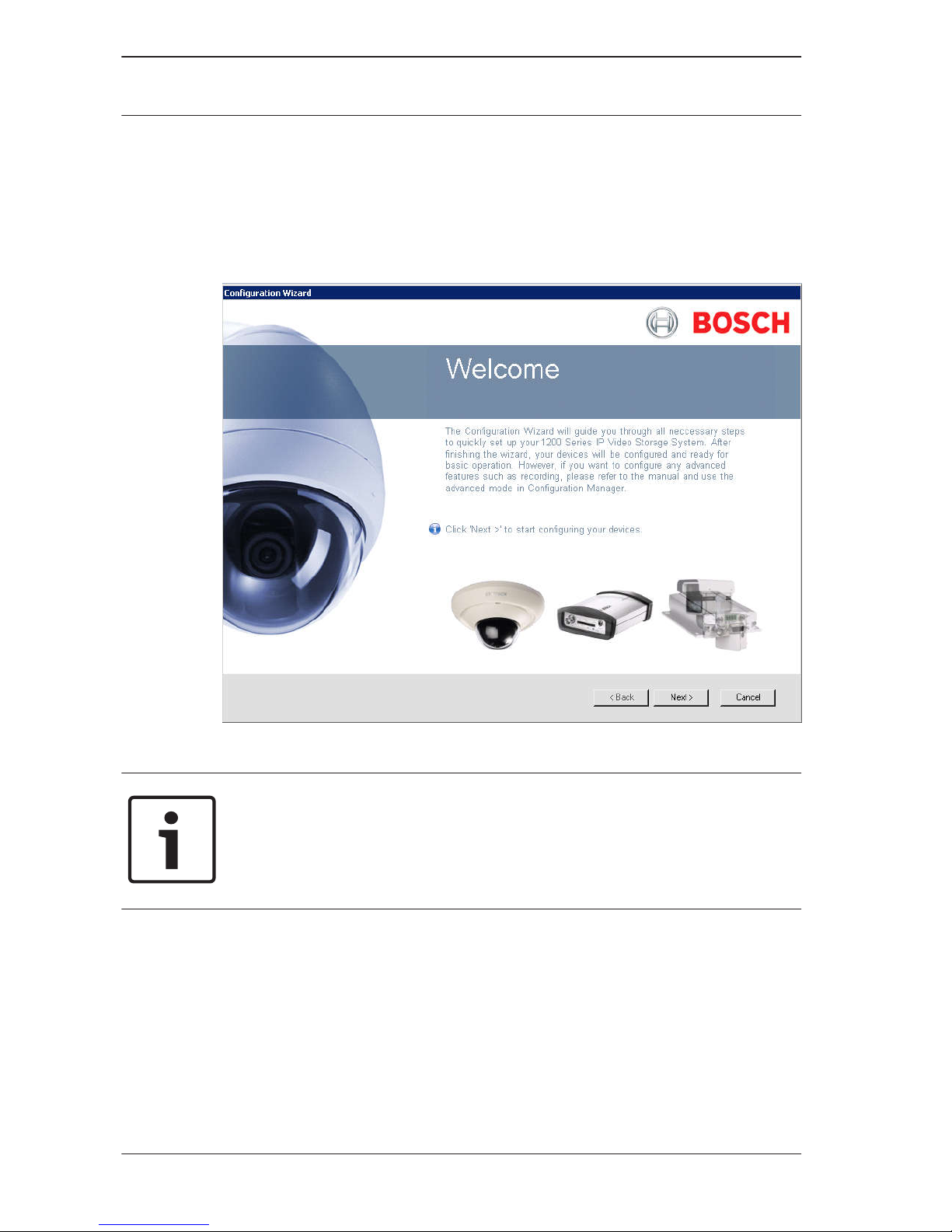

3.4 Using Configuration Wizard 17
4Additional documentation and client software 27
5End-user license agreement (EULA) 28
DIVAR IP 2000 Table of Contents | en 3
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

Safety precautions
Observe the safety precautions in this chapter.
General safety precautions
Follow these rules to ensure general safety:
– Keep the area around the system clean and free of clutter.
– Place the chassis top cover and any system components
that have been removed away from the system or on a table
so that they won't accidentally be stepped on.
– While working on the system, do not wear loose clothing
such as neckties and unbuttoned shirt sleeves, which can
come into contact with electrical circuits or be pulled into a
cooling fan.
– Remove any jewelry or metal objects from your body, which
are excellent metal conductors that can create short
circuits and harm you if they come into contact with printed
circuit boards or areas where power is present.
!
Warning!
Interruption of mains supply:
Voltage is applied as soon as the mains plug is inserted into the
mains socket.
However, for devices with a mains switch, the device is only
ready for operation when the mains switch (ON/OFF) is in the
ON position. When the mains plug is pulled out of the socket,
the supply of power to the device is completely interrupted.
1
1.1
4en | Safety precautions DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

!
Warning!
Removing the housing:
To avoid electric shock, the housing must only be removed by
qualified service personnel.
Before removing the housing, the plug must always be removed
from the mains socket and remain disconnected while the
housing is removed. Servicing must only be carried out by
qualified service personnel. The user must not carry out any
repairs.
!
Warning!
Power cable and AC adapter:
When installing the product, use the provided or designated
connection cables, power cables and AC adaptors. Using any
other cables and adaptors could cause a malfunction or a fire.
Electrical Appliance and Material Safety Law prohibits the use
of UL or CSA-certified cables (that have UL/CSA shown on the
code) for any other electrical devices.
!
Warning!
Lithium battery:
Batteries that have been inserted wrongly can cause an
explosion. Always replace empty batteries with batteries of the
same type or a similar type recommended by the manufacturer.
Handle used batteries carefully. Do not damage the battery in
any way. A damaged battery may release hazardous materials
into the environment.
Dispose of empty batteries according to the manufacturer's
instructions.
DIVAR IP 2000 Safety precautions | en 5
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

!
Warning!
Handling of lead solder materials used in this product may
expose you to lead, a chemical known to the State of California
to cause birth defects and other reproductive harm.
Notice!
Electrostatically sensitive device:
To avoid electrostatic discharges, the CMOS/MOSFET
protection measures must be carried out correctly.
When handling electrostatically sensitive printed circuits,
grounded anti-static wrist bands must be worn and the ESD
safety precautions observed.
Notice!
Installation should only be carried out by qualified customer
service personnel in accordance with the applicable electrical
regulations.
Disposal
Your Bosch product has been developed and
manufactured using high-quality materials and
components that can be reused.
This symbol means that electronic and electrical
devices that have reached the end of their working
life must be disposed of separately from
household waste.
In the EU, separate collecting systems are already
in place for used electrical and electronic
products. Please dispose of these devices at your
local communal waste collection point or at a
recycling center.
6en | Safety precautions DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

Electrical safety precautions
Basic electrical safety precautions should be followed to protect
you from harm and the system from damage:
– Be aware of the locations of the power on/off switch on the
chassis as well as the room's emergency power-off switch,
disconnection switch or electrical outlet. If an electrical
accident occurs, you can then quickly remove power from
the system.
– Do not work alone when working with high voltage
components.
– Power should always be disconnected from the system
when removing or installing main system components, such
as the motherboard or memory modules. When
disconnecting power, you should first turn off the system
and then unplug the power cords from all the power supply
modules in the system.
– When working around exposed electrical circuits, another
person who is familiar with the power-off controls should
be nearby to switch off the power if necessary.
– Use only one hand when working with powered-on
electrical equipment. This is to avoid making a complete
circuit, which will cause electrical shock. Use extreme
caution when using metal tools, which can easily damage
any electrical components or circuit boards they come into
contact with.
– The power supply power cords must include a grounding
plug and must be plugged into grounded electrical outlets.
The unit has more than one power supply cord. Disconnect
both power supply cords before servicing to avoid electrical
shock.
– Mainboard replaceable soldered-in fuses: Self-resetting PTC
(Positive Temperature Coefficient) fuses on the mainboard
must be replaced by trained service technicians only. The
1.2
DIVAR IP 2000 Safety precautions | en 7
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

new fuse must be the same or equivalent as the one
replaced. Contact technical support for details and
support.
!
Caution!
Mainboard Battery: There is a danger of explosion if the
onboard battery is installed upside down, which will reverse its
polarities. This battery must be replaced only with the same or
an equivalent type recommended by the manufacturer
(CR2032). Dispose of used batteries according to the
manufacturer's instructions.
ESD precautions
Electrostatic Discharge (ESD) is generated by two objects with
different electrical charges coming into contact with each other.
An electrical discharge is created to neutralize this difference,
which can damage electronic components and printed circuit
boards. The following measures are generally sufficient to
neutralize this difference before contact is made to protect your
equipment from ESD:
– Do not use mats designed to decrease electrostatic
discharge as protection from electrical shock. Instead, use
rubber mats that have been specifically designed as
electrical insulators.
– Use a grounded wrist strap designed to prevent static
discharge.
– Keep all components and printed circuit boards (PCBs) in
their antistatic bags until ready for use.
– Touch a grounded metal object before removing the board
from the antistatic bag.
– Do not let components or printed circuit boards come into
contact with your clothing, which may retain a charge even
if you are wearing a wrist strap.
1.3
8en | Safety precautions DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

– Handle a board by its edges only. Do not touch its
components, peripheral chips, memory modules or
contacts.
– When handling chips or modules, avoid touching their pins.
– Put the mainboard and peripherals back into their antistatic
bags when not in use.
– For grounding purposes, make sure your computer chassis
provides excellent conductivity between the power supply,
the case, the mounting fasteners and the mainboard.
Operating precautions
The chassis cover must be in place when the system is operating
to assure proper cooling. Out of warranty damage to the system
can occur if this practice is not strictly followed.
Note:
Please handle used batteries carefully. Do not damage the
battery in any way. A damaged battery may release hazardous
materials into the environment. Do not discard a used battery in
the garbage or a public landfill. Please comply with the
regulations set up by your local hazardous waste management
agency to dispose of your used battery properly.
1.4
DIVAR IP 2000 Safety precautions | en 9
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

System overview
The DIVAR IP 2000 system is an affordable, easy to use all-in-one
recording and management solution for network surveillance
systems of up to 16 channels. All channels are pre-licensed.
Running the full Bosch recording solution including the Video
Streaming Gateway to integrate 3rd party cameras,
DIVAR IP 2000 is an intelligent IP storage device that provides
both, a professional video recording solution and ease of
operation.
DIVAR IP 2000 is a 4-bay mini tower unit that combines
advanced management and state-of-the-art recording
management into a single cost-effective, plug and play IP
recording appliance for IT-minded customers which are seeking
for a state-of-the-art “second generation” NVR recording
solution.
DIVAR IP 2000 utilizes a highly energy efficient, embedded
design at a very affordable price which nevertheless boasts
Bosch quality through-and-through.
Easy to install and operate, DIVAR IP 2000 features wizard-
based set-up and centralized configuration to reduce installation
times. All components are pre-installed and pre-configured.
Simply connect to the network and turn on the unit —
DIVAR IP 2000 is ready to begin recording straight out-of-the-
box.
DIVAR IP 2000 features front-swappable SATA-II hard drives
providing up to 8 TB of gross storage capacity. All system
software is pre-installed and pre-activated — creating an out-of-
the-box ready-to-use video recording appliance. DIVAR IP 2000
utilizes Windows Storage Server 2008 R2 operating system.
Device views
There are several LEDs on the front and rear of the chassis. The
LEDs show the over-all status of the system and the activity and
health of specific components.
2
2.1
10 en | System overview DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

Front view:
1
52 3 4
6
1Lock for front cover 4LAN activity LED
2Power on/off LED 5System status LED
3Hard disk access LED 6Individual hard disk LED
DIVAR IP 2000 System overview | en 11
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

Rear view:
2 3 4 5
16
11x eSATA for data export
Note: Do not connect
hard disk drives for
recording.
42x USB 3.0
Note: Do not use these
ports for keyboard and
mouse connection.
21x Ethernet (RJ45) 51x VGA (monitor)
32x USB 2.0
Note: Use these ports for
keyboard and mouse
connection.
6Mains connection 100 -
240 VAC
12 en | System overview DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

LED description - front panel
This chapter describes the LED displays on the front of the
chassis.
LED
indicator
LED
color
LED
state
Description
Power
LED
N/A Off Power off
Blue On
(default)
Working (S0 state)
HDD LED N/A Off No disk access
Blue Blinking Disk access
LAN LED N/A Off Network disconnected
Blue On Network connected
Blue Blinking Network activity
System
LED
N/A Off Power off
Blue On
(default)
System has booted in normal
operation.
Blue Blinking System is booting or shutting
down
Red On Critical event occurred, such
as degraded RAID volume.
Bosch also provides the API
and then application program
is able to control this status.
Individual
hard disk
LED
N/A Off
(default)
Hard drive not present.
2.2
DIVAR IP 2000 System overview | en 13
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

LED
indicator
LED
color
LED
state
Description
Blue On Hard drive present.
Red On Bosch provides the API to let
application program to control
this status.
LAN port LED description - rear panel
This chapter describes the LAN port LED on the rear of the
chassis.
LAN connector:
12
Nr. LED
indicator
LED
color
LED
state
NIC state
1RJ45 LED
(left)
N/A Off No connection or 10
Mb/s
Green On 100 Mb/s
Yellow On 1000 Mb/s
2RJ45 LED
(right)
Yellow On Active connection
Yellow Blinking Transmit or receive
activity
2.3
14 en | System overview DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

System setup - first steps
The following installation directive provides information on
Installation and Configuration.
DIVAR IP systems are based on Windows Storage
Server 2008 R2 operating system.
This chapter is valid for DIVAR IP models that come with pre-
installed hard drives. Empty units start into the DOM recovery
menu on first start. The recovery process is described in the
installation manual.
See also:
–Additional documentation and client software, page 27
Introduction
DIVAR IP systems are shipped with a pre-installed Configuration
Wizard from factory.
Setup instruction
All DIVAR IP systems are preconfigured with a default IP address
and with default iSCSI settings.
– IP Address: 192.168.0.200
– Subnet mask: 255.255.255.0
Observe the following:
– DIVAR IP needs to have an active network link during
installation. Make sure that the network switch you are
connecting to is powered on.
– The default IP address must not be occupied by any other
device in the network.
– Determine whether the initial installation is on a DHCP
network. If not then you must assign valid IP addresses to
the video devices. Consult the local IT administrator to
obtain a valid IP address range to be used with DIVAR IP
and associated devices.
– The default iSCSI settings are optimized for use with VRM.
3
3.1
3.2
DIVAR IP 2000 System setup - first steps | en 15
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

User with administrator rights:
– User: BVRAdmin
– Password: WSS4Bosch
Notice!
We strongly recommended not changing the user settings.
Changing the user settings can result in malfunctioning of the
system.
Starting the application
DIVAR IP system is ready to go out of the box. The application
provides a simple to install and intuitive to use solution for
network surveillance systems.
To start the application:
1. Connect the unit and the cameras to the network.
2. Turn on the unit.
The Windows Storage Server 2008 R2 setup process starts.
3. Select the appropriate language for the installation, then
click Next.
4. In the Country or region, Time and currency and Keyboard
layout lists, click the appropriate item, then click Next.
The Microsoft Software License Terms and the EULA (End
User License Agreement) are displayed.
5. Accept the license terms, then click Start. Windows
restarts.
6. After restart is finished, press CTR+ALT+DELETE. The
Windows logon page is displayed.
7. Enter the default password WSS4Bosch.
8. After entering the password, a message is displayed that
you must change the password before logging on the first
time. To confirm, click OK.
9. Change the password.
3.3
16 en | System setup - first steps DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

A series of scripts perform important setup tasks. This can
take several minutes. Do not turn off the computer.
A page is displayed where you can perform initial Windows
configuration tasks.
Note: In case of password loss a system recovery must be
performed as described in the installation manual. The
configuration must be done from scratch or must be
imported.
10. Click the Set time zone, Configure networking and Provide
computer name and domain link, enter the appropriate
information, then click Close. Windows restarts.
11. Press CTR+ALT+DELETE. The Windows logon page is
displayed.
12. Enter the password.
The Welcome page of the Configuration Wizard is
displayed.
13. Configure the system using the Configuration Wizard. To do
this, go through the wizard and follow the instructions on
the screen.
See also:
–Using Configuration Wizard, page 17
–Additional documentation and client software, page 27
Using Configuration Wizard
Intended use for Configuration Wizard is the quick and easy
configuration of a smaller system. Configuration Wizard helps
you to achieve a configured system including VRM, iSCSI
system, cameras, recording profiles and user groups.
User groups and their permissions are configured automatically.
You can add or remove users and set passwords.
Configuration Wizard can access Management Server only on
the local computer.
Configuration Wizard adds the local VRM automatically.
To achieve a quick configuration using the Configuration Wizard:
3.4
DIVAR IP 2000 System setup - first steps | en 17
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

1. On the default screen, double-click the Configuration
Wizard icon. The Welcome page is displayed.
2. Run-through the following pages of the wizard.
Welcome page
4Click Next > to start the configuration.
Notice!
If VRM is not available on the computer or the license check
fails, a corresponding error message is displayed. You cannot
continue working with Configuration Wizard.
18 en | System setup - first steps DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH

Passwords page
This page allows you to specify a password to protect the
devices from unauthorized access.
4Enter the respective password, confirm the password, then
click Next >.
DIVAR IP 2000 System setup - first steps | en 19
Bosch Sicherheitssysteme GmbH 2013.09 | V4 | DOC

Recorder page
This page displays recorder information.
4Click Next > to continue.
20 en | System setup - first steps DIVAR IP 2000
2013.09 | V4 | DOC Bosch Sicherheitssysteme GmbH
