Bristan SOQ3 SHXAR C Wiring diagram

Installation Instructions
& User Guide
Please leave these instructions
with the end user
Pack Contents
Maximum Static Pressure: 10.0 bar
Max: 5.0 bar
Prior to Installation
Spares
Flat Head
Screwdriver
Socket Spanner
Safety Goggles
Drill
Cross Head
Screwdriver
Pipe Cutter
Long Nosed Pliers Electronic Detector
2.5mm
10mm
Hexagonal Keys
Adjustable Spanner
Operation
Dynamic Water Pressure
Specifications
25°C
5°C
Min 5°C; Max 25°C
Inlet Water Temperature Inlet Connections
Tools Required
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of The Water Supply (Water Fittings) Regulations
(Northern Ireland) 2009 and The Water Supply (Water Fittings) (Scotland) Byelaws 2014. For full Installation Requirements & Notes
(IRN) please visit www.wrasapprovals.co.uk/approvals-directory
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf, solder etc. Full access must be
made available for future maintenance/servicing purposes. Isolation valves must be fitted to the inlet water supplies to ensure ease of
future maintenance.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This can be checked with the aid of
an electronic detector. If power tools are used do not forget to: - Wear eye protection - Unplug equipment after use
This product must not be modified in any way as this will invalidate the guarantee.
Min: 0.1 bar
SOQ3 SHXAR C (D6)
0
1.0
2.0
5.0
4.0
3.0
Pressure
BAR
65°C
60°C
Recommended 60°C;
Max 65°C
IMPORTANT
The inlet hot water must
be at least 10°C above the
required blend temperature.
Factory
pre-set 42°C
110-155mm
Centres
15mm
Compression
Inlet Dimensions
HP-SE & LP-SE
TMV2 Designation
30mm
To replace any
spare parts for
your shower, why
not scan the
QR Code or visit
www.bristan.com
and search for
your product.
Increase
Temperature
and Flow
O
x1
x2 End Caps
Single
Function
Handset
Long
Elbows
Riser
Brackets
Shower Valve
Cone
to
Nut
Hose
Slider
Hose
Retainer
Screw
Pack
Olives
Nuts
Plinths
x1
x1
x1
x2 x1
x2
x1
x2
x2
x2

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Exposed Sequential and
Concentric Mini Valve Showers

Contents
• Important Safety Information 3
• Installation Requirements 4-7
• Prior to Installation 8-9
• Installation 10
• General Cleaning 11
• Maintenance 12-16
• Troubleshooting 17
• Notes 18-19
2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have
designed this product with your enjoyment in mind. To ensure that it works to its
full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to give us a call on 0330 026 6273.

Please make sure you read these instructions and retain for future use.
All products manufactured by Bristan are safe, providing they are installed and used
correctly and also receive maintenance when needed.
These fittings, including the connecting water and waste system need to be installed
in accordance with and meet the requirements of the Water Supply Regulations 1999
(Water Fittings) and current by-laws. If you are in doubt about your ability to install
this product correctly or safely, you should employ the services of an experienced
qualified plumber.
This product must not be modified in any way otherwise this will invalidate the
guarantee. Remove all packaging and check the contents for damage before starting
installation.
Warning: Before installing the new mixer valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf,
solder, etc. Failure to carry out this procedure could cause problems or
damage to the workings of the mixer valve.
Fitting isolating valves to the inlet feeds is required for ease of maintenance.
Warning: Do not operate the mixer if you suspect it is frozen. Do not site the mixer
valve where it might be subjected to freezing conditions.
Consider the following whilst using power tools:
• Prior to drilling into walls, check there are no hidden electrical cables or
wires and there are also no water pipes. These can potentially be found
using an electrical or metal detector. You may also need to know some
of the schematics of previous installations to determine the suitability
and accommodation of the installation.
• Wear the correct PPE, especially ear, eye and hand protection
when using power tools. Unplug any mains equipment after use.
• Keep electrical equipment away from sources of water.
• If a blow-lamp is used when plumbing, the flame must be kept well away from
the product otherwise damage may occur.
If in doubt, contact a registered plumber, your Local Water Authority or the
Secretary of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information

Please refer to your specific shower
contents page for specification
information.
These showers are designed to be used
in conjunction with the kit supplied, or
Bristan shower kits where not supplied.
We cannot guarantee compatability or
adequate performance when used with
other kits. This would also invalidate your
guarantee. Please refer to the installation
manual supplied with your Bristan
shower kits for their specification
information.
This shower valve must be installed
in compliance with current water
regulations. If you have any doubts
about the water regulation requirements
contact your local water services
provider or use the services of a
professional plumber.
This shower valve is suitable for use with
the following water supply systems:
• Gravity Fed Hot and Cold
(pressure imbalance should not exceed
a ratio of 5:1 - see Specification section)
• Gravity Fed Hot and Mains Cold
(pressure imbalance should not exceed
a ratio of 5:1 - see Specification section)
• Instantaneous water heater
(combination boiler)
• Unvented System
• Pumped System
Important: If you install this shower valve
with a gravity fed system, there must be a
minimum head (vertical distance) from the
underside of the cold water storage tank
to the outlet of at least 1 metre .
Note: Pumped system (with Essex flange)
If you install this shower valve to a pumped
gravity fed system where the minimum
head (vertical distance) from the underside
of the cold water storage tank to the top
of the hot water cylinder is less than 1
metre we recommend an Essex flange is
used as shown.
Flushing Pipe-work
Important: Before connecting the shower
valve, the supply pipe-work must be
flushed to clear debris before connecting
the shower. Debris will reduce the
performance and life of the mixer.
4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

Gravity Fed Hot and Cold Gravity Fed Hot and Mains Cold
cold mains supply cold mains supply
1m min.
1m
min.
Key: Isolating
Valve
Reducing
Valve
Shower
Valve Pump Essex
Flange
5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

Unvented System
Instantaneous Water Heater
Pumped System
cold mains supply
cold mains supply
cold mains supply
Pumped System (with Essex flange)
cold mains supply
1m min.1m min.
50mm
If less
than
1m see
note.
Key: Isolating
Valve
Reducing
Valve
Shower
Valve Pump Essex
Flange
6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

This fitting needs to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
IRN R001: See text of entry for
Installation Requirements or Notes.
IRN R040 - Schedule 2-15 (1): The
fitting shall be installed so that its outlet
discharges above the spill-over level of
any fixed appliance as indicated below:-
For backflow protection in domestic or
installations up to, and including, Fluid
Category 3.
If the fitting cannot be installed as
indicated in the table opposite it shall be
installed as either a or b below:
a: with an approved double check valve
assembly or some other no less eective
backflow prevention device immediately
upstream of the inlet.
b: so that it draws water by gravity
only from a cistern, or cylinder having
a permanently open vent pipe, and
the distributing pipe supplies no other
fittings (other than a draining tap) at a
lower level.
For backflow protection in premises or
installations up to, and including Fluid
Category 5.
The vertical distance of the outlet above
the spill-over level shall be not less than
20mm or twice the diameter of the inlet
pipe to the fitting, which ever is the
greater. If the fitting cannot be installed
as indicated it shall be installed with
a backflow prevention arrangement
suitable for the Fluid Category.
Size of tap or
combination
fitting
Vertical distance
of outlet above
spill-over level
1. Not exceeding
½” 20mm
2. Exceeding ½”
but not
exceeding ¾”
25mm
3. Exceeding ¾” 70mm
7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements

Supply System Flow Regulator Comments
Hot Supply Cold Supply Hot Supply Cold Supply
0.1 - 1.0 bar 0.1 - 1.0 bar Not Required Not Required
Maximum pressure
loss ratio 5:1 between
inlets
1.0 - 5.0 bar
or pumped
1.0 - 5.0 bar
or pumped Yellow (5 litre) Green (7 litre)
Optional, can be used
if water economy
is required
Gravity Fed
0.1 - 0.5 bar
Mains 1.0 - 10
bar
Not Required Green (7 litre)
Gravity Fed
over 0.5 bar Yellow (5 litre) Green (7 litre)
Unvented
Mains/ Mains
Pressurised
Yellow (5 litre) Green (7 litre)
Instantaneous
Water Gas
Heater
Yellow (5 litre) Green (7 litre)
It may not be
necessary on some
gas water heaters to
have a flow regulator
on the hot
water supply.
Instantaneous
Water Electric
Heater
Not Required Yellow (5 litre)
It is a requirement that
a stable flow of water
passes through the
heater. This can be
achieved by fitting a
flow stabiliser before
the heater. The heater
temperature should
also be adjusted
to 45-50°C
Any vented
(open outlet)
Heater
Gas/Electric
e.g.
Electric
Shower
Do not use mixer valves with this type of water system;
this would be extremely dangerous!
Flow regulators have been pre-fitted to this product for water eciency.
If you have low water pressure, or certain water supply systems these may need to be
removed in order to achieve adequate flow. Please see the table to check whether the
flow regulators need to be removed.
8Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Prior to Installation

1. Unscrew both inlet elbows
anti-clockwise from the valve
body.
2. Remove the flow regulators
using long-nosed pliers if required.
3. Screw the inlet elbows
clockwise to fit back into
the valve body.
To Remove/Replace Flow Regulators:
Configuring the Inlet Elbows:
The shower valve is supplied with two
small and two large elbows that can
adjust between 110-155mm.
The elbows can be pointed to feed from
the top, bottom or rear.
Two full turns are required to fit the elbow
into the body properly.
1. Unscrew both inlet elbows
anti-clockwise from the valve body.
2. Choose the elbow configuration
to suit inlet centres:
* 2x small elbows: 110-130mm
* 1x small, 1x large: 130-136mm
* 2x large: 136-155mm
3. Screw in the desired elbows clockwise
for two complete turns to fit. This will
set to largest possible centre
measurement.
4. The elbows can be screwed a maximum
of 1.5 turns after fitting for adjustment.
Screw further clockwise to reduce the
centre measurement; anti-clockwise to
increase.
To Adjust Elbows:
110-155
Centres
Flow Regulator
9
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Prior to Installation

1. Check your shower’s specification
page and check the pack contents
for completeness.
2. Prepare the 15mm water pipework,
leaving sucient pipe protruding
from the finished wall to fit
into the elbows.
Flush through the pipework
to ensure removal of any debris.
Turn o the mains water supply
and close any isolating valves.
Important: Water supplies to the mixer
must be with hot on the left and cold on
the right when viewed from the front.
3. Measure the centre distance.
Measure the half-way point between
the centres and mark on the wall.
4. Configure the inlet elbows to
meet the centre distance.
5. Undo the grub screws at the back of the
shower valve to remove the backplate.
Place the backplate on the marked
half-way point between the centres
and mark the fixing holes
6. Drill the fixing holes using a suitable drill
bit. A pilot drill will be required if drilling
into tiles. Insert the wall plugs and screw
the backplate to the wall.
Warning: Please check for any hidden
pipes and cables before
drilling holes into the wall
7. Fit the nuts and then olives on to the
water supply pipes. Once fitted, feed
the plinths and shower valve on to the
water supply pipes and tighten into
position. Secure the valve to the back
plate using the grub screw.
Please refer to your specific shower
kit instructions, or shower contents
sheet if a kit is supplied to
install the shower kit.
If your shower needs to follow the
TMV scheme, please refer to the
TMV Manual to commission your shower.
110-155mm
Hot Cold
Backplate
Fixing
Holes
42.5mm
REMEMBER
Fit isolation
valves to pipe-
work for future
maintenance.
10 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation

Bristan products are made from
premium materials, with hand polished,
PVD, EPD or electroplated finishes.
Your product should be regularly cleaned
with warm water, a mild pH-neutral
liquid soap, and polished with a
soft cloth. Any residues from soap,
toothpaste, shampoos and shower gels can
cause blemishes if not rinsed
o straight after use.
Household bleaches and cleaners
contain harsh chemicals and may
damage the surface finish. Avoid us-
ing abrasive cloths, scouring pads, scrub
sponges, steel wool or anything similar.
Some surfaces such as nickel and
pewter may be aected by the dye found
in some cloths, so it is also
important to avoid hanging cloths
on surfaces.
Spare Parts
Visit www.bristan.com or scan the
QR Code and search for your product
code to find all the spares available
for your shower.
11
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
General Cleaning

Use a 30mm socket spanner to unscrew
the cartridge from the valve body.
Carefully remove the cartridge and spring.
Reverse the steps to re-fit
the cartridge and handle.
Reset the maximum temperature.
Remove all seals and check for any
damage. Place the cartridge in a
suitable solution and soak until fully
de-scaled. Rinse thoroughly.
Replace all seals and grease
with a WRAS approved sealant.
Undo the grub screw to
remove the handle. This can
be located at the top or
underneath the handle.

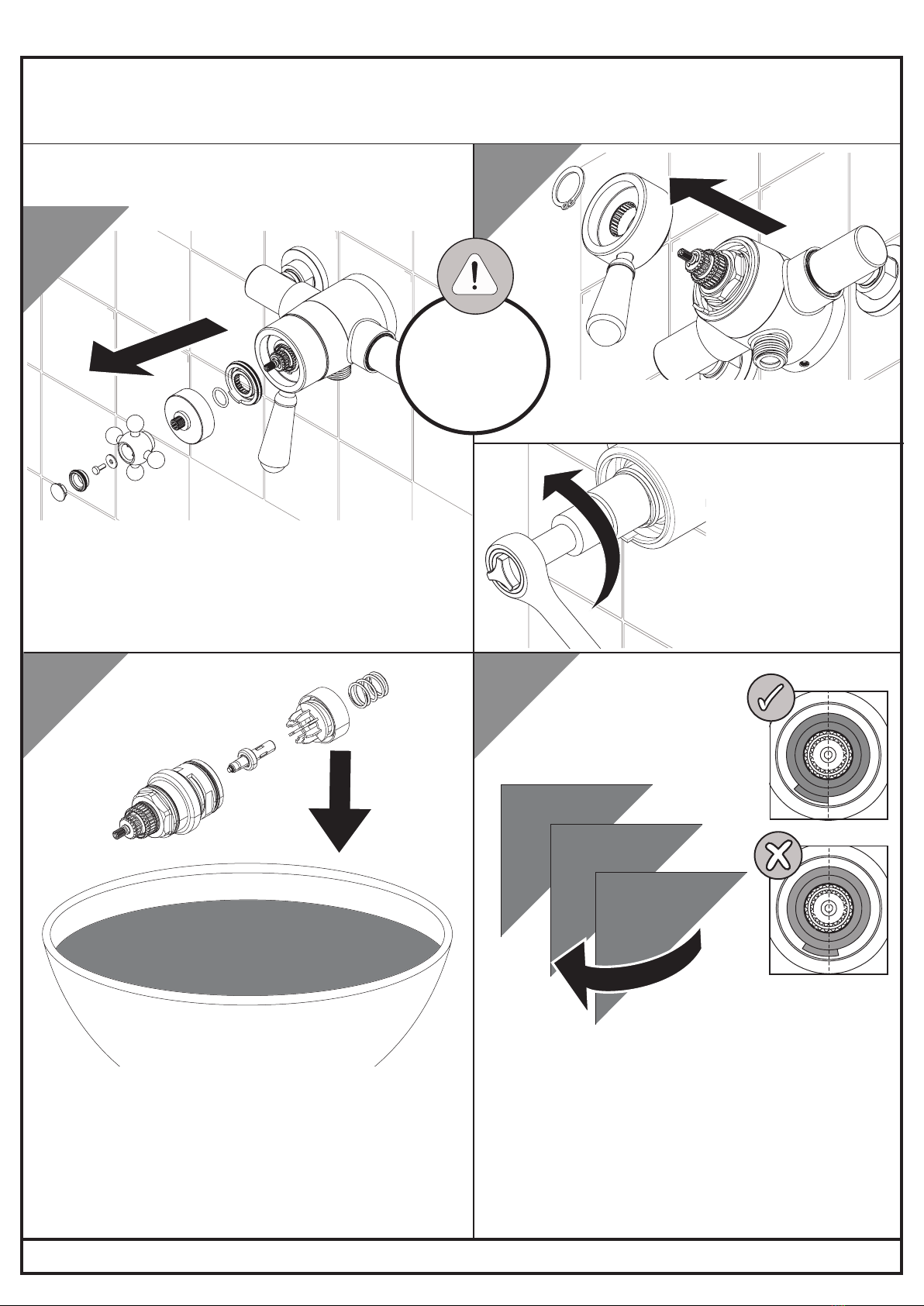

Replace/Clean Cartridge:
Sequential Shower Valves:
1
3 4
2
123
IMPORTANT
Isolate the
water supply
before starting!
12 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance

3 4
Reverse the steps to re-fit the
cartridge and handle. Ensure the
temperature stop is fitted correctly.
The stop should sit at the bottom left,
aligned centrally to the cartridge.
Reset the maximum temperature.
Undo the indice housing and
unscrew the screw to remove the
temperature handle. Pull o the shroud and
remove the temperature stop.
Remove the circlip and pull the flow
handle o of the valve
Replace/Clean Cartridge:
Concentric Shower Valves:
Use a 30mm socket
spanner to unscrew
the cartridge from
the valve body.
Carefully remove
the cartridge
and spring.
2
1
IMPORTANT
Isolate the
water supply
before starting!
123
Remove all seals and check for any
damage. Place the cartridge in a
suitable solution and soak until fully
de-scaled. Rinse thoroughly.
Replace all seals and grease
with a WRAS approved sealant.
13
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance

2
3
Using the 2.5mm hex key supplied,
adjust the temperature:
Turn the temperature handle to the
maximum temperature. Undo the
grub screw to remove the handle.
Re-fit the temperature handle back in
the maximum temperature position.
Sequential Shower Valves:
Maximum Temperature Setting:
Wait for a couple of minutes for the
temperature to stabilise after adjusting.
Measure the water outlet temperature
using a thermometer. Adjust until the
desired temperature is reached.
Decrease
Temperature
Increase
Temperature
1
The shower has been pre-set to 42°C as
per TMV standards. This is based on being
fitted with nominally balanced pressures
with the hot water inlet supply at 65°C.
If your operating conditions are dierent
to the above your maximum outlet
temperature may dier.
Please note if the maximum temperature is
increased the shower will no longer comply
with the TMV scheme. If this isn’t an issue,
we recommend setting the maximum
outlet temperature no higher than 43°C.
14 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance

1
Adjust the maximum temperature
by turning the spindle:
Turn the temperature handle to the
maximum temperature. Remove the
temperature handle and unscrew the
shroud. Turn on the shower.
Re-fit the temperature handle
back in the maximum
temperature position.
The shower has been pre-set to 42°C as
per TMV standards. This is based on being
fitted with nominally balanced pressures
with the hot water inlet supply at 65°C.
If your operating conditions are dierent
to the above your maximum outlet
temperature may dier.
Please note if the maximum temperature is
increased the shower will no longer comply
with the TMV scheme. If this isn’t an issue,
we recommend setting the maximum
outlet temperature no higher than 43°C.
Maximum Temperature Setting:
Concentric Shower Valves:
Wait for a couple of minutes for the
temperature to stabilise after adjusting.
Measure the water outlet temperature
using a thermometer. Adjust until the
desired temperature is reached.
Decrease
Temperature
Increase
Temperature
23
15
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance

Disconnect your shower kit.
Undo the compression nuts and
grub screw at the bottom of
the shower valve to remove
from the wall.
Remove the filters from both
elbows and set aside.
Unscrew the elbows completely
from the shower valve.
If installed, use a pair
of long-nosed pliers
to remove any flow
regulators fitted.
Set aside.
Check all
components
for damage
and replace
if necessary.
Rinse
thoroughly
in clean
water to
remove any
debris.
Reverse steps 1-4
to re-fit the
elbows and
secure the
shower to the
wall. Test all joints
and connections
for any leaks.
Remove the
check valves
from the
back of each
housing.
Use a 10mm hex key
to remove the check
valve housing from
each inlet.
1
5
6
4
3
2
Servicing the Elbows:
123
IMPORTANT
Isolate the
water supply
before starting!
4
16 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Maintenance

Symptom Cause Remedy
No flow or
low flow
rate
Partially closed isolation valve. Open isolation valve.
Instantaneous water heater cycles on and
o as flow rate or pressure is too low.
Increase water flow rate or
pressure through system.
Head of water is below the
minimum distance required.
Refer to the specification for the
minimum distance required.
Are the water supply pressures balanced?
If pressures are unbalanced, a pressure
reducing valve should be used for
optimum performance.
Hot or cold water being drawn o else-
where causing pressure changes or instan-
taneous boiler temperature changes.
Do not use other water outlets when
using the shower.
Airlock or partial blockage in the
supply pipework.
Flush through pipework and filters to ensure
removal of debris and any airlocks.
Hot/Cold water supply has failed Check the hot and cold feeds. The shower
will not work if either fails.
Outlet
Water
Tempera-
ture too
Hot/Cold
Maximum Water Temperature
needs adjusting.
Refer to the Temperature Setting section to
set your desired maximum temperature.
Filter/pipe blockage Flush through pipework and filters to ensure
removal of debris and any airlocks.
Installation conditions outside
operating parameters.
Refer to the specification for the
minimum distance required.
Hot water temperature is less than 10°C
above the required blend temperature
Adjust hot water temperature or wait
for water to reheat if a stored water
system is used.
Instantaneous water not igniting because
the water flow rate is too low.
Increase water flow rate through the system.
Refer to the Maintenance section to clean/
check the cartridge and filters for any
damage. Contact your boiler manufacturer.
Instantaneous water not igniting because
the water pressure is too low.
Refer to the specification for system
requirements. Increase water pressure
through the system.
Contact your boiler manufacturer.
Only
hot/cold
water from
Shower
Valve
Inlet water supplies are reversed.
Check the water inlet connections are the
correct way around: Hot on the left, Cold on
the right when viewed from the front.
Rework pipework as necessary.
Filter/pipe blockage Flush through pipework and filters to ensure
removal of debris and any airlocks.
Water
dripping
from
shower
This is normal for a short time after
using the shower.
This is caused by residual water tension,
the build up of water in the shower.
If water continues to drip,
possibly due to the cartridge
Remove cartridge and clean, refer to
'Maintenance' section before starting
any maintenance.
Shower
does not
turn on
Closed isolation valve. Open isolation valve.
Mains water supply turned o. Turn on mains water supply.
17
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting

18 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Notes

19
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Notes
