Please keep these instructions for future reference
Installation Instructions & User Guide
Hourglass Extension Tap Range

Important Safety Information
• Please read these instructions thoroughly and retain for future use.
• All products manufactured and supplied by Bristan are safe provided they are installed
correctly, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this product safely you must employ the
services of an experienced qualified plumber.
• Remove all packaging and check the components for damage before starting installation.
• Before starting any installation please consider the following: Prior to drilling into walls,
check that there are no hidden electrical wires, cables or water supply pipes. This can be
checked with the aid of an electronic detector.
• If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
• This product must not be modified in any way as this will invalidate the guarantee.
• These fittings need to be installed in accordance with and meet the requirements of the Water
Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
General Specifications
Operating pressure range (bar) Min Max
1 Hole Bath Filler 1.0 5.0
3 Hole Basin Mixer 0.2 5.0
3 Hole Bath Filler 0.2 5.0
5 Hole Bath Shower Mixer 0.4 5.0
Maximum static pressure – 10.0 bar
NOTE:- Nominally equal (balanced) inlet supply pressures are recommended for optimum
Performance of mixer taps.
Designed to comply with BS EN 200 for single taps / combination taps for water systems of type 1
and 2 general technical specifications; and to be used within systems designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65°C. A stored water
temperature of 60°C is considered sufficient to meet all nominal requirements and will minimise
the build up of lime scale in hard water areas.
02

Dimensions
03
1 Hole Bath Filler
3 Hole Basin Mixer

Dimensions Cont.
04
3 Hole Bath Filler
5 Hole Bath Shower Mixer

05
Installation
1 Hole Bath Filler
1. Handle x1
2. Cap & Grub Screw x1
3. Shroud x1
4. Retaining Nut x1
5. Cartridge x1
6. Body x1
7. Anti- splash Assembly x1
8. Washer x1
9. Fixing Rod x2
10. Rubber Washer x1
11. Metal Washer x1
12. Fixing Nut x2
13. Flexi Tails x2
2
7
1. Identify all components are present prior to starting installation.
2. Install mixer to the bath, ensuring the washer (8) is fitted between the mixer body
(6) and the bath.
3. Screw the fixing rods (9) into the bottom of the mixer body (6).
4. Slide ‘C’ shaped rubber washer (10) and ‘C’ shaped metal washer (11) onto the
fixing rods (9) up to underside of the bath.
5. To secure the mixer in place tighten the fixing nuts (12) onto the fixing rods (9) until
they are fully tightened against the ‘C’ shaped metal washer (11).
Note: The fixing nuts (12) can be tightened with a suitable spanner.
6. Screw the flexi tails (13) into the bottom of the mixer body (6) and tighten by hand
only (do not overtighten)
7. Connect the hot and cold water supplies to the flexi tails.
8. Turn on both water supplies, lift the mixer handle (1) upwards and operate in both
directions, letting the water flow for a few minutes
9. Check all joints and connections for leaks.
8
9
10 11
12
13

06
Installation cont.
3 Hole Basin Mixer & Bath Filler
1
2
6
5
4
9
8
7
12
1. Spout x1
2. Anti- splash Assembly x1
3. Spout Threaded Tail x1
4. T-Joint Assembly x1
5. Handle x2
6. Cap & Grub Screw x1
7. Plinth x2
8. Spline adaptor x2
9. Valve x2
10. Washer & Backnut x3
11. Side Body Threaded Tail x2
12. Hot Tap Body Assembly x1
13. Cold Tap Body Assembly x1
14. Flexi tails x2
15. Complete Clicker Waste
(supplied with Basin Mixer only) x1
3
10
11
13
14
15
10

Installation cont.
07
3 Hole Basin Mixer & Bath Filler
1. Identify all components are present prior to starting installation.
2. Unscrew the plinth (6) from threaded tail (11) to remove the handle (4).
3. Fit the side body threaded tails (11) to the underside of the basin and secure in
place by screwing the plinth (6) and handle (5) back on to the threaded tails
(11), and tighten the backnuts (10).
4. Unscrew the T-Joint assembly (4), washers and backnut (10) from the thread
of the spout (1) and fit the spout (1) to the basin tightening the backnut (10).
5. Re-attach the T-joint assembly (4) and connect to the side bodies (11&12-hot
on the left, cold on the right when viewed from the front), by using the desired
length of 15/22mm copper pipe (not supplied) and compression fittings (not
supplied).
6. Connect the hot and cold water supplies to the side bodies (hot to the left
hand side), fully open both valves, letting them run for a few minutes to flush
the system.
7. Fit the clicker waste (15) (basin mixer only) ensuring a rubber washer is fitted
between the basin and the waste. Use a pure silicon sealant where necessary.
Place the other rubber washer under the basin and secure in place by
tightening the backnut. In order to fill the basin, the button in the middle of
the waste needs to be pressed down. To release the water, press the button
again.
8. Check all joints and connections for leaks.

08
Installation Cont.
5 Hole Bath Shower Mixer
1
7
8
23
5
6
4
9
10
11
13
14
15
16
17
18
19
1. Spout x1
2. Anti- Splash Assembly x1
3. Handle x2
4. Cap & Grub Screw x2
5. Plinth x2
6. Spline adaptor x2
7. Valve x2
8. Backnut & Washer x4
9. Spout Threaded Tail x1
10. Diverter knob x1
12
8
8
8
11. Diverter Grub Screw x1
12. Diverter Plinth x1
13. T- joint assembly x1
14. Handset x1
15. Handset Connection x1
16. Hose x1
17. Cold Side Body Assembly x1
18. Hot Side Body Assembly x1
19. Flexi Tails x3
3

09
Installation Cont.
5 Hole Bath Shower Mixer
1. Identify all components are present prior to starting installation.
2. Remove the handles (3) from the side bodies (17 & 18) by removing the cap
(4) and loosening the grub screw (4) at the rear of the handle (3)
3. Unscrew the plinths from the side bodies (5).
4. Fit the side bodies (17 & 18) to the bath from underneath and screw the
plinths (5) onto the side bodies (17 & 18).
Secure the side bodies by tightening the backnuts (8)
5. Fit the spout (1) to the bath secure by tightening the backnut (8).
6. Unscrew the diverter knob (10) and plinth (12) from the diverter and fit the
diverter body to the bath. Re-fit the plinth (12) and diverter knob (10) and
tighten backnut (8) to secure into position.
7. Fit the handset connection (15) to the bath and secure in place by
tightening the backnut (8)
8. Connect the flexi hoses (19) from the side bodies (17 & 18) to the T-joint
(13). The other flexi hose connects the T-joint (13) to the spout threaded tail
(9)
9. Screw the shower hose (16) onto the handset (14) and thread the hose
through the handset connection (15). Screw the hose (16) onto the back
outlet of the T-joint (13).
10. Connect the water supply pipes to the side body threaded tails (17 & 18)
11. Turn on both, hot and cold taps letting the water flow for several minutes
to flush the system and check for any leaks.
12. To switch from bath fill to shower mode pull the diverter knob (10) up. To
revert back to bath fill mode, while in use, push the diverter back down.
The bath shower mixer will automatically revert back to bath fill if turned
off while in shower mode.

General Cleaning
Your fitting has a high quality finish and
should be treated with care to preserve
the visible surfaces. All finishes will
wear if not cleaned correctly. The only
safe way to clean your product is to wipe
with a soft damp cloth. Stains can be
removed using washing up liquid. All
bathroom cleaning products (powders
and liquids) will damage the surface of
your fitting, even the non-scratch
cleaners.
Note: Never use abrasive detergents or
disinfectants or those containing
alcohol, hydrochloric acid or phosphoric
acid.
Bristan recommend
E-cloth for cleaning all of
our bathroom & kitchen
products. Using just
water, E-cloth gives a
smear free, deep clean by breaking up
and holding dirt, which normal cloths
leave behind. Order through your Bristan
stockist (order code: ECLOTH).
We advise that your fitting is regularly
serviced in hard water areas to maintain
optimum performance.
Cleaning the Showerhead:
HOU 5HBSM C
Your Bristan showerhead has rub-clean
nozzles for easy cleaning. Simply rub your
fingers across the rubber spray jets
regularly and before you turn the shower on
to remove any scale or debris.
Maintenance
The hardness of the water in your area will
determine how often you should clean your
showerhead. Build up of scale in particularly
hard water areas combined with constant use
means you may need to clean your
showerhead once a week. To ensure
continued performance the showerhead
needs to be regularly descaled.
Tip: If the showerhead is heavily scaled or
has not be maintained for a long period of
time a solution of hot water and white vinegar
may be needed to clear the scale.
Mix a 50/50 solution and rub the nozzles
thoroughly with the solution making sure the
solution gets into all of the nozzles.
Wash off the solution with clean water.
10

Maintenance cont.
Cleaning the Valves:
If your fitting begins to leak the following should
be carried out;
Isolate both hot and cold water supplies to the
tap by either:
•Turning the water supply off at the mains
stopcock or
•Turning off the isolation valves to the tap.
1. Remove the cap at the rear of the handle to
reveal the concealed grub screw.
2. Unscrew the grub screw and pull the handle
upwards.
3. Unscrew the valve from inside of the side
body using a suitable spanner.
4. Lift out the valve and clean thoroughly. Be
sure to check and clean out the seating
within the tap body/assembly.
5. If necessary replace the valve.
Please visit www.bristan.com/sparesfinder in
order to find spare parts for this product.
6. Place the valve back into the tap side body
and tighten the valve fully using a suitable
spanner.
7. Replace handle assembly push the handle
onto the valve. Tighten the grub screw and
push fit the cap.
Note: It may be necessary to tighten the
backnut.
8. Turn on water supply and check for leaks.
9. Contact our helpline if problem persists.
11
Handle
Plinth
Valve
Rubber washer
Backnut
Side body

12
If your fitting begins to leak the following
should be carried out;
Isolate both hot and cold water supplies to the
tap by either:
•Turning the water supply off at the mains
stopcock or
•Turning off the isolation valves to the tap.
1. Remove the cap at the rear of the handle to
reveal the concealed grub screw.
2. Unscrew the grub screw and pull the
handle upwards.
3. Unscrew the shroud and cartridge retaining
nut and pull the cartridge out from the
body.
4. Clean the cartridge thoroughly under cold
water to remove any build up of limescale
or debris.
Please visit www.bristan.com/sparesfinder in
order to find spare parts for this product.
4. Replace the cartridge into the body and
tighten the retaining nut to secure in place.
5. Screw the shroud onto the retaining nut and
push the handle onto the cartridge.
Tighten the grub screw and push fit the cap.

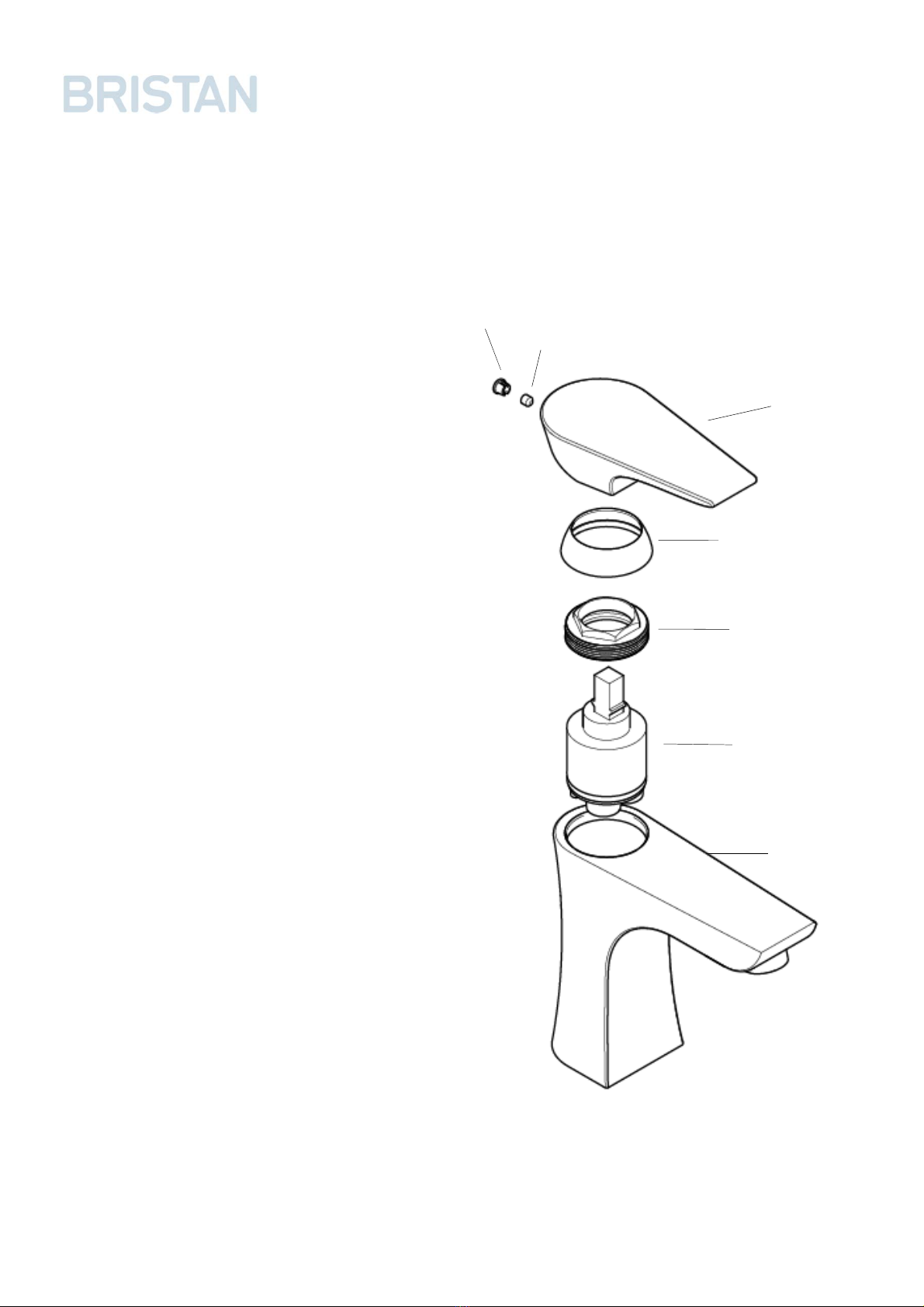

Maintenance cont.
Cleaning the Cartridge:
Handle
Cartridge
Retaining
Nut
Shroud
Body
Grub Screw
Cap

Symptom Cause Remedy
No flow or poor flow
rate.
Partially closed stop or service
valve in water supply pipework to
the tap.
Open stop or service valve.
Head of water is below the
minimum distance required.
Refer to the Specification section
for minimum pressures required.
Possible airlock / blockage in
supply pipework
Remove water supplies from the
fitting and flush the system to
remove any airlocks / debris.
Cartridge / Valve not opening
fully.
Service fitting. Refer to
maintenance section on pages
11-12.
Water dripping for a few
seconds after the tap
has been turned off.
This is caused by ‘capillary
action’ and residual water in the
spout being siphoned out.
This should only last for a couple
of seconds.
Constant dripping /
leaking when the tap is
not in use.
Cartridge / Valve not fully
shutting off.
Service fitting and replace
cartridge. Refer to maintenance
section on page 11-12.
Fitting does not turn on. Water supplies not turned on. Check that the water supplies to
the fitting are turned on.
Closed stop or service valve. Open stop or service valve.
Water does not come
out of the showerhead
when using the bath
shower mixer.
Diverter mechanism not fully
open.
Ensure diverter is pulled fully up.
Insufficient water pressure /
header height.
Refer to the specification section
for minimum pressures required.
Troubleshooting
13

14
Bristan Guarantee
At Bristan, we want to make things as easy
as possible for our customers. That’s why
we design products that are easy to fit and
use, and that are quality tested to make
sure they won’t let you down. It’s also why
we offer solid guarantees on all products,
effective from the date of purchase, to give
you peace of mind.
All Bristan taps are covered by a 5 year
guarantee. This also includes 2 years
labour cover which means that, in the
unlikely event that there is a problem in the
first 2 years after purchase, we’ll send one
of our expert engineers to fix it.
*Labour is provided by an approved Bristan
Care engineer or appointed representative.
The guarantee only applies to products with
a manufacturing fault. There will be a call
out charge for any incidents where no fault
has been found with the product, or if the
issue is due to poor installation or
maintenance.
Guarantee Terms and Conditions
This guarantee is in addition to your
statutory and other legal rights and is
subject to the following conditions:
• The product was purchased within the
United Kingdom or Republic of Ireland.
• The guarantee applies solely to the
original purchaser with proof of purchase.
• The installation must allow ready access
to all products for the purpose of
inspection, maintenance or replacement.
• Repair under this guarantee does not extend
the original expiry date. The guarantee on
any replacement parts or product ends at the
original expiry date.
• Any part found to be defective during the
guarantee period will be replaced without
charge, providing that the product has been
installed in accordance with the instructions
given in this guide and used as the
manufacturer intended.
• The guarantee does not cover:
• Damage or defects caused by:
- general wear and tear (including
special non-chrome finishes;
components such as filters, seals, ‘O’
rings and washers)
- incorrect installation
- repair using non-Bristan parts
- accidental or wilful misuse
- corrosion and the use of inappropriate
cleaning products.
- system debris including the build up of
limescale (which can be controlled
through regular servicing and
maintenance).
• Compensation for loss of use of the product
or consequential loss of any kind.
In the interests of continuous product
improvement, Bristan reserves the right to
alter product specifications without notice.

15
The Bristan Product Guarantee does not
affect your statutory rights as a consumer.
•Need help?
If this product does not function correctly
when first used, contact Bristan Care
Customer Service on 0844 701 6273
where our expert team of advisors will be
able to offer you help and advice.
•Problems during the guarantee period
In the unlikely event that you encounter any
problems with the product during the
guarantee period, contact Bristan Care
Customer Service on 0844 701 6273 with
your proof of purchase and we will work to
resolve the problem quickly.
Bristan Care Customer Support
Bristan customers also benefit from the
support of Bristan Care, our comprehensive
customer support package which offers:
Technical support hotline
(Tel: [phone]) with access to fully
trained advisors who can offer installation
advice, talk you through quick maintenance
checks, or recommend the best course of
action to fix any problems with a product
Expert advice
Find easy to follow ‘how to’ video guides
and technical FAQs online at
www.bristan.com. Our guides take you
step-by-step through many product
installations and you can find plenty of easy
guides to quick product fixes and servicing.
Spare parts
We hold thousands of spares and we keep
them for discontinued products for over
seven years. Spares can easily be ordered
online at www.bristan.com and are
dispatched the same day.
Expert plumbing engineers
If we can’t solve the problem over the
‘phone or with a spare part, then we’ll send
out one of our Bristan Care engineers to
take a look. Bristan Care engineers provide
free support for products that are within
guarantee, but are also available to service
products that are out of guarantee for a
small charge. For details, please call
customer services on 0844 701 6273.

FI (HOURGLASSEXTENSIONTAPRANGE) – REV. D1
This booklet covers product codes
HOU 1HBF C
HOU 3HBAS C
HOU 3HBF C
HOU 5HBSM C
Helpline
0844 701 6273
Bristan Group Limited
Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 1SG
A Masco Company
Website: www.bristan.com
Telephone: [phone] Facsimile: 0844 701 6275
Email: [email protected]
