Installation Instructions
and User Guide
Infrared Temperature
Control Automatic Basin
Spout
Models covered:
IRBS4-BN, IRBS4-BZ, IRBS4-CP

2
Contents
Thank you for choosing Bristan, the UK’s leading showers and taps expert.
Your Bristan basin spout has a non-touch control which uses infrared sensing
technology to detect human presence. Once detected, the spout instantly dispenses
water and automatically stops once the user moves their hands away to eliminate
unnecessary water wastage, whilst creating a more hygienic washroom solution.
All products manufactured and supplied by Bristan are safe and comply to legislative
requirements. Providing they are installed correctly and receive regular maintenance in
accordance with these instructions your user experience will not be affected.
For a safe and successful installation these instructions should be used as guidance,
thereafter they should be left with the user.
Important Safety Information................................................... 3
General Information ................................................................. 4
Product Features...................................................................... 5
Specification ............................................................................. 6
Dimensions............................................................................... 6
Installation Requirements ....................................................... 7
Installation................................................................................ 8-11
Inserting Batteries............................................................... 9
Electrical Connections ........................................................ 10
Water Connections .............................................................. 11
Operation .................................................................................. 12
Maintenance ............................................................................. 13-14
Troubleshooting........................................................................ 15-16
Notes......................................................................................... 17
Guarantee ................................................................................. 18-19
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are installed,
used correctly and receive regular maintenance in accordance with these instructions.
• If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•These fittings need to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Warning: Do not operate the product if you suspect it is frozen. Do not site it
where it might be subjected to freezing conditions.
•Remove all packaging and check the contents for damage before starting installation.
•Before starting any installation please consider the following: before drilling into walls,
check that there are no hidden electrical wires, cables or water supply pipes. This can
be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
•Fitting isolating valves to the inlet feeds is required for ease of maintenance.
•Warning: Before installing the new spout it is essential that you thoroughly flush
through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the spout.
•This product must not be modified in any way as this will invalidate the guarantee.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

4
General Information
Operating pressure range: Minimum 1.0 bar, Maximum 5.0 bar.
Maximum static pressure: 10.0 bar.
This product has been tested to meet the requirements of the Water Regulations
Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water
Fittings) Regulations 1999 and current byelaws.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of limescale in hard water areas.
This product should be installed in compliance with the current Water Regulations.
If in doubt, contact a registered plumber or your Local Water Authority or the Secretary
of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
Recommended Usage
Domestic Heavy
Commercial
Light
Commercial Health Care
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

5
Product features

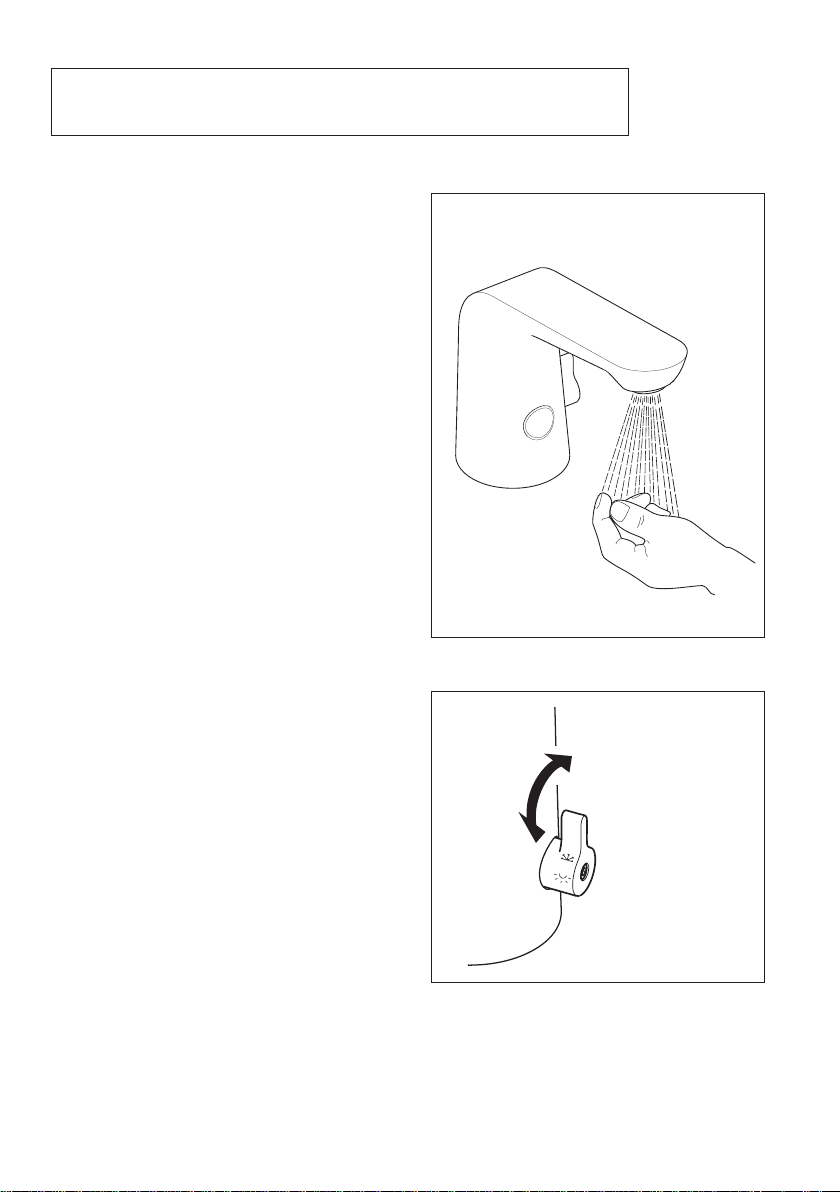

Water Efficient
When the users hands enter the sensing
range, the indicator light in the sensor
will illuminate. Water will flow out
immediately until the user draws their
hands back from the sensor.
The water will automatically stop after
a maximum of 30 seconds ±5 seconds
to avoid wasting water. If more water is
required wait 3 seconds and then place
hands back in the sensing range.
Temperature Control
Manual temperature control lever allows
users to set preferred temperature.
More Hygienic
The proximity sensor removes the need to
touch the spout body, reducing the spread
of germs and reducing the chance of
cross infection.
Battery Override
In the event of a power failure, the product
will automatically switch to battery
operated mode to ensure the spout
continues to function. The tap can also
operate on the battery alone if no mains
power source is available.
Low Battery Warning
When the batteries run low and the
power falls below 3.9V the sensor light
will flicker to indicate the batteries are
running low and need replacing.
When the batteries are exhausted the
sensor light will not light up.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Sensor

6
Specification

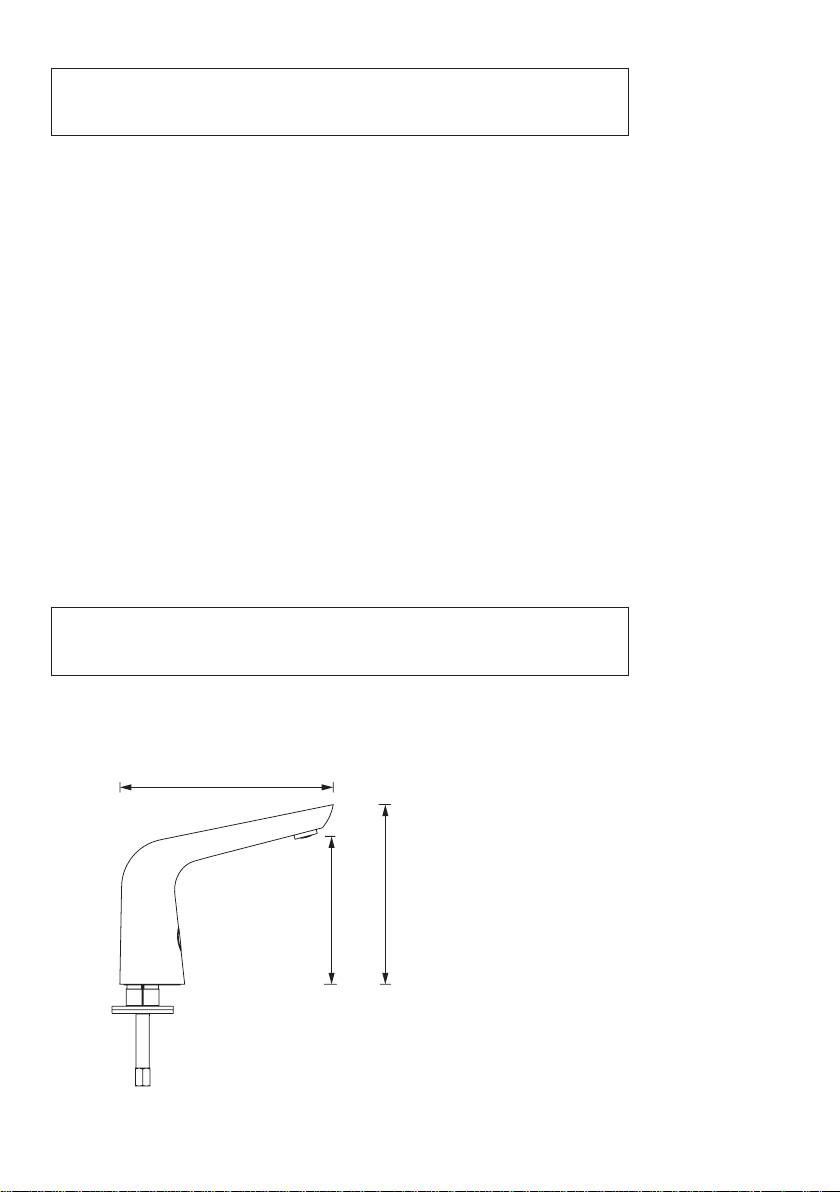

Dimensions (mm)
IRBS4-BN/BZ/CP
176
122 149
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Specifications
Operating Pressure Range: Min. 1.0 Bar - Max. 5.0 Bar
Maximum Static Pressure: 10 Bar
Inlet Water Supply Temperature Range: 5ºC - 45ºC
Power Supply: AC: 220V-240V; 50/60HZ
DC: 6V (4 x AA alkaline batteries - Not Supplied)
Power Consumption: Static ≤0.3MW Active: ≤3W
Sensing Range: 30-32cm
Self-close Override Time: 30 seconds ±5 seconds
≤≥

7
Installation Requirements
Electrical Connections
Regulations: The electrical installation
must be carried out in accordance with
the national electrical regulations and
installed by a qualified person.
Safety: In the interests of electrical safety
a 30 mA residual current device (R.C.D not
supplied) should be installed in the supply
circuit. This may be part of a consumer
unit or a separate unit.
Before starting work on the electrical
supply ensure the power supply is
isolated.
DO NOT allow the supply cord to contact
hot surfaces. The cord should be safely
routed and secured by cable clips.
Connections: The power supply box must
be permanently connected to the fixed
wiring of the mains supply using the
factory fitted supply cord, via a switched
fused spur off the ring main.
The wires in the mains lead are coloured
in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your connection unit proceed
as follows;-
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter ‘N’ or is coloured
black.
The wire which is coloured brown must
be connected to the terminal which is
marked with the letter ‘L’ or is coloured
red.
Fuse: This following fuse size should be
used.
Model Fuse Size (AMPS)
IRBS4-CP 3
IRBS4-BZ 3
IRBS4-BN 3
Supply Cord Replacement
If the supply cord is damaged, it must be
replaced by a genuine Bristan supply cord.
Contact Bristan Customer Services on
0844 701 6273 to request new spare parts.
N L
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

8
Installation
Sensor
Cable
Sensor
Cable
1. Fit The Spout
Fit the spout to the sink / work surface
ensuring the sensor cable is threaded
through the hole in the sink / work
surface.
2. Secure Spout to Sink / Work Surface
Thread the rubber washer and metal
washer onto the fixing rod up to the
underside of the sink / work surface.
Secure the spout in place by screwing the
fixing nut onto the fixing rod.
Tighten the fixing nut using a suitable
spanner.
3. Connect Sensor Cable
See ‘Electrical Connections’ installation
on page 10.
4. Connect Water Supplies
Before connecting the water supply to
the spout flush through the pipework to
ensure removal of debris. Turn off the
mains water supply and close any
isolating valves. Screw the flexi tails into
the bottom of the spout, ensuring it is
tightened fully by hand only.
Connect the flexi tails to the hot and cold
water supplies. Turn on the mains water
supply letting the water flow for a few
minutes. Check all joints and connections
for any leaks. Flexi Hose
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

9
Installation - Inserting Batteries
Inserting Batteries
Your infrared spout is supplied with a back
up battery pack. In the event of a power
failure the batteries will override the
mains power supply to ensure the spout
continues to function.
1. Insert Batteries
Insert 4 x AA batteries into the battery
box ensuring they are inserted the correct
way.
Note: Only use 1.5V AA (LR6) Alkaline
batteries (preferably => 2000mAh for good
battery life).
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

10
Installation - Electrical Connections
Connect Power Supply Cable
Before starting any electrical
work ensure the power supply is
isolated.
Wire the electrical power cable into a
switched fused spur off the ring main.
The blue wire should be wired to the
neutral connection and the brown
wire should be connected to the live
connection.
Note: For full electrical requirements
see ‘Electrical Connections’ in
‘Installation Requirements’ section on
page 7.
Important: This product must be
permanently connected to the fixed
wiring of the mains supply using the
factory supplied power cable.

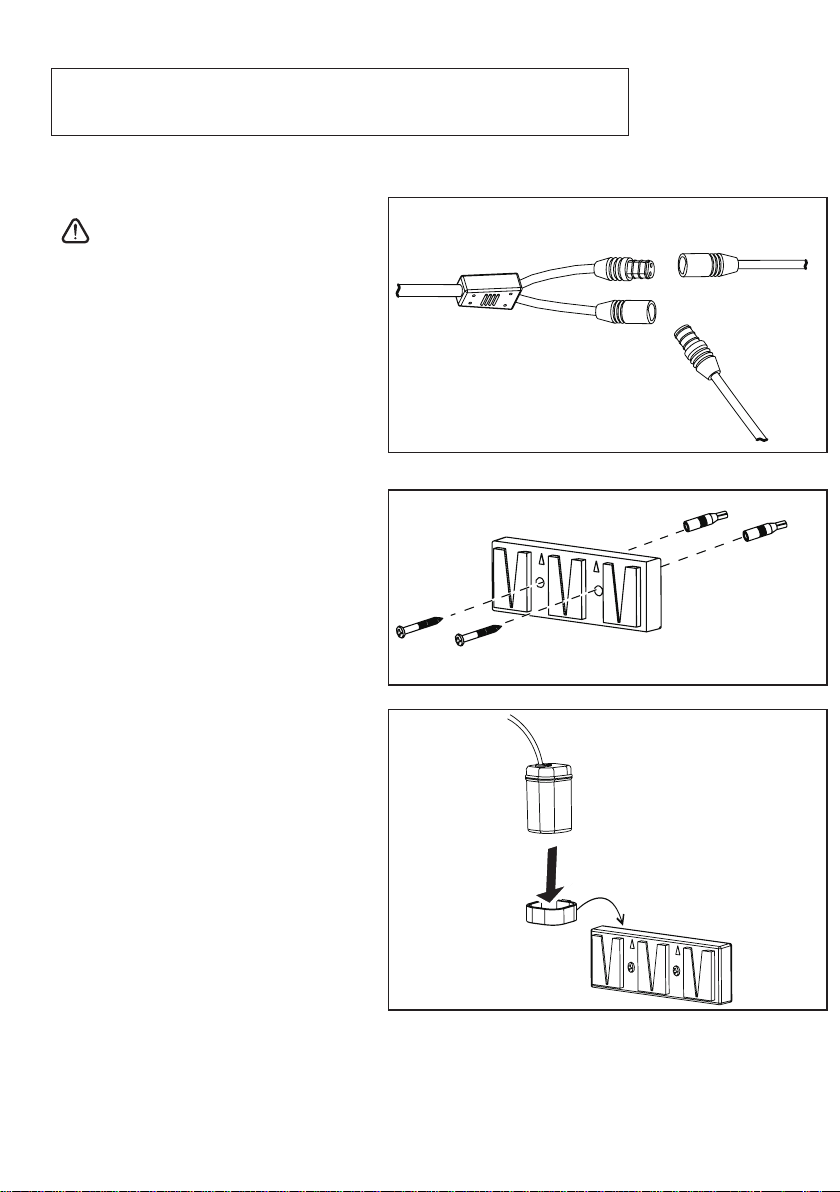

Power/ Sensor Cable Connection
Connect the transformer cable to the
sensor and battery box connectors.
Attach The Wall Bracket
Attach the wall bracket to the wall by
using screws and wall plugs provided.
Place the battery box into the battery
housing bracket and attach to the
wall bracket.
Setting Up The Sensor
Once the tap has been installed,
disconnect the sensor connector from
the transformer cable for 30 seconds,
Reconnect and put the hand at the
required position in front of the
sensor until the light stops flashing.
Tranformer cable
Sensor connector
Battery box connector
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Battery Box
Battery Housing
Bracket Wall Bracket

11
Sensor connector
Installation - Water Connections

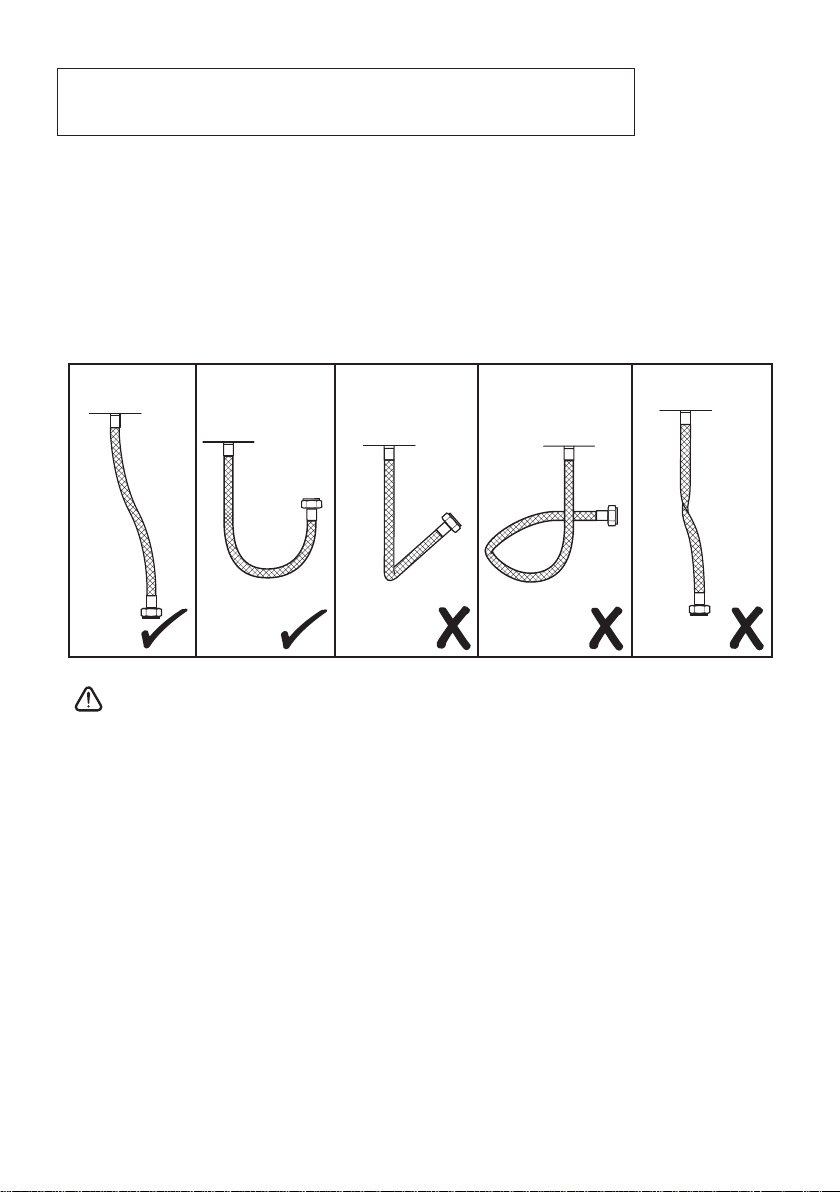

Flexible Connecting Hose
Care must be taken when connecting the
flexible connection hose from the power
supply box to the spout to ensure it does
not bend sharply and kink or twist.
See below for recommended ways to fit
the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and
damage to the flexible connection hose.
Slight
bend
Sweeping
bend
Kink Curved
round
Twists
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Wall Bracket

12
Operation
Using the Automatic Basin Spout
Place the users hands under the spout
within the sensing range. Once the users
hands have been detected water will flow
constantly until the hands are removed.
After 30 ± 5 seconds the water will stop
flowing.
If the user requires more water remove
hands from the sensing range and wait
3 seconds, then place the hands back into
the sensing range and the water will flow
again.
Note: The sensing range for all models is
30-32cm from the sensor.
Temperature Control
Manual temperature control lever allows
users to set preferred temperature.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Temperature Control
Cold
Hot

13
Maintenance
General Cleaning
Your fitting has a high quality finish and
should be treated with care to preserve
the visible surfaces. All surfaces will
wear if not cleaned correctly, the only safe
way to clean your mixer is to wipe with a
soft damp cloth. Stains can be removed
using washing up liquid. All bath cleaning
powders and liquids will damage the
surface of your fitting, even the non-
scratch cleaners.
Note: Never use abrasive detergents or
disinfectants or those containing alcohol,
hydrochloric acid or phosphoric acid.
Cleaning the Inlet Filter
Before carrying out any maintenance, turn
off the mains water supply and close any
isolating valves.
In hard water area it may be necessary to
regularly clean the inlet filter to maintain
optimum performance of the infrared
spout.
Remove the flexi tails from the inlet water
supply and remove the inlet filter. Run
under cold water to remove any build up
of limescale and debris. Replace the filter
and re-attach the flexi tails to the inlet
water supply.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

14
Maintenance
Disposal and Recycling
End of Product Life
When this appliance has reached the end
of its serviceable life, it should be
disposed of in a safe manner, in
accordance with current local authority
recycling, or waste disposal policy.
Battery Disposal
Spent batteries should not be disposed
of with normal household waste. Contact
your local authority for information on
waste disposal and recycling.
This symbol on the product or packaging
indicates that this product should not be
disposed of with your other household
waste. Instead, it is your responsibility to
dispose of your waste equipment by
handing it over to a designated collection
point for the recycling of waste electrical
and electronic equipment. The separate
collection and recycling of your waste
equipment at the time of disposal will
help to conserve natural resources and
ensure that it is recycled in a manner that
protects human health and the
environment.
For more information about where you
can drop off your waste
equipment for recycling, please contact
your local council office, your household
waste disposal service or the shop where
you purchased the product.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

15
Symptom Cause Remedy
Spout does not
operate e.g no
water flow.
Sensor cable not connected. Check that the sensor cable is
connected. If not connected,
connect sensor cable. Refer to
‘Electrical Connections’ on page
10.
Water supply not turned on. Turn on water supply and open
any isolation / service valves.
Solenoid valve not opening. Contact Bristan Customer
Services on 0844 701 6273.
No mains electrical power to
the power supply box.
Connect power supply cable.
Refer to ‘Electrical Connections’
on page 10.
Blockage in water supply
pipework.
Remove pipework and flush to
remove any debris.
Remove inlet filter and clean
under running water.
Inlet water supply pressure too
low.
Refer to ‘Specifications’ section
on page 6.
No power to the
power supply
box.
No Mains power to the power
supply box.
Connect power supply cable.
Refer to ‘Electrical Connections’
on page 10.
Mains power supply failed and
no batteries fitted or batteries
low.
Check mains power supply.
Insert / change batteries. Refer
to ‘Installation - Inserting
batteries’ section on page 9.
Flow or water
too low
Inlet filter is partially blocked. Clean inlet filter. Refer to
‘Maintenance’ section on page
13-14.
Partially closed stop or service
valve in water supply pipework.
Open stop or service valve.
Inlet water supply pressure too
low.
Adjust inlet water pressure
accordingly. Refer to
‘Specifications’ section on page 6.
Troubleshooting
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

16
Symptom Cause Remedy
Flow of water
too high.
Inlet water supply pressure too
high.
Adjust inlet water pressure
accordingly. Refer to
‘Specifications’ section on page 6.
Spout runs
randomly
without a user
present.
Object in the sensing range. Ensure the sensing range is
clear.
Sensor light not
working.
Sensor light faulty. Contact Bristan Customer
Services on 0844 701 6273.
Circuit board faulty or has been
allowed to get wet.
Contact Bristan Customer
Services on 0844 701 6273.
Batteries are exhausted. Replace batteries.
Short cycles of
batteries.
Incorrect batteries fitted. Replace batteries. Ensure
batteries are 1.5V AA (LR6)
Alkaline batteries (preferably
=>2000mAh) for good battery life.
Infrared sensor
flickering.
Batteries running low. Replace batteries. Ensure
batteries are 1.5V AA (LR6)
Alkaline batteries (preferably
=>2000mAh) for good battery life.
Troubleshooting - cont.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

17
Notes
Please use this space to add any notes you or your installer may have regarding
the plumbing system / installation of this product.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

18
Guarantee
At Bristan, we want to make things as
easy as possible for our customers.
That’s why we design products that are
easy to fit and use, and that are quality
tested to make sure they won’t let you
down. It’s also why we offer solid
guarantees on all products, effective from
the date of purchase, to give you peace of
mind.
All Bristan Commercial taps are covered
by a 1 year guarantee. This also includes
1 year labour cover which means that, in
the unlikely event that there is a problem
in the first year after purchase, we’ll send
one of our expert engineers to fix it.
*Labour is provided by an approved
Bristan Care engineer or appointed
representative. The guarantee only applies
to products with a manufacturing fault.
There will be a call out charge for any
incidents where no fault has been found
with the product, or if the issue is due to
poor installation or maintenance.
Guarantee Terms and Conditions
This guarantee is in addition to your
statutory and other legal rights and is
subject to the following conditions:
• The product was purchased within the
United Kingdom or Republic of Ireland.
• The guarantee applies solely to the
original purchaser with proof of purchase.
• The installation must allow ready access
to all products for the purpose of
inspection, maintenance or replacement.
• Repair under this guarantee does not
extend the original expiry date. The
guarantee on any replacement parts or
product ends at the original expiry date
• Any part found to be defective during the
guarantee period will be replaced without
charge, providing that the product has
been installed in accordance with the
instructions given in this guide and used
as the manufacturer intended.
The guarantee does not cover
• Damage or defects caused by:
- General wear and tear (including special
non-chrome finishes;
- Components such as filters, seals, ‘O’
rings and washers)
- Incorrect installation
- Repair using non-Bristan part
- Accidental or wilful misuse
- Corrosion and the use of inappropriate
cleaning products.
- System debris including the build up of
limescale (which can be controlled
through regular servicing and
maintenance)
• Compensation for loss of use of the
product or consequential loss of any kind.
In the interests of continuous product
improvement, Bristan reserves the right
to alter product specifications without
notice.
The Bristan Product Guarantee does not
affect your statutory rights as a consumer.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

19
Guarantee & Service Policy
Need help?
If this product does not function correctly
when first used, contact Bristan Care
Customer Service on 0844 701 6273
where our expert team of advisors will be
able to offer you help and advice.
Problems during the guarantee period
In the unlikely event that you encounter
any problems with the product during the
guarantee period, contact Bristan Care
Customer Service on 0844 701 6273 with
your proof of purchase and we will work to
resolve the problem quickly.
Bristan Care Customer Support
Bristan customers also benefit from the
support of Bristan Care, our
comprehensive customer support
package which offers:
Technical support hotline
(Tel: [phone]) with access to fully
trained advisors who can offer installation
advice, talk you through quick
maintenance checks, or recommend the
best course of action to fix any problems
with a product
Expert advice
Find easy to follow ‘how to’ video guides
and technical FAQs online at
www.bristan.com. Our guides take you
step-by-step through many product
installations and you can find plenty of
easy guides to quick product fixes and
servicing.
Spare parts
We hold thousands of spares and we keep
them for discontinued products for over
seven years. Spares can easily be ordered
online at www.bristan.com and are
dispatched the same day.
Expert plumbing engineers
If we can’t solve the problem over the
‘phone or with a spare part, then we’ll
send out one of our Bristan Care
engineers to take a look. Bristan Care
engineers provide free support for
products that are within guarantee, but
are also available to service products that
are out of guarantee for a small charge.
For details, please call customer services
on 0844 701 6273.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.

20
Bristan Group Ltd.
Birch Coppice Business Park
Dordon
Tamworth
Staffordshire
B78 1SG
Web: www.bristan.com
Email: enquir[email protected]om
A Masco Company
Part Number: FI Infrared Ext. 2
Issue: D1
Useful contact details:
Customer Service:
0844 7016273
Customer Service Email:
[e-mail]
Customer Service Fax:
0844 7016275
Reception:
0844 7016274
Join us on...
