Bristan IRBS3-CP Mounting instructions

Models Covered:
IRBS3-CP, IRBS3-BN,
IRBS5-CP
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Infrared Automatic Basin Spouts

Contents
• Important Safety Information 3
• Specification 4
• Product Features 5
• Dimensions (mm) 6
• Installation Requirements 7
• Installation 8-10
• Installation - Electrical Connections 11-12
• Installation - Water Connections 12-13
• Operation 14
• Maintenance 14-15
• Troubleshooting 16-17
• Notes 18-19
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
2
Contents
Thank you for choosing Bristan, the UK’s leading showers and taps expert.
Your Bristan basin spout has a non-touch control which uses infrared sensing
technology to detect human presence. Once detected, the spout instantly
dispenses water and automatically stops once the user moves their hands
away to eliminate unnecessary water wastage, whilst creating a more hygienic
washroom solution.
All products manufactured and supplied by Bristan are safe and comply to
legislative requirements. Providing they are installed correctly and receive
regular maintenance in accordance with these instructions your user experience
will not be aected.
For a safe and successful installation these instructions should be used as
guidance, thereafter they should be left with the user.

• Before starting any installation
please consider the following: before
drilling into walls, check that there are
no hidden electrical wires, cables or
water supply pipes. This can be checked
with the aid of an electronic detector.
• If power tools are used do not
forget to:
- Wear eye protection
- Unplug equipment after use
• Fitting isolating valves to the
inlet feeds is required for ease of
maintenance.
• Warning: Before installing
the new spout it is essential
that you thoroughly
flush through the pipework
in order to remove any remaining swarf,
solder, etc. Failure to carry out this
procedure could cause problems or
damage to the workings of the spout.
• This product must not be modified
in any way as this will invalidate the
guarantee.
• Please read these instructions
thoroughly and retain for future use.
• All products manufactured and
supplied by Bristan are safe provided
they are installed, used correctly
and receive regular maintenance in
accordance with these instructions.
• If you are in any doubt about
your ability to install this product
safely you must employ the
services of an experienced qualified
plumber/electrically qualified
person.
• Warning: Do not
operate the product
if you suspect it is
frozen. Do not site the
product where it might be subjected
to freezing conditions.
• These fittings need to be
installed in accordance with, and
meet the requirements of the Water
Supply (Water Fittings) Regulations
1999
and current byelaws.
• Remove all packaging and check
the contents for damage before
starting installation
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 3
Important Safety Information

Power Supply Box Inlet Connection: G1/2”.
Power Supply Box Outlet Connection:
G1/2”
Operating Pressure Range: Min. 1.0 Bar -
Max. 5.0 Bar
Maximum Static Pressure: 10 Bar
Inlet Water Supply Temperature Range:
5°C - 45°C
Power Supply: AC: 220V-240V; 50/60HZ
DC: 6V
(4 x AA alkaline batteries - Not Supplied)
Power Consumption: Static <0.3MW
Active: <3W
Sensing Range:
IRBS3-CP/BN: 27-31cm
IRBS5-CP: 15-25cm
Self-close Override Time: 55 seconds ± 5
seconds
Recommended Usage
Domestic Heavy
Commercial
Light
Commercial Health Care
This product has been tested to meet the
requirements of the Water Regulations
Advisory Scheme (WRAS) and satisfies
the requirements of the Water Supply
(Water Fittings) Regulations 1999 and
current byelaws.
BS 6700 recommends the temperature
of stored water should never exceed
65°C. A stored water temperature of
60°C is considered sucient to meet all
normal requirements and will minimise
the build up of limescale in hard water
areas.
This product should be installed in
compliance with the current Water
Regulations.
If in doubt, contact a registered plumber
or your Local Water Authority or the
Secretary of The Institute of Plumbing,
address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
IMPORTANT
In order to meet Part G building
regulations, an approved
thermostatic blending valve is
required in order to install this
tap correctly.
Please visit our website for more
details on our blending valves.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Specification
4

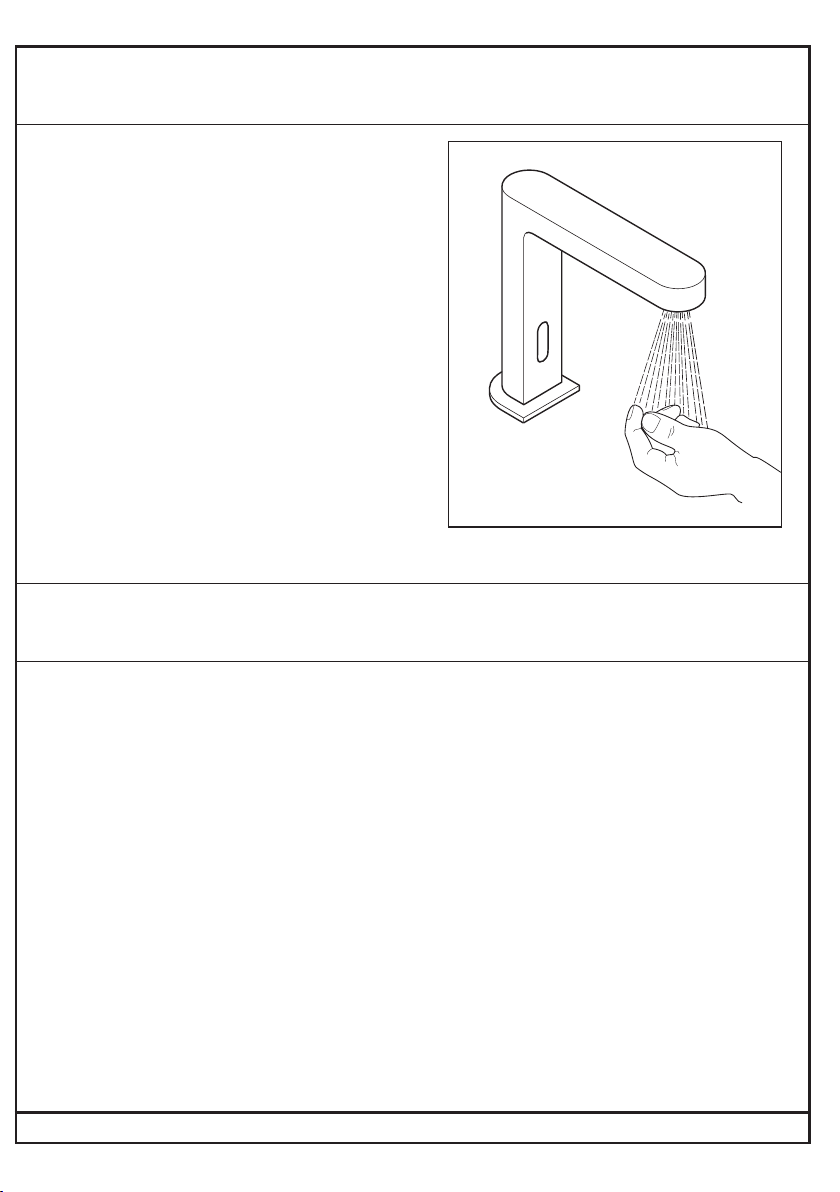

Water Ecient
When the users hands enter the sensing
range, the indicator light in the sensor
will illuminate. Water will flow out
immediately until the user draws their
hands back from the sensor.
The water will automatically stop after
a maximum of 55 seconds ± 5 seconds
to avoid wasting water. If more water is
required wait 4 seconds and then place
hands back in the sensing range.
More Hygienic
The proximity sensor removes the need
to touch the spout body, reducing the
spread of germs and reducing the chance
of cross infection.
Battery Override
In the event of a power failure, the
product will automatically switch to
battery operated mode to ensure the
spout continues to function. The tap can
also operate on the battery alone if no
mains power source is available.
Low Battery Warning
When the batteries run low and the
power falls below 3.9V the sensor light
will flicker to indicate the batteries are
running low and need replacing.
When the batteries are exhausted the
sensor light will not light up.
IRBS3-CP/BN
Sensor
IRBS5-CP
Sensor
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 5
Product Features

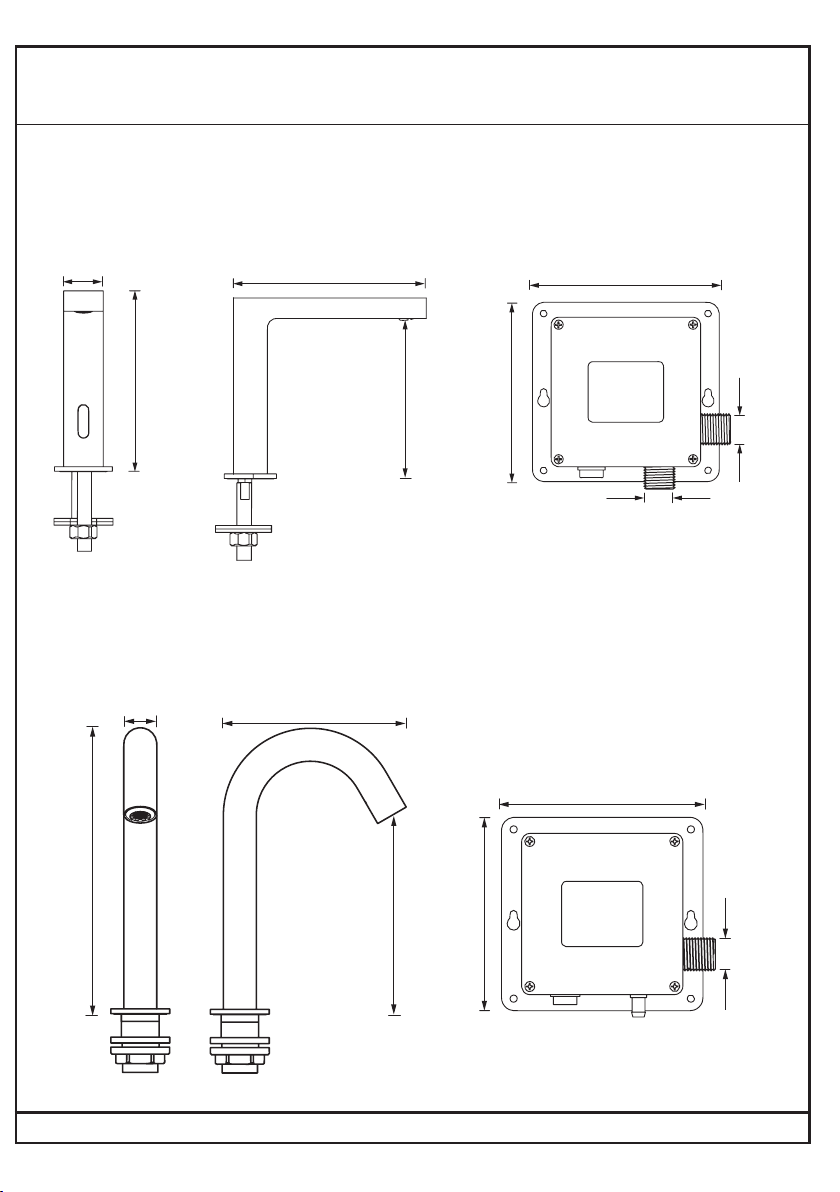

IRBS5-CP
IRBS3-CP/BN
35 125
141
159
120
G 1/2”
G 1/2”
170
120
125
G 1/2”
169
154
243
28
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Dimensions (mm)
6

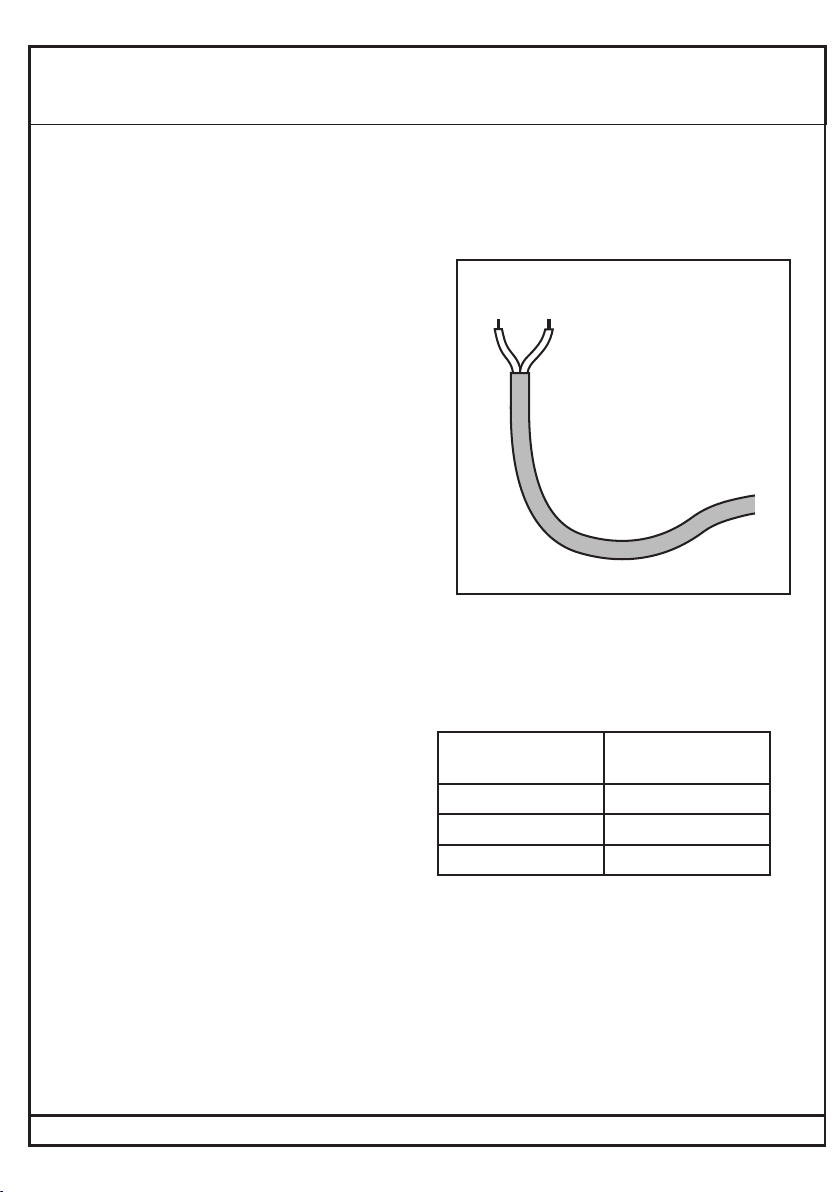

Electrical Connections
Regulations: The electrical installation
must be carried out in accordance with
the national electrical regulations and
installed by a qualified person.
Safety: In the interests of electrical
safety a 30 mA residual current device
(R.C.D not supplied) should be installed
in the supply circuit. This may be part of
a consumer unit or a separate unit.
Before starting work on the electrical
supply ensure the power supply is
isolated.
DO NOT allow the supply cord to
contact hot surfaces. The cord should
be safely routed and secured by cable
clips.
Connections: The power supply box
must be permanently connected to the
fixed wiring of the mains supply using
the factory fitted supply cord, via a
switched fused spur o the ring main.
The wires in the mains lead are coloured
in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the
mains lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your
connection unit proceed as follows;-
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter ‘N’ or is coloured
black.
The wire which is coloured brown must
be connected to the terminal which is
marked with the letter ‘L’ or is coloured
red.
Fuse: This following fuse size should be
used.
Model Fuse Size
(AMPS)
IRBS3-CP 3
IRBS3-BN 3
IRBS5-CP 3
Supply Cord Replacement
If the supply cord is damaged, it must
be replaced by a genuine Bristan supply
cord. Contact Bristan Customer Services
on 0330 026 6273 to request new spare
parts.
N L
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 7
Installation Requirements

Sensor
Cable
Sensor
Cable
Flexi Hose
IRBS3-CP/BN
1. Fit The Spout
Fit the spout to the sink / work surface
ensuring the sensor cable is threaded
through the hole in the sink / work
surface.
Important: It is advised
to ensure that the
product is at least
360mm away from
reflective surfaces to prevent the tap
from automatically switching on and o.
2. Secure Spout to Sink/Work Surface
Thread the rubber washer and metal
washer onto the fixing rod up to the
underside of the sink/work surface.
Secure the spout in place by screwing
the fixing nut onto the fixing rod.
Tighten the fixing nut using a suitable
spanner.
3. Connect Sensor Cable
Go to the ‘Electrical Connections’
section.
4. Connect Water Supplies
Screw the flexi hose into the bottom of
the fixing rod, ensuring it is tightened
fully by hand only.
Connect the flexi hose to the
power supply box. Go to the ‘Water
Connections’ section.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation
8

IRBS5-CP
1. Fit The Spout
Fit the spout to the sink / work surface
ensuring the sensor cable is threaded
through the hole in the sink / work
surface.
Important: It is advised
to ensure that the
product is at least
360mm away from
reflective surfaces to prevent the tap
from automatically switching on and o.
2. Secure Spout to Sink/Work Surface
Secure the spout in place by screwing
the backnut on to the threaded tail.
Tighten fully using a suitable spanner.
3. Connect Sensor Cable
Go to the ‘Electrical Connections’
section.
4. Connect Water Supplies
Screw the flexi hose into the bottom of
the fixing rod, ensuring it is tightened
fully by hand only.
Connect the flexi hose to the
power supply box. Go to the ‘Water
Connections’ section.
B acknut
Inlet Water
Hos e
S ens or
Cable
Sensor
Cable
Inlet Water
Hose
Backnut
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 9
Installation

Inserting Batteries
Your infrared spout is supplied with a
back up battery pack. In the event of a
power failure the batteries will override
the mains power supply to ensure the
spout continues to function.
Note: If you do not have a mains power
supply, this product can run o the
battery pack.
Before fitting the power supply box into
position on the wall/floor, batteries (not
included) will need to be fitted.

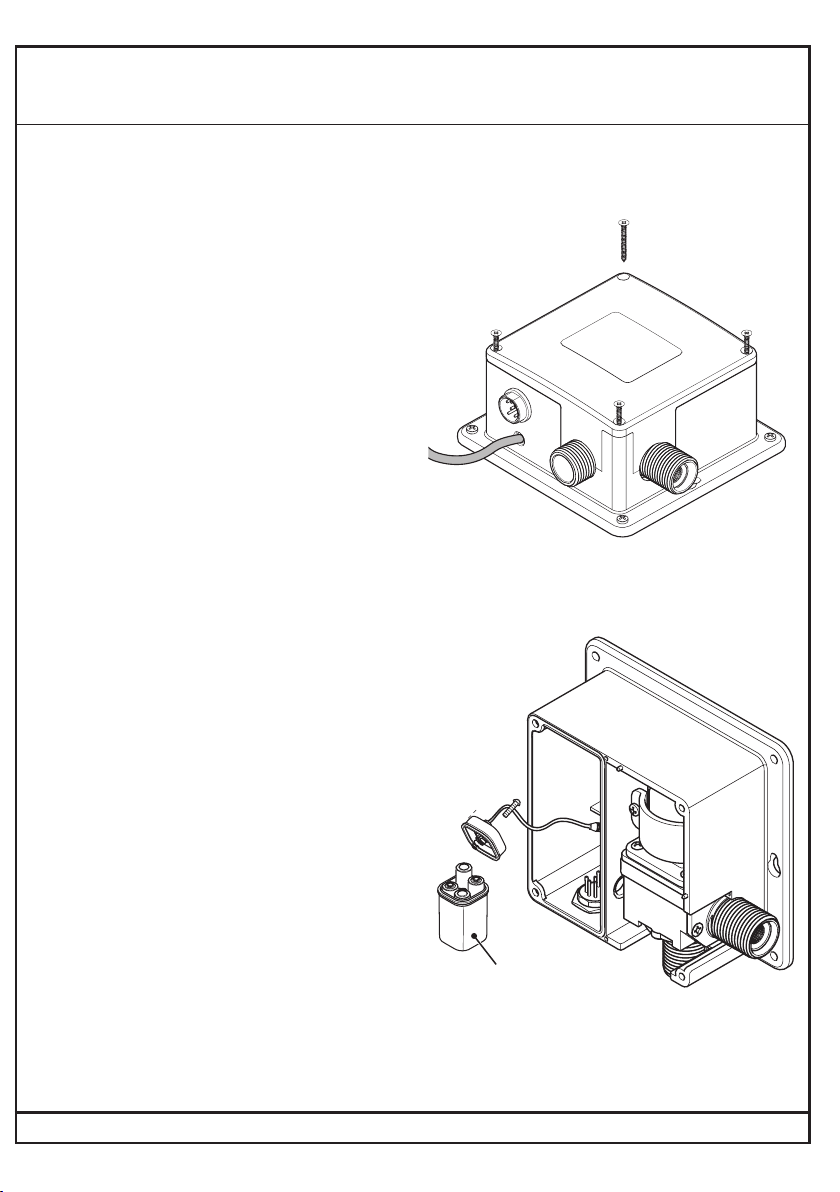

1. Remove Power Supply Box Cover
Remove all four screws in each corner of
the power supply box and remove the
cover.
2. Remove Battery Box
Remove the battery case from the power
supply box and remove the screw in the
centre of the case.
3. Insert Batteries
Insert 4 x AA batteries into the battery
box ensuring they are inserted the
correct way.
Note: Only use 1.5V AA (LR6) Alkaline
batteries (preferably => 2000mAh for
good battery life).
4. Replace Battery Box
Replace the battery case cover. Replace
and tighten the screw. Insert the battery
case back into the power supply box.
5. Replace Power Supply Cover
Replace the power supply cover and
tighten all 4 screws ensuring they are all
fully tightened.
-
+
Battery
Case
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation
10

Power
Cable
Sensor
Cable
Inlet
Outlet
Important:
The power
supply box must
be installed this
way up.
This way up
1. Position Power Supply Box
Position the power supply box onto the
wall surface below the sink/work surface
where it is easily accessible.
Note: Ensure that the power supply box
is fitted the correct way up (see opposite)
and that the flexible hose will reach from
the underside of the spout to the power
supply box.
Using suitable fixings for the wall type
secure the power supply box to the wall.
2. Connect Power Supply Cable
Before starting any electrical work ensure
the power supply is isolated. Wire the
electrical power cable into a switched
fused spur o the ring main.
The blue wire should be wired to the
neutral connection and the brown
wire should be connected to the live
connection.
Note: For full electrical requirements see
‘Electrical Connections’ in ‘Installation
Requirements’ section.
Important: The power
supply box must be
permanently connected
to the fixed wiring of the
mains supply using the factory supplied
power cable.
3. Plug In Power Cable
Plug the power cable into the power
supply box.
4. Connect The Sensor Cable
Plug the sensor cable from the spout
into the power supply box to activate the
infrared sensor.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 11
Installation - Electrical Connections

Calibration
Button
IRBS5-CP Sensor Calibration
Before use the sensor on the IRBS5-CP
will need to be calibrated. To calibrate
the sensor, press the button location on
the side of the Power Supply Box for
3 seconds, and wait for approximately
30 seconds for the sensor to detect the
sensing distance.
Note: Please make sure no other objects
are blocking the tap sensor whilst
calibrating
Sensor
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation - Electrical Connections
Installation - Water Connections
Connecting Water Supply
First, install an approved thermostatic
blending valve to the hot and cold
water supplies.
Before connecting the water supply to
the power supply box flush through the
pipework to ensure removal of debris.
Once flushed through turn o the mains
water supply and close any isolating
valves.
Inlet Connection
The inlet connection on the power
supply box is a 1/2” BSP male
threaded connection.
Connect the blended water supply to
the power box using a 1/2” BSP female
connector, ensuring a suitable sealing
washer is used to create a water tight
connection.
NEED A
BLENDING VALVE?
Please visit our website
for more details on our
selection of thermostatic
blending valves.
12

Outlet Connection
IRBS3-CP & IRBS3-BN
The outlet connection on the
IRBS3-CP/BN is a standard 1/2” BSP
male threaded connection.
Connect the spout flexi hose (supplied)
to the outlet connection, ensuring it is
tightened fully.
IRBS5-CP
The IRBS5-CP is supplied with a 1320mm
outlet hose pre-fitted to the spout.
Push the outlet hose onto the outlet
spigot on the power supply box.
Ensure the outlet hose it fully pushed
onto the outlet spigot and crimp the
hose clamp using a pair of pliers to
secure the hose onto the spigot.
Inlet
water supply
Outlet
water
supply
IRBS3-CP & IRBS3-BN
IRBS5-CP
Outlet
Hose
Inlet
water supply
Flexible Connecting Hose
Care must be taken when connecting the flexible connection hose from the power
supply box to the spout to ensure it does not bend sharply and kink or twist.
See below for recommended ways to fit the flexible connecting hose.
Important:
Failure to follow these
guidelines may result in
poor performance and
damage to the flexible
connection hose.
Slight
bend
90 °
angle
Kinks
Curved
round Twists
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 13
Installation - Water Connections

General Cleaning
Your fitting has a high quality finish and
should be treated with care to preserve
the visible surfaces. All surfaces will
wear if not cleaned correctly, the only
safe way to clean your mixer is to wipe
with a soft damp cloth. Stains can be
removed using washing up liquid. All
bath cleaning powders and liquids will
damage the surface of your fitting, even
the non-scratch cleaners.
Note: Never use abrasive detergents
or disinfectants or those containing
alcohol, hydrochloric acid or phosphoric
acid.
Using the Automatic Basin Spout
Place the users hands under the spout
within the sensing range. Once the users
hands have been detected water will flow
constantly until the hands are removed.
After 55 ± 5 seconds the water will stop
flowing.
If the user requires more water remove
hands from the sensing range and wait 4
seconds, then place the hands back into
the sensing range and the water will flow
again.
Sensing Range:
IRBS3-CP/BN: 27-31cm
IRBS5-CP: 15-25cm
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Operation
Maintenance
14

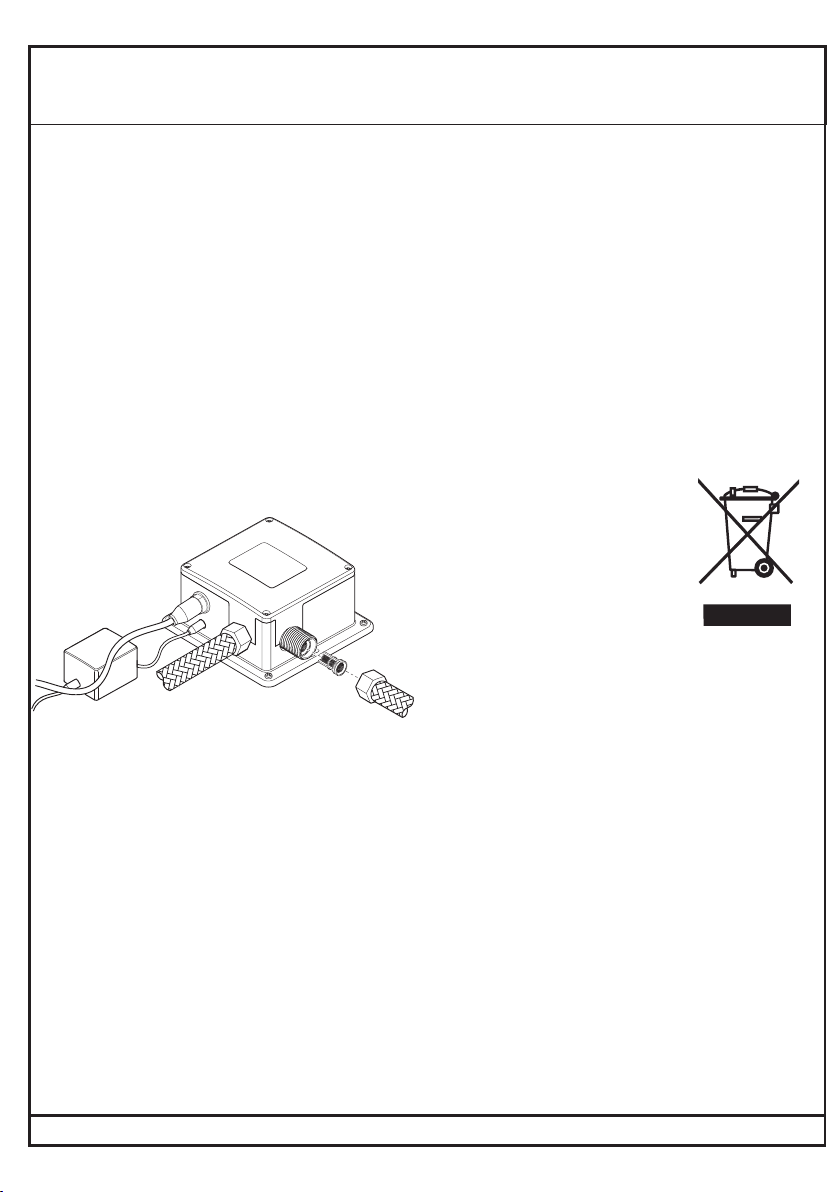

Cleaning the Inlet Filter
Before carrying out any maintenance,
turn o the mains water supply and
close any isolating valves.
In hard water area it may be necessary
to regularly clean the inlet filter in the
power supply box to maintain optimum
performance of the infrared spout.
Remove the inlet supply connection
and remove the inlet filter. Run under
cold water to remove any build up of
limescale and debris. Replace the filter
and re-attach the inlet connection,
ensuring that the sealing washer is also
refitted.
Inlet Filter
Inlet
water supply
Disposal and Recycling
End of Product Life
When this appliance has reached the end
of its serviceable life, it should be
disposed of in a safe manner, in
accordance with current local authority
recycling, or waste disposal policy.
Battery Disposal
Spent batteries should not be disposed
of with normal household waste. Contact
your local authority for information on
waste disposal and recycling.
This symbol on the product
or packaging indicates that
this product should not be
disposed of with your other
household waste. Instead, it
is your responsibility to
dispose of your waste
equipment by handing it over
to a designated collection point for the
recycling of waste electrical and
electronic equipment. The separate
collection and recycling of your waste
equipment at the time of disposal will
help to conserve natural resources and
ensure that it is recycled in a manner
that protects human health and
the environment.
For more information about where you
can drop off your waste equipment for
recycling, please contact your local
council office, your household waste
disposal service or the shop where you
purchased the product.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 15
Maintenance

Symptom Cause Remedy
Spout does not
operate e.g. no
water flow
Sensor cable not connected
Check that the sensor cable is
connected. If not connected,
connect sensor cable. Refer
to the ‘Electrical Connections’
section
Water supply not turned on Turn on water supply and open
any isolation/service valves
Blockage in water supply
pipework
Remove pipework and flush to
remove any debris.
Remove inlet filter and clean
under running water.
Inlet water pressure too low Refer to ‘Specification’
section for working pressures
No mains electrical power to
supply box
Connect power supply cable.
Refer to the ‘Electrical
Connections’ section
Solenoid valve not opening Contact Bristan Customer
Services
No power to the
power supply box
No mains power to the power
supply box
Connect power supply cable.
Refer to ‘Electrical
Connections’ section.
Mains power supply failed and
no batteries fitted or batteries
low
Check mains power supply.
Insert/change batteries.
Refer to ‘Installation -
inserting batteries’ section
Flow or water
too low
Inlet filter is partially blocked Clean inlet filter. Refer to
‘Maintenance’ section
Partially closed stop or
service valve in water
supply pipework
Open stop or service valve
Inlet water supply pressure too
low
Refer to ‘Specification’
section for working pressures
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting
16

Symptom Cause Remedy
Flow of water
too high
Inlet water pressure too high Refer to ‘Specification’
section for working pressures
Water only hot/
cold out of the
spout
A blending valve needs to be
fitted to the water
supplies in order for the tap to
have a mixed water tempera-
ture.
Please ensure an approved
thermostatic blending valve is
fitted in installation.
Spout runs
randomly without
a user present
Object in the sensing range Ensure the sensing range is
clear
Spout runs
when walking past
or when near
Reflective surfaces, i.e. High
Visability jacket/clothing
activate the sensor
Ensure that the product is at
least 360mm from reflective
surfaces
Sensor light not
working
Sensor light faulty
Contact Bristan Customer
Services
Circuit board faulty or has been
allowed to get wet
Batteries are exhausted Change batteries.
Refer to ‘Installation - inserting
batteries’ section
Short cycles of
batteries
Incorrect batteries fitted Replace batteries. Ensure
batteries are 1.5V AA (LR6)
Alkaline batteries (preferably
=>2000mAh) for good
battery life
Infrared sensor
flickering
Batteries running low
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 17
Troubleshooting

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Notes
18

Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 19
Notes

Bristan Group Ltd.
UK: Bristan Group, B78 1SG.
EU: Masco Europe S.à.r.l.
14 Rue Strachen
6933 Mensdorf
Luxembourg
Customer Service: [phone]
Web: www.bristan.com
Email: [e-mail]
A Masco Company
At Bristan, we want to make things as easy as possible for our customers. That’s why we oer solid
guarantees on all our products, eective from the date of purchase, to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team of
advisors will be able to oer you any help and advice.
For full guarantee terms and conditions visit www.bristan.com/service-centre/guarantees.
Part Number: FI Infrered Ext.
Issue: D4
