Bristan SOL85 W Mounting instructions

Models Covered:
SOL85 W, SOL95 W,
SOL105 W, NOC85 BC,
NOC95 BC, NOC105 BC,
NOC85 RG, NOC95 RG,
NOC105 RG
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
Installation Instructions
and User Guide
Noctis & Solis Electric Showers
Models Covered:
SOL85 W, SOL95 W,
SOL105 W, NOC85 BC,
NOC95 BC, NOC105 BC,
NOC85 BG, NOC95 BG,
NOC105 BG
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.

2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Welcome to your new Bristan Electric Shower.
Featuring a contemporary design with lots of fun features, Bristan’s electric shower
collection has been designed to be enjoyable to fit and to use.
It has also been designed and tested in the UK to all of the relevant British Standards.
These instructions contain all of the necessary installation and operating information,
so please read them thoroughly and keep for future reference.
These instructions are for your guidance to a safe and successful installation which
we recommend is carried out by a suitably qualified person and must conform with
current I.E.E Wiring Regulations (BS7671) and Building Regulations (Part P and Part G).
Note: An Installation Template & Quick-Start Guide are provided separately
with this shower.
Contents
Contents
• Important Safety Information 3-4
• Water Requirements 5
• Electrical Requirements 6
• Circuit Protection 6
• Cable Selection 6
• Product Features 7
• Operating the Shower 8
• Specifications 9

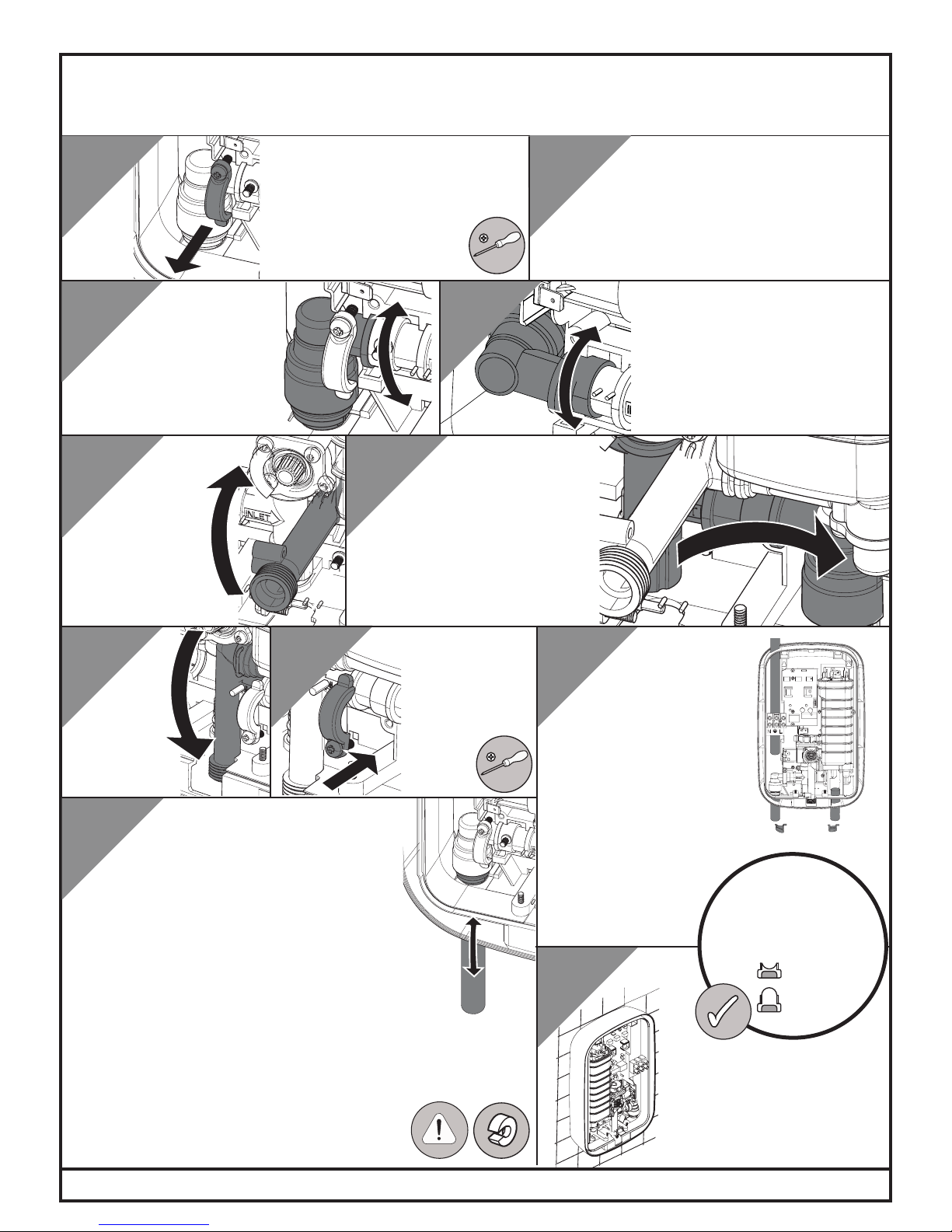

• Fixing Your Shower to the Wall 10
• Plumbing Connections 11-12
• Electrical Connections 13-14
• Fixing Your Riser Rail to the Wall 15
• Commissioning - Testing the System 16
• Maintenance 17
• Troubleshooting 18
• Spare Parts 19-21
• Notes 22-23

3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
BEAB
(British Electrotechnical
Approvals Board) Approval
of Safety.
• Do not crush or kink the shower
hose, this could damage the hose,
cause leaks and activate the pressure
relief device (PRD).
• Installations subject to regular and
rapid changes in the water supply
pressures should be avoided.
• This appliance must be
permanently connected to the water
mains and not connected by a
hose-set.
• Warning: This appliance
can be used by children
aged from 3 years and above and
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use
of appliance in a safe way and
understand the hazards involved.
• Children shall not play with the
appliance.
• Cleaning and maintenance shall
not be made by children without
supervision.
• Important: The shower unit must
be switched o at the isolating switch
(pull cord) when not in use.
• Please read these instructions
thoroughly and retain for future use.
• All products manufactured and
supplied by Bristan are safe provided
they are installed, used correctly
and receive regular maintenance in
accordance with these instructions.
• If you are in any doubt about your
ability to install this product safely
you must employ the services of
an experienced qualified plumber/
electrically qualified person.
• Warning: Do not operate
the shower unit if you
suspect it is frozen. Do not site
the shower unit where it might be
subjected to freezing conditions.
• Do not install this shower unit in a
room/environment without adequate
ventilation or an extractor fitted. This
is required to prevent condensation
forming within the unit.
• Do not operate the shower unit
if the showerhead or spray hose has
been damaged or is blocked.
• Do not block the flow of water
from the showerhead, by placing it
(smothering it) on your hand or any
other part of your body or foreign
object.
• Do not operate the shower if the
water stops flowing during use or if
the water is leaking from the shower
unit itself.
If this occurs, turn o at the mains
electrical supply and refer to the
Troubleshooting section (see Page 17)
or contact Bristan Customer Services.
Important Safety Information

4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information
• Always switch o the power at the
consumer unit and isolate the electrical
supply before making any electrical
connections or if you have to remove the
cover of an installed unit.
• The unit must be mounted on the finished
wall surface (usually tiled). Under no
circumstances must you tile up to or seal
around the unit as this may prevent air
circulating and condensation escaping.
• This shower unit must not be modified*
in any way as this will invalidate the
guarantee.
* Except for top left pipe entry (see page
10) where the product has been designed
to be modified by the installer.
• Fit only shower heads recommended by
the manufacturer. You must not fit a “water
saving” handset (whereby the flow of water
can be restricted or turned o) to the
shower, otherwise this can result in scalding
and/or unit failure.
• A suitable double pole isolation switch
for supply disconnections must be
incorporated in the fixed wiring circuit, in
accordance with the currect wiring rules.
See Electrical Installation section for further
details.
• The outlet must not be connected to any
tap or fitting other than those specified.
• The spray head must be descaled regularly.

5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Water Requirements
If the shower is to be installed in a hard water area, we
recommend that an in-line scale inhibitor is fitted which will
prolong the life of the shower. Please refer to your supplier for
advice.
Warning: The shower must not be installed in an
area subject to freezing conditions.
Do not use if you suspect the shower is
frozen, this will damage the shower unit.
This fitting needs to be installed in accordance with the following
Installation Requirements and Notes (IRN) to ensure they
meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and the Scottish Byelaws 2014.
The fitting shall be installed so that its outlet discharges above the
spill-over level of any fixed appliance as indicted on the illustration
below.
For backflow protection in premises or installations up to, and
including Fluid Category 3 and 5.
The vertical distance of the outlet above the spill-over level
shall be not less than 20mm or twice the diameter of the inlet
pipe to the fitting, which ever is the greater. If the fitting cannot
be installed as indicated it shall be installed with a backflow
prevention arrangement suitable for the Fluid Category.
Double pole
switch
Shower
unit
Shower tray
spillover level
Bath spillover
level
Hose
retainer
Minimum 20mm
between
showerhead
and spillover
1m minimum
height from
shower unit
The shower must be connected to a mains water supply only with a minimum working inlet pressure of 0.07MPa (0.7bar)
at a minimum flow rate of 8 litres per minute. The maximum static inlet pressure must not exceed 1.0MPa (10bar).
A minimum working inlet pressure of 0.1MPa (1bar) at a minimum flow rate of 8 litres per minute is recommended for full
ThermoSafe™ performance.
If it is intended to operate the shower at pressures above the maximum stated, a suitable pressure reducing valve (PRV)
should be used.
Water regulations stipulate that the showerhead be ‘constrained by a fixed or sliding attachment (hose retainer) so that it
can only discharge water at a point not less than 20mm above the spill over level of the bath or shower tray or other fixed
appliance.
If a showerhead can sit within a bath, basin or shower tray, you must fit a double check valve in the supply pipe work to
prevent back siphonage. If the showerhead can sit within a WC then the air gap should be a type AUK3 not less than
20mm or twice the diameter of the inlet pipe to the fitting, whichever is the greater.

6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

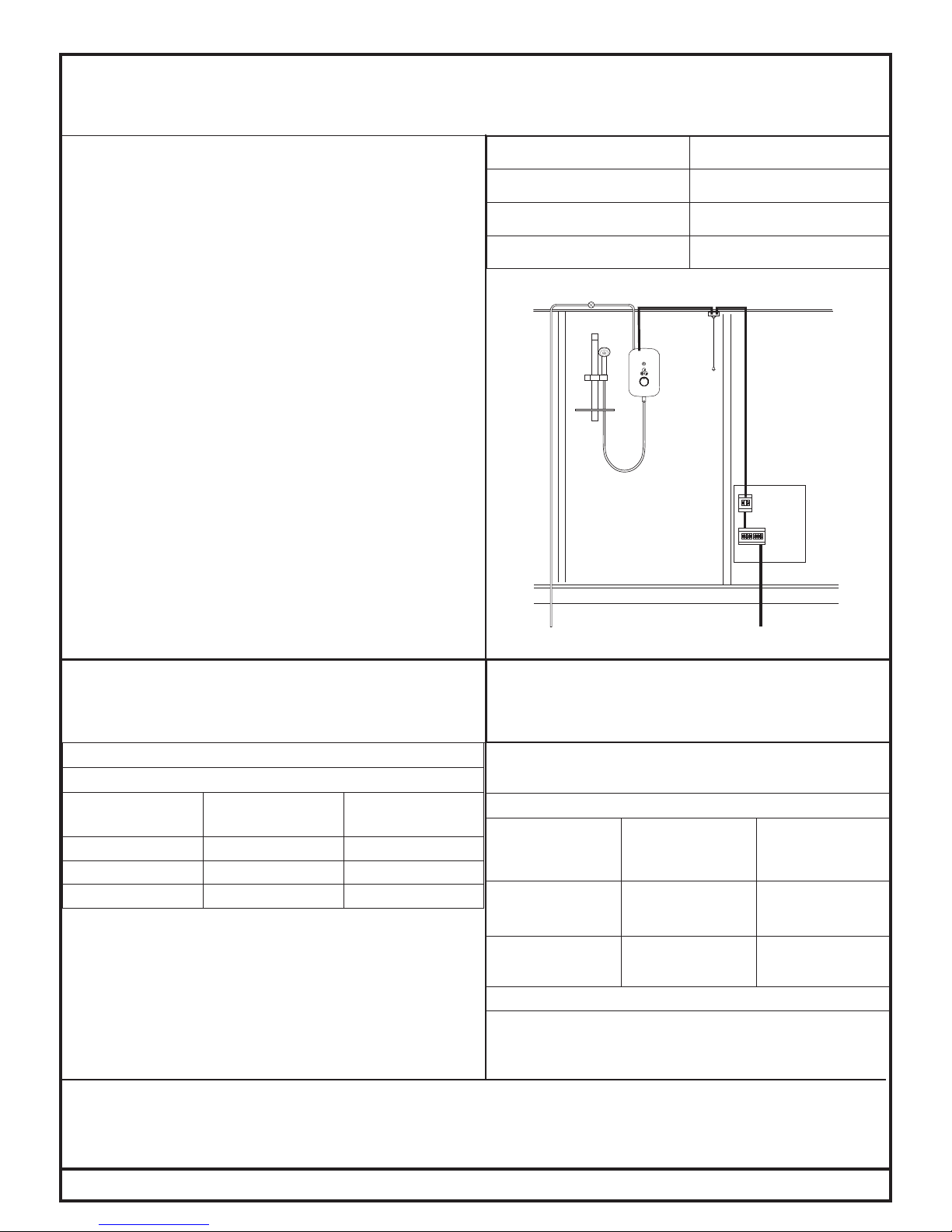

Electrical Requirements
Rating at 240V Rating at 230V
8.5kW 7. 8kW
9.5kW 8.7kW
10.5kW 9.5kW
Mains electrical
supply
Consumer
unit
Double pole
switch
Shower unit
Mains water
supply
Isolating
valve
30mA RCD
For ampage of
MCB/Fuse see
Circuit Protection
Table on Page 8
For Cable Capacity
see Cable Current
Carrying Capacity
Table on page 8
The Electrical Installation and Circuit Protection of this shower must
comply with current I.E.E Wiring Regulations (BS 7671) and Building
Regulations (Part P). We recommend that this product is installed
by a qualified electrician prior to use. The following notes are for
guidance only.
Important: You must switch o the power at the consumer
unit,isolate the electrical circuit and verify the
earth before making any electrical connections.
The shower must only be connected to a 230-240V AC supply.
The electrical rating of your shower is on the pack or on the
rating plate label.
The shower must be connected to its own independent
electrical supply. It must not be connected to a ring main,
spur, power socket, or lighting circuit.
If you don’t have a spare fuse way or the rating at the main
fuse box is below 80A, you should seek advice from an
electrician and may need a new consumer unit - specifically for
the shower.
A separate and permanently connected cable must be taken from the
consumer unit directly to the shower via a 45 Amp double pole switch
with a minimum contact separation gap of 3mm in live (L) and neutral
(N) poles.
The isolating switch can be a ceiling mounted pull cord switch within
the bathroom or wall mounted in an adjacent room. The power switch
must be easily accessible and identifiable as the supply to the shower.
Note: Voltage drop in the supply to the premises, due to heavy local
demand, will aect the performance of your shower. To gain the
optimum power possible from this shower unit try to find the shortest
possible route from the consumer unit to the shower to run your cable.
Circuit Protection Table
Circuit Protection Device
Unit Rating
(@ 240V)
MCB Cartridge Fuse
8.5kW 40A 45A
9.5kW 4 0/45A 45A
10.5kW 45A 45A
Circuit Protection Cable Selection
On installation of the appliance the impedance measurement of the Neutral and Earth back to the supply source is to be less than 1.0 Ohms.
This is in line with the general installation requirements of the UK Network and will generally present no problem within the UK Network.
In domestic installations you must ensure that the electrical supply and existing fuse board are adequately rated.
Do not turn on the electrical supply until the plumbing has been completed and the shower cover re-fitted.
The current carrying capacity of the cable must be at least that of
the shower Circuit Protection Device.
Please refer to the Cable Current Carrying Capacity Table.
It is a requirement that a residual current device (RCD) formerly
known as an earth leakage circuit breaker (ELCB) with a tripping
current of 30mA, is incorporated in the circuit. This may be part of
the existing consumer unit or a separate unit.
For closed circuit protection DO NOT use a rewireable fuse. Instead
use a suitably rated Miniature Circuit Breaker (MCB) or Cartridge
Fuse.
Please refer to the Circuit Protection Table.
Cable Current Carrying Capacity Table
(for Twin and Earth PVC Insulated Cable)
Current Carrying Capacity
In an insulated
wall
In conduit or
trunking
Clipped direct or
buried in a non
insulated wall
6mm2
32A
6mm2
38A
6mm2
46A
10mm2
43A
10mm2
52A
10mm2
63A
Note: Cable selection is dependant on derating factors

7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Product Features
1. Touch Button STOP/START Button
Press once to start the shower, press once again to
stop the shower.
2. Stand-By Mode indicated by the lit STOP/START
Button being on or the lights at the bottom flashing/
showing, denoting the shower is powered and ready to
start.
3. Temperature Setting Controls
Set Temperature Range:
Cold ( ),
Warm ( )
Hot ( ).
4. Temperature Adjustment Control
Adjustable temperature control.
Temperature Control Device
The Temperature Control Device will activate when
the temperature is set too high and the water inside
the water heater gets too hot. The Temperature
Control Device will switch o the power to the
heating elements. Once the unit cools down to a safe
temperature the elements will come on again and
reheat the water within the water heater and the whole
cycle will repeat itself until the temperature is manually
reduced.
Warm-Up Mode
The lit STOP/START Button or the lights at the bottom
will flash as the water heats up. Once the light stops
flashing and stays on, the shower has reached your
selected temperature and is ready to use.
Phased Shut Down & Indication
When the shower is turned o, water will continue
to flow and the lit STOP/START Button or the lights
at the bottom will flash for a short period while the
heater cools down to approximately 30°C, before
automatically turning o. This ensures the shower is
ready for the next user and helps reduce the build-up of
limescale in the heater.
Thermostatic Technology
When the shower is started, it will wait a short time for
the shower outlet temperature to stabilise to establish
the user’s desired water temperature. The shower will
then monitor the water temperature and adjust the
heating power to compensate for rises in temperature,
resulting in safe showering temperatures.
4
3
2
1

8Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Operating the Shower
Control Type Control Remember
STOP/START
Button
Press unlit It is always advisable to test the water temperature with your hand before stepping
under the shower. Please note that there is always a delay of a few seconds between
you selecting a temperature setting and the selected water
temperature starting to flow.
Press whilst lit
IMPORTANT: Do not use the isolation switch (pull cord) to stop the shower, use the
STOP/START button.
Temperature
Setting
Controls
COLD - NO Heater Elements ON
During periods of high ambient temperatures (e.g. hot summer days), it may be
necessary to select a lower temperature setting in order to achieve your ideal
shower temperature.
WARM - 1 Heater Element ON
HOT - 2 Heater Elements ON
Temperature
Adjustment
Control
COLD (increased flow)
When adjusting the temperature, including during first start up; do not rapidly
turn the dial to Max Temp to increase the temperature. Instead, use small changes
and wait for the temperature to stabilse before changing again.
If the user adjusts the Temperature Setting or Temperature Adjustment Controls,
the shower will again wait for the user’s new desired temperature to stabilise. The
shower will then resume its monitoring and compensation of water temperature
HOT (reduced flow)
Adjusting
the
Showerhead
Spray
The spray head mode may need to be altered during winter conditions
(low flow conditions) to achieve a satisfactory spray.
Jet Spray
Combination Spray
Temperature
Setting
Controls
Temperature
Adjustment
Control
STOP/START
Button
Operating the Controls
IMPORTANT
Please ensure the
commissioning procedure
has been carried out.
If you did not fit this shower
yourself and you are about
to use it for the first time,
check with the installer to
ensure he or she has ran the
commissioning procedure as
described on
page 15.

9
5°C
20°C
Pressure
BAR
6.0
8.0
10.0
0
4.0
2.0
1.0
5.0
4.0
3.02.0
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Light
Commercial
Maximum Static Pressure:
1.0 MPa (10.0 bar)
Inlet Water Temperature
15mm
Push-Fit
Outlet Connection
Min: 0.07 MPa
(0.7 bar)
Max: 1.0 MPa
(10.0 bar)
Working Pressures
Suitable for mains cold
water pressure only
Multi-Function
Handset
Inlet Connection
Cold Water Supply
Min: 5°C Max: 20°C
Tools You’ll Need
1/2” BSP
Male
Threaded
Water Inlet Entry Points Electrical Cable Entry Points
Recommended Usage
Healthcare

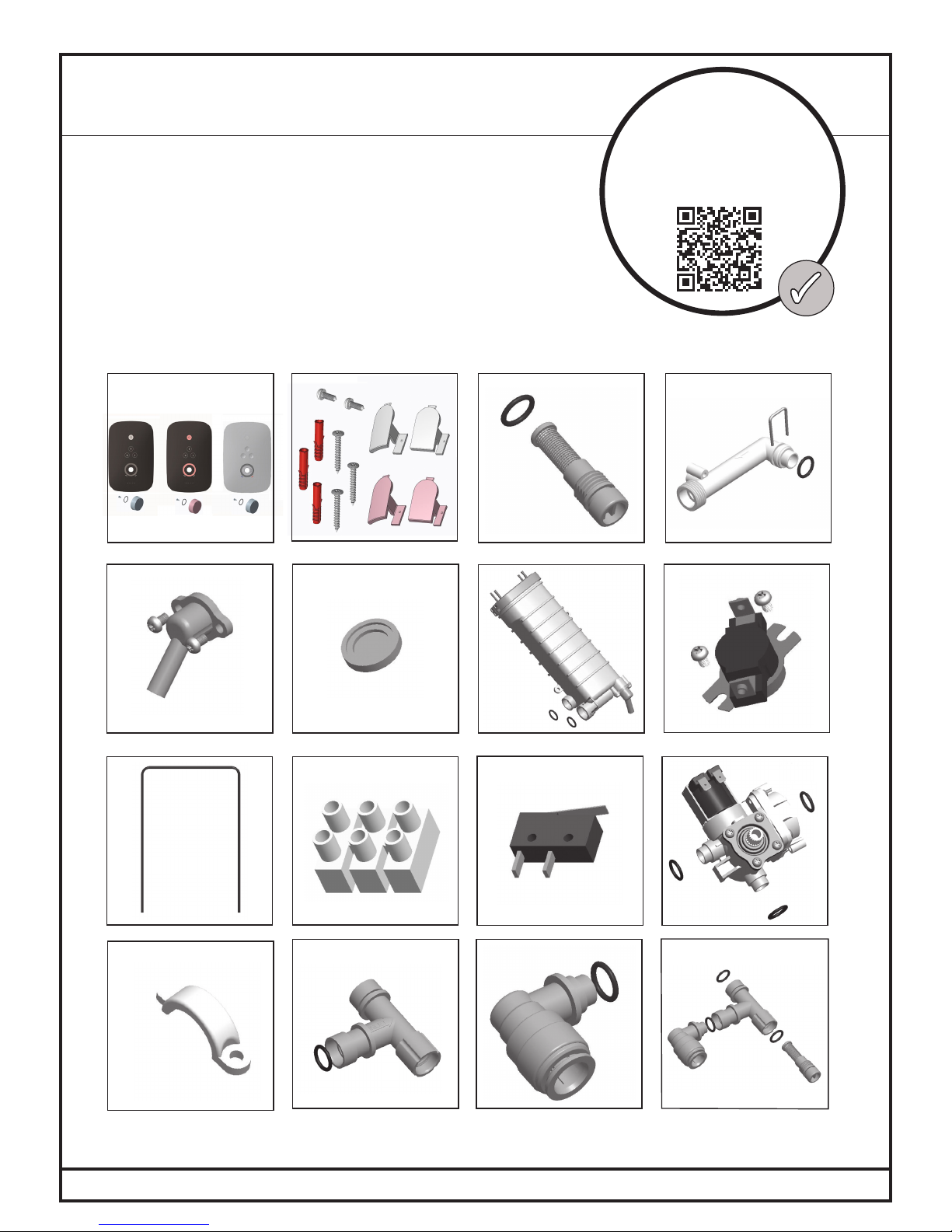

Pack Contents
Left hand side: Top, Bottom, Rear (bottom)
Right hand side: Bottom, Rear (bottom)
Product Fiche
Why not Visit our Youtube Channel?
To see our latest how-to videos, simply scan the
QR code with your smart phone or tablet.
Alternatively visit www.youtube.com/bristantv
Flat-head Screwdriver Cross-head Screwdriver
Pencil Drill Pipe Cutter Masking TapePliersPipe & Wire DetectorSpirit Level
Heavy
Commercial
Domestic
Pressure
BAR
0
IMPORTANT
Specifications
Model SOL85 W SOL95 W SOL105 W NOC85 BC/BG NOC95 BC/BG NOC105 BC/BG
Declared Load Profile XS XS XS XS XS XS
Water Heating Energy Eciency Class A A A A A A
Water Heating Energy Eciency (%) 38.6 38.5 38.5 38.6 38.5 38.5
Annual Electricity Consumption (kWh) 478 479 479 478 479 479
Sound Power Level (dB) 15 15 15 15 15 15
Left hand side: Top, Bottom, Rear (bottom)
Right hand side: Bottom, Rear (bottom)
x2
x1 x1
x1
x1
x1
x1
Specifications

10 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Fixing Your Shower to the Wall
5
Important: Under no circumstances should this shower unit be recessed, tiled up to or sealed around the unit
as this may prevent air circulating and any condensation escaping. It must be fitted onto the
finished wall surface.
When working near a basin, bath or shower insert plug or cover waste to prevent losing small parts.
Take care not to drop tools/equipment into basin, bath or shower
during shower installation.
12
Remove the cover
retaining screws and
lift o the cover.
Do not try to remove
the control knob
from the cover.
It is an integral part
of the cover and
must not
be removed.
Select the position
for the shower unit over
a bath or shower tray using the
installation template provided.
Important: The shower unit must be
fitted to a flat, waterproof surface.
Under no circumstances should the
shower unit be attached to a wall and
then tiled up to the edges.
The unit must be fixed on top of
the wall surface.
3
Important: Use a spirit
level to ensure the
template is level.
Mark the fixing points
with a suitable pencil
through the paper.
Once the plumbing
and electrical
installations, have
been completed,
tighten the fixing
screws to secure
the shower in place.
Remove the template from the wall and drill
the wall to suit the wall fixings to be used.
If drilling on tiles, using masking tape
before marking out the fixing holes will
help prevent the drill bit from wandering.
6
Screw the wall
fixings in place.
The unit can be hung
temporarily on the top screws
to help with the positioning
of the pipe work etc.
The bottom screw should only
be fitted during final installation.
4
Wall Fixing Points
IMPORTANT
Complete the
plumbing and
electrical connection
steps before
moving to Step 6
REMEMBER
Check for
hidden pipes and
cables before
drilling!
REMEMBER
If you are fitting the
unit to a partition wall
or a wall of
particularly friable
(crumbly) substrate,
you will need
appropriate
fixings for the
wall type.

11
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
The pipe work can enter the shower unit from 6 dierent positions:
Bottom left, Bottom right, Top left, Rear left, Rear right or Rear left - using an elbow.
Select the inlet option most suited to your situation.
Bottom left inlet entry Bottom right inlet entry Top left inlet entry
Rear left inlet entry -
using a 15mm compression elbow
(not supplied), where NO rear
access is available
Rear left inlet entry -
requiring rear access
Rear right inlet entry -
requiring rear access
Rear Access Required
Without Rear Access
Without Rear Access
IMPORTANT
IMPORTANT
An additional independent
stop valve complying
with the current water
regulations must be fitted
in the mains water supply
as a means of isolating the
supply to the unit
for servicing and/or
maintenance work.
The outlet of the shower acts
as a vent and must not be
blocked, restricted or connected
to any tap/closure device other
than the handset supplied.
Do not solder within 300mm
of the shower unit
or allow solder or flux
to fall onto the
casings.
Plumbing Connections

12 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
1The shower unit should come supplied
with the inlet connection set for a
bottom left position. In order to change
elbow position, unfasten the screw
securing the inlet connector elbow
clamp, remove the tab from the
slot and keep until the inlet pipe
is repositioned.
3
For top left position - Go to Step 3
For rear left position - Go to Step 4
For bottom or rear right positions -
Go to Step 5
To change the connection to a rear
position, swivel the inlet connector elbow
from facing downward to facing inwards.
If the pipe work entry is from the rear,
ensure that there is space left around
the push-fit elbow for future servicing or
alternatively, that access is possible from
the rear. Skip to step 7.
4
2
Refit the clamp tab
into the slot and
refasten the screw.
Note: The clamp
turns upside-down
to fasten
on the
right.
Lift the outlet
connection up out
of the way from
its position at the
bottom of the unit.
Pull the inlet connector
elbow towards you and
over to the right hand side
with the inlet entry point
facing down.
Go to Step 4 for rear right position.
56
Replace
the outlet
connection.
7 8
Connect the mains water
supply to the inlet elbow
of the shower using 15mm
copper pipe (BS EN1057)
or 15mm plastic pipe (with
insert).
The inlet pipe connection
into the elbow is a self-seal
push-fit type.
It is essential that all pipe
work is flushed through to
remove debris and swarf
that could otherwise
damage the unit.
10
All burrs and rough
edges must be removed
from the end of the pipe
before connecting.
Once the pipe work has
been flushed through, turn o
the water supply at the stop valve.
Do not use stainless steel pipework.
If using chrome plated pipe ensure
that the first 25mm of plating is
carefully removed to allow push-fit fitting
to grip the inlet pipe.
To release the pipe work from the push-fit
type fitting, press and hold
the collet against the
elbow and pull the pipe
out of the elbow.
Turn on the water supply and
inspect for water leaks at the
shower inlet.
Once inspected-turn o the
water supply.
11
Top left entry:
Depending on your
choice of cold-water
entry direction,
you may need to remove thin
areas of plastic cover to facilitate
pipe work entry down through
the top left of the unit.
9Bottom entry:
Depending on your choice of
cold-water entry direction, fit
‘hole covers’ to the pipe work
slots at the bottom
of the unit.
The grey areas
shown are tabs that
can be removed to
allow 6mm cable
entry only.
Pipe
cover
Blanking
cover
To change the
connection to a top
left position, swivel
the inlet connector elbow
from facing downward to
facing upward.
Skip to step 8.
Plumbing Connections

13
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Electrical Connections
Rear bottom left cable entry Bottom left cable entry *
Top left cable entry
*Note: When feeding cable
through bottom entry points
remove highlighted grey tab
on pipe/blanking cover if
using 6mm cable.
Rear bottom right cable entry
Note: Depending on cable size and entry
point used it may be necessary to strip
back outer cable sheath suciently to
allow cables to be directed to the terminal
connection block within the unit.
Bottom right cable entry*
Pipe
cover
Blanking
cover
Bottom right cable entry
*
Rear bottom right
cable entry
Filter housing
Outlet
Note: We recommend that the blue (neutral)
and brown (live) cables are fed under the
filter housing. Position the earth cable under
the outlet on top of the filter housing.
For 10mm cable remove the
pipe/blanking cover entirely.
Left Cable Entry
Right Cable Entry
Unsheathed Right Cable Entry
All cables must conform to the relevant tables within the current I.E.E Wiring Regulations (BS 7671). The electrical supply cable
must be either recessed or in a conduit/trunking as detailed in the current I.E.E Wiring Regulations (BS 7671). Refer to page 8.
Select the cable inlet option most suited to your situation.

14 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Electrical Connections
• Earth cable to the terminal marked
with the Earth symbol
• Neutral cable to the terminal
marked N
• Live cable to the terminal
marked L
ON
OFF
4
3
21
7
5
The power cable entry point is shown on the
diagram. Electrical connections are to be made
at the terminal block as follows:
Switch OFF the electricity supply
at the consumer unit.
Important:
Terminals must be fully tightened onto
the cables ensuring that no cable insulation
is trapped under the screws. It must be metal to metal.
Loose connections can result in the cables overheating; ensure
all terminal screws are fully tightened.
The supply cable earth conductor must be sleeved.
The supply cable must be secured by routing through conduit
or in trunking or by being embedded in the wall in accordance
with current I.E.E Regulations.
Plug in the cable
from the cover to
the connection
inside the unit.
Rotate the Temperature Adjustment
Control fully anti-clockwise (colder)
Rotate the spline temperature control
spindle fully anti-clockwise
Locate cover in position
ensuring wiring is not trapped
and secure using the cover
fixing screws supplied.
8
Tighten
the fixing
screws to
secure the
shower in
place.
Slight adjustment
of the control knob
may be required
to locate cover
correctly.
REMEMBER
This appliance and all
connecting metal pipework
must be earthed.
Ensure that an earth continuity
conductor is securely and
permanently connected to
all exposed metal parts of
other services and appliances
within the room
where the shower
is installed.
IMPORTANT
Do not switch on
power to the shower
unit until the cover
and the cable to
connection have
been fully fitted.
6

15
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Fixing Your Riser Rail to the Wall
1Double pole
switch
Shower
unit
Shower tray
spillover level
Bath spillover
level
Hose
retainer
Minimum 20mm
between
showerhead
and spillover
1m minimum
height from
shower unit
2
3 4
56
7 8
910
Slide the shelf onto the bottom end of the
rail. Position a wall bracket onto each end
of the rail, ensuring the hole through the
top of the rail lines up with the hole in
the wall bracket.
When fitting the hose, it should
pass through the larger hole of the shelf.
Note: The conical hose end and not the
handset handle, fits into the slider.
Ensure the washer is fitted between the
hose and the handset handle. The slider
moves more freely on the rail if gripped
next to the rail, rather than at the handset.
Position the rail on the wall, bearing
in mind the dierent heights of
people likely to use the shower
and the length of the hose when
connected to the shower and
passed through the retaining hole in
the soap dish.
Important:
Use a spirit level to ensure
the riser rail and markings
are vertical.
Drill the wall at the marked fixing
position to suit the wall fixings
to be used.
Slide the rail down through the
lower wall bracket and
re-attach the upper
bracket.
Check that
the rail is
perfectly
vertical and tighten
the upper fixing screw.
Insert end caps into the
wall brackets at both ends
of the rail.
Mark the top
fixing point with
a suitable pencil
through the
riser rail hole.
Loosely fix the rail
(with the large hole on
the side shown) and
wall bracket.
Check that the rail
is hanging vertically
using a spirit level.
Slide the lower wall
bracket onto the rail
and mark its required
position onto the wall.
Drill the lower wall bracket fixing position and
fix the bracket to the wall.
REMEMBER
Check Pack Contents
(pg 8) prior to
installation!
REMEMBER
Check for
hidden pipes and
cables before
drilling!
The Slider and
shelf should not be
removed from the rail
during fitting.
The underside of the
slider has a button to
release the slider and
allows the height to
be adjusted.
Note: The lower wall bracket does not fix
to the riser tube and can be positioned
along the riser tube so as to cover either
an existing riser hole in the wall or over a
tile joint.
Remove the lower bracket from the rail
and unscrew the upper bracket from the wall.

16 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Commissioning - Testing the System
1
3
67
9
4
108
11
5
Warning:
Before using the shower for the first time, it
should receive a final flush through and filter
clean to remove any remaining debris that may
be in the pipework or hose and to ensure the
heater unit contains water before the electrical
elements are switched on.
Turn on the water supply and
inspect for water tightness.
Turn on the mains electrical supply
to the shower.
Set the Temperature Setting to ( ).
Wait approximately 30 seconds for the water
to flow correctly.
Once the water has
flowed for a further
10 seconds, rotate the
temperature adjustment control from
the fully clockwise position to the
fully anti-clockwise position.
Repeat this procedure several times until
a continuous flow of water (with no air
bubbles) is obtained from the shower hose.
Once you are
satisfied that the system
has been flushed
through thoroughly,
press the
STOP/START
button
to stop
the flow.
Clean the
Inlet Filter
and Outlet
Hose Mesh
Filter to
remove any debris
from the flush - see
Maintenance Section.
Remove the
showerhead from the
hose and if not already
attached, attach the
hose to the outlet port
and ensure that the
outlet hose mesh filter
is fitted.
Re-fit the showerhead to
the hose, insert hose rubber
washer to seal the joint; The
showerhead is attached to the
riser rail by inserting the
conical hose end into the
movable slider.
Your shower is now ready for
first use.
Rotate the Temperature Adjustment
knob fully clockwise to minimum flow.
This is to prevent the PRD activating
when water is first turned on.
ON
OFF
2
REMEMBER
Your Bristan showerhead
has a rub-clean pad for easy
cleaning. Simply rub your
fingers across the rubber
spray jets regularly before
you turn the shower on to
remove any scale
or debris.
Press the STOP/START button
IMPORTANT
Isolate the
water
supply
IMPORTANT
De-isolate
the water
supply

17
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

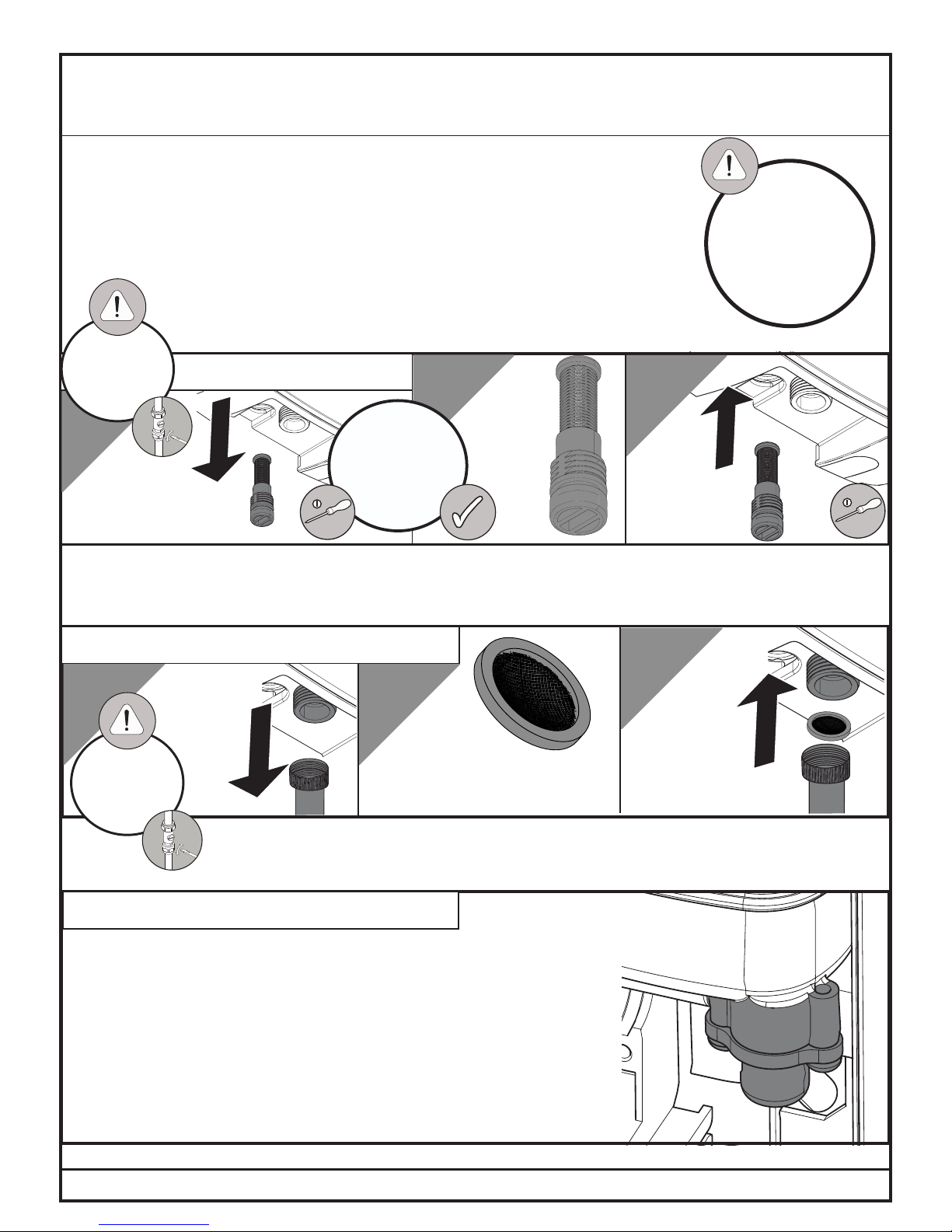

Maintenance
General Cleaning
Do not use abrasive cleaners or solvents to clean this unit. The shower unit and
accessories should be cleaned with a soft, clean, damp cloth.
The hardness of the water in your area will determine how often you should clean
your showerhead. Build up of scale in particularly hard water areas combined with
constant use means you may need to clean your showerhead once a week.
To ensure continued performance of your electric shower the showerhead needs
to be regularly descaled.
3
2
1
Remove the inlet filter by
turning anti-clockwise
using a large flat-blade
screwdriver.
Refit the filter
and gently
tighten.
Wash
under
clean
running
water.
Cleaning the Inlet Filter
IMPORTANT
Isolate the
water supply
before starting!
3
2
1Unscrew the
hose.
Place filter back
in the hose
reconnect to
outlet.
Rinse under cold running water.
Cleaning the Outlet Hose Mesh Filter
A
small amount
of water will
be discharged
when filter is
removed - this
is normal
A pressure relief device is designed into this shower. The pressure relief device
provides protection should an excessive build up of pressure occur within the shower unit.
It is advisable to position the shower unit over a bath or shower tray in the unlikely
event the device should discharge.
Do not use the shower with a damaged or kinked shower hose or blocked handset.
This may trigger the PRD which will discharge through the vent in the bottom right
hand corner (shown).
In the event of the PRD activating, water will be discharged from the vent. If this
happens, switch o the electricity and water supplies to the shower and
contact Customer Services (see Page Footer).
Pressure Relief Device (PRD)
IMPORTANT
Before attempting to
clean your shower unit
you must switch o the
power at the isolating
switch.
Do not remove
the cover.
IMPORTANT
Isolate the
water supply
before starting!

18 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting
Symptom Likely Cause(s) Action/Remedy
No water flow.
Water isolating valve in o position Turn on
Outlet hose mesh filter blocked. Remove the outlet hose from the
shower,
remove mesh filter and clean.
Filter blocked. Turn o water supply, remove filter
and clean.
Power supply not on. Turn on.
Water temperature
too hot.
Insucient water flowing
through the shower.
Clean the handset.
Increase the flow by turning the
Temperature Adjustment Control to
cooler setting.
Change the Temperature Setting
Control to Warm or Cold.
Shower runs hot
and cold
during use.
Water pressure is at minimum
requirement.
Check running pressure (minimum
of 0.7bar). Wait until pressure
increases.
Shower
temperature cycles
between hot and
cold.
Shower temperature is set too high
causing the thermal cut out to turn
o the heating elements to reduce
the water temperature.
Turn shower temperature control
anti-clockwise to reduce the water
temperature.
Water from
pressure relief
outlet-PRD
activated.
Obstruction in hose or handset. Call Customer Services.
Water runs but no
heat.
Low Pressure water supply to
shower unit.
Low water flow through shower
handset.
Turn o unit and wait until water
pressure increases before using
again.
Increase water flow rate by turning
temperature control to cooler
setting.

19
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Spare Parts
No. Part No. Description Parts List Quantity
01 S O L- C OV - W Solis Front Cover including PCBs 1x Assembled Front Cover, 1x Umbilical Cord, 1x Power PCB,
1x Control PCB & 1x Rubber Seal
1
01 NOC-COV-BC Noctis Front Cover including PCBs 1x Assembled Front Cover, 1x Umbilical Cord, 1x Power PCB,
1x Control PCB & 1x Rubber Seal
1
01 NOC-COV-BG Noctis Front Cover Rose Gold including PCBs 1x Assembled Front Cover, 1x Umbilical Cord, 1x Power PCB,
1x Control PCB & 1x Rubber Seal
1
02 S O L- F I X - W Solis Fixing Kit 2x Short Screws, 3x Long Screws, 3x Rawl Plugs,
2x Blanking Covers
1
02 NOC-FIX-BC Noctis Fixing Kit 2x Short Screws, 3x Long Screws, 3x Rawl Plugs,
2x Blanking Covers
1
02 NOC-FIX-BG Noctis Fixing Kit Rose Gold 2x Short Screws, 3x Long Screws, 3x Rawl Plugs,
2x Blanking Covers
1
03 131-404-S Filter Assembly Filter x1, inc. O-ring x1 1
04 131-315-S-2 Outlet Pipe Assembly (with hole) Outlet Pipe x1, Metal Clip x1, inc. O-ring x1 1
05 131-309-S Pressure Relief Diaphragm Housing Assembly Pressure Relief Diaphragm Housing x1, inc. Screws x2 1
06 131-308 Pressure Relief Diaphragm Pressure Relief Diaphragm x1 1
07 131-300-3-85 Heat Exchange Unit Assembly 8.5 kW Heat Exchange Unit 8.5 kW x1, Metal Clip x1, inc. O-rings x2 1
07 131-300-3-95 Heat Exchange Unit Assembly 9.5 kW Heat Exchange Unit 9.5 kW x1, Metal Clip x1, inc. O-rings x2 1
07 131-300-105 Heat Exchange Unit Assembly 10.5 kW Heat Exchange Unit 10.5 kW x1, Metal Clip x1, inc. O-rings x2 1
08 131-307-S Thermal Cut Out Assembly Thermal Cut Out x1, inc. Screws x2 1
09 131-501 Rubber Seal Front Cover Seal x1 1
10 131-607 Wire Terminal Mains Terminal Block x1 1
11 131-209 Auxiliary Microswitch Auxiliary Microswitch x1 1
12 131-140-S-85 Stabiliser Valve Assembly 8.5 kW Stabiliser Valve x1, inc. O-rings x2 1
12 131-140-S-95 Stabiliser Valve Assembly 9.5 kW Stabiliser Valve x1, inc. O-rings x2 1
12 131-140-S-105 Stabiliser Valve Assembly 10.5 kW Stabiliser Valve x1, inc. O-rings x2 1
13 131-401 Inlet Pipe Clamp Inlet Pipe Clamp x1 2
14 131-402-S Swivel Inlet Pipe Assembly Swivel Inlet Pipe x1, inc. O-ring x1 1
15 131-406-S Inlet Elbow Assembly Inlet Elbow x1, inc. O-ring x1 1
16 131-400-S Water Inlet Assembly Inlet Elbow x1, Swivel Inlet Pipe x1, Filter x1, inc. O-rings x3 1
15
06
05
02
01
08
07
14 13
10
12
16
09
03
11
04
02

20 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Spare Parts
1
5 6 8
4
7
3
2
15 16
13 14
9 10 11 12
To replace any spare parts
for your shower why not
scan the below QR Code and
search for your product; or
alternatively visit
www.bristan.com/search
