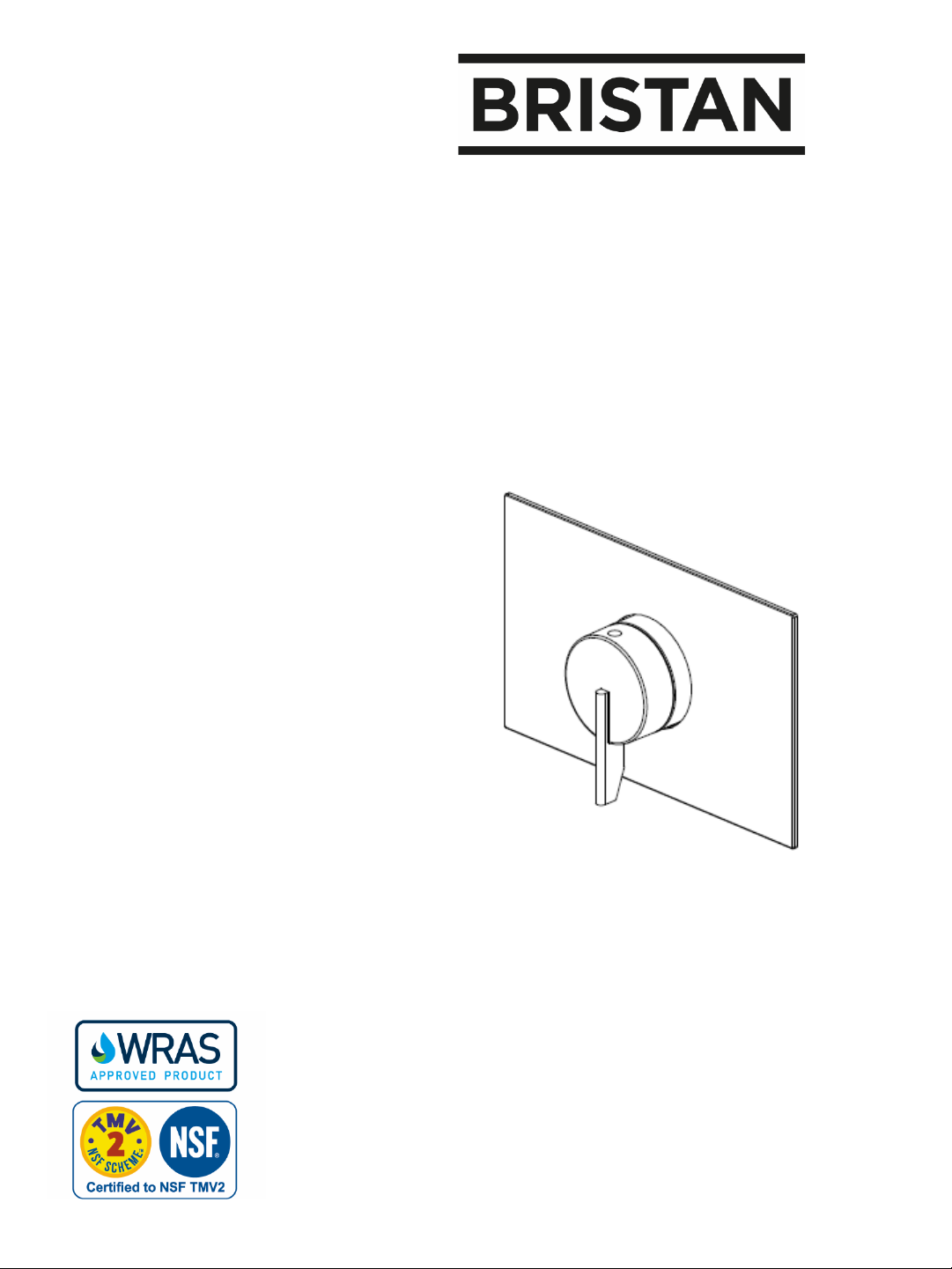

Bristan SOQ2 SHUAR C Mounting instructions

Installation Instructions
and User Guide
Sonique & Acute
Thermostatic Recessed
Mini Shower Valves
Models covered: SOQ2 SHCAR C &
AE SHCAR C
Please keep this booklet for future
Reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.

Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have
designed this product with your enjoyment in mind. To ensure that it works to its
full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to give us a call on 0330 026 6273.
Important Safety Information ………………………………………………………….
General Information ………………………………………………………………………..
Product Features …………………………………………………………………………….
Specifications …………………………………………………...................................
Dimensions ………………………………………………………................................
Pack Contents ………………………………………………………………………………..
Installation Requirements ……………………………………….........................
Flow Regulators ………………………………………………………………………........
Installation ……………………………………………………………………….................
Shower Valve ……………………………………………………………………………….
Shower Outlet ……………………………………………………………………………..
Riser Rail …………………………………………………………………………………….
Operation ……………..........………………………………………………………………….
Commissioning ……………………………....………………………………………………
Maintenance …………………………….....………………………………………………….
In-Service Testing …………………………….……………………...........................
Troubleshooting ……………………………………........………………………………….
Notes ……………………………………………………………………………………………….
Guarantee ……………………………………............……………………………………….
3
4
5
6
7
8
9-12
13-14
15-20
15-16
17
18-20
21
22
23-24
25 -26
27-28
29-30
31
2Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are installed,
used correctly and receive regular maintenance in accordance with these instructions.
•If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•Do not use if the showerhead or shower hose has been damaged or is blocked.
•Do not crush or kink the shower hose, this could damage the hose and cause leaks.
•Remove all packaging and check the components for damage before starting
installation.
•Warning: Before starting any installation please consider the following: Prior to
drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forget to: -Wear eye protection
-Unplug equipment after use
•The fitting of isolating valves is required as close as is practical to the supply inlet
feeds of the thermostatic mixing valve.
•Warning: Before installing the new shower valve it is essential that you
thoroughly flush through the pipework in order to remove any remaining swarf, solder,
etc. Failure to carry out this procedure could cause problems or damage to the
workings of the shower valve.
•This product must not be modified in any way as this will invalidate the guarantee.
Important Safety Information
3
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

General Information
4Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
This product has been tested to the TMV2 scheme which complies with the BS
EN 1287:1999 (LP) and BS 1111:1999 (HP) thermostatic mixing valve standards.
It also satisfies the requirements of the water supply (water fittings) regulations
1999 and current bylaws.
BS 6700 recommends the temperature of stored water should never exceed
65°C. A stored water temperature of 60°C is considered sufficient to meet all
normal requirements and will minimise the build up of lime scale in hard water
areas.
Important: Nominally equal (balanced) inlet supply pressures are
recommended for optimum performance with mixer showers.
This shower valve should be installed in compliance with the Water Regulations.
If in doubt, contact a registered plumber or your Local Water Authority or the
Secretary of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
Guide to designations
HP High Pressure
LP Low Pressure
S Shower

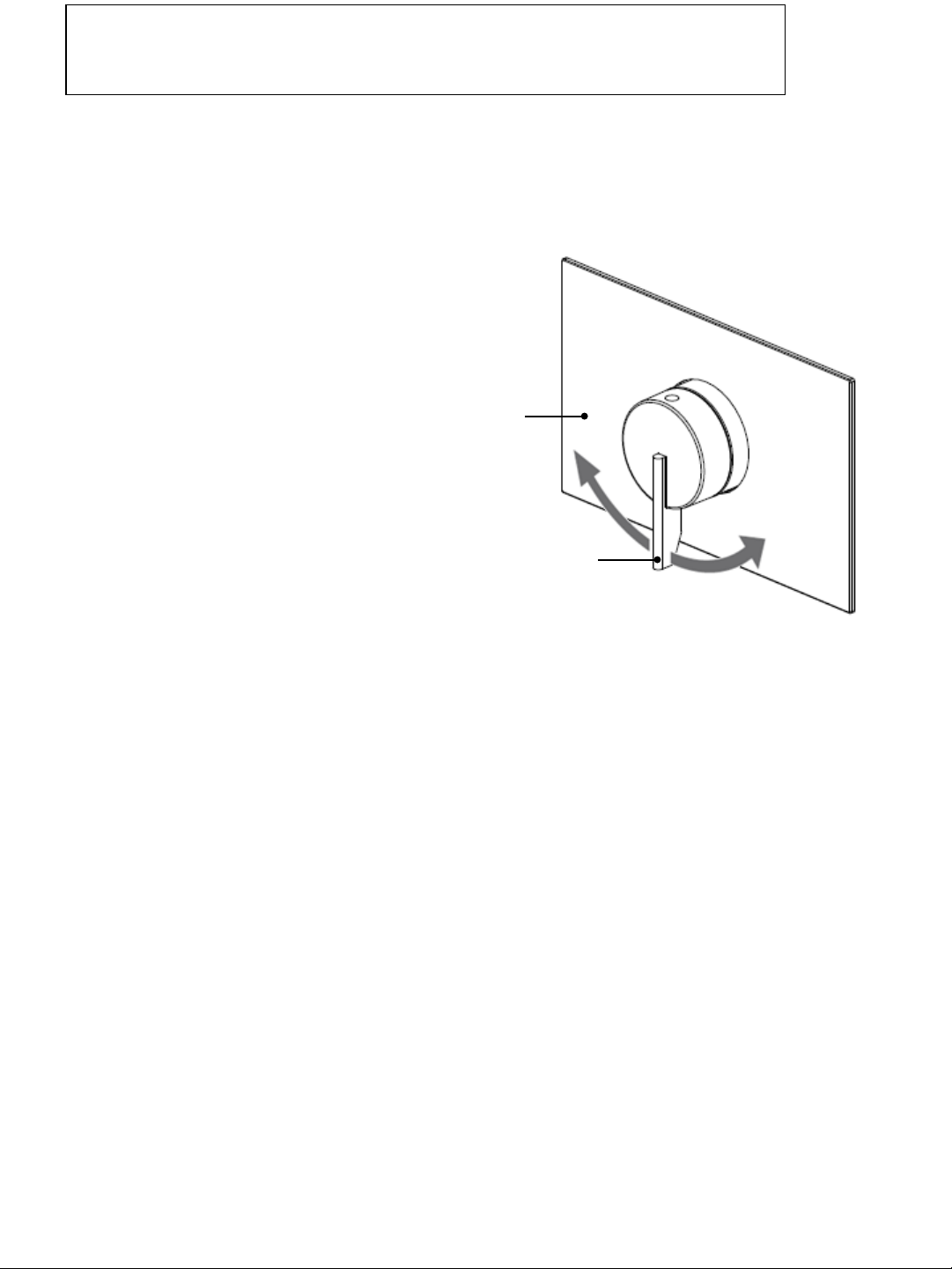

Product Features
1. On/Off and Temperature Control
Turn the control anti-clockwise
to turn the shower on and increase
the temperature.
Turn the control clockwise to
decrease the temperature and
to turn the shower off.
2. Concealing Plate
Conceals exposed pipework which is
shown when the valve is installed in
a wall cavity.
1
5
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
2
Sonique Shower Valve shown

Specifications
Inlet Connections: 15mm compression, with adjustable centres.
Operating Pressure Range: Min: 0.1 bar –Max: 5.0 bar –Maximum recommended
imbalance between hot and cold supply should not exceed a ratio of 5:1.
Maximum Static Pressure: 10.0 bar
Maximum Outlet Temperature: Factory pre-set to 41ºC (can be re-set to suit site
conditions).
Supply Requirements:
Minimum cold water supply temperature: 5ºC.
Maximum cold water supply temperature: 25ºC.
Maximum hot water supply temperature: 80ºC.
(a maximum hot water supply temperature of 60 –65ºC is recommended for ablutionary
purposes).
Note: The inlet hot water temperature must be at least 10ºC above the required blend
temperature (e.g. shower temperature 43ºC: minimum hot supply 53ºC.
6Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

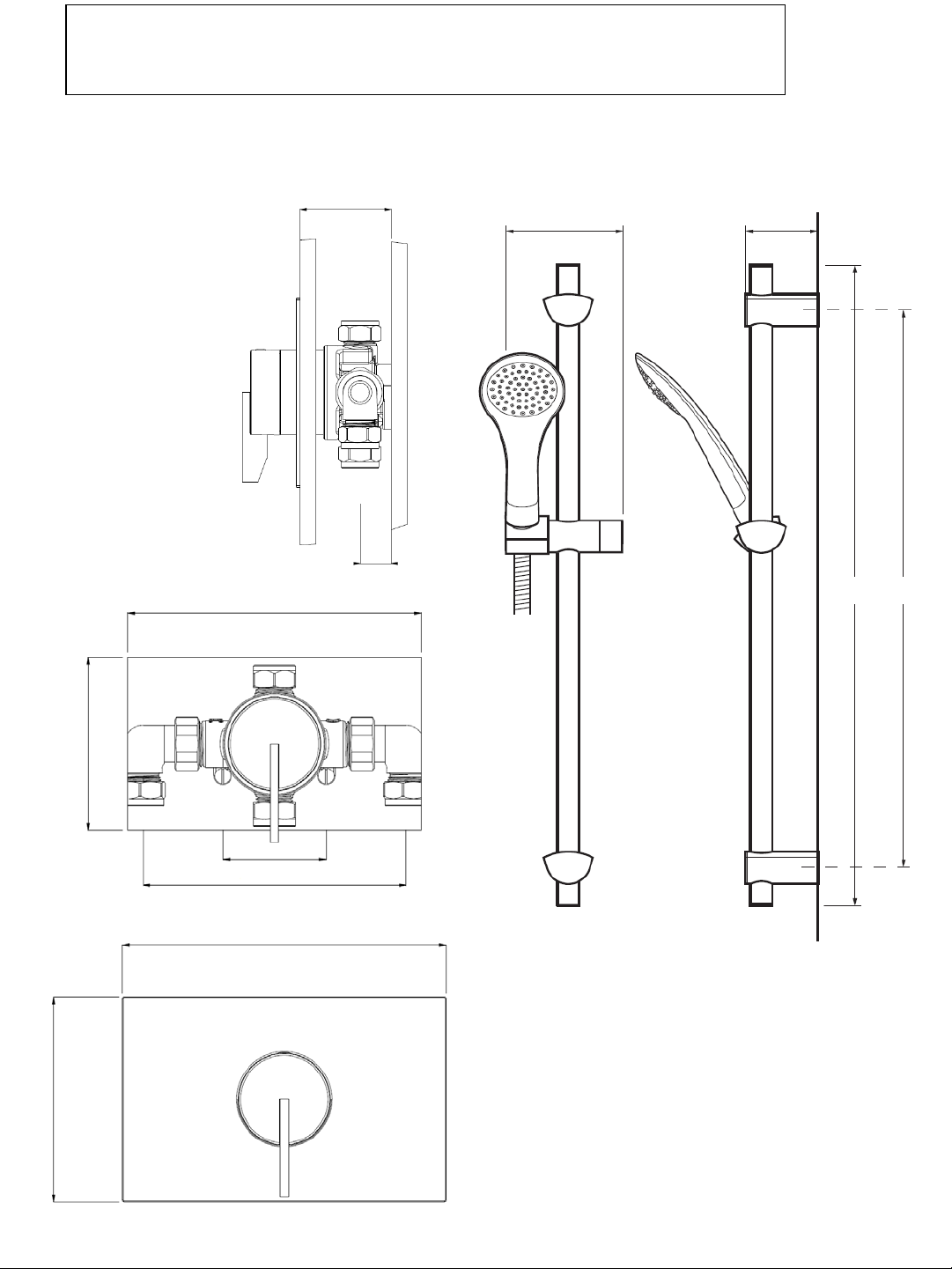

Dimensions (mm’s)
7
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
*Note: The riser rail wall brackets can be
positioned up or down the riser rail (max.
600mm apart) as required. This allows any
existing holes to be reused or covered by
the wall brackets. The brackets can also
be adjusted to sit in the middle of the tiles
or in the tile joints.
*
660
117 74
152
43-67
20
60
170
100
120
190
Sonique shower
valve shown
Note: This valve
is suitable for
wall cavity depths
between 43-67mm.

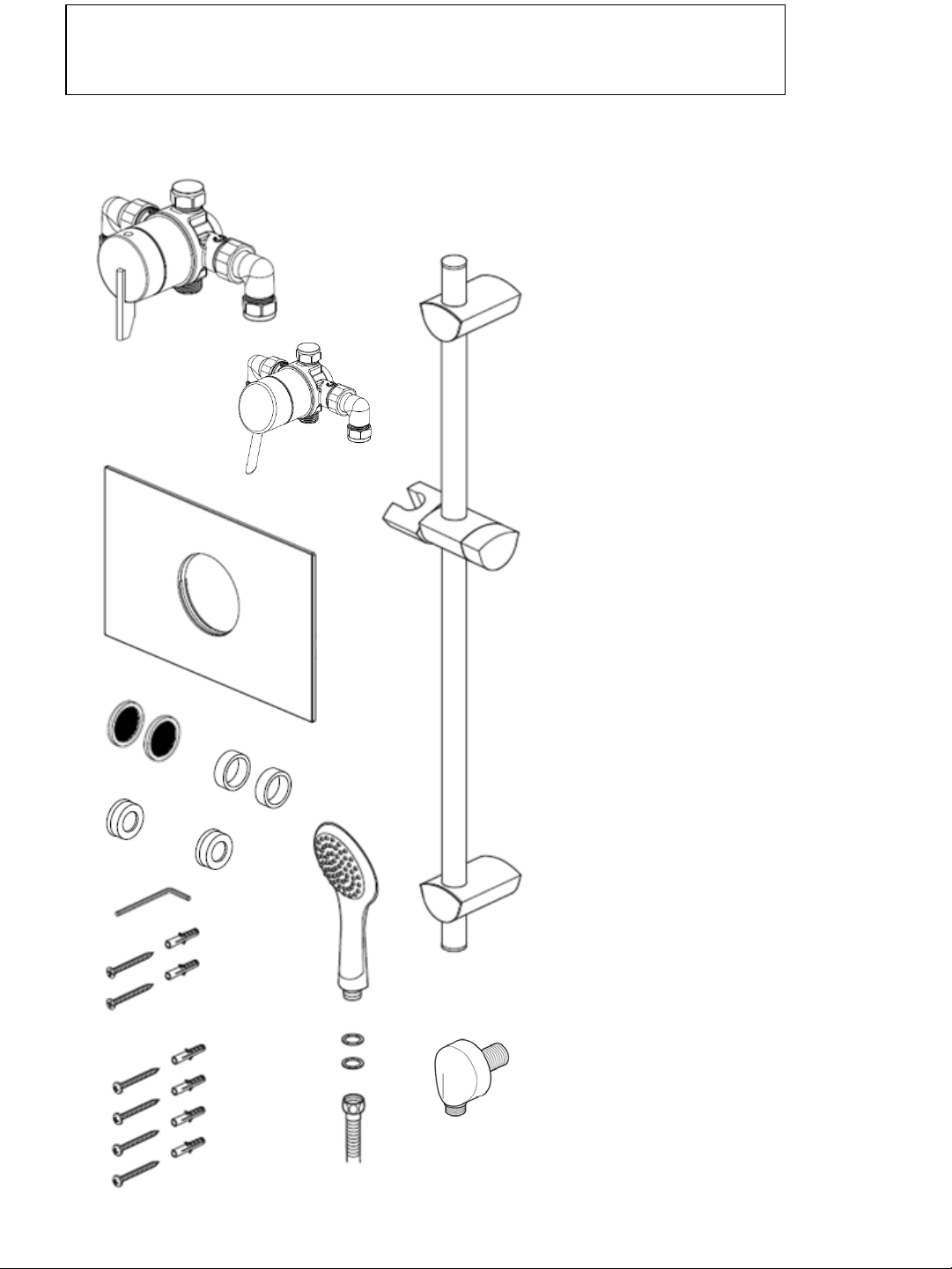

Pack Contents
1Shower Valve
2Concealing plate
3Filters x2
4Inserts x2
5Green flow regulator
6Yellow flow regulator
7Hexagonal key
8Valve fixings x2
9Riser rail fixings x4
10 Showerhead (single function)
11 Sealing washers x2
12 Shower hose
13 Wall outlet
14 Riser rail
8Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
2
4
10
14
11
12
7
8
1
5
9
13
6
3

Installation Requirements
This shower valve must be installed in
compliance with current water regulations.
If you have any doubts about the water
regulation requirements contact your local
water services provider or use the services
of a professional plumber.
This shower valve is suitable for use with
the following water supply systems.
•Gravity Fed Hot and Cold
(pressure Balanced)
•Gravity Fed Hot and Mains Cold
(differential pressure –see Specification
section on page 6.
•Instantaneous Water Heater
(combination boiler)
•Unvented System
•Pumped System
Gravity Fed Hot and Cold
Important: If you install this shower
valve with a gravity fed system, there must
be a minimum head (vertical distance)
from the underside of the cold water
storage tank to the showerhead position of
at least 1 metre.
Note: Pumped system (with Essex
flange) If you install this shower valve to a
pumped gravity fed system where the
minimum head (vertical distance) from the
underside of the cold water storage tank to
the top of the hot water cylinder is less
than 1 metre we recommend an Essex
flange is used as shown on page 10.
Flushing Pipework
Important: Before connecting the
shower valve (see Installation on pages 15-
20), supply pipework must be flushed to
clear debris before connecting the shower
valve. Debris will reduce the performance
and life of the shower.
Gravity Fed Hot and Mains Cold
Cold mains supply Cold mains supply
1m min
1m
min
9
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation Requirements
Instantaneous Water Heater Unvented System
Pumped System Pumped System (with Essex flange)
Key: Isolating Reducing Shower Pump Essex
Valve Valve Valve Flange
Cold mains supply Cold mains supply
Cold mains supply Cold mains supply
1m min 1m min
If less
than 1m
see note.
50mm
10 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation Requirements
These fittings need to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
IRN R001: See text of entry for Installation
Requirements or Notes.
IRN R040 -Schedule 2-15 (1): The
fitting shall be installed so that its outlet
discharges above the spill-over level of
any fixed appliance as indicated below:-
For backflow protection in domestic or
installations up to, and including, Fluid
Category 3.
If the fitting cannot be installed as
indicated in the table opposite it shall be
installed as either a or bbelow:
a: with an approved double check valve
assembly or some other no less
effective backflow prevention device
immediately upstream of the inlet.
b: so that it draws water by gravity only
from a cistern, or cylinder having a
permanently open vent pipe, and the
distributing pipe supplies no other fitting
(other than draining tap) at a lower level.
For backflow protection in premises or
installations up to, and including Fluid
Category 5.
The vertical distance of the outlet above
the spill-over level shall be not less than
20mm or twice the diameter of the inlet
pipe to the fitting, which ever is the
greater. If the fitting cannot be installed
as indicated it shall be installed with a
backflow prevention arrangement
suitable for the Fluid Category.
Size of tap or
combination fitting.
Vertical distance
of outlet above
spill-over level.
1. Not exceeding 1/2
in 20mm
2. Exceeding 1/2 in
but not exceeding
3/4 in
25mm
3. Exceeding 3/4 in 70mm
11
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation Requirements
12 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Conditions of use for Type 2 (Thermostatic mixer) valves
High Pressure Low Pressure
Maximum Static Pressure (Bar) 10 10
Flow Pressure, Hot & Cold (Bar) 0.5 to 5 0.1 to 1.0
Hot Supply Temperature (ºC) 55 to 65 55 to 65
Cold Supply Temperature (ºC) Equal to or less than 25 Equal to or less than 25
Code Operating Pressure Application
HP-SE High Pressure Shower
LP-S Low Pressure Shower
This valve has been approved for use in the following
designations;
If a water supply is fed by gravity then the supply
pressure should be verified to ensure the conditions of
use are appropriate for the valve.
Note: Valves operating outside these conditions cannot
be guaranteed by the Scheme to operate as Type 2
valves.
The valves designation of use, LP if testes against BS EN
1287, HP if tested against BS EN 1111 and HP & LP if
tested against both standards.
If a water supply is fed by gravity then the supply
pressure should be verified to ensure the conditions of
use are appropriate for the valve
.
Minimum supply pressure for LP Tub application is 0.2
bar.
Recommended Outlet temperatures
We recommend the following set maximum mixed water
outlet temperatures for use in all premises:
41ºC for showers;
The maximum mixed water temperature can be 2ºC
above the recommended maximum set outlet
temperatures.
Note: 46ºC is the maximum mixed water temperature
from the bath tap. The maximum temperature takes
account of the allowable temperature tolerances
inherent in thermostatic mixing valves and
temperature losses in metal baths.
Warning: It is not a safe bathing temperature
for adults or children.
The British Burns Association recommends 37 to
37.5ºC as a comfortable bathing temperature for
children. In premises covered by the Care Standards
Act 2000, the maximum mixed water outlet
temperature is 43ºC.
The thermostatic mixing valve (TMV) will be installed in
such a position that maintenance of the TMV and its
valves and the commissioning and testing of the TMV
can be undertaken.
Note: The frequency of In-Service tests –1 year max.
The fitting of isolation valves is required as close as is
practical to the water supply inlets of the thermostatic
mixing valve.
The fitting of strainers is recommended as close as is
practicable to the water supply inlets of the
thermostatic mixing valve.

Flow Regulators
Selecting Flow Regulators
Supply System Flow Regulator
Cold Supply Hot Supply Cold Hot Comments
0.1 to 1.0bar 0.1 to 1.0bar No No Maximum pressure
loss ratio 5:1
1to 5 bar
or pumped
1to 5 bar or
pumped
Green
(7 litre)
Yellow
(5 litre)
♦Use arrangement
for pumped system
Mains
1.0 –10 bar
Gravity
0.1 to 0.5 bar
Green
(7 litre)No
Gravity
Above 0.5 bar
Green
(7 litre)
Yellow
(5 litre)
Unvented Mains
/ Mains
Pressurised
Instantaneous
Water Gas
Heater
Green
(7 litre)
* Yellow
(5 litre)
**Instantaneous
Water Electric
Heater
Yellow
(5 litre) No
Any vented
(open outlet)
Heater Gas /
Electric, e.g.
Electric Shower
Do not use with a mixer valve –This would be
extremely dangerous
13
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

♦Regulators can be fitted if water economy is required.
*Yellow (5 litre) regulator may not be necessary on some gas water heaters.
** Important: It is a requirement of Instantaneous Electric Heaters that a stable flow
of water passes through the heater. This requirement can be satisfied by using a ‘flow
stabiliser’ fitted prior to the heater and should be adjusted to give a temperature of
between 45 –50°C from the heater.
Flow regulators are factory fitted.
Study the table on the previous page and
decide which flow regulators etc. are
required for your particular situation.
Unscrew both inlet elbows from the valve
body and remove flow regulator/s as required
using long nose pliers and replace with insert.
Screw inlet elbows back onto the valve body.
Flow Regulators
Inlet
elbow
Compression
nut
Filter
Insert
Flow Regulator
Non return
valve
14 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation –Shower Valve
Before Installation
Flush through the pipework to ensure
removal of debris. Turn off the mains
water supply and close any isolating
valves.
1. Inlet positions
The shower valve has three inlet positions
–top, bottom and rear. Rotate the inlet
elbows as required.
With the elbows screwed fully against the
valve body it can be unscrewed a
maximum of 1.5 turns to allow for lateral
tolerance.
Sufficient 15mm diameter supply pipes
should protrude through the finished wall
surface to fit fully into the shower valve
elbows.

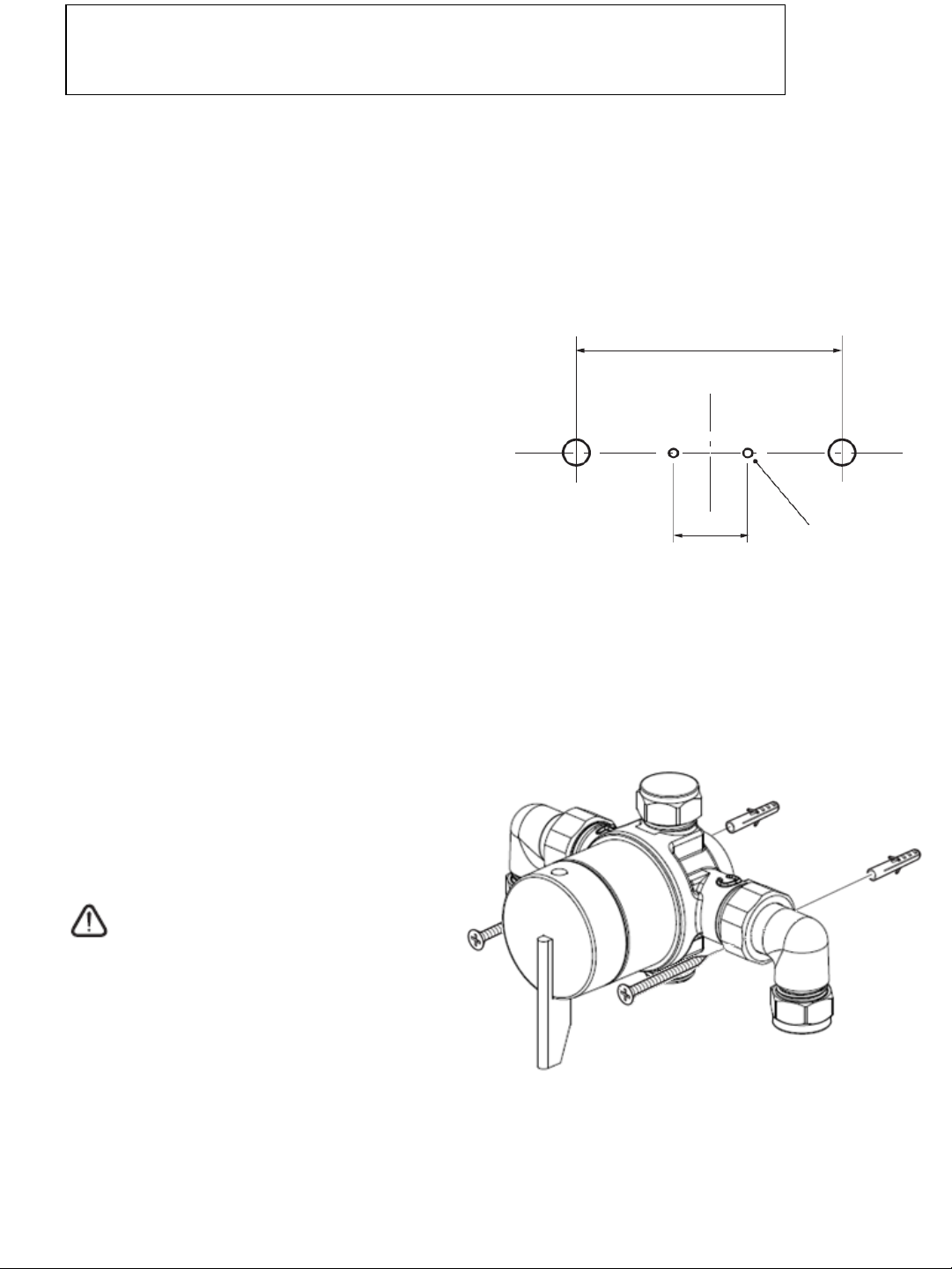

2. Fit shower valve
Position the shower valve into the wall
cavity at the required position and mark the
fixing holes.
Warning: Please check for any
hidden pipes and cables before drilling
holes into the wall.
Drill suitable holes and insert the wall
plugs. Position the shower valve back into
the wall cavity and secure in position
using the screws provided.
152mm
Hot Cold
60mm fixing holes
Important: Water supplies to the mixer
must be with hot on the left and cold on
the right when viewed from the front.
Hot supply
Cold supply
15
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation –Shower Valve cont.
3. Fit concealing plate
Remove the control handle by prising
out the cap and loosening the grub
screw. Pull the
Note: The concealing plate can be
used as a template by drawing around
the plate and measuring in by 15mm to
give sufficient clearance.
Run a bead of silicon sealant around
the groove on the rear outer seal. Use
a smear of washing up liquid around
the inner seal (this will help when
fitting over the valve shroud
Slide the concealing plate over the
valve shroud and press firmly against
the tiling around the edges.
Refit the control handle, tighten the
grub screw and push-fit the cap into the
hole in the handle.
Note: The shower valve inlet positions
are shown at the bottom as an example.
See pages 17 for installation of wall
outlet.
For riser rail and shower hose
installation see pages 18-20.
16 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation –Shower Valve Outlet
4. Fit wall outlet
There are two methods of fixing the wall
outlet depending on the wall type:
A: With rear access once wall finished
Remove the backnut from the wall outlet.
Insert the wall outlet through a 21-24mm
hole in the wall and secure with the backnut.
Plumb in the wall outlet assembly to the
shower valve outlet.
B: Without rear access once wall finished
Fit a ‘wall plate elbow’ (not supplied) within
the wall cavity and plumb in from the shower
valve.
Once the wall has been finished, remove the
backnut from the wall outlet.
Note: The backnut is not required.
Screw the wall outlet into the ‘wall plate
elbow’ using a suitable thread sealant.
Outlet
Backnut
17
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

1. Mark the position
Position the assembled riser rail onto the wall,
bearing in mind the highest maximum position
required for the handset. With the riser rail
vertical, mark the position of the wall brackets
onto the wall surface.
2. Attach wall bracket fixings
Remove the wall brackets from the rail and
then remove the fixings from the wall brackets.
Position the fixing bracket in the marked
positions against the wall, ensure they are
vertically in line with each other and mark the
centres of the fixing holes onto the wall.
Warning: Please check for any hidden
pipes and cables before drilling holes in the
wall.
Drill suitable holes and insert the wall plugs.
Securely attach the fixing brackets to the wall
sing the screws.
Tips: A piece of insulation or masking tape
positioned where holes are to be drilled and
before marking out the exact position for the
fixing holes will help stop the drill bit from
wandering, particularly on a tiled surface.
When working near a basin, bath or shower
insert plug or cover waste to prevent losing
small parts. Take care not to drop tools /
equipment into basin, bath or shower during
installation.
Installation –Riser Rail
Note: If replacing an existing riser
rail, check to see if the existing
holes can be reused or covered by
the new wall brackets. Try to avoid
drilling close to the edge of tiles,
drill in the middle of the tiles or in
the tile joints.
Slider
handle
Wall bracket
Wall bracket
Wall bracket
fixing
18 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation –Riser Rail cont.
Rail clamp
Bottom wall
Bracket
3. Insert rail clamps
Insert the rail clamps into both wall
brackets.
4. Insert riser rail
Push the riser rail up through the bottom
wall bracket.
Push the slider down onto the riser,
ensuring it is the correct way up -as shown
opposite.
Then push the riser rail up through the top
wall bracket.
5. Tighten rail clamps
Centre the riser rail within the wall brackets
and tighten both clamps onto the rail.
6. Fit the riser to the wall
Slide the riser brackets over the bracket
fixings attached to the wall.
Tighten the grub screw on the underside of
both top and bottom wall brackets using a
2.5mm hexagonal key.
19
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.

Installation –Riser Rail cont.
Attaching the Shower hose
7. Connect shower hose to shower valve /
Wall outlet
Screw the shower hose (ribbed nut end)
onto the shower valve / wall outlet ensuring
that the rubber washer is fitted.
8. Connect shower hose to showerhead
Screw the shower hose (conical end) onto
the showerhead ensuring that the rubber
washer is fitted.
Place the showerhead into the slider.
20 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
