1 OPERATING INSTRUCTIONS
These operating instructions contain important information.
▶Carefully read these instructions and follow the safety
information.
▶Keep the instructions and make them available to every user.
▶People who work on the device must read and understand these
instructions.
1.1 Symbols
DANGER!
Immediate danger! Fatal or serious injuries.
WARNING!
Potential danger! Fatal or serious injuries.
CAUTION!
Danger! Moderate or minor injuries.
NOTE!
Warns of material damage.
▶Indicates instructions to avoid danger.
→Indicates a procedure you need to carry out.
Contents
1 Operating Instructions ................................................................. 2
2 Intended use ............................................................................... 3
3 Basic safety instructions .............................................................. 3
4 General notes .............................................................................. 5
5 Structure and description ............................................................ 5
6 Technical data ............................................................................. 6
7 Installation ................................................................................. 10
8 Maintenance, troubleshooting ................................................... 11
9 Disassembly .............................................................................. 12
10 Transportation, storage, disposal............................................... 12
English

3
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not take into account any unforeseen
circumstances or events that occur during installation, operation and
maintenance. The operator is responsible for observing the loca-
tion-specic safety regulations, also in terms of personnel.
Risk of injury from electric shock.
▶Switch o the power supply before working on the device or
system. Secure it against reactivation.
▶Observe any applicable accident prevention and safety regula-
tions for electrical devices.
▶▶Do▶not▶switch▶the▶power▶on▶again▶until▶the▶device▶has▶been▶cor-
rectly▶mounted,▶connected▶and▶the▶cover▶has▶been▶attached▶with▶
the▶screw.
▶▶Do▶not▶touch▶printed▶circuit▶boards▶and▶components.▶Even▶in▶a▶
de-energized▶state,▶components▶may▶still▶have▶a▶dangerous▶charge▶
on▶them.
▶▶Observe▶any▶applicable▶accident▶prevention▶regulations▶and▶safety▶
regulations▶for▶electrical▶devices.
Risk of injury due to unintentional operation.
▶▶Use▶suitable▶measures▶to▶prevent▶unintentional▶actuation.
2 INTENDED USE
The cable plug type 2510/2511 is exclusively used to control DC
coils with power output of ≤ 5 W without external power supply
or ≤ 15 W with external power supply.
▶▶Only▶use▶the▶AS-Interface▶device▶socket▶in▶conjunction▶with▶the▶coil▶
versions▶provided▶for▶this▶purpose.
▶Prerequisites for safe and error-free operation include correct
transportation, correct storage, installation, start-up, operation
and maintenance.
▶Observe the permissible data, operating conditions and con-
ditions of use for the respective devices or products. These
specications can be found in the contract documents, operat-
ing instructions and on the type label.
▶Use the device only as intended. Improper use of the device
may be dangerous to people, nearby equipment and the
environment.
2.1 Denition of terms
Term Denition for these instructions
Device Cable Plug Type 2510 and Type 2511
English

4
General hazardous situations.
Observe the following to prevent injury:
▶Observe the general rules of technical equipment.
▶▶Do▶not▶use▶the▶device▶in▶an▶area▶where▶explosions▶are▶possible.
▶Only use the device when it is in a perfect state and only use it
in accordance with the operating instructions.
▶Secure the device or system to prevent unintentional activation.
▶After an interruption in the power supply, ensure that the pro-
cess is restarted in a controlled manner.
▶Do not modify the device.
▶Do not mechanically load the device.
▶Only trained technicians may perform installation and mainte-
nance work.
▶Only use suitable tools to perform installation and maintenance
work.
▶Install the device according to the regulations applicable in the
respective country.
NOTE!
Electrostatically sensitive components / assemblies
The device contains electronic components that are susceptible
to the eects of electrostatic discharging (ESD). Components are
at risk if they come into contact with electrostatically charged
persons or objects. In the worst-case scenario they will be
destroyed immediately or will fail after start-up.
▶Observe the requirements of EN 61340-5-1for minimising or
avoiding the possibility of damage caused by sudden electro-
static discharge.
▶Do not touch electronic components when the supply voltage is
connected.
English

5
4 GENERAL NOTES
4.1 Contact address
Germany
Bürkert Fluid Control Systems
Sales Centre
Christian-Bürkert-Str.13-17
D-74653 Ingelngen
Tel: +49(0)7940-10-91 111
Fax: +49(0)7940-10-91 448
E-mail: [email protected]
International
The contact addresses can be found on the back pages of the
printed operating instructions. Also on the Internet at:
http://www.burkert.com
4.2 Warranty
A precondition for the warranty is that the device is used as intended
and that the specied usage conditions are taken into account.
4.3 Information on the Internet
Operating instructions and data sheets for Bürkert products can be
found on the Internet at:
https://country.burkert.com.
5 STRUCTURE AND DESCRIPTION
5.1 Design
1
3
2
4
5

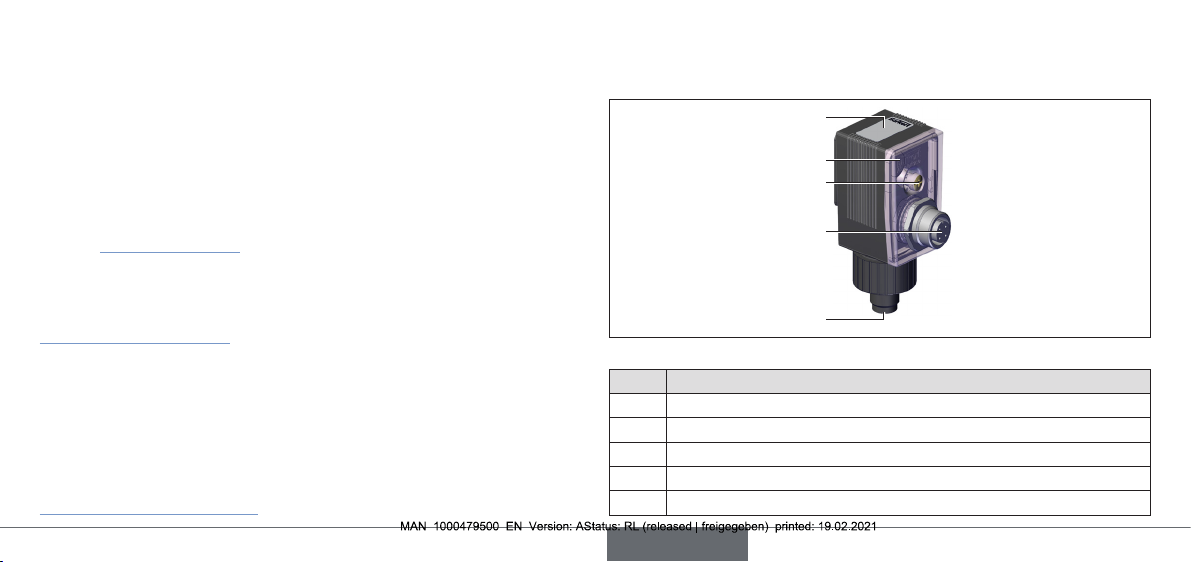

Figure 1: Cable Plug Type 2511
Item Designation
1Type label
2Cover
3Fastening screw
4Socket
5Circular plug
English

6
5.2 Description
The device consists of a polyamide housing with integrated
slave electronics and a connector diagram according to DIN EN
175301-803 (Form C and A).
The device is used exclusively for controlling direct current coils.
The integrated rectier allows operation with DC or AC voltage.
5.3 Conformity
The device conforms to EU directives as per the EU Declaration of
Conformity.
5.4 Standards
The applied standards used to verify compliance with the Directives
can be found in the EU type examination certicate and/or the EU
Declaration of Conformity.
6 TECHNICAL DATA
6.1 Operating conditions
Cable Plug Type 2510 according to DIN EN 43650 - 803, Form C.
Cable Plug Type 2511 according to DIN EN 43650 - 803, Form A.
Material PA
Dimensions 32x32x65mm
Attachment Cheese head screw
Type 2510: M2.5x35
Type 2511: M3x35
cable side M12 socket; 4-pin is required
on the device side (to
the valve)
Socket for plug tabs according to DIN
EN175301-803
Feedback inputs
(optional)
M12 plug; 4-pin is required
Watchdog function: Integrated
Ambient temperature –0...+50°C
Degree of protection IP65
English

7
6.2 Electrical data
Prole S-B.F.F Prole l S-B.A.E
Supply voltage 29.5 - 31.5 V according to ASI speci-
cation (PELV)
Max. power consumption From AS-Interface
With electronics 10mA 10mA
Bus-powered (elec-
tronics, valve, sensors)
300mA 120mA
Externally powered
(electronics, sensors)
80mA -
Output voltage 24V ±10%
6.3 Electrical connection
Socket M 12 (sensor), 4-pin
cable plug with feedback input
Round plug M 12
(AS-Interface), 4-pin
Figure 2: Electrical connection
6.4 Connection of socket and plug
M12 socket, 4-pin PIN Assignment
3 4
12
1+ 24 V sensor supply
2Sensor input 2
3GND
4Sensor input 1
Two sensors with a Y-distributor can be connected via the M
12 socket.
Two sensors (two or three wires) can be connected via a DUO
connector if there is external power supply.
M12plug, 4-pin PIN Assignment
3
1
24
1AS-Interface Bus+
20V 1)
3AS-Interface Bus-
424V 1)
1) Only for externally supplied cable plugs
English

8
The nominal power of the valve does not correspond to the
rated capacity. This can be much higher.
Output
Prole S-B.F.F Prole l S-B.A.E
Max. valve output
current
Short circuit-proof
Bus powered 205 mA, without inputs
125 mA, with 2 inputs
100 mA
Externally fed 700 mA -
Outputs max.
switching capacity
Short circuit-proof
Bus powered 5 W without inputs
3 W with 2 inputs
2 W
Externally fed 15W -
If there is no data trac, the output is reset after 50 - 100ms.
Inputs
Prole S-B.F.F Prole l S-B.A.E
Input circuitry 3-wire voltage
sensors PNP
2-wire voltage
sensors
-
Supply voltage
sensor
24V±20% -
Max. sensor current 50 mA for 2 sensors -
Level HIGH signal
(logical=1)
≥ 10V -
Level LOW signal
(logical=0)
≤ 1.5 mA -
Max. input current ≤ 6.5 mA -
English

9
Programming data
I/O conguration B hex (1 output, 2 inputs)
ID code F hex (for assignment see
below)
Default address 0
Prole B.F
Assignment of the data bits
D3 D2 D1 D0
IN 12) IN 22) - OUT
2) Cable plugs with feedback inputs
6.5 LED display for device status
Fastening screw M12 connector, AS-Interface connection
1 2
3 4
Figure 3: LED display for device status
Item LED Colour On O Flashing
1Input 1 yellow Valve
switched
Valve not
switched
-
2Input 2
3Status display green
4BUS OK Power OFF Slave address 0
Table 1: Status displays
English

10
7 INSTALLATION
WARNING!
Risk of injury due to improper installation
▶Only trained technicians may perform installation work.
▶Only carry out installations with suitable tools.
▶Secure the system against unintentional activation.
▶Following installation, ensure a controlled restart.
WARNING!
Risk of short circuit if the screw connection is not tight.
▶▶When▶screwing▶in▶the▶cable▶plug,▶make▶sure▶that▶the▶seal▶is▶pro-
perly▶seated.
▶▶Carefully▶fasten▶the▶cable▶plug.
Screw
1
Seal
2
Min. 0.5Nm
Max. 0.8Nm
3 4
Figure 4: Installing the cable plug
→Fit the seal and insert the screw through the opening. Make sure
seals are properly seated.
→Place coil on seal and screw together. Observe the tightening
torque specication.
English

11
8 MAINTENANCE, TROUBLESHOOTING
WARNING!
Risk of injury due to improper maintenance work.
▶Only trained technicians may perform maintenance work.
▶Secure the system against unintentional activation.
▶Ensure a controlled restart after maintenance is completed.
8.1 Maintenance work
When operated according to the instructions given in this manual,
the appliance inlet functions without maintenance.
8.2 Faults
In case of malfunctions check the following:
→Power supply
→Check that the seal is properly seated (see “Table 2: Seal seat”)
→Connections (see “Table 3: Ports”)
Seal
Table 2: Seal seat
Ports
Table 3: Ports
English

12
9 DISASSEMBLY
DANGER!
Risk of injury from electric shock.
▶Switch o the power supply before working on the device or
system. Secure it against reactivation.
▶Observe any applicable accident prevention and safety regula-
tions for electrical devices.
WARNING!
Risk of injury due to improper disassembly.
▶Only trained technicians may carry out disassembly work.
10 TRANSPORTATION, STORAGE,
DISPOSAL
WARNING!
Risk of injury due to improper maintenance work.
▶Only trained technicians may perform maintenance work.
▶Secure the system against unintentional activation.
▶Ensure a controlled restart after maintenance is completed.
NOTE!
Damage in transit due to inadequately protected devices.
▶Protect the device against moisture and dirt in shock-resistant
packaging during transportation.
▶Observe permitted storage temperature.
Incorrect storage may damage the device.
▶Store the device in a dry and dust-free location.
Permitted storage temperature: –20…+70°C.
Damage to the environment caused by device parts that are
contaminated with media.
▶Dispose of the device and packaging in an environmental-
ly-friendly manner.
▶Observe applicable disposal and environmental regulations.
English

www.burkert.com
International address
www.burkert.com
Manuals▶and▶data▶sheets▶on▶the▶Internet:▶www.burkert.com▶
Bedienungsanleitungen▶und▶Datenblätter▶im▶Internet:▶www.buerkert.de▶
Manuels▶d'utilisation▶et▶fiches▶techniques▶sur▶Internet▶:▶www.burkert.fr
© Bürkert Werke GmbH & Co. KG, 2021
Operating Instructions 2102/16_EU-en_00801799 / Original DE
Bürkert▶Fluid▶Control▶Systems▶
Sales▶Center▶
Christian-Bürkert-Str.▶13–17▶
D-74653▶Ingelfingen,▶Germany▶
Tel:▶+49▶(0)▶7940▶-▶10▶91▶111▶
Fax:▶+49▶(0)▶7940▶-▶10▶91▶448▶
E-mail:▶[email protected]
