Burkert Robolux 2036 User manual

Quickstart
English Deutsch Français
Type 2036
Robolux multiple-way diaphragm valve
Robolux Mehrwege-Membranventil
Vanne à membrane multivoies Robolux

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© 2013 - 2018 Bürkert Werke GmbH & Co. KG
Operating Instructions 1807/02_EU-ML_00810360 / Original DE

3
Contents
Type 2036
1 QUICKSTART ........................................................................ 3
2 AUTHORIZED USE ............................................................... 4
3 BASIC SAFETY INSTRUCTIONS.......................................... 5
4 GENERAL INFORMATION .................................................... 6
5 TECHNICAL DATA................................................................. 7
6 ASSEMBLY.......................................................................... 10
7 ELECTRICAL CONTROL UNIT ........................................... 14
8 DISASSEMBLY.................................................................... 14
9 MAINTENANCE, CLEANING .............................................. 15
10 SPARE PARTS..................................................................... 15
11 MALFUNCTIONS ................................................................ 16
12 TRANSPORT, STORAGE, PACKAGING ............................. 16
1 QUICKSTART
The Quickstart describe in a short form the importantly information
and instructions for use of the device. A detailed description of the
device can be found in the operating instructions for Type 2036.
Keep these instructions in a location which is easily accessible
to every user, and make these instructions available to every new
owner of the device.
Important safety information.
Read Quickstart carefully and thoroughly. Study in particular
the chapters entitled “Basic safety instructions” and “Intended
use”.
▶Quickstart must be read and understood.
The operating instructions can be found on the Internet at:
www.burkert.com
1.1 Denition of term / abbreviation
In these instructions, the term 'device' always refers to the
Robolux Multiway Diaphragm Valve Type 2036.
In these instructions, the term 'Diaphragm Valve' always refers to
the Robolux Multiway Diaphragm Valve Type 2036.
Ex area: stands for potentially explosive area.
Ex approval: stands for approval in the potentially
explosive area.
english

4
Authorized use
Type 2036
2 AUTHORIZED USE
Improper use of the Robolux multiway diaphragm valve
Type 2036 may represent a hazard to persons, neighboring
equipment and the environment.
The device is designed for controlling the ow-rate of liquid
media.
▶In the potentially explosion-risk area the device may be used
only according to the specication on the separate Ex type
label. For use observe the additional information enclosed with
the device together.
▶The approved data, the operating conditions and conditions of
use specied in the contract documents, operating instructions
and on the type label are to be observed during use.
▶Protect device from damaging environmental inuences (e.g.
radiation, humidity, steam, etc.). If anything is unclear, consult
the relevant sales oce.
▶Use the device only in conjunction with third-party devices
and components recommended and authorized by Bürkert.
▶Correct transportation, storage, and installation, as well as
careful use and maintenance are essential for reliable and
faultless operation.
▶Use the device only as intended.
1.2 Symbols
DANGER!
Warns of an immediate danger.
▶Failure to observe the warning will result in a fatal or serious injury.
WARNING!
Warns of a potentially dangerous situation.
▶Failure to observe the warning may result in serious injuries
or death.
CAUTION!
Warns of a possible danger.
▶Failure to observe this warning may result in a moderate or
minor injury.
NOTE!
Warns of damage to property.
Indicates important tips and recommendations.
Refers to information in these operating instructions or in
other documentation.
▶Indicates an instruction to prevent risks.
→Designates a procedure which you must carry out.
english

5
Basic safety instructions
Type 2036
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not make allowance for any
•Contingencies and events which may arise during the installation,
operation, and maintenance of the devices.
•Local safety regulations – the operator is responsible for observing
these regulations, also in relation to the installation personnel.
DANGER!
Risk of injury from high pressure in the equipment/device.
▶Before working on equipment or device, switch o the pres-
sure and deaerate/ drain lines.
Risk of electric shock (when electrical component installed).
▶Before working on equipment or device, switch o the power
supply and secure to prevent reactivation.
▶Observe applicable accident prevention and safety regula-
tions for electrical equipment.
WARNING!
Risk of injury caused by the spring jumping out when the
actuator is opened.
▶The actuator must not be opened.
WARNING!
Risk of burns.
The surface of the device may become hot during long-term
operation.
▶Do not touch the device with bare hands.
Risk of being crushed by moving spindle ends.
▶Install transparent cap.
Danger due to loud noises.
Depending on the operating conditions, the device may generate
loud noises. More detailed information on the likelihood of loud
noises is available from the relevant sales oce.
▶Wear hearing protection when in the vicinity of the device.
▶Observe the noise pressure level in the technical data.
CAUTION!
Leaking medium when the diaphragm is worn.
▶Regularly check relief bore for leaking medium.
▶If medium is leaking out of the relief bore, change the
diaphragm.
▶If the media is hazardous, protect the area surrounding the
discharge point against dangers.
english

6
General information
Type 2036
Generally hazardous situations.
To prevent injuries:
▶Ensure that the system cannot be activated unintentionally.
▶Installation and repair work may be carried out by authorized
technicians only and with the appropriate tools.
▶Do not transport, install or remove heavy devices without the
aid of a second person and using suitable auxiliary equipment.
▶After an interruption in the electrical or pneumatic supply,
ensure that the process is restarted in a dened or controlled
manner.
▶The device must only be operated when in a perfect condition
and in consideration of the operating instructions.
▶Observe the safety regulations specic to the plant for applica-
tion planning and operation of the device.
▶The plant operator is responsible for the safe operation and
handling of the plant.
To prevent material damage:
▶Supply only media to the media connections that are specied
in chapter "5 Technical Data" as ow media.
▶Do not place the valve under mechanical stress (e.g. by placing
objects on it or standing on it).
▶Do not make any external alterations to the valves. Do not apply
paint to body parts or screws.
4 GENERAL INFORMATION
4.1 Contact address
Germany
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelngen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
Email: [email protected]
International
Contact addresses can be found on the nal pages of the printed
operating instructions.
And also on the Internet at: www.burkert.com
4.2 Warranty
The warranty is only valid if the diaphragm valve is used as intended
in accordance with the specied application conditions.
4.3 Information on the Internet
The operating instructions and data sheets for Types 2036 can be
found on the Internet at: www.burkert.com
english

7
Technical Data
Type 2036
5 TECHNICAL DATA
5.1 Conformity
The diaphragm valve of Type 2036 conforms with the EU Directives
according to the EU Declaration of Conformity.
5.2 Standards
The applied standards, which verify conformity with the EU Direc-
tives, can be found on the EU-Type Examination Certicate and /
or the EU Declaration of Conformity.
5.3 Approvals
Ex version, with separate Ex type label:
The Ex version may be used in the potentially explosive area.
In doing so, observe the specications on the separate Ex type
label and the additional information enclosed with the device
together with safety instructions for the Ex area.
5.4 Operating conditions
Ambient temperature 0 −+60 °C1)
higher temperatures on request
1) If a control unit or a pilot valve is used, the max. ambient temperature
is +55 °C.

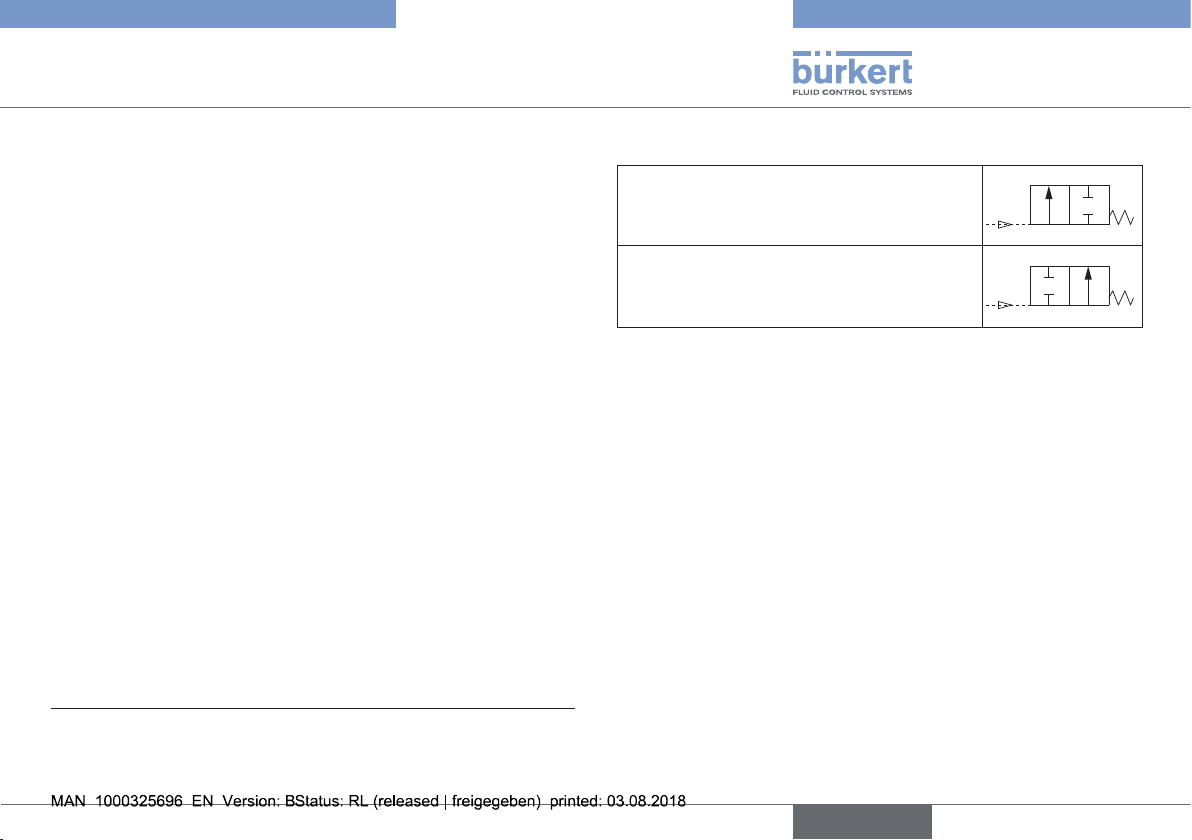

5.5 Control functions (CF)
Control function A, NC (CFA)
Closed by spring force in rest position.
1(P)
2(A)
Control function B, NO (CFB)
Opened by spring force in rest position
1(P)
2(B)
5.6 Mechanical data
Dimensions see data sheet
Materials and connections see data sheet or operating
instructions
Noise pressure level < 70 dB (A)
english

8
Technical Data
Type 2036
5.7 Fluidic data
Media
ow media ultra-pure, sterile, aggressive,
Media pressure see chapter "5.7.1 Pressure ranges"
Media temperature
stainless steel/EPDM +5 to +130 °C
(max. +140 °C for 60 min.)
stainless steel/
Advanced PTFE +5 to +90 °C
(no steam)
stainless steel/FKM +5 to +130 °C
(no steam)
stainless steel/silicone +5 to +130 °C
(no steam)
Pilot medium Neutral gases, dry air (min. 10 K
below min. operating temperature),
preferably unoiled
Pilot pressure2) 6 – 10 bar (RV50, RV70)
6 – 7 bar (RV110)
from 4.2 bar (with reduced medium
pressure) on request
2) Pressure values [bar]: Overpressure with respect to atmospheric
pressure
5.7.1 Pressure ranges
Pilot pressure and operation pressure for CFA, NC
Values for stainless steel valve body
Size Actuator
version3)
Pilot
pressure
[bar]4)
Test
criterion
Max. operation
pressure [bar]4)
EPDM,
FKM,
Silicone
Advanced
PTFE/
EPDM
RV50
D11
D1x; Dx1 6 – 10 Static 7.5 7.5
Dynamic 6.5 5.5
D55 4.2 – 10 Static 5.0 3.5
Dynamic 4.0 2.5
RV70
D11
D1x; Dx1 6 – 10 Static 8.0 8.0
Dynamic 6.0 6.0
D55 4.2 – 10 Static 5.5 6.0
Dynamic 3.5 4.0
RV110
D11
D1x; Dx1 6 – 7 Static 7.0 7.5
Dynamic 5.0 5.5
D55 4.2 – 7 Static 5.0 5.0
Dynamic 3.0 3.0
Tab. 1: Pilot pressure and operation pressure
3) See type label.
4) Pressure values [bar]: Overpressure with respect to atmospheric
pressure
english

9
Technical Data
Type 2036
Remarks
Static leak-tightness:
Valve is closed (diaphragm is in contact with the body seat). One
side of the body seat is under pressure. At the given pressure no
leakage takes place via the body seat.
Dynamic leak-tightness:
Valve is open and the medium is owing through it. The downstream
ow is only slightly throttled by components placed downstream.
Both sides of the body seat are under pressure. The valve is closed
(CFA, NC via spring force; CFB, NO via pilot pressure). At the
given pressure the valve closes onto the body seat and the seal
is complete.
Static leak-tightness: Dynamic leak-tightness:
Fig. 1: Static and dynamic leak-tightness
Pilot pressure and operation pressure for CFB, NO
The following graphs illustrate the required minimum pilot
pressure depending on the medium pressure for control function
B.
Permitted pilot pressure range: 2 – 7 bar.
The pilot pressure should be selected to be as low as
possible to reduce wear on the diaphragm.
Pilot pressure [bar]
Medium pressure [bar]
01234567
0
1
2
3
4
5
6
7
8
RV50/RV110 static RV50/RV110
dynamic
RV70 dynamic
RV70 static
Range for valves with control unit
Fig. 2: Pilot pressure depending on the medium pressure
english

10
Assembly
Type 2036
5.8 Valve marking
Type label
Marking and warning
notices in Ex area
Actuator orientation
marking
Port connection
markings
Valve body labeling
Bürkert company logo, Orice and connection dimen-
sions Material, charge, manufacturing order and serial No.
Fig. 3: Valve marking
5.8.1 Type label
Order
number
Type - Size - Design
- Diaphragm material
Actuator 1 - Actuator
2 - Pilot pressure
Max. medium pressure
- medium temperature
Connection dimensions
Company logo
Date of manufacture
Fig. 4: Type label
6 ASSEMBLY
6.1 Safety instructions
DANGER!
Risk of injury from high pressure in the equipment/device.
▶Before working on equipment or device, switch o the pres-
sure and deaerate/drain lines.
WARNING!
Risk of injury from improper assembly.
▶Installation must only be carried out by authorized techni-
cians and with the appropriate tools.
Risk of injury from unintentional activation of the system and
uncontrolled restart.
▶Secure system from unintentional activation.
▶Following assembly, ensure a controlled restart.
CAUTION!
Risk of injury due to a heavy device.
A heavy device can fall down during transport or during instal-
lation and cause injuries.
▶Transport, install and dismantle a heavy device with the help
of another person.
▶Use appropriate tools.
english

11
Assembly
Type 2036
6.2 Before installation
•Before connecting the valve, ensure the pipelines are ush.
•Pay attention to the ow direction.
6.2.1 Installation position
•The piston-controlled diaphragm valve can be installed in any
position, preferably with connection B downwards.
•Installation for self-drainage of the valve body:
see chapter "Valve self-draining" in operating instruction.
6.2.2 Preparatory work
→Clean pipelines (sealing material, swarf, etc.).
→Support and align pipelines.
Devices with welded connection
NOTE!
Damage to diaphragm or actuator.
▶Before welding in the valve body disassemble the actuator
and diaphragm.
Remove the actuator from the valve body:
→Move the actuator to the upper actuator position (CFA, NC:
by applying pilot pressure; CFB, NO: by removing the pilot
pressure).
→Mark the position of the actuator in relation to the valve body.
→Unscrew the four body screws that connect the valve body with
the actuator. Remove the actuator and the diaphragm.
Relief bore
Body screws
Diaphragm
Valve body
Guide pin
Actuator
Fig. 5: Assembly
6.3 Installation
WARNING!
Risk of injury from improper assembly.
Non-compliance with the tightening torques is dangerous
due to possible discharge of medium and possible release of
pressure.
▶Observe the tightening torque (see "Tab. 2").
NOTE!
When installing the device in the system, note:
The device and the relief bore must be accessible.
english

12
Assembly
Type 2036
6.3.1 Installing the valve body
Welded connection
→Weld valve body in pipeline system.
Other valve body designs
→Connect valve body to pipeline.
6.3.2 Installing the actuator (welded connection)
→Move the actuator to the upper actuator position (CFA, NC:
by applying pilot pressure; CFB, NC: by removing the pilot
pressure).
→Put the actuator / diaphragm on the valve body with correct
alignment (so that the markings made previously align). In the
case of RV110 the four spacer sleeves must be inserted in the
designated body holes (see "Fig. 6: Spacer sleeve").
→Tighten the diagonally opposed body screws / nuts until there
is visible, uniform mechanical contact between the valve
body, diaphragm and actuator.
→Switch the diaphragm valve twice.
Spacer sleeve
Fig. 6: Spacer sleeve
WARNING!
Risk of injury from discharge of medium and release of
pressure.
▶Tighten the body screws suciently (see "Tab. 2").
→Move the actuator to the lower actuator position (CFA, NC:
by removing pilot pressure; CFB, NO: by applying the pilot
pressure).
→Tighten body screws in diagonal pairs in three stages
(approx. 1/3, approx. 2/3, 3/3 of the tightening torque),
according to "Tab. 2".
The diaphragm should be positioned and pressed evenly all
around the actuator and valve body.
Size Tightening torque [Nm]
RV50 6
RV70 17
RV110 30
Tab. 2: Tightening torque
english

13
Assembly
Type 2036
6.4 Pneumatic connection
WARNING!
Risk of injury from unsuitable connection hoses.
Hoses which cannot withstand the pressure and temperature
range may result in hazardous situations.
▶Use only hoses which are authorized for the indicated pres-
sure and temperature range.
▶Observe the data sheet specifications from the hose
manufacturers.
6.4.1 Connection of the pilot medium
To comply with the degree of protection IP65 / IP67 on
the pilot air port which is not required (for CFA, NC and
CFB, NO), install an exhaust air line in the dry area.
For the assignment of pilot air ports refer to the installation and
dimensional drawing included with delivery of the valve.
The use of pneumatic hose with a minimum size of 6/4 is recommended.
For longer hose lengths the hose cross-sections should be adapted
accordingly.
In aggressive surroundings and in situations where
moisture could enter the actuator via the exhaust air port
or muer the exhaust air should be collected and ducted
to a non-critical location.
Control function A:
→Connect the control medium to the pilot air port 1and/or 3
(see "Fig. 7").
Control function B:
→Connect the control medium to the pilot air port 2and/or 4
(see "Fig. 7").
Silencer
→Connect the silencer into the free air discharge connection
(see "Fig. 7").
Pilot air
port
2 (P2)
Pilot air
port
4 (P4)
Pilot air port
3 (P3)
Pilot air
port
1 (P1)
Actuator 1
(left)
Actuator 2
(right)
Fig. 7: Pneumatic connection
english

14
Electrical control unit
Type 2036
Actuator
version
Actuator 1 Actuator 2
CF Connection CF Connection
D11, D55
CFA/CFA
(NC/NC)
CFA,
NC
Pilot air P1
P2: air discharge
CFA,
NC
Pilot air P3
P4: air discharge
D12
CFA/CFB
(NC/NO)
CFA,
NC
Pilot air P1
P2: air discharge
CFB,
NO
Pilot air P4
P3: air discharge
D21
CFB/CFA
(NO/NC)
CFB,
NO
Pilot air P2
P1: air discharge
CFA,
NC
Pilot air P3
P4: air discharge
D22
CFB/CFB
(NO/NO)
CFB,
NO
Pilot air P2
P1: air discharge
CFB,
NO
Pilot air P4
P3: air discharge
Tab. 3: Pneumatic connection for actuator versions
CFA, NC : Valve normally closed by spring action
CFB, NO : Valve normally open by spring action
Numbers for
indicating
actuator 1
Numbers for
indicating
actuator 2
Fig. 8: Cover lm
7 ELECTRICAL CONTROL UNIT
The electrical connection of the pilot valve / control unit
is described in the operating instructions for the pilot
valve / control unit.
8 DISASSEMBLY
DANGER!
Risk of injury from discharge of medium and release of
pressure.
It is dangerous to remove a device which is under pressure
due to the sudden release of pressure or discharge of medium.
▶Before removing a device, switch o the pressure and vent
the lines.
If the valve is to be reused after removal, the actuator must
be removed before disassembly where welded bodies are
involved. For this, refer to the assembly instructions.
→Loosen pneumatic connection.
→Remove device.
english

15
Maintenance, Cleaning
Type 2036
9 MAINTENANCE, CLEANING
9.1 Servicing intervals
Check the diaphragm valves regularly for proper operation in terms
of assembly, installation and operation.
9.2 Servicing work
Do not repair the device yourself, but replace it with an
equivalent device. Repairs may be performed by the
manufacturer only.
9.2.1 Actuator
The actuator of the diaphragm valve is maintenance-free pro-
vided it is used according to these operating instructions.
9.2.2 Wearing parts of the diaphragm valve
The diaphragm is subject to wear.
→If leakage occurs replace the diaphragm.
A bulging diaphragm may reduce the ow rate.
The replacement of the wearing parts is described in the
operating instruction in chapter "Repairs".
9.3 Cleaning
NOTE!
Avoid causing damage with cleaning agents.
▶Before cleaning, check that the cleaning agents are compat-
ible with the device materials.
10 SPARE PARTS
CAUTION!
Risk of injury and/or damage by the use of incorrect parts.
Incorrect accessories and unsuitable spare parts may cause
injuries and damage the device and the surrounding area.
▶Use original accessories and original spare parts from Bürk-
ert only.
The diaphragm is available as a spare part for the diaphragm valve
Type 2036.
If you have any queries, please contact your Bürkert
sales oce.
english

16
Malfunctions
Type 2036
11 MALFUNCTIONS
Malfunction Cause / remedial action
Actuator
does not
switch
Pilot air port interchanged5)
CFA: Connect the pilot air port 1and/or 3
CFB: Connect the pilot air port 2and/or 4
Pilot pressure too low
See pressure specications on the type label.
Medium pressure too high
See pressure specications on the type label.
Valve is not
sealed
Medium pressure too high
See pressure specications on the type label.
Pilot pressure too low
See pressure specications on the type label.
Actuator is rotated by 90° and installed opposite
the valve body.
→Guide pin, identication plate and body seats
must be aligned in parallel.
Flow rate
reduced
Diaphragm bulging
→Replace diaphragm.
Tab. 4: Malfunctions
5) see "Fig. 7: Pneumatic connection".
12 TRANSPORT, STORAGE,
PACKAGING
NOTE!
Transport damage.
Inadequately protected devices may be damaged during
transportation.
▶Protect the device against moisture and dirt in shock-resis-
tant packaging during transportation.
▶Prevent the temperature from exceeding or dropping below
the permitted storage temperature.
▶Protect the pneumatic connections from damage by placing
protective caps on them.
Incorrect storage may damage the device.
▶Store the device in a dry and dust-free location.
▶Storage temperature 0 – +60 °C.
If the device is stored with tightened body screws, the dia-
phragm may be permanently deformed.
▶If the device is stored for a prolonged period, slacken the
body screws.
Damage to the environment caused by device components
contaminated with media.
▶Ensure that the device and packaging are disposed of in an
environmentally sound manner.
▶Observe applicable disposal and environmental regulations.
english

www.burkert.com
