Burkert 2060 User manual

Quickstart
English Deutsch Français
Type 2060, 2061
2/2-way angle seat valve, 2/2-way globe valve
2/2-Wege-Schrägsitzventil, 2/2-Wege Geradsitzventil
Vanne à siège incliné 2/2 voies, Vanne à siège droit 2/2 voies

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© Bürkert Werke GmbH & Co. KG, 2016 - 2020
Operating Instructions 2009/02_EU-ML_00810476 / Original DE

3
Quickstart
Type2060, 2061
1 QUICKSTART ........................................................................ 1
2 SYMBOLS ............................................................................. 2
3 INTENDED USE .................................................................... 2
4 BASIC SAFETY INSTRUCTIONS.......................................... 3
5 GENERAL NOTES................................................................. 4
6 TECHNICAL DATA................................................................. 4
7 INSTALLATION ...................................................................... 8
8 START-UP............................................................................ 12
9 MAINTENANCE WORK....................................................... 13
10 DISASSEMBLY.................................................................... 14
1 QUICKSTART
The Quickstart contains a short summary of the most important
information and instructions for use of the device. Keep the Quick-
start in a location which is easily accessible to every user and make
them available to every new owner of the device.
Important safety information!
Failure to observe these instructions may result in hazardous
situations.
▶The Quickstart must be read and understood.
The detailed description can be found in the operating instructions
for Types2060 and2061.
The operating instructions can be found on the internet
at: country.burkert.com
1.1 Denition of terms
The term "device" used in these instructions always refers to the
Type2060 angle seat valve or the Type2061 globe valve.
In these instructions, the unit bar stands for relative pressure.
The absolute pressure is stated separately in bar(abs).
English

4
Symbols
Type2060, 2061
2 SYMBOLS
DANGER!
Warns of an immediate danger.
▶Failure to observe these instructions will result in death or
serious injuries.
WARNING!
Warns of a potentially hazardous situation.
▶Failure to observe these instructions may result in serious
injuries or death.
CAUTION!
Warns of a potential danger.
▶Failure to observe these instructions may result in moderate
or minor injuries.
NOTE!
Warns of damage!
Important tips and recommendations.
Refers to information in these operating instructions or in
other documentation.
▶Designates instructions to avoid a danger.
→Highlights a procedure which you must carry out.
3 INTENDED USE
Improper use of Types2060 and2061 may be hazardous to
persons, systems in the vicinity and the environment.
▶The device is designed to control the ow of liquid and gas-
eous media.
▶When using the device, observe the authorized data, operating
conditions and deployment conditions specied in the contract
documents and in the operating instructions.
▶Prerequisites for safe and trouble-free operation are correct
transportation, correct storage and proper installation, start-up,
operation and maintenance.
▶Use the device only in conjunction with third-party devices and
components recommended or approved by Bürkert.
▶Use the device only as intended.
English

5
Basic safety instructions
Type2060, 2061
4 BASIC SAFETY INSTRUCTIONS
These safety instructions do not take into account any
unforeseen circumstances and events which occur during instal-
lation, operation and maintenance.
The operator is responsible for observing the location-specic
safety regulations, also with reference to personnel.
Risk of injury from high pressure.
▶Before working on the system or device, switch o the pres-
sure and ventilate or empty the lines.
Risk of burns or re from hot device surfaces due to prolonged
operation.
▶Do not touch the device with your bare hands. Keep away from
highly ammable substances and media.
Risk of injury due to moving parts in the device.
▶Do not reach into openings.
Risk of injury due to bursting lines and device.
▶Because of the risk of pressure surge, valves with the ow
direction above the seat must not be used for uid media.
▶Observe the type of ow and type of medium for operating
the device.
Risk of injury of parts being ejected out when opening the
actuator.
▶Do not open the actuator.
General hazardous situations.
To prevent injuries, observe the following:
▶Secure the device against unintentional activation.
▶Only trained technicians carry out installation and maintenance
work.
▶Following an interruption in the power supply, ensure that the
process is restarted in a controlled manner.
▶Only operate the device when it is in perfect condition.
▶Observe general engineering standards and rules.
Please observe the following in order to protect against
damage to the device:
▶Feed only those media listed in chapter "Technical data" into
the medium ports.
▶Do not mechanically load the device.
▶Do not make any external modications to the valves. Do not
varnish housing parts.
English

6
General notes
Type2060, 2061
5 GENERAL NOTES
5.1 Contact addresses
Germany
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str.13–17
D-74653 Ingelngen
Tel. +49(0)7940-1091111
Fax +49(0)7940-1091448
Email: [email protected]
International
The contact addresses can be found on the back pages of the
printed operating instructions.
They are also available online at: country.burkert.com
5.2 Warranty
A precondition for the warranty is that the device is used as
intended in consideration of the specied operating conditions.
6 TECHNICAL DATA
6.1 Conformity
The Type2060 angle seat valve and Type2061 globe valve conform
to the EU Directives as per the EU Declaration of Conformity (if
applicable).
6.2 Standards
The applied standards (if applicable) as used to verify compliance
with the EU Directives can be found in the EU type examination
certicate and/or the EU Declaration of Conformity.
According to Pressure Equipment Directive observe the following
operating conditions:
DNport connection Maximum pressure for compressible
uids of Group1 (dangerous gases and
vapours according to Art. 3, No.1.3,
lettera, rst dash)
DN65 12bar
6.3 Type label
WARNING!
Risk of injury from high pressure.
Excessive pressure can damage the device.
▶Comply with pressure range values on the type label.
English

7
Technical data
Type2060, 2061
Flow direction
Seal material
Flow
coecient
Control function (CF)
Type
Permitted ambient temperature
For derating, please refer
to the operating instructions,
Identication number of device
Manufacture code
CE marking (if applicable)
Permissible medium pressure, permissible
pilot pressure

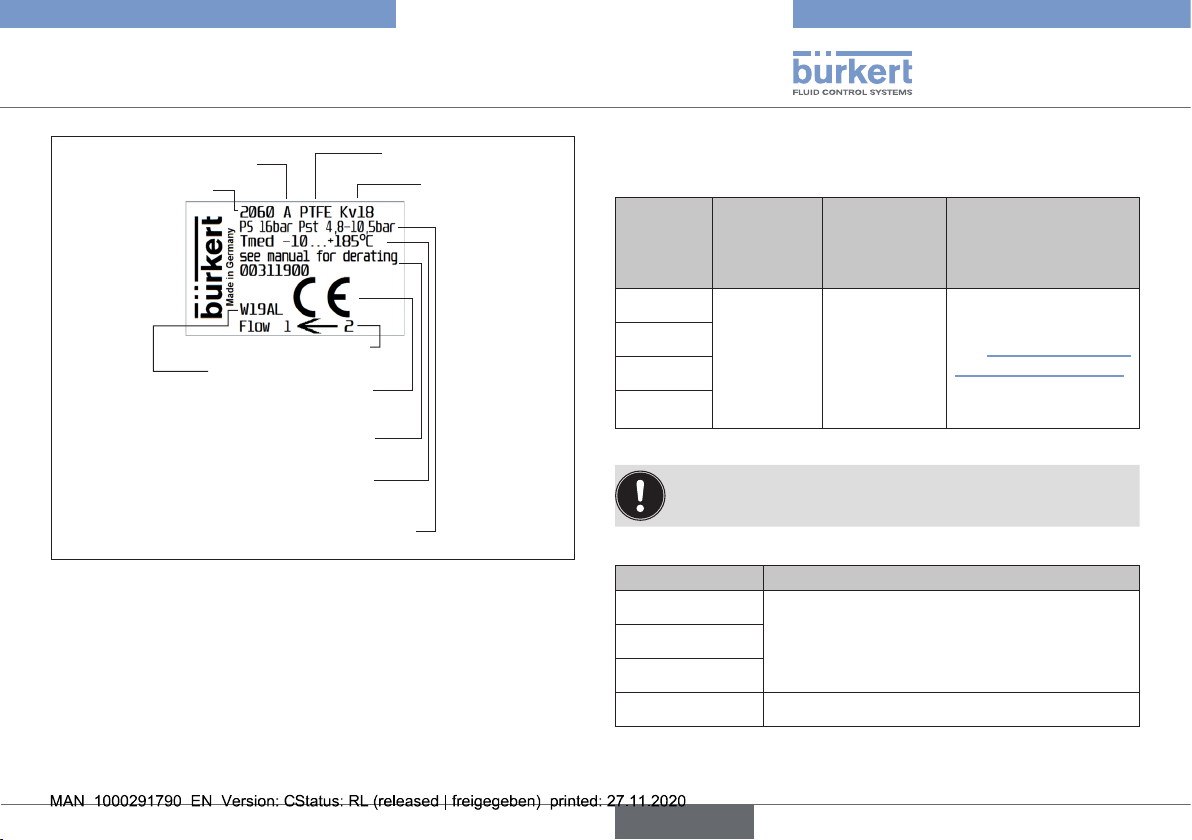

Fig. 1: Description of the type label (example)
6.4 Operating conditions
6.4.1 Temperature ranges
Actuator
size
Actuator
material
Medium
temperature
(with PTFE
seal)
Ambient
temperature
ø50mm
Stainless
steel –10 – +230°C see "Fig. 2", "Tab. 3",
"Tab. 4" and "Tab. 5"
ø70mm
ø90mm
ø130mm
Tab. 1: Temperature ranges
The angle seat valve is suitable for steam sterilization.
6.4.2 Pressure ranges
Actuator size Maximum pilot pressure
ø50mm
10.5barø70mm
ø90mm
ø130mm 7.5bar
Tab. 2: Pressure ranges
English

8
Technical data
Type2060, 2061
Derating pressure and temperature ranges
Usage limits of the armature (derating medium pressure)
Temperature Medium pressure
–10...+50 °C 25bar
100°C 24.5bar
150°C 22.4bar
200°C 20.3bar
230°C 19bar
Tab. 3: Derating the medium pressure as per DINEN12516-1/PN25
Temperature Medium pressure
–29...+38 °C 19bar
50°C 18.4bar
100°C 16.2bar
150°C 14.8bar
200°C 13.7bar
230°C 12.7bar
Tab. 4: Derating the medium pressure as per ASMEB16.5/
ASMEB16.34Cl.150
Temperature Medium pressure
–10...+50 °C 14bar
100°C 14bar
150°C 13.4bar
200°C 12.4bar
230°C 11.7bar
Tab. 5: Derating the medium pressure as per JISB222010K
0 20 40 60 80 100 120 140 160 180 200 220
50
60
140
130
120
110
100
90
80
70
Ambient temperature [°C]
Medium temperature [°C]
Fig. 2: Derating VA actuator ANTG50, 70, 90, 130
English

9
Technical data
Type2060, 2061
Minimum pilot pressure values: Flow direction below seat
(medium ow against valve closing direction)
Required minimum pilot pressurePmin with control functionA:
Actuator size
[mm]
50 70 90 130
Pmin [bar] 4.0 5.0 5.0 5.0
Tab. 6: Required minimum pilot pressure Pmin with control functionA
The required minimum pilot pressurePmin for control functionB
andI (ow direction below seat) depends on the medium
pressure.
Minimum pilot pressure values: Flow direction above the seat
(medium ow in valve closing direction)
The required minimum pilot pressure Pmin for control functionA
(ow direction above the seat) depends on the medium pressure.
6.5 General technical data
Media
Control medium Neutral gases, air
Flow media Water, alcohols, fuels, hydraulic fluids,
saline solutions, lyes, organic solvents
For materials and
ports see data sheet
Installation position any, preferably actuator face up
Degree of protection IP67 as per IEC529/EN60529
6.6 Control function (CF)
A
1(P)
2(A)
Closed by spring force in rest position.
B
1(P)
2(B)
Opened by spring force in rest position.
I
1(P)
2(A)
Actuating function via reciprocal
pressurization
Tab. 7: Control functions
English

10
Installation
Type2060, 2061
7 INSTALLATION
DANGER!
Risk of injury from high pressure in the system.
▶Before working on the system or device, switch o the pres-
sure and vent or empty the lines.
WARNING!
Risk of injury due to improper installation.
▶Installation may only be performed by qualied and trained
personnel.
▶Use an open-end wrench for installation.
▶Following installation, ensure a controlled restart.
For control functionI: Risk of pilot pressure failure.
The valve stays in an undened position in the event of a pilot
pressure failure.
▶To ensure a controlled restart of the device, apply pilot pressure
and activate the medium.
Risk of injury due to moving parts in the device.
▶Do not reach into openings.
7.1 Preparatory work
•Ensure that pipelines are in alignment.
•Remove soiling from pipelines.
•Note ow direction (see type label).
7.2 Removing actuator from the valve
body
→Clamp valve body into a collet.
NOTE!
Damage to the seat seal or seat contour.
▶When removing the actuator, the valve must be in the open
position.
→For control functionA pressurize the pilot air port1 with com-
pressed air: Valve opens.
→Place a suitable open-end wrench on the wrench at of the
nipple.
→Unscrew actuator from the valve body.

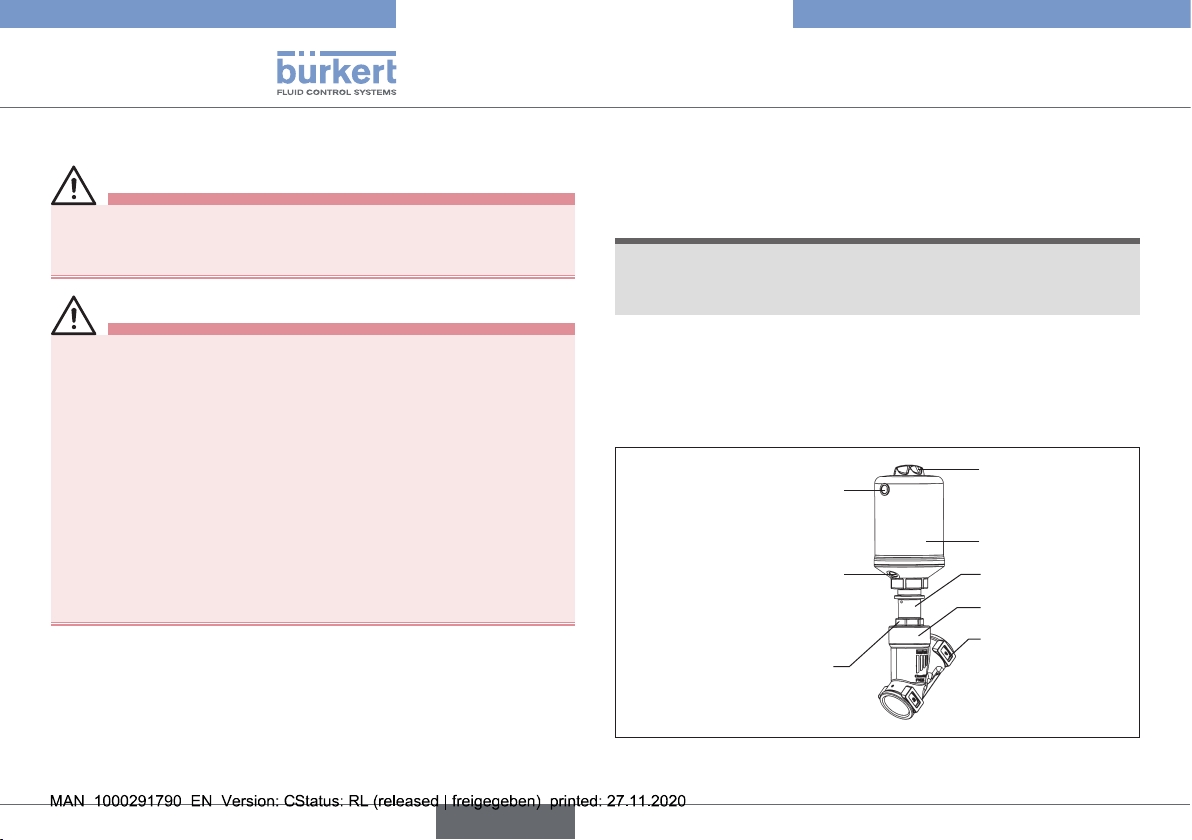

Actuator
Nipple
Valve body
Wrench at
for open-end
wrench
Pilot air port
CFA, CFI
Exhaust port CFB
Pilot air port
CFB, CFI
Exhaust port CFA
2
1
Transparent cap
with position
indicator
Digits for indi-
cating the ow
direction
Fig. 3: Angle seat valve Type2060
English

11
Installation
Type2060, 2061
7.3 Installing valve body
WARNING!
Risk of injury due to improper installation.
▶Installation may only be performed by qualied and trained
personnel.
▶Use an open-end wrench for installation.
▶Observe the tightening torque value.
Dirt trap for devices with approval according to DINEN161
According to DINEN161 "Automatic shut-o valves for gas burners
and gas appliances", a dirt trap, which prevents the penetration of
a 1mm test pin, must be installed upstream of the valve.
If stainless steel valve body approval applies:
→Mount dirt trap in front of angle seat valve.
Welded connection:
→Weld valve body into pipeline.
Other bodies:
→Connect body to pipeline.

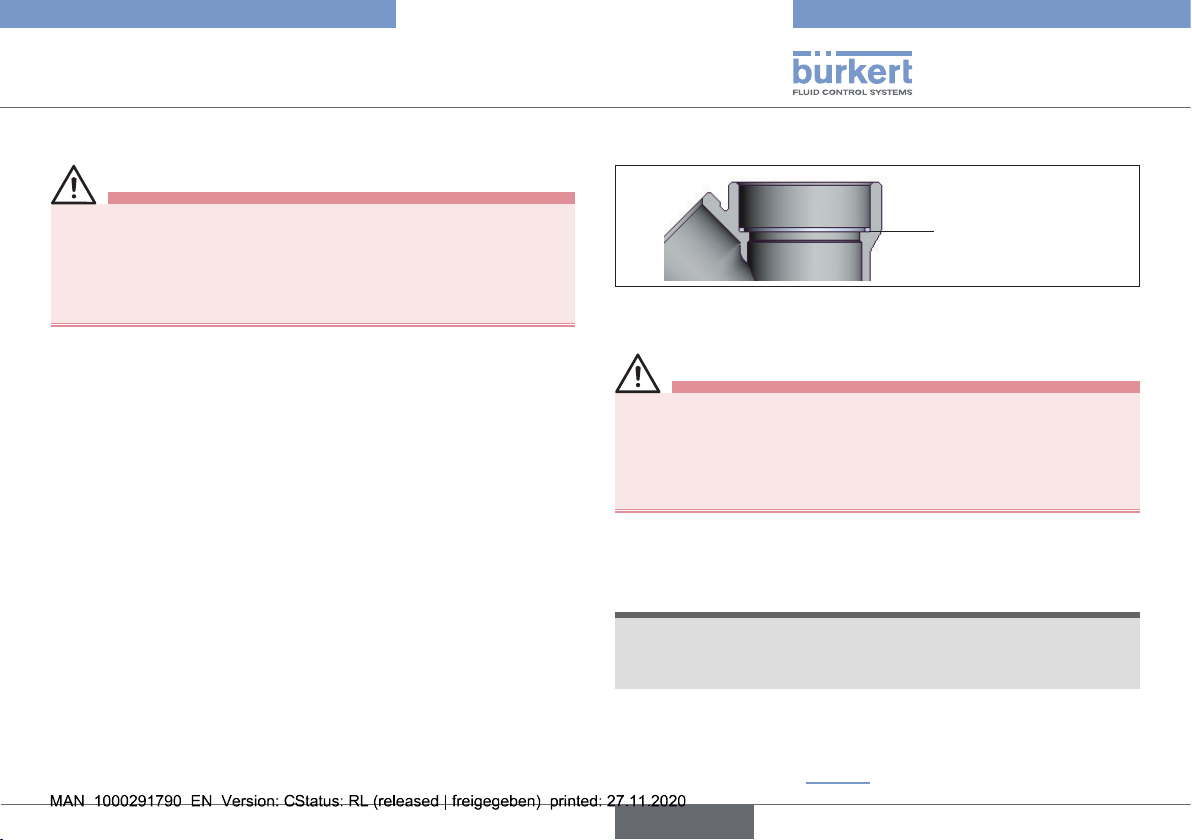

7.4 Install actuator (welded connection)
Graphite seal
Fig. 4: Graphite seal
→Check graphite seal and replace if required.
WARNING!
Danger due to incorrect lubricants.
Unsuitable lubricant may contaminate the medium. There is a
risk of explosion in oxygen applications!
▶For specic applications, e.g. oxygen or analysis applica-
tions, use approved lubricants only.
→Before re-installation, grease nipple thread (e.g. using Klüber-
paste UH196-402 from Klüber).
NOTE!
Damage to the seat seal or seat contour.
▶When installing the actuator, the valve must be in the open
position.
→For control functionA pressurize the pilot air port1 with com-
pressed air: Valve opens.
→Screw actuator into the valve body. Note tightening torque
values according to "Tab. 8".
English

12
Installation
Type2060, 2061
1
2
Pilot air port CFA, CFI
Exhaust port CFB
Pilot air port CFB, CFI
Exhaust port CFA

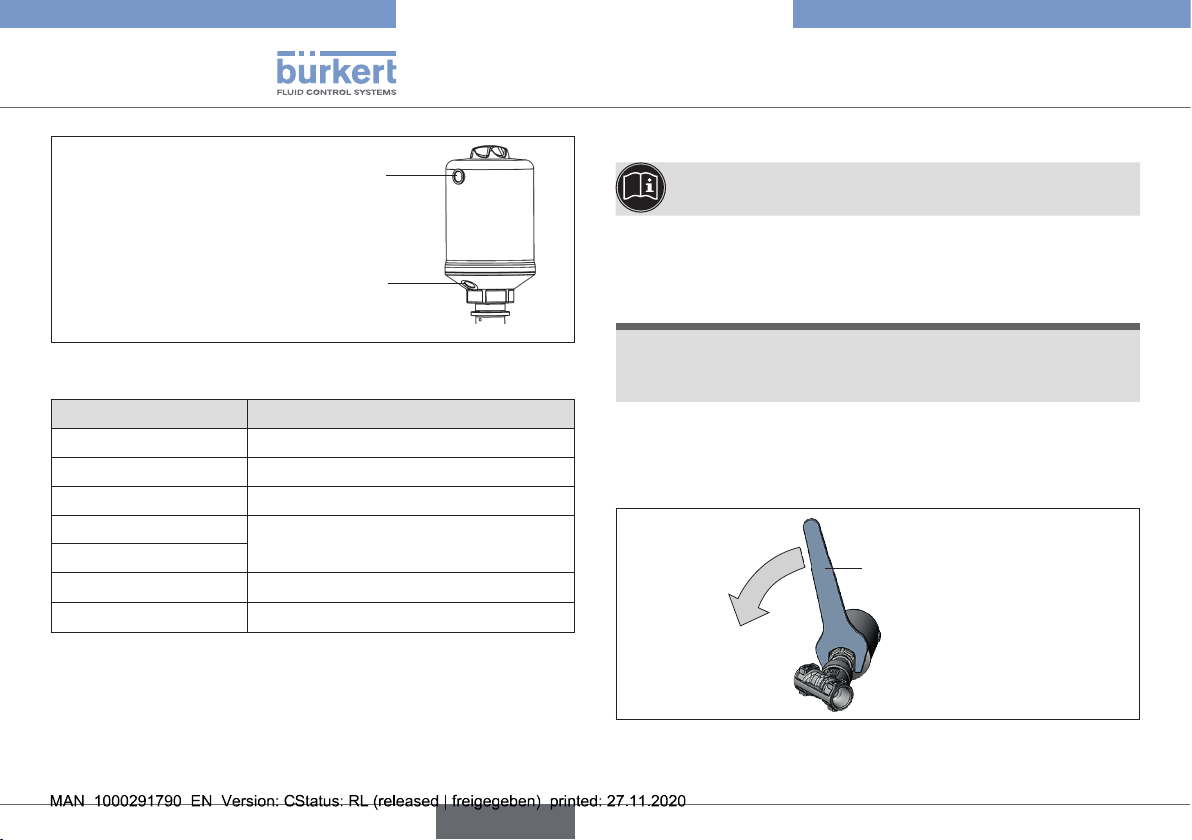

Fig. 5: Ports
DN Tightening torque [Nm]
15 45±3
20 50±3
25 60±3
32 65±3
40
50 70±3
65 100±3
Tab. 8: Tightening torques valve body/nipple
7.5 Mount accessories
For description, refer to documentation of corresponding
accessories.
7.6 Turning actuator
The position of the ports can be seamlessly aligned by turning
the actuator 360°.
NOTE!
Damage to the seat seal or seat contour.
▶When turning the actuator, the valve must be in the open
position.
→Clamp valve body in a collet
(only for valves which have not yet been installed).
→For control functionA pressurize the pilot air port1 with com-
pressed air: Valve opens.
Open-end wrench
Fig. 6: Rotating with open-end wrench
English

13
Installation
Type2060, 2061
→Counter with a suitable open-end wrench on the wrench at
of the nipple.
→Place a suitable open-end wrench on the hexagon head of the
actuator.
→Set the actuator to the required position.
7.7 Pneumatic connection
WARNING!
Risk of injury due to connecting unsuitable hoses.
▶Only use hoses that can withstand the pressure and tempera-
ture of the medium.
▶Note the technical data provided by the hose manufacturer.
For control functionI: Risk of pilot pressure failure.
The valve stays in an undened position in the event of a pilot
pressure failure.
▶To ensure a controlled restart of the device, apply pilot pressure
and activate the medium.
7.7.1 Connecting the control medium
If the position of the pilot air ports is unfavourable for
installing the hoses, these can be seamlessly aligned by
rotating the actuator by 360°.
The procedure is described in chapter "7.6".
Control functionA:
→Connect control medium to pilot air port 1.
Control functionB:
→Connect control medium to pilot air port 2.
Control functionI:
→Connect control medium to pilot air port1 and2
Pressure on pilot air port1 opens the valve.
Pressure on pilot air port2 closes the valve.
1
2
Pilot air port CFA, CFI
Exhaust port CFB
Pilot air port CFB, CFI
Exhaust port CFA
Fig. 7: Ports
Silencer1)
→Screw the silencer into the exposed exhaust port.
For usage in an aggressive environment, we recommend
using a pneumatic hose to drain all free pneumatic ports
in a neutral atmosphere.
Pilot air hose
Pilot air hoses of sizes 6/4mm or ¼" can be used 2).
1) Silencers for reducing the loudness of the exhaust air can be ordered
as an accessory.
2) Push-lock ttings can be ordered as accessories.
English

14
Start-up
Type2060, 2061
8 START-UP
WARNING!
Risk of injury due to improper operation.
Improper operation may result in injuries as well as damage to
the device and the surrounding area.
▶Before start-up, ensure that the operating personnel are
aware of and have completely understood the contents of
the operating instructions.
▶Observe the safety instructions and the intended use.
▶Only adequately trained personnel may start up the system/
device.
8.1 Pilot pressure
WARNING!
For control functionI: Risk of pilot pressure failure.
The valve stays in an undened position in the event of a pilot
pressure failure.
▶To ensure a controlled restart of the device, apply pilot pressure
and activate the medium.
→Set the pilot pressure according to the type label information
and ow direction (chapter "8.2 Flow direction").
8.2 Flow direction
8.2.1 Angle seat valve
CFA/CFI CFB/CFI
Flow direction below seat 3)
(closing against medium)
Flow direction above the seat 4)
(closing with the medium)
CFA
Fig. 8: Flow direction above and below seat
8.2.2 Globe valve
CFA CFB/CFI
Flow direction below seat 3)
(closing against medium)
Flow direction above the seat 4)
(closing with the medium)
CFA
Fig. 9: Flow direction above and below seat
3) Flow direction
1 2
Marking on the
body
4) Flow direction
1 2
Marking on the
body
English

15
Maintenance work
Type2060, 2061
8.2.3 Flow direction above the seat
Control functionA, CFA: closes with the medium ow via spring
force. The medium pressure supports the closing and sealing of
the valve seat.
The valve opens via pilot pressure.
WARNING!
Risk of injury due to bursting lines and device.
▶Use valves with ow direction above the seat for gaseous
media and vapour only.
In order to ensure complete opening, the minimum pilot
pressure must be used.
8.2.4 Flow direction below seat
Control functionA, CFA: closes against the medium ow via spring
force. Control functionB, CFB: closes against the medium ow
via pilot pressure. The medium pressure aids in opening the valve.
WARNING!
Valve leak if there is too little minimum pilot pressure (for CFB
and CFI) or excessive medium pressure.
▶Note the minimum pilot pressure and medium pressure (see
"6.4.2 Pressure ranges").
9 MAINTENANCE WORK
→Perform a visual inspection of the device once per year. Shorter
maintenance intervals are recommended depending on the
usage conditions.
9.1 Spare parts
CAUTION!
Risk of injury and/or damage due to incorrect parts.
Incorrect accessories and unsuitable spare parts may cause
injuries and damage the device and the area around it.
▶Use only original accessories and original spare parts from
Bürkert.
Wearing parts: Seals and swivel plate.
→If leaks occur, replace the respective wearing part.
The maintenance and repair instructions can be found
online at: country.burkert.com
English

16
Disassembly
Type2060, 2061
10 DISASSEMBLY
DANGER!
Risk of injury from discharge of pressure and escaping medium.
Dismantling a device which is under pressure is hazardous due
to a sudden discharge of pressure or escaping medium.
▶Before disassembly, shut o the pressure and vent all lines.
→Disconnect the pneumatic connection.
→Disassemble the device.
11 TRANSPORTATION, STORAGE,
DISPOSAL
NOTE!
Damage from transport and storage.
•Protect the device against moisture and dirt in shock-
resistant packaging during transportation and storage.
•Storage temperature –20...+65°C.
Damage to the environment caused by device parts con-
taminated with media.
•Dispose of the device and packaging in an environmentally
friendly manner!
•Observe applicable disposal and environmental regulations.
English

17
Der Quickstart
Typ 2060, 2061
1 DER QUICKSTART.............................................................. 17
2 DARSTELLUNGSMITTEL.................................................... 18
3 BESTIMMUNGSGEMÄSSE VERWENDUNG...................... 18
4 GRUNDLEGENDE SICHERHEITSHINWEISE..................... 19
5 ALLGEMEINE HINWEISE.................................................... 20
6 TECHNISCHE DATEN ......................................................... 20
7 MONTAGE ........................................................................... 24
8 INBETRIEBNAHME............................................................. 28
9 WARTUNGSARBEITEN ...................................................... 29
10 DEMONTAGE ...................................................................... 30
1 DER QUICKSTART
Der Quickstart enthält in Kurzform die wichtigsten Informationen
und Hinweise für den Gebrauch des Geräts. Bewahren Sie den
Quickstart so auf, dass sie für jeden Benutzer gut zugänglich ist und
jedem neuen Eigentümer des Geräts wieder zur Verfügung steht.
Wichtige Informationen zur Sicherheit.
Das Nichtbeachten dieser Hinweise kann zu gefährlichen Situ-
ationen führen.
▶Quickstart muss gelesen und verstanden werden.
Die ausführliche Beschreibung des Geräts nden Sie in der Bedie-
nungsanleitung für Typ 2060 und 2061.
Die Bedienungsanleitung nden Sie im Internet unter:
country.burkert.com
1.1 Begrisdenition
Der in dieser Anleitung verwendeten Begri „Gerät“ steht immer
für das Schrägsitzventil Typ 2060 oder Geradsitzventil Typ 2061.
In dieser Anleitung steht die Einheit bar für den Relativdruck. Der
Absolutdruck wird gesondert in bar (abs) angegeben.
deutsch

18
Darstellungsmittel
Typ 2060, 2061
2 DARSTELLUNGSMITTEL
GEFAHR!
Warnt vor einer unmittelbaren Gefahr.
▶Bei Nichtbeachtung sind Tod oder schwere Verletzungen die
Folge.
WARNUNG!
Warnt vor einer möglicherweise gefährlichen Situation.
▶Bei Nichtbeachtung drohen schwere Verletzungen oder Tod.
VORSICHT!
Warnt vor einer möglichen Gefährdung.
▶Nichtbeachtung kann mittelschwere oder leichte Verletzun-
gen zur Folge haben.
HINWEIS!
Warnt vor Sachschäden!
Wichtige Tipps und Empfehlungen.
Verweist auf Informationen in dieser Bedienungsan-
leitung oder in anderen Dokumentationen.
▶markiert eine Anweisung zur Gefahrenvermeidung.
→markiert einen Arbeitsschritt, den Sie ausführen müssen.
3 BESTIMMUNGSGEMÄSSE
VERWENDUNG
Bei nicht bestimmungsgemäßem Einsatz der Typen 2060 und
2061 können Gefahren für Personen, Anlagen in der Umgebung
und die Umwelt entstehen.
▶Gerät ist für die Steuerung des Durchusses von üssigen
und gasförmigen Medien konzipiert.
▶Für den Einsatz die in den Vertragsdokumenten und der Bedie-
nungsanleitung spezizierten zulässigen Daten, Betriebs- und
Einsatzbedingungen beachten.
▶Voraussetzungen für den sicheren und einwandfreien Betrieb
sind sachgemäßer Transport, sachgemäße Lagerung sowie
sachgemäße Montage, Installation, Inbetriebnahme, Bedienung
und Instandhaltung.
▶Gerät nur in Verbindung mit von Bürkert empfohlenen bzw.
zugelassenen Fremdgeräten und -komponenten einsetzen.
▶Gerät nur bestimmungsgemäß einsetzen.
deutsch

19
Grundlegende Sicherheitshinweise
Typ 2060, 2061
4 GRUNDLEGENDE
SICHERHEITSHINWEISE
Diese Sicherheitshinweise berücksichtigen keine bei Montage,
Betrieb und Wartung auftretenden, Zufälle und Ereignisse.
Der Betreiber ist dafür verantwortlich, dass die ortsbezogenen
Sicherheitsbestimmungen, auch in Bezug auf das Personal, ein-
gehalten werden.
Verletzungsgefahr durch hohen Druck.
▶Vor Arbeiten an Anlage oder Gerät den Druck abschalten
und Leitungen entlüften oder entleeren.
Verbrennungsgefahr und Brandgefahr bei längerer Einschaltzeit
durch heiße Geräteoberäche.
▶Gerät nicht mit bloßen Händen berühren. Von leicht brennbaren
Stoen und Medien fernhalten.
Verletzungsgefahr durch sich bewegende Teile im Gerät.
▶Nicht in Önungen fassen.
Verletzungsgefahr durch Bersten von Leitungen und Gerät.
▶Wegen Schließschlaggefahr dürfen Ventile mit Anströmung über
Sitz nicht für üssige Medien eingesetzt werden.
▶Für den Betrieb des Geräts die Art der Anströmung und die
Art des Mediums beachten.
Verletzungsgefahr durch herausspringende Teile beim Önen
des Antriebs.
▶Antrieb nicht önen.
Allgemeine Gefahrensituationen.
Zum Schutz vor Verletzungen beachten:
▶Vor unbeabsichtigter Betätigung sichern.
▶Nur geschultes Fachpersonal darf Installations- und Instand-
haltungsarbeiten ausführen.
▶Nach Unterbrechung der elektrischen Versorgung für einen
kontrollierten Wiederanlauf des Prozesses sorgen.
▶Gerät nur in einwandfreiem Zustand betreiben.
▶Die allgemeinen Regeln der Technik einhalten.
Zum Schutz vor Sachschäden am Gerät ist zu beachten:
▶In Medienanschlüsse nur Medien einspeisen, die im Kapitel
„Technische Daten“ aufgeführt sind.
▶Gerät nicht mechanisch belasten.
▶Keine äußerlichen Veränderungen an den Ventilen vornehmen.
Gehäuseteile nicht lackieren.
deutsch

20
Allgemeine Hinweise
Typ 2060, 2061
5 ALLGEMEINE HINWEISE
5.1 Kontaktadressen
Deutschland
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelngen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: [email protected]
International
Die Kontaktadressen finden Sie auf den letzten Seiten der
gedruckten Bedienungsanleitung.
Außerdem im Internet unter: country.burkert.com
5.2 Gewährleistung
Voraussetzung für die Gewährleistung ist der bestimmungs-
gemäße Gebrauch des Geräts unter Beachtung der spezizierten
Einsatzbedingungen.
6 TECHNISCHE DATEN
6.1 Konformität
Das Schrägsitzventil Typ 2060 und das Geradsitzventil Typ 2061
sind konform zu den EU-Richtlinien entsprechend der EU-Konfor-
mitätserklärung (falls zutreend).
6.2 Normen
Die angewandten Normen (falls zutreend), mit denen die Kon-
formität mit den EU-Richtlinien nachgewiesen wird, sind in der
EU-Baumusterprüfbescheinigung und/oder der EU-Konformitäts-
erklärung nachzulesen.
Gemäß Druckgeräterichtlinie sind folgende Betriebsbedingungen
zu beachten:
Nennweite
Leitungsanschluss
Maximaler Druck für kompressible Fluide
der Gruppe 1 (gefährliche Gase und
Dämpfe gemäß Art. 3 Nr. 1.3 Buchstabe
a erster Gedankenstrich)
DN65 12 bar
deutsch
