Burkert 7011 User manual

Bedienungsanleitung
Manuel d‘utilisation
Operating Instructions
Type 7011
2/2-way solenoid valve
2/2-Wege-Magnetventil
Électrovanne 2/2 voies

2
1 OPERATING INSTRUCTIONS
The operating instructions contain important information.
▶Carefully read these instructions and follow the safety
instructions.
▶Store the instructions in such a way that they are available to all
users.
▶Liability and warranty for the device will be invalidated if the
operating instructions are not followed.
1.1 Symbols
▶designates instructions to avoid danger.
→designates a procedure which you must carry out.
Danger
Imminent danger! Serious or fatal injuries.
Warning
Potential danger! Serious or fatal injuries.
Caution
Danger! Moderate or minor injuries.
Contents
1 Operating instructions.................................................................. 2
2 Intended use ............................................................................... 3
3 Basic safety instructions .............................................................. 4
4 Technical data ............................................................................. 5
5 Installation ................................................................................... 7
6 Disassembly .............................................................................. 11
7 Maintenance, troubleshooting ................................................... 12
8 Spare parts ............................................................................... 12
9 Transportation, storage, disposal............................................... 13
English

3
note
Warns of damage.
Important tips and recommendations.
Refers to information in these operating instructions or in
other documentation.
1.2 Denition of the term "device"
Term in these instructions stands for
Device the solenoid valve Type 7011
1.3 Warranty
A precondition for the warranty is that the device is used as
intended in consideration of the specied operating conditions.
2 INTENDED USE
The solenoid valve Type 7011 is designed for blocking, dosing,
lling and ventilating neutral gaseous and liquid media.
▶Use the device only as intended. Non-intended use of the
device may be dangerous to people, nearby equipment and the
environment.
▶When using the device, observe the authorised data, operating
conditions and deployment conditions specied in the contract
documents and in the operating instructions.
▶Use the device only in conjunction with third-party devices and
components recommended or approved by Bürkert.
▶The device must only be used when in perfect condition; always
ensure proper storage, transportation, installation and operation.
English

4
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not make allowance for any contin-
gencies and events which may arise during installation, operation
and maintenance.
The operator is responsible for observing the location-specic safety
regulations, also with reference to personnel.
Risk of injury due to high pressure in the system or device.
▶Before working on the system or device, switch o the pressure
and ventilate and empty the lines.
Risk of injury due to electric shock.
▶Before working on the device or system, switch o the power
supply and secure to prevent reactivation.
▶Observe the applicable accident prevention regulations and
safety regulations for electrical devices.
Risk of burns or re from hot device surfaces due to prolonged
operation.
▶Keep the device away from highly ammable substances and
media and do not touch with bare hands.
Risk of injury due to malfunctioning valves that operate with
alternating current (AC).
A seized core causes the solenoid to overheat, which leads to
functional failure.
▶Monitor the working process for proper function.
General hazardous situations.
Ensure the following the prevent injuries:
▶the device only when it is in perfect condition and in
accordance with the operating instructions.
▶Do not make any internal or external changes to the device and
do not subject it to mechanical stress.
▶Secure device or system to prevent unintentional activation.
▶Make sure only trained technicians carry out installation and
maintenance work.
▶Install the valves according to the regulations applicable in the
respective country.
▶After an interruption in the power supply, ensure that the process
is restarted in a controlled manner.
▶Observe the general rules of technology.
English

5
4 TECHNICAL DATA
4.1 Conformity
The solenoid valve Type 7011 conforms to EC directives as per the
EC Declaration of Conformity (if applicable).
4.2 Standards
The applied standards, which are used to demonstrate conformity
with the directives, are listed in the ECtype examination certicate
and/or the ECDeclaration of Conformity (if applicable).
4.3 Operating conditions
Warning
Risk of injury due to malfunction if used outdoors.
▶Do not use the device outdoors and keep it away from heat
sources that could cause the permissible temperature range to
be exceeded.
Ambient temperature max. +55°C
max. +75°C
Medium temperature max. +100°C
Media neutral gaseous and liquid media that do not
attack the housing and seal materials (see
resistance table: www.country.burkert.com).
Viscosity max. 21mm²/s
Degree of protection IP65 as per EN60529 with cable plug
4.4 Mechanical data
Dimensions see data sheet
Body material brass, polyamide (PA),
stainless steel 1.4305
Seal material FKM
4.5 Fluidic data
Circuit function

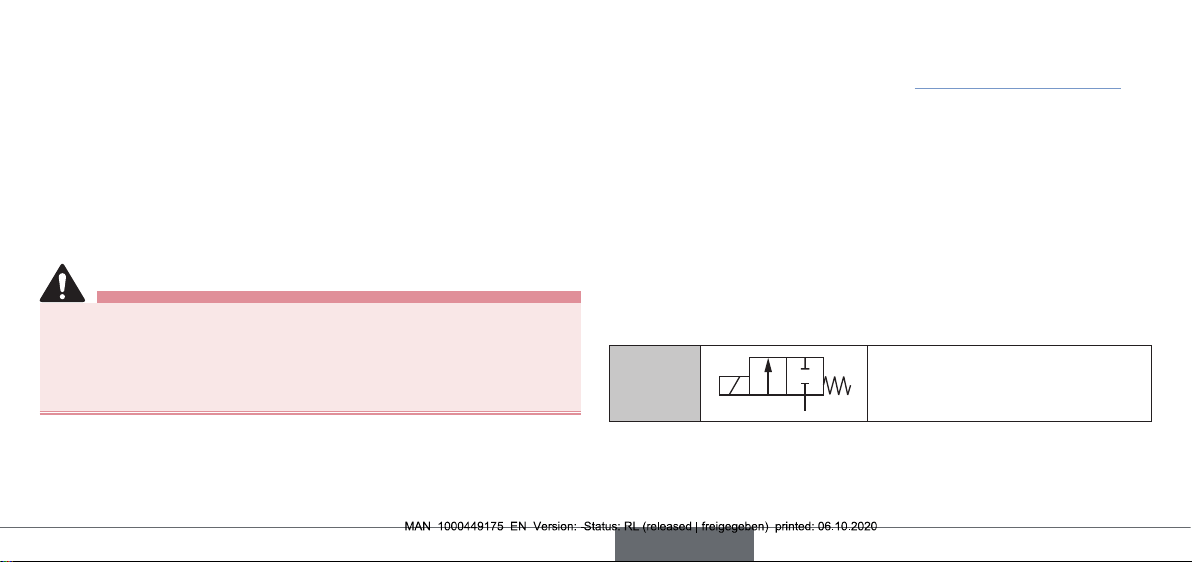

A
(NC) NC
2/2-way valve, direct-acting,
closed in rest position
Pressure range see type label
Port connections M5, G1/8, ange
English

6
4.6 Electrical data
Solenoid
dimensions Solenoid 20mm (SG2) Solenoid 24.5mm (SG3)
Ports DINEN175301-803, design formC:
for cable plug 2516
Industry standard, design formB:
for cable plug 2507
Flat-pin terminal as protection classIII
Stranded port on request
Operating voltage 24VDC
24VAC 50Hz, 60Hz, 50–60z
230VAC 50Hz
120VAC 60Hz
(more on request)
Voltage tolerance ±10%
Nominal power 2W to 6.5W 2W to 7W
Nominal operating
mode Continuous operation: 100% duty cycle Optional: 50% duty cycle– duration 20
minutes
4.7 Device identication
4.7.1 Type label
Identication number
Voltage, frequency, output
max. ambient temperature, max. duty cycle
Port connection, pressure range
Type
Circuit function
DN
Seal material
Body material
7011 A 1,5 FKM MS
Made in Germany
00222407
W12ML
24V DC 6,5 W
Tamb 55°C 100%ED
G1/8 PN0 - 12 bar
00987654
coil
g
S/N 001000 AC08-22AA
Fig. 1: Description of the type label (example)
English

7
4.7.2 Laser engraving of solenoid AC08
00987654
coil
g
S/N 001000 AC08-22AA
Approval as per
US and Canadian terms
CE mark
Fig. 2: Description of laser engraving on solenoid AC08
4.8 Approvals
Solenoid AC08 is cURus-approved and certied in accordance with
US and Canadian terms.
Identication of the solenoid is not necessarily linked with the
approval of the valve.
5 INSTALLATION
Danger
Risk of injury due to high pressure in the system or device.
▶Before working on the system or device, switch o the pressure
and ventilate and empty the lines.
Risk of injury due to electric shock.
▶Before working on the system or device, switch o the power
supply and secure to prevent reactivation.
▶Observe the applicable accident prevention regulations and
safety regulations for electrical devices.
▶Only connect protection classIII devices (without protective con-
ductor) to SELV or PELV power sources.
▶Only use cable plug for matching solenoid variant. Cable plugB
must not be used for a protection classIII device.
English

8
Warning
Risk of injury due to improper installation.
▶Installation may only be performed with trained technical personnel
with suitable tools.
▶Secure the system against unintentional activation.
▶Following installation, ensure a controlled restart.
5.1 Fluidic installation
Installation position: any, preferably solenoid facing upward.
→Check pipelines for soiling and clean if required.
→Install a dirt trap to protect against disruptions (mesh width:
0.2–0.4mm).
Note ow direction. Letters on the housing indicate the ow
direction: from 1(P) →2(A).
5.1.1 Devices with threaded connection
note
Caution: risk of breakage.
▶Do not use the solenoid as a lever arm.
→Seal the pipeline with PTFE tape.
→Hold the device on the housing using an open-end wrench and
screw into the pipeline.
5.1.2 Devices with ange connection
→Remove protective cover.
→Loosen nut and remove solenoid.
Warning
Risk of injury due to medium leak.
▶Ensure that the seals provided t the valve properly.
▶Ensure that the manifold is level.
▶Ensure sucient surface quality of the manifold.
→Insert the seal into the housing.
→Screw the housing onto the manifold, observing the maximum
tightening torque of 1Nm.
English

9
→Place the solenoid on it and fasten the nut, observing the
maximum tightening torque of 2.8Nm.

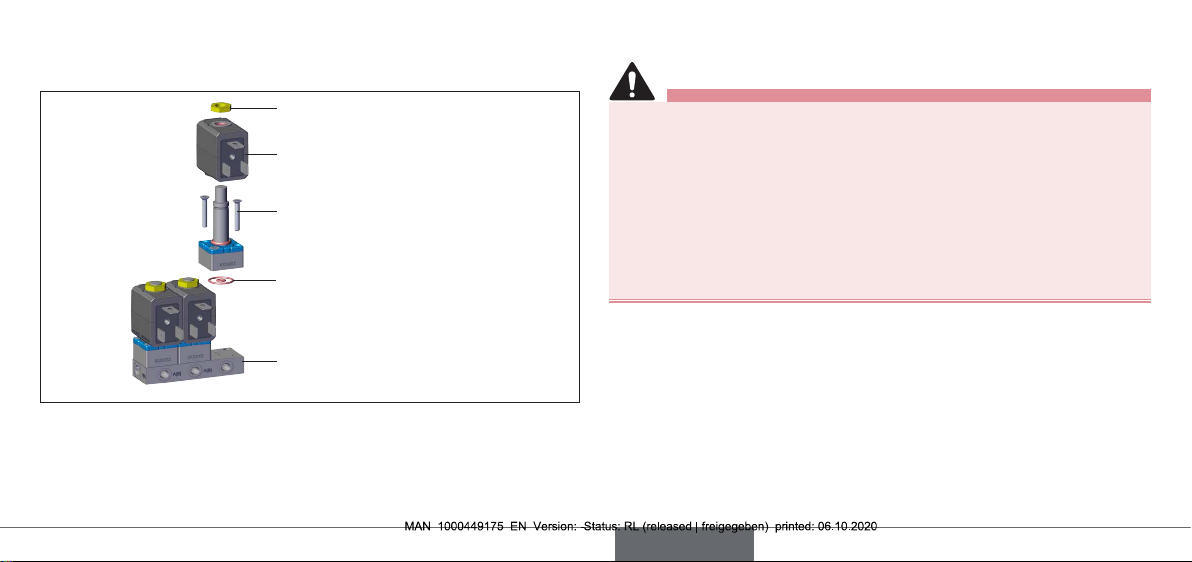

Nut
Solenoid
Fastening screw
Seal
Manifold
Fig. 3: Installing the devices with a ange connection
5.2 Electrical installation
Warning
Risk of injury due to electric shock.
▶Before working on the system or device, switch o the power
supply and secure against reactivation.
▶Observe the applicable accident prevention regulations and
safety regulations for electrical devices.
Risk of electric shock if protective conductor not connected.
▶Always connect protective conductor.
▶Check electrical continuity between solenoid and housing.
→Connect the protective conductor.
→Attach seal and check that it ts properly.
→Screw on the cable plug (see data sheet for approved types),
observing the maximum tightening torque of 0.3Nm.
→Check electrical passage.
English

10
Seal
Type 2507
Tightening torque
max. 0.3Nm
Fig. 4: Electrical connection
5.3 Rotating the solenoid
Warning
Risk of injury due to electric shock.
If there is no protective conductor function between the solenoid
and housing, there is a risk of electric shock.
▶Check the protective conductor function after installing the
solenoid.
Risk of injury due to overheating or re hazard.
Connecting the solenoid without rst installing the armature will
lead to overheating and will destroy the solenoid.
▶Only connect the solenoid after the armature has been installed.
The solenoid can be rotated by 4x90°. 2x180° in case of a block
installation.
→Loosen the nut.
→Rotate the solenoid.
→Screw in the nut with an open-end wrench, observing the
maximum tightening torque of 2.8Nm.
English

11

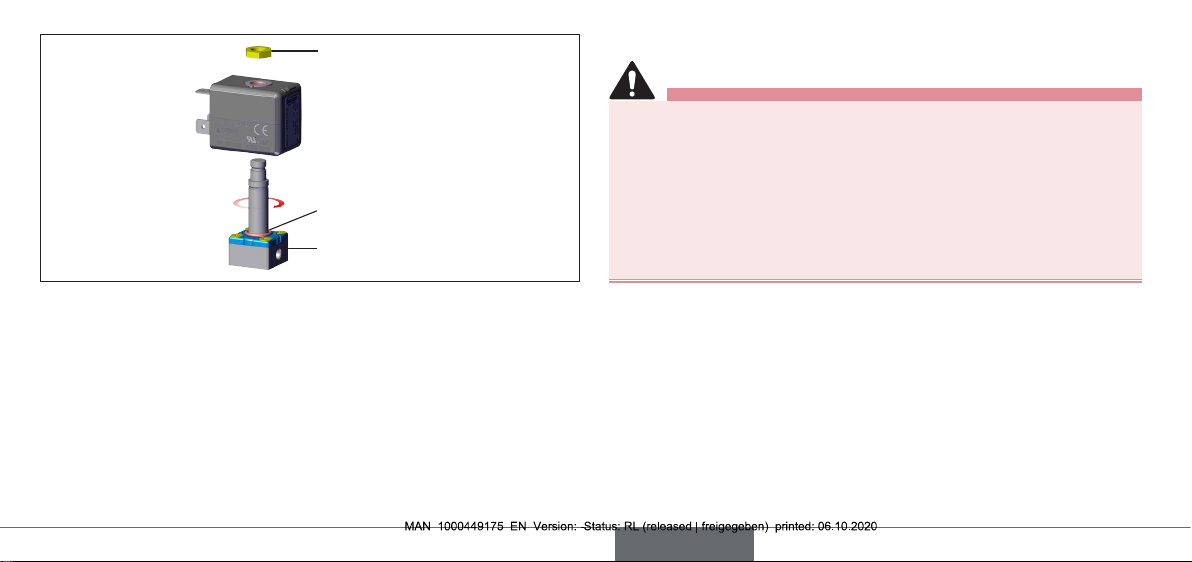

Nut
O-ring
Armature
Fig. 5: Rotating the solenoid
6 DISASSEMBLY
Danger
Risk of injury due to high pressure in the system or device.
▶Before working on the system or device, switch o the pres-
sure and ventilate and empty the lines.
Risk of injury due to electric shock.
▶Before working on the system or device, switch o the power
supply and secure to prevent reactivation.
Risk of injury due to improper disassembly.
▶Disassembly may be carried out by authorised technicians only.
→Shut o the pressure and vent the lines.
→Switch o the electrical voltage.
→Remove the cable plug.
Devices with threaded connection
→Hold the device on the housing using an open-end wrench and
screw out from the pipeline.
Devices with ange connection
→Loosen nut and remove solenoid.
→Remove the housing from the manifold.
English

12
7 MAINTENANCE, TROUBLESHOOTING
Danger
Risk of injury if maintenance work is not carried out correctly.
▶Maintenance may be carried out only by trained specialist
technicians and with the appropriate tools.
▶Secure the system against unintentional activation.
▶Ensure a controlled restart after maintenance is completed.
7.1 Faults
If faults occur, check whether:
→the device has been installed correctly,
→the electrical and uid connections have been properly set up,
→the device is not damaged,
→all screw-type connections are rmly tightened,
→voltage and pressure have been applied,
→the pipelines are clean.
If the valve still does not actuate, contact your local Bürkert
Service representative.
8 SPARE PARTS
Caution
Risk of injury and/or damage due to incorrect parts.
Incorrect accessories and unsuitable spare parts may cause injuries
and damage the device and the area around it.
▶Use only original accessories and original spare parts from
Bürkert.
The solenoid and armature can be ordered with the device's iden-
tication number.
Armature
Solenoid
Nut
Fig. 6: Spare parts
English

13
9 TRANSPORTATION, STORAGE,
DISPOSAL
note
Damage in transit due to inadequately protected devices.
▶Protect the device against moisture and dirt in shock-resistant
packaging during transport.
▶Seal electrical interfaces with protective caps.
▶Observe permitted storage temperature.
Incorrect storage may damage the device.
▶Store the device in a dry and dust-free location.
▶Storage temperature: –40 to +80°C.
Damage to the environment caused by parts contaminated
with media.
▶Dispose of the device and packaging in an environmentally
friendly manner.
▶Observe applicable disposal and environmental regulations.
English

www.burkert.com
International address
www.burkert.com
Manuals and data sheets on the Internet: www.burkert.com
Bedienungsanleitungen und Datenblätter im Internet: www.buerkert.de
Manuel d'utilisation et fiches techniques sur Internet : www.burkert.fr
© Bürkert Werke GmbH & Co. KG, 2008 - 2020
Operating Instructions 2009/00_EU-ML_00815329 / Original DE
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: [email protected]
