Canyon SW82 User manual

QUICK GUIDE V 2
SW82
Smartwatch
GPS sport smartwatch
«Wasabi»

1. Touch Screen
2. Power key
3. Shortcut key for sport mode
4. Charging pins
5. Heart rate sensor
1. OVERVIEW
2. USAGE
Make sure that your smartwatch is fully charged
before using. If you use a Power Adaptor (Not
EN
12 4
5
3

included), Power Adaptor voltage limit is: 5V, 1A. It
takes up to 2 hours to be fully charged.
1. Make sure the charging pins on the charging cable
t correctly onto the charging terminals on the back
of the smartwatch.
2. Plug the big end of the USB-cable to a power
source.
For better charging compatibility, it is advisable to
use a Power Bank or wall charger produced by
Canyon. Do not use a fast charging device as it could
result in a short circuit and risk of re.
Connecting to a smartphone: charge the
smartwatch, turn it on, activate Bluetooth on your
smartphone, download and install Canyon Smart
Watch Application Canyon Life by scanning the QR
code below. Open Canyon Life app-> “Bluetooth
Devices”->”Start”-> choose on your watch from the
Pair Device list >(SW82) -> press ”ADD DEVICE”
and you will see Device successfully connected. Use
the application to apply the settings you need, for
example you can: turn on sedentary reminder, select
apps that you want to receive notications from, etc.
Unpair Smartwatch from mobile phone:
1. Open “Canyon Life” on your smartphone
2. Open “Setup”, select “Bluetooth Devices”
EN

EN

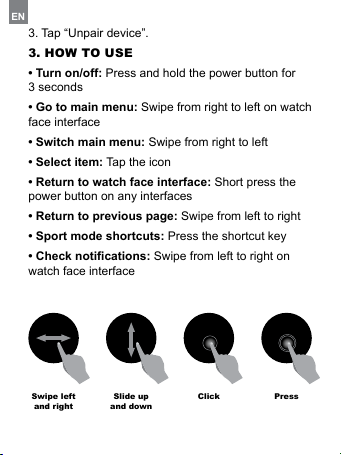

3. Tap “Unpair device”.
3. HOW TO USE
• Turn on/off: Press and hold the power button for
3 seconds
• Go to main menu: Swipe from right to left on watch
face interface
• Switch main menu: Swipe from right to left
• Select item: Tap the icon
• Return to watch face interface: Short press the
power button on any interfaces
• Return to previous page: Swipe from left to right
• Sport mode shortcuts: Press the shortcut key
• Check notications: Swipe from left to right on
watch face interface
Swipe left
and right
Slide up
and down
Click Press

EN
4. MAIN MENU
After switch on the smartwatch, you will see the
watch face interface. From watch face:

EN
Acquiring Satellite Signals. The
device may need a clear view of the
sky to acquire satellite signals. Go
outdoors to nd an open area. The
front of the device should be oriented
toward the sky. You should stand
away from buildings.
Improving GPS Satellite Reception
a. Smartwatch will automatically locate GPS
(if you connect to the Canyon Life app, it will
synchronize with AGPS positioning to make your
positioning faster).
b. Take your device outside to an open area away
from tall buildings and trees.
c. Remain stationary for a few minutes.
GPS location
5. FUNCTIONS

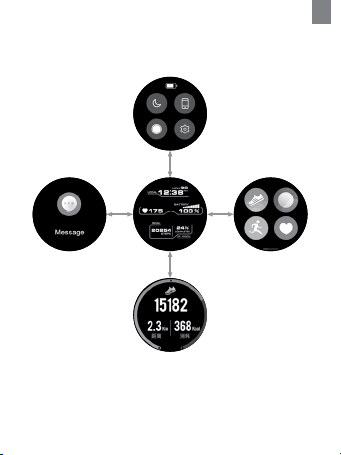

1. Go to Main Menu
a. Slide from right to left to enter the main menu
b. Slide from left to right to enter into the
notication page
c. Swipe up and down to enter into the other
shortcuts pages

EN
You can press and hold on the main screen to
change the watch face theme.
GPS is located successfully.
You can skip GPS loading.
When the GPS icon is ashing, it
indicates that the GPS is loading.
When the icon turns green and does
not ash, it indicates that the GPS
has been successfully located.
Watch face
Main menu

EN
Pedometer
Status interface
Swipe from right to left on the dialing interface to
enter the main menu. Please click an icon to select
the appropriate feature.
The Smartwatch will record your daily activity
automatically. After sync with the Canyon Life App,
In this interface, you can see the Bluetooth
connection status, battery level, Do Not Disturb mode
and adjust the brightness of the watch screen, as
well as quickly enter the settings page.

EN
Heart rate
you can check the number of steps data, calories
and distance traveled on your smartphone.
Click the icon to enter the heart rate monitoring
interface. You can start testing your heart rate when
smartwatch is in contact with your arm. Slide left to
right to exit the heart rate monitor. After sync with the
Canyon Life App, you can check your heart rate data
on your smartphone.
Multi-Sport
Click on the sports icon to enter the training interface.
There are six sports modes: walking outdoors,

EN
In the walking outdoors and climbing interface, the
watch will display the steps, time, calories, distance
and heart rate data.
In the running outdoors, indoor running and outdoor
cycling interface, the watch will display the speed,
running outdoors, indoor running, outdoor cycling,
climbing and swimming. You can select the desired
mode start the selected exercise; the smartwatch
will record exercise data. You can start the exercise
directly or click an icon to set the desired goal
(distance, calories, time, or free style)

EN
Sleep Monitor
time, calories, distance and heart rate data.
PS: If the sport time less than 5mins, the data won’t
be saved.
The Smartwatch will monitor your sleep
automatically. When sleeping is nished, the
smartwatch will show the sleep report with the time
of total sleep, light sleep and deep sleep times. After
sync with the Canyon Life App, you can check a
more detailed sleep report.

EN
By clicking on the Alarm icon, you can see the alarm
which you set in the App. When the alarm is on, the
icon will be animated and the smartwatch will vibrate.
Swipe from left to right on main
watch face to view the notication
contents, including incoming calls,
SMS, Whatsapp, Facebook, Twitter
notications and others.
Alarm
Weather
Notication

EN
After synchronization with the Canyon Life App, the
smartwatch will show the weather forecast.
Settings
Click the icon to enter the settings
interface.
About. Click this button to view the
smartwatch BT name, mac address and
version number.
Reset. Click this reset button to reset your
watch.
Sedentary. Click this button to turn off or to
turn on sedentary reminder. The sedentary
reminder parameters can be set in the App.

EN
Brightness. Click this button to enter watch
screen brightness change interface. Click on
screen to change brightness level, swipe left
to right to go back.
Backlight. Click this button to enter watch
backlight time interface. Click + or - to
change time, click button to apply.
Remote Capture. With the App connected,
you can remotely control your phone camera
to take a photo by clicking this button.
Stopwatch

EN
You can use the stopwatch to record elapsed time.
Tap to start the stopwatch, tap to pause, tap
to reset the stopwatch, tap to save the elapsed
time. Tap on recorded time while recording to see
saved values.
With the App connected click this icon in the
menu interface to enter the music control interface.
Tap to play/ pause, select next or previous song.
Music player have to opened on phone before using
remote.
Music control
Click this icon to enter the timer function. You can
set the timer and then start timer countdown.
Click this icon to enter the interface for nding
your phone. Click the “phone icon” and your phone
will ring, if it has Bluetooth connection with watch, so
that you can nd your phone.
Timer
Find Phone

EN
Troubleshooting
Problem Solution
Your smartwatch doesn’t
turn on
Connect to a USB cable
to charge device and
wait for a few minutes
Your smartwatch
isn’t detected by a
smartphone
Make sure that
Bluetooth, GPS Location
Services with high
precision are active on
your smartphone
Your smartwatch
is detected by a
smartphone, but fails to
connect
Turn the smartwatch off
and then turn it back on
If the actions from above-mentioned list do not help,
please contact support service at Canyon web-site:
http://canyon.eu/ask-your-question/
SAFETY INSTRUCTIONS
Read and follow all instructions before
usage of this device.
1. Protect the device from excessive amount of
water: this smartwatch can be immersed in water for
up to a maximum depth of 1.5m underwater for up to
thirty minutes. It’s forbidden to use it for diving.

EN
2. Protect the device from heat: do not place heating
devices near it, and do not expose to direct sunlight
during hot season for a long time.
3. Protect the device from breaking: avoid dropping
the device from over 0,5m to hard surfaces.
Warning! Do not use in hot water. This can lead to
damage to the device! Avoid contact between the
magnetic charger and other metal objects (i.e the
metal strap when charging).
WARRANTY LIABILITIES
Warranty period starts from the date of the device’s
purchase from the Seller, authorized by Canyon.
The date of purchase is indicated in your sales
receipt or a waybill. During warranty period, a repair,
replacement or refund of payment for goods are
performed on discretion.
Manufacturer: Asbisc Enterprises PLC, 43, Diamond
Court, Kolonakiou Str, 4303, Limassol, Cyprus, Agios
Athanasios, http://canyon.eu/

1. Сензорен екран
2. Включване
3. Бутон за спортен режим
4. Зареждане
5. Сензор за пулс
1. ПРЕГЛЕД
2. УПОТРЕБА
Уверете се, че смарт часовникът е напълно за-
реден. Ако използвате адаптер (не е включен в
BG
12 4
3
5

комплекта), ограничението за напрежението е 5V,
1A. Отнема близо 2 часа до пълно зареждане.
1. Уверете се, че накрайниците за зареждане на
кабела пасват добре на тези от задната част на
часовника.
2. Пъхнете USB кабела в източник на заряд.
За по-добра съвместимост се препоръчва използ-
ването на зарядни от Canyon. Не използвайте
устройства за бързо зареждане, за да не се полу-
чи късо съединение или запалване.
Cвързване към смартфон: заредете часовника,
включете го, активирайте Bluetooth от телефона,
изтеглете и инсталирайте приложението Canyon
Life чрез сканиране на QR кода по-долу. Отворете
Canyon Life app-> “Bluetooth Devices”->”Start”->
изберете вашия часовник от списъка >(SW82) ->
натиснете ”ADD DEVICE” и устройството ще се
свърже коректно. Използвайте приложението, за
да зададете необходимите настройки, например:
включване на напомняне за раздвижване, избор
на приложения, от които искате да получавате
нотификации и др.
„Разкачване“ на часовника от телефона:
1. Отворете “Canyon Life” на вашия смартфон
2. Отворете “Setup”, изберете “Bluetooth Devices”
BG

BG

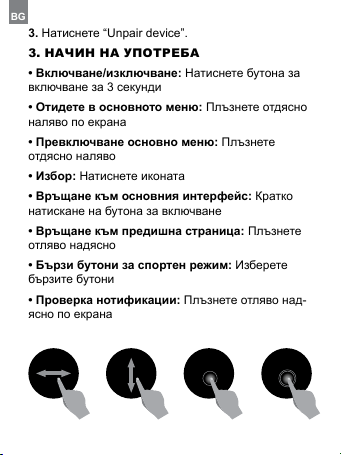

3. Натиснете “Unpair device”.
3. НАЧИН НА УПОТРЕБА
• Включване/изключване: Натиснете бутона за
включване за 3 секунди
• Отидете в основното меню: Плъзнете отдясно
наляво по екрана
• Превключване основно меню: Плъзнете
отдясно наляво
• Избор: Натиснете иконата
• Връщане към основния интерфейс: Кратко
натискане на бутона за включване
• Връщане към предишна страница: Плъзнете
отляво надясно
• Бързи бутони за спортен режим: Изберете
бързите бутони
• Проверка нотификации: Плъзнете отляво над-
ясно по екрана
