Caple Wi6129 User manual

Instruction manual for slot-in wine cabinet
Model code: Wi6129
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Contents
Important safety instructions 3
Installation instructions 4
Before using your wine cabinet 4
Operating you wine cabinet and setting the temperature 5
Using the shelves 6
How to change the door opening 7
Installing the decorative grill 8
Fitting a kitchen plinth 8
Installation dimensions 9
Fixing the top bracket 9
Using the foot sliders 10
Care and maintenance 11
Troubleshooting guide 12
Caple Service contact details 12
Defrosting/condensation 13
The humidity system 13
Recommended storage temperatures 13
Recommended drinking temperatures 13

Warnings
!
!
!To prevent damaging the door gasket, make sure the door is fully open when pulling shelves
out of the rail compartment.
!The appliance must be positioned so that the plug is accessible. Release the electric cord and
move your cabinet to its final location. Do not move your cabinet while loaded with wine as
you may distort the body.
!The wine cabinet should be installed in a suitable place in order to avoid touching the
compressor with the hand.
!If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly
qualified person in order to avoid a hazard.
PLEASE DO NOT TRY TO EXTEND THE ELECTRICAL CABLE IN ANY WAY.
!
!
!
Important Safety Instructions
!WARNING!
To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic
precautions:
!Read all instructions before using the wine cabinet.
!DANGER or WARNING:Risk of child entrapment.
!Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous . . . even if they will “just sit in the garage a few days”.
!Before you throw away your old wine cabinet: Take off the door, leaving the shelves in place
so that children cannot easily climb inside.
!Never allow children to operate, play with, or crawl inside the appliance.
!Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
!Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
!The refrigerant of this appliance is R600a, flammable and explosive articles should not be put
in or near the cabinet, to avoid the risk of fire or explosion.
!This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Please keep this instruction manual for future reference
3

Installation instructions
Before using your wine cabinet
•Remove the exterior and interior packing.
•Before connecting the wine cabinet to the power source, let it stand upright for approximately
12 hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
•These appliances cannot be disposed of with general waste. When disposing of your appliance,
please choose an authorised disposal site.
Installation of your wine cabinet
•Place your wine cabinet on a floor that is strong enough to support it when it is fully loaded.
To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
•This appliance is using flammability refrigerant. Never damage the cooling pipework during the
transportation. Locate the Wine cooler away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion. When disposing your appliance, please choose an authorized
disposal site.
•Avoid locating the unit in moist areas.
•Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) pin from the plug. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorised Caple service centre.
Attention
•Store wine in sealed bottles
•Do not overload the cabinet
•Do not open the door unless necessary
•Do not cover shelves with aluminium foil or any other shelf material which may prevent air
circulation
•Should the wine cabinet be stored without use for long periods it is suggested, after a careful
cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid
possible formations of condensation, mould or odours.
•This appliance is intended to be used in household and similar applications such as:
- Farm houses and other residential type environments;
- Bed and breakfast type environments;
- non-retail applications
•Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction;
•Warning: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those Recommended by the manufacturer;
•Warning: Do not damage the refrigerant circuit;
•Warning: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are the type recommended by the manufacturer.
4

Operating your wine cabinet and setting the temperature
Please use the cabinet within a ambient temperature of 5-32°C, if the ambient temperature is
higher or lower than this, it will cause a temperature fluctuation in the cabinet and may
prevent it reaching 5-18 °C.
Control Panel
!“” Button
Switches the interior light ON/OFF
•“”
The indicator light illuminates to signify the cooling mode is currently in operation.
!“” Button
Turns this appliance turn on/off. (press and hold this buttons for approximately 3 seconds).
!“” Button
To set the temperature in the upper compartment: The temperature setting can be adjusted from
5°C to 10°C. When pressing this button, the system will enter the set up mode for the upper
compartment automatically. The LED will flashing and display the set temperature.
Press the button once and the temperature will decrease by 1 degree. When exceeding the
minimum value that can be established, it will jump to the highest adjustable temperature value
automatically. After 5 seconds the LED figure will stop flashing.
!“” Button
Used to set the temperature in lower compartment: The temperature setting can be adjusted
from 10C to 18C When pressing this button, the system will enter the set up mode for the upper
compartment automatically. Setting details are the same as above.
!“Upper” Window
Displays the temperature in the upper compartment.
!“Lower” Window
Displays the temperature in the lower compartment.
!After the unit is unplugged, the system will return to the factory set temperature. The
temperatures are shown below:
Upper compartment: 6°C
Lower compartment: 12°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
( or ) for approximately 5 seconds, the actual temperature will temporarily flash in
the LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet Temperature
Steady LED = Set Temperature
5

Note
•If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or restart the wine cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the Wine cabinet is running for a few hours everything will be back to
normal.
Internal light
In order to reduce energy consumption, the LED light within this wine cabinet will automatically
switch off after 10 minutes. If you would prefer the LED light to remain on continuously, this is
possible. Please press and hold the "LIGHT" button for 5 seconds, the display will show "LP".
After 4 seconds the display will revert back to normal and the light will remain on until manually
switched off.
If you would like to revert back and conserve energy (recommended), press and hold the
"LIGHT" button for 5 seconds, the display will show "LF". After 4 seconds the display will revert
back to normal, and the light will automatically switch off after 10 minutes.

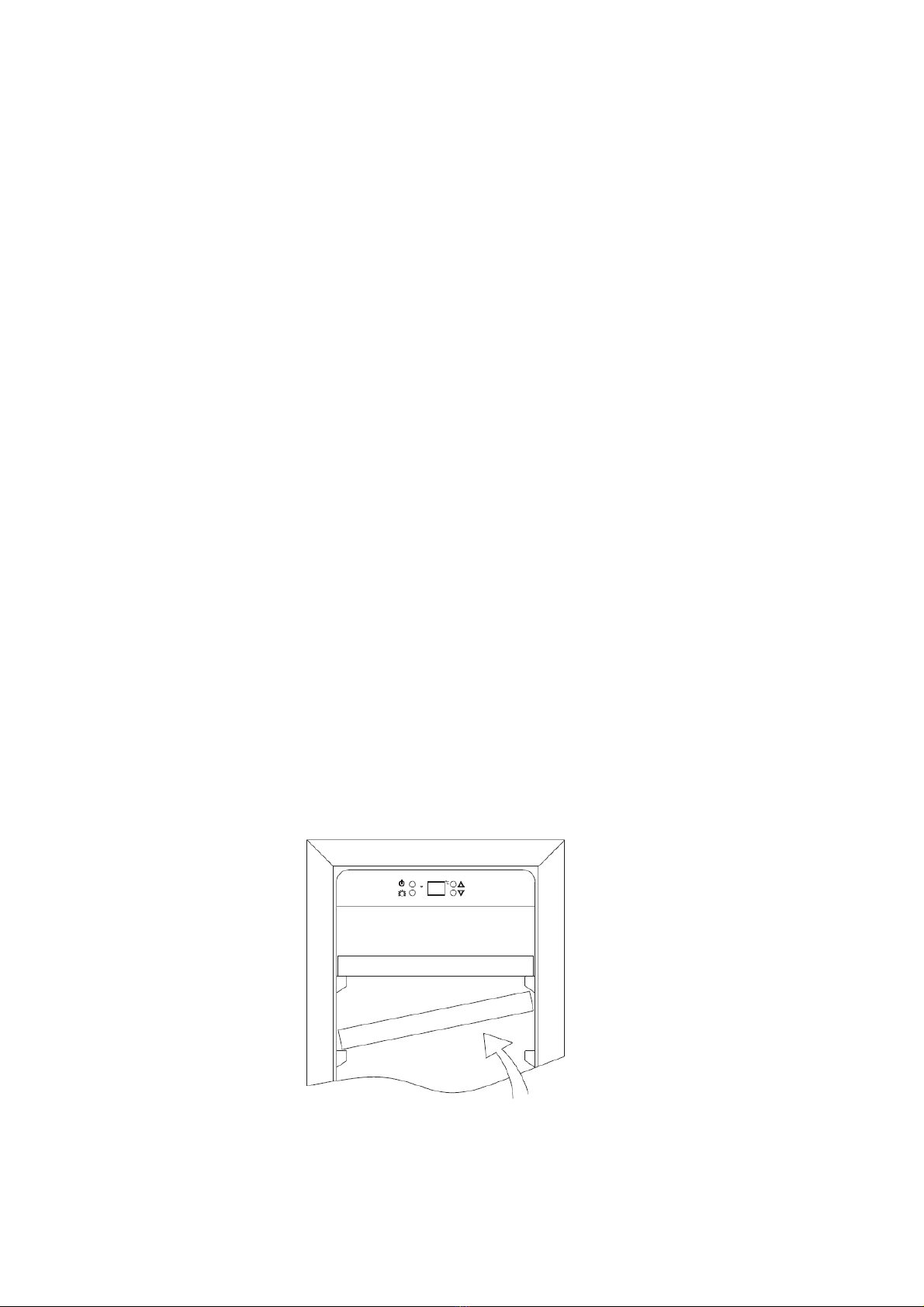

Using the shelves
•To prevent damaging the door gasket, make sure you have the door fully open when pulling
shelves out of the rail compartment.
•For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail
compartment, however this unit was designed with a notch on each sides of the shelf tracks to
prevent bottles from falling.
Removing or installing shelves
•When removing any of these shelves from the rail compartment, tilt the shelf as per the diagram
and simply pull out or to reinstall the shelf push it in until it sits on the support brackets securely.
6

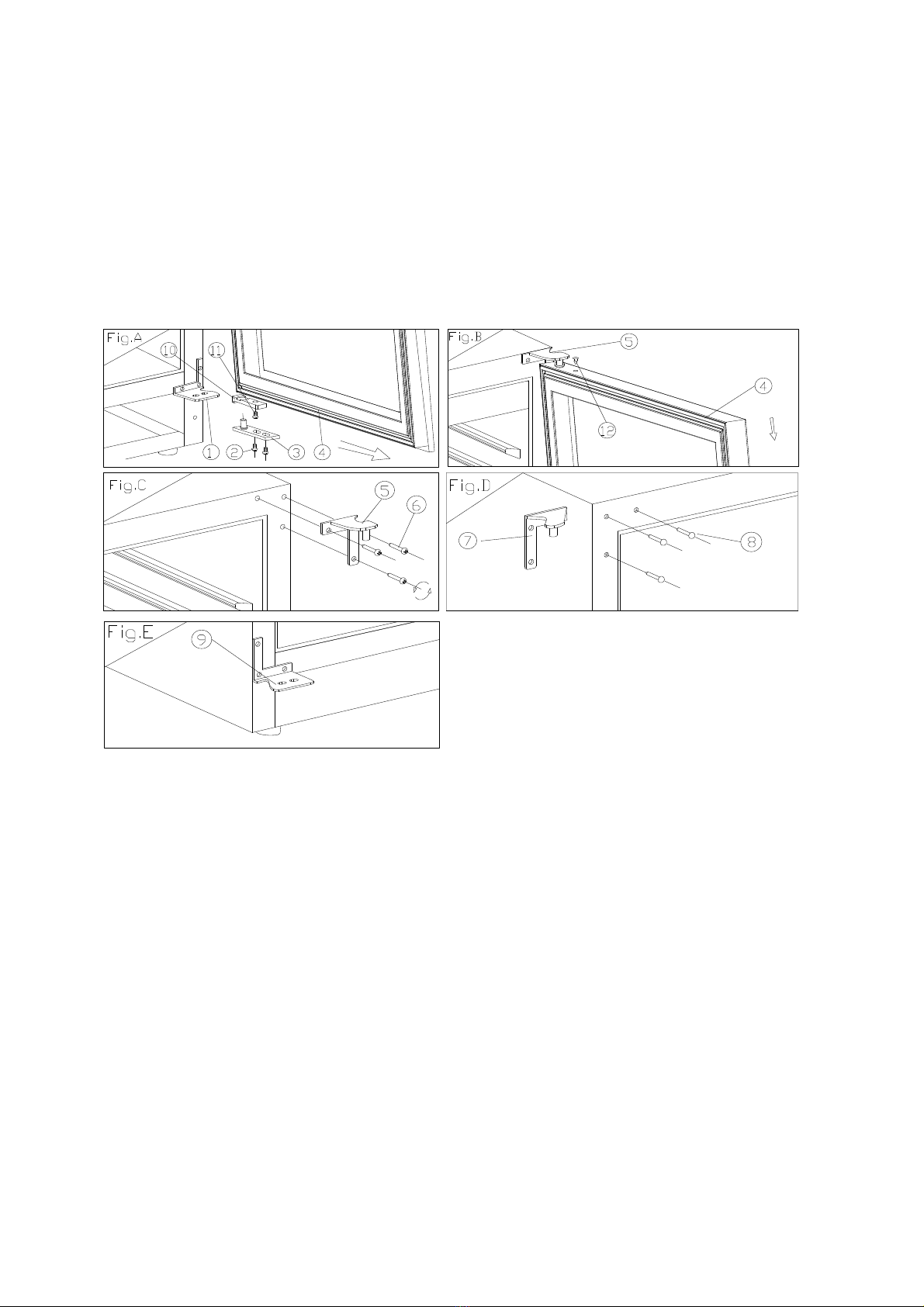

How to change the door opening

This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge
kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.
1. Lower hinge (Right) 2.Screws 3 .Door axis
4. Door 5.Top hinge (Right) 6. Hinge Screws
7. Top hinge (Left) 8.Decorative nail 9. Lower hinge (Left)
10. Door limit device 11.Screw 12. Plug
1. Open the door 90 degrees and take out the 2 screws (2) from lower door axis (3), remove the door
(4), then pull out the door and door axis (Fig. A).
2. Store the door (4) safely and take out the plug (12) from top of door frame, unscrew 1 screw (11)
at bottom and remove the Door limit device (10), then install the Door limit device (10) at top of
door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out the 3 hinge screws (6) from the top hinge (right) (5) and remove it. (Fig. C)
4. Remove the decorative nails (8) from the top left of the cabinet and install the spare top hinge
(Left) (7) at the top left of the cabinet with 3 screws. (Fig. D)
5. Following the above procedure, install the spare lower hinge (left) (9). (Fig. E)
6. Turn the door 180 degrees, install the door the same way it was removed and fix the door once
correctly aligned.
7. Block the hole at top right of the cabinet with the spare decorative nails (8).
7

Installing the decorative grill

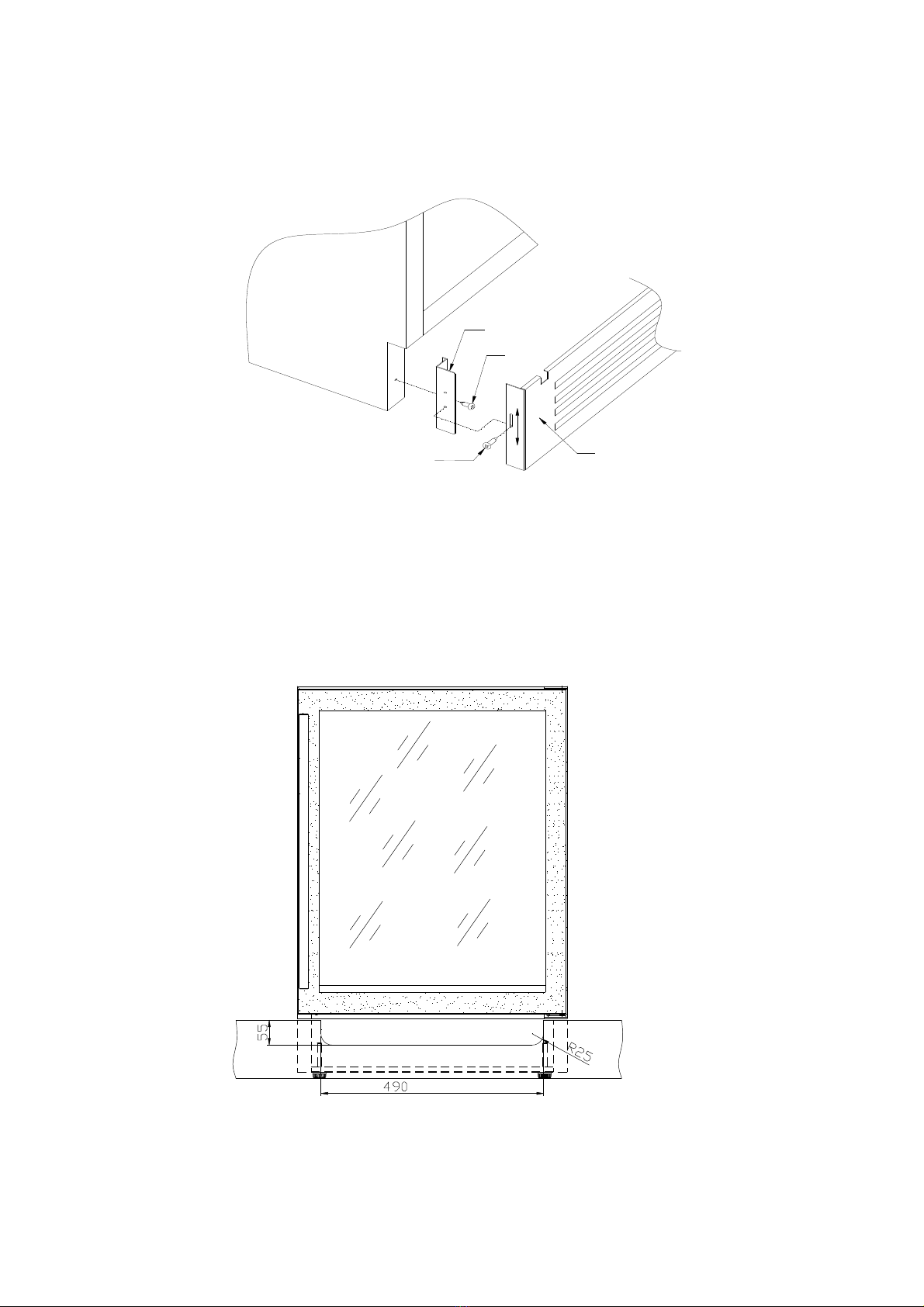

Take out the decorative frame and the brackets from the accessories box. Fix the brackets to the
cabinet with the screws provided and fix both sides of the decorative frame to the brackets with the 2
supplied screws as shown in below diagram.
Screw
Screw
Decorative,
frame
The,decorative,
frame,bracket
Fitting a kitchen plinth
This model is also recessed to fit a kitchen plinth if the above method is not preferred. A H55mm vent
slot is required in the plinth to ensure air is able to ventilate correctly. See diagram below. Failure to
include this vent slot will invalidate the guarantee. Alternatively the Caple GRILL/SENSE600 stainless
steel grill can be installed in the plinth.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
8

Installation dimensions
Fixing the top bracket!!
!
9
After installing the wine cabinet, please
open the door, adjust the fixing bracket
(a) and fix this in position with three
screws (c) using a screwdriver (d) into the
work surface/kitchen cabinet.
a) Top fixing bracket
b) Kitchen Cabinet
c) Screw
d) Screwdriver
This bracket will keep the product secure
and help prevent it moving when in use
min 825mm

!
Using the foot sliders
If you want to adjust the height over 820mm, please install the product using the foot sliders
provided. These are provided to help prevent the feet catching on the floor when sliding the appliance
into the aperture. Place the back foot in the location marked ‘Back’ below and the front foot in the
location marked ‘Front’. Once fitted to both sides of the wine cabinet the appliance can be gently
positioned into the aperture, taking care not to place excess pressure on the feet when locating the
cabinet.
!
10
Back
Front
Front
Back
Foot slider
!

Care and maintenance
Cleaning your wine cabinet
•Turn off the power, unplug the appliance, and remove all items including shelves and rack.
•Wash the inside surfaces with a warm water and baking soda solution. The solution should be
about 2 tablespoons of baking soda to 2 pints of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft cloth.
Power failure
•Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimise the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your contents.
Vacation time
•Short vacations: Leave the wine cabinet operating during vacations of less than three weeks.
•Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave
the door open slightly (blocking it open if necessary).
Moving your wine cabinet
•Remove all items.
•Securely tape down all loose items (shelves) inside your appliance.
•Turn the adjustable leg up to the base to avoid damage.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during transportation. Also protect the
outside of appliance with a blanket, or similar item.
Energy Saving Tips
•The wine cabinet should be located in the coolest area of the room, away from heat
producing appliances, and out of the direct sunlight.
11

Problems with your wine cabinet
You can solve many common wine cabinet problems easily, saving you the cost of a possible service
call. Try the suggestions below to see if you can solve the problem before calling Caple Service.
Troubleshooting guide
Problem
Possible Cause
The wine cabinet does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
The wine cabinet is not cold enough.
Check the temperature control setting.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The compressor turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the wine cabinet.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations.
Check to ensure that the wine cabinet is level.
The wine cabinet seems to make too much
noise.
The rattling noise may come from the flow of
the refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your wine cabinet.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The wine cabinet is not level.
The door will not close properly.
The wine cabinet is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
The shelves are out of position.
Caple Service contact details
If after using the Troubleshooting Guide you have been unable to solve the problem, please contact
Caple Service by telephoning 0117 938 7420 or alternatively email [e-mail].
Wine cabinet accessories can be purchased from our online shop at www.caple.co.uk
12

Defrosting/condensation
Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the
refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrost water is
channelled into a drain pan which is located at the back of the wine cabinet next to the compressor
from where it evaporates.
The humidity system
The wine cabinet is equipped with a system for maintaining the correct level of humidity. If humidity is
too low, insert the small plastic reservoir on to the top shelf. Fill this reservoir 3/4 full with water.
Check the water level occasionally and refill as necessary.
Recommended storage temperatures
For storage of ALL TYPES OF WINES 12 oc to 14 oc
Recommended drinking temperatures
Champagne NV, Sparkling 6 oc
Champagne Vintage 10 oc
Dry White Semillon, Sauvignon Blanc 8 oc
Dry White Gewürztraminer, Riesling 10 oc
Dry White Chardonnay 10 oc
Vintage Chardonnay 14 oc
Sweet White Sauternes Monbazillac,
Late Harvest ice wine 10 oc
Sweet whites vintage Sauternes 14 oc
Beaujolais 13 oc
Red Pinot Noir 16 oc
Vintage Pinot Noir red 18 oc
Red Cabernet, Merlot, French, Australian, New Zealand, Chilean,
Argentinean, Italian, Spanish, Californian 18 oc
Red Grenache, Syrah 16 oc
13

Caple
Fourth Way
Avonmouth
Bristol
BS11 8DW
www.caple.co.uk
