Congratulations!
Thank you for choosing a massage chair from the Casada family. We are pleased to be able to
support your personal health.
Please read the operating instructions carefully to familiarise yourself with the correct handling and
function in detail.
We hope you enjoy using your personal AURA massage chair.
www.casada.com
Since the company was founded back in the year 2000, the name CASADA has become synony-
mous with high-quality products in the wellness and fitness sector.
Today, CASADA devices are available worldwide. Continuous development, unmistakable design
and a strict focus on improving quality of life are just as much characteristic of CASADA products
as reliable and top-class quality.
GB
Contents
CONTENTS
<timetorelax
Remote control ..........................................................................................................................22
Touch display remote control ...........................................................................................22
Sensor buttons ...............................................................................................................23
Shoulder scan................................................................................................................24
Position .........................................................................................................................25
Neck/shoulder massage: ................................................................................................26
Lower back....................................................................................................................27
Automatic programme ....................................................................................................27
Manual operation ..........................................................................................................28
Advanced massage functions ..........................................................................................30
Air pressure massage .....................................................................................................30
Settings .........................................................................................................................31
Back .............................................................................................................................31
Quick access remote control............................................................................................32
Use of bluetooth music speakers.......................................................................................32
Specials ....................................................................................................................................33
Notes........................................................................................................................................37

23
22
Remote control
REMOTE CONTROL
Settings:
This option is displayed in the upper right corner of the
main page.
AUTO
1. ON/OFF button:
(on the top of the remote control)
• Press this button to start the massage chair. The back-
rest and footrest of the massage chair will automati-
cally move to the starting position. The main screen
appears on the display.
• Press this button again to stop all massage functions.
The massage mechanism, the backrest and the
footrest return to their original position. The massage
chair is no longer in operation.
2. Main screen
There are 6 massage modes available:
• Neck/shoulder
• Lower back
• Auto
• Manual
• Extended
• Air pressure massage
3. Sensor buttons
TOUCH DISPLAY REMOTE CONTROL SENSOR BUTTONS
Remote control
AUTO
Press this button to select the
different positions of the mas-
sage chair and the Zero-G
setting.
Reset: Press this button to
return the massage chair to its
original position.
AUTO: Press this button to
start the "Automatic" massage
mode (the default setting is
"Demo" Massage).
Main screen: Press to return to
the main menu.
REMOTE CONTROL

25
24
REMOTE CONTROL
Remote control
SHOULDER SCAN:
First select one of the massage functions “Neck/shoulder" / "Lower Back" / "Auto" / "Manual" to
adjust the massage mechanism to the most suitable position. This scan is activated only once after
each power-up. A beep sounds when the scan is complete.
REMOTE CONTROL
Remote control
1. FOOTREST:
Press this button to raise, lower, extend, or retract the footrest. The extension of the footrest can
be adjusted. By touching the sensor button on the display, the footrest is reset.
2. ADJUSTMENT BUTTON FOR THE BACKREST:
Press this button to raise or tilt back the backrest. Press again to stop at the desired position.
3. ZERO-G BUTTON:
Press this button to activate the Zero-Gravity position (the most relaxed and comfortable posi-
tion). Press again to return to the last position. This button cannot be activated in conjunction
with the "Stretch" function.
4. LED BUTTON:
Press this button to turn the Casada logo LED light on the side panels on or off.
Tap this icon to return to the main menu.
12
3
4
POSITION:

27
26
FUNCTION ADJUSTMENT PAGE
This page is displayed when you select these 4 functions:
‘Neck|shoulder’ | ‘Lower back’ | ‘Auto’ | ‘Manual’:
• 4D massage mechanisms: The intensity can be regulated over 8 levels
(massage intensity of the automatic function is preset).
• Kneading resistance, air pressure intensity, and tapping speed can
be adjusted over 5 levels. (Kneading strength and tapping speed are
preset, while air pressure intensity can be adjusted).
• The Return button is located in the upper left corner of the page. Tap
here to return to the previous page.
• The main page control button is located in the upper right corner of
the page. Tap here to return to the main page. Press the sensor button
to return to the main page and the current programme.
• The remaining massage time is displayed in the upper left corner of
the page.
• Time: 15 minutes are set as standard after the beginning of the massage. Touch the time display to
change the time lapse in the order of 15 | 20 | 25 | 30 | 5 | 10 | 15 minutes.
• The active massage method is displayed at the top right of the page. The four symbols stand for:
Kneading, tapping, shiatsu, rolling.
REMOTE CONTROL
Remote control

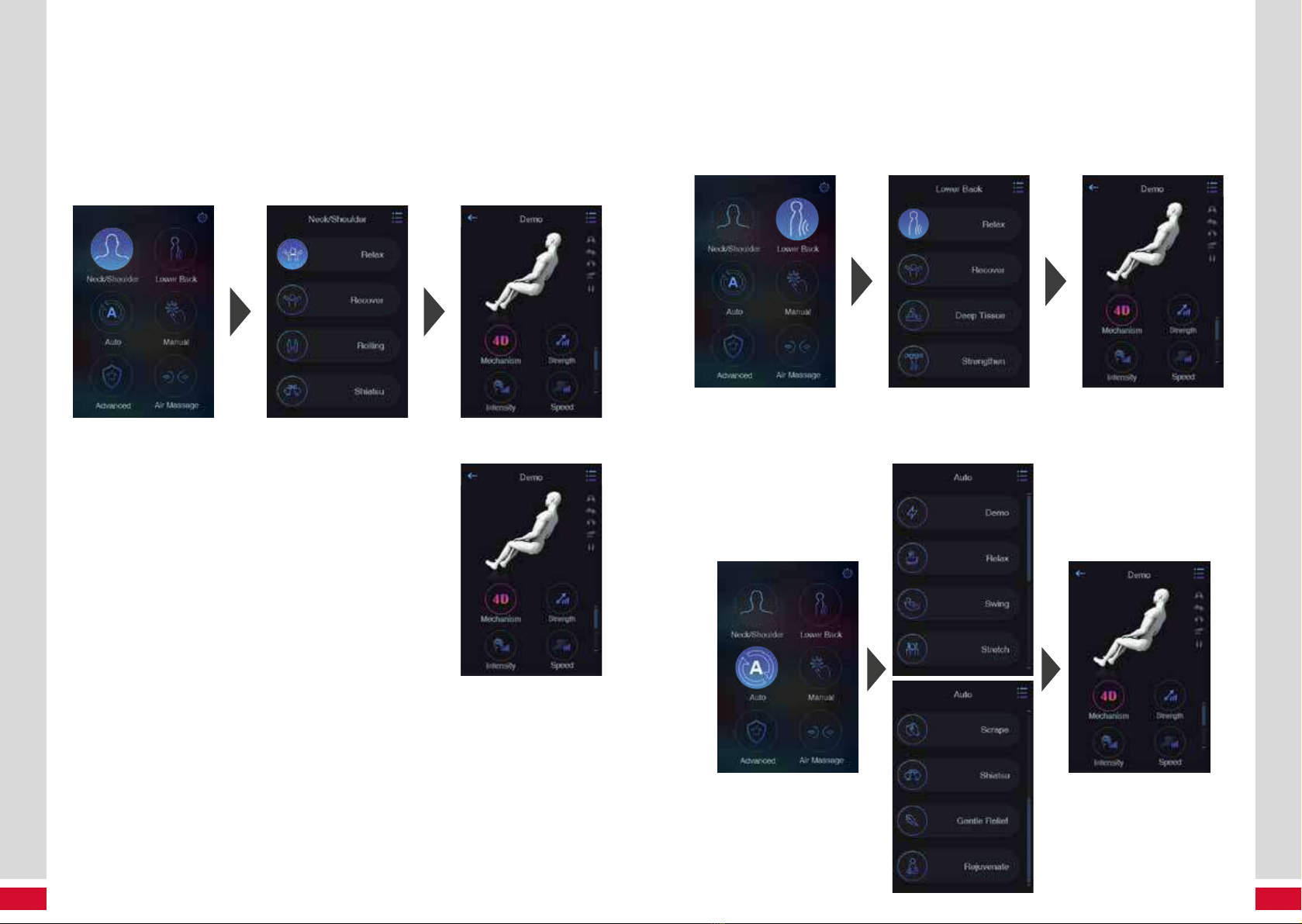

1. NECK/SHOULDER MASSAGE:
• Select the “Neck/shoulder" function on the main page of the remote control.
• There are 4 massage modes to choose from.
• After the selection, the appropriate massage begins. The remote control switches to the adjust-
ment page.
REMOTE CONTROL
Remote control
2. LOWER BACK
• There are 4 automatic massage programmes available. Select one of 4 automatic programmes to
start the massage.
• Tap this icon to open the interface for "Lower back".
3. AUTOMATIC PROGRAMME
• Tap on this icon to open the interface for the automatic programmes.
• 8 automatic massage programmes are available. Select one of the 8 automatic programmes to
start the massage.

29
28
REMOTE CONTROL
Remote control

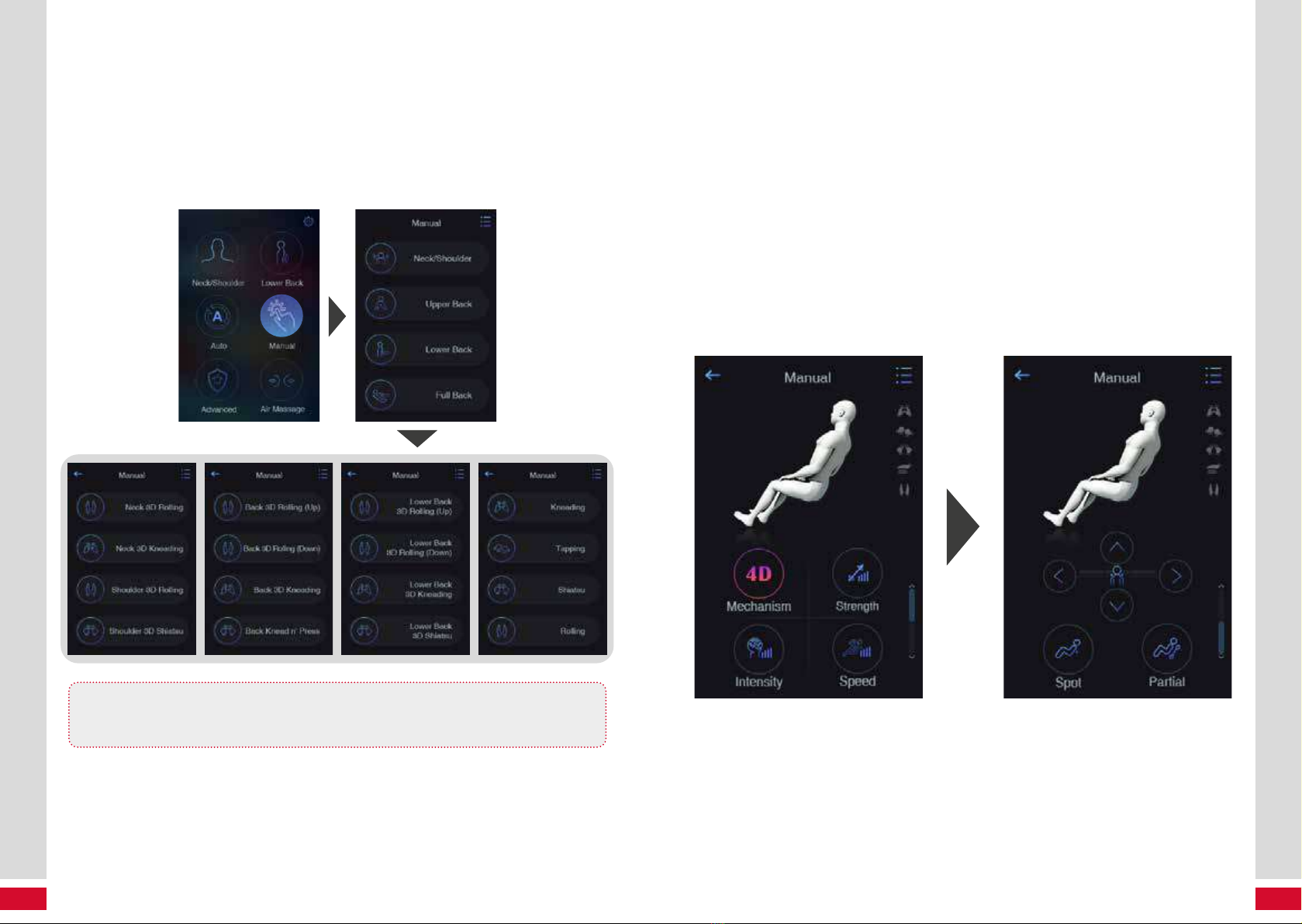

4. MANUAL OPERATION
Tap this icon to go to the [Manual] page.
• There are 4 programmes for different partial massage areas to choose from.
• Select the desired programme, then the automatic programme will start.
• The functions Kneading | Tapping | Shiatsu have two massage techniques.
NOTE: Press the Kneading, Tapping, or Shiatsu mode once to enter mode 1. Press again to
switch to mode 2. Press the button the third time to cancel the selection. Only one mas-
sage mode is available for rolling.
REMOTE CONTROL
Remote control
If the manual function is activated, you will be taken to this page:
• When the 4D massage mechanism is located in the neck & shoulders / back / midsection, the
massage intensity is automatically regulated, allowing a more careful massage pressure to be
achieved.
• Kneading strength and tapping speed are adjustable over 5 levels. With the exception of the Full
Back position, the intensity at the Neck & Shoulders / Back / Hip positions cannot be adjusted.
The air pressure intensity is adjustable over 5 levels.
• Regulation of the massage mechanism:
This can be done in the Full Back position including up and down movement and width adjust-
ment of the massage rollers to activate point or partial massage.
• Point massage is massage focused on a certain point of the body with kneading, tapping, and
shiatsu massage.
• Partial massage is massage focused over an 8 cm interval of the body area, including kneading,
tapping, shiatsu, and rolling massage.

31
30
REMOTE CONTROL
Remote control
5. ADVANCED MASSAGE FUNCTIONS
• On the main page, select "Advanced".
• Choose from 4 basic programmes: Warmth, Fast Air, 3D calf, kneading or foot kneading
massage. You can use all functions at the same time.
After selection, the appropriate massage begins:
Warmth: The massage chair has a heating function. This enables a more intensive
massage effect after being switched on.
Fast Air: This programme applies to a special air massage mode on arms and midsec-
tion, but cannot be used in conjunction with the "Air massage" function.
Calves: This massage is a kneading massage for calves.
Foot massage: The foot massage mechanism simulates the human hand to knead the feet.
6. AIR PRESSURE MASSAGE
• Select the "Air pressure massage" function on the main page.
• Select the body areas: Shoulder, arm, lower back, calf. It is possible to use them in conjunction
with each other. The air pressure intensity can be adjusted.
After selection, the appropriate massage begins.
NOTE: Can be used in combination
with the "Manual" function.
REMOTE CONTROL
Remote control
7. SETTINGS
Selection buttons:
• Language selection
• Volume
• Adjust the "Sleep Time" of the Screen
• Screen brightness adjustment
8. BACK
Click the Back button at the top right corner of the page to return to the previous
page.

33
32
REMOTE CONTROL
Remote control
9. QUICK ACCESS REMOTE CONTROL
USB charging option
On/Off button
ZeroG button
4D Massage +/– Intensity
adjustment
Auto: Button to start the demo auto programme
Pause: Pause and start button of the massage function
10. USE OF BLUETOOTH MUSIC SPEAKERS:
1. Switch on the Bluetooth function of the device (e.g. mobile phone).
2. Search for the massage chair Bluetooth name Aura music and connect to it.
(PW: 9999)
3. The connection is established. The Bluetooth music speakers can play the music of the
device.
AFTER USE
1. Switch off the main switch on the device.
2. Push the on/off switch to the "O" position.
3. Disconnect the mains plug.
WARNING
After use, it is recommended that the power switch be set to OFF and the mains plug be
unplugged, otherwise accidents and personal injury may result.
AUTO Z-G
4D
4D
BRAINTRONICS®
Braintronics® technology synchronises your brainwaves through audio stimulation.
Combined with a specially developed massage programme your stress-ridden
body will be able to relax. No matter whether you’d like to relax, dream or learn –
anything’s possible.
SHIATSU
Shiatsu (finger press) is a form of body therapy originating in Japan. The massage
technique consists of soft, rhythmic, far-reaching stretches and rotations. The aim of
Shiatsu is to simulate individual parts of the body and to mobilise the muscles.
3D MASSAGE
In this new technique, the massage robot not only moves upwards and downwards,
but also forwards and backwards.
KNEADING
Skin and muscles are either clasped and kneaded between the thumb and the index
finger or with both hands. This massage technique is used in particular to ease
tension.
TAPPING
Short, tapping movements are performed with the edge of the hand, the palm or the
fist. This promotes blood circulation in the skin and softens tense muscles. If tapping is
performed at lung height, this can improve the release of mucus in the lung.
KNEAD & TAP (DUAL ACTION)
The techniques of kneading and tapping are combined in order to relieve tension and
stimulate blood circulation at the same time.
ROLLING
Pleasant alternation between relaxation and releasing the muscles – also perfectly
suited for a final massage, for relaxation and recovery of the muscles.
CARBON HEATING
Deeply penetrating Carbon infrared heat, blood vessels expand, the blood flow in-
creases and the muscle tone is reduced. In addition, it carries out a highly beneficial
effect on nerve cells, which are responsible for reporting pain to the brain.
SOLE ROLLER
The foot massage stimulates the nerve endings and certain organs of the body, which
also relaxes the muscles.
Specials
SPECIALS

35
34
SPECIALS SPECIALS
AIR COMPRESSION
Rising and receding airbags have a pumping motion which produces natural muscle
reflexes. This is particularly beneficial in the calf and foot area.
L-SHAPE
You can expect a profound full body massage from the neck down to the buttocks.
S-LINE
With this automatic program the massage heads are working very close to your
body, they massage the whole back down to your buttocks. The S-shaped mechanic
is constructed after the natural anatomy of the spine.
ZERO SPACE
For the lying-position the massage chair moves forward and therefore requires very
little distance to the wall behind. Space saving and comfortable!
ZERO GRAVITY
You put yourself in the position of an astronaut – that “weightless feeling”.
AUTOMATIC
Specifically developed automatic programmes for the whole body, which offer a big
range of different massage techniques. Additionally you can also turn on the heating
function, if you‘d like.
BACK AREA
An individual applicable to any size massage area.
ADJUSTABLE FOOTREST
The footrest can be extended, this way it is adaptable to different body sizes.
RECLINING POSITION
The adjustability of the backrest and footrest contributes to personal well-being of the
body position.
ADJUST SHOULDER
The massage heads can be moved upward or downward to a suitable position in
the shoulder area.
AIR INTENSITY
Adjustable airbag massage intensity.
AIR AREA
Airbag-Massage für den ganzen Körper. Verschiedene Bereiche sind einzeln steuer-
bar.
SPOT
The massage heads can massage a particular spot.
SPEED
Massage speed is adjustable.
WIDTH
The distance between the both massage heads can be set (narrow, medium and
wide).
MUSIC
Further relaxation and fun with the music function.
BLUETOOTH
Wireless data transmission.
HUMAN HANDS FEELING
Specially designed massage heads imitate the hand motion of a professional mas-
seur. The maximum stretch space is 6,5 cm, and the maximum stretch angle is 41 de-
grees, so the mechanical hands can do effective massage to human cervical vertebra
thoracic vertebra and lumbar vertebra.
USB USB-CHARGER
While you relax, the integrated USB port can supply, for example, your phone with
power.
Specials Specials

37
36
QUICK START
With one touch the quick start buttons in your armrest allow you to control the most
important functions.
ARTHROSE TRACTION
Arthrosis Traction consists of gentle stretching pressure. It has a stimulating effect on
the cartilages, which enhances the transport of bodily fluids, nutrients absorbation
and can alleviate symptoms of arthrosis.
WAIST STRETCH
Airbags in the lower area of the back ensure gentle stretching of the pelvis. Effectively
counteracts tensions.
HEATED ROLLERS
The massage chair comes with the most innovative comfortable back heating on the
market so far. The rollers heat up by themselves and simulate hot stones to warm the
muscles. Compared to conventional heating systems, this provides a greater surface
area to apply heat from your neck all the way to the back of your thighs.
DUAL SENSOR BODY SCAN
The massage chair performs a body scan to capture the main areas of the neck
and back to ensure optimal pressure throughout the massage. The scan technology
detects the height of your shoulders, that can be modified after the scan, if required.
BLUETOOTH AMPHITHEATRE SOUND SPEAKERS
The massage chair is equipped with Bluetooth technology and an amphitheatre sound
system that reduces ambient noise and boosts your sound experience. In this way
you can enjoy your massage even with your favourite meditation application or your
favourite music. We recommend starting the Bluetooth speakers with the lowest vol-
ume before playing music and then gradually increasing them to your desired level.
SLIM LCD TOUCH SCREEN REMOTE CONTROL
Using the touch screen, you can select your desired massage comfortably and adjust
all other settings. You can navigate through the menu by clicking the buttons to select
Neck/Shoulder, Lower Back, Auto, Manual, Advance or Air Massage. Optionally,
you can set the massage time to a period of 5 minutes, starting from 5 minutes up
to 30 minutes.
BACK STRETCH ROLLING
Targeted stretch massages activate the body and have an invigorating effect on the
whole body.
SHOULDER GRASP
Targeted kneading massage in the shoulder/neck area – ideal for easing tension and
pain in this area.
ACUPRESSURE POINTS
Key acupressure points are massaged.
REFLEXOLOGY
Reflexology regenerates foot muscles and has a harmonizing effect on almost all
organs inside your body.
Specials Specials
SPECIALS SPECIALS
