Thank you for choosing the Cashmaster Omega 230 money counter.
The Omega 230 is an invaluable, easy to use, and highly accurate money
counting device. The Omega 230 is designed to manage your cash
intelligently, with accuracy and efciency. With the Omega 230 you will
speed up cash counting and reconciliation up to six times faster than by
hand.
Cashmaster Omega 230
F

page 1
10238E
Contents
Introduction
Introduction…………………………………………… 2
Box Items and Guidelines
Maintenance…………………………………………... 3
Charging.………………………………………………. 3
Warning……………….……………………………….. 3
Guidelines
Unpacking……………………………………………… 4
Battery......……………………………………………… 4
Keys and Display
Cashmaster Omega 230…….……………………….. 5
Keypad..........………………………………………….. 6
Tray..........…………………………………………….... 6
Screen………………………………………………….. 6
Cashmaster Key Identication
Key Identication...………...……......……..…………. 7
Fast Keys.………………………………….................. 8
Getting Started
What can you count…………………………………… 9
Switching On…………………………………………… 10
Setting Date and Time………………………………… 11
Multi Start Bank......................................................... 12
Auto Add and Auto Scroll……………………………... 13
Counting
Coins…………………………………………………… 15
Learning………………………………………………... 17
Bills……………………………………………………... 18
Non Cash.................................................................. 20
Storing/Viewing Register.......................................................... 21
Delelting Stored Register/Till.................................................... 22
Totalling, Clearing and Print……………………………..……… 23
Grams/Calculator Mode.……………………………………....… 24
Troubleshooting…………………………………………………... 25
FAQ’s...............………………………………………………….... 26
Technical Specication..…………………………………………. 28
F

page 2
10238E
Introduction
The Cashmaster Omega 230 is an electronic weighing device which calculates the value
of coins and bills. The Cashmaster Omega 230 supports your domestic currency: bills
and coins. The intuitive user friendly interface guides you through the cash counting
process. The Cashmaster Omega 230 is programmed to count the contents of a typical
cash register:
· Bills (loose, banded bundles, clipped bundles)
· Coins (loose, rolled, scoop/cup, other container)
· Checks
· Tokens/Coupons
· Manual entries ie: Checks, Credit, Debit, Gift vouchers
Using the Cashmaster you will notice some changes in the way you work:
· Reduced paperwork
· Streamlined working methods making the business more competitive
· More time to concentrate on key tasks
Guidelines
1. Place the Cashmaster Omega 230 on a rm, even surface, away from drafts
and vibrations.
2. Insert the TRAY, pushing down VERY rmly into position until it “clicks”.
3. Ensure area around the tray is kept clear.
4. The coin scoop should NOT be placed on the device before switching on.
5. Plug in the AC adaptor and switch on at the mains.
6. The device is not a counterfeit detector and hence will not detect counterfeit
money.
7. Weights may vary from the initial factory setting. It may be necessary to carry
out some initial Bill ‘learning’ in order to quickly adjust the machine to your
local conditions.
8. Ensure money is sorted by denomination before counting. Mixed denominations
cannot be counted.
9. Do not subject the device to strong impact or shock load by any means.
10. Ensure that money is placed onto the equipment with reasonable care.
Introduction
F

page 3
10238E
Box Items & Guidelines
Cashmaster Omega 230 Scoop
AC Adapter
Maintenance
Ensure power is switched off during cleaning.
Clean machine with dry cloth only. Do not use cleaning products or damp material.
Do not spill any liquids on device. If liquid is spilled on device, disconnect the power
cable and contact your supplier.
Do not leave any objects on the Cashmaster or tray when not in use.
Warning
Do not use a damaged or wet power adapter.
Do not connect power adapter with wet hands.
Do not place weights over 1.5kg on the device.
Do not disassemble the device, sensitive elements in the scale may be affected and
this will affect your warranty.
Charging
Charging takes approximately 3 hours.
Only use the device with the factory supplied power adapter.
When the LED is red this indicates that the battery is fast-charging.
When the LED is green the battery is fully charged.
When the LED is ashing the battery is very low and the unit is on slow charge.
If the LED continues to ash for more than 3 hours the battery may have a fault
(in event of this, switch off the power at the mains and contact customer support).
If any of the above are missing please contact Customer support (toll free) on:
1 - 877 - CASHMAS
F

page 4
10238E
Unpacking
1. Unpack your Cashmaster machine and check that you have a Cashmaster
scale, a tray and a power adapter.
2. Fit the tray into the top of the Cashmaster scale. Push down very rmly until
it “clicks” into place.
(To remove the tray, hold Cashmaster machine rmly and twist the tray until it
clicks, then lift the tray from the base)
3. Plug the power adapter into the socket at the back of the Cashmaster scale.
4. Place the Cashmaster scale on a rm even surface.
5. Ensure the tray is empty (the coin scoop/cup should NOT be placed on the tray
before switching on).
6. Plug the power adapter into the power source.
7. The Cashmaster can now be operated from mains power or from battery.
Battery
A fully charged battery will last up to 12 hours. When the battery is low the display will
show “low battery, recharge now”.
To fully charge the battery, plug the Cashmaster machine into the mains. The LED on
the front (located by the On/Off key) will show GREEN (for one second) then RED.
(A RED LED indicates that the battery is charging. The charging process can take up
to three hours. A GREEN LED indicates that the battery is fully charged and the unit
is connected to the external power supply. If the LED continues to ash for more than
3 hours the battery may have a fault (in event of this, switch off the power at the mains
and contact customer support). No colour indicates that the unit is running on its internal
battery.)
Guidelines
Push down
VERY FIRMLY
until you hear
a “click”
F

page 5
10238E
Keys and Display
Cashmaster Omega 230

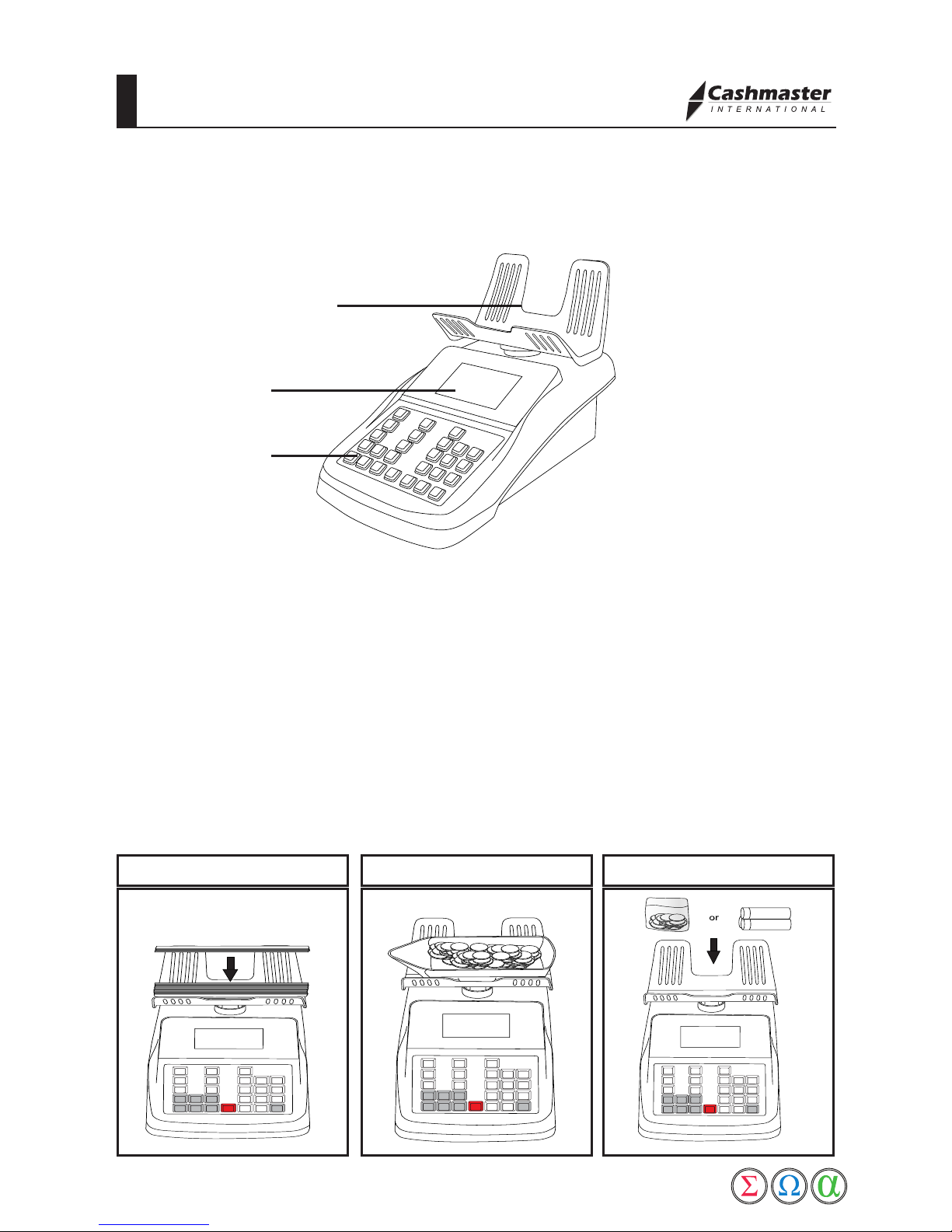

The Cashmaster machine shown above is the equipment you are going to use. You only
need to know about three component parts:
· the keypad
· the screen
· the tray
The machine is robust, and will stand up to all normal Cash Ofce activities. Treat it with
sensible care.
Coin CountingBill Counting Roll Counting
Screen
Keypad
Tray
F

page 6
10238E
Keys and Display
The Keypad
To keep counting as easy as possible, the number and layout of keys on the
keypad has been kept simple.
The ‘keys’ are ‘full motion’
similar to those on home
computers. They have their
functions printed on them.
They are designed to resist
spills and increase durability.
The Screen
This is where you will see:
- displays of the amounts counted
- messages related to Cashmaster functions
The Tray
The tray is designed to hold scoops, cups, rolled coins, loose bills and banded
bills. To insert, place the tray on the Cashmaster and push down very rmly,
until your hear a “click”.
21
.0
3
456
7 8 9
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
F

page 7
10238F
Cashmaster Key Identication
The ON/OFF key. Press once to switch machine on. Press and hold
down to switch machine off.
The STRAPPED BILL key. Push to select strapped bills and to toggle
between loose / bundled/ clipped bills.
The ROLLED COIN key. Push to select rolled/loose coins.
UP and DOWN arrow keys. There are two sets of these keys, one
set to toggle between bill denominations and another set to toggle
between coin denominations.
The PLUS key. Used to add amounts to the total.
The MINUS key. Used to subtract the last value added from the total.
The PRINT key. Press once for a print out of the totals.
The FUNCTION key. In combination with other keys is used to control
various settings.
.
The CE (CLEAR ENTRY) key. Push once to clear sub totals.
The C(CLEAR) key. Press and hold, wait momentarily and press
again to clear the grand total.
The NEW REGISTER key. Press this to save the current Register
and start a new one. And to also used to view Registers.
NON CASH key. Used for manual entry of non cash items such as
Checks, Credit, Debit, Gift vouchers and more.
The ENTER key. Use this for completing manual entries.
The DECIMAL key. Only supported in calculator mode.
NUMBER keys. Use these for completing manual entries.
Key Idendication
9
0

page 8
10238E
Cashmaster Key Identication
Fast Keys
Calculator mode

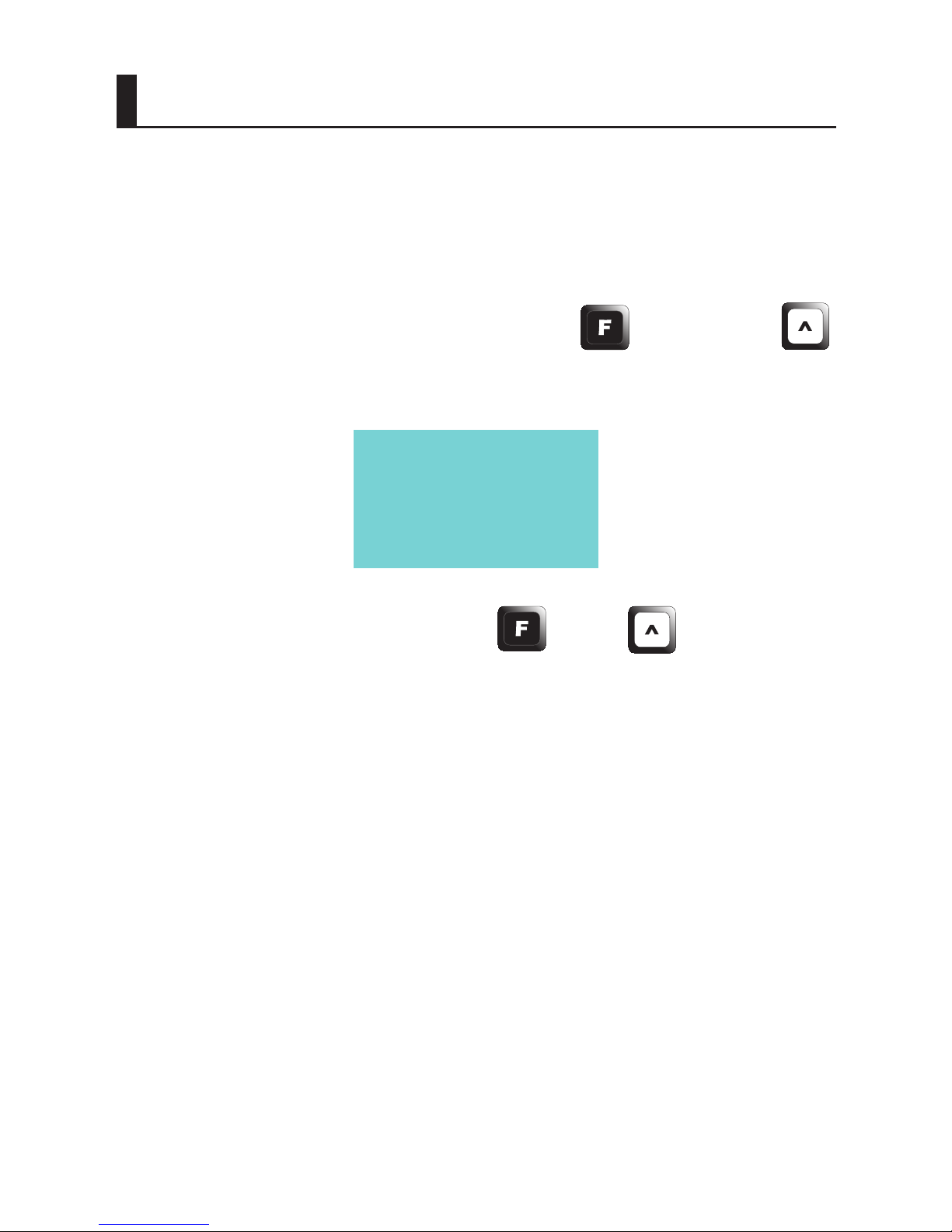

Press and hold the
“F” key and press
the “Enter” key.
This will activate
calculator mode.
Use this function for
simple calculations.
To exit, repeat as
above.
Bank On/Off
Press and hold
the “F” key and
press the “Coin
Up” key.
This will allow
your bank to
be activated or
deactivated.
Calibrate
Scoop
Press and hold
the “F” key and
press the
“ON/OFF” key
and follow
the on screen
instructions.
Set time/date

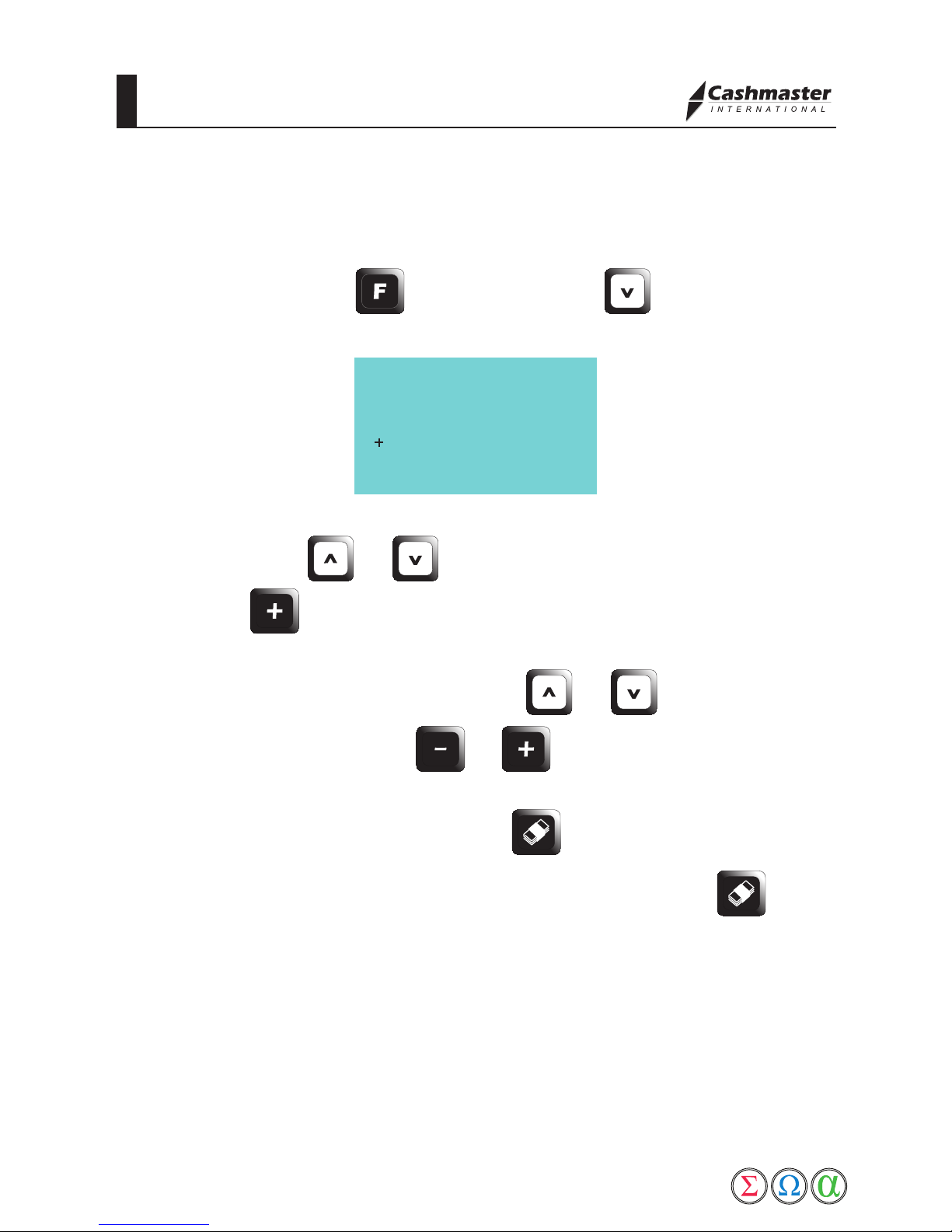

Press and hold the “F”
key and press the ‘Coin
Down’ key. This will enter
the Time/Date
setting. Use the “Coin
Up/Down” keys to toggle
and use the “PLUS (+)”
and “MINUS (-)” keys to
increase and decrease.
To exit, press the
“Strapped Bills” key.
Bank Setting
Press and hold the
“F” key and press
the “Bill UP” key.
This will allow you
to set the bank
amount. To exit,
press the
“Strapped Bills”
key.
Grams mode
Press both the
“Rolled Coin” and
“Strapped Bill” keys
simultaneously.
Use this function
to weigh objects
(max 1.5kg). To exit,
repeat as above.
View Register
Press and hold
the “F” key
and press the
“Register” key.
This will display
information
for the current
Register.
21
.0
3
456
7 8 9
Fast key functions are easy access controls that allow you to quickly enter settings within
the Cashmaster. More information is available on further pages.
To perform the fast key functions press keys simultaneously.

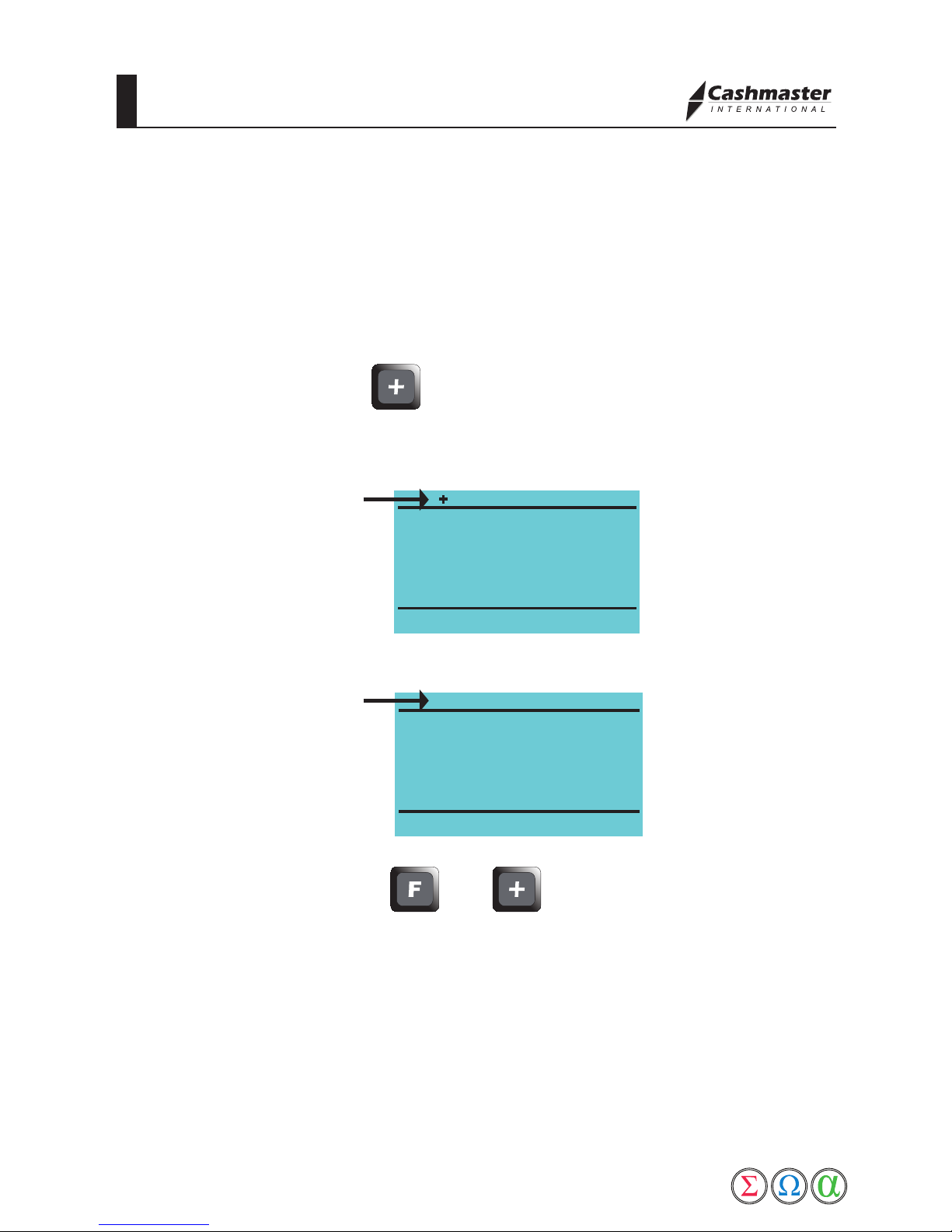

Auto Add
Press and hold
the “F” key and
press the ‘PLUS
(+)’ key. This will
toggle Auto Add
state. “ + ” will be
displayed on the
screen when Auto
Add is on.
Auto Scroll
Press and hold the
“F” key and press
the “MINUS (-)”
key. This will toggle
AutoScroll state.“ ”
will be displayed on
the screen when
AutoScroll is on.
Contrast
Press and
hold both the
“F” and “C”
keys while
using “Up” (to
increase) and
“Down” (to
decrease) the
contrast.
F

page 9
10238E
Loose - for counting loose bills.
Loose bills are counted by placing up to 30 bills at any one time.
Continue to add bills of the same denomination in quantities of
up to 30, until all bills from the selected denomination have been
counted.
Bundles - for counting strapped bills that have been packed in a
bundle.
Clips - for counting strapped bills that have been packed in a clip.
What you can count
BILLS
Rolls - for counting and checking rolls of coins.
Scoop or other container - for counting loose coins that are on a
scoop or other calibrated container.
COINS
Getting Started
Check - for inputting Check amounts.
Coupons - for inputting coupon or voucher data.
Other Cash - for inputting any other cash data. Such as, Credit,
Debit, Gift, and other Non Cash items.
OTHER
F

page 10
10238E

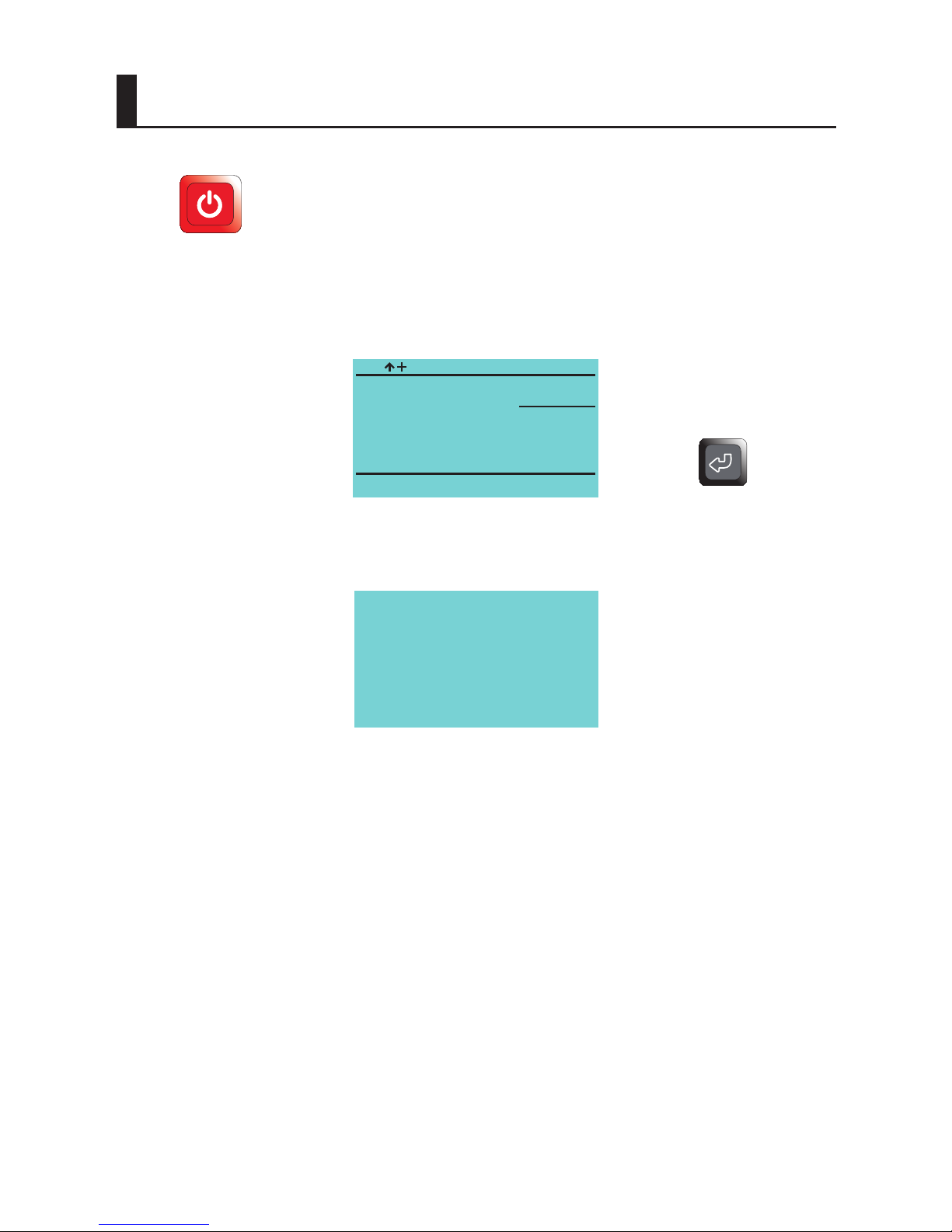

Switching on
Press
When the Cashmaster is initially switched on, it will ask for a store number. This number
can be entered by using the numerical keys (max. 5 digits). Thereafter, the number
will be stored in the memory of the machine, and will appear on any printouts from the
machine. Should the number need to be changed at a later date, this can be done by
phoning Customer Support.
1. If your Cashmaster has been set up to allow “main menu” you will see the following
screen. You will have either three choices (as below), or only two (depending if “pulls” is
allowed). See main menu below.
2. If main menu is not allowed, the Cashmaster will enter directly into count mode.
If so, please proceed to the next page.
Main Menu - Use the numeric keypad to select the count option required (1,2 or 3) and
follow on screen prompts.
Register (option 1) allows the cashier to save a count from a cash register. All cash
register counts are stored by register number and/or cashier and are held in the
Cashmasters memory until deleted by the user.
Pulls (option 2) allows the cashier to handle counting of any bills and other cash items
(e.g. checks or coupons) pulled or picked up from a register throughout a shift. All counts
are stored by register OR cashier number and are held in memory until deleted by the
user.
Count (option 3) allows counting of bills, coin and other cash items without any
reference to a particular cash register. The count is cleared whenever the New Count
key is pressed or the Cashmaster is switched off.
Use the numeric
keypad to key in your
store number, then
press the key.
Getting Started
Enter Store No.
15.12.2008 11.53
(1) Register
(2) Pulls
(3) Count
F

page 11
10238E
Getting Started
Setting the time and date
The clock facility on the Cashmaster must be set as follows when you receive the
machine. From count screen:
1. Press and hold the key and press the coin key.
2. Use the coin or key to toggle between Time and Date and then
press key to select.
3. To toggle up and down press either coin or key, and to increase
and decrease press either or key.
4. To return to Time/Date selection press key.
To exit this menu option and return to count mode, also use the key.
Set Time
[ ]
F

page 12
10238E
Multi Start Bank
Selecting a Start Bank value.
If your Cashmaster has been programmed with multiple start bank values, users can
can change the current start bank amount to one of the programmed values as follows;
When in a counting mode (ie. Register count) press the key and the coin
arrow key. The display will briey indicate the bank value selected.
To set the next bank allowed simply press the and coin key again.
(Repeat until desired bank amount is set).
Bank
100.00
F

page 13
10238E
Switching Auto-Add On/Off
Auto Add is a unique feature which allows the Cashmaster to automatically add
the value of any bill/coin amount (which is placed on the tray) to the total amount.
If Auto-Add is on, the value displayed will be automatically added to the totals whenever
the cash is placed on the tray.
If Auto-Add is off, the value displayed will not be automatically added to the totals. To
add the value you must press while the value is being displayed and the cash
still on the tray.
Your device may already have Auto Add set to on/off as default. See below
To switch Auto Add on/off press and keys simultaneously.
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
Getting Started
Indicates auto-add is on
Indicates auto-add is off
F

page 14
10238E
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
Switching Auto Scroll On/Off
Auto Scroll feature allows the Cashmaster to automatically advance to the next
denomination. This will occur after the value has been registered with the Cashmaster
and the money has been removed from the tray.
If Auto-Scroll is on, once cash is removed from the tray the denomination will
automatically be advanced.
If Auto-Scroll is off, the value displayed will not automatically advance denomination.
You must manually select the next denomination required using or keys.
Your device may already have Auto scroll set to on/off as default. See below
To switch auto-scroll on/off press and simultaneously.
Getting Started
Indicates auto-scroll is on
Indicates auto-scroll is off
F

page 15
10238E
Counting
Counting Loose Coins
Press the coin until the following is displayed.
If the denomination is not the one you want, press coin or until you reach
the correct one.
Place the cup of the selected coins on the tray; the Cashmaster will “beep” and the
display will show the value of the coin and the number of coins in the cup:
If Auto Add is on, remove the cup from the tray. The Cashmaster will update the totals,
“beep” to conrm the add, advance to the next denomination in the sequence.
If Auto Add is off, leave cup on the tray and press to add to the total.
Repeat above steps for each denomination of coin. To skip a denomination,
press coin or .
Note: If bank mode is on, the bank amount will decrease as more money is counted,
this will be displayed at the bottom of the screen. Once the bank amount has been
reached your Cashmaster will signal with a “double beep”. The screen will show the
total amount for the day and the bank value will be taken into account.
Total
Scoop
USD
Coins
1c
0
0
19.01.2009 10.15
tal
P
s
0
0
Scoop
15.12.2008 11.53
Total
X 40
USD
Coins
1c
0.40
0.40
19.01.2009 10.15
F

page 16
10238E
Counting
Rolled Coins
Press the key until the following is displayed.
Place a roll of coins on the tray. If the roll is full the Cashmaster recognizes the weight.
The denomination, together with the value, is shown on the display. For typical Roll
quantities see page 26.
For certain denominations of rolls the display will show:
You are required to select the denomination of the roll which is on the Cashmaster using
the coin or keys. Press the key to accept the value and add this to the
total.
If the machine does not recognize the weight as a full roll the following will be displayed.
then
You are required to select the denomination of the roll which is on the Cashmaster using
the coin or keys. Press the key to accept the value and add this to the
total.
To exit this mode press the key.
* Suspect * SELECT ACTUAL
DENOMINATION
(2) Possible
Results
Total
EUR
Rolls
0
0
19.01.2009 10.15
F

page 17
10238E

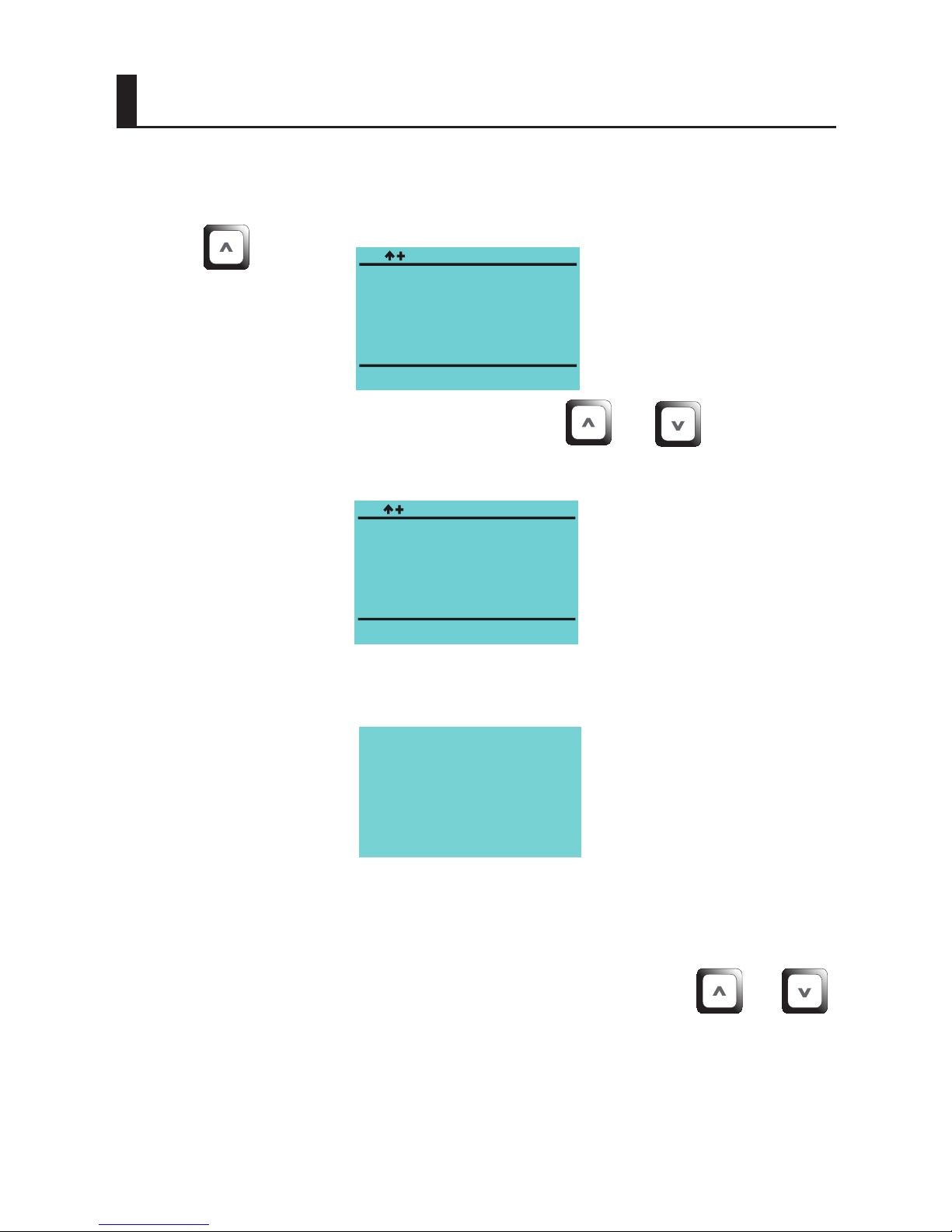

Learning - Bills Only
Ensure that the display indicates bill counting mode. Press bill to select loose
bill mode.
All Cashmaster machines are calibrated at the factory to the average bill weights of
the enabled currency. As bill weights vary slightly depending on age and usage, the
following should be completed on receipt of your new machine.
(Please ensure Auto Add/Scroll has been switched off before beginnning “Learning”
see page 13 and 14. This process is required for the cashmaster to count faster.)
1. Press bill or until you reach the bill denomination required.
2. Place 8 -10 bills of the chosen denomination on the tray.
3. When the Cashmaster “beeps” add some more bills.
4. Remove all bills from the tray.
5. Repeat steps 2 - 4 several times and each time try to increase the number you
can apply in one slice. After repeating a few times you should be able to apply
25 - 30 bills in one go.
If the display shows :
remove a few until you see a valid reading, then continue.
Too many
Remove Some
Counting
F

page 18
10238E
Counting
Counting Loose Bills
Ensure that the display indicates bill counting mode (as below). If it doesn’t,
press bill to select loose bill mode.
If the denomination is not the one you want, press bill or until you reach
the correct one.
Place bills of the selected denomination on the tray.
Bills should be applied in slices of up to 30 bills at a time. The device is constantly
learning, if too many bills are applied this message will be displayed.
Simply remove a few bills until the message disappears, then continue adding bills to
those already on the tray.
When all bills of the current denomination have been applied, repeat above steps
for each other denomination of bill. To skip a denomination, press bill or
key.
Too many
Remove Some
Total
USD
Bills
$1
50.00
50.00
19.01.2009 10.15
X 50
Total
USD
Bills
$1
0
0
19.01.2009 10.15
F
