CBX ATON BASIC User manual
ECE R44/04 Gr. 0+ | -13kg (- ca.18M)
EN / RU / TR
CBX ATON BASIC
USER GUIDE
2
3
EN
WARNING!
This short manual serves as an overview only. For maximum protection and best comfort for your child it is
essential to read and follow the entire instruction manual carefully. Correct Order: Baby seat initial setup - fasten child -
fasten baby seat in the car.
RU
TR
UYARI!
önemlidir.
4
1 2
6 7
SHORT INSTRUCTION
C
A
B
EN
RU
TR
5
3
8
4
9
5
10
CLICK
6
7
DEAR CUSTOMER!
THANK YOU VERY MUCH FOR PURCHASING THE CBX ATON BASIC.
WE ASSURE YOU THAT IN THE DEVELOPMENT PROCESS OF THE CBX ATON BASIC WE FOCUSED ON
QUALITY SURVEILLANCE AND COMPLIES WITH THE STRICTEST SAFETY REQUIREMENTS.
8
11/2013
ATON BASIC
WARNING!
essential to use and install the CBX ATON BASIC
according to the instructions given in this manual.
CBX ATON BASIC – baby car seat
ECE R44/04 group 0+
Age: To approximately 18 months
Weight: Up to 13kg
Recommended: For vehicle seats with three-point
automatic retractor belt according to ECE R16
Note! Please always have the instruction manual at hand
and store it in the dedicated slot under the seat.
Note! According to local codes the product characteristic
can be different.
EN
CBX
ATON BASIC
ECE R 44/04
up to 13 kg
UNIVERSAL
04301297
CYBEX GmbH
Germany
E1
9
RU
UYARI!
CBX ATON BASIC
ECE R44/04 group 0+
Tavsiye edilir:
Not!
gösterebilir.
TR
10
CONTENT
SHORT INSTRUCTION.................................................................... 4 + 5
APPROVAL................................................................................................ 8
THE BEST POSITION IN THE CAR / FOR THE PROTECTION
OF YOUR CAR ....................................................................................... 12
CARRYING HANDLE ADJUSTMENT ................................................. 14
ADJUSTING THE SHOULDER BELTS ............................................... 16
SAFETY FOR YOUR BABY.................................................................. 18
SECURING THE BABY ......................................................................... 20
SAFETY IN THE CAR ............................................................................ 22
INSTALLING THE SEAT ............................................................... 24 + 26
REMOVING THE CAR SEAT................................................................ 26
SECURING YOUR CHILD CORRECTLY............................................ 28
INSTALLING THE BABY SEAT CORRECTLY........................... 28 + 30
REMOVING THE INSERT..................................................................... 30
OPENING THE CANOPY / CYBEX TRAVEL-SYSTEM /
DEMOUNTING........................................................................................ 32
PRODUCT CARE / IN CASE OF AN ACCIDENT............................... 34
CLEANING .............................................................................................. 36
REMOVING THE COVER / ATTACHING THE SEAT COVERS....... 38
DURABILITY OF PRODUCT................................................................. 40
DISPOSAL / PRODUCT INFORMATION ............................................ 42
WARRANTY ............................................................................................ 44
11
............................................................. 4 + 5
............................................................................................ 9
..................................................................... 13
................................................. 15
............................................. 17
.................................... 19
............................................................................ 21
.................................................. 23
.............................................................25 + 27
........................... 27
................................. 29
..............29 + 31
.......................................................................... 31
................................. 33
.. 35
................................................................................................... 37
..................... 39
................................................................................. 41
....................... 43
.............................................................................................. 45
KISA TALIMATLAR .............................................................................4 + 5
ONAY.......................................................................................................... 9
.................................................................................. 13
............................................................................. 15
............................................... 17
................................................................... 19
...................................................................... 21
.............................................................................. 23
..........................................................25 + 27
............................................................ 27
..................................... 29
....................29 + 31
................................................................ 31
......................................................................... 33
................................................. 35
................................................................................................. 37
.................................... 39
.................................................................................... 41
...................... 43
GARANTI................................................................................................. 45
12
THE BEST POSITION IN THE CAR
It is possible that some car seats that are made of soft
FOR THE PROTECTION OF YOUR CAR
Note! High volume front-airbags expand explosively. This
can result in the death or injury of the child.
WARNING! Approval of the seat expires immediately in
WARNING! Do not use the ATON BASIC in front seats
equipped with activated front-airbag. This does not apply
to so-called side-airbags.
Note! If the baby seat is not stable or sits too steeply in
WARNING! Never hold a baby on your lap while driving.
be impossible to hold onto the baby. Never use the same
seat belt to secure yourself and the child.
13
Not!
UYARI!
UYARI!
Not!
UYARI!
14
C
B
A

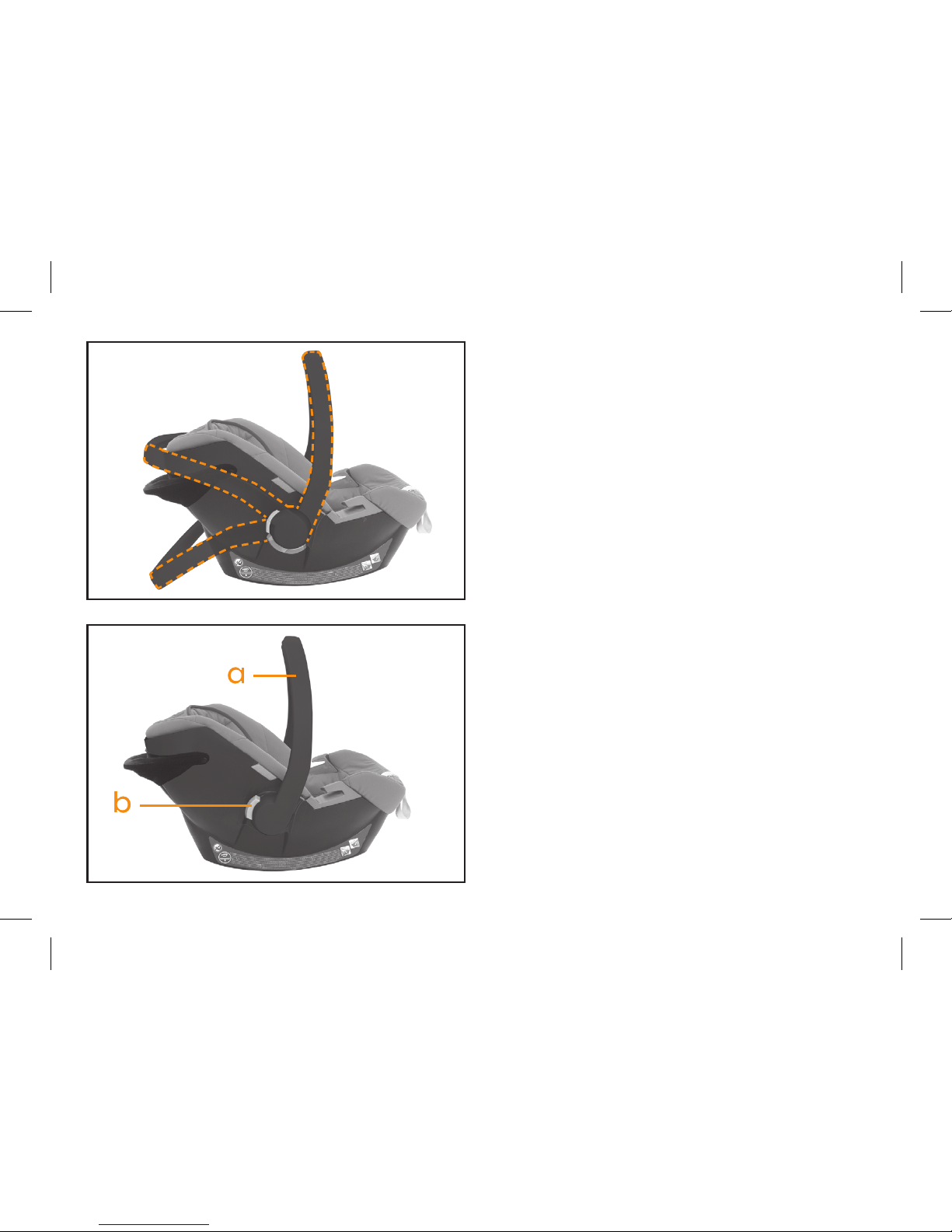

The carrying handle can be adjusted into three different
positions:
A: Carrying/Driving-Position.
B: For placing the baby in the seat.
C: Safe sitting position outside the car.
WARNING! Always secure the baby with the integrated
harness system.
WARNING! In order to avoid unwanted tilting of the seat
carrying position A.
In order to adjust the handle press buttons bon left and
right side on the handle a.
Adjust the carrying handle ato the desired position by
pressing the buttons b.
15
A:
B:
C:
ba.
b.
A:
B:
C:
UYARI!
sabitleyin.
UYARI!
A
bbutonlara
Butonlara b
16
To adjust the height of the shoulder belts cplease follow
the next steps:
When the baby is approximately 3 months the seat insert
can be removed to provide enough space for the child
(see page 30).
The height of the shoulder belts cmust be adjusted in
such a way that they run through the belt slots sdirectly
above the baby‘s shoulders.
Press the red button to open the buckle e.
Pull the shoulder pads dover the belt tongues tto
remove them.
First pull one buckle tongue tthrough the cover and out
of the belt slot s. Now insert it again through the next
higher slot. Repeat this step to the adjust the other side
as well.
Note! Only if the shoulder belts care adjusted correctly
optimum security can be provided.
Note! Please make sure that the shoulder belts care not
through the belt slots sand down to the buckle e.
17
c
e.
dt
t
s
c
se.
Omuz kemerlerinin c
izleyiniz.
Omuz kemerlerinin c
s
e
Omuz pedlerini d
t
s
Not!
Not! Lutfen omuz kemerlerinin c
e
e
18
SAFETY FOR YOUR BABY
Note! Always secure the baby in the child seat and never
leave your child unattended when putting the ATON BASIC
bench ...).
Note! Never leave your child in the car unattended.
WARNING! Plastic parts of ATON BASIC heat up in the
sun. Your baby may get burnt. Protect your baby and the
car seat from intense exposure to the sun (e.g. putting a
white blanket over the seat).
Take your baby out of the car seat as often as possible in
order to relax its spine.
using the ATON BASIC outside the car.
19
Not!
Not!
UYARI!
Uzun yolculuklarda mola verin. Bunu ATON BASIC‘u
20
c
e
e
h
d
g
t

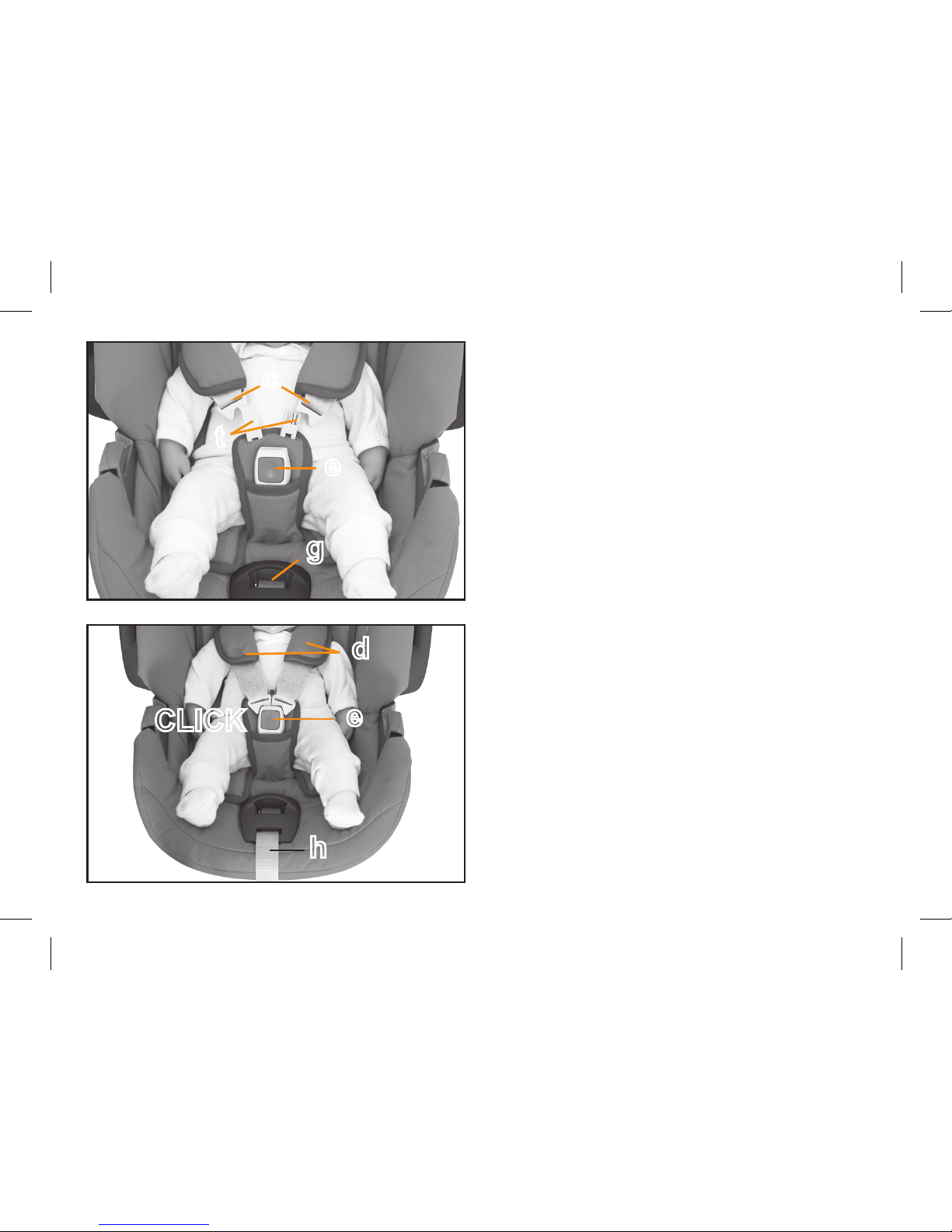

SECURING THE BABY
Note! Please remove all toys and other hard objects from
the car seat.
Note!
baby and the shoulder belts.
Note! Make sure that the shoulder belts care not twisted.
Open the buckle e.
To loosen pull up the shoulder belts cwhile pushing the
central adjuster button gand pulling the shoulder belts
cup. Please always pull the belt tongues tand not the
belt pads d.

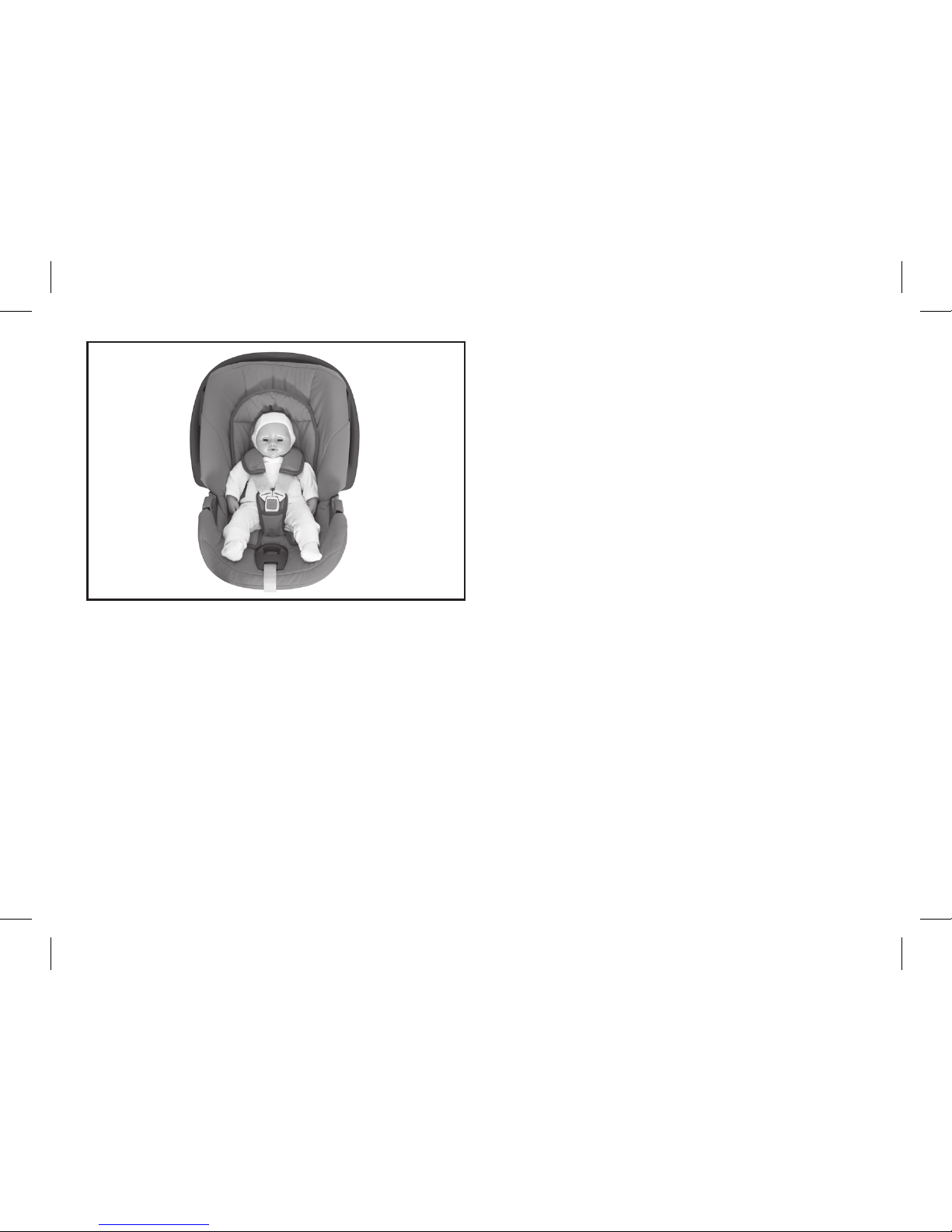

Place your baby into the seat.
Put the shoulder belts c straight over the baby‘s
shoulders.
Join the buckle tongue sections ttogether and insert
them into the buckle ewith an audible Pull the
central adjuster belt h
baby‘s body snugly.
Push the red button to open the buckle e.
