WPP-531-DD OR SSP-511-DD-SPK-DD-ADA-R1(1999)-BlackButtons-ISSUE4.0
SERVICE MANUAL
FOR
MODEL WPP(HOB)-531-DD-ADA
WEATHERPROOF TELEPHONE
OR
MODEL SSP-511-DD-ADA
STAINLESS STEEL PANEL TELEPHONE
EQUIPPED WITH SPK-DD-ADA-R1 FIRMWARE
BLACK CALL BUTTONS
Serving the Telephone Industry Since 1930
Communication Equipment 519 West South Park Street
& Engineering Company Okeechobee, FL 34972
Voice: 863-357-0798
Fax: [phone]

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER
MODEL WPP(HOB)-531-DD-ADA OR
SSP-531-DD-ADA EQUIPPED WITH SPK-
DD-ADA-R1 FIRMWARE
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment & Engineering Company
519 West South Park Street
Okeechobee, Florida 34972
[phone] Voice
[phone] Fax

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION................................................................................................... 4
2.0 GENERAL............................................................................................................... 4
3.0 PROGRAMMING.................................................................................................. 5
PROGRAMMING CONTINUED…..................................................................... 6
3.8 BLACK CALL BUTTON:..................................................................................... 6
3.9 RED EMERGENCY BUTTON: ........................................................................... 6
PROGRAMMING CONTINUED…..................................................................... 7
4.0 OPERATION .......................................................................................................... 7
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT.................................... 7
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS..................... 8
7.0 TESTING................................................................................................................. 9
8.0 SPECIFICATIONS............................................................................................... 10
9.0 PARTS LIST ......................................................................................................... 11
10.0 REPAIR AND RETURN INFORMATION...................................................... 12
11.0 WARRANTY POLICY........................................................................................ 13
12.0 DIAGRAM............................................................................................................ 14

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
the CEECO Model WPP 531-DD-ADA Handsfree Weatherproof Telephone or
Model SSP-511-DD-ADA Handsfree Stainless Steel Panel Telephone.
The information in this manual is subject to change without notification.
For information not included in this manual, please call or write:
CEECO
Customer Service
519 West South Park Street
Okeechobee, FL 34972
[phone]
FAX [phone]
2.0 GENERAL
2.1 The CEECO Model WPP-531-DD-ADA Handsfree Weatherproof
telephone and Model SSP-511-DD-ADA are sturdy, vandal resistant,
Stainless Steel Panel Speakerphones. The Weatherproof model is
contained in a cast-aluminum, weatherproof housing. Instead of a
hookswitch and handset, they have Black Call Buttons for the automatic
dialing of preprogrammed telephone numbers. The preprogrammed
numbers may be up to eleven digits. The left hand button is the
controlling button. When a call is made with the right hand button, the left
hand button must be pressed to immediately end the call. Otherwise, the
phone will rely on the wink detect (the other party hangs up) or the pre-
programmed timing feature to hang up or reset.
2.2 The phones are equipped with an LED light, which illuminates red during
“off-hook” periods, flashes red and green during dialing, and illuminates
green when the call is answered.
2.2 The microphone is muted during periods of dial tone eliminating the use
of hand held dialers.
2.3 Incoming calls may be allowed or blocked depending on the
programming.
2.4 Programming is accomplished via the DTMF keypad located near the PC
board of the phone.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5
3.0 PROGRAMMING
3.1 Separate the telephone assembly from its mounting or housing by
loosening the four security screws on the stainless steel panel with a
security tool (sold separately) and remove them.
3.2 Connect the telephone to a working telephone line or DTMF test set.
3.3 Locate the two plastic mini-jumpers on the edge of the PC board and
place them in the "ON" position, as depicted on the last page of this
manual.
3.4 Press the LEFT black call button on the front of the panel to begin
programming. You should receive dial tone.
3.5 Each programming location is accessed by dialing the "#" sign and a two
digit code. The valid program locations are #00, #01, and #19. The
previous contents of the location are automatically erased when the
location code is dialed.
3.6 To begin, enter #97 on the keypad to clear all user-programmable
memory.
NOTE: Once the # key has been entered, you may hear a fast busy tone,
an operator recording, or other Central Office signals. Please disregard
these sounds and continue programming, as they will have no effect on the
programming.
3.7 Location "00" is the telephone options program location. By entering 0 or
1 into each of the 5 digits found under location #00 on the next page, the
phone is customized to each particular installation. So after dialing #97,
enter #00 followed by your selections for the five digits. For example,
enter #97#0000101. This entry will set the phone for no incoming calls,
wide dial tone-detection window, time-out disconnect enabled, with a 3
minute time-out. Notice that the dialing is done in a continuous sequence
with no pauses or steps in between.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6
PROGRAMMING CONTINUED…
LOCATION #00
Digit 1:
Always 0. Not used in this model.
Digit 2:
0 No incoming calls allowed.
1 Incoming calls allowed.
Digit 3:
0 Use narrow dial tone detect window.
1 Use wide dial tone detect window.
Digit 4:
0 Time-out disconnect enabled.
1 Time-out disconnect disabled.
Digit 5:
0Time-out of 1.5 minutes.
1Time-out of 3.0 minutes.
*Do not stop your programming sequence yet, however. You must now enter the
numbers to be auto-dialed.
3.8 LEFT BLACK CALL BUTTON
To program the number to be automatically dialed by the left hand call button,
enter # 1 9, followed by the desired number. The number may be up to eleven
(11) digits in length. Example: #1918005551212. When the left button is
pressed, the number 1-800-555-1212 will automatically dial out.
3.9 RIGHT BLACK CALL BUTTON:
To program the number to be automatically dialed by the right hand button, enter
# 0 1 followed by the desired number. The number may be up to eleven (11)
digits in length. Example: #01911. When the right button is pressed, the
number 911 will automatically dial out.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7
PROGRAMMING CONTINUED…
NOTE: A complete programming sequence would appear as follows:
#97#0000101#1918005551212#01911. This would set the phone as stated in the
examples under sections 3.7, 3.8 and 3.9. Again notice that the programming
can be accomplished in one continuous.
3.10 When programming is finished, press the LEFT black call button to hang
up the phone and return the two plastic mini-jumpers to the "OFF"
position, as depicted on the last page of this manual. The phone is now
ready for use.
4.0 OPERATION
4.1 To make a call, press the left or right call located on the front of the phone.
The LED will light red at this time and the preprogrammed number will
dial out. While the phone is ringing, the LED will flash back-and-forth
between red and green. When the called party answers the LED will turn
green after approximately 2-4 seconds. Please note that the ADA feature
will only function on a working telephone line and not on a DTMF test
set. The microphone is active immediately after the preprogrammed
number is released.
4.2 After the call is completed, press the black call button (left) to hang up the
phone. Otherwise the phone will only hang up after detecting the far end
wink back or it times out, if so programmed.
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
DTMF test set
Volt/Ohm meter
3/8” Nut Driver
Flat Blade screwdriver
Security Tool (CEECO P/N 301-064)

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS
6.1 Using a 301-064 security tool (sold separately) loosen and remove the
security screws.
6.2 The security tool is for a standard 5/32" button head screw generally used
on the framework of the phone booths.
6.3 Separate the faceplate assembly from the weatherproof housing or
mounting by pulling the faceplate forward.
6.4 Run the inside station wire into the enclosure and terminate on the RJ1lC
terminal block inside.
6.5 The use of a gas tube station protector is recommended. The station
ground should not exceed 50 ohms.
6.6 Plug the modular line cord from the faceplate assembly into the RJ11C
terminal block.
6.7 If you have not programmed the numbers then they should be entered
now. See section 3.0.
6.8 Dress the line cable away from the security screws and seat the faceplate
into the weatherproof housing or mounting.
6.9 Secure the cover assembly by tightening the security screws.
*****WARNING*****
A. Never install telephone wiring during a lightning storm.
B. Never install telephone jacks in wet locations unless the jack
is specifically designed for wet locations.
C. Never touch uninsulated telephone wires or terminals unless
the telephone line has been disconnected at the network interface.
D. Use caution when installing or modifying telephone lines.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9
7.0 TESTING
Action: Connect the phone to the line.
Press the LEFT black call button.
Reaction: The LED will illuminate red and the preprogrammed number will
automatically dial out. The LED will flash red and green during ringing.
The LED will turn green when the call is answered (within a maximum of
four seconds). A normal speakerphone conversation should take place.
Action: When the call is finished, press the left black call button or wait until
timeout occurs.
Reaction: The call is terminated and the LED will turn off.
Action: Press the RIGHT call button.
Reaction: The LED will illuminate red and the preprogrammed number will
automatically dial out. The LED will flash red and green during ringing.
The LED will turn green when the call is answered (within a maximum of
four seconds). A normal speakerphone conversation should take place.
Action: When the call is finished, press the LEFT black button or wait until
timeout occurs.
Reaction: The call is terminated and the LED will turn off. The phone will return to
an “on-hook” condition, ready for additional calls.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
10
8.0 SPECIFICATIONS
INPUT POWER: C.O. Line powered
LOOP CURRENT: 30mA minimum 80 mA maximum
IMPEDANCE: 600 ohms
SIGNALING: DTMF, 70ms tone, 50 ms spacing
OUTPUT: -4.0dbm to -6.0dbm
ENVIRONMENTAL: Temperature 0o C to 50o C
Humidity 20%-90%
PROGRAMMING: Via DTMF keypad.
MEMORY RETENTION: Non-volatile storage (does not require power for
retention).
DIMENSIONS: 7 1/6" Wide x 11 1/4" High x 4 1/4" Deep
(SSP) (Handset on hook)
MOUNTING: Vertical Surface Mount.
WEIGHT: Approximately 4 Pounds.

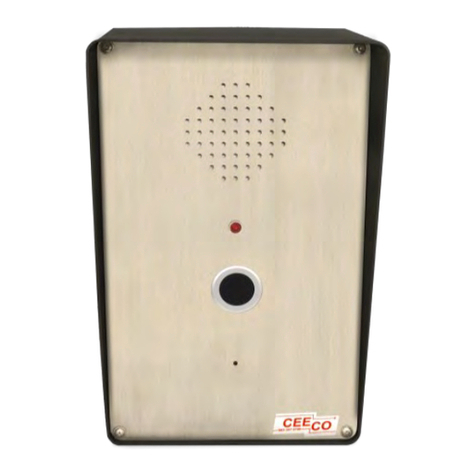

WEATHERPROOF
HOUSING: Cast Aluminum
DIMENSIONS: 9 ½” Wide x 12 5/8” High x 8” deep.
(WPP) (including door).
MOUNTING: 4 holes spaced 8” x 5 7/8” x 13/32”
(or optional pole mounting bracket)
WEIGHT: Approximately 12 pounds.
UL LISTED NO.: 6OF5
FCC REGISTRATION: BW-88T7-68447-KX-T
TYPE JACK: RJ11C

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11
9.0 PARTS LIST
QUANTITY PART NUMBER DESCRIPTION
4 9024 OUTER COVER SECURITY SCREW
1 301-018 MODULAR LINE CORD
1 531-000 FACE PLATE
1 301-054 MODULAR CONNECTOR (RJ11C)
1 531-200 SERVICE MANUAL
1 700-008 KEYPAD CABLE
1 660-000 CEECO SPK BOARD
1 705-110 CONNECTORIZED KEYPAD
2 6020-B MOMENTARY PANEL SWITCH
1 14024 SPEAKER
1 12017 RINGER
ACCESSORIES:
1 301-064 SECURITY TOOL

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12
10.0 REPAIR AND RETURN INFORMATION
10.1 WARRANTY REPAIR
Any device returned requiring warranty service, repair or credit must be
accompanied with a "Return Material Authorization" (RMA) FORM. It
must include: return shipping instructions, original purchase order number
and special marking instruction. A description of the trouble observed
must be attached to the defective unit. This information must be inside the
shipping container.
10.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
519 West South Park Street
Okeechobee, FL 34972
[phone] Voice
[phone] Fax
10.3 NON-WARRANTY REPAIR
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs both directions.
10.4 RETURN FOR CREDIT
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 20% restocking charge based on the
manufacturer’s list price. Return RMA must be requested no later than 30
days after original shipment.
10.5 EXCHANGE POLICY
If a replacement unit is required it will be shipped in the most expedient
manner consistent with the urgency of the situation. Please contact
"customer service" for instructions regarding exchange of modules or
printed circuit boards.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13
11.0 WARRANTY POLICY
11.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 365 days from the date of original purchase.
CEECO's obligation under this warranty is limited to repair or
replacement of any part found to be defective by CEECO. Under no
circumstances shall CEECO be liable for loss, damage, cost of repair or
consequential damages of any kind which have been caused by neglect,
acts of God, abuse or improper operation of equipment.
11.2 PRINTED CIRCUIT BOARDS
Printed circuit boards should not be repaired in the field. If a unit is found
to be faulty, replace it with another unit and return the faulty unit to
CEECO for repair. Modifications by anyone other than CEECO will void
the warranty.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
12.0 DIAGRAM
When programming is
completed, move the mini
jumpers to the OFF
position.
NOTE:
Do not leave the mini jumpers in the ON position;
this will decrease battery life.
Move the mini jumpers to
the ON position
BEFORE going off-
hook.
Locate the mini jumpers
on the corner of the PCB.
ON
OFF
ON
OFF
ON
OFF
