Celexon HomeCinema CLR UST User manual

Operating instructions

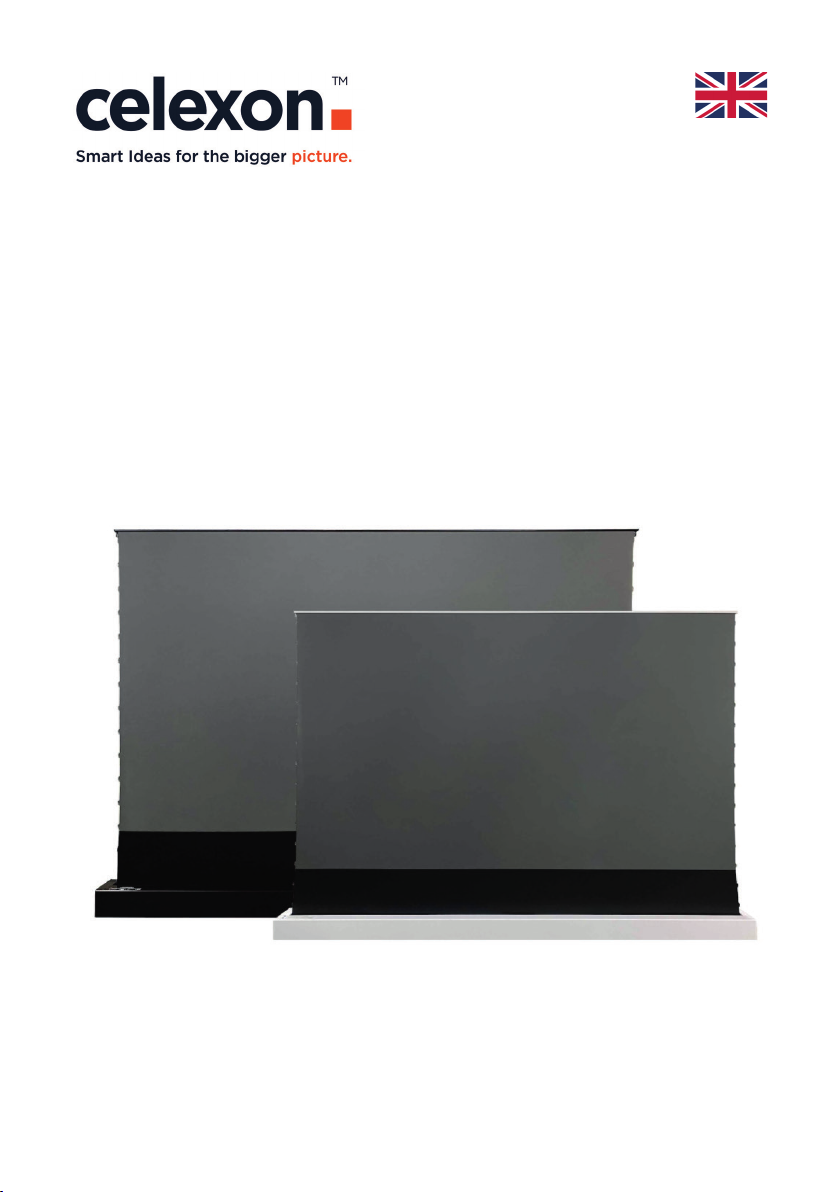

celexon CLR HomeCinema UST
Electric Floor High Contrast
Screen
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully
before connecting or operating this product. Please retain these instructions for future
reference.
Version: 32422_061

1
The purpose of these operating instructions is to familiarise you with the operation of
this product. Therefore, keep these instructions in a safe place so that you can refer to
it at any time.
• Before installation, please refer to the enclosed data sheet for further safety and use
instructions.
• Do not begin installation until you have read and understood the complete
operating instructions.
• Carry out the installation with another person to ensure safe installation.
• Remove the product from its packaging and remove all packaging material. Make
sure that there is no packaging material on or in the product. If you notice any
damage to the packaging, also check whether there is any damage to the
product. If you notice any external damage to the unit or any unexpected or unusual
functioning, the product must not be used any further. Immediately contact the dealer
from whom you purchased the product or celexon directly (Web: www.celexon.co.uk,
Mail: [e-mail]) for further information.
• To ensure trouble-free operation, the product may only be used indoors. It is NOT
suitable for outdoor use.
• The use of the appliance and accessories is forbidden to children under 16 years of
age.
• Ensure that no children play with the appliance or are in the vicinity without
supervision.
• Conversion or modication of the product impairs product safety.
• Caution: Risk of injury! Never open the product without authorisation. Never carry
out repair yourself!
• Do not use the product near gas or water appliances or in a dusty environment.
• Handle the product with care. It can be damaged by knocks, blows or falling from
even a small height.
• Keep the product away from moisture and heat.
• Never immerse the product in water or other liquids.
• Use the product only in its intended manner. Use for any other purpose may damage
the product or its surroundings.
• Tighten the screws, but do not overtighten them. Overtightening the screws (e.g.
by using a cordless screwdriver) can cause damage and affect the secure hold of
the screen.
WARNINGS

2
• Suspended loads must be checked for strength and load-bearing capacity at least
twice a year.
• Children should not use the screen or play under it unsupervised.
• Caution: Risk of injury! The unit closes ush and rmly in its retracted state, keep
ngers, hands or other small parts away from the opening.
• All supply lines and cables must not be subjected to additional loads and must be
laid in such a way that they are not damaged or crushed.
• Failure to observe the above instructions may result in personal injury and damage
to the product or equipment connected to it. Incorrect installation or use may also
invalidate the warranty.
• If you are unsure about the use of the product, please contact specialist personnel,
your dealer or celexon directly (Web: www.celexon.co.uk, Mail: [e-mail]).
• Technical changes and errors expected.
The manufacturer accepts no responsibility for damage to property or personal
injury, if the screen is used outside the recommended specications, or in the event of
improper installation. Do not use this screen in the vicinity of heaters or air conditioners.
Also, do not mount the product in direct sunlight or in front of a window. Due to the
temperature-sensitive PVC surface, the projection screen fabric may be permanently
damaged.
We recommend that you wait approx. 2 hours after delivery before installing the
projection screen. This way you will allow the screen to acclimatise, especially when
moving from a cold to a warm environment (or vice versa).
Please avoid any stains on the surface of the screen. These may not be able to
be removed.
The positions of the end points are already optimally set at the factory and should
not be changed. Especially with electric screens, the entire length of the fabric should
always be used in order to achieve the best atness. An adjustment of a few cm of
the end points should only be made by persons with specialist knowledge and in
consultation with the manufacturer. Incorrect adjustment can result in damage to the
projection surface.

3
CARE INSTRUCTIONS
NEVER clean the screen with alcohol or other cleaning agents containing
solvents. Do not use cloths or other textiles to clean the projection surface.
Use only the cleaning brush provided when the screen is dry and dust-free.

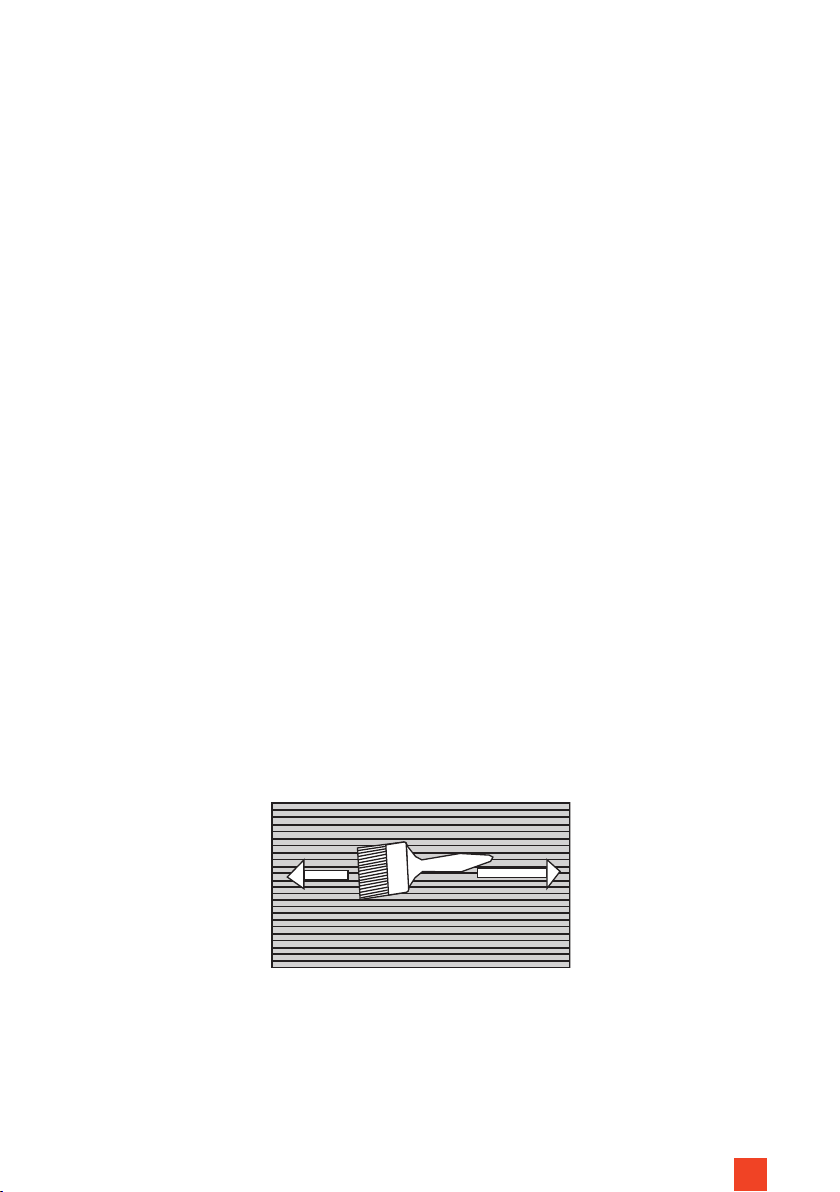

Brush across the screen cloth in horizontal movements. Make sure that you do
not make any vertical or circular movements, otherwise dust and dirt will be
deposited on the structure of the cloth and impair the projection
result. The screen fabric must not come into contact with dampness. Avoid
contact with pointed or sharp objects as these could permanently damage the
projection screen fabric. Cleaning the projection screen surface too often is
disadvantageous as more scratches can occur in the surface. Always close the
projection screen whenever it is not in use. Prevent the screen motor from
running more than 3 minutes at a time as this will activate the heat protection
of the motor and the screen will be completely deactivated. Only after the
screen has a rest period of 20-30 minutes can it be put back into operation.
DISCLAIMER
The information in this document is subject to change without notice by the
manufacturer. Changes will be added to subsequent versions of this manual.
Errors expected.

4
TECHNICAL DATA
INTRODUCTION
Voltage: 230 V, 50/60 Hz
Consumption: 138 W (MAX)
0,4 W (Standby)
Control: Infrared remote control
Radio remote control
Radio trigger
The celexon CLR HomeCinema UST electric  oor contrast screen in
combination with a modern ultra-short distance projector is a true large screen
TV replacement. Thanks to celexon‘s innovative 8K contrast projection screen
fabric (as found in the celexon CLR HomeCinema UST Frame Screen) and
the clever, electrically operated scissor-joint construction, a large image is
possible in almost any room.
The highlight: when not in use, the screen disappears
almost completely from view, as the the screen does not have to be mounted
on the wall or ceiling, but in or behind a sideboard. This is how you can create
the dream of a 100-120“ TV that is only visible when in use.
1x Screen
1x Allen key
1x Infrared remote control
(IR)
1x USB charging cable for
remote*
1x Radio remote control
(RF)
1x cleaning brush
1x Power cable
1x USB radio trigger
IN THE BOX
* only included with reusable remote controls

5
INSTALLATION NOTES
Install the screen in a position that is fully visible to all viewers! The optimum
installation height corresponds to the position of the viewers in the centre of
the screen with the screen fabric extended: eye level = lower third of the screen
surface. Install the screen in a straight and level position, otherwise there is
a risk that the screen fabric being wound up and unwound crookedly. The
screen may only be installed in such a way that the fabric extends upwards!
Use suitable dowels and screws for the mounting surface (if necessary, obtain
suitable mounting material). With this screen, you have the option of choosing
between different mounting variants.
CAUTION! Make sure the surface is load-bearing and level. Carefully unpack
the screen and remove any packing material. Make sure that the screen is lifted
by at least two people.
Position the screen where you want it and slide the feet underneath the housing
into position and align the screen. Make sure that there is enough space for the
screen to extend to its full height and that no objects obstruct the extension
area.
CAUTION! Make sure the surface is load-bearing and level. Carefully unpack
the screen and remove any packing material. There are rubber pads on the
underside of the housing, the brackets must be tted so that the screen goes
on the rubber pads so that it does not slip. Then measure the distance between
the brackets and transfer this to the installation surface.
Use the brackets as a template and draw the mounting holes on the wall.
MOUNTING ON THE FLOOR
WALL MOUNTING
(MOUNTING BRACKETS OPTIONALLY AVAILABLE)

6
Then pre-drill the holes and insert suitable dowels (suitable material may have
to be procured separately). Fasten the mounting brackets to the wall with
suitable screws. Now lift the screen housing with two people and place it
carefully on the brackets.
Make sure that the screen is standing on the brackets with the rubber pads on
the bracket and slowly lower the case downwards and only let go when the
case is actually held rmly by the brackets.

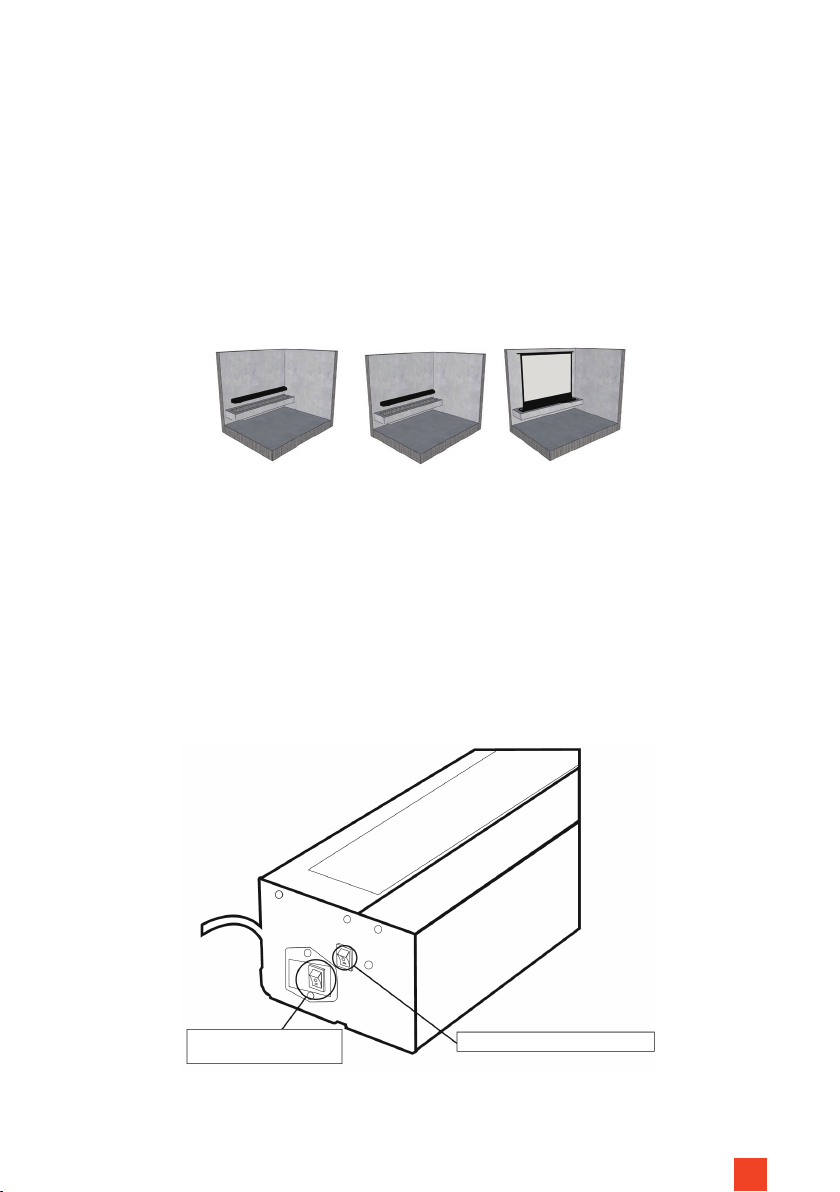

OPERATION
CONTROL VIA THE HOUSING BUTTONS
Connect the enclosed power cable to the screen and to power. Make sure that
the power supply is correct. Do not lay the cable on hot surfaces and avoid
tension. Switch the power button to ON. A control signal sounds.
Power supply control
0 = Off I = On
I = Up 0 = Stop II = Down

7
The screen is supplied with one infrared and one radio remote control. Make
sure that any protective lm has been removed from all transmitter and
receiver devices, the remote controls are charged (or batteries are inserted),
the screen is connected to the power supply and the power is set to ON.
CONTROL VIA THE REMOTE CONTROLS
The use of an RF remote control is always
recommended when there is a large distance between
the remote control and the screen, or objects can
obstruct the line of sight between the remote control
and the screen. The RF remote is already programmed
and can be used straight from the box.
USE OF THE RADIO REMOTE CONTROL (RF)
Up
Power
Stopp
Down
USE OF THE INFRARED REMOTE CONTROL (IR)
The use of an IR remote control is recommended
when there is a small to medium distance between the
remote control and the screen. The IR remote control
can only be used when the supplied IR eye is within the
viewing range of the remote control.
It is possible to set the stop points. Please request the instructions for this procedure from
your specialist dealer or directly via www.celexon.com

8
CHARGING THE REMOTE CONTROLS*
A red signal light lights up during
charging. As soon as it goes out, the
charging cycle is complete.During
charging, the remote control can be
used normally.
As soon as you notice that the signal from the remote control arrives
irregularly or not at all at the receiver, you must charge the remote controls.
To do this, use the USB cable supplied and connect this to a USB-TYPE DC 5V
power supply unit (not included in the box).
1. Switch the screen ON.
2. Press the learning button inside the screen (behind
the front of the screen on the left as seen from the
front) by using a paper clip. Press and hold the
button until you hear a beep.
3. Hold the trigger near the screen.
4. Press the learn button inside the trigger by using a
paper clip.
5. Press and hold the button until you see a light signal
on the trigger.
6. At the same time you should hear a beep from the
screen.
7. The pairing is successful and completed
ATTENTION: Not every projector can trigger via its USB port. Check with
your projector manufacturer about the trigger features of your projector. The
trigger will only work if the projector‘s USB port is TRULY unpowered in
standby mode. Install the USB trigger to an available USB port on your
projector. As soon as the projector starts, the screen is triggered and extends
automatically. As soon as the projector is switched off, the screen retracts
automatically. The trigger is already coupled to the screen. If the connection
still does not work, follow the steps below:
Screen
Trigger
CONTROL VIA USB RADIO TRIGGER
* Only possible with rechargeable remote controls, otherwise replace the battery with the same type.

9
Manufacturer: celexon Europe GmbH
Address: Gutenbergstraße 2, 48282 Emsdetten, DE
Product name: celexon CLR HomeCinema UST Electric Floor High
Contrast Screen
Hereby celexon Europe GmbH declares that the celexon CLR HomeCinema
UST Electric Floor High Contrast Screen complies with the directive 2014/53/
EU. The EU declaration of conformity can be downloaded from the following
address: www.celexon.de/zertikate
INFORMATION ON EU CONFORMITY
The symbol indicates the separate collection of electrical and electronic
devices in EU countries. Please do not throw the device into household
waste. Find out about the return system applicable in your country and
contact your local authority or your local waste and pollutant collection
point if you have any questions about the disposal process.

10
Manufacturer: celexon Europe GmbH
Address: Gutenbergstraße 2, 48282 Emsdetten, DE
Product name: celexon CLR HomeCinema UST Electric Floor High
Contrast Screen
Hereby celexon Europe GmbH declares that the radio equipment type celexon
CLR HomeCinema UST Electric Floor High Contrast Screen complies with the
Radio Equipment Regulations 2017. The UK declaration of conformity can be
downloaded from the following address: www.celexon.de/zertikate
INFORMATION ON UK CONFORMITY
The symbol indicates the separate collection of electrical and electronic
devices in EU countries. Please do not throw the device into household
waste. Find out about the return system applicable in your country and
contact your local authority or your local waste and pollutant collection
point if you have any questions about the disposal process.
