CHAD-O-CHEF SHB410 Manual

SIZZLER HYBRID ATTACHMENT
INSTALLATION & OPERATING
INSTRUCTIONS
Please read these instructions carefully before installation
- use and retain them for future reference
SHB410

General Instructions and Safety notes
DO NOT begin assembly of your Sizzler Hybrid Braai, until
you have read and understand the Assembly and Safety
Instructions fully.
*The Sizzler Hybrid Braai may not be used in conjunction
with our Hob-Grill Gas Braai.
Refer to the Sizzler Instruction Manual for assembly, maintenance and further oper-
ating instructions of your Sizzler Gas Braai.
 Remove ALL protective PVC film covering the unit before use and only
AFTER assembly is complete. As you could scratch the surfaces during the
assembly process.
 The Sizzler Gas Braai associated with the Sizzler Hybrid Braai requires an op-
erating pressure of 2,8 kPa at the appliance.
 A suitable LPG regulator that complies with the requirements of SANS 1237
must be installed with the Sizzler Gas Braai associated with this product.
Warning: If you own a Chad-O-Chef Sizzler Hybrid:
A qualified gas installer must install a shut off valve into the Gas
line that is easy to locate and approximately 1 to 2 metres before
the inlet elbow of the Sizzler Gas Braai.
Only clean the unit with hot soapy water and never with any
abrasive materials.
Caustic Oven cleaners can fatigue stainless steel with rust.
Ventilation requirements:
This appliance is designed to function with the ventilation holes
designed into the front and back of the Sizzler Gas Braai associat-
ed with this unit. Take care to ensure all ventilation holes are not
obstructed during use.
Do not fully cover the cooking area with a solid plate whilst braai is
on, this will result in component failure.
(This unit is not an oven)
2

1. Dimensioned View (assembled)
3

4
2. Igniting and Turning off the Sizzler Hybrid Gas Braai
WARNING: If at anytime during the igniting process, or during use, you smell
gas, immediately turn off the gas supply to the appliance at both the Burner
Control Knobs and the shut off valve on the Gas Bottle.
If you suspect that there is a gas leak, DO NOT use the appliance until it has
been checked and/or serviced by a qualified gas service technician
1. Open all gas shut-off valves, supplying your Sizzler Hybrid braai.
2. Remove Top-Grids and insert Charcoal and/or Wood (Ø80mm logs Maximum)
3. Push and turn far LH control knob counter-clockwise to “ON” position
4. Push Ignitor button, to ignite Burner 1.
5. If not alight after 4/5 strikes, turn gas off and wait for 30sec.
6. Turn on knobs 2, 3/4/5/6 on High in sequence.
7. After use, turn off all control knobs and valve on gas bottle, including shut-off
It may be necessary to push the ignitor button several times especially after chang-
ing a cylinder.
Should your braai not light after repeated attempts, have the unit examined by a
qualified gas technician.
Turning off the Sizzler Gas Braai
To turn off the appliance, turn all the Control knobs in a clockwise direction to the
OFF position. Then close the master shut-off at the gas bottle. This will shut off all
gas supply to the appliance.

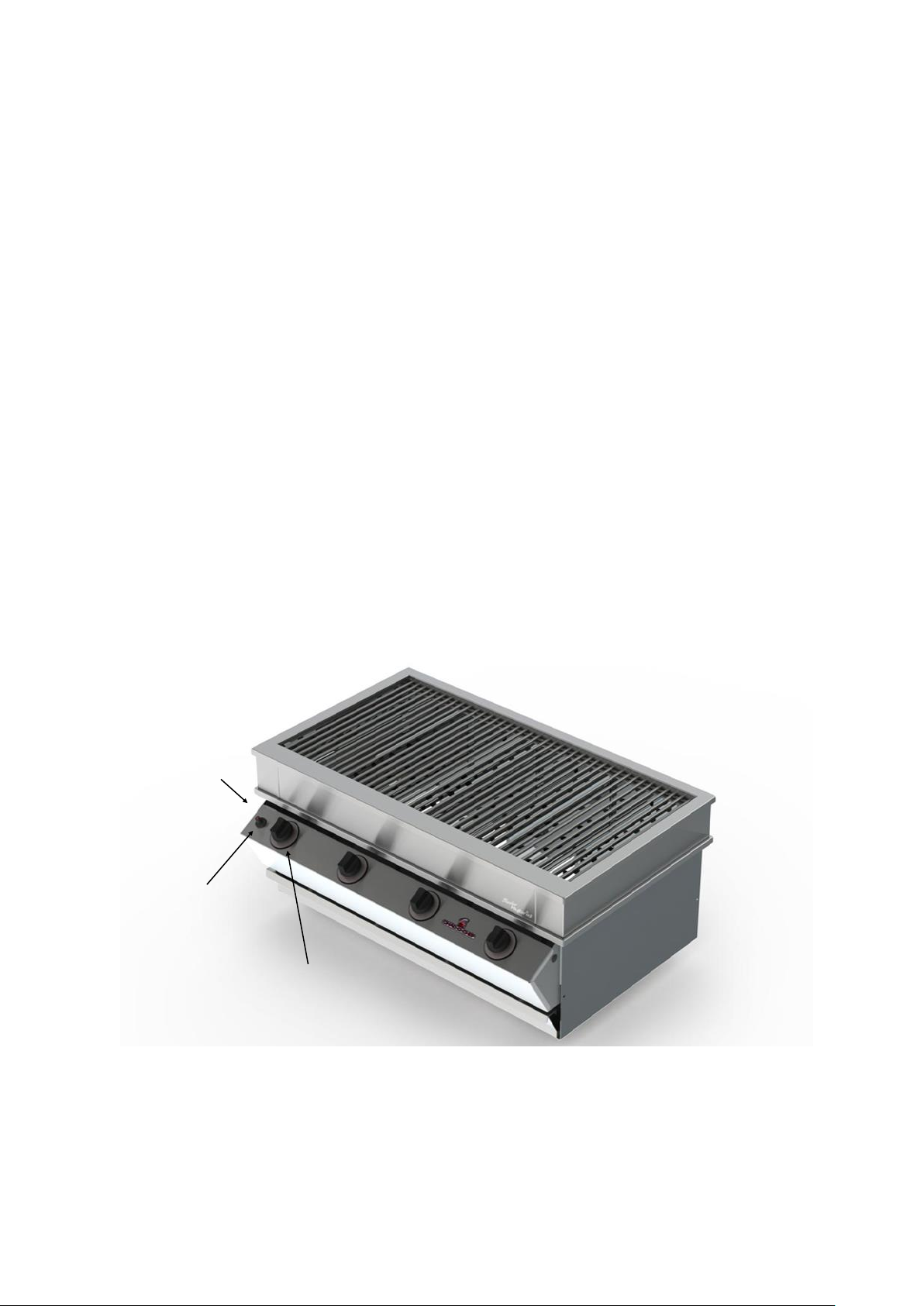

LH control
Knob
Ignitor
Gas inlet

3. Exploded View
4. Total Parts List
5
1Sizzler Hybrid Body x1
2Ember Basket x4

6
5. Assembly Instructions
Remove 4 Top Grids, Rock and 4
Bottom Grids from Sizzler Gas
Braai and drop Sizzler Hybrid
Body into place.
Drop all 4 Ember Baskets into
Sizzler Hybrid Braai.

7
Drop 4 Top Grids into Sizzler
Hybrid Braai.

Manufactured By:
Chad-o Engineering
PO Box 986 Honeydew 2040
Tel: [phone]
Email: [e-mail]
www.chad-o-chef.co.za
