CHAD-O-CHEF SMB-310 User manual

SIZZLER MOBILE GAS BRAAI
ASSEMBLY INSTRUCTIONS
Please read these instructions carefully before assembly
and retain them for future reference
SIZZLER / MOBILE / ROTISSERIE
SMB-310
SMB-410

General Instructions and Safety notes
DO NOT begin assembly of your Sizzler Mobile Braai, until
you have read and understand the Assembly and Safety
Instructions fully.
 Refer to the Sizzler Instruction Manual for assembly, maintenance
and further operating instructions of your Sizzler Gas Braai.
 Remove ALL protective PVC film covering the unit before use
and only AFTER assembly is complete. As you could scratch the
surfaces during the assembly process.
 The Sizzler Gas Braai associated with the Sizzler Mobile Cabinet
requires an operating pressure of 2,8 kPa at the appliance.
 A suitable LPG regulator that complies with the requirements of
SANS 1237 must be installed with the Sizzler Gas Braai associated
with this product.
Important Information For the USER:
The ‘Sizzler’ Gas Braai associated with this appliance may only be installed
using the supplied Gas hose and Regulator by Chad-O-Engineering (Pty)LTD.
Note that if the guarantee card is not signed and returned to the manufacturer,
the product guarantee is invalid.
1
Warning: If you already own a Chad-O-Chef Sizzler:
A qualified gas installer must replace the compression elbow
inlet on the manifold with the supplied hose-tail connector.
Only clean the unit with hot soapy water and never with
any abrasive materials.
Caustic Oven cleaners can fatigue stainless steel with rust.
Ventilation requirements:
This appliance is designed with ventilation holes in the front
and back of the unit. Take care and ensure that these
ventilation holes are not obstructed during use.
Do not fully cover the cooking area with a solid plate whilst
braai is on, this will result in component failure.
(This unit is not an oven)

2
1. Dimensioned View (assembled)

3
2. Igniting and Turning off the Sizzler Gas Braai
WARNING: If at anytime during the igniting process, or during use, you smell
gas, immediately turn off the gas supply to the appliance at both the Burner
Control Knobs and the shut off valve on the Gas Bottle.
If you suspect that there is a gas leak, DO NOT use the appliance until it has
been checked and/or serviced by a qualified gas service technician
1. Open all gas supply valves.
2. Push and turn far LH control knob counter-clockwise to “ON” position
3. Push ignitor button repeatedly.
4. Check that pilot burner ignites.
5. If not alight, turn gas off and wait for 30sec.
6. Turn far LH control knob to High.
7. Turn on knobs 2, 3/4/5/6 on High in sequence.
8. After use, turn off all control knobs and valve on gas bottle, including shut-off
valve (if installed).
 It
may be
neces-
sary to
push the ignitor button several times especially after changing a cylinder.
 Should your braai not light after repeated attempts, have the unit examined by
a qualified gas technician.
Turning off the Sizzler Gas Braai
To turn off the appliance, turn all the Control knobs in a clockwise direction to the
OFF position. Then close the master shut-off at the gas bottle. This will shut off all
gas supply to the appliance.
LH control
Knob
Ignitor
Gas inlet

3. Safety Notes and Maintenance procedures
 This appliance is designed for outdoor use only, as per SANS 1539
 DO NOT touch the Top Grids, Rock, Bottom Grids or Drip Tray whilst the
Sizzler Gas Braai is in use. These components can reach extremely high
temperatures and touching them could result in serious injury.
 The components in the Sizzler Gas Braai are designed to last a minimum of 3
years under normal (non-commercial) use, and need to be checked before
each usage for wear of the components.
 It is suggested that a qualified Gas technician check the appliance annually for
damages that may result in the improper working of the unit.
(Please call our Head Office for your closest dealer or qualified gas technician)
 Under no circumstance must the Regulator or Gas Hose be tampered
with, adjusted or reset by an unqualified person. This could result in the
incorrect gas pressure of the unit(2.8kPa), leading to improper burning of the
Sizzler gas braai, which could cause premature component failure and/or seri-
ous injury.
 If an aftermarket LPG regulator is Installed, a suitable LPG regulator that com-
plies with the requirements of SANS 1237 must be installed.
 Only use the stipulated amount of rock (1 bag per burner) on each rock
tray. Do not attempt to overload the rock trays with extra rock, as this
may result in over heating of the burner body, leading to component failure,
and/or serious injury.
 In the event of a “Burn-Back” or Gas Leak, you should turn off the shut off
valve at the Gas Bottle immediately and consult a qualified Gas technician to
assess the problem before continuing to use the appliance.
WARNING: If you suspect that there is a gas leak, DO NOT use
the appliance until it has been checked and/or serviced by a
Qualified Gas Service Technician
4

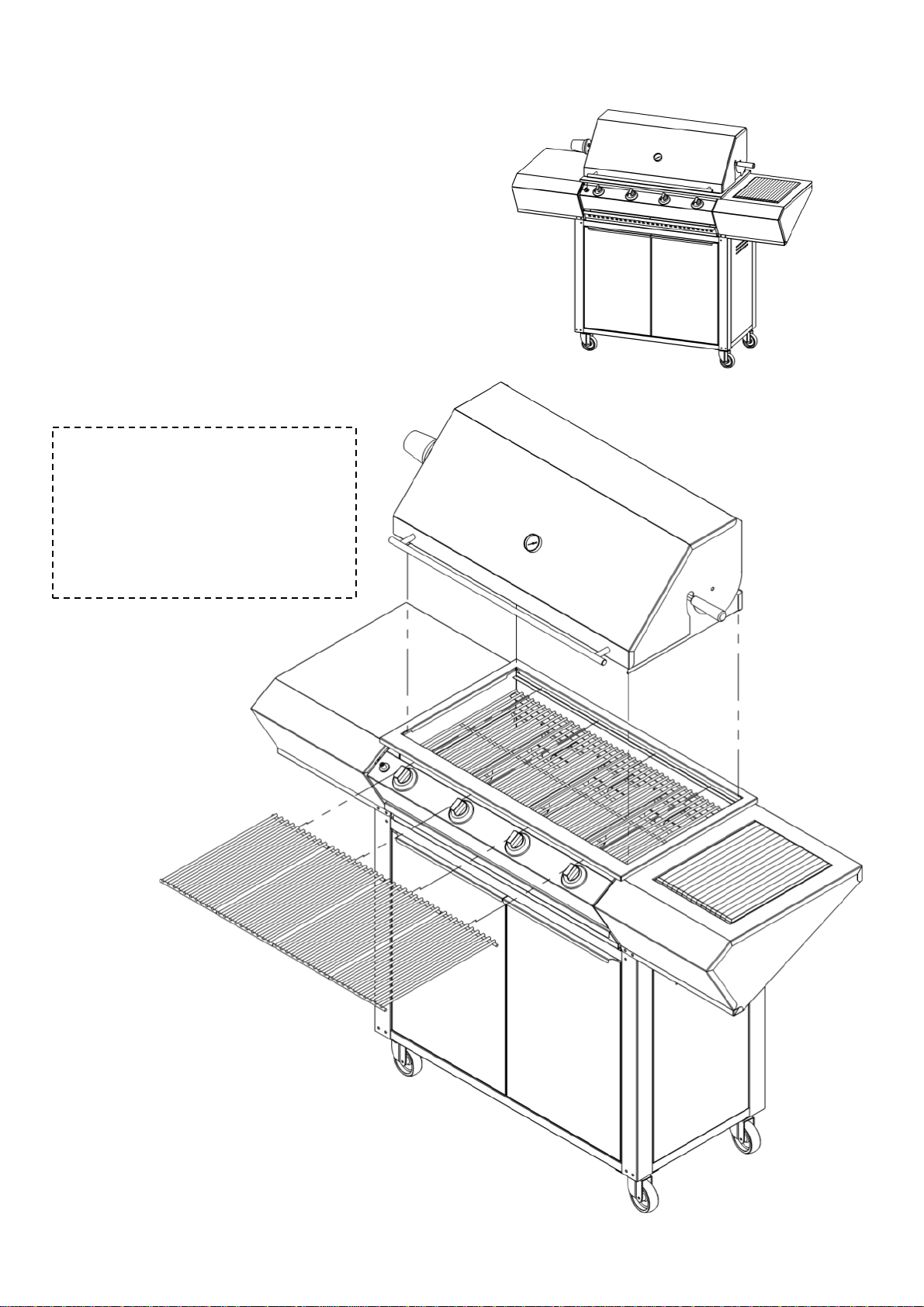

4. Exploded View

5. Total Parts List
1Base Panel x1
2Screw (M5) 16x 12mm
41x 10mm x57
3Castor Wheel x4
4Side Panel x2
5Mid Panel x1
6Rear Cover Panel 1 x1
7Gas Bottle Bracket x1
8Chain x1
9L&R Door
x2
10 Hinge pin x4

11 Magnet x2
12 Right Hand Counter x1
13 Cutting Board X1
14 Sizzler X1
(Sizzler Box)
15 Top Grids X4
(Sizzler Box)
16 Hose Tail Connector x1
17 Gas Hose & Regulator x1
18 Left Hand Counter x1
19 Rear Cover Panel 2 x1
20 Rotisserie Dome
(Optional extra) x1
(Rot. Box)

9
6. Assembly Instructions

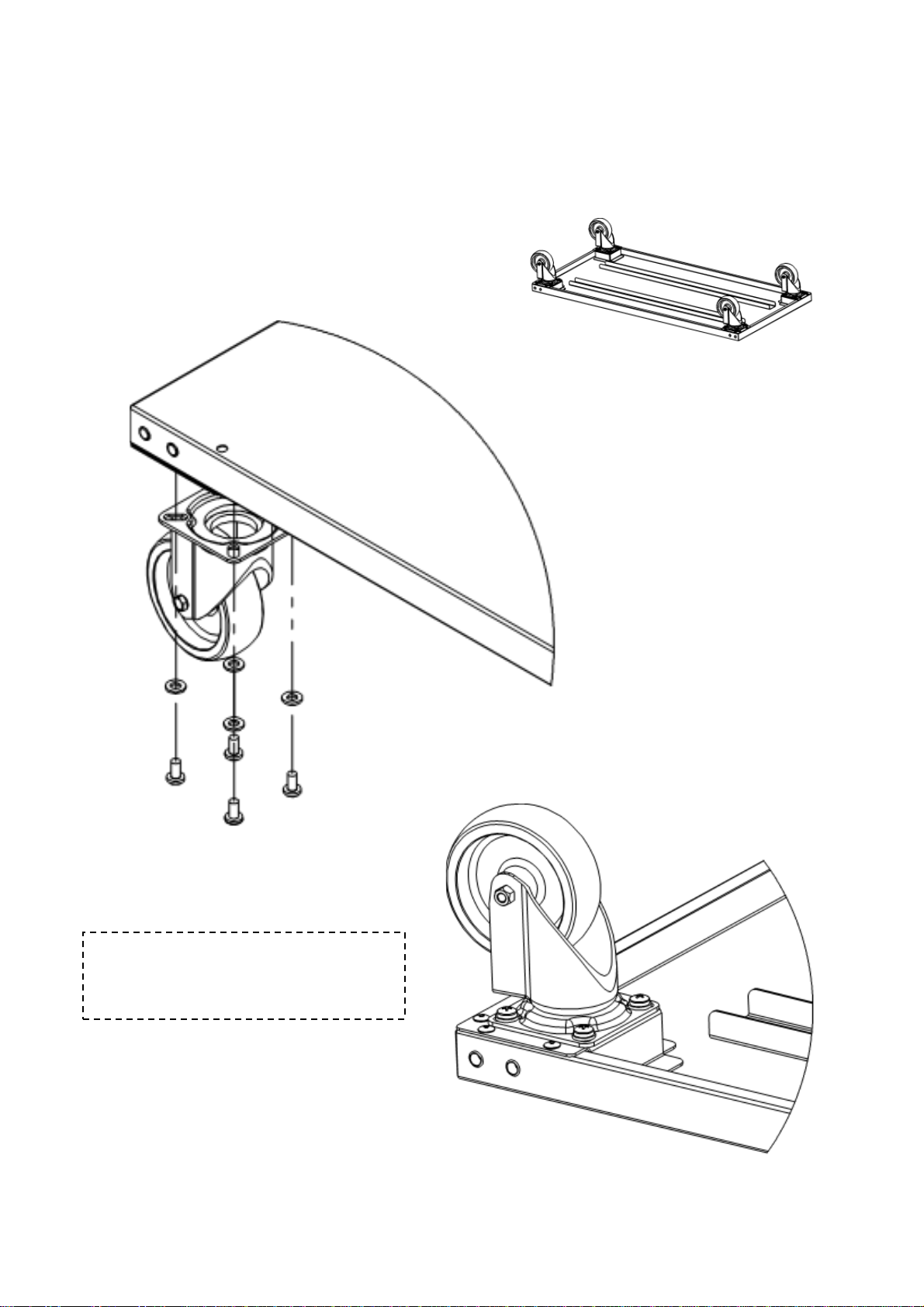

6.1 Base Panel Assembly
4x M5x12 Pan head bolts with
M5 washers affix each Castor
-wheel (4)to Base Panel

10
6.2 Side and Mid Panel Assembly
4x M5x10 Pan head bolts affix
each Side Panel (2) to Mid

11
6.3 Rear Cover Panels Assembly
3x M5x10 Pan head bolts affix
Gas bottle bracket to Back
6x M5x10 Pan head bolts af-
fix Rear Panel 1 to Side
4x M5x10 Pan head bolts af-
fix Rear Cover Panel 2 to

12
6.4 Body and Door Assembly
8x M5x10 Pan head bolts affix
Body assembly to Base Panel
and
4 Hinge Pins locate into holes
in the doors
Note orientation of Hinge
Pin holes in Base panel and
Mid panel when assembling
Body and Door assembly

13

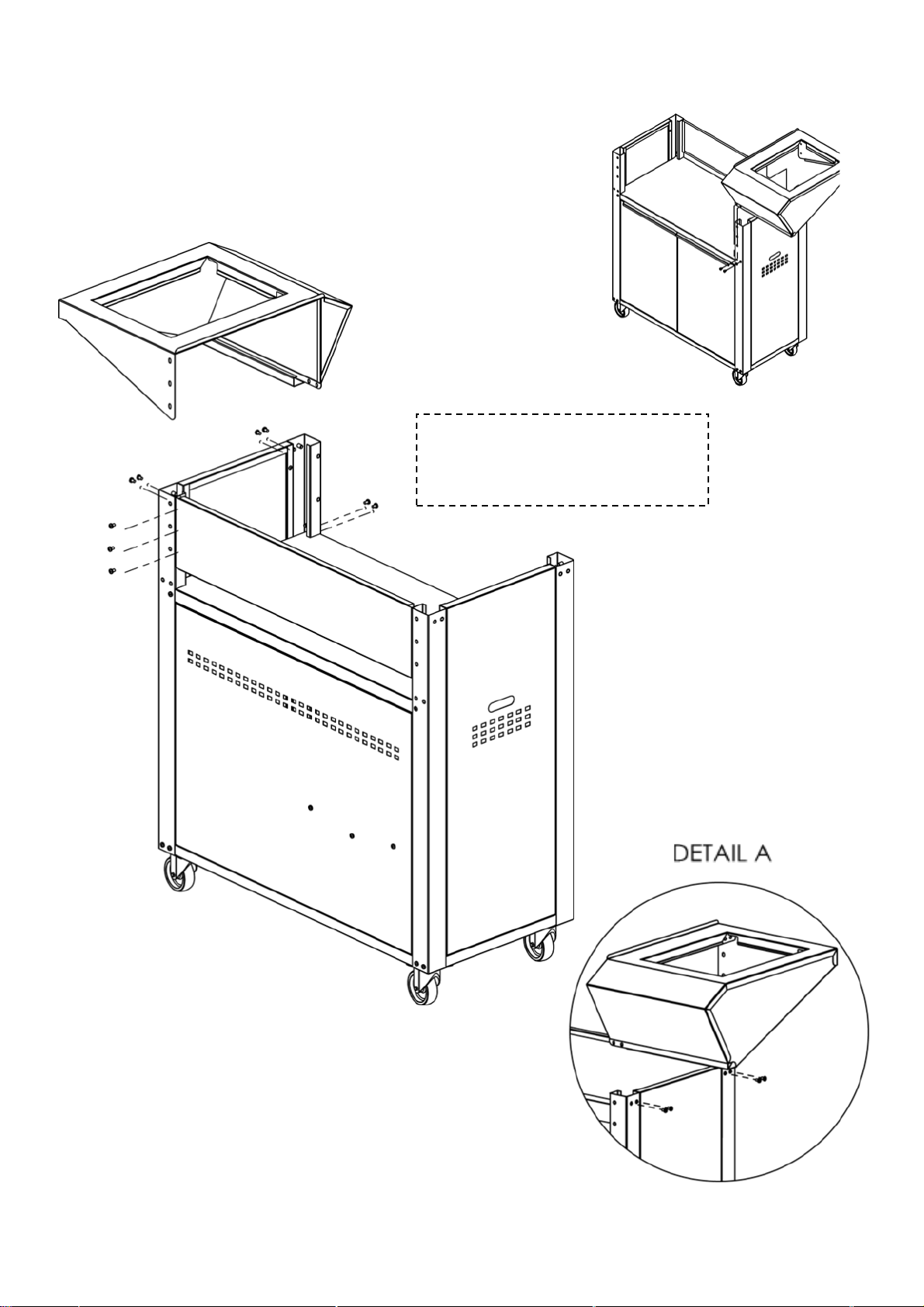

6.5 Right Hand Counter Assembly
9x M5x10 Pan head bolts
affix Right Hand Counter
onto Side Panel

14

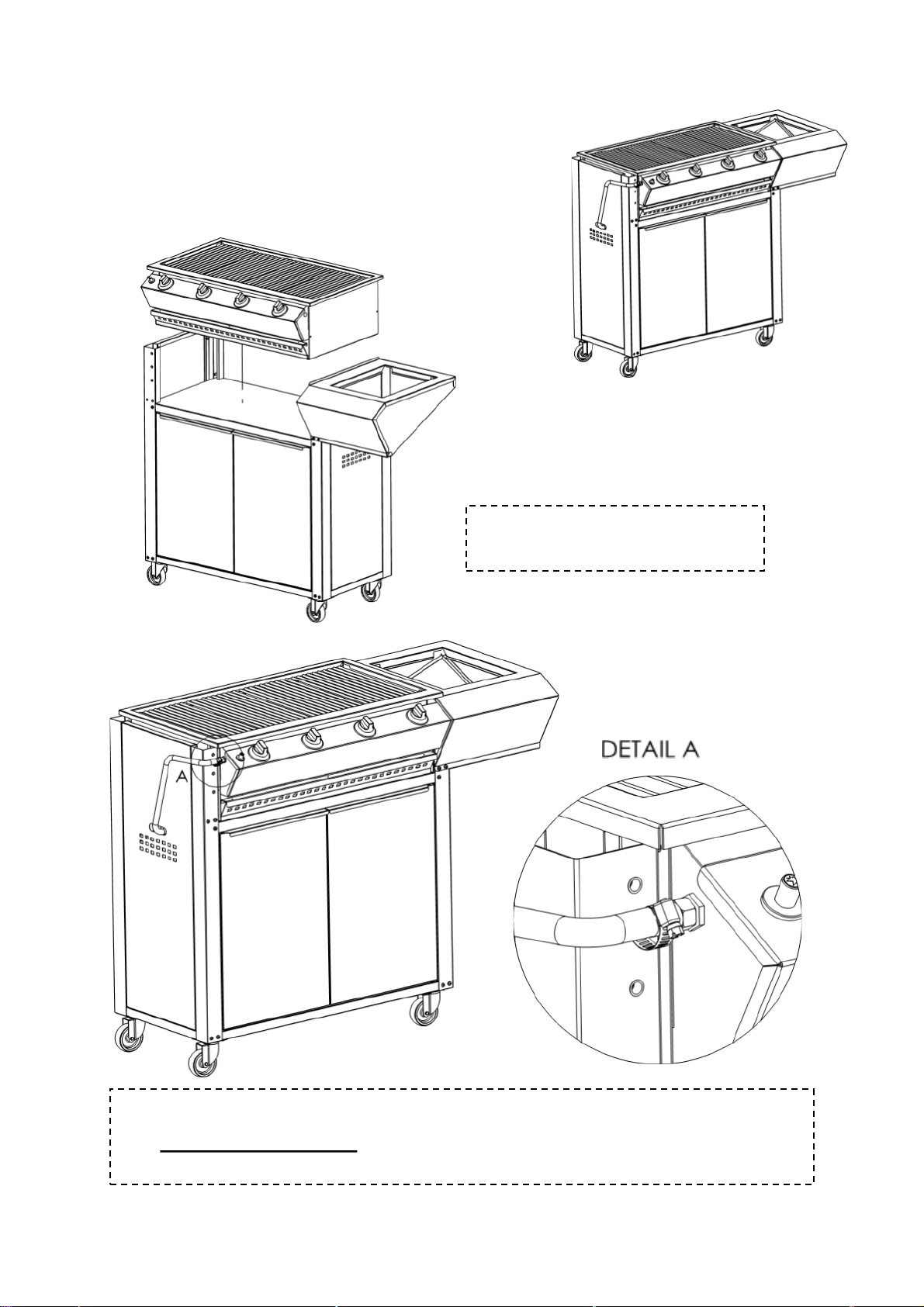

6.6 Sizzler, Hose & Regulator Assembly
* Refer to Sizzler user manual for grill assembly instructions
* A Qualified Gas Installer must replace the compression elbow inlet on the
manifold with the supplied hose-tail connector.
Sizzler Grill easily retrofits
onto Mid Panel

15

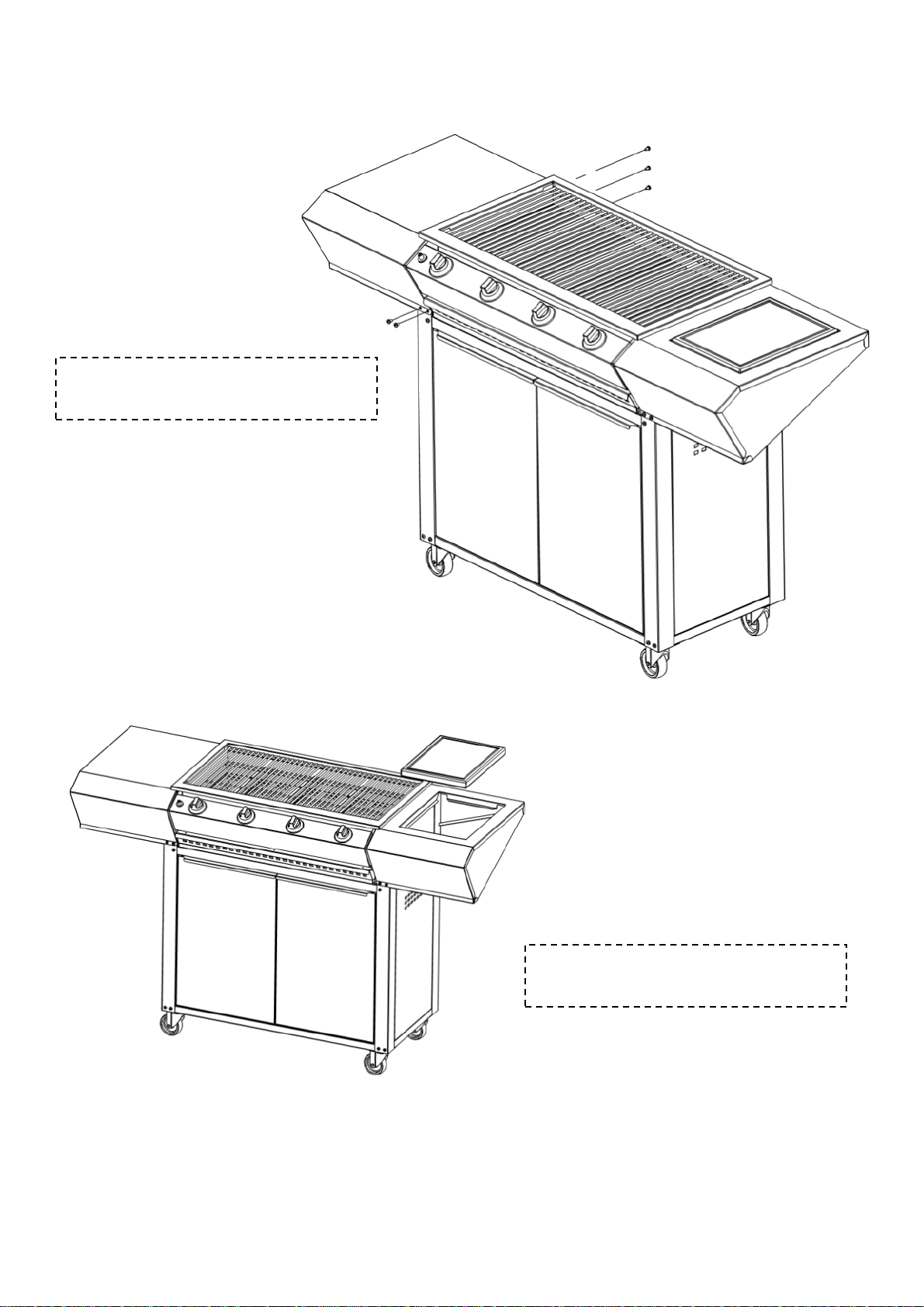

6.7 Left Hand Counter and Cutting
Board Assembly
Rotate LH Counter, in order
to slip flange underneath
Sizzler Top panel

Prep Board easily drops
into place, in the RH Counter
9x M5x10 Pan head bolts affix
Left hand Counter to Side
16

6.8 Rotisserie Dome Assembly
Remove Top Grids from
Sizzler in order to retrofit
Rotisserie Dome onto
Supports within the Sizzler
Gas Braai
(Reinsertion optional)
(if applicable)
17
