Charlton & Jenrick PARAGON 2000 Plus SLIDE CONTROL User manual

Owner’s Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
PARAGON 2000 Plus & 2000 Plus Low Lintel SLIDE CONTROL
Keep this booklet for service log and future reference
For use in Great Britain and Ireland.
Literature NO 5049 (ISS 2)
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.

Contents
EXTENDED FIVE YEAR PARTS WARRANTY ....................2
Benchmark Scheme .....................................................3
SECTION ONE Introduction (user instructions) ..........5
SECTION TWO Operation (user instructions) .............6
SECTION THREE Fuel Bed Cleaning and Layout (user
instructions).................................................................7
SECTION FOUR Important Information (user
instructions)...............................................................12
SECTION FIVE Specification (installation instructions)
...................................................................................14
SECTION SIX Regulations and Warnings ...................15
SECTION SEVEN Siting the Appliance (installation
instructions)...............................................................16
SECTION EIGHT Fireplace Requirements (installation
instructions)...............................................................18
SECTION NINE To Install the Appliance (installation
instructions)...............................................................19
SECTION TEN Maintenance Instructions
(maintenance instructions).......................................24
GAS FIRE COMMISSIONING CHECKLIST.....................30
SERVICE RECORD........................................................31
EXTENDED FIVE YEAR
PARTS WARRANTY
In order to validate your extended 5 years parts
warranty please read the Benchmark Scheme on the
opposite page and ensure your installer has filled in the
appropriate checklist.
This in no way reduces your statutory rights
Your warranty commences from the date of purchase
and you must retain your receipt or invoice as proof of
a purchase date.
THIS EXTENDED WARRANTY SPECIFICALLY EXCLUDES
GLASS AND SOFT REFRACTORY COMPONENTS, THE BULB
AND ANY BATTERIES.
Terms and Conditions
1. The appliance must be installed by a GAS SAFE
registered person.
2. The appliance must be used in accordance with
the user’s instructions.
3. The appliance must be serviced annually by a GAS
SAFE registered person.
4. The benchmark and service log must be correctly
filled out and the record of annual services must be up
to date and supported by receipts in each case.
5. This warranty is not transferable and relates to the
original installation only.
6. The appliance has not been subjected to misuse or
accident or been modified or repaired by any
person other than the authorised employee or
authorised representative of Charlton and Jenrick
Ltd.
7. The registration form must be returned within 1
month of purchase.
Technical Help Desk 01952 200 444

www.charltonandjenrick.co.uk 3 LT5049 (ISS 2)
Benchmark Scheme
Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of
installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing
to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater
Industry Council. For more information and the full code of practice please visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back pages of the installation
instructions supplied with the product and that you have signed it to say that you have received a full and clear
explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a Competent Persons Scheme.
A Building Regulations Compliance Certificate will then be issued to the customer who should, on receipt, write the
Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The service engineer
should complete the relevant Service Record on the Benchmark Checklist after each service.
The Benchmark Checklist will be required in the event of any warranty.
It is a requirement that the gas fire is installed and commissioned to the manufacturer’s instructions and the data fields
on the commissioning checklist completed in full.
To instigate the guarantee, the gas fire needs to be registered with the manufacturer within one month of the
installation.
To maintain the guarantee, it is essential that the gas fire is serviced annually by a Gas Safe registered engineer. The
service details should be recorded on the Benchmark Service Interval Record and left with the householder.

4 LT5049 (ISS 2)
Installer information required to register for the extended warranty
Name:
Date of installation:
Gas safe number:
Important
For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
This information may be asked for when you contact the helpdesk.
MODEL:
2000 Plus S/C
Serial No.
This information can be found on the label attached to the packaging and on the data badge, which is located on
the base of the appliance behind the control cover.
Retailer Name:
Address:
Date Of Purchase:

www.charltonandjenrick.co.uk 5 LT5049 (ISS 2)
SECTION ONE Introduction (user instructions)
Consumer Protection Information
As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these
products are so designed and constructed as to meet the general safety requirement when properly used and installed.
To this end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by the appliance manufacturer could invalidate the approval
of the appliance, operation of the warranty and could affect your statutory rights.
Health and Safety Notice
Important
This appliance could contain some of the materials, indicated below, that could be interpreted as being injurious to
health and safety. It is the users / installers responsibility to ensure that the necessary personal protective clothing is
worn when handling these materials, see below for information.
Artificial Fuels, Mineral Wool, Insulation Material, Refractory/Ceramic Fibres, Glass Yarn - may be harmful if inhaled, may
be irritating to skin, eyes, nose and throat.
When handling avoid inhaling and contact with skin or eyes. Use disposable gloves, facemasks and eye protection. After
handling wash hands and other exposed parts. If a vacuum is used for cleaning the fuel bed or cleaning after servicing /
installation it is recommended that it be of the type fitted with a HEPA filter.
Disposal of refractory/ceramic materials. To keep dust to a minimum these materials should be securely wrapped in
polythene and be clearly labelled ‘RCF waste’. These materials are not classified as ‘hazardous waste and should be
disposed of at a site licensed for the disposal of industrial waste.
INTRODUCTION
The PARAGON 2000 Plus SLIDE CONTROL is a decorative fuel effect appliance with a radiant heat conserver box for
improved efficiency.
The PARAGON 2000 Plus SLIDE CONTROL is designed and tested to the requirements of the EN 509
The PARAGON 2000 Plus SLIDE CONTROL is available in two versions Natural Gas or LPG (Propane Gas Only). The
markings (G20 for natural gas or G31 for propane) on the packaging and the data badge specify the gas for which the
appliance has been factory set. Note: These appliances should only be used on the appropriate gas specified. They
are not suitable for conversion from one gas to the other.
The PARAGON 2000 Plus SLIDE CONTROL should be installed and serviced by a competent person i.e. Gas Safe-
registered, in accordance with the current Gas Safety (Installation and Use) Regulations 1998 (as amended).
The chimney or flue (unless new) must be swept before installation if it has been used for solid fuel or oil.
The PARAGON 2000 Plus SLIDE CONTROL incorporates a single gas control, which selects ignition pilot, and main
burner low and high settings.

6 LT5049 (ISS 2)
The PARAGON 2000 Plus SLIDE CONTROL incorporates a safety device in the form of an Oxygen Depletion System,
which constantly monitors the oxygen in the room and will cause the fire to switch off if the oxygen level reduces,
for instance due to insufficient ventilation or a blocked flue.
If this repeatedly occurs do not attempt to relight the appliance until a qualified engineer has checked it, the
problem may not be due to lack of air or a defective flue.
Warning:-This appliance has a naked flame, has with all such fires it is recommended that a fireguard should be
used for the protection of children, the elderly and infirm. Fireguards should conform to BS 6539 (1984) (Fireguards
for use with solid fuel appliances).
During the normal operation of the fire some black staining may appear on some parts of the fuel bed. This is quite
normal and adds to the appearance of the appliance. However, if excessive black staining does occur it may be due
to the fuel bed being incorrectly laid. This should be checked prior to contacting a service engineer.
SECTION TWO Operation (user instructions)
The full lighting procedure is as follows: -
A. Push slide control lever down, as far as possible a clicking noise will be heard and the pilot will light, HOLD
DOWN FIRMLY FOR ABOUT 20 SECONDS.
B. Pull lever up and the pilot light should remain alight and the main burner should light on its low setting.
C. Should the pilot fail to light, pull the lever fully up to turn off the appliance, wait 3 minutes and repeat the
procedure (a & b). If the pilot does not light and no clicking noise is heard replace the battery and try again.
D. After lighting the pilot flame and the main burner on its low setting the control lever may be lifted until slight
resistance is felt, this will put the burner on its high setting.
E. To completely extinguish the fire, pull the lever up past the resistance to its fullest extent.
F. The fire may be operated on either its low or high setting.
G. It is recommended that the appliance is operated on its high setting for a short period before adjusting to
the low setting.
H. If the ignition does not operate fit a new 9V battery (PP3/MN1602) to the ignition unit, located behind the
fret adjacent to the gas inlet pipe, and repeat ignition procedure prior to reporting a fault.
Note: - If the ignition fails the pilot can be lit with a taper or a match held at the pilot head.

www.charltonandjenrick.co.uk 7 LT5049 (ISS 2)
SECTION THREE Fuel Bed Cleaning and Layout (user instructions)
Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts and moulded shapes may be removed for cleaning. They can be brushed very gently with a soft
brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.
FUEL BED LAYOUT (COAL OPTION)
Ensure the BASE MATRIX is in position as
shown located against the rear edge of the
burner outlet
Locate the LEFT HAND and RIGHT HAND
FRONT COALS as shown so that they sit on the
front rail and lean back against the BASE
MATRIX. Note it is most important that they are
located in their correct positions. They are
marked on the rear "L" for LEFT HAND FRONT
COAL and "R" for RIGHT HAND FRONT COAL.

8 LT5049 (ISS 2)
Slide front support over the front edge of fire where the left & right
front coals meet, see below

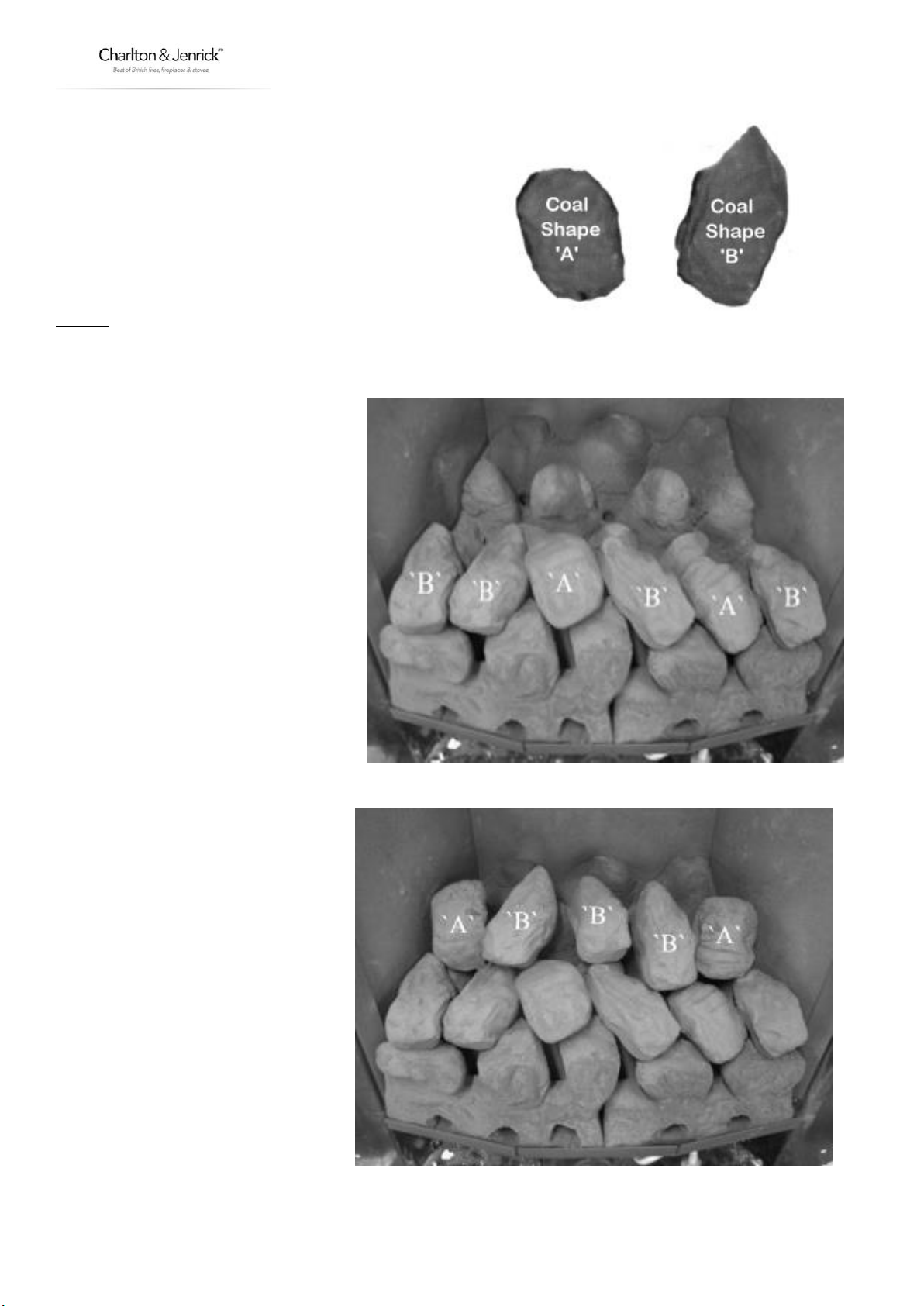

Note the loose coal provided consist of :-
5 off shaped as coal "A"
9 off shaped as coal "B"
NOTE :- 1x ”A” shape to be omitted on Low Lintel versions.
Separate the coal into the two size groups
Lay first row of loose coals 4 off
“B” coals and 2 off “A” coals as
shown so they bridge across.
Lay second row of loose coals 3
off “B” and 2 off “A” shapes as
shown.

www.charltonandjenrick.co.uk 9 LT5049 (ISS 2)
P2000 Plus Version Only
Lay third row of loose coals 2 off “B”
shape and 1 off “A” shape as shown
for standard P2000 plus and P2000
plus extra.
FOR LOW LINTEL VERSIONS SEE
BELOW
** PLEASE NOTE **
Low Lintel Version Only
IMPORTANT INFORMATION!
Do not lay the middle “A” Shape on
Low Lintel version. This shape must
not be fitted on the fuel bed layout.
Only lay the two outer “B” shapes as
shown.

10 LT5049 (ISS 2)
FUEL BED LAYOUT (PEBBLE OPTION) not available on Low Lintel.
Fuel Bed Components
Base Matrix
L & R Front Pebbles
Numbered Pebbles :-
PEBBLE LAYOUT
Warning
Take great care when positioning the pebbles to avoid
marking the black linings.
Ensure the BASE MATRIX is in position as shown located
against the rear edge of the burner outlet.
Locate the LEFT HAND and RIGHT HAND
FRONT PEBBLES as shown so that they sit on
the front rail and lean back against the BASE
MATRIX. Note it is most important that they
are located in their correct positions. They are
marked on the rear "L" for LEFT HAND FRONT
PEBBLE and "R" for RIGHT HAND FRONT
PEBBLE.
Pebble
identification
QTY
Heart Shape
1
Oblong Shape
4
Large Shape
3
Medium shape
2
Small shape
2
Total
12

www.charltonandjenrick.co.uk 11 LT5049 (ISS 2)
Lay one row of pebbles at the front of the
fire as shown.
Lay another row of loose pebbles shown.
Lay another row of loose pebbles as shown.

12 LT5049 (ISS 2)
SECTION FOUR Important Information (user instructions)
The only user removable parts are: -
The loose pebbles, coals .
The left hand front pebble, coal shape.
The right hand front pebble, coal shape.
The base matrix
Cast Fret
Decorative Trim
Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low
setting, this is quite normal and does not affect the operation of the appliance.
Servicing
It is advised that the PARAGON 2000 Plus SLIDE CONTROL fire is serviced annually this is more likely to provide
trouble-free operation. A competent person must carry this out, i.e. Gas Safe Registered Installer in accordance with
the current Gas Safety (Installation and Use) Regulations 1998 (as amended).
The chimney or flue should be checked annually to ensure clearance of combustion products.
Ventilation in the United Kingdom
This appliance does not normally require purpose-built ventilation but if for any special reason purpose-built
ventilation is provided it should be checked periodically to ensure freedom from obstruction.
Ventilation in the Republic of Ireland
Must be permanent ventilation and must comply with the rules in force and should be checked periodically to
ensure freedom from obstruction.
General Appliance Care
Any debris from the chimney or flue should be removed from the fuel bed. The fire should be allowed to cool for
three to four hours before removing debris.
Rubbish must not be thrown onto the fuel bed under any circumstances. The cast fire front must be positioned in
front of the fire whilst it is burning.

www.charltonandjenrick.co.uk 13 LT5049 (ISS 2)
Fret (Fire Front)
A Fret must be used with this appliance, and must conform too: -
It must be made from non-combustible material.
Its general construction should enable it to stand firmly across the full width of the burner.

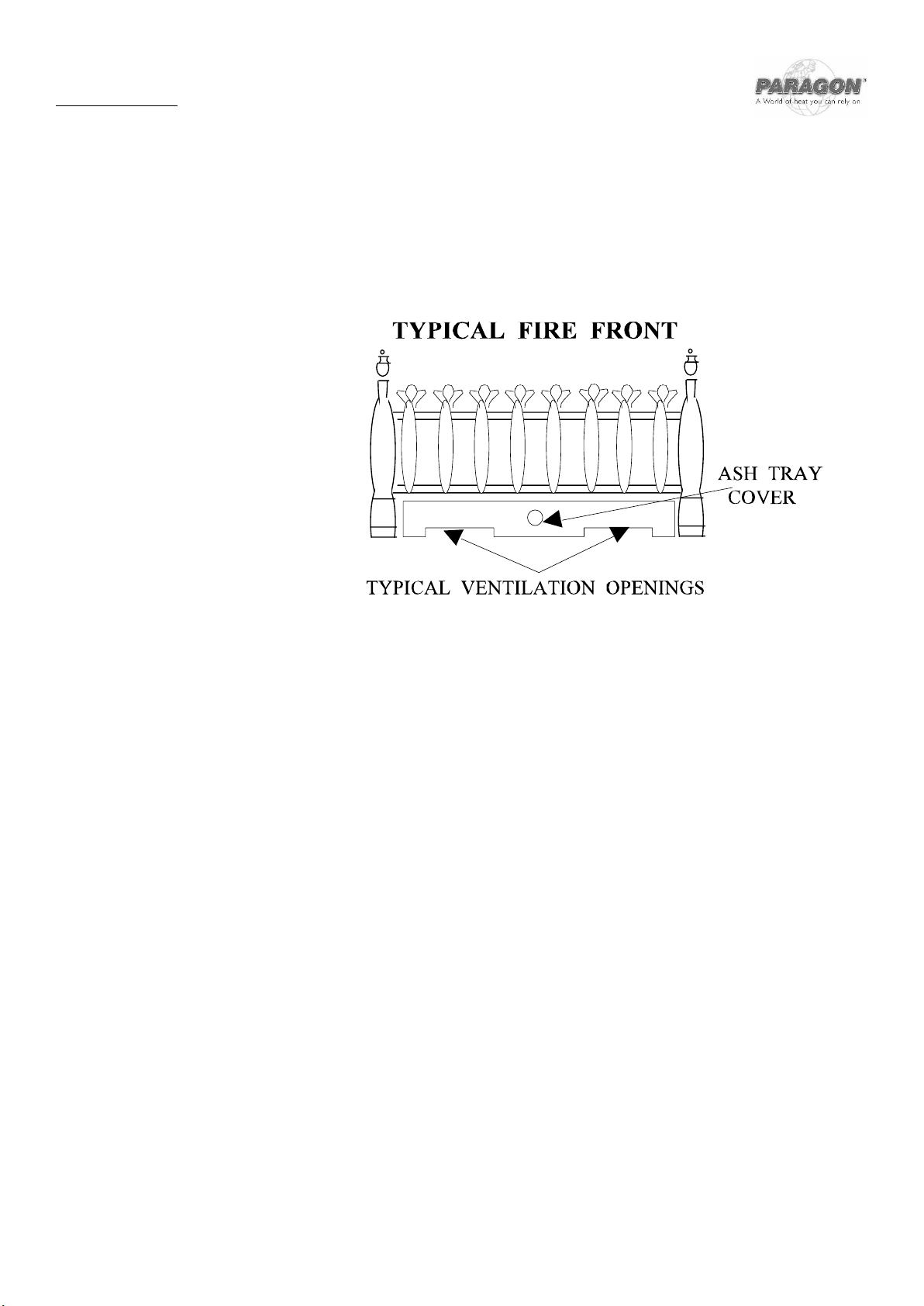

The design of the fire front (fret) must have a removable ashtray cover (lower section).
The ash tray cover must have cut-outs and or holes which provide ventilation to the underside of the burner.
The effective area of ventilation through the ash tray cover must be greater than 1365mm2 (2.12 sq. ins.)

14 LT5049 (ISS 2)
SECTION FIVE Specification (installation instructions)
NOTE! Low Lintel version fire box height is 497mm (551mm standard P2000+)
NATURAL GAS PROPANE GAS
Category of Appliance: BAS BAS
Category I2H I3P
Gas type: G20 G31
Gas Pressure: 20 mbar 37 mbar
Gas input high: 7.00 kW Gross 7.00 kW Gross
Gas input low: 2.40 kW Gross 2.40 kW Gross
Injector Main: Size 460 Size 135
Data Label Location: Frame of appliance on top RH corner behind trim (2000 Plus)
Lower L/H Flange of Appliance (2000 Plus Lo Lintle)
Gas Connection: 8 mm OD Tube
NOTE: The efficiency of this appliance has been measured as specified in BS7977-1 2009 and the result is 55.6% The gross calorific value of the
fuel has been used for this efficiency calculation. GASTEC have certified the test data from which it has been calculated. The efficiency value
may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings.

www.charltonandjenrick.co.uk 15 LT5049 (ISS 2)
SECTION SIX Regulations and Warnings
THIS APPLIANCE MUST ONLY BE INSTALLED IN THE GB OR IRELAND.
Only to be used in sufficiently ventilated room. Read instructions carefully before installation and use. The
appliance must be installed by a competent person, i.e. Gas Safe Registered Installer in accordance with the
current Gas Safety (Installation and Use) Regulations 1998 (as amended). Failure to do so could lead to
prosecution.
This PARAGON 2000 Plus SLIDE CONTROL is for use ONLY with the GAS STATED ON THE DATA BADGE this may be
G20 for Natural Gas or G31 for Propane Gas.
CHECK YOU HAVE THE CORRECT APPLIANCE FOR THE GAS YOU ARE USING.
It can be used in conjunction with the following chimneys: -
A conventional brick or stone chimney,
A pre-cast flue conforming to BS 1289 Pt. 1 or Pt. 2
A metal flue and box conforming to BS 715, further details are covered in later text.
A non-combustible hearth must be provided to comply with the building regulations or a suitable proprietary fire
surround with a 100 degrees C rating.
During initial firing an odour may be evident. This is the binder used during the manufacture of the fibre
components and there are no harmful effects produced.
The following are the relevant Codes of Practice and British Standards: -
BS 5871 BS 8303 1986 BS 5440 part 1 BS 6461 parts 1 & 2 1984
BS 6891 BS 715 1989 BS 1251 1987 BS 1289 part 1& 2 19861990
Note:- This appliance must be installed to current versions of the above standards and include any relevant
amendments.
The Building Regulations issued by the Department of the Environment
The Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Office.

16 LT5049 (ISS 2)
SECTION SEVEN Siting the Appliance (installation instructions)
The fire can be installed in the following flues and locations: -
CLASS ONE
A conventional brick or stone chimney as used for a solid fuel appliance with a typical effective cross-sectional
dimension of 225 x 225 mm (9 x 9 ins) or a lined flue with a minimum diameter of 125 mm (5 ins)

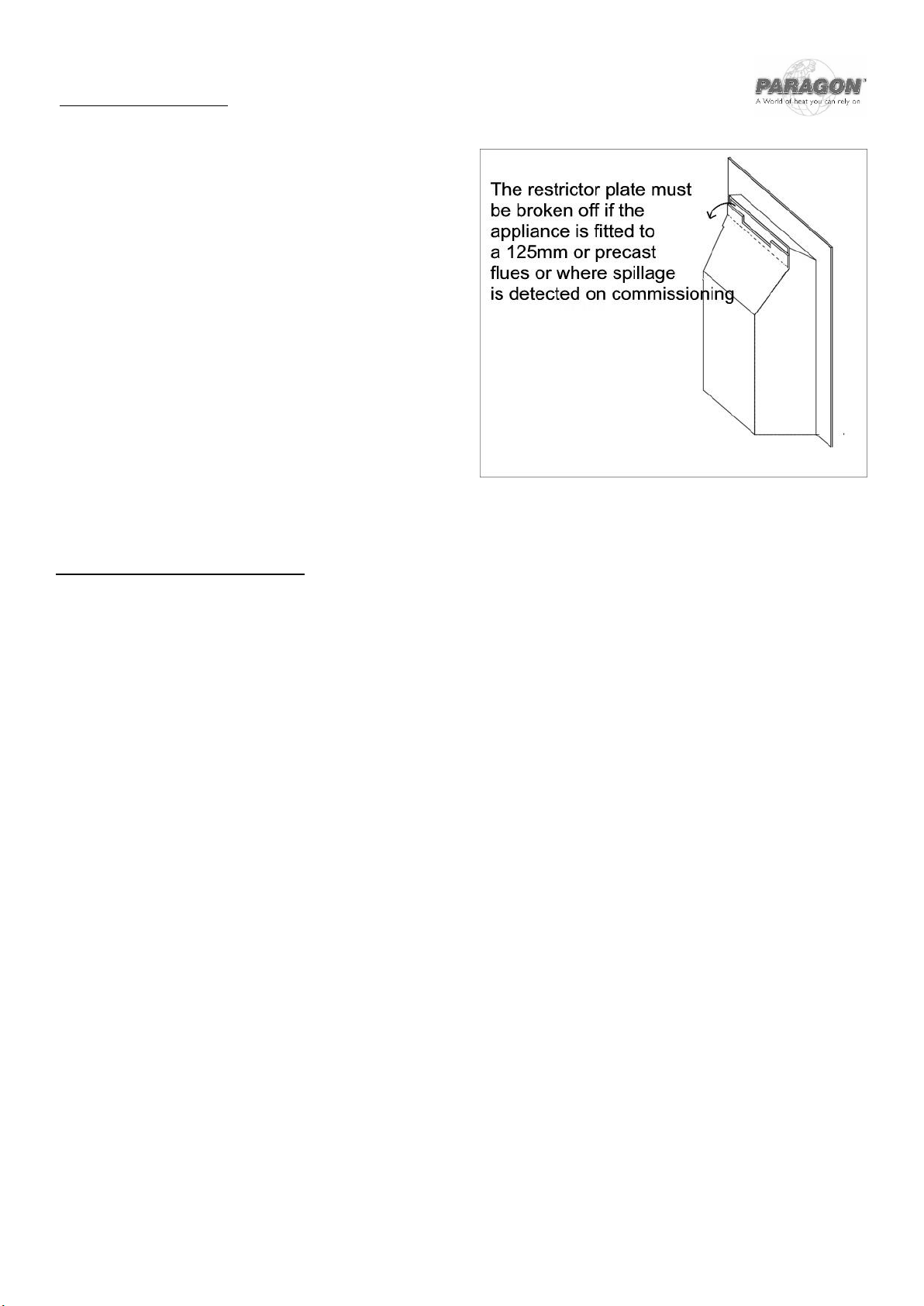

Note: The restrictor plate, which is separately packed, may be fitted to flue of 175mm (7") or greater. This being
subject to satisfactory product clearance.
NOTE :- LOW LINTEL OPENING HEIGHT IS REDUCED TO 500mm –526mm.
P2000 PLUS & P2000 PLUS EXTRA :- Fireplace opening must be 552 mm - 578 mm high by 380 mm –435 mm wide (or
up to 458 mm if the cable fixing system is used).
P2000 PLUS LOW LINTEL :- Low Lintel fireplace opening must be 500 mm –526 mm high by 380 mm –435 mm wide
(or up to 458 mm if cable fixing system used).
The opening depth must be a minimum of 215 mm to allow sufficient volume for debris collection (this depth may be
reduced to 185 mm if the chimney is new or has never been used for solid fuel or oil before).
To obtain this depth it may be necessary to remove the chairbrick.
Note: spacers are available in 20mm and 43mm to further reduce the opening depth if required (if a spacer is used
then the thickness of the spacer must be added to the minimum 300mm hearth depth to comply with regulations.
Any permanent flue restriction or variable dampers are to be removed or locked fully open.
The chimney should be swept prior to installation if not new.

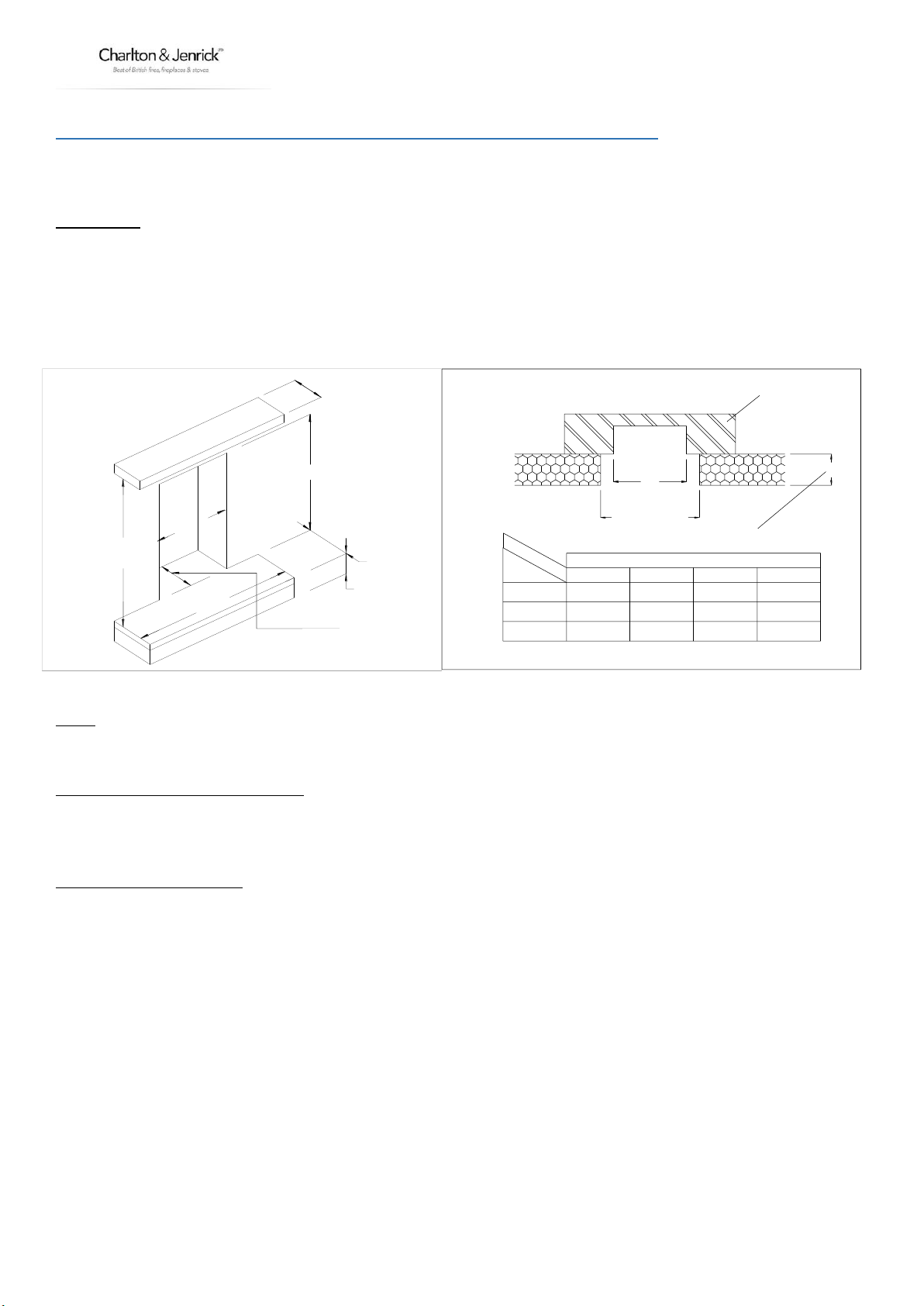

ALL DIMENSIONS IN mm PRE-CAST FLUE BLOCK
ADDITIONAL DEPTH INCLUDING PLASTER AND FIREPLACE
"A"
300
NONE
SPACER
20mm 30mm
94
80
74
60
64
50
"A" "X"
380mm - 435mm
3747
67320
310
"X" MINIMUM (INCLUDING PLASTER)
0
7
21
43mm
"A"
215 OR 185 MIN. IF FLUE AS NEVER BEEN
USED FOR SOLID FUEL
700 MIN.
WHEN"A"= 150
680 MIN.
552 MIN.- 578 MAX.
300 MIN.
50 MIN.
ALL DIMENSIONS IN mm
380 MIN.-435 MAX.

www.charltonandjenrick.co.uk 17 LT5049 (ISS 2)
CLASS TWO PRE-CAST
A pre-cast flue conforming to the requirements of BS 1289
part 1 & 2 A suitable fire resisting fire surround will be
required, spaced out to the correct thickness, between the
face of the flue blocks and the rear of the appliance frame.
IMPORTANT: - the flue restrictor plate must not be fitted
when the appliance is installed in this type of flue.
Note: An inspection should be made to ensure that the
internal walls of the flue are clear of mortar fangs. It is
recommended that the plasterwork should not be directly
bonded to the surface of the flue blocks, ensuring that
there is a small air gap between the flue blocks and the
wall surface. The fire can be installed with the plasterwork
being directly bonded to the flue blocks but there is a risk
of surface cracking occurring to the plaster above the
appliance.
CLASS TWO FABRICATED METAL
A double-walled or insulated metal flue box built to the requirements of BS 715 with an insulated flue having a
minimum diameter of 125 mm (5 ins) and a minimum effective overall height of 3 metres (10 ft).
IMPORTANT: - the flue restrictor plate must not be fitted when the appliance is installed in this type of flue.
Note: A brick or stone chimney with a 125 mm (5 ins) minimum diameter flue liner conforming to BS 715 may be
used. Provided a suitable sealing plate is fitted to the base of the liner and the appliance does not restrict the
opening into the liner.
Note: Dampers or register plates must not restrict any of the above flues. The flue must only service a single
appliance and not have any branches or traps, which may impede the natural draught. If a terminal is fitted it must
be suitable for the purpose.

18 LT5049 (ISS 2)
SECTION EIGHT Fireplace Requirements (installation instructions)
A flat face of 605 mm high x 500 mm wide must be provided around the fireplace opening for the fixing of the
appliance to ensure that a good seal is formed. The base of the fire opening must be flat to ensure sound fixing of
the appliance.
A non-combustible hearth must be provided beneath the appliance within the fireplace opening, a fire-resisting
hearth must also be provided symmetrically disposed about the fireplace opening a minimum thickness of 12 mm
with the perimeter 50mm above floor level. The width must extend a minimum of 150 mm either side of the
fireplace opening and a depth of 300 mm (+ thickness of spacer if a spacer is used).
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers, may
be used, or a suitable proprietary fire surround with a 100oC rating.
Hole in the Wall Installation
Please read these instructions carefully if you intend an Installation without a hearth.
This appliance must be installed in accordance with all relevant sections of approved document “J” of the building
regulations
It is recommended that a non combustible hearth extends a minimum of 300mm forward of the fire opening and a
minimum of 150mm either side, and that a rise exist at the front edge and sides of the hearth of a minimum of 50mm.
The fire may be installed so that its base sits on a surface of a fire opening at least 105 mm up from the floor (this is to
ensure that no flame or incandescent material is less than 225mm above the floor, a requirement of approved
document “J”). Where this is the case a means must be provided to support the fret this may typically be meet with a
small projecting hearth of minimum 100mm.Unless the fret is fixed to the appliance or is an integral part of the fascia
of the appliance.
Consideration should be given to the location of the appliance ensuring it is very visible and it should be positioned at
a height were it can clearly be seen on approach.
Frets, and Fascias used for HOLE in the WALL must be compliant with Paragon Fires CE approval; these are listed at
the end of this page.
Where the fire is fitted as a “Hole in the Wall” without a hearth the installer MUST ensure the appliance is fixed firmly
into the opening to ensure no movement takes place to the fuel bed when the appliance controls are operated.
The installer MUST ensure that the fuel bed is laid correctly and securely
The installer MUST advise the user that care should be taken when the appliance is in use to ensure occupants do not
get unnecessarily close to the appliance or position furniture or other appliances to close.
The installer MUST remind user of the requirement to fit a “secure fireguard” where the room is used by elderly, infirm
or young persons.
The installer MUST explain to the user that the area immediately in front of the appliance must always be keep clear
of combustible items other than the floor covering (which must be fixed)
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the manufacturers, may
be used, or a suitable proprietary fire surround with a 100oC rating.

www.charltonandjenrick.co.uk 19 LT5049 (ISS 2)
CLEARANCE TO SHELF
Minimum clearance from hearth to underside of combustible shelf should be 700mm provided shelf depth 150mm
or less. This height may be reduced to 640mm for a shelf depth of 100mm or less. ( Low Lintel 650mm for shelf of
150mm).
When the shelf depth is increased by increments of 12.5 mm greater than 150mm, add 25mm to the 700mm minimum
clearance.
CLEARANCE TO SIDES OF FIRE
Minimum width between vertical sides of combustible surround should not be less than 700mm provided fire is central
to surround and sides do not project more than 150 mm. When vertical side forward projection is increased by 12.5
mm add 50 mm to inside width of surround.
N.B. When fire is fitted this provides a minimum side clearance of 100mm.
Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration, e.g. many
embossed vinyl wall coverings may become discoloured if placed too close to the appliance.
VENTILATION
In the United Kingdom no special ventilation bricks or vents are required into the room containing the appliance,
provided normal adventitious room ventilation exists. The installer must satisfy this point by carrying out a mandatory
spillage test.
In the Republic of Ireland permanent ventilation must comply with the rules in force
SECTION NINE To Install the Appliance (installation instructions)
EXAMINE FLUE / CHIMNEY
Check that the flue/chimney conforms to the required specifications as previously stated. Examine the condition
and carry out any remedial work. If the flue/chimney has been used for solid fuel or oil, it should be swept prior to
appliance installation. A smoke test must be carried out to check that satisfactory smoke clearance has been
established. If all the smoke is not drawn into the flue, pre-heat the flue with a blowtorch or similar and re-check. If
there is any uncertainty examine for the cause and, if necessary, seek expert advice.
CONNECTING THE GAS SUPPLY
Determine where the gas supply is to be connected to the appliance. This may be done from the front of the unit
from either the left or right side, or a concealed fitting from the rear.

20 LT5049 (ISS 2)
PREPARING THE APPLIANCE FOR A GAS CONNECTION
If it is intended to be a concealed connection the 8mm supply should be positioned in the opening first.
The pipe should be positioned so that when the appliance is pushed back into the opening it enters the grommet
hole at least 180mm, taking into account the requirements of BS 6891 1988 dealing with enclosed pipes.
Note: pipe-work in the opening of the fireplace to the rear of the appliance must be suitably wrapped in accordance
with the regulations.
Taking great care grip the copper protective sleeve at
the end of the gas control spindle (DO NOT GRIP
SPINDLE IN ANY OTHER PLACE) as shown and remove
the screw from the end as shown above.
Ensure the spindle is pushed back inside the control
valve as far as possible. Ensure the bell crank
mechanism is swung up to give easy access to the
gas connection point as shown.
Cut a cross slit in the rubber grommet and feed the
appliance onto the 8mm-gas supply pipe. Position
the restrictor elbow supplied and mark supply pipe
at its cut off length. Remove appliance, cut pipe to
correct length, refit appliance and make gas
connection with restrictor elbow use 15mm A/F
spanner taking care not to apply any force to the gas
control spindle as above. Ensure the restrictor valve
is opened and its cap replaced tightly.
Check for gas soundness. Reconnect the bell crank
mechanism as above ensuring that the gas control
spindle is gripped only over the protective copper
sleeve and no other part of the spindle as, ensure
NO side strain is applied to the spindle.
