Inset Electric Fire
INSTRUCTION MANUAL
Valor Range
MODEL: LEX2/LEX3/LEX4
WARNING
Read and understand this entire owner's manual,
including all safety information, before plugging in
or using this product. Failure to do so could result in
fire, electric shock, or serious personal injury.
CAUTION
Keep this owner's manual for future reference. If you
sell or give this product away, make sure this manual
accompanies this product.

1. Important Safety Information…………………………………………………
1
2. Technical Specifications………………………………………………………
3
3. Parts And Hardware……………………………………………………………
4
4. Appliance Dimensions…………………………………………………………
6
5. Installation Instructions………………………………………………………
6
6. Operating Instructions…………………………………………………………
12
6a. Manual Control Panel……………………………………………………
1 3
6b. Remote Control…………………………………………………………
12
7. Maintenance……………………………………………………………………
18
8. Service Parts list…………………………………………………………………
19

1
1.1 Read all instructions before usingthis heater!
1.2 This heater is hot when in use. To avoid burns, DO NOT let
bare skin touch hot surfaces. If provided, use handles when
moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at
least 3 feet (0.9m) from the front of the heater and keep
them away from the sidesand rear.
1.3 Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
1.4 DO NOT operate any heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or
damaged in any manner. Disconnect power at service panel
and have heater inspected by a reputable electrician before
reusing.
1.5 INDOOR use only! NEVER use this heater outdoors! Doing
so may result in electricshock!
1.6 To disconnect heater, turn controls to off, and turn off power
to heater circuit at main disconnect panel.
1.7 DO NOT run power cord under carpeting. DO NOT cover
power cord with throw rugs, runners, or similar coverings.
DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will
not be tripped over.
1.8 DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening, as this may cause electric
shock or fire, or damage theheater.
1.9 To prevent a possible fire, DO NOT block air intakes or
exhaust in any manner.
1.10 A heater has hot and arcing or sparking parts inside. DO
NOT use it in areas where gasoline, paint, or flammable
liquids are used orstored.

2
1.11 Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury topersons.
1.12 ALWAYS plug heaters directly into a wall outlet/receptacle.
NEVER use with an extension cord or relocatable power tap
(outlet/power strip).
1.13 NEVER use this heater in bathrooms, laundry rooms, or
any other location where the heater could fall into a bathtub
or pool, become damp, or come in contact with water.
1.14 AVOID FIRE! Regularly inspect all air vents to make sure
they are free from dust, lint, or other blockage. Unplug the
unit and clean with a vacuum ONLY. DO NOT rinse or get
wet.
1.15 NEVER hang this unit on a wall directly below an electrical
outlet.
1.16 WARNING: DO NOT DEPEND ON THE ON/OFF SWITCH
THE SOLE MEANS OF DISCONNECTING POWER WHEN
SERVICING OR MOVING THE HEATER. ALWAYS UNPLUG
THE POWER CORD.
1.17 WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK---DO NOT USE THIS HEATER WITH ANY SOLID
STATE SPEED CONTROL DEVICES.
1.18 For residential use only! NOT for commercial use! Any
commercial or public use of this heater voids all warranties,
and could cause injury.
1.19 This product is not intended to be a primary heat source. It
is for supplemental heatonly.
1.20 Risk of electric shock! DO NOT OPEN! No user-
serviceable parts inside!
1.21 NEVER modify this heater. Doing so could result in
personal injury or property damage. Modification of this
fireplace completely voids allwarranties.
1.22 Turn off breaker at panel if hardwired, or remove wall plug if
applicable; Plug must not be covered turn this heater off

3
before unplugging it from the outlet.
1.23 ALWAYS disconnect this unit from the power supply
before performing any assembly or cleaning, or before
relocating the electric fireplace.
1.24 NEVER leave this heater unattended. ALWAYS unplug
this heater when not inuse.
1.25 ALWAYS store this heater in a dry location. NEVER use
the fireplace if it has becomewet.
1.26 ONLY use this heater on a 120V AC 15-Amp circuit.
NEVER overload the circuit. If this heater trips the circuit
breaker, unplug all other appliances on the same circuit
before the next use. Avoid plugging other appliances into
the same circuit as thisheater.
1.27 NEVER plug this heater into an outlet that is old, cracked,
or has any loose wires or connections. Plugging this heater
into a faulty outlet could result in electric arcing within the
outlet that could cause the outletto overheat or catch fire.
1.28 MAKE SURE the plug fits tight in the outlet! Faulty wall
outlet connections or loose plugs can cause the outlet to
overheat.
1.29 Heaters draw more current than small appliances.
Overheating may occur even if it has not occurred with the
use of other appliances.
1.30 During use check frequently to see if the plug outlet or
faceplate is HOT! If the outlet or faceplate is HOT,
discontinue use immediately and have a qualified
electrician inspect and/or replace the faultyoutlets.
1.31 This heater has a polarized plug (one blade is wider than the
other). As a safety feature to reduce the risk of electrical shock,
the plug is intended to fit in a polarized outlet only one way. If
the plug doesn't fit, contact a qualified electrician. Do not
attempt to defeat this safety feature.
SAVE THESE INSTRUCTIONS!

4
Model
Power
LEX2
40.1W
LEX3
48.1W
LEX4
50.1W

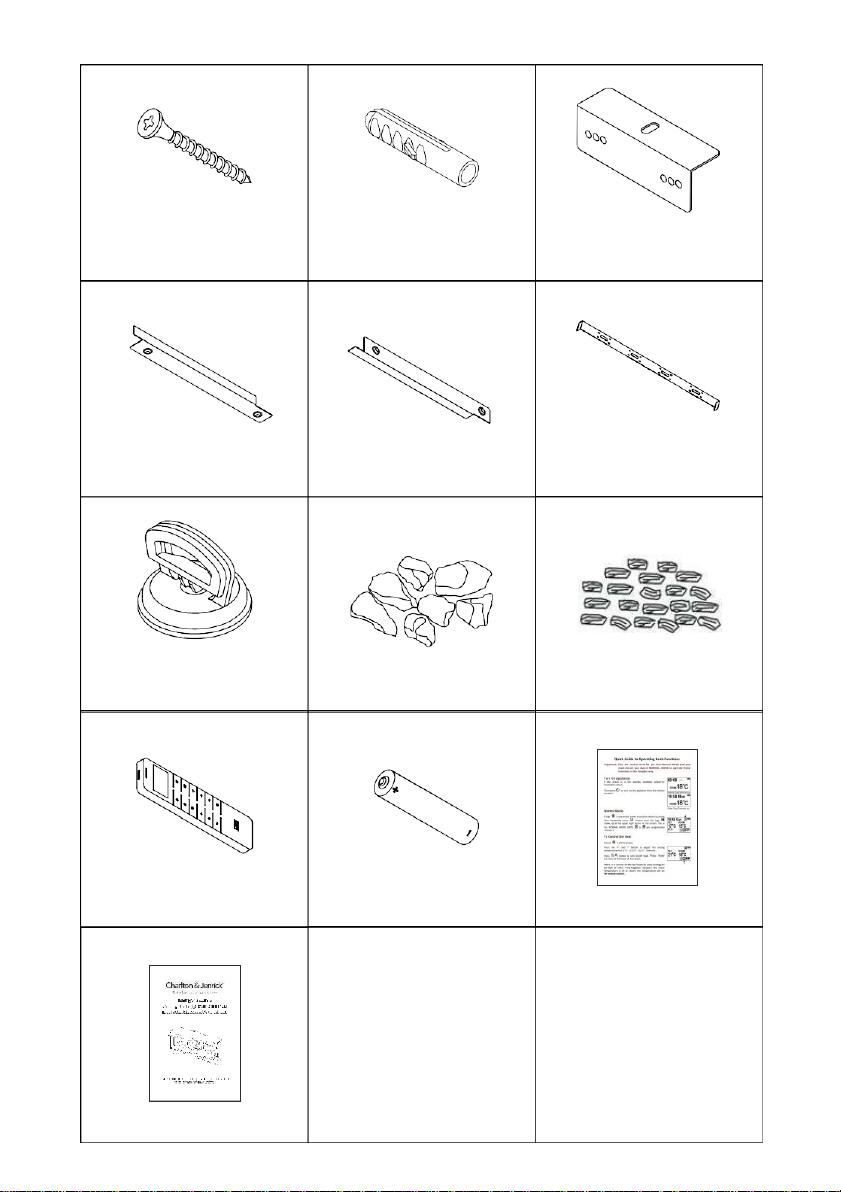

A.
B.
C.
Firebox (1pc)
ST4*8 Screw (5pcs)
ST5*40 Screw (18pcs)
Model No. : LEX2/LEX3/LEX4 Supply
Voltage: AC 120V 60Hz
Maximum power consumption: 1500W
Power for flame and fuel bed effect:
Power for mood light: DC12V 9W 0.75A
Heat Output:
Nominal heat output (Pnom): 1500W
Minimum heat output (indicative) (Pmin): 750W
Maximum continuous heat output (Pmax): 1500W
Auxiliary Electricity Consumption:
At minimum heat output (elmin): 12W
In standby mode (elSB): 0.49W
3.1 Unpack the fire carefully and make sure that the appliance is intact with no
signs of damage caused by transport and no part has been exposed to
water. If in doubt, do not use the appliance and contact your retailer.
3.2 Keep plastic wrapping away fromchildren.
3.3 Save the original packaging as this may be required in the event of service
complaint with product.
3.4 Check that all parts are removed from the packing.

5
D. E. F.
ST4*40 Screw (4pcs) Wall Plug (18pcs) Lower Brackets (2pcs)
(To be used when the wall
hanging bracket(I) is used)
G. H. I.
Edging Strips (2pcs) Edging Strips (2pcs)
Wallhangingbracketis
attached onfirebox (1pc)
Remove from theappliance
ifyou arenotfixingtowall
J. K. L.
Suction Cup
LEX2 (1pc)
LEX3/LEX4
(2pcs)
Black Ember Glass
(1set)
Vermiculate (1set)
M. N. 0.
Remote Control (1pc) AAA (R03) Battery
(2pcs) Simplified Instruction (1pc)
P.
Instruction (1pc)

6
A
B
E G
F
Unit: Inch
Model
A
B
C
D
E
F
G
H
LEX2
49 3/16’’
50 3/8’’
15 13/16’’
22 1/16’’
8 7/16’’
11 13/16’’
9/16’
’
3 1/8’’
LEX3
59 1/16’’
60 1/4’’
15 13/16’
22 1/16’’
8 7/16’’
11 13/16’’
9/16’
’
3 1/8’’
LEX4
70 7/8’’
72 1/16’’
15 13/16’’
22 1/16’’
8 7/16’’
11 13/16’’
9/16’
’
3 1/8’’
5.1 PREPARATION BEFORE INSTALLATION
Tools Required
A screwdriver, a spirit level and drill will be needed.
Prepare the Appliance
Your new electric fireplace may be installed virtually anywhere in your home.
However, when choosing a location, ensure that the general instructions are
followed:
⚫For best result, install out of direct sunlight, water or very damp air.
⚫The appliance should be connected to a grounded electrical outlet and it
must be easily accessible to allowdisconnection.
Connect the mood light cable
Note: mood lights are not included with this appliance

7
The interface of the mood light cable is on the top of the appliance, near the
position of the power cord. Please also check the function after connecting the
mood light.
N o t e : compatible mood light devices are available from Valor Electric Fire
and their dealers. Other brands may not be suitable and void the
warranty.
Connecting the Power Supply
The power connection can be made with the 2m Mains Cable provided or
alternatively it can be hard wired by unscrewing and removing the Access Plate,
the Mains Cable and retention grommet. The access plate can be repositioned
so that the 22mm hole sits over the cutout in top of appliance.
The 22mm hole can be used to fix a conduit connector so that the appliance can
be hard wired.
Mood light
connection cable
Supply access
plate
Mains cable
Remove the access plate and the
power cable.
It will look like this when ready for
hard wiring.
Neutral
Ground
Live
Insert the hard wires from the big hole
of access plate and use the screw
driver to connect the hard wire. Every
hole corresponds to a wire (neutral, live
and ground). Make sure it is wired
correctly.
Fix the access plate back tightly and
save the power cord for future use.
Preparing the casing
The appliance can be installed in 3 different arrangements. They are as follows:

8
Front view (only the front window is visible)
When you unpack the appliance, you will notice that the side panels have been
fixed on the appliance, which makes the appliance visible on only one front side.
Front and one side view (the front and one of the side windows are visible)
Front and two sides view (the front and both sides windows are visible)
Remove the side panels from the ends you want to view to enable dual or triple
aspect as required .Then fix the edging strips using the screws taken from the
removal of the side panel(s)
Removing the front glass panel
⚫Remove the 2c/s screws and remove the glass retaining strip as shown
below.
⚫Use a suction cup(s) provided to support the middle of the glass panel
and lift the panel upwards and pull it forwards at its lower edge. Carefully
lift glass away as shown below.

9
Framing Plate
5.2 Installing the Appliance
The following is only given as a general guide because it can be installed in so
many ways. Provided you ensure electric connections are safely made in
accordance with the codes, various materials can be used for the framework and
cladding. Ensure the framing and wall finish are self- supporting and do not rely
on the appliance to support framing or wall finish. Consideration should be made
to soften internal surface of cladding to minimize the amplification of noise using
for example mineral wool of similar.

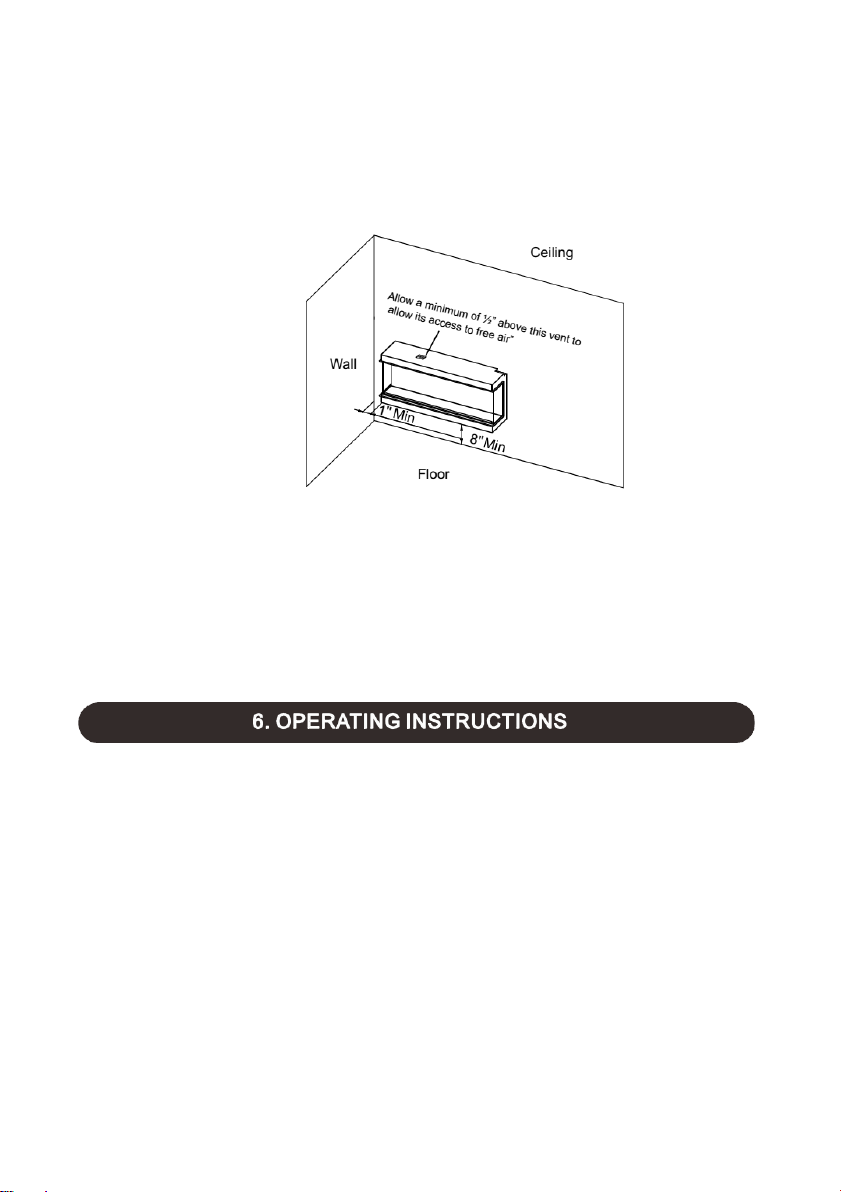

Flush Mounted Installation
Prepare the framework as a general guide only see picture below
NOTE: Ensure a firm flat positioning of the appliance and secure fixing to
avoid vibration and movement of the appliance after cladding.
⚫Push the appliance into the framework and bend out the four brackets on
the upper and lower edges of the appliance, so they can fix with the screws
provided to the framework.
Model
OW
OH
LEX2
49 5/8’’
22 5/8’’
LEX3
59 7/16’’
22 5/8’’
LEX4
71 1/4’’
22 5/8’’
Unit: Inch

10
Model M
LEX2 25 1/2’’
LEX3 39 3/8’’
LEX4 47 1/4’’
⚫Cladding the framework. Note: Hard surfaces can amplify sound.
Consider adding some underlay or similar to the inside surface of the
cladding.
Wall mounted installation
⚫Remove the wall bracket from the rear of the appliance, and place it
horizontally against the wall. Using the wall as a template, mark the hole
position as shown in the figure below.
Unit: inch
⚫Mark the position for lower brackets. Drill holes and using wall plugs
prepared for the fixing of lowerbrackets.
x18
x18
7 5/16”
1 3/8”
Wall
Floor

11
⚫Mount the appliance carefully on the hooks of the wall bracket, secure the
appliance to the wall bracket with the screws provided one into each end.
⚫Use four screws to fix the bottom brackets to the corresponding holes on
the underside of appliance adjusting the brackets position to ensure the
appliance is plumb with the wall. Fix brackets to holes previously prepared.
Unit: inch
Laying the Fuel Bed
Lay the Glass Embers evenly over the fuel bed filter sprinkle the
Vermiculite into the gaps between the Glass Embers.
Refer to the individual instruction to lay your chosen fuel bed this is included in
the fuel bed carton.
WARNING!
Do not operate the appliance if it is damaged or malfunctions. If you
suspect the appliance is damaged or malfunctions, call a qualified
service engineer to inspect the appliance, and replace any part of the
electrical system if necessary, before reusing.
WARNING!
To reduce the risk of fire, keep textiles, curtains, or any other flammable
material a minimum distance of 1 meter from the air outlet.
MAKE SURE the plug fits tight in the outlet. Faulty wall outlet connections or
loose plugs can cause the outlet to overheat.
Do not disconnect the power at the mains supply whilst the appliance is running.
Use the functions on the remote to turn the fire off and ensure the mains switch
has been moved to the off position before disconnecting.

12
PREPARATION BEFORE USE
6.1 The appliance can be operated by both remote control and the manual
controls on the appliance.
NOTE: To use both remote and manual functions, the manual on/off switch
must be in 'ON' position. In order to prevent the product becoming too hot,
there is 10s delay when turning on the heater and a 10s delay when turning
off the heater fan.
Batteries
Ensure that the remote controls batteries are new and inserted correctly.
Main Power Switch
6.2 The mains power switch is located on the control panel located on the
upper side of the heateroutlet.
6.3 Press the Main Power Switch to ON (—) before operating either the
remote or manual controls buttons.
6.4 A long beep is heard to indicate the fire is ready for use.
NOTE: The manual buttons are on the front right side of the appliance
which just control basic functions, not a full range of controls. Use the
remote controls to carry out all functions.
Flame Setting Button
Lights ON/OFF Button
Heater Running Indicator
Reset Button for
Remote Control
Fuel Bed Button
Main Power Switch
ON/OFF
RESET
LIGHTS FLAME FUEL
ON/OFF BED
6a.1 MAIN SWITCH: Press “ ”to turn on the appliance ;Press “o”to turn off it.
6a.2 LIGHTS ON/OFF: Press button LIGHTS ON/OFF to turn on/off flame 、
downlight fuel bed and mood light.
6a.3 FLAME: Press button FLAME to select 3 kinds of flame effect and OFF setting
.If the flame was turned off by pressing button LIGHTS ON/OFF and the flame
was not at OFF, the current flame effect will be memorized. Otherwise, if the
flame was at OFF, press button Flame to turn on the default setting.

13
6a.4 FUEL BED: Press button FUEL BED to select 14 kinds of fuel bed effects
and OFF setting. If the fuel bed was turned off by pressing button LIGHTS
ON/OFF and the fuel bed was not at OFF, the fuel bed effect will be
memorized. Otherwise, if the fuel bed was at OFF, press button Fuel bed
to turn on the default setting.
Temperature Sensor Convection
Display
Mode
Heating/Advance
Power
Flame Effect
Fuel Bed
Timer in Normal
Mode
Mood Light
Timer and Week
Advance
Timer Mode
Battery Power
Actual Room
Temperature
Heating Period
Temperature Set
NOTE: This is a thermostatic remote control. The remote should be in the
same room as the fireplace and placed on a flat surface. It senses the room
temperature, so it must not be placed in a position that allows the
appliance hot air to blow on it and affect the thermostatic reading.
The communication frequency between the appliance and remote has
already been set up. If you have difficulty with the remote communicating
with the appliance, please follow instructions Step 6b.36.
Standby for Remote Controls

14
6b.1 The screen shown to the right is when the remote
controls is in standby mode .
Turn on/off
6b.2 Press to turn on/off the appliance.
Flame Effect
6b.3 Press to enter the flame effect adjustment
screen.
6b.4 Press the ' ' and ' ' button to select 3
different flame colors.
6b.5 Press the ' ' and ' ' button to select 5 levels
of brightness and OFF setting.
Fuel Bed
6b.6 Press to enter the fuel bed adjustment screen.
6b.7 Press the ' ' and ' ' button to select 14
different fuel bed colors (the fourteenth is the color
cycle mode).
6b.8 Press the ' ' and ' ' button to select the 5
levels of brightness and OFFsetting.
Mood Light
Note: If mood lights are not connected, please
ensure the brightness is set to zero.
6b.9 Press to enter the mood light adjustment
screen.
6b.10 Press the ' ' and ' ' button to select 14
different mood light colors( the fourteenth is the
color cycle mode).
6b.11 Press the ' ' and ' ' button to select 5
levels of brightness and OFFsetting.
Normal Mode
6b.12 Normal control mode is factory set. If it is not,
then press button until the logo shows
up at the upper right cornerof the screen.
6b.13 Press the ' ' and ' ' button to adjust the
Before Day/Time Set Up
After Day/Time Set Up
temperature from 17 to 25 .
6b.14 Press button to turn on/off heat, ON、OFF
will show at the lower of thescreen.

15
NOTE: It is normal for the fan heater to stop
running for periods of time. This happens
because the room temperature is at or above
the temperature set on the remote control. The
heater indicator will be turned off after 10s if
you have the flame ON. The heater indicator will
stay ON if you use the heating function only.
Count Down Timer
NOTE: This setting is only for operating in normal
mode. It allows the appliance to go into standby
after a set period.
6b.15 Press to cycle through the settings from
0.5 hours to 9 hours, and then OFF. The timer logo and
time will show on the screen.
The heater must be in ON position.
The heater can be automatically run by using daily
timer and weekly timer on the remote.
Set up Day, Time and Comfort temperature.
6b.16 Press to turn on the remote handset. Hold
the button for 3 seconds to enter the setting
screen.
6b.17 Press the ' ' and ' ' button to choose Day,
Time or your comfortable temperature. your
selection will behighlighted.
6b.18 Pressing the ' ' and ' ' button will adjust
the number.
⚫Time: 24-hour system
⚫Select your comfortable temperature from 15- 2
5
⚫Temperature unit:
Daily Timer Heating
6b.19 The following are preset heating periods, which can
be altered if you want.
06:00 until 08:30
17:00 until 22:00

16
6b.20 Press until shows at the upper right corner
of the screen, then enter the daily timer heating
mode.
6b.21 Hold the button for 6 seconds to enter the
daily timer setting. Up to 3 heating start time
periods can beset.
⚫Press ' ' or ' ' to choose hour or minute,
press ' ' or ' ' to set the time.
⚫Minute will increase/decrease by 15 minutes per
press.
⚫Hold for 3 seconds or wait for 10 seconds to
save and exit the heating timesetting.
6b.22 Adjust the set temperature
Press the ' ' or ' ' button to increase or
decrease the temperature to suit your comfort
temperature setting.
ECO means 2 lower than your comfortable
temperature setting,
ECO- means 4 lower,
COMF+ means 2 higher,
COMF++ means 4 higher.
6b.23 To check your daily timer settings, press .
6b.24 If heating needs to be turned off, it will be necessary
to go back to the Normal Mode to turn off.
Weekly Timer Heating
6b.25 The following are preset heating periods, which can
be altered if you want.
From Monday to Friday
06:00 until 08:30
17:00 until 22:00
From Saturday to Sunday
06:30 until 09:30
11:00 until 13:00
17:00 until 22:00
6b.26 Press until shows at the upper right corner
of the screen, then enter the weekly timer heating
mode.

17
6b.27 Hold button for 6 seconds to enter the weekly
timer setting.
⚫Press ' ' or ' ' to move the cursor (a flashing
underline), press the button in the corresponding
week position to select (the character is highlighted)
or cancel (the character is displayed normally) the
current setting. Several days can be selected
together.
⚫Press the ' ' button to move the cursor to the
time period setting area. Press ' ' or ' ' to
choose hour or minute, press ' ' or ' ' to set
the number.
⚫Up to 3 heating start time periods can be set.
⚫Minute will increase/ decrease by 15 minutes per
press.
⚫Press the to set the heating time for the selected
day and return to the week line.
⚫Hold for 3s or wait for 10s to save and exit the
heating time period setting.
6b.28 Press , ' ' and ' ' to check your weekly
timer settings.
6b.29 If heating needs to be turned off, it will be necessary
to go back to the Normal Control Mode to turn off.
Advance Mode
6b.30 Under the daily and weekly timer mode, Press:
6b.31 To turn the heater off when the heater is on
during preset heating periods.
6b.32 To turn the heater on when the heater is off
during preset heating periods.
Adaptive Start Control
6b.33 Learning from the previous heating cycle
enables the appliance to judge the appropriate
advance time to turn on the heater to ensure that
the set temperature is reached at the set time. For
example, if your timer is set to start at 18:00 and
temperature is set to 23°C, the fire may for
example come on at 17:30 to ensure the room is
23°C at 18:00.
